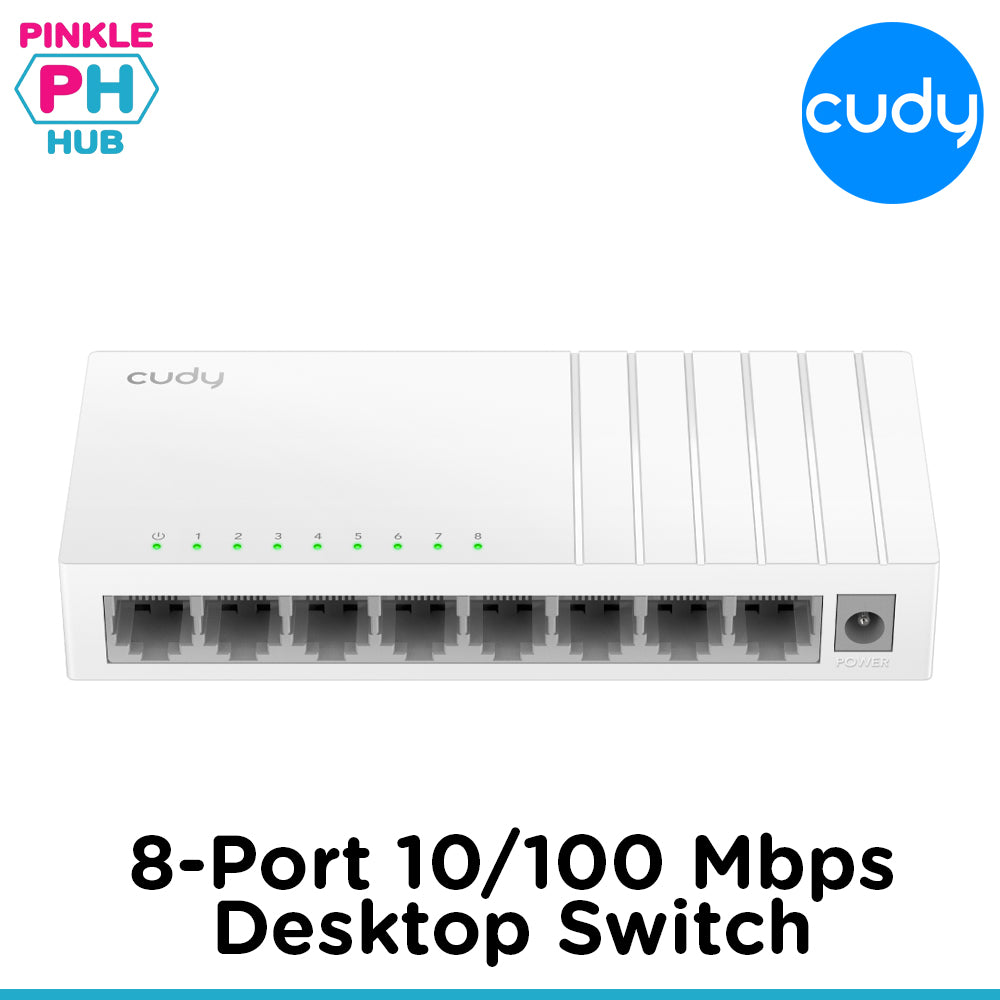

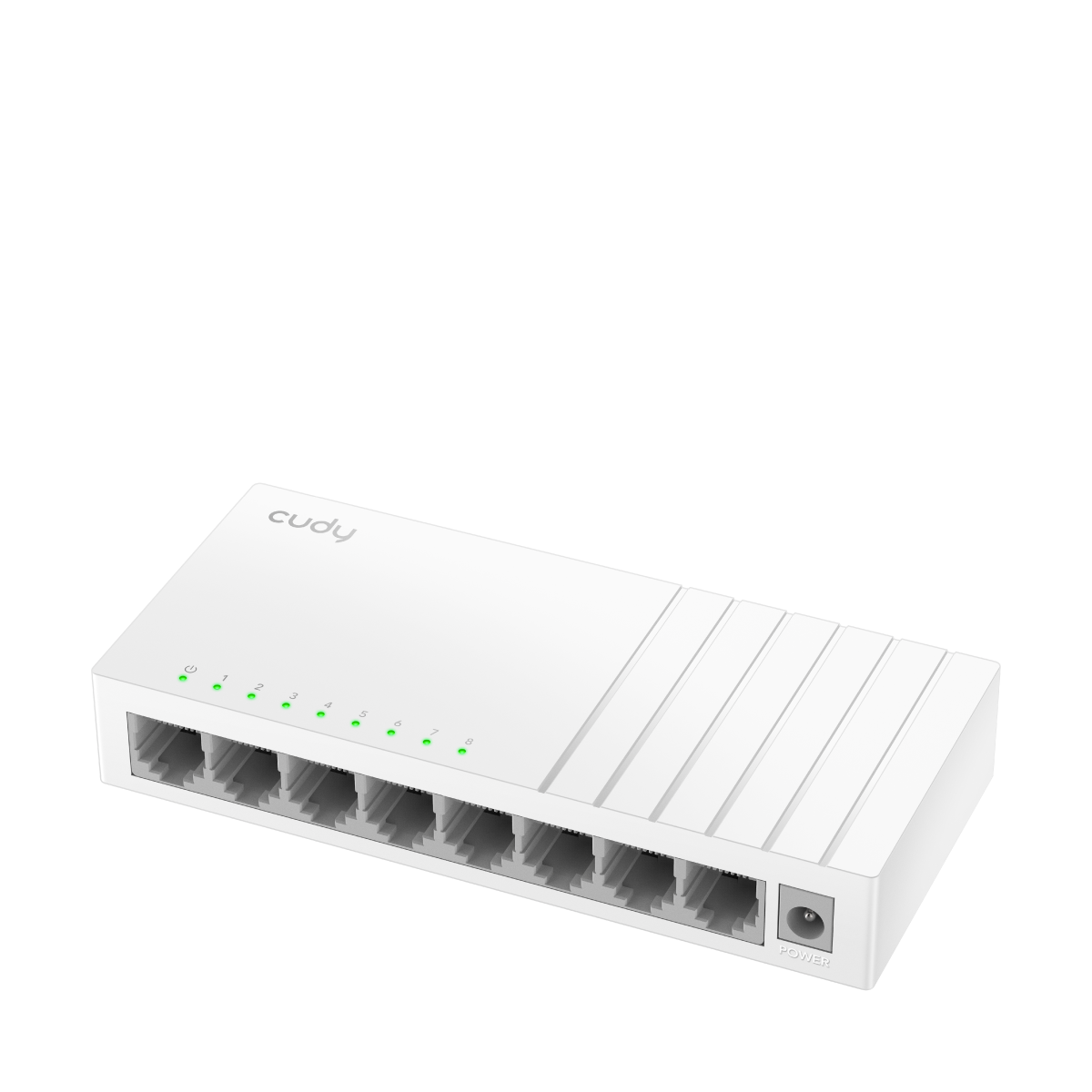

Cudy 8-Port 10/100 Mbps Desktop Switch

Brand : CUDY

SKU: SKU:  FS108D

5 in stock

Regular price ₱450.00
Regular price Sale price ₱450.00
Sale! Sold out
Model Version FS108D 3.0
Interfaces 10/100 Mbps RJ45 Ports 8
Buttons and LEDs LED
  • Power
  • Link/ACT of Each Ethernet Port
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
MAC Address Table 512
VLANs 2048
Max Switching Capacity 1.6 Gbps
Max Forwarding Rate 1.1904 Mpps
Packet Buffer 448 Kbit
Power Power Input Type DC Jack
Basic Power Saving
Power Methods DC
Power Input 5V⎓0.55A
Power Adapter in the Box Input: 100-240V~, 50/60Hz
Output: 5V⎓0.55A
Max Power Consumption 1W
Idle Power Consumption 0.25W
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
Ethernet
  • Full Duplex
  • Half Duplex (CSMA/CD)
  • Auto-Negotiation
  • Auto MDI/MDIX
Forwarding Method Store-and-Forward
Reliability MTBF >200,000 h
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical Dimension 138×61.5×24 mm
5.43×2.42×0.94 inches
Product Weight 81 g (2.86 oz.)
Casing Material Plastic
Installation
  • Desktop
  • Wall-mount

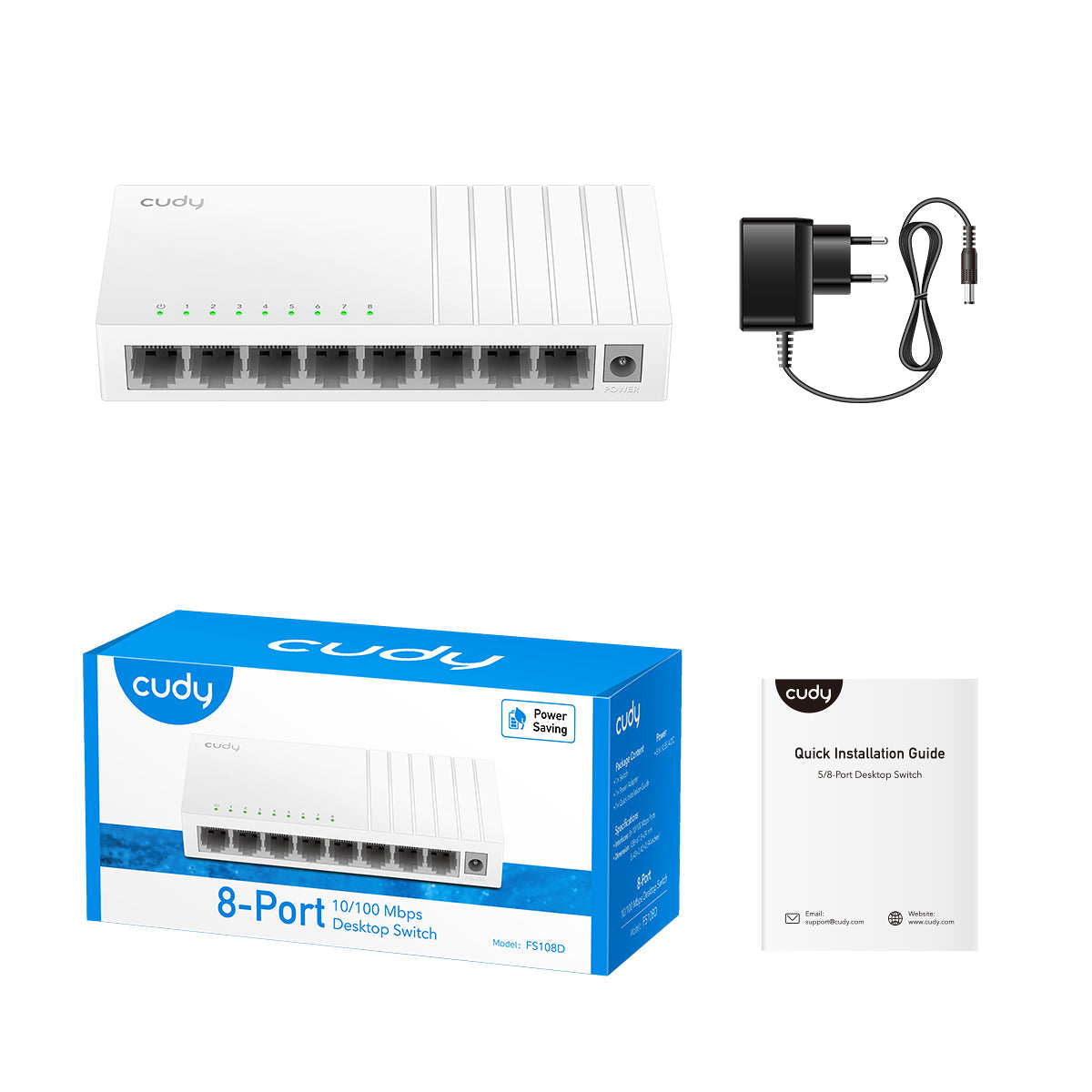

Package Content
  • FS108D
  • Power Adapter
  • Installation Guide
Ordering Information Retail Package Dimension
  • EU/US:
    151×75×63 mm
    5.94×2.95×2.48 inches
  • UK:
    151×75×81 mm
    5.94×2.95×3.19 inches
Retail Package Weight
  • EU: 191 g (6.74 oz.)
  • UK: 227 g (8.01 oz.)
  • US: 193 g (6.81 oz.)
Units per Carton
  • EU/US: 50
  • UK: 50
Carton Net Weight
  • EU: 9.5 kg (20.94 lbs)
  • UK: 11.4 kg (25.13 lbs)
  • US: 9.6 kg (21.16 lbs)
Carton Gross Weight
  • EU: 10.25 kg (22.6 lbs)
  • UK: 12.2 kg (26.9 lbs)
  • US: 10.4 kg (22.93 lbs)
Carton Dimension
  • EU/US: 33×31.7×39.5 cm
    12.99×12.48×15.55 inches
  • UK: 43×32.5×40 cm
    16.93×12.8×15.75 inches
