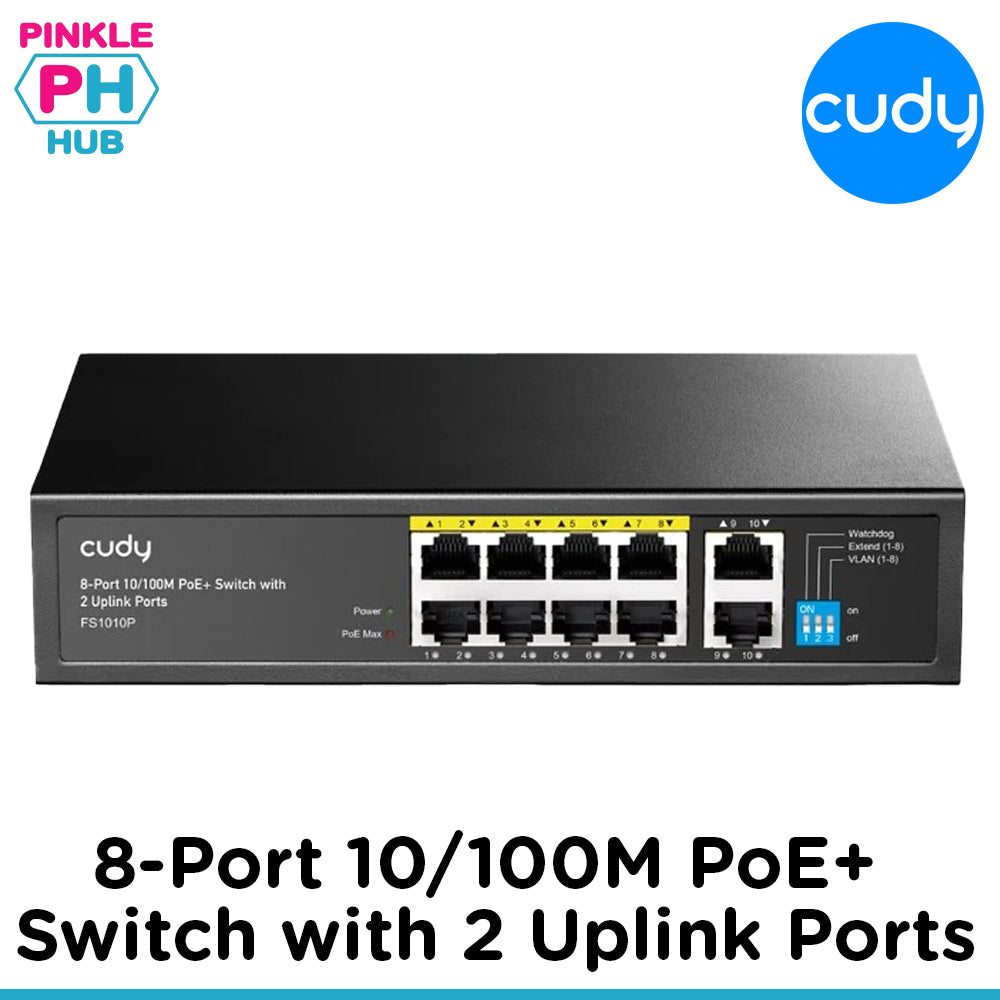

Cudy 8-Port 10/100M PoE+ Switch with 2 Uplink Ports

Brand : CUDY

SKU:  FS1010P V3.0

3 in stock

₱2,015.00
₱2,015.00
Sale! Sold out
Model Version FS1010P 3.0
Interfaces 10/100 Mbps RJ45 Ports 10
10/100 Mbps RJ45 PoE Ports #1~#8
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.
Shielded RJ45 Port
Extend Mode Ports #1~#8
VLAN Mode Ports #1~#8
Buttons and LEDs LED
  • Power
  • Link/ACT of Each Ethernet Port
Physical Buttons
  • Extend On/Off
  • VLAN On/Off
  • PoE Watchdog On/Off
Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
MAC Address Table 2048
VLANs 2048
Max Switching Capacity 2 Gbps
Max Forwarding Rate 1.488 Mpps
Jumbo Frame 2 KB
Packet Buffer 768 Kbit
Power Power Input Type AC Inlet
Power Methods AC
Power Input 100-240V~ 50/60Hz
Power Supply 120W
Max Power Excluding PoE 2W
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
Ethernet
  • Full Duplex
  • Half Duplex (CSMA/CD)
  • Auto-Negotiation
  • Auto MDI/MDIX
Forwarding Method Store-and-Forward
PoE Management Intelligent Power Management
Reliability MTBF >200,000 h
Grounding Methods
  • Three-Prong Plug
  • Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
Mechanical Dimension 200×118×44 mm
7.87×4.65×1.73 inches
Product Weight EU: 642.0 g (22.65 oz.),ZH: 643.7 g (22.71 oz.)
Casing Material Metal
Installation
  • Desktop
  • Wall-mount

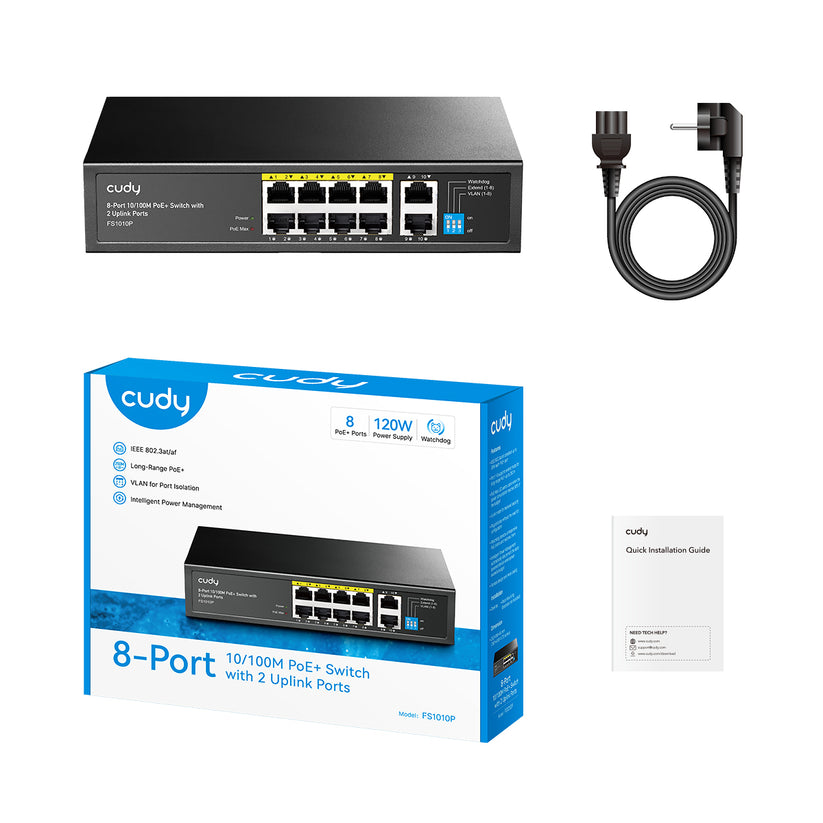

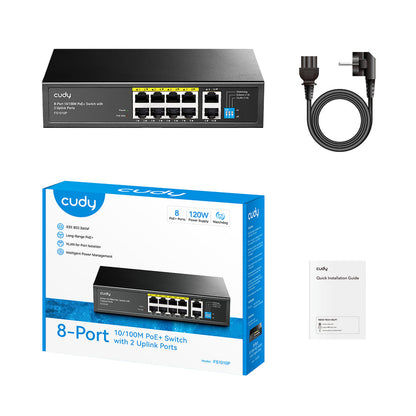

Package Content
  • FS1010P
  • Power Cord
  • Installation Guide
Ordering Information Retail Package Dimension 249×207×60 mm
9.8×8.15×2.36 inches
Retail Package Weight
  • EU: 1022.5 g (36.07 oz.)
  • ZH: 1014.7 g (35.79 oz.)
Units per Carton 16
Carton Net Weight
  • EU: 16.4 kg (36.16 lbs)
  • ZH: 16.2 kg (35.71 lbs)
Carton Gross Weight
  • EU: 17.3 kg (38.14 lbs)
  • ZH: 17.2 kg (37.92 lbs)
Carton Dimension 51.4×42.9×27.2 cm
20.24×16.89×10.71 inches
