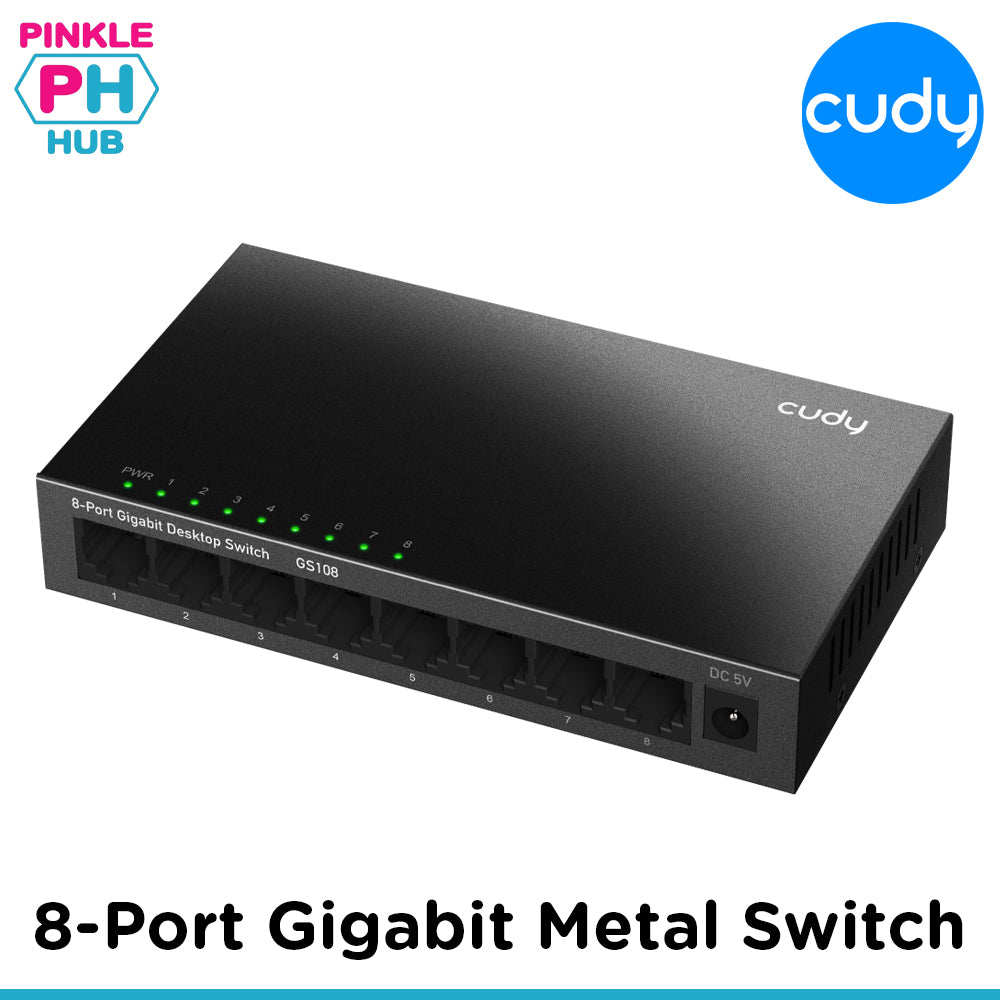

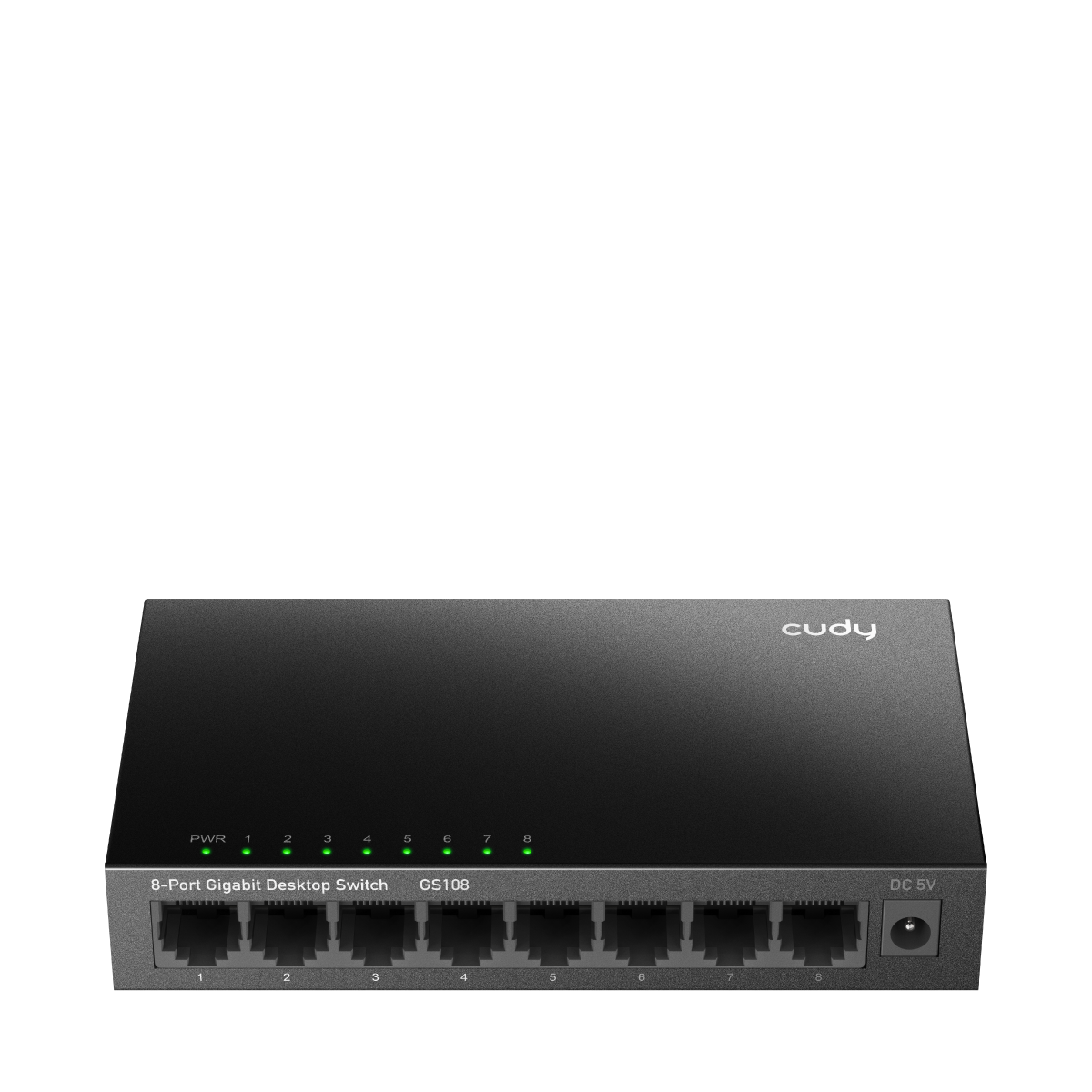

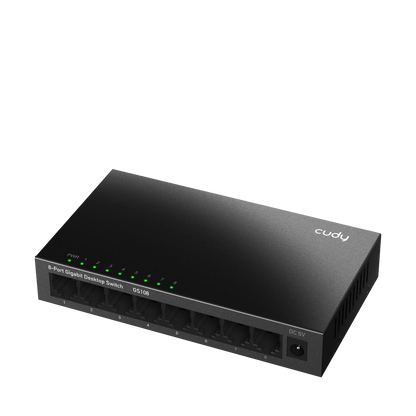

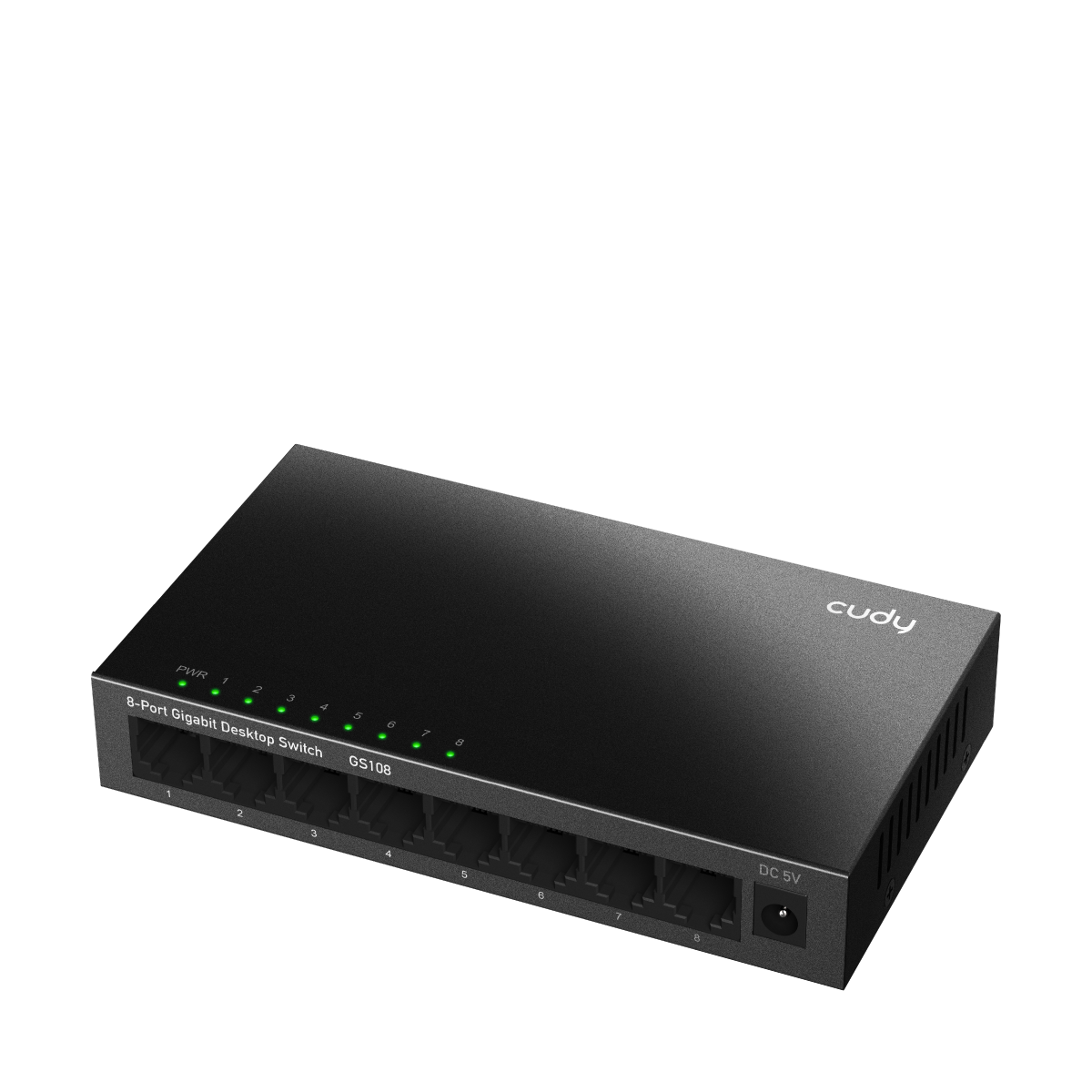

Cudy 8-Port Gigabit Metal Switch

Brand : CUDY

SKU: SKU:  GS108

5 in stock

Regular price ₱1,300.00
Regular price Sale price ₱1,300.00
Sale! Sold out
Model Version GS108 4.0
Interfaces Gigabit RJ45 Ports 8
Buttons and LEDs LED
  • Power
  • Link/ACT of Each Ethernet Port
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 170 meters at Gigabit
MAC Address Table 8192
VLANs 4096
Max Switching Capacity 16 Gbps
Max Forwarding Rate 11.904 Mpps
Jumbo Frame 15 KB
Packet Buffer 4 Mbit
Power Power Input Type DC Jack
Basic Power Saving
Power Methods DC
Power Input 5V⎓0.55A
Power Adapter in the Box Input: 100-240V~, 50/60Hz
Output: 5V⎓0.55A
Max Power Consumption 2.75W
Idle Power Consumption 2.2W
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
Ethernet
  • Full Duplex
  • Half Duplex (CSMA/CD)
  • Auto-Negotiation
  • Auto MDI/MDIX
Forwarding Method Store-and-Forward
L2 Features
  • IGMP Snooping
  • Loop Prevention
  • Loop Detection
Reliability MTBF >200,000 h
EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical Dimension 138×78×25 mm
5.43×3.07×0.98 inches
Product Weight 211 g (7.44 oz.)
Casing Material Metal
Installation
  • Desktop
  • Wall-mount

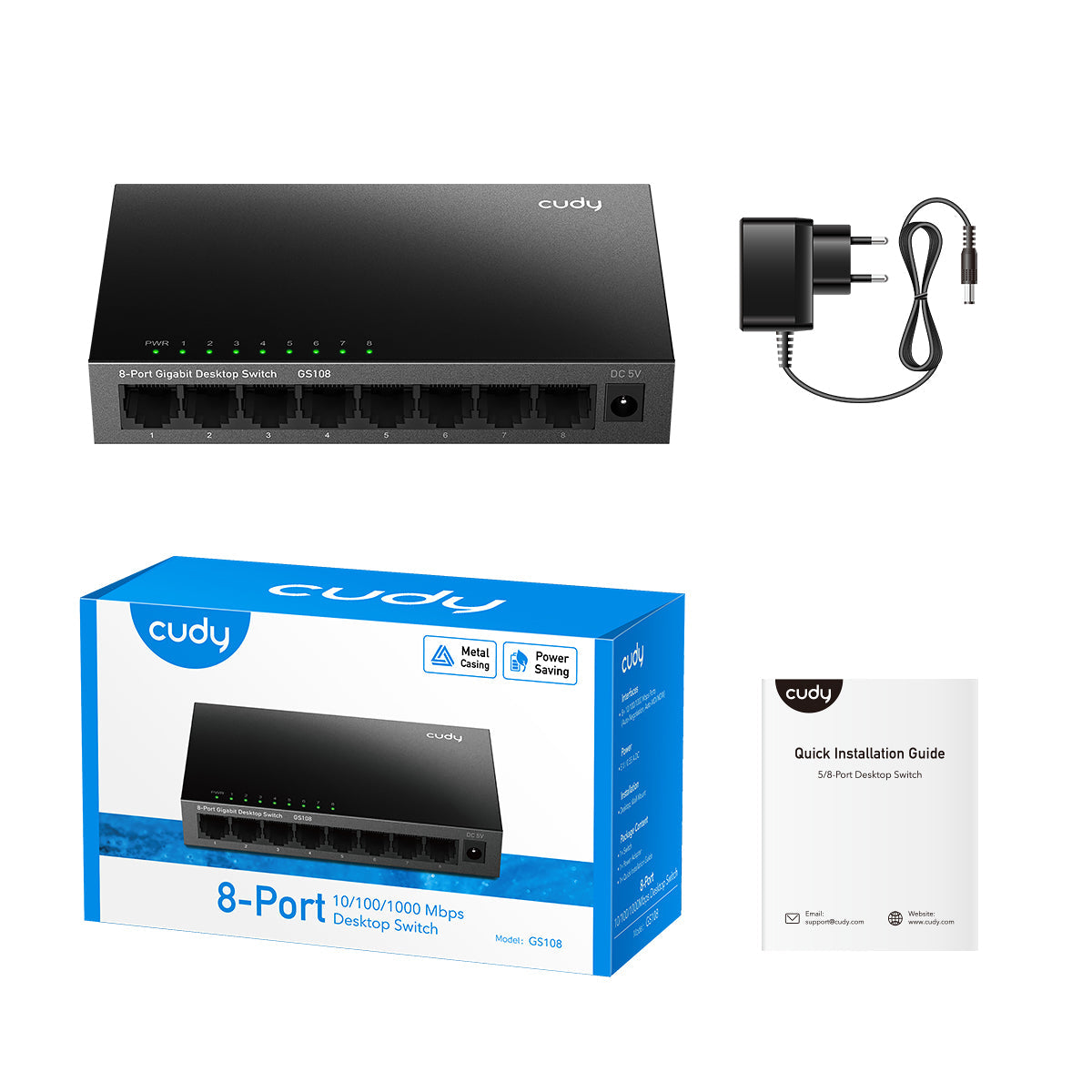

Package Content
  • GS108
  • Power Adapter
  • Installation Guide
Ordering Information Retail Package Dimension
  • EU/US:
    151×90.5×63 mm
    5.94×3.56×2.48 inches
  • UK:
    151×90.5×81 mm
    5.94×3.56×3.19 inches
Retail Package Weight
  • EU: 331 g (11.68 oz.)
  • UK: 379 g (13.37 oz.)
  • US: 343 g (12.1 oz.)
Units per Carton
  • EU/US: 40
  • UK: 40
Carton Net Weight
  • EU: 13.2 kg (29.1 lbs)
  • UK: 15.2 kg (33.51 lbs)
  • US: 13.7 kg (30.2 lbs)
Carton Gross Weight
  • EU: 13.9 kg (30.64 lbs)
  • UK: 16.0 kg (35.27 lbs)
  • US: 14.6 kg (32.19 lbs)
Carton Dimension
  • EU/US: 48.5×32.5×27.8 cm
    19.09×12.8×10.94 inches
  • UK: 47.7×32.2×34.5 cm
    18.78×12.68×13.58 inches
