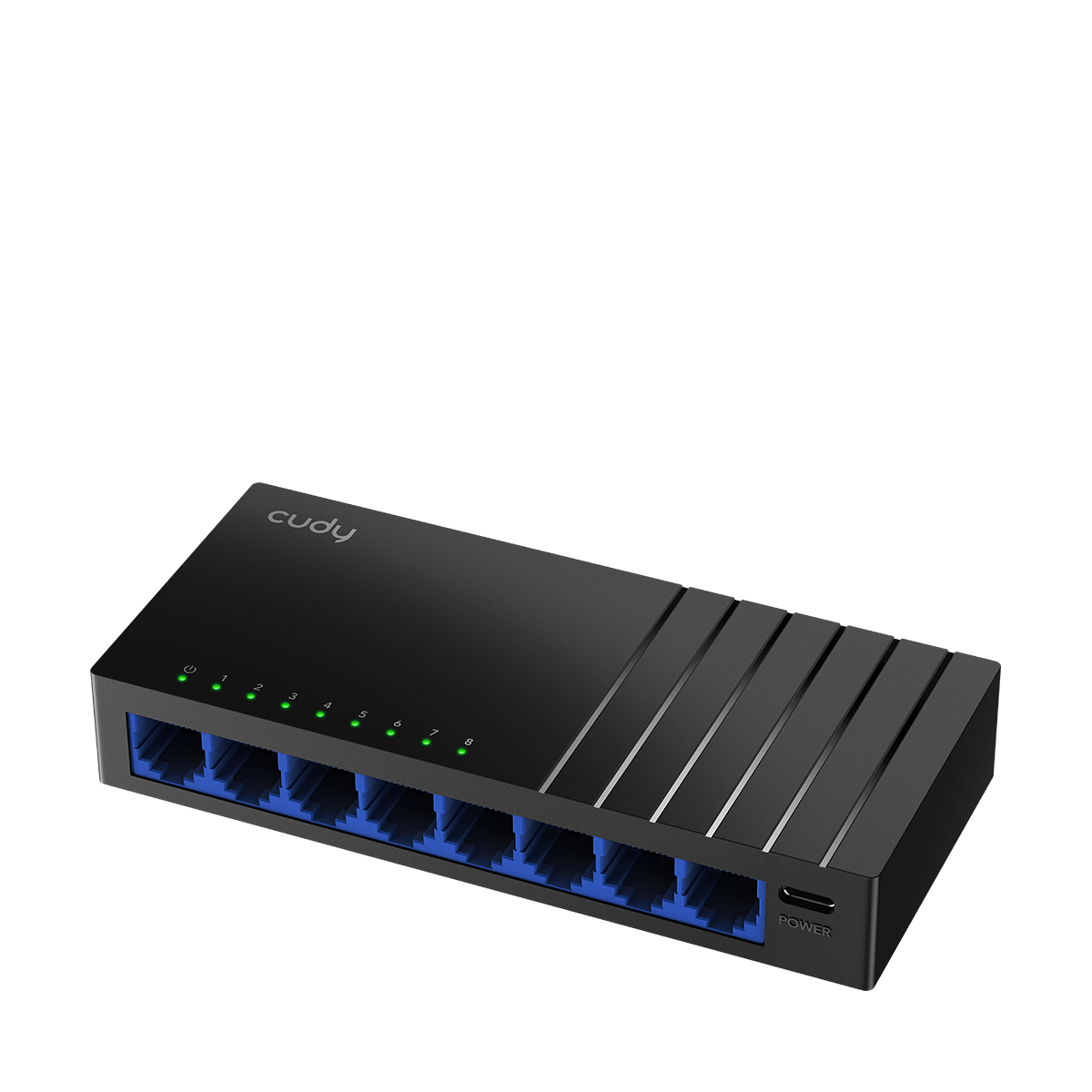

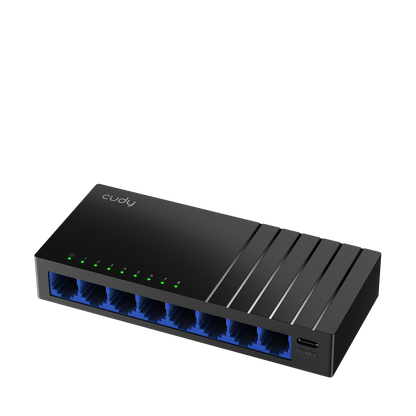

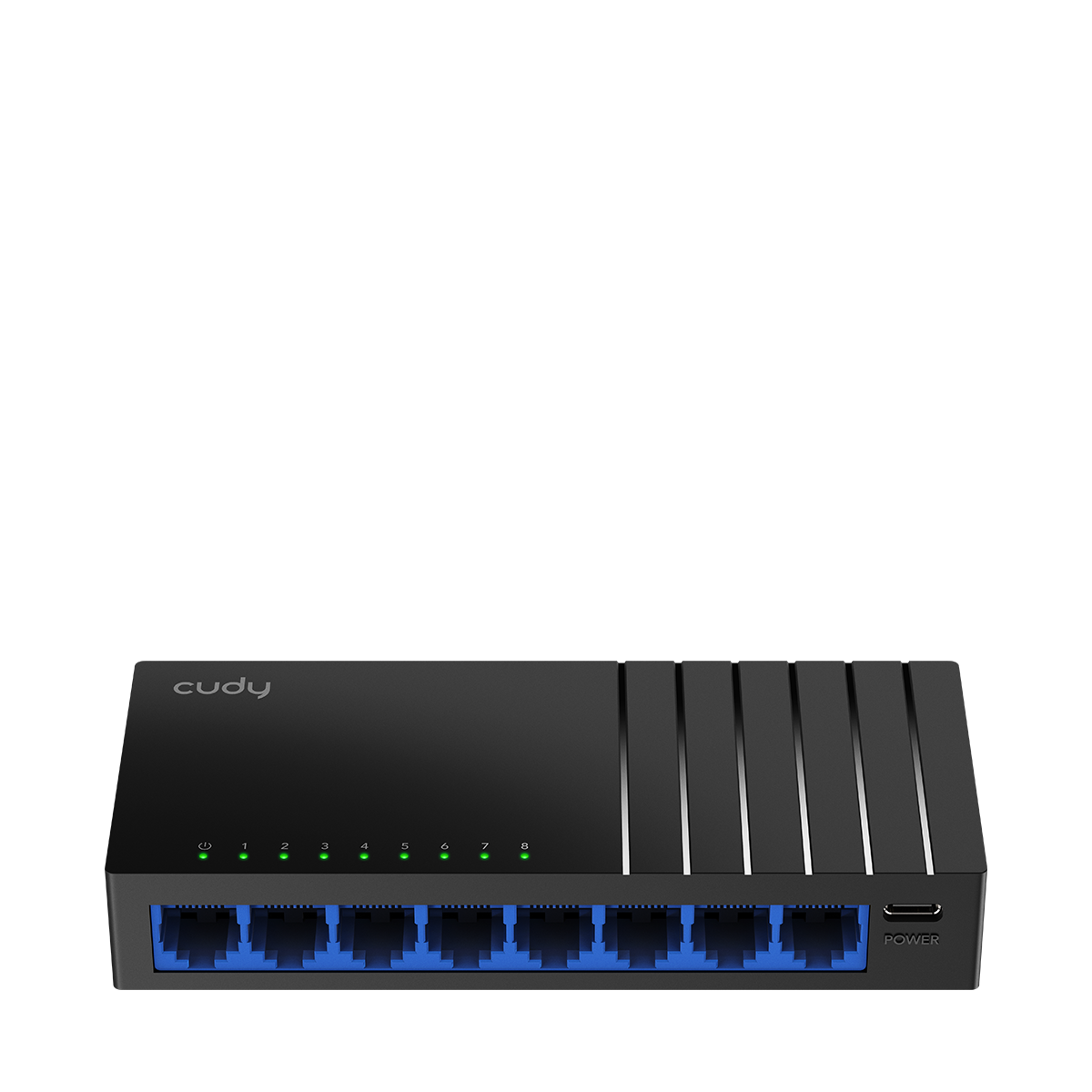

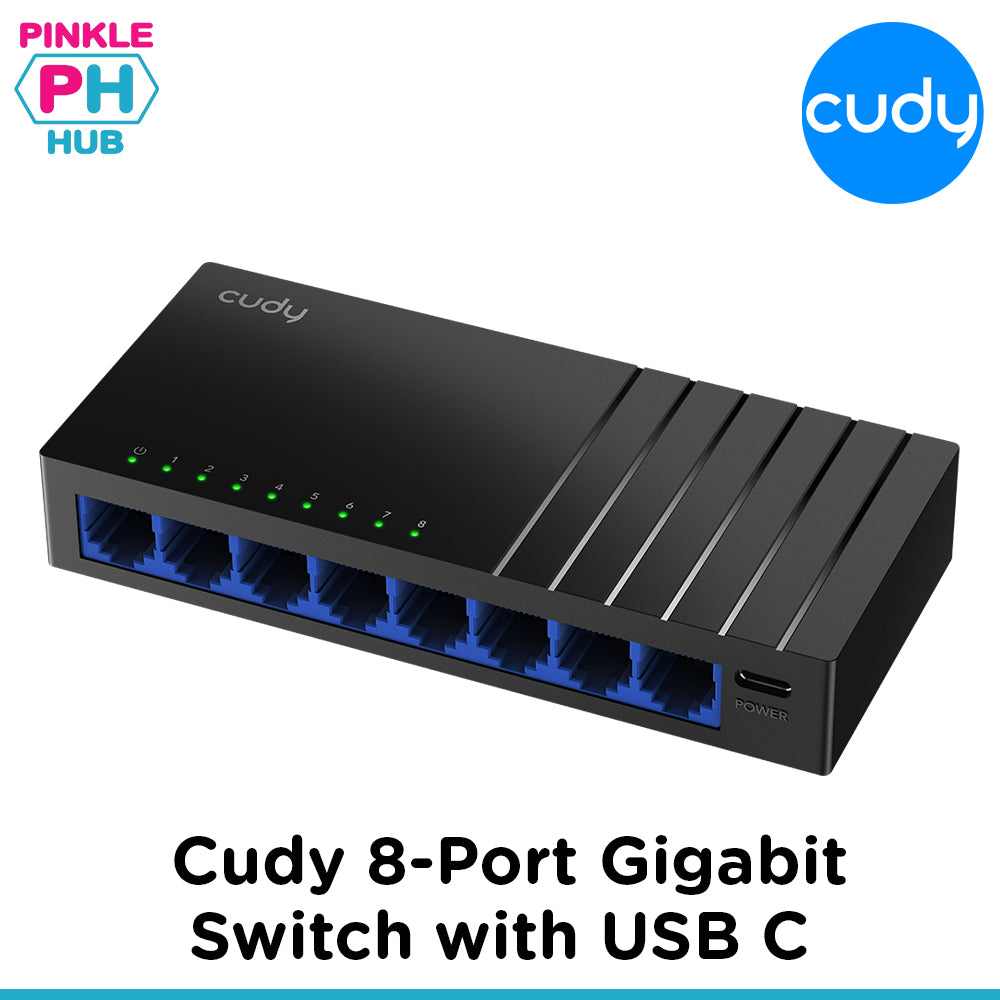

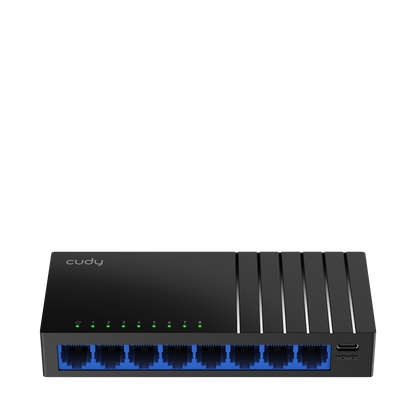

Cudy 8-Port Gigabit Switch with USB C

Brand : CUDY

SKU:  GS108D V7.0

3 in stock

₱890.00
₱890.00
Sale! Sold out
Model Version GS108D 7.0
Interfaces Gigabit RJ45 Ports 8
Buttons and LEDs LED
  • Power
  • Link/ACT of Each Ethernet Port
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 170 meters at Gigabit
MAC Address Table 4096
VLANs 4096
Max Switching Capacity 16 Gbps
Max Forwarding Rate 11.904 Mpps
Jumbo Frame 9 KB
Packet Buffer 1 Mbit
Power Power Input Type USB-C Port
Basic Power Saving
Power Methods USB-C
Power Input 5V⎓
Max Power Consumption 4W
Idle Power Consumption 1.18W
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
Ethernet
  • Full Duplex
  • Half Duplex (CSMA/CD)
  • Auto-Negotiation
  • Auto MDI/MDIX
Forwarding Method Store-and-Forward
Reliability MTBF >200,000 h
EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical Dimension 138×61.5×24 mm
5.43×2.42×0.94 inches
Product Weight 85 g (3 oz.)
Casing Material Plastic
Installation
  • Desktop
  • Wall-mount

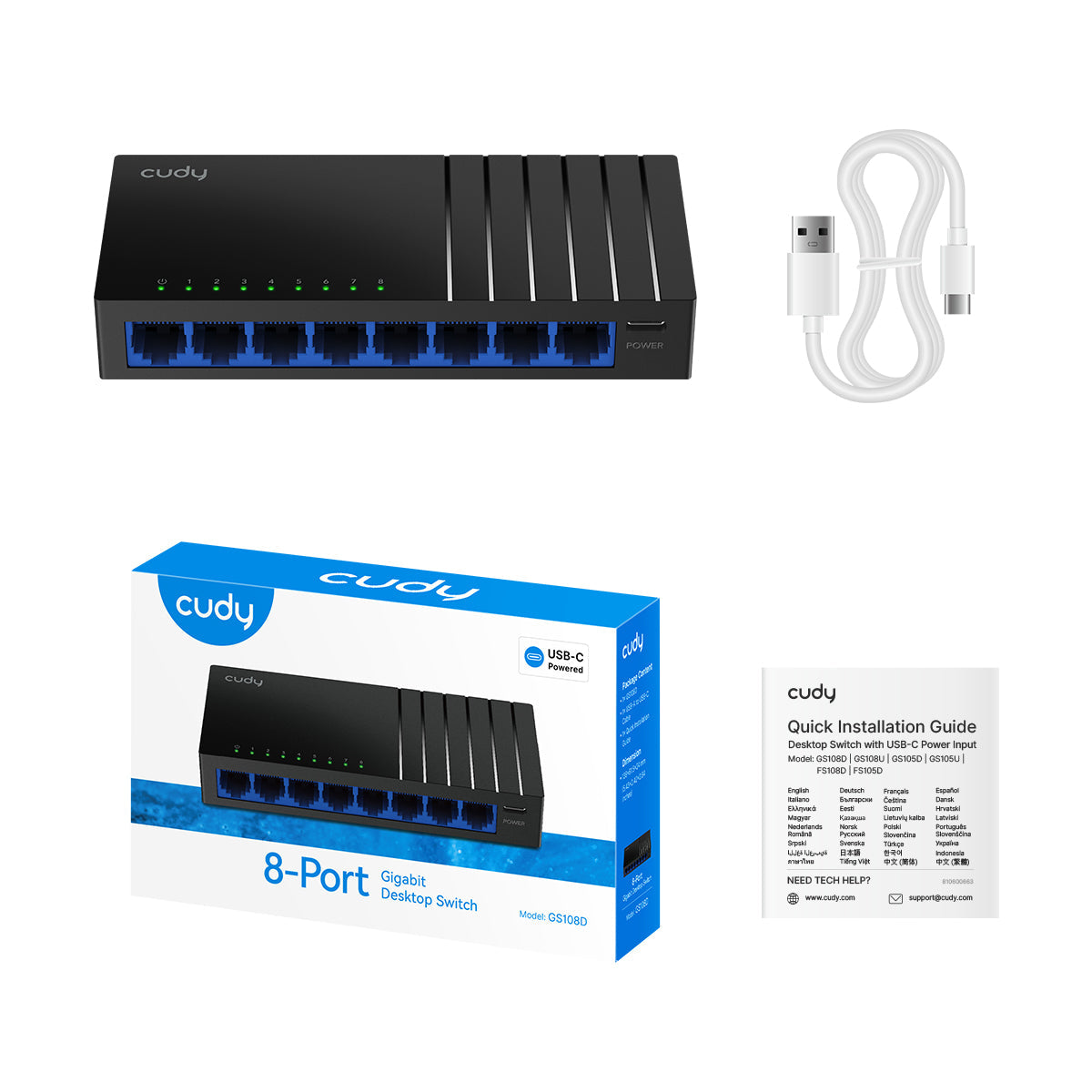

Package Content
  • GS108D
  • USB-A to USB-C Power Cable
  • Installation Guide
Ordering Information Retail Package Dimension 143×89×32 mm
5.63×3.5×1.26 inches
Retail Package Weight 150.5 g (5.31 oz.)
Units per Carton 60
Carton Net Weight 9.0 kg (19.84 lbs)
Carton Gross Weight 9.6 kg (21.16 lbs)
Carton Dimension 35.3×28.7×30.8 cm
13.9×11.3×12.13 inches
