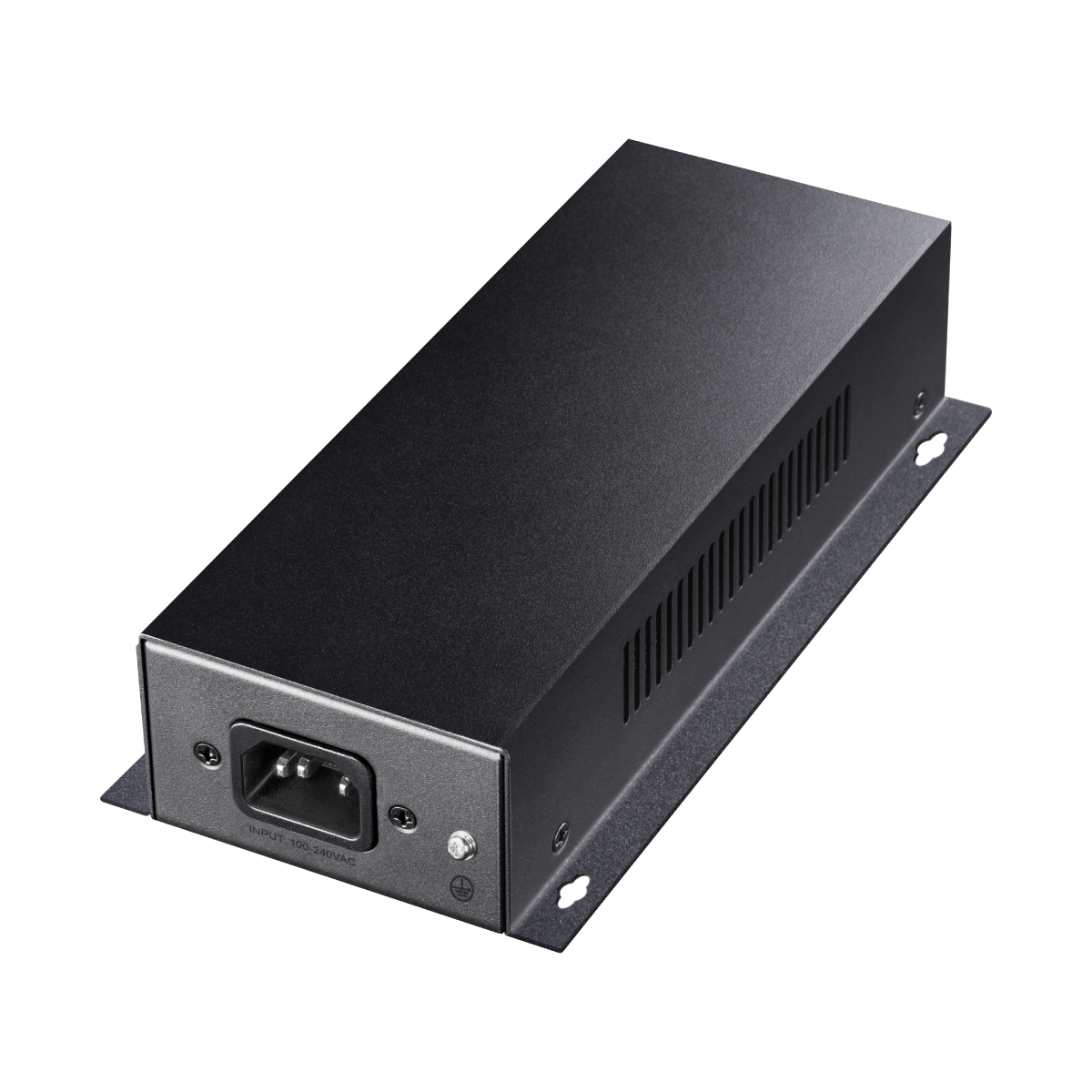

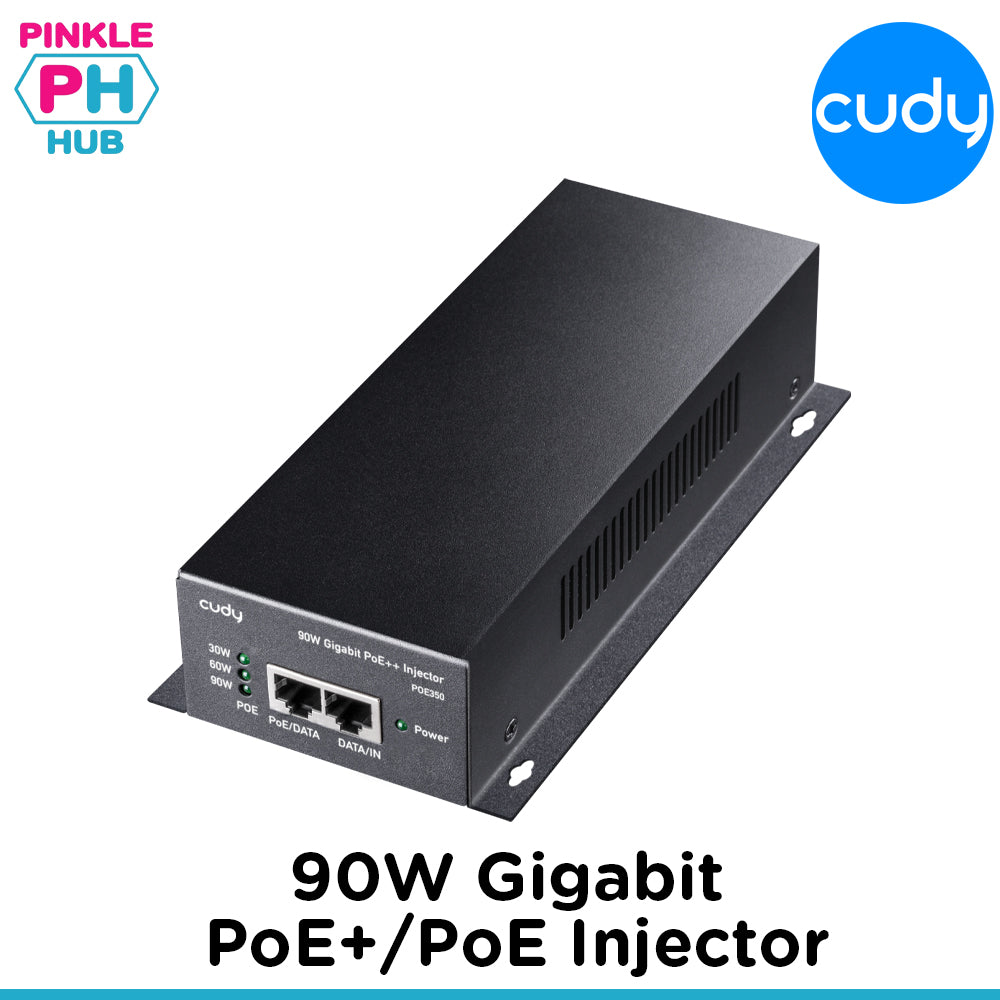

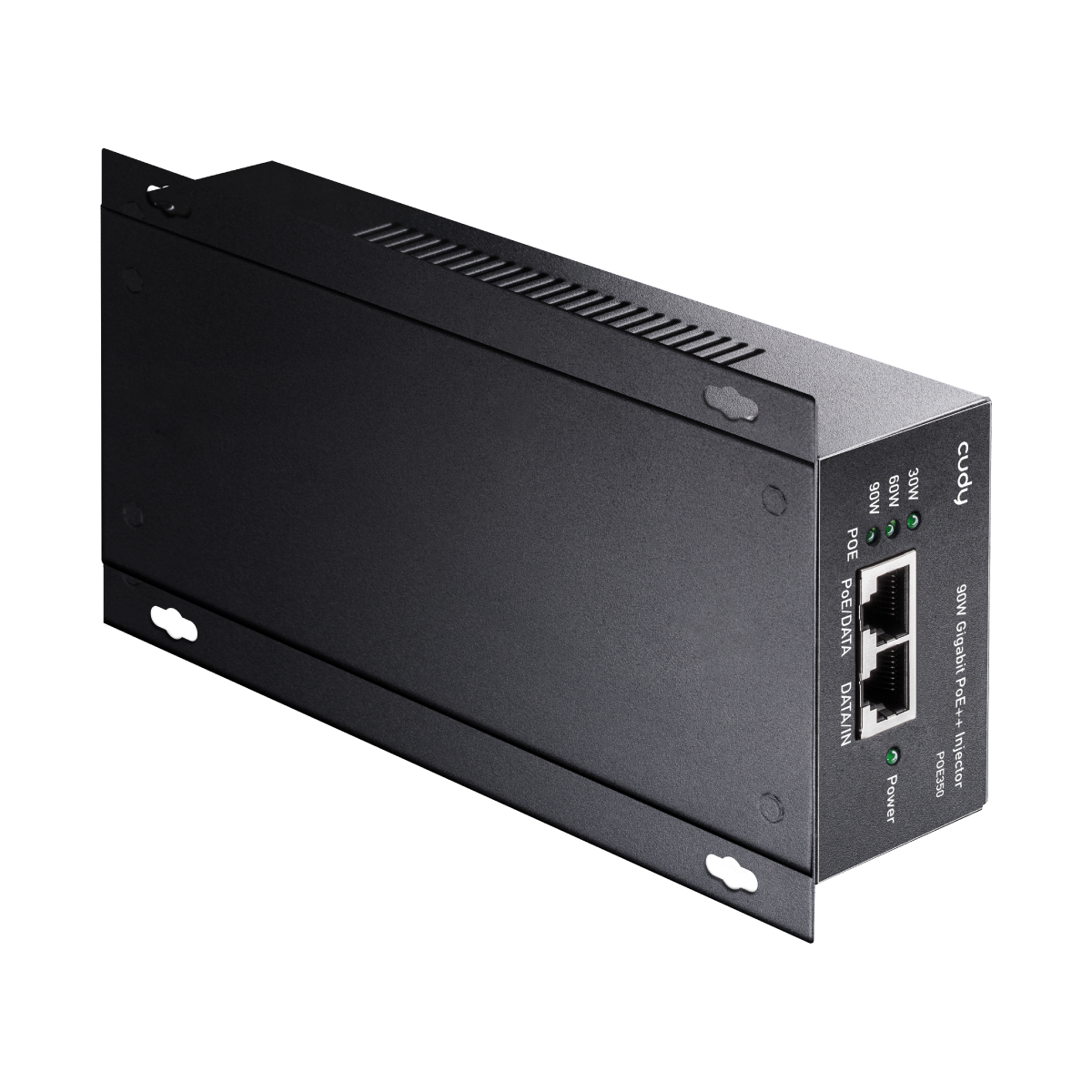

Cudy 90W Gigabit PoE+/PoE Injector

Brand : CUDY

SKU:  POE350

5 in stock

₱2,725.00
₱2,725.00
Sale! Sold out
Model Version POE350 3.0
Protocols 802.3 Protocols
  • 802.3i 10 Mbps over Twisted Pair
  • 802.3u 100 Mbps over Twisted Pair
  • 802.3ab 1 Gbps over Twisted Pair
  • 802.3af PoE
  • 802.3at PoE
  • 802.3bt PoE
PoE Uplink Stream 1× GbE
Downlink Stream 1× GbE, 802.3bt/at/af
Downlink Pin Assignment Four-Pair
Transimission Distance
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment

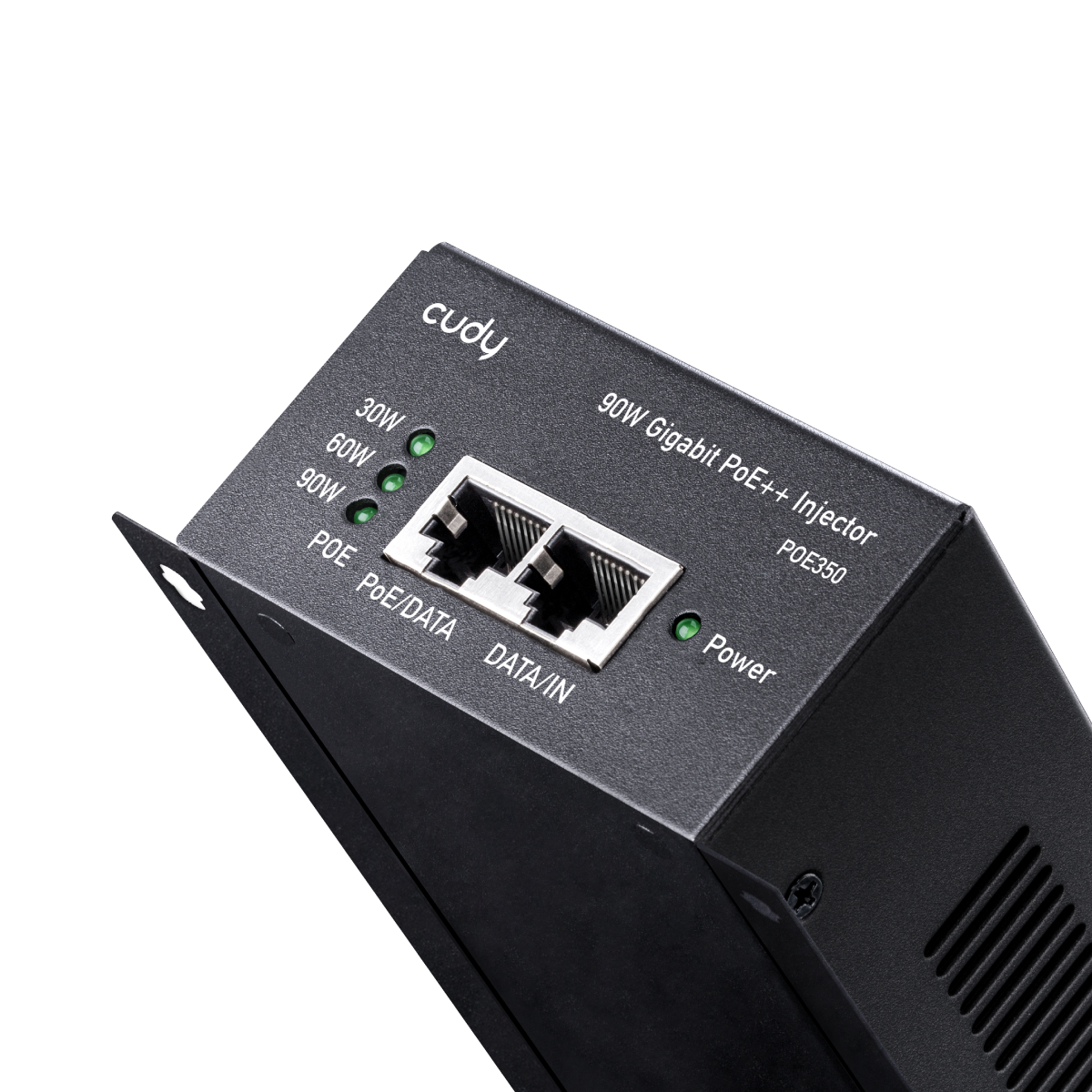

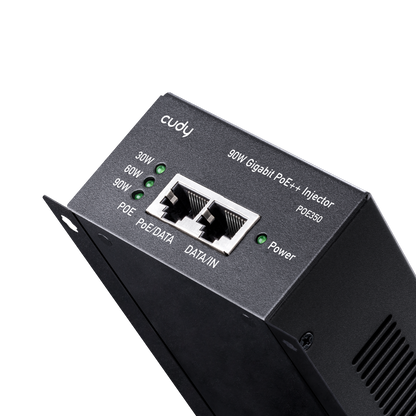

Buttons and LEDs LED Power, PoE Wattage
Power Power Input Type AC Inlet
Power Methods AC
Power Input 100-240V~ 50/60Hz 2.2A
Max Power Output (W) 90W, 54V⎓1.67A
Reliability Power Protection
  • Surge Protection
  • ESD Protection
  • Overvoltage Protection
  • Short-Circuit Protection
EMC IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Above Level 4 Surge: Power: DM 4kV, CM 4kV; RJ45: CM 4kV
Grounding Methods
  • Grounding Point
  • Three-Prong Plug
Environment Ambient Operating Temperature: -10~40 ℃ (14~104 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~95% non-condensing
Certifications FCC, CE
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension Main Part:
178×80×46 mm
7.01×3.15×1.81 inches
Each Bracket:
10 mm
0.39 inches
Casing Material Metal
Product Weight 685.9 g (24.19 oz.)

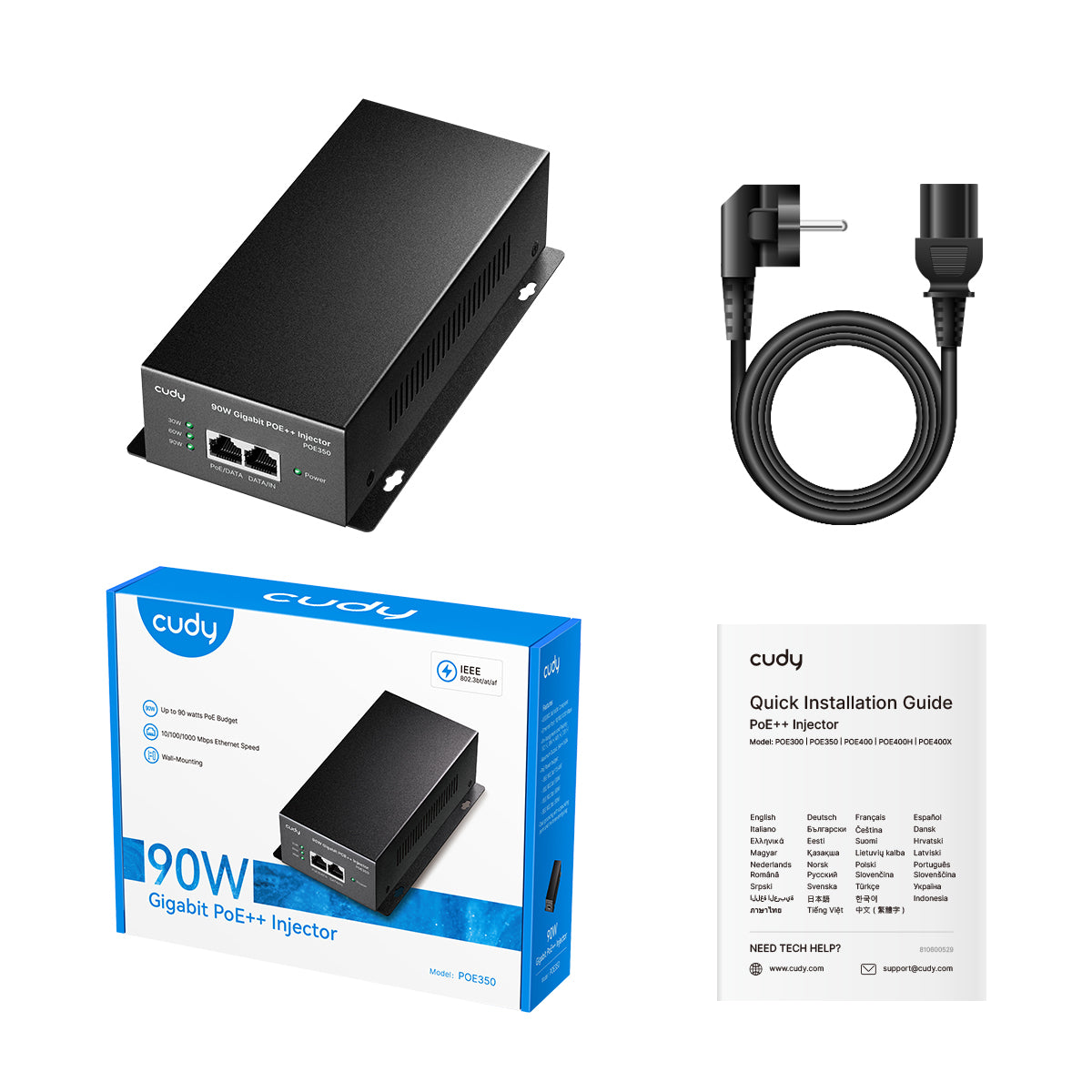

Package Content
  • POE350
  • Power Cord
  • Mounting Kit
  • Installation Guide
Ordering Information Retail Package Dimension 193×145×55 mm
7.6×5.71×2.17 inches
Retail Package Weight EU: 946.6 g (33.39 oz.)
Units per Carton 20
Carton Net Weight EU: 18.9 kg (41.67 lbs)
Carton Gross Weight EU: 19.6 kg (43.21 lbs)
Carton Dimension 40.8×31.5×29.5 cm
16.06×12.4×11.61 inches
Compatibility Compatible Products AP1300 1.0, AP1300 Outdoor 1.0, AP3000 1.0, AP1300_P 1.0, AP3000_P 1.0, POE25 1.0, POE15 1.0, AP1300 Wall 1.0, AP3000 Wall 1.0, AP3000E Wall 1.0, POE10 1.0, WR3000P 1.0, POE40 2.0, AP1300D 1.0, AP3000D 1.0, AP1200 1.0, AP3600 1.0, C200P 1.0, AP1300E Wall 1.0, POE10 2.0, POE25 2.0, POE15 2.0, IR04 1.0, AP1300 2.0, POE20 1.0, AP3000S 1.0, AP3000 Outdoor 1.0, AP11000 1.0, AP6500 1.0, P2 ODU 1.0
