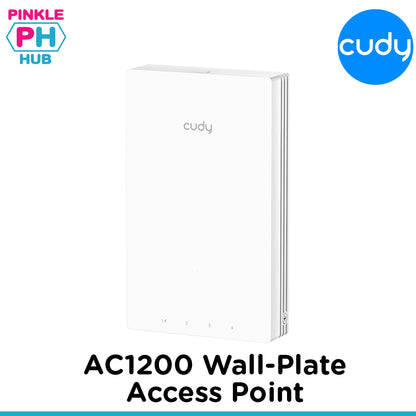

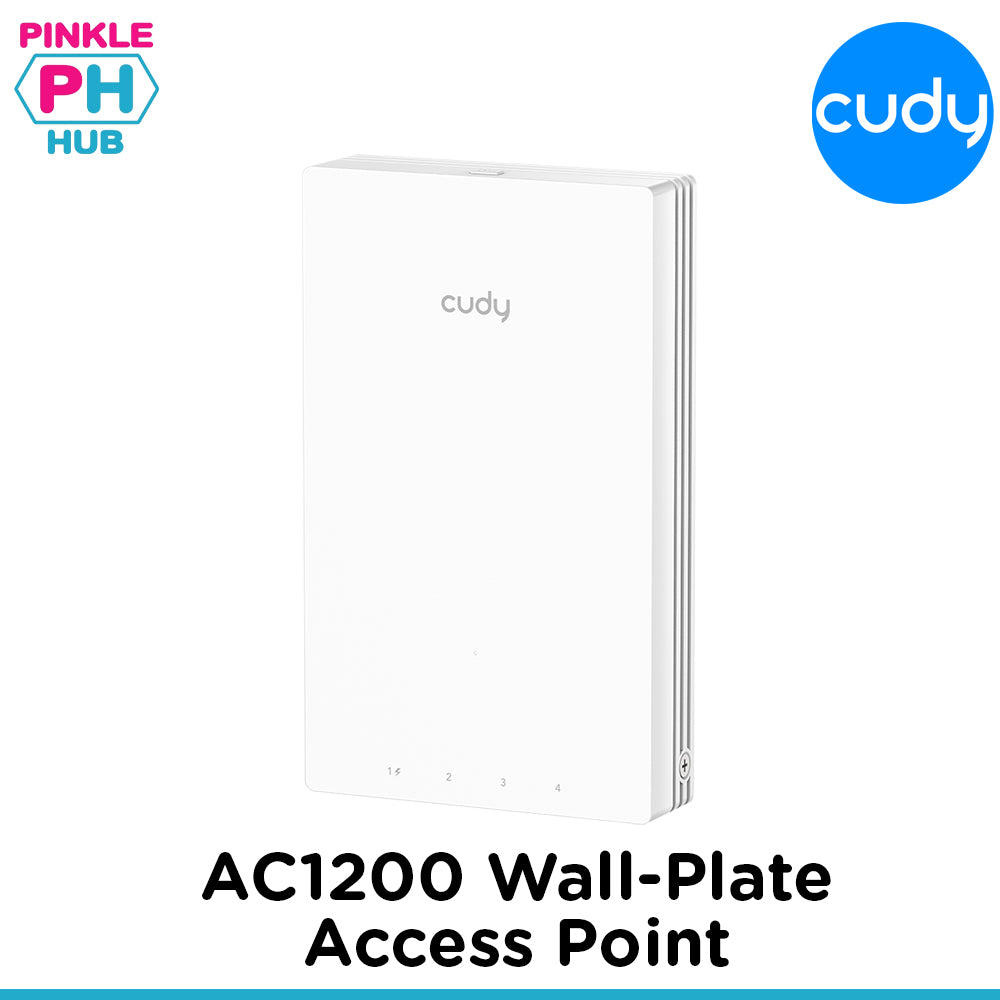

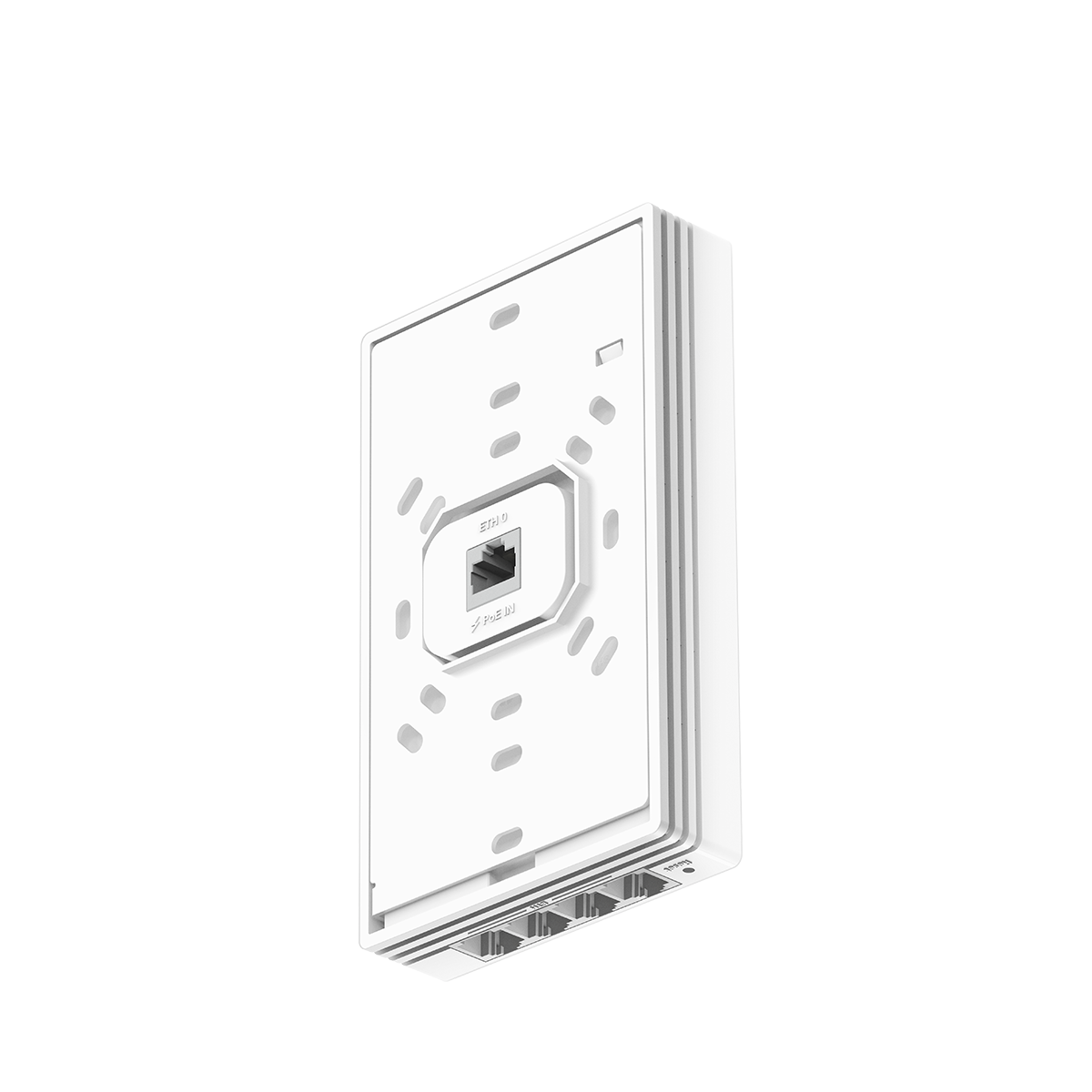

Cudy AC1200 Wall-Plate Access Point

Brand : CUDY

SKU:  AP1300 Wall

Low stock: 2 left

₱3,925.00
₱3,925.00
Sale! Sold out
Model Version AP1300 Wall 1.0
CPU CPU Details 880 MHz Dual-Core CPU
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 2× Internal
FEM or PA/LNA 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
Beamforming
Range Performance Max: 80 m (262 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

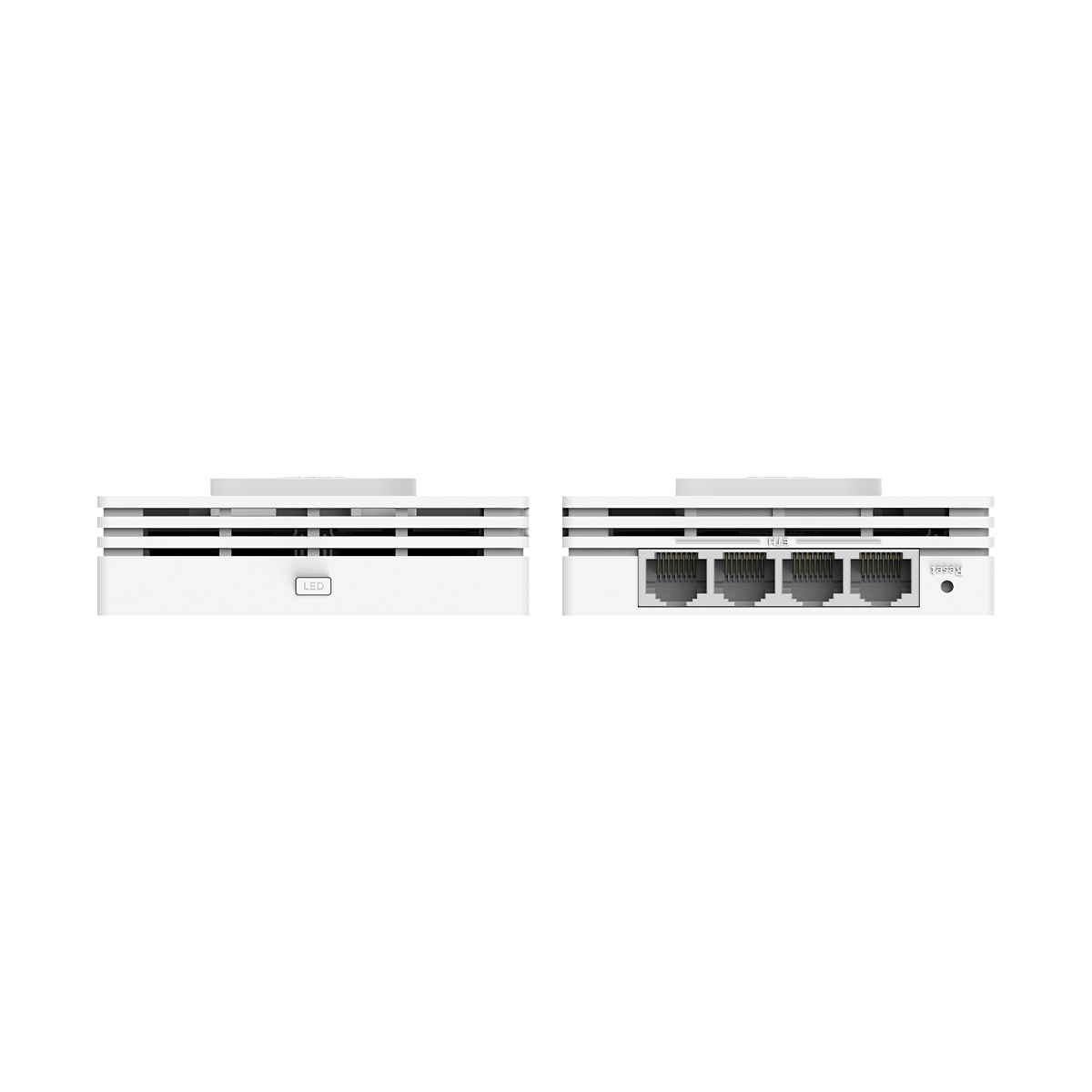

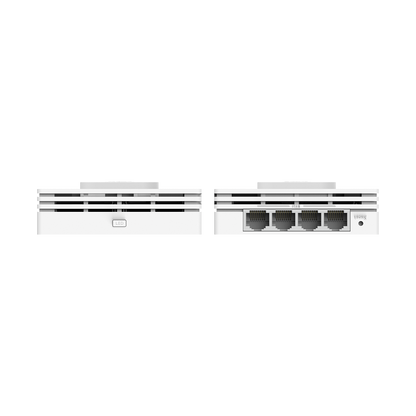

Interfaces Gigabit RJ45 Ports 5

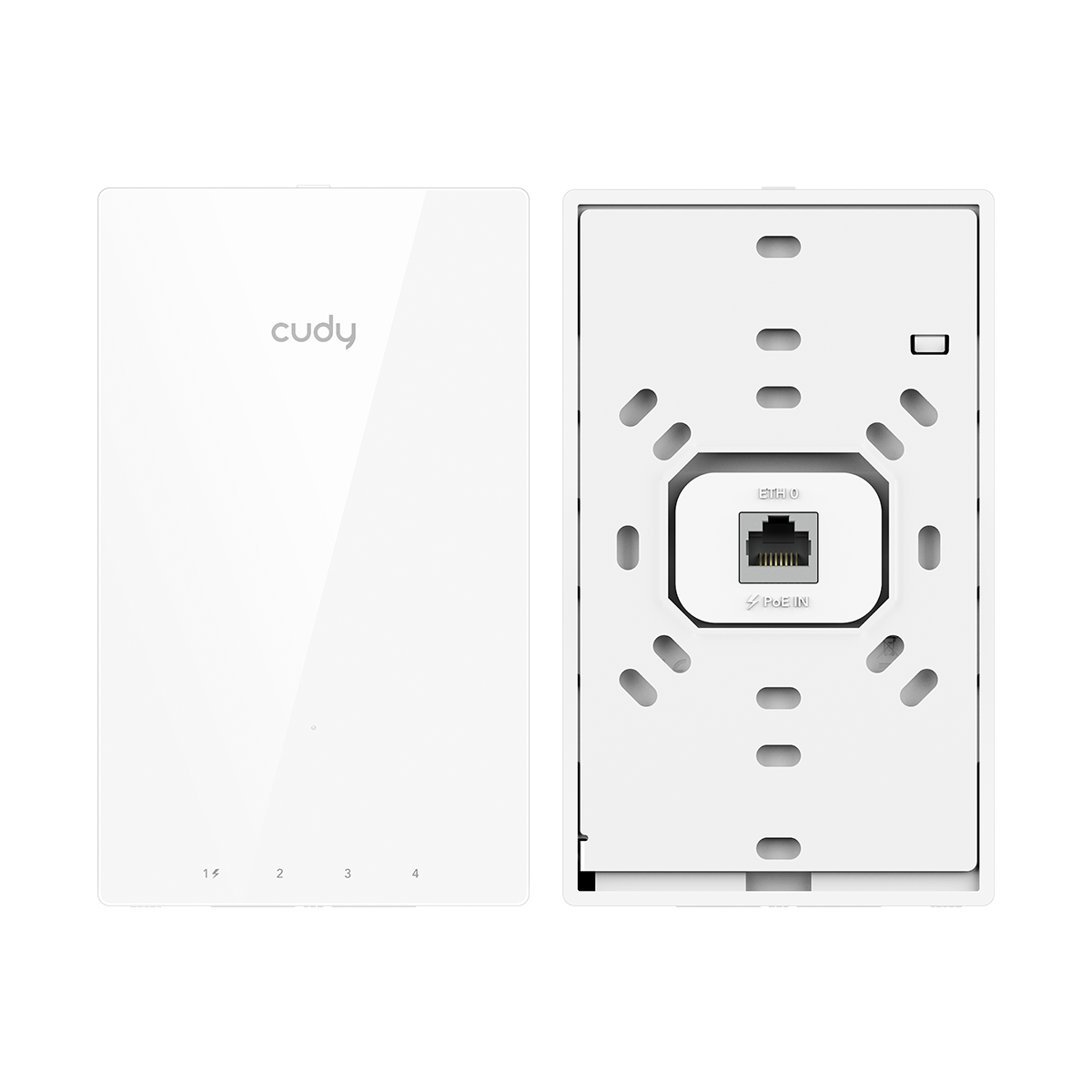

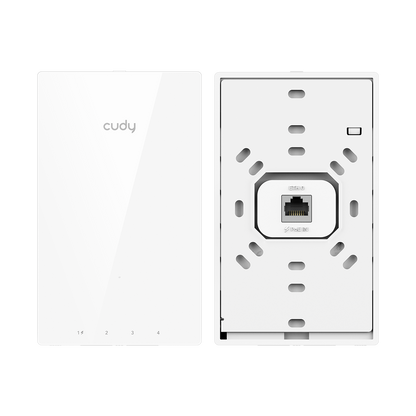

Ethernet Notes ETH0: PoE In, LAN1: PoE OUT* (*See Power Section)
Buttons and LEDs LED System
Physical Buttons Reset Button, LED On/Off Button (Configurable to control LED and Wi-Fi)
Power Power Input Type PoE via Ethernet Port
Power Methods
  • 802.3at/af PoE
  • Passive PoE
Power Input
  • PoE on ETH0: 802.3at/af
  • Passive PoE on ETH0: 48V⎓
Power Output
  • PoE on LAN1: PoE Passthrough (Similar to Passive PoE
  • the output voltage equals the input voltage
  • range 42.5–57V)
Max Power Consumption (W) 12W (PoE)
Idle Power Consumption (W) 4W
Max Power Output (W) 13.5W
Note The PoE output requires a 802.3at or higher PoE input and must be enabled on the configuration page.
Reliability Advanced Hardware Watchdog
EMC ESD: Contact: 4kV; Air: 8kV
Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE

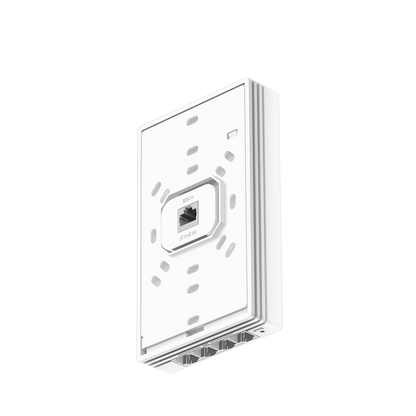

Mechanical Installation Wall-mount
Dimension 143×86×27.6 mm
5.63×3.39×1.09 inches
Product Weight 261.2 g (9.21 oz.)

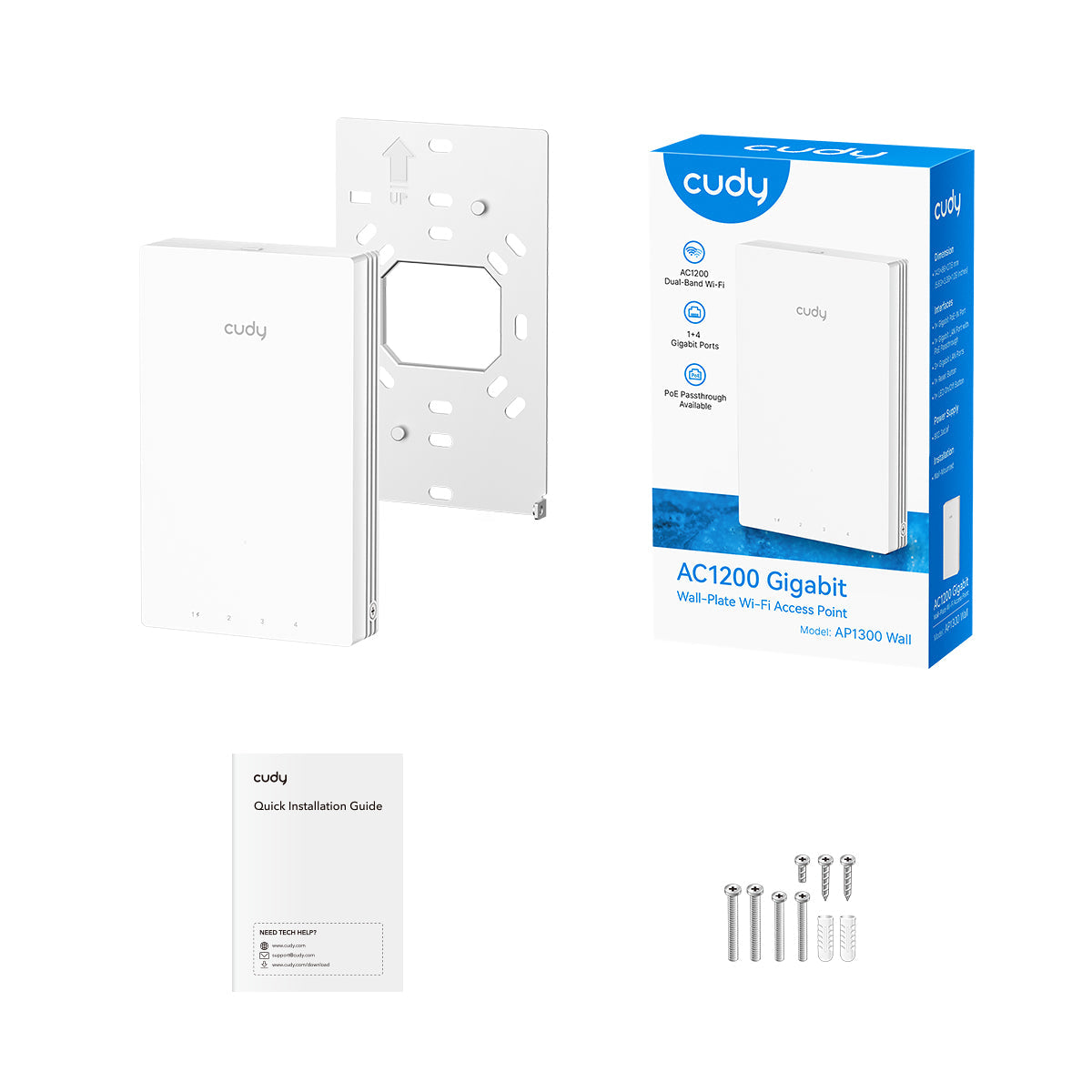

Package Content
  • AP1300 Wall
  • Installation Guide
  • Mounting Kit
Ordering Information Retail Package Weight EU: 362.9 g (12.8 oz.)
Retail Package Dimension 152×39.5×90 mm
5.98×1.56×3.54 inches
Units per Carton 30
Carton Net Weight EU: 10.9 kg (24.03 lbs)
Carton Gross Weight EU: 11.3 kg (24.91 lbs)
Carton Dimension 32.8×22×29.6 cm
12.91×8.66×11.65 inches
Compatibility Compatible Products C200P 1.0, C500P 1.0
Compatible Accessories POE200 2.0, POE300 2.0, POE400 2.0, POE350 2.0, POE200H 1.0, POE400X 2.0, POE350 3.0, POE400 3.0, POE300 3.0, POE52-30W 1.0, POE48-18W 1.0
  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
  2. The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
  3. Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Additionally, using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
  4. Cudy AP Controller is required to enable this feature.
