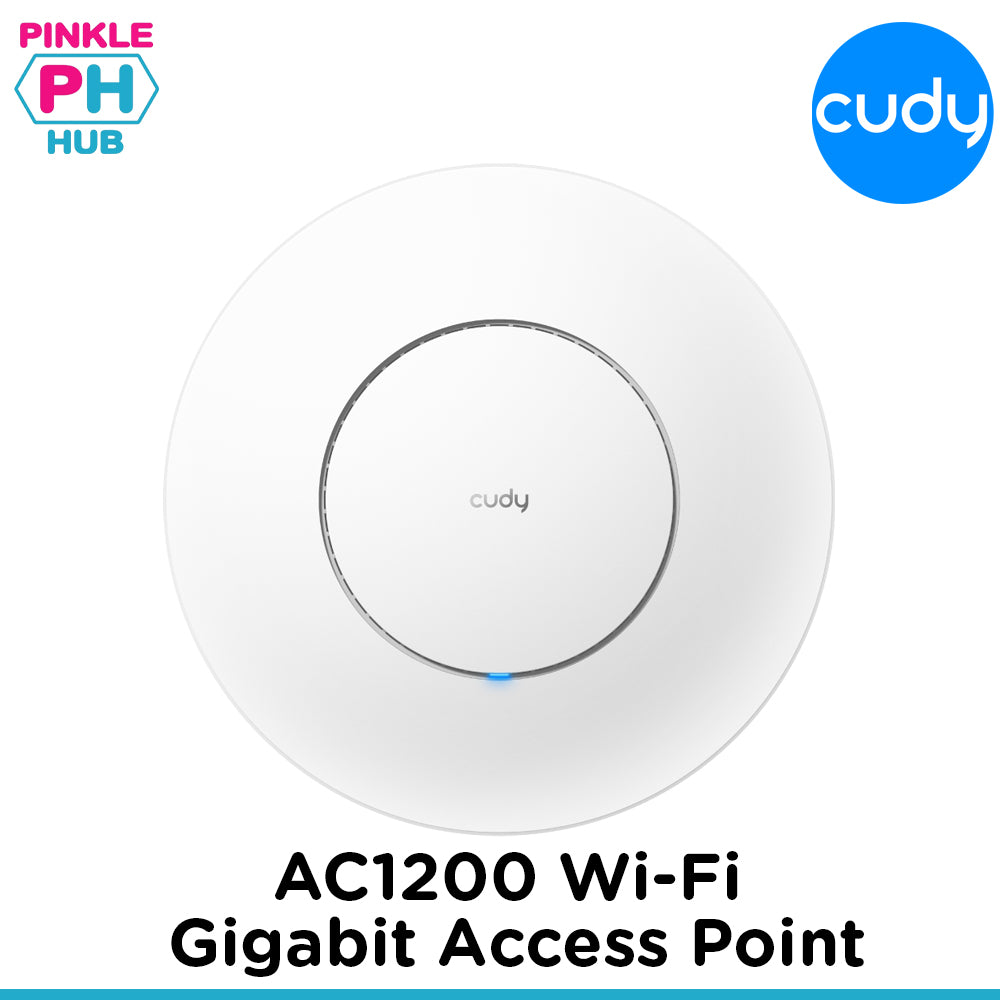

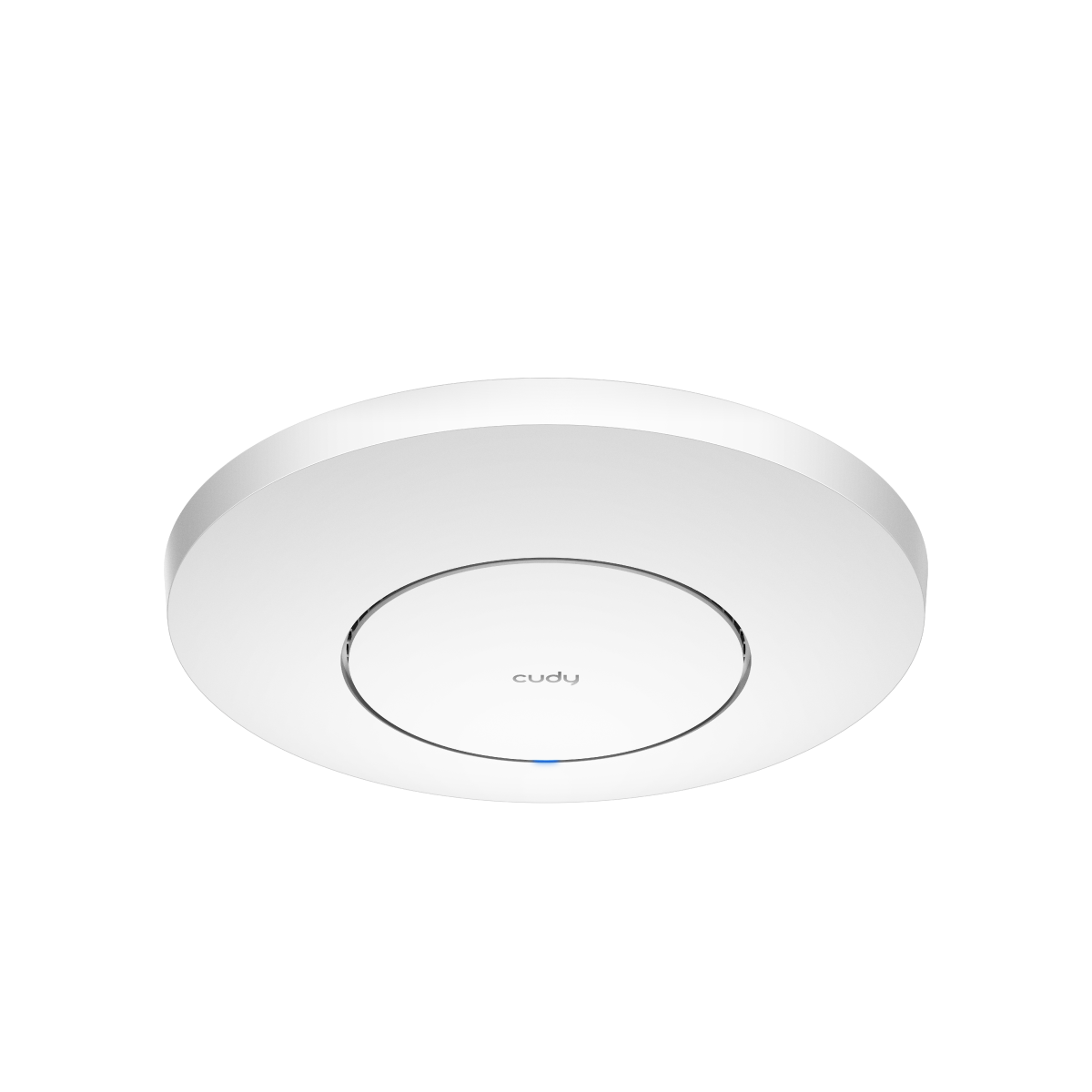

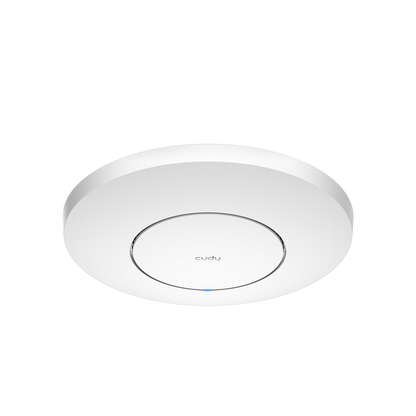

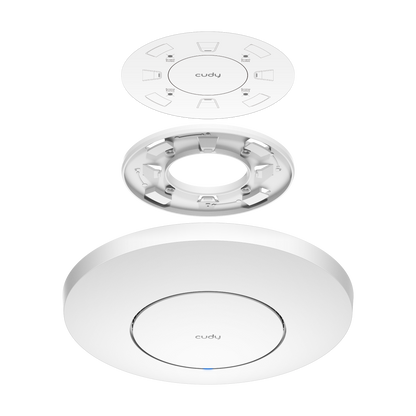

Cudy AC1200 Wi-Fi Gigabit Access Point

Brand : CUDY

SKU:  AP1300

Low stock: 2 left

₱3,275.00
₱3,275.00
Sale! Sold out
Model Version AP1300 1.0
CPU CPU Details 880 MHz Dual-Core CPU
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 4× Internal
FEM or PA/LNA 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
Beamforming
Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

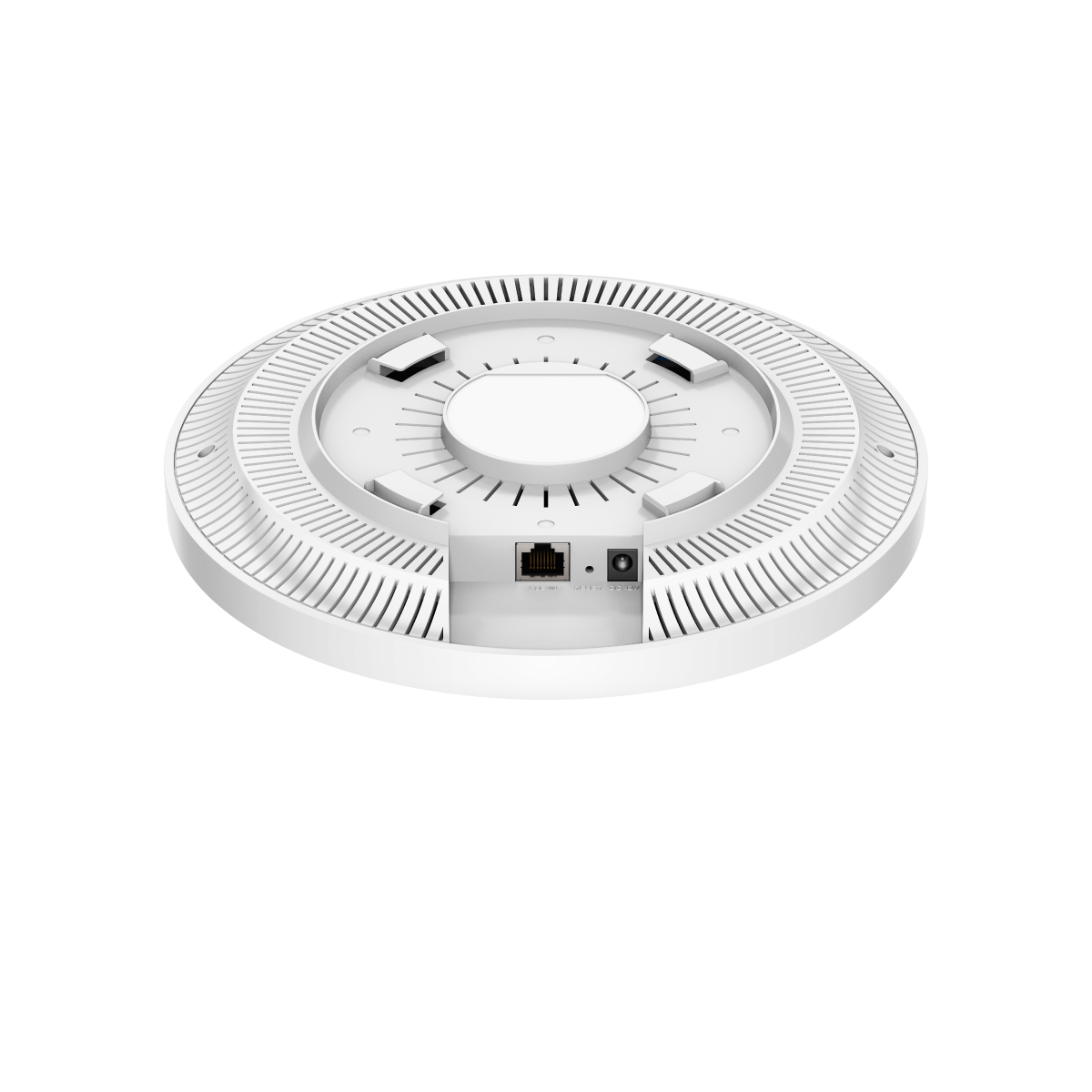

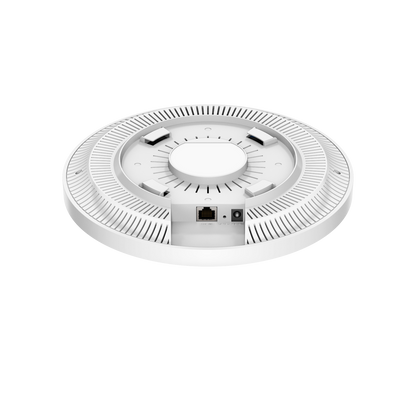

Interfaces Gigabit RJ45 Ports 1
Ethernet Notes ETH0: PoE In
Buttons and LEDs LED System
Physical Buttons Reset Button
Power Power Input Type
  • DC Jack
  • PoE via Ethernet Port
Power Methods
  • DC
  • Passive PoE
  • 802.3at/af PoE
Power Input
  • DC: 12V⎓1A
  • Passive PoE: 24-57V⎓
  • PoE: 802.3at/af
Max Power Consumption (W) 11W (PoE), 7.5W (DC)
Idle Power Consumption (W) 4.008W
Power Adapter In the Box AP1300 | No adapter in the box
AP1300_P | PoE adapter in the box:
Input: 100-240V~, 50/60Hz
Output: 48V⎓ Passive PoE
Reliability Advanced Hardware Watchdog
EMC ESD: Contact: 4kV; Air: 8kV
Environment Operating Temperature: -10 ℃ ~ 65 ℃ (14 ℉ ~149 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications FCC, CE

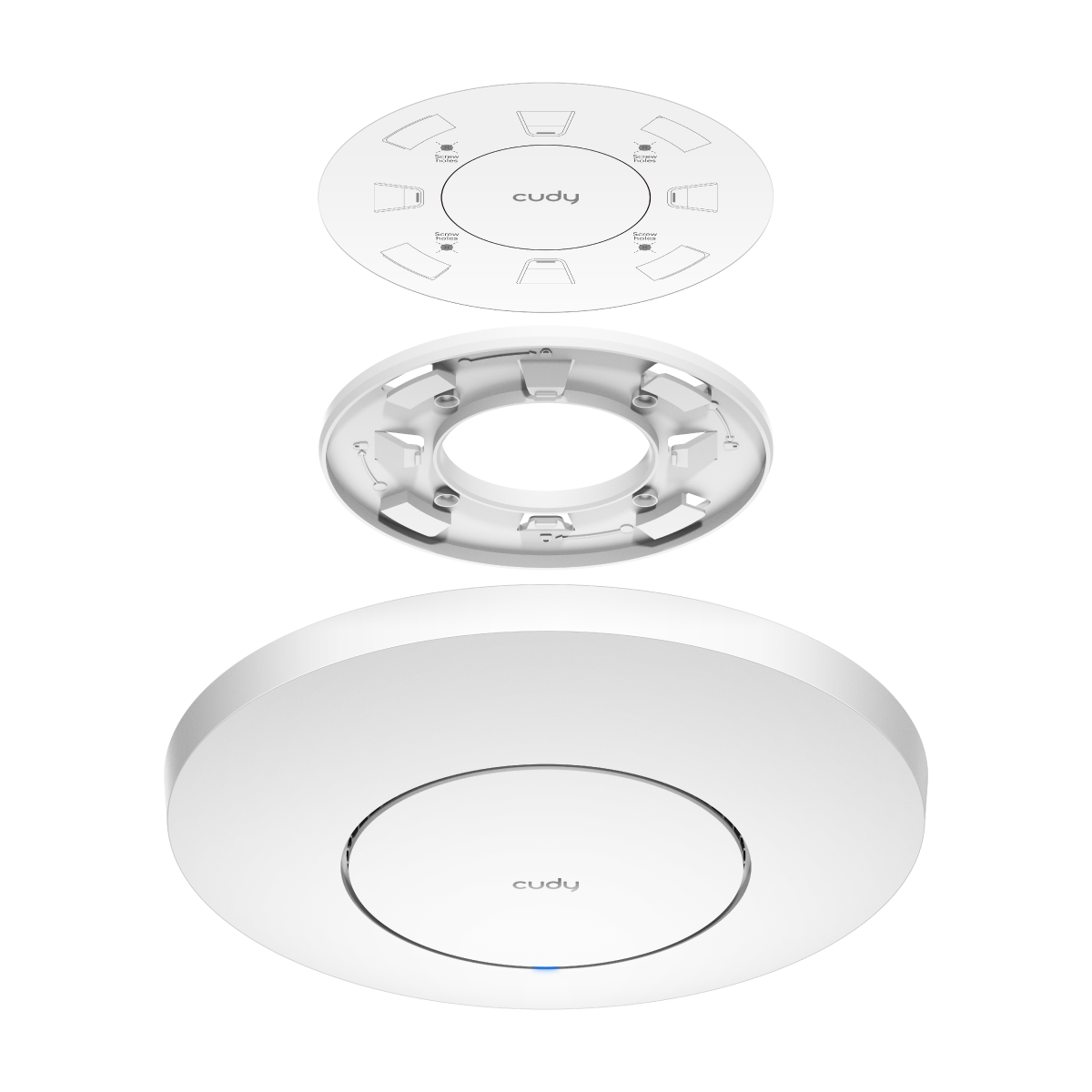

Mechanical Installation
  • Wall-mount
  • Ceiling-mount
Dimension Φ231.9×57.1 mm
Φ9.13×2.25 inches
Product Weight
  • EU: 395.6 g (13.95 oz.)
  • US: 395.6 g (13.95 oz.)

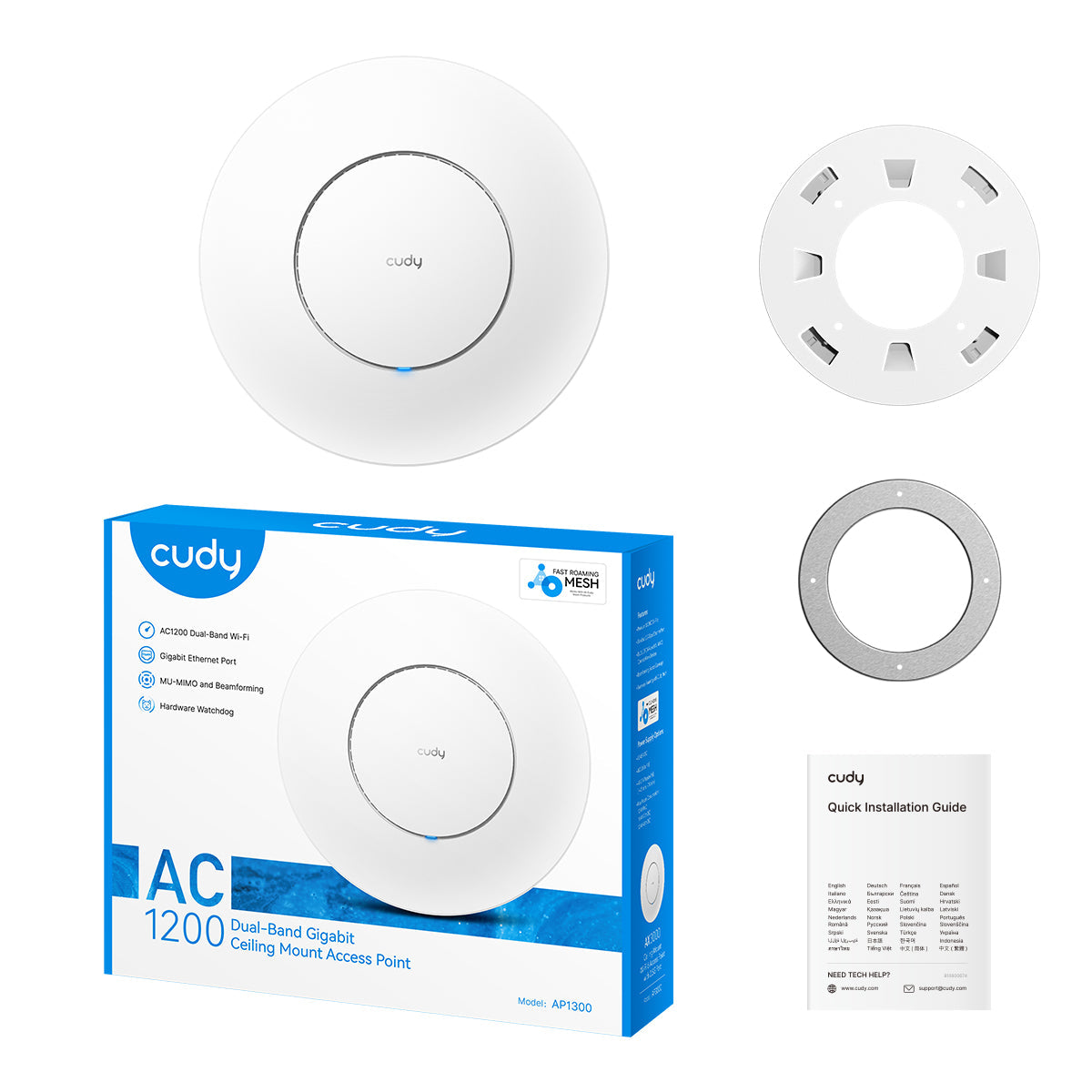

Package Content
  • AP1300
  • Mounting Kit
  • Installation Guide
  • PoE Adapter (_P Model Only)
  • Ethernet Cable (_P Model Only)
Ordering Information Retail Package Weight
  • EU: 756.2 g (26.67 oz.)
  • With PoE Adapter (_P) | EU: 920 g (32.45 oz.)
  • US: 751.8 g (26.52 oz.)
Retail Package Dimension 283×238×68 mm
11.14×9.37×2.68 inches
Units per Carton 20
Carton Net Weight
  • EU: 15.1 kg (33.29 lbs)
  • With PoE Adapter (_P) | EU: 18.4 kg (40.57 lbs)
  • US: 15.1 kg (33.29 lbs)
Carton Gross Weight
  • EU: 16.5 kg (36.38 lbs)
  • With PoE Adapter (_P) | EU: 19.8 kg (43.65 lbs)
  • US: 17.5 kg (38.58 lbs)
Carton Dimension 58×37.5×49.5 cm
22.83×14.76×19.49 inches
Compatibility Compatible Products C200P 1.0, C500P 1.0
  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
  2. Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
  3. The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
  4. Cudy AP Controller is required to enable this feature.
