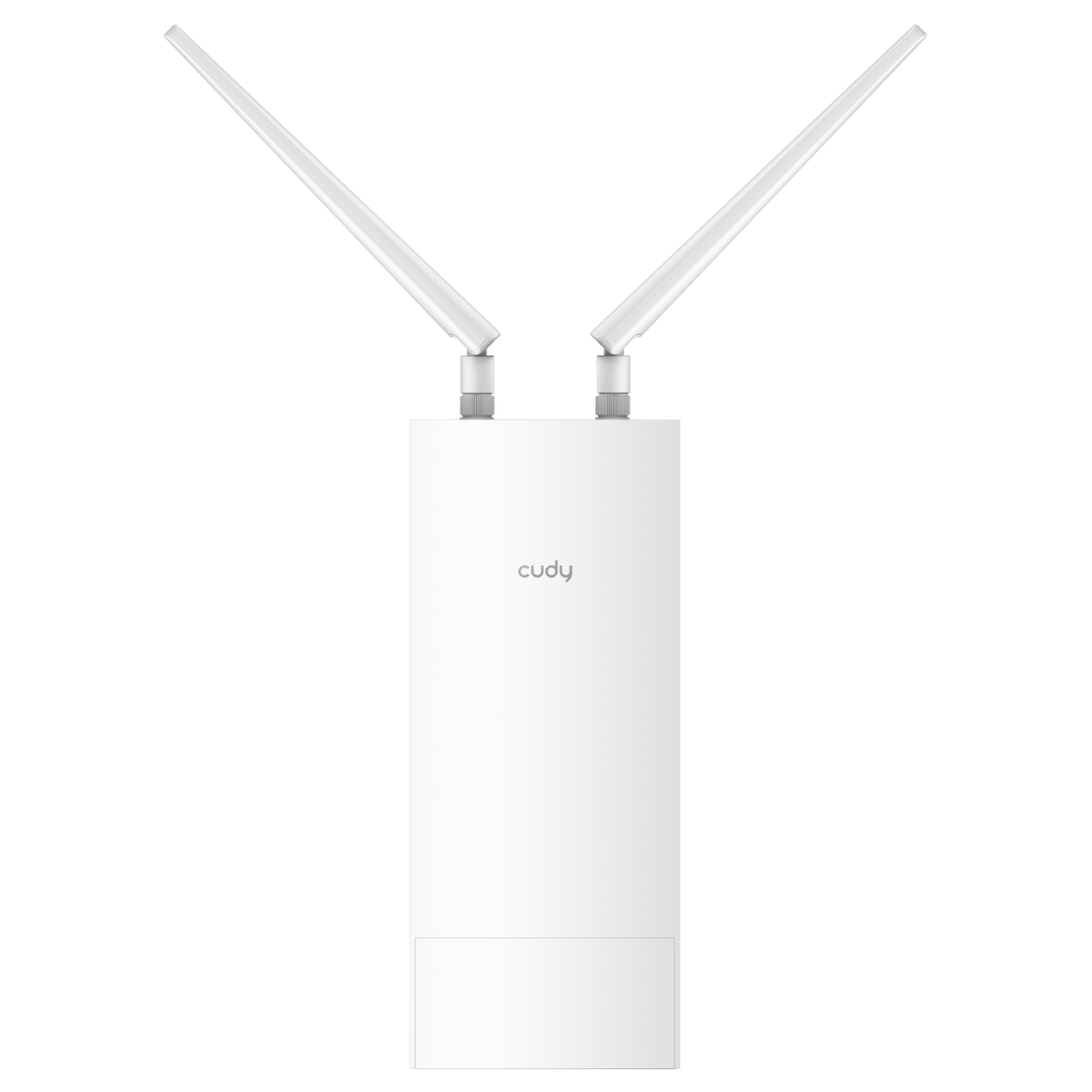

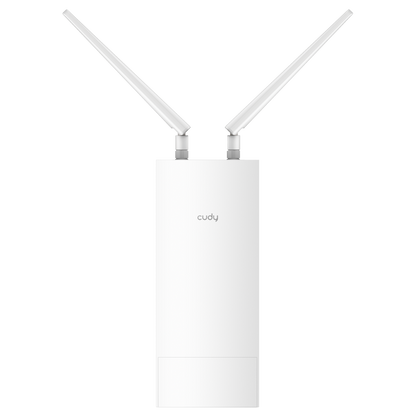

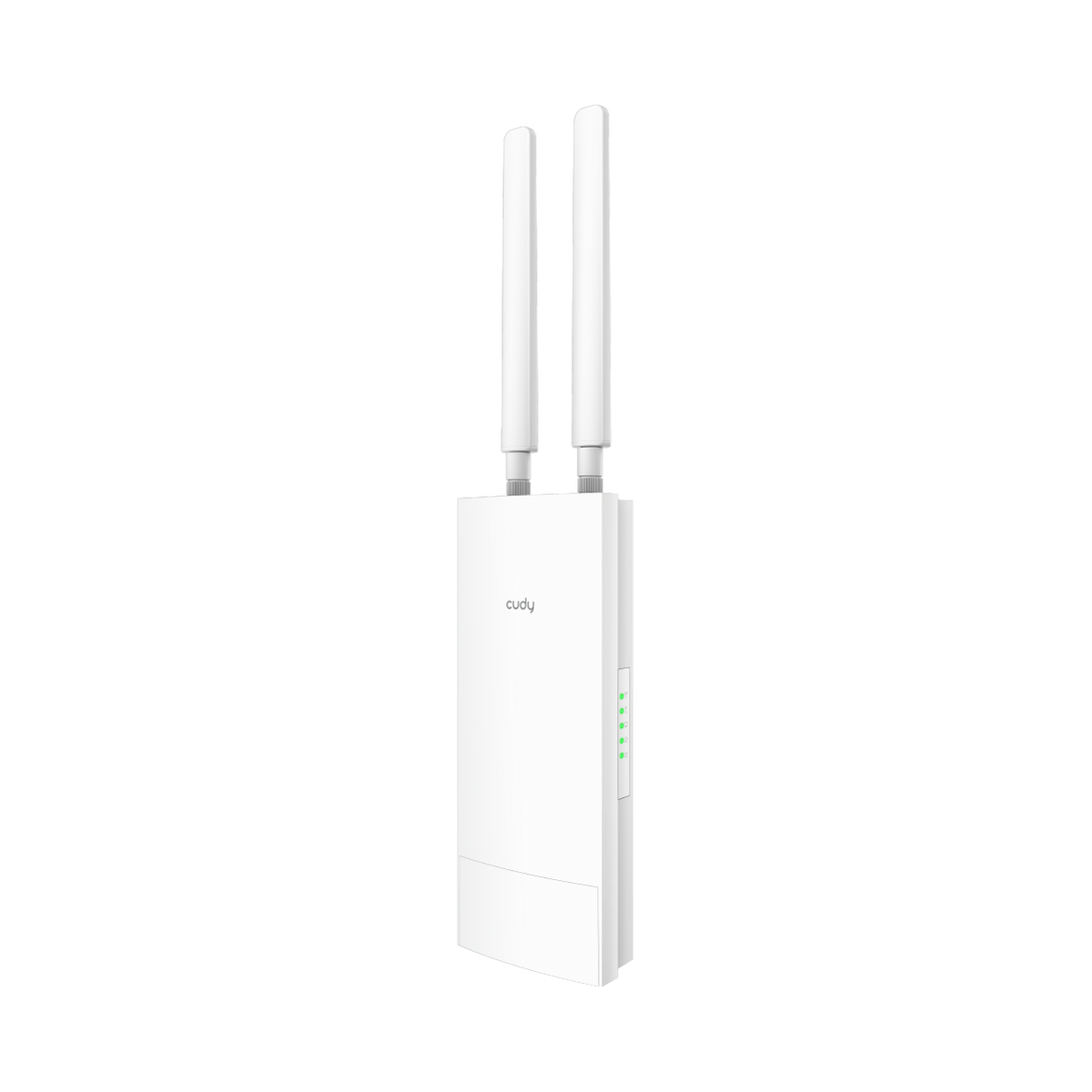

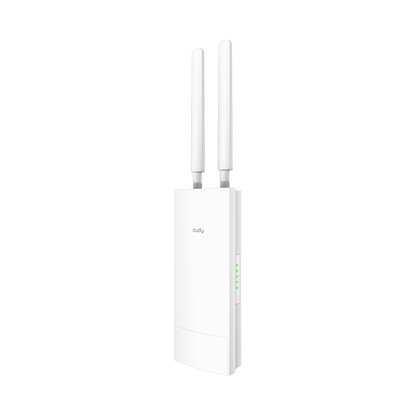

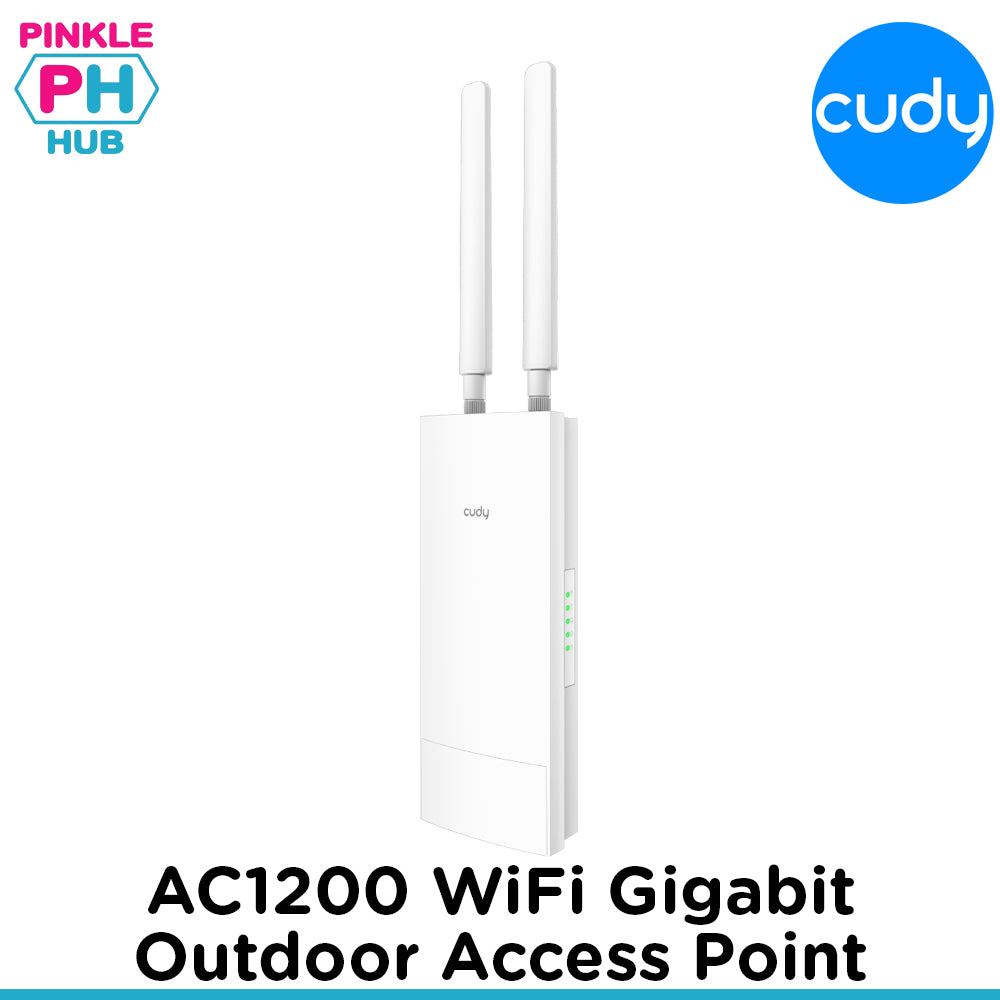

Cudy AC1200 WiFi Gigabit Outdoor Access Point

Brand : CUDY

SKU:  AP1300 Outdoor

Low stock: 1 left

₱3,925.00
₱3,925.00
Sale! Sold out
Model Version AP1300 Outdoor 1.0
CPU CPU Details 880 MHz Dual-Core CPU
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 2× Detachable
FEM or PA/LNA 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
Detachable Wi-Fi Antennas Connector RP-SMA Female
Beamforming
Range Performance Max: 170 m (558 ft)
Park: 150 m (492 ft)
Street: 50 m (164 ft)
Woods: 30 m (98 ft)

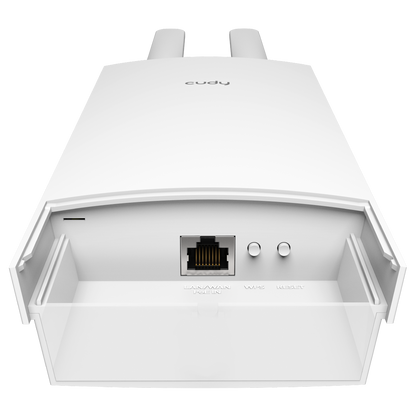

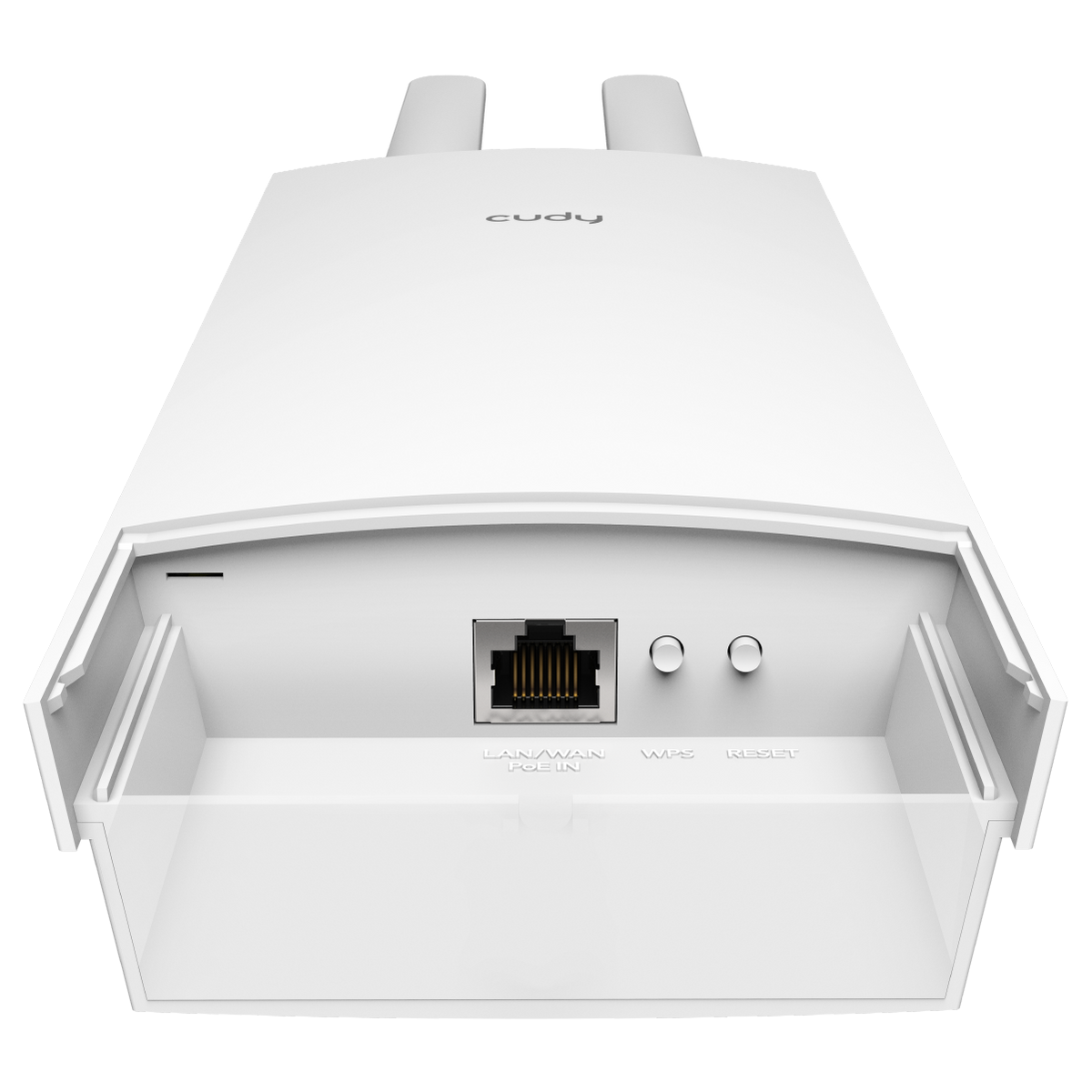

Interfaces Gigabit RJ45 Ports 1
Ethernet Notes ETH0: PoE In
Buttons and LEDs LED 5 GHz Wi-Fi, 2.4 GHz Wi-Fi, LAN, Internet, System
Physical Buttons Reset Button
Power Power Input Type PoE via Ethernet Port
Power Methods
  • 802.3at/af PoE
  • Passive PoE
Power Input
  • PoE: 802.3at/af
  • Passive PoE: 24-57V⎓
Max Power Consumption (W) 11W
Idle Power Consumption (W) 7.5W
Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 48V⎓ Passive PoE
Reliability Advanced Hardware Watchdog
EMC ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Ingress Protection Rating IP65 When devices is installed vertically
Certifications FCC, CE
Mechanical Installation
  • Wall-mount

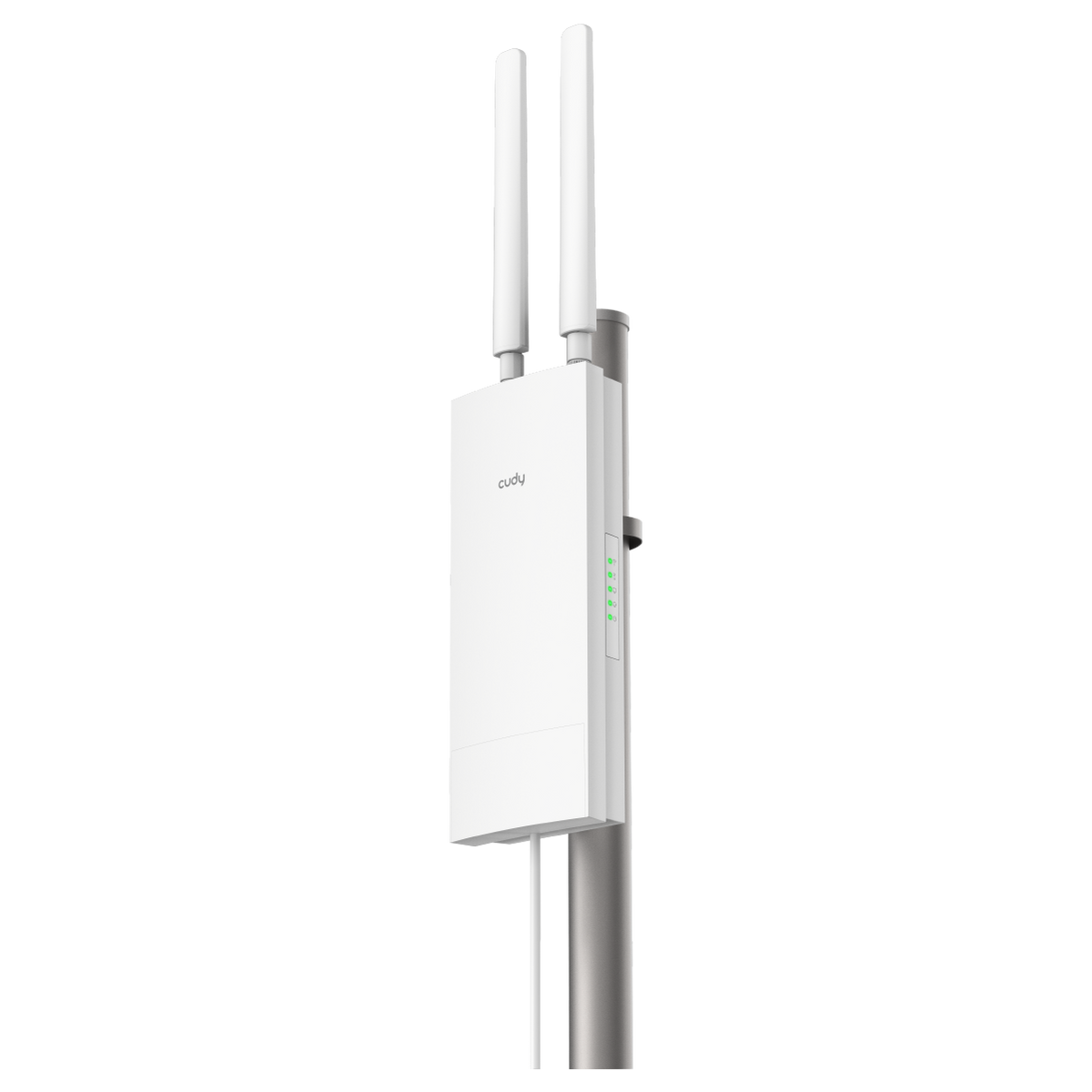

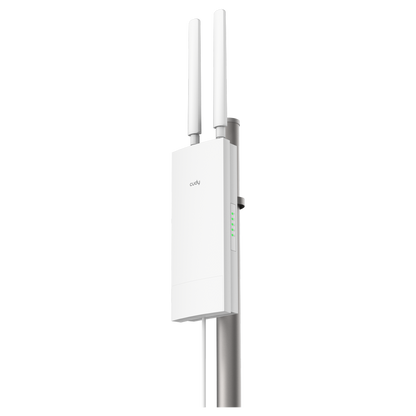

  • Pole-mount
Dimension Main Part:
240×100×53.7 mm
9.45×3.94×2.11 inches
Antenna:
197.5×21.6×15.5 mm
7.78×0.85×0.61 inches
Product Weight 410.3 g (14.47 oz.)

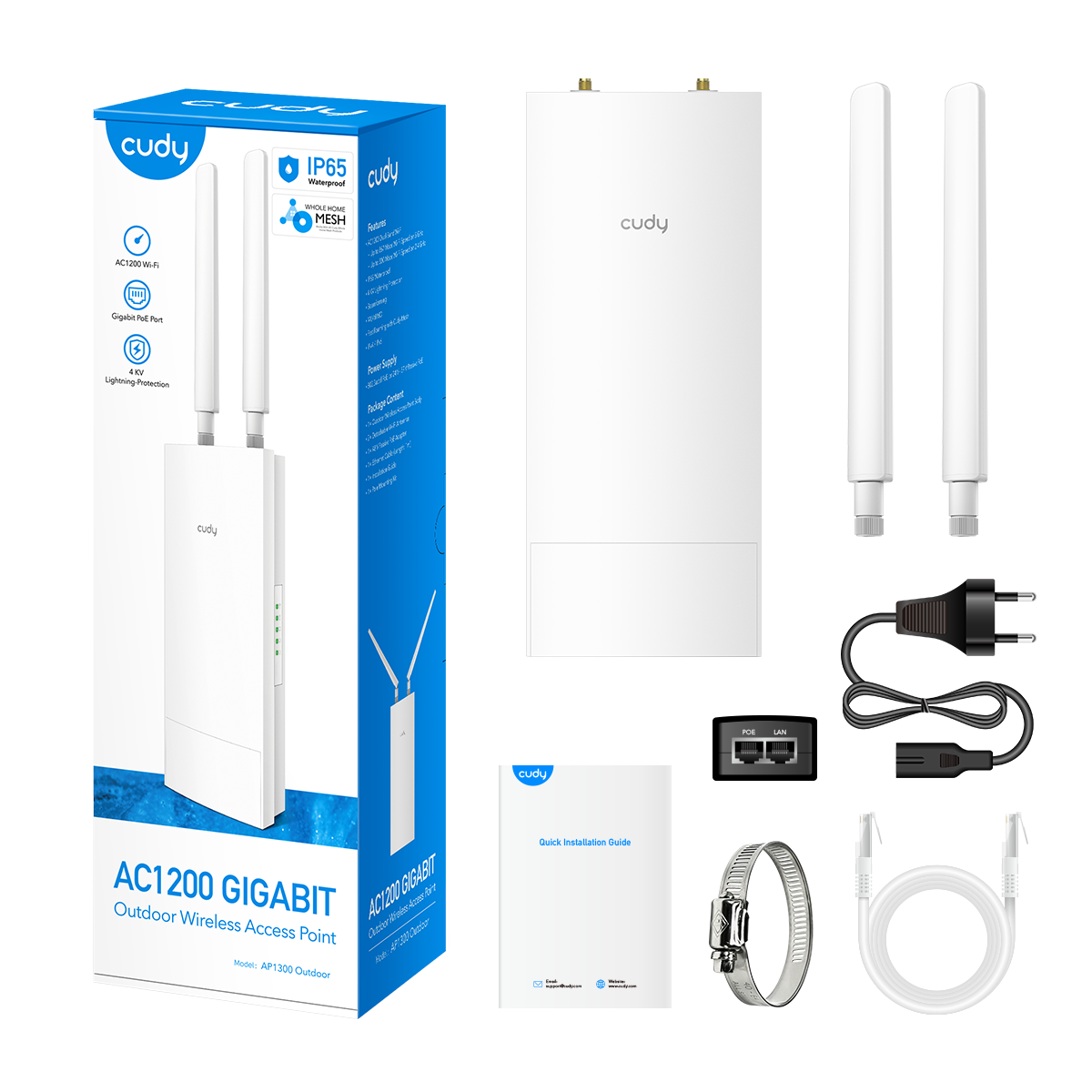

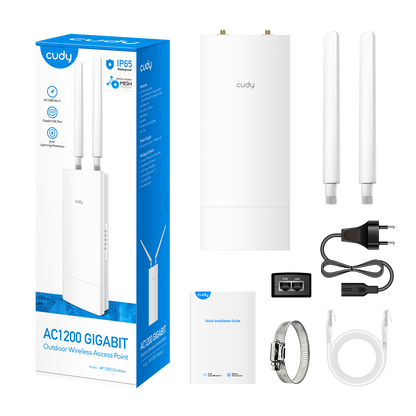

Package Content
  • AP1300 Outdoor
  • Detachable Antennas
  • PoE Adapter
  • Power Cord
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight EU: 865 g (30.51 oz.)
Retail Package Dimension 324×107×86 mm
12.76×4.21×3.39 inches
Units per Carton 20
Carton Net Weight EU: 17.3 kg (38.14 lbs)
Carton Gross Weight EU: 18.2 kg (40.12 lbs)
Carton Dimension 46×33.7×45 cm
18.11×13.27×17.72 inches
Compatibility Compatible Products C200P 1.0, C500P 1.0
Compatible Accessories POE200 2.0, POE300 2.0, POE400 2.0, POE350 2.0, POE200H 1.0, POE400X 2.0, POE350 3.0, POE400 3.0, POE300 3.0, POE24-12W 1.0
