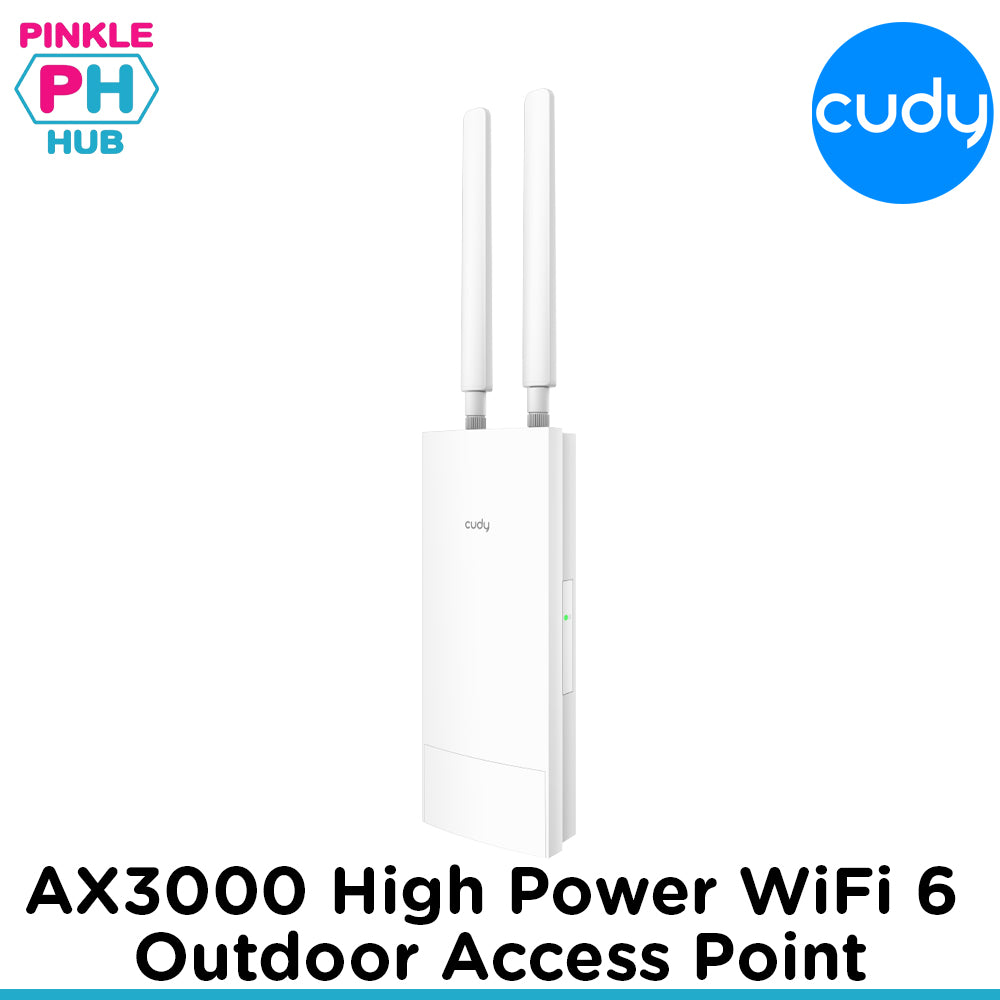

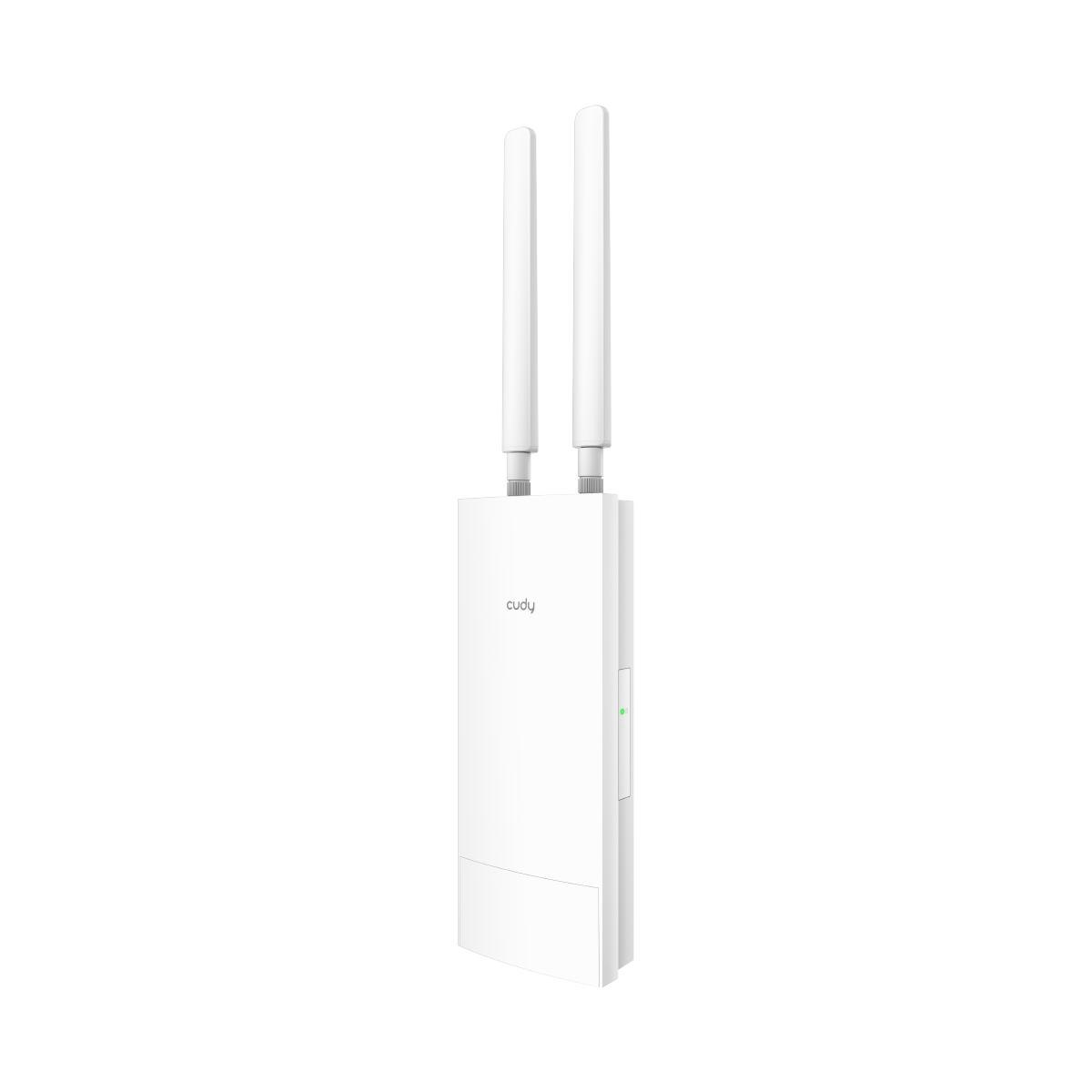

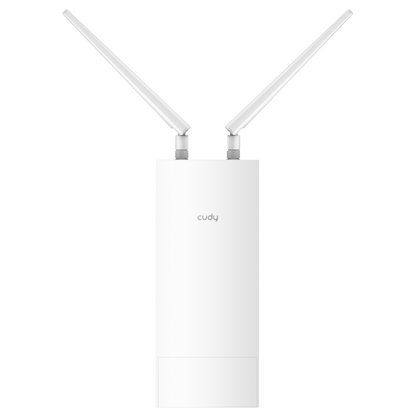

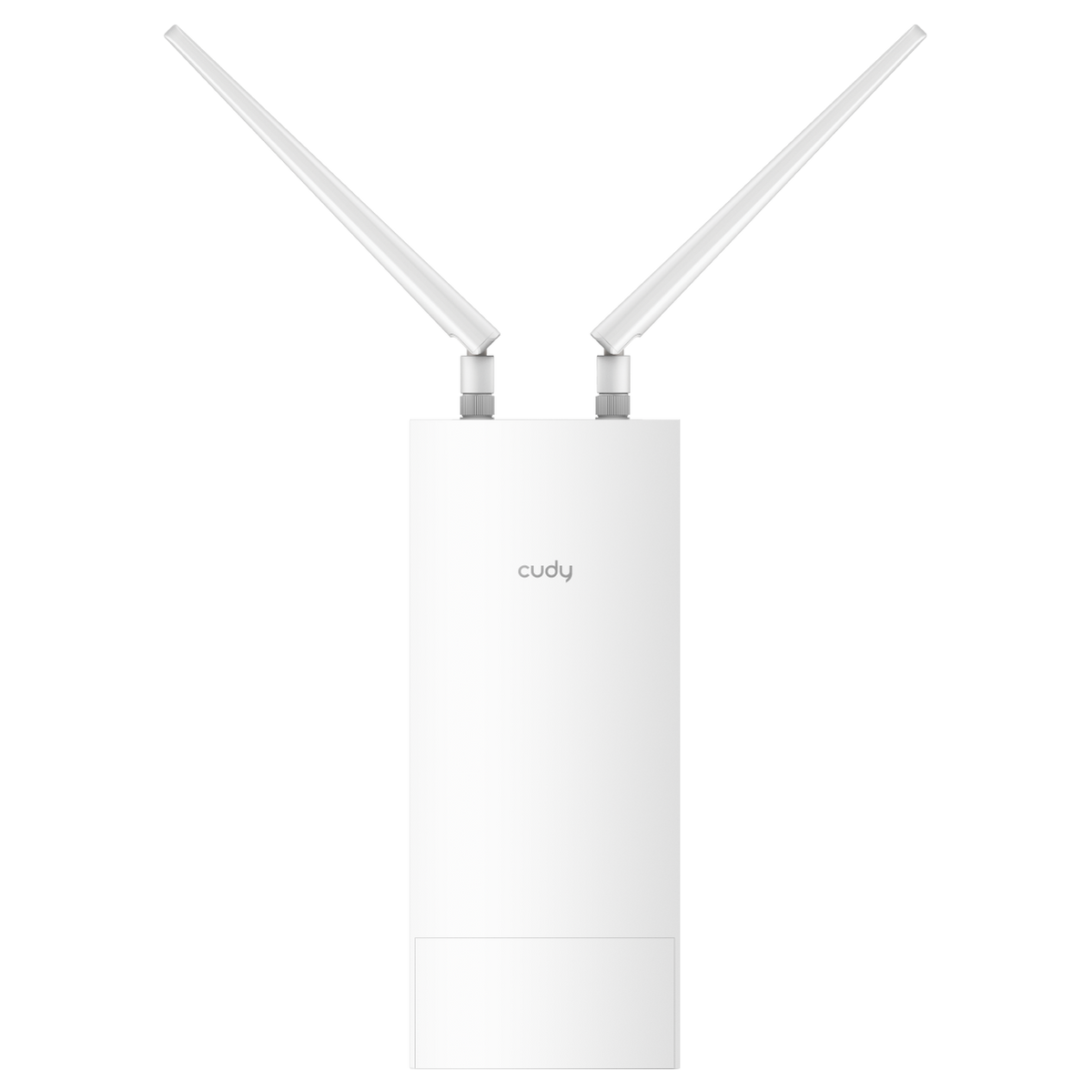

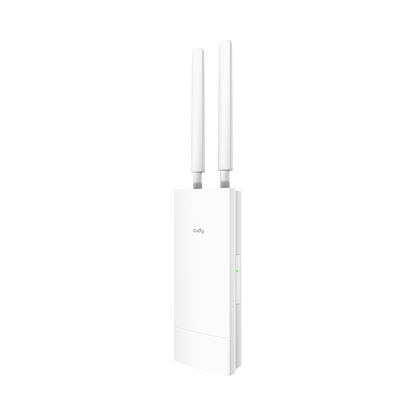

Cudy AX3000 High Power WiFi 6 Outdoor Access Point

Brand : CUDY

SKU:  AP3000 Outdoor

Low stock: 1 left

₱7,615.00
₱7,615.00
Sale! Sold out
Model Version AP3000 Outdoor 1.0
CPU CPU Details 1.3 GHz Dual-Core CPU
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 2402Mbps
2.4 GHz Wi-Fi Speed 574Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams with 3T3R
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 1× Internal+2× External
FEM or PA/LNA 5 GHz: 3× High-Power, 2.4 GHz: 2× High-Power
Detachable Wi-Fi Antennas Connector RP-SMA Female
Beamforming
Range Performance Max: 320 m (1050 ft)
Park: 280 m (919 ft)
Street: 70 m (230 ft)
Woods: 40 m (131 ft)

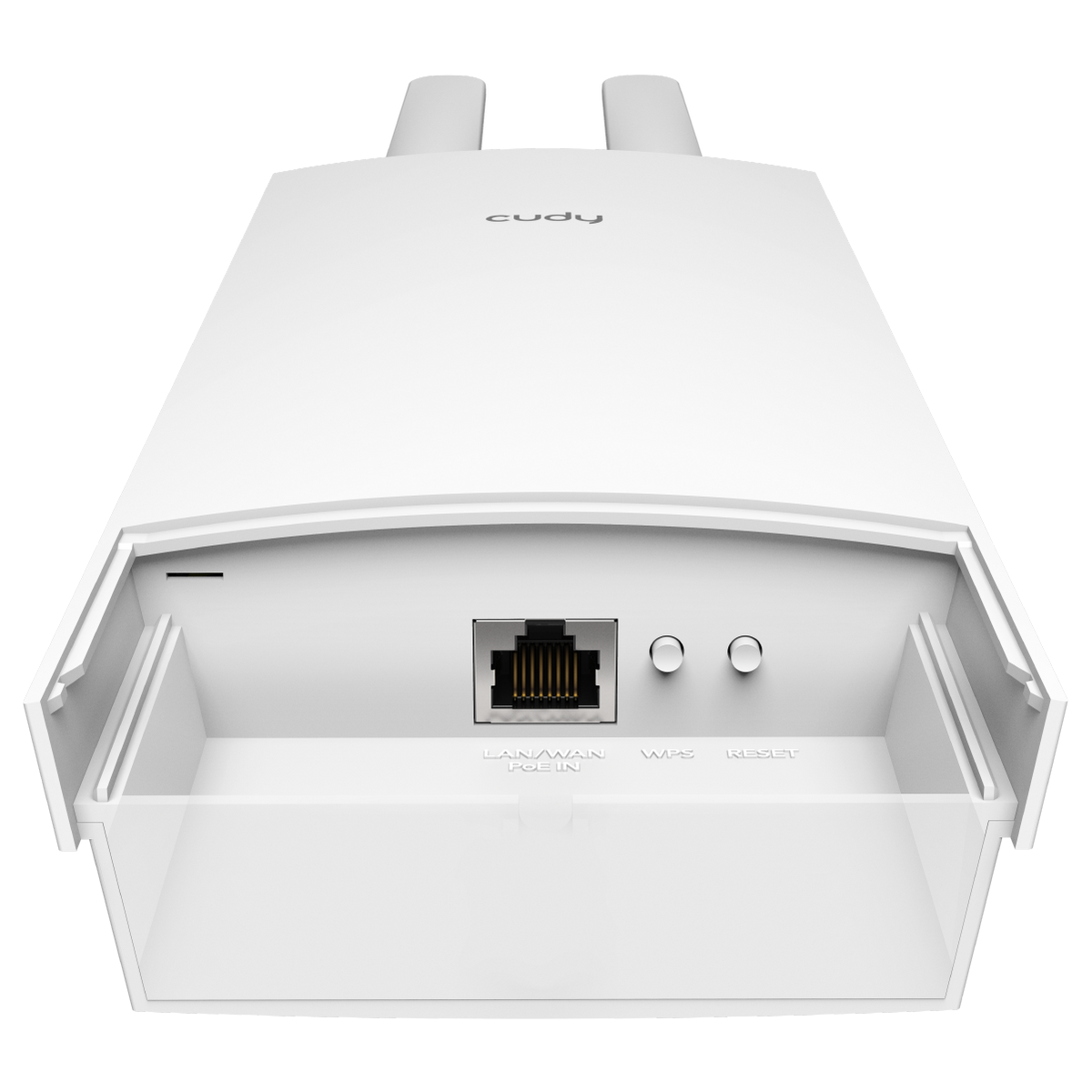

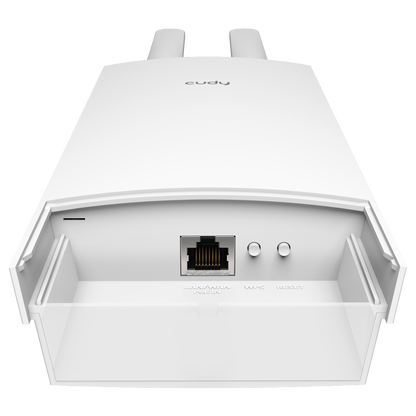

Interfaces Gigabit RJ45 Ports 1
Ethernet Notes ETH0: PoE In
Buttons and LEDs LED System
Physical Buttons WPS Button, Reset Button
Power Power Input Type PoE via Ethernet Port
Power Methods
  • 802.3at PoE
  • Passive PoE
Power Input
  • PoE: 802.3at
  • Passive PoE: 48-57V⎓
Max Power Consumption (W) 19W
Idle Power Consumption (W) 5 W
Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 48V⎓ Passive PoE
Reliability Advanced Hardware Watchdog
EMC IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: -40 ℃ ~ 65 ℃ (-40 ℉ ~149 ℉)
Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 0% ~ 100% non-condensing
Storage Humidity: 10% ~ 95% non-condensing
Ingress Protection Rating IP65 When devices is installed vertically
Certifications FCC, CE
Mechanical Installation
  • Wall-mount

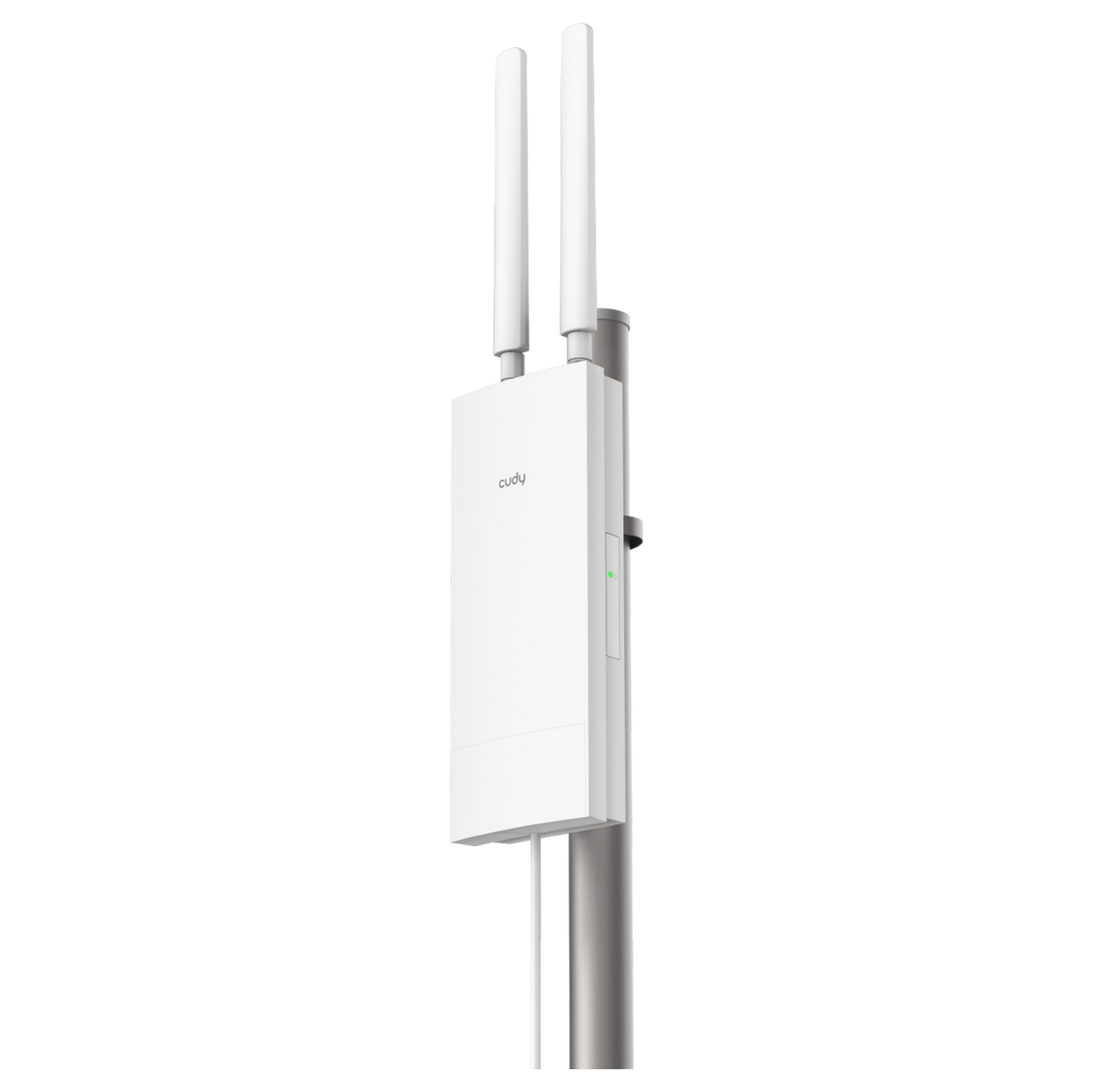

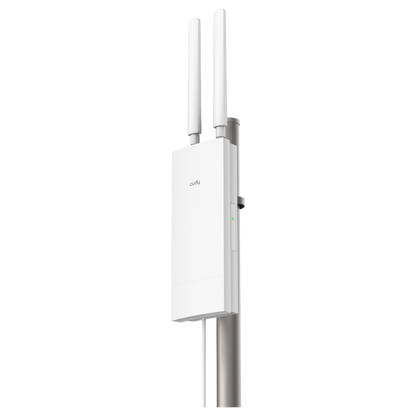

  • Pole-mount
Dimension Main Part:
240×100×53.7 mm
9.45×3.94×2.11 inches
Antenna:
197.5×21.6×15.5 mm
7.78×0.85×0.61 inches
Product Weight 455 g (16.05 oz.)

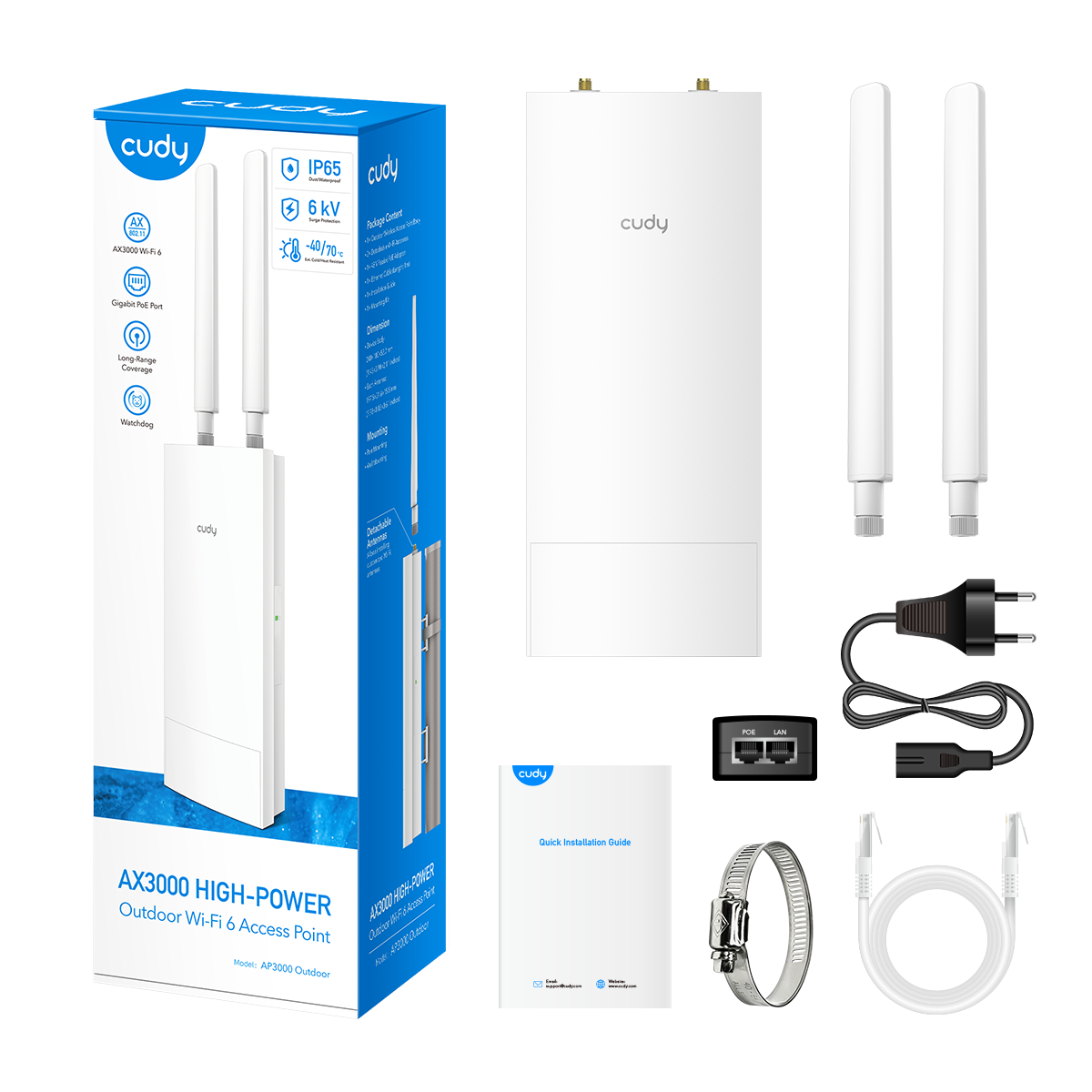

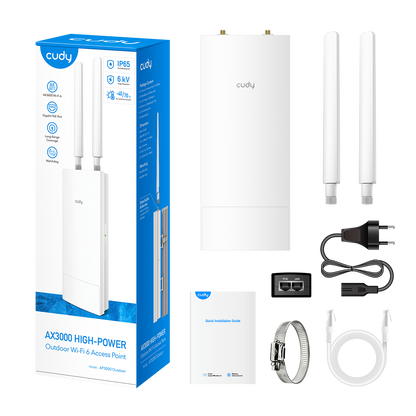

Package Content
  • AP3000 Outdoor

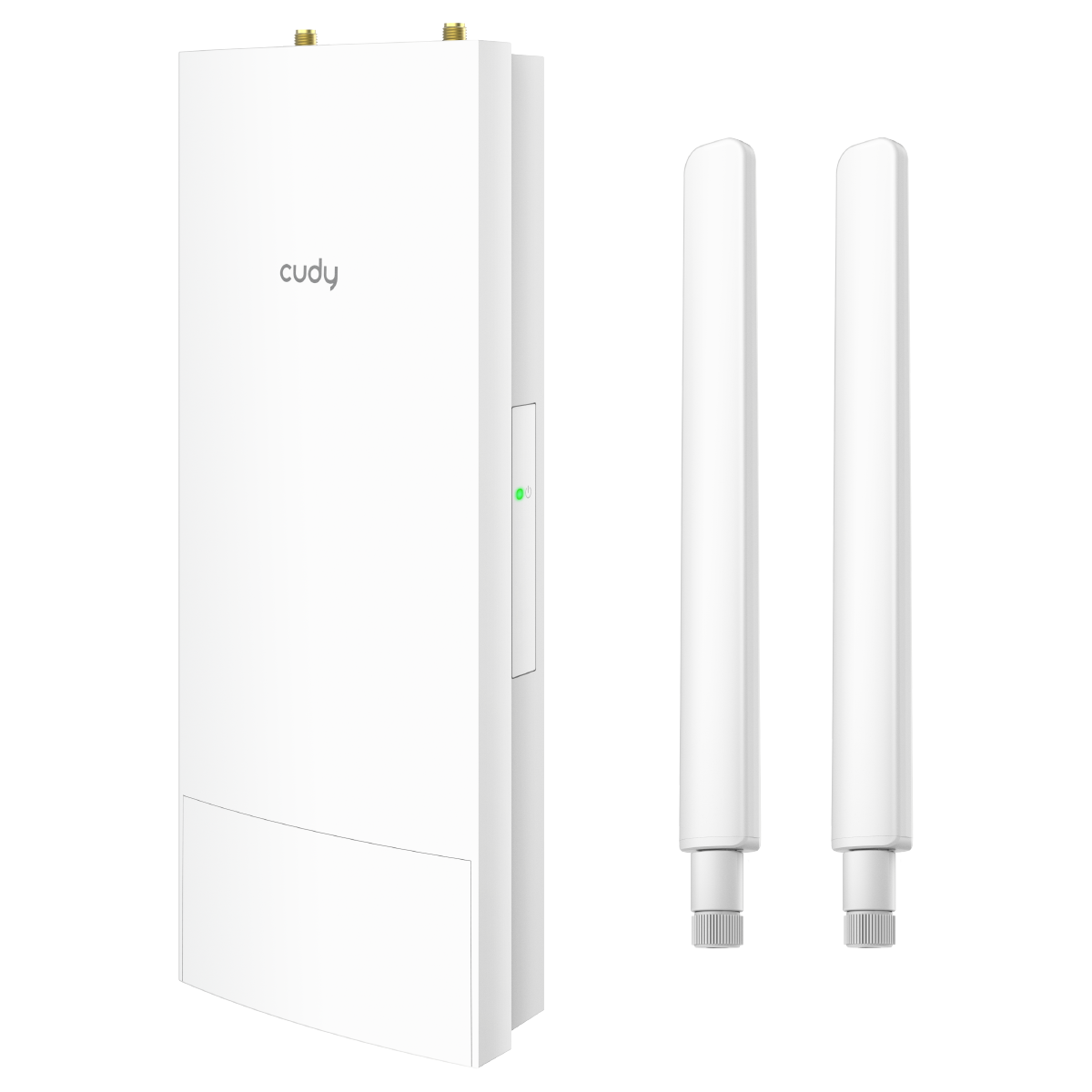

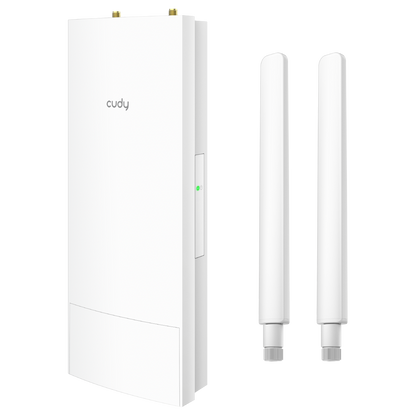

  • Detachable Antennas
  • PoE Adapter
  • Power Cord
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight EU: 856 g (30.19 oz.)
Retail Package Dimension 324×107×86 mm
12.76×4.21×3.39 inches
Units per Carton 20
Carton Net Weight EU: 20.6 kg (45.42 lbs)
Carton Gross Weight EU: 21.4 kg (47.18 lbs)
Carton Dimension 46×33.7×45 cm
18.11×13.27×17.72 inches
Compatibility Compatible Products C200P 1.0, C500P 1.0
Compatible Accessories POE200 2.0, POE300 2.0, POE400 2.0, POE350 2.0, POE200H 1.0, POE400X 2.0, POE350 3.0, POE400 3.0, POE300 3.0, POE52-30W 1.0, POE48-18W 1.0
