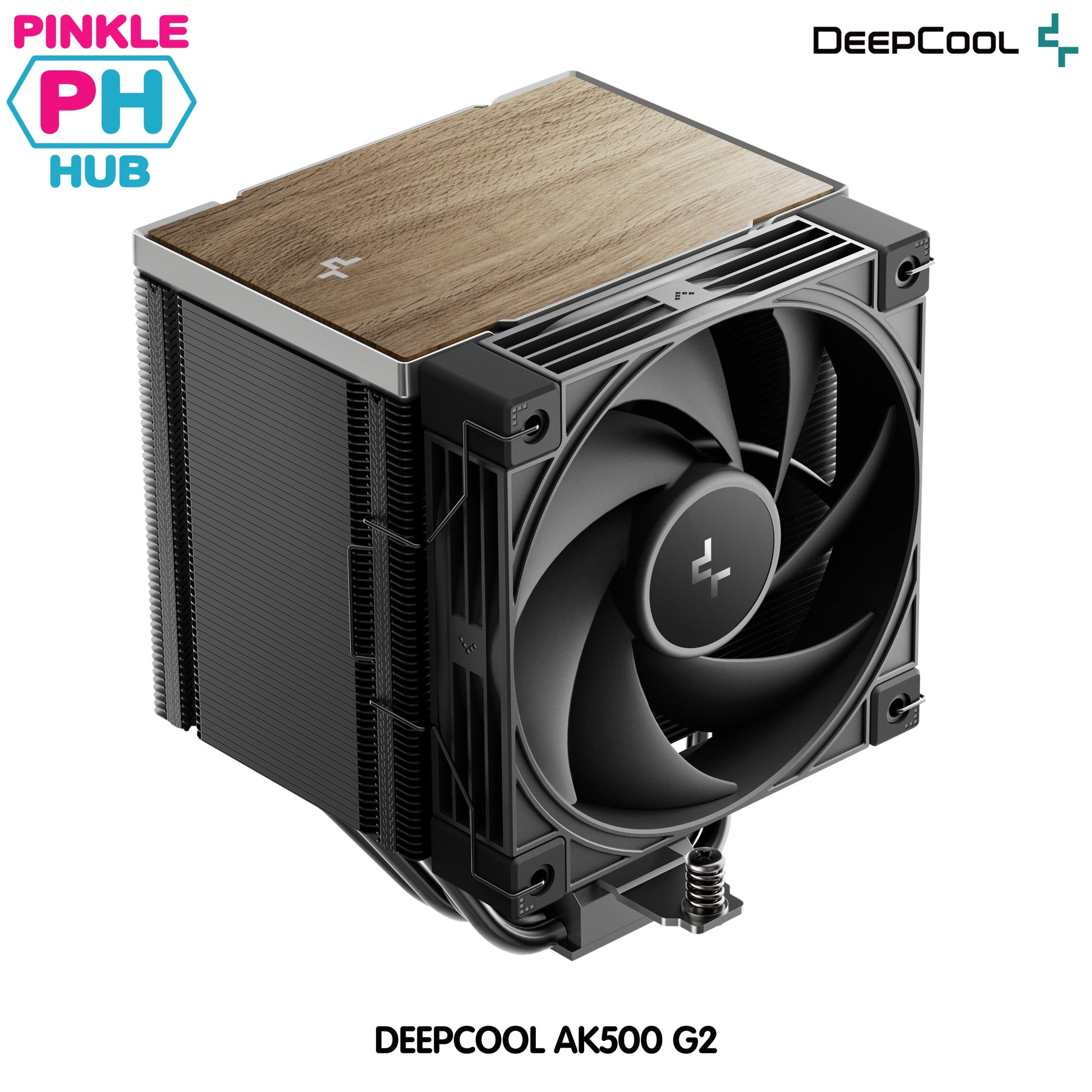

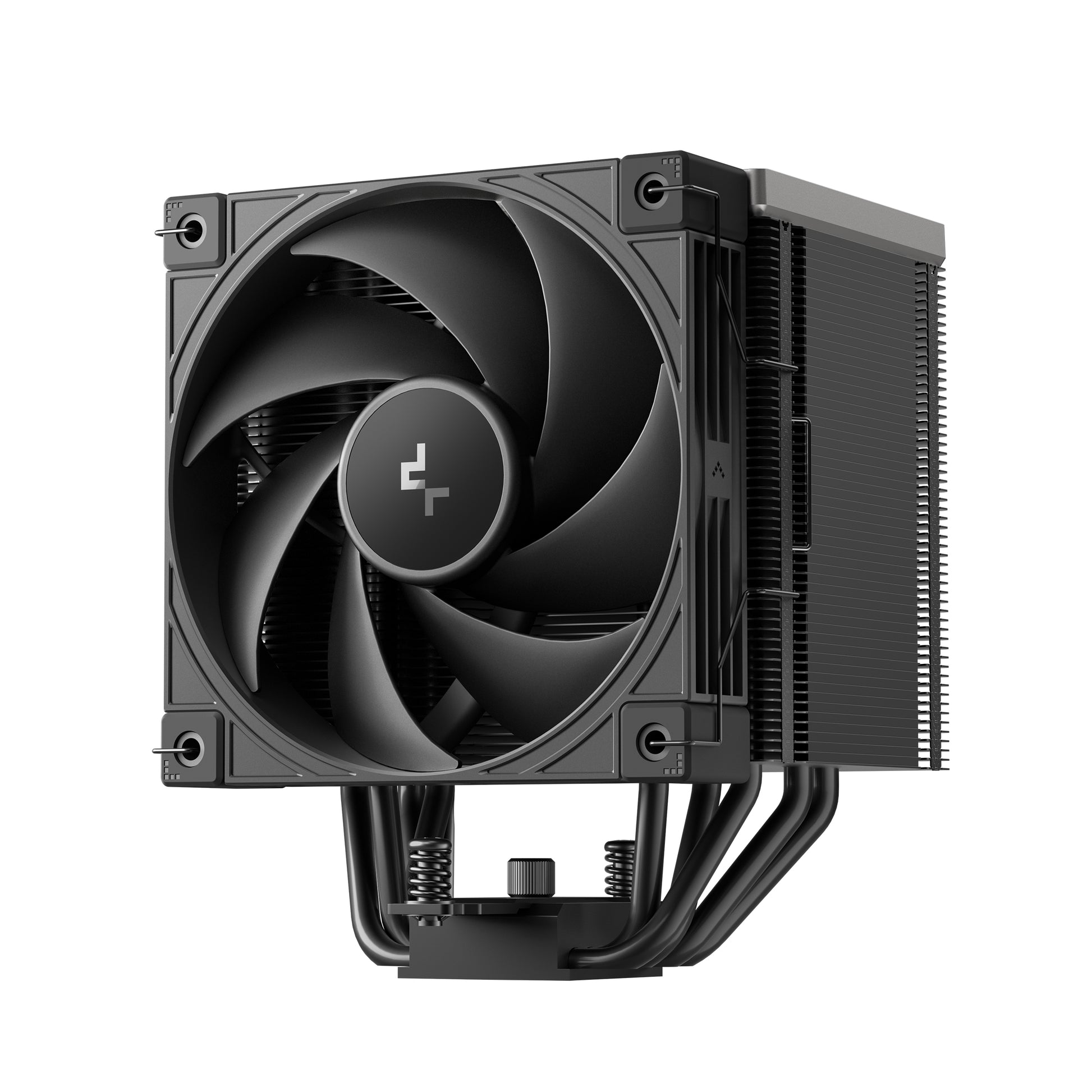

DEEPCOOL AK500 G2 Performance CPU Cooler

Further improved second generation of the iconic AK lineup with upgraded performance and a bold new aesthetic. The same premium quality materials featuring five advanced copper heat pipes, a single-tower heat sink, and newly designed silent fan produces a powerful winning formula for high performance cooling in a wood grain design.

NEXT GENERATION PERFORMANCE

Thanks to DeepCool’s latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK500 G2 reaches a bump in cooling performance compared to its predecessor.

PROVEN AK DESIGN

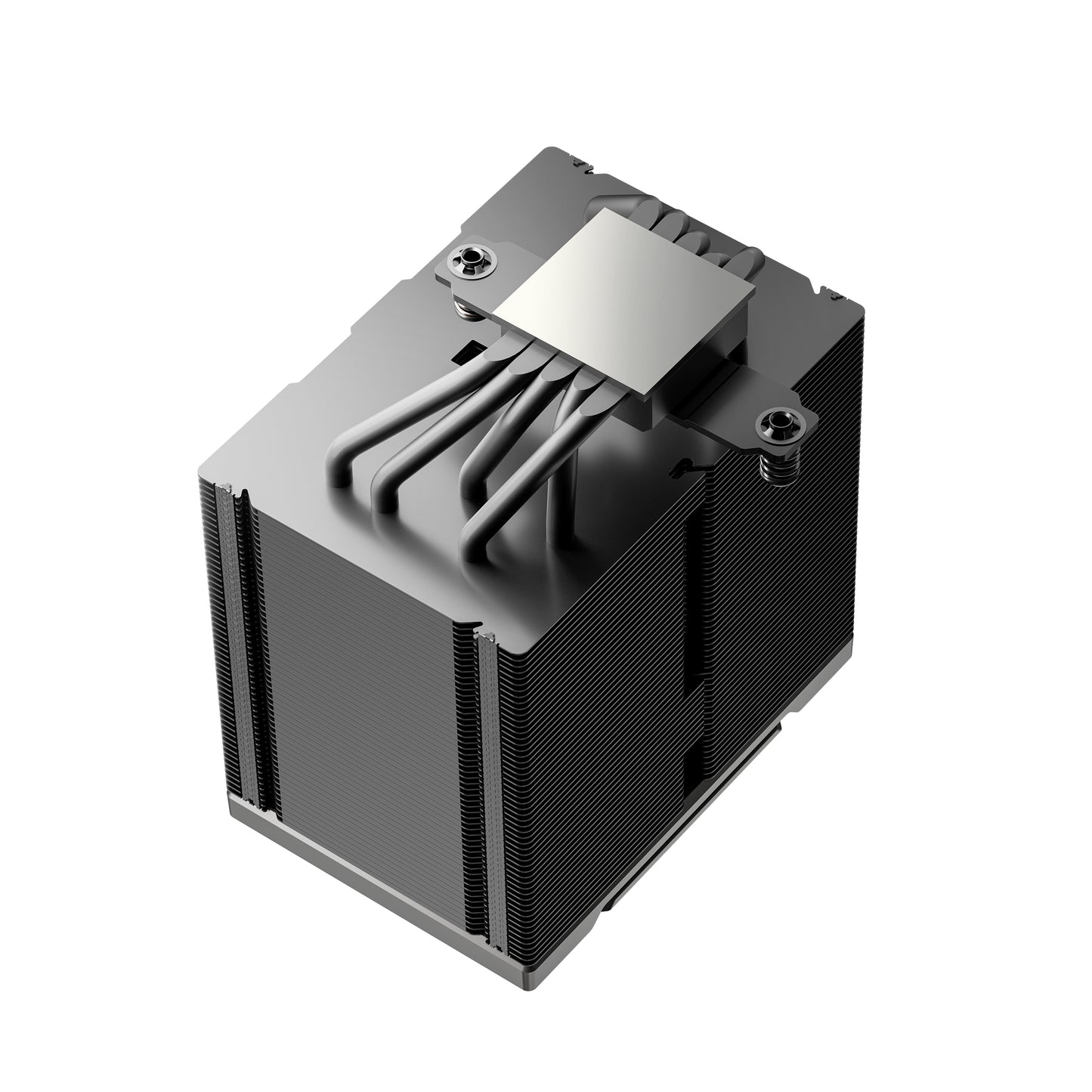

The AK500 G2 continues its legacy by featuring a precision-machined copper base and five copper heat pipes that deliver improved heat transfer capabilities. The signature matrix fin array in a single tower heat sink layout offers better efficiency for high performance systems.

PREMIUM COMPATIBILITY

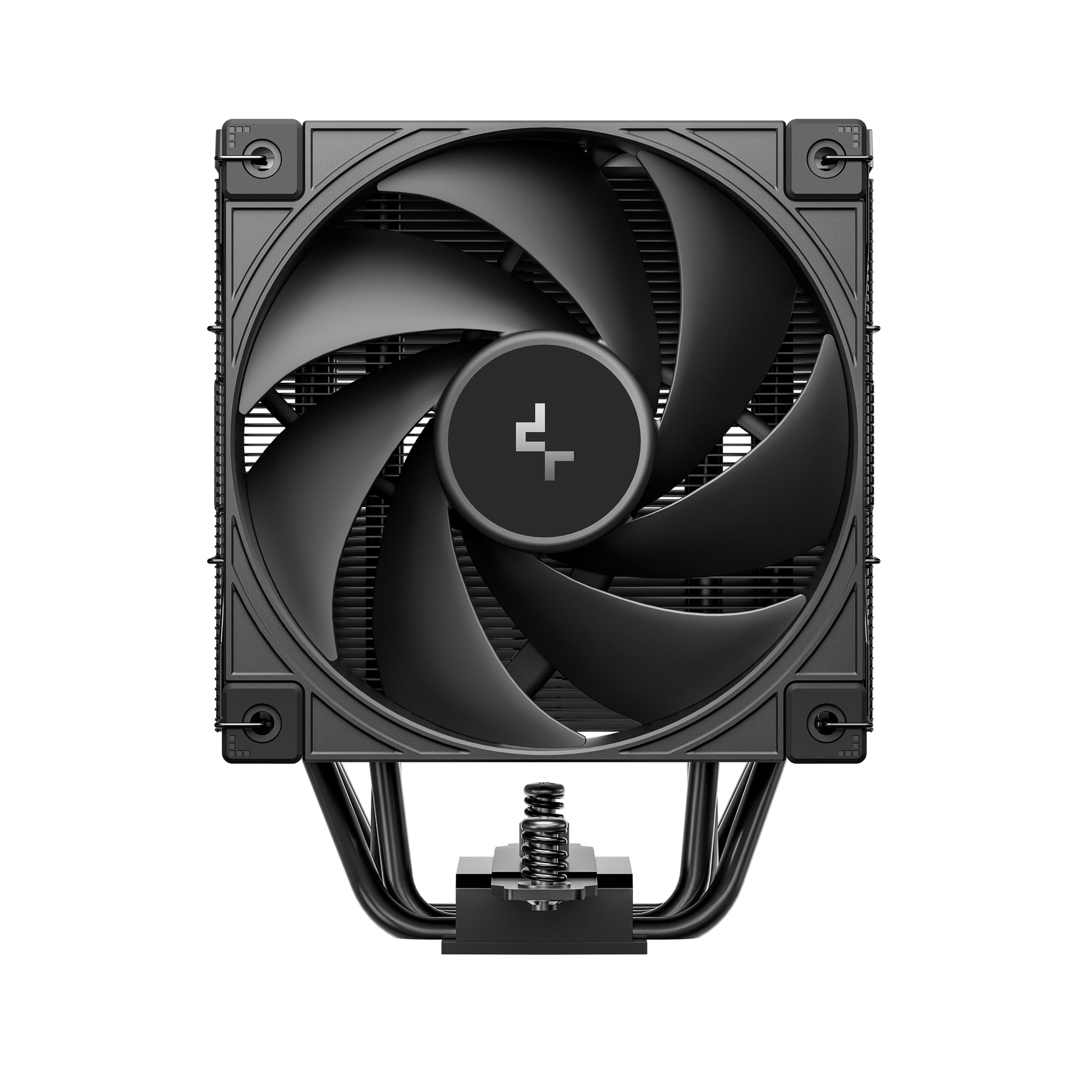

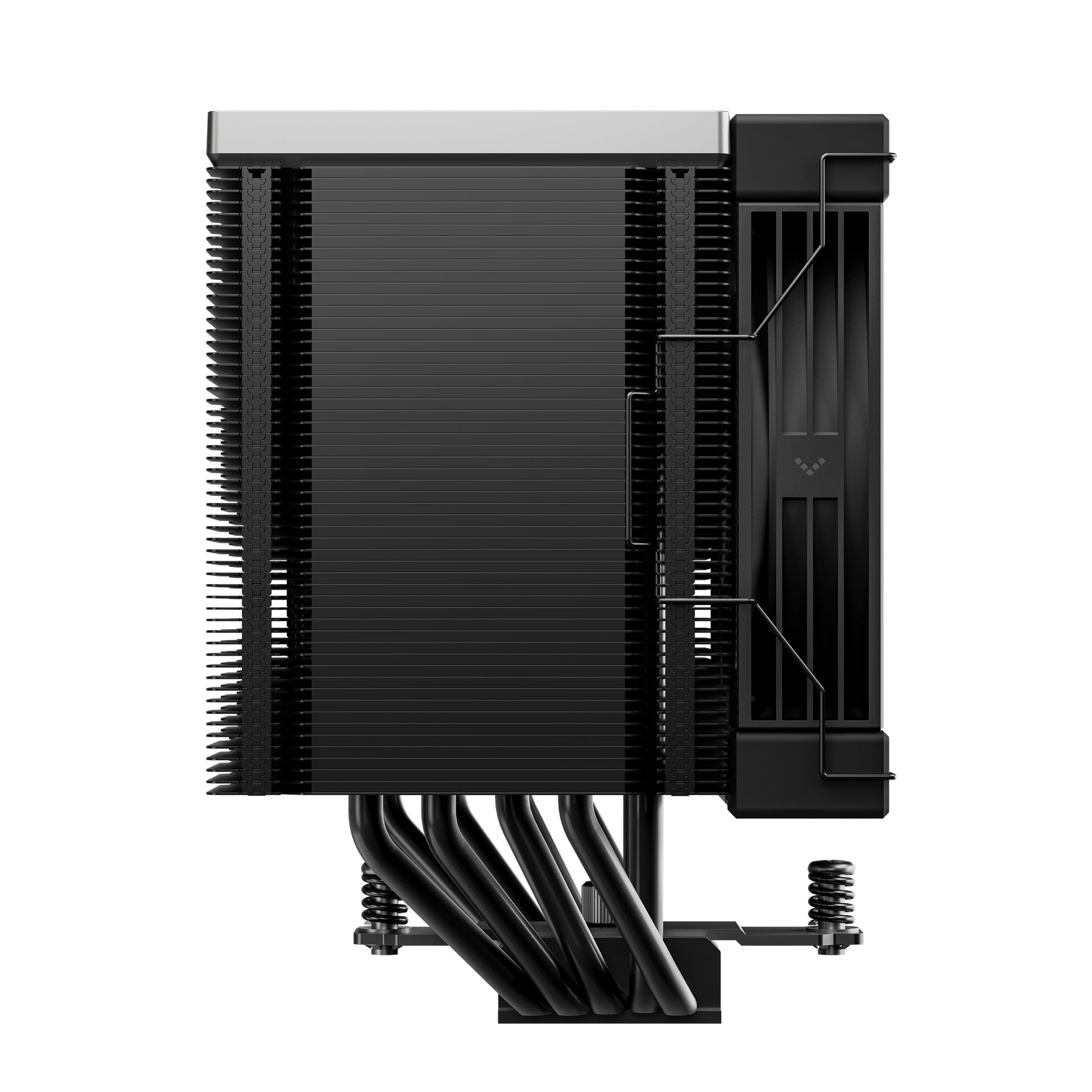

Designed with offset heat pipes to accommodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.

TRANSFORM YOUR COOLING AESTHETIC

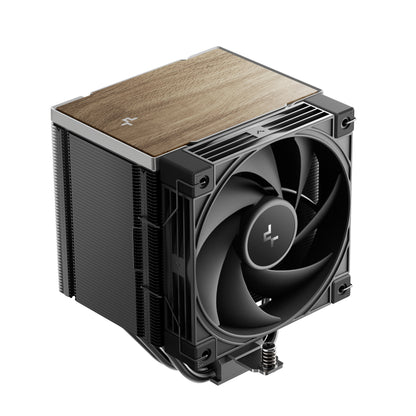

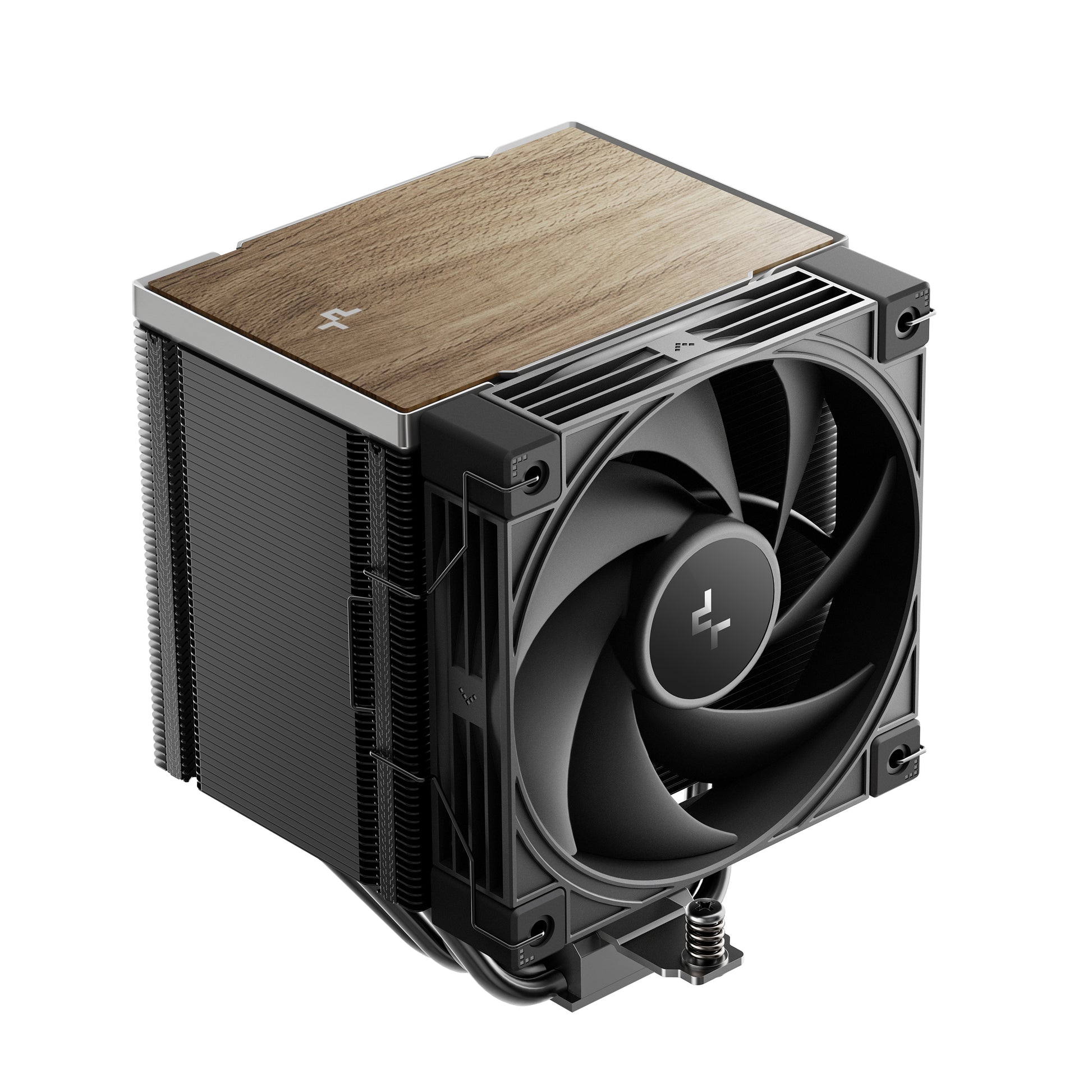

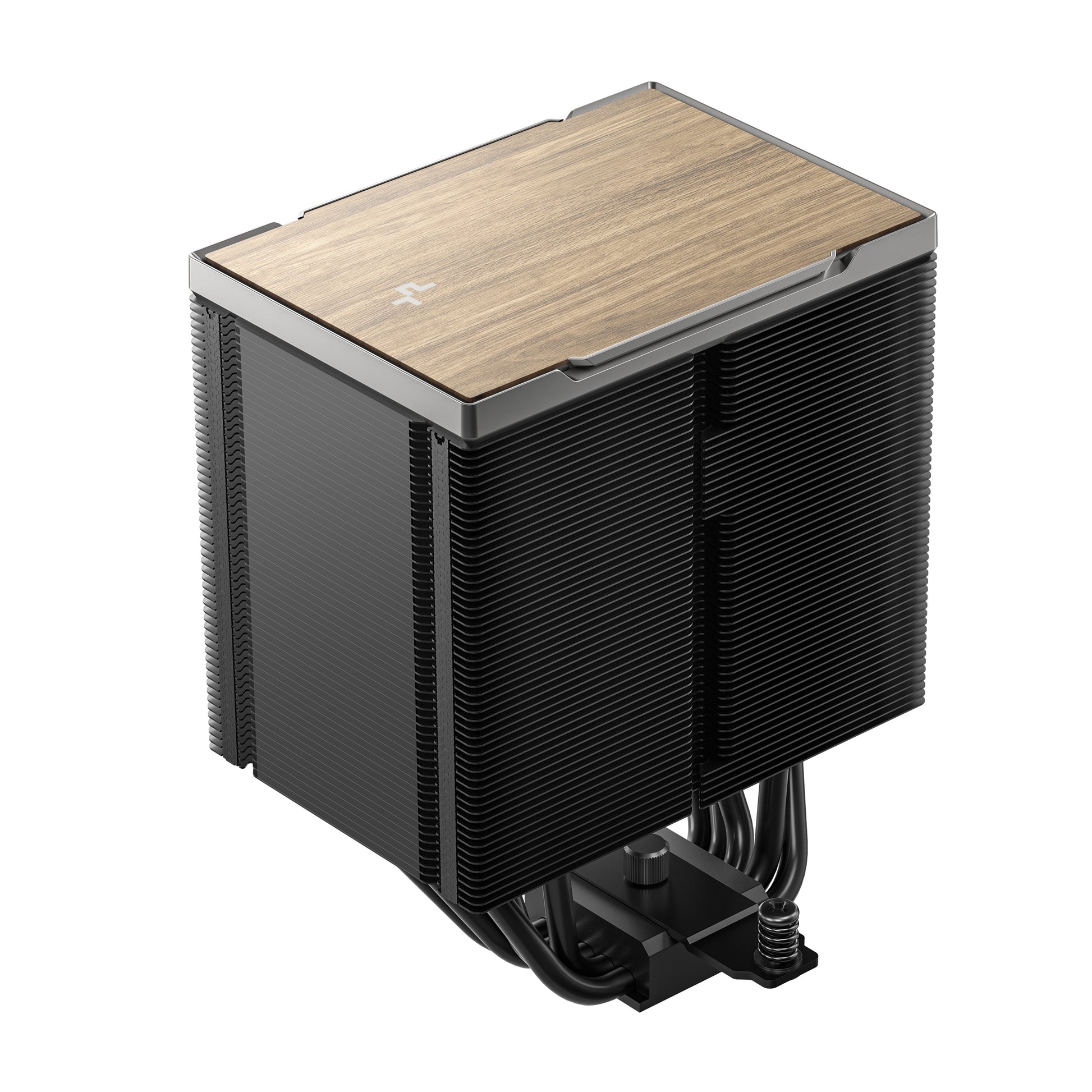

A refined wood-grain top cover that beautifully merges natural elegance with modern performance, while an optional black matrix-style decal offers a customizable aesthetic.

COOL, QUIET, AND POWERFUL

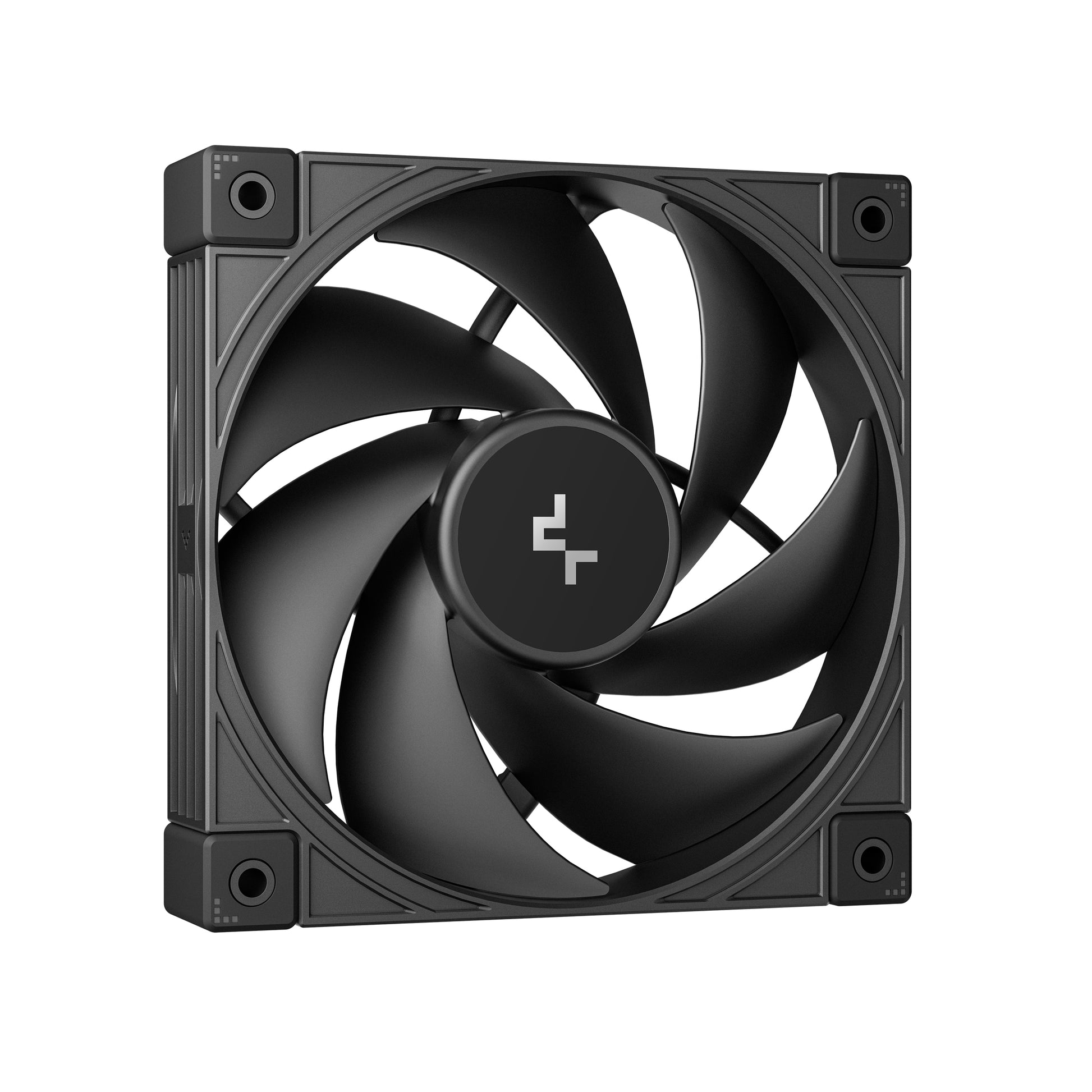

Equipped with high-quality hydraulic bearing and a three-phase, six-slot, four-pole motor, the AK500 G2's fan operates smoothly and quietly.

1. 0-RPM Startup/Stop effectively reduces noise and prolongs fan lifespan.

2. Activate Clearing Tech (ACT) within 8 seconds of power-on to initiate automatic dust clearing for both the fan blades and heatsink.

31.45 dBA

Full load noise

2200±10%PRM

Fan Speed

0 RPM＜5% PWM

Dynamic PWM Range

3 Years

Limited Warranty Coverage

MULTI-PLATFORM PERFORMANCE

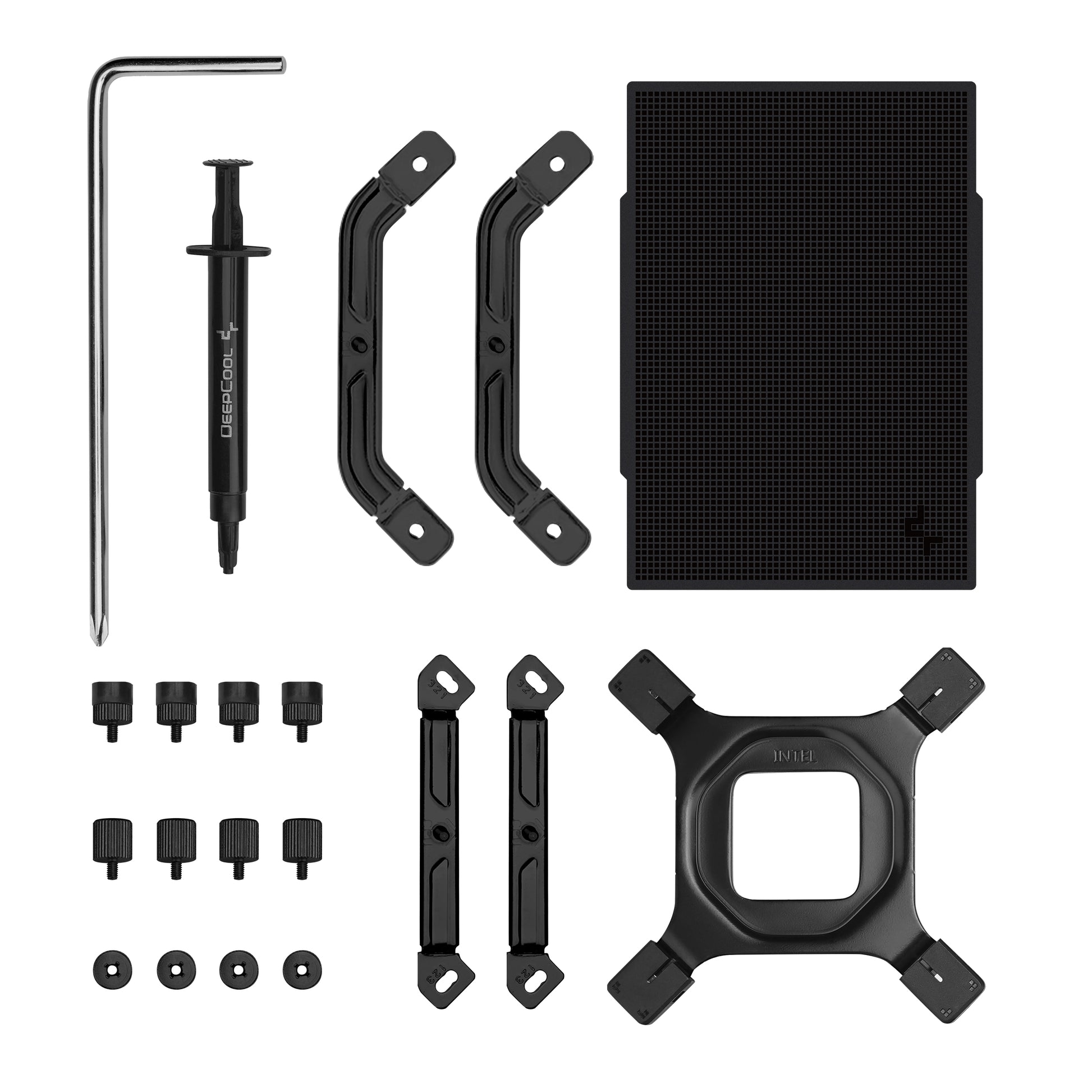

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.

Application For

Intel

LGA1851/1700/1200/115X

AMD

AM5/AM4

Technical Spec

Product Dimensions	129×117×159 mm(L×W×H)
Heatsink Dimensions	127×89×153 mm(L×W×H)
Net Weight	1354 g
Heatpipe	Ø6 mm×5 pcs
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	2200±10% RPM(max)
Fan Airflow	63.4 CFM
Fan Air Pressure	3.33 mmAq
Fan Noise	≤31.45 dB(A)

Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.25 A
Fan Power Consumption	3 W
EAN	6933412729556
P/N	R-AK500G2-BKNNMN-GJD
