ASSASSIN 4S

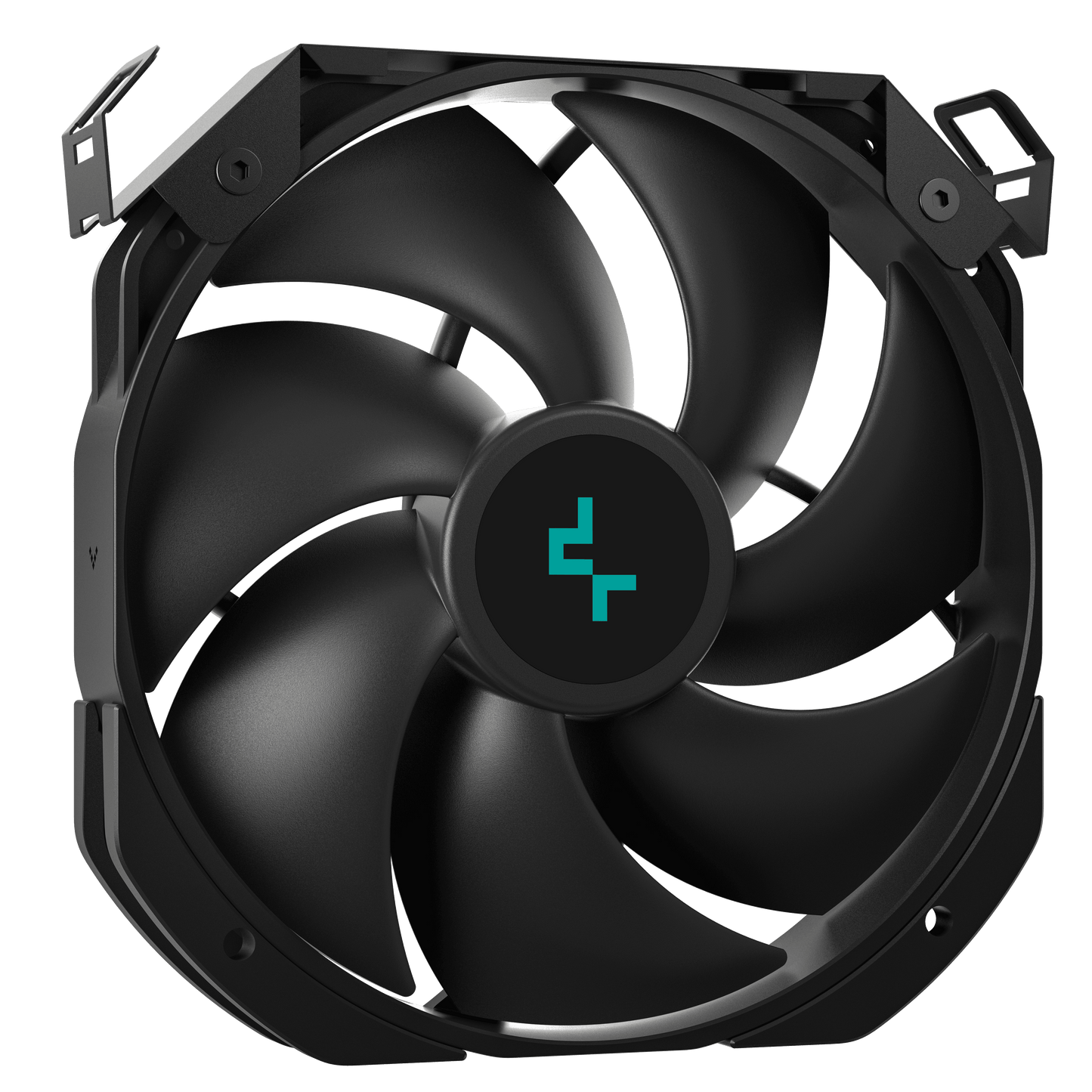

The ASSASSIN 4S provides exceptional performance and is armed with seven 6mm heat pipes and a redesigned 140mm FDB fan. The 4S models eliminate the rear 120mm fan, providing a slimmer, more symmetrical cooler.
STREAMLINED INSTALLATION
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
|
Product Dimensions |
116×147×164 mm(L×W×H) |
|
Heatsink Dimensions |
140×110×160 mm(L×W×H) |
|
Net Weight |
1380 g |
|
Heatpipe |
Ø6 mm×7 pcs |
|
Fan Dimensions |
140×140×25 mm(L×W×H) |
|
Fan Speed (Performance Mode) |
500~1800 RPM±10% |
|
Fan Airflow (Performance Mode) |
61.25 CFM |
|
Fan Air Pressure (Performance Mode) |
3.76 mmAq |
|
Overall Noise (Performance Mode) |
≤29.3 dB(A) |
|
Fan Speed (Quiet Mode) |
500~1450 RPM±10% |
|
Fan Airflow (Quiet Mode) |
48.55 CFM |
|
Fan Air Pressure (Quiet Mode) |
2.46 mmAq |
|
Overall Noise (Quiet Mode) |
≤22.6 dB(A) |
|
Fan Connector |
4-pin PWM |
|
Bearing Type |
Fluid Dynamic Bearing |
|
Motor Type |
6-Pole Fan Motor |
|
Fan Rated Voltage |
12 VDC |
|
Fan Rated Current |
0.2 A |
|
Fan Power Consumption |
2.4 W |
|
Rated Voltage |
12 VDC |
|
Power Consumption(Performance Mode) |
3.6 W |
|
Power Consumption(Quiet Mode) |
2.4 W |
|
EAN |
6933412728696 |
|
P/N |
R-ASN4S-BKGPMN-G |
