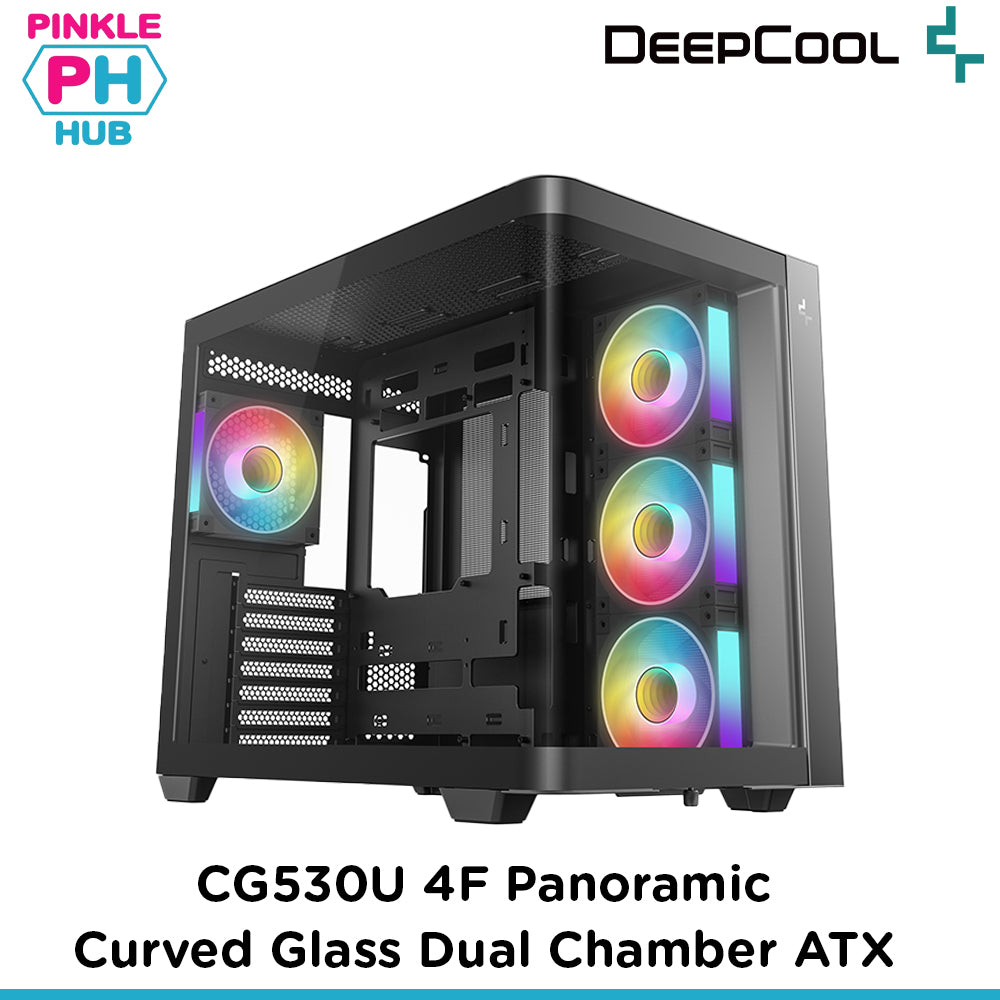

DeepCool CG530U 4F Black Panoramic Curved Glass Dual Chamber ATX PC Case
DeepCool CG530U 4F Black Panoramic Curved Glass Dual Chamber ATX PC Case
Brand : DeepCool
SKU: SKU: R-CG530U-BKAGA4-G
5 in stock
Regular price
₱5,315.00
Regular price
Sale price
₱5,315.00
Unit price
per
Couldn't load pickup availability
CG530U 4F
CURVED GLASS SHOWCASE
SEAMLESS PANORAMIC VIEW

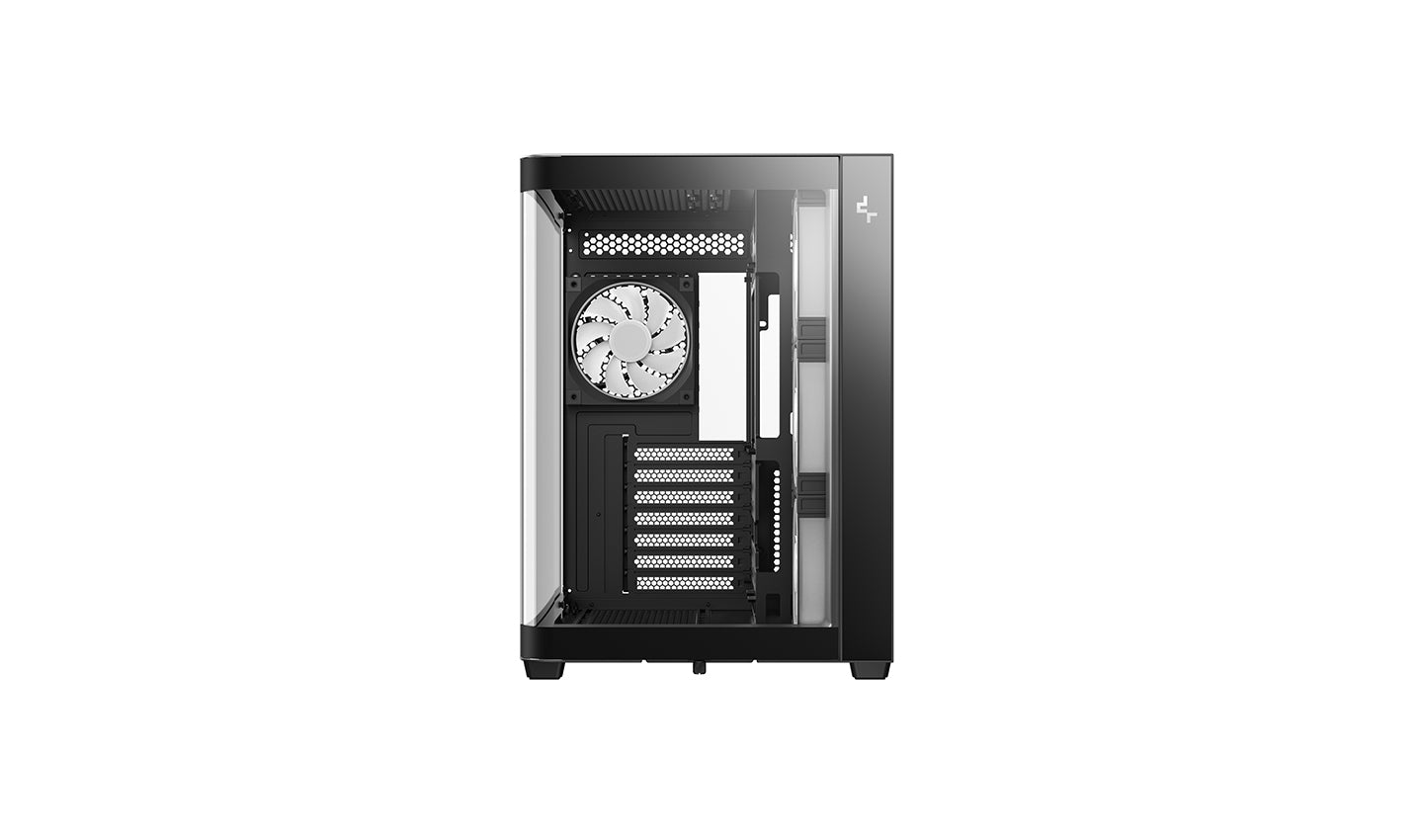

The CG530U 4F features a one-piece curved tempered glass panel that transitions smoothly around the corner. With no seams interrupting the line of sight, it offers an open, continuous view into the build within.
READY TO FLOW

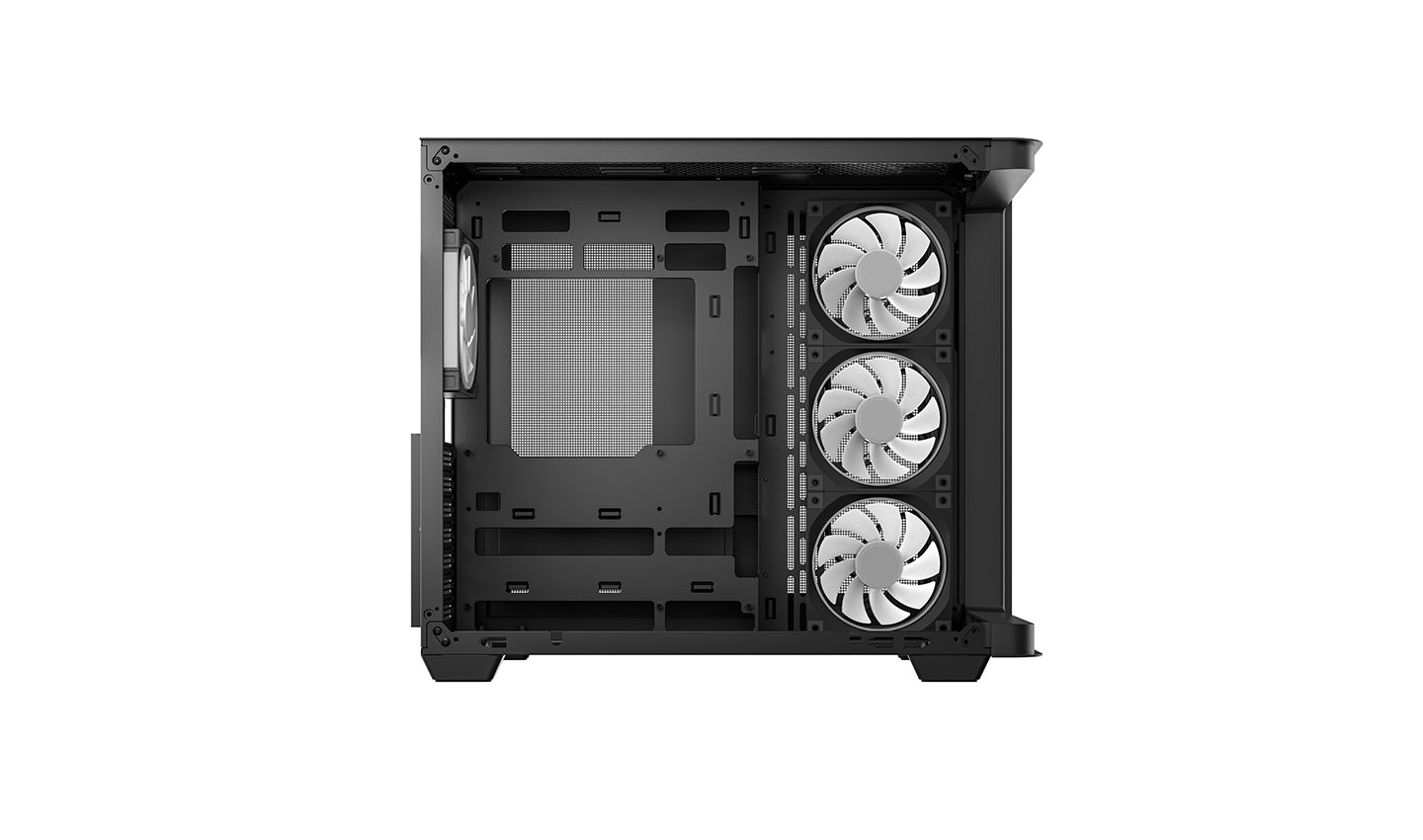

Four ARGB fans come pre-installed with three reverse-blade units on the side and one standard fan at the rear. The balanced intake and exhaust setup provides strong airflow and reliable cooling from the start.
EFFICIENT VENTILATION

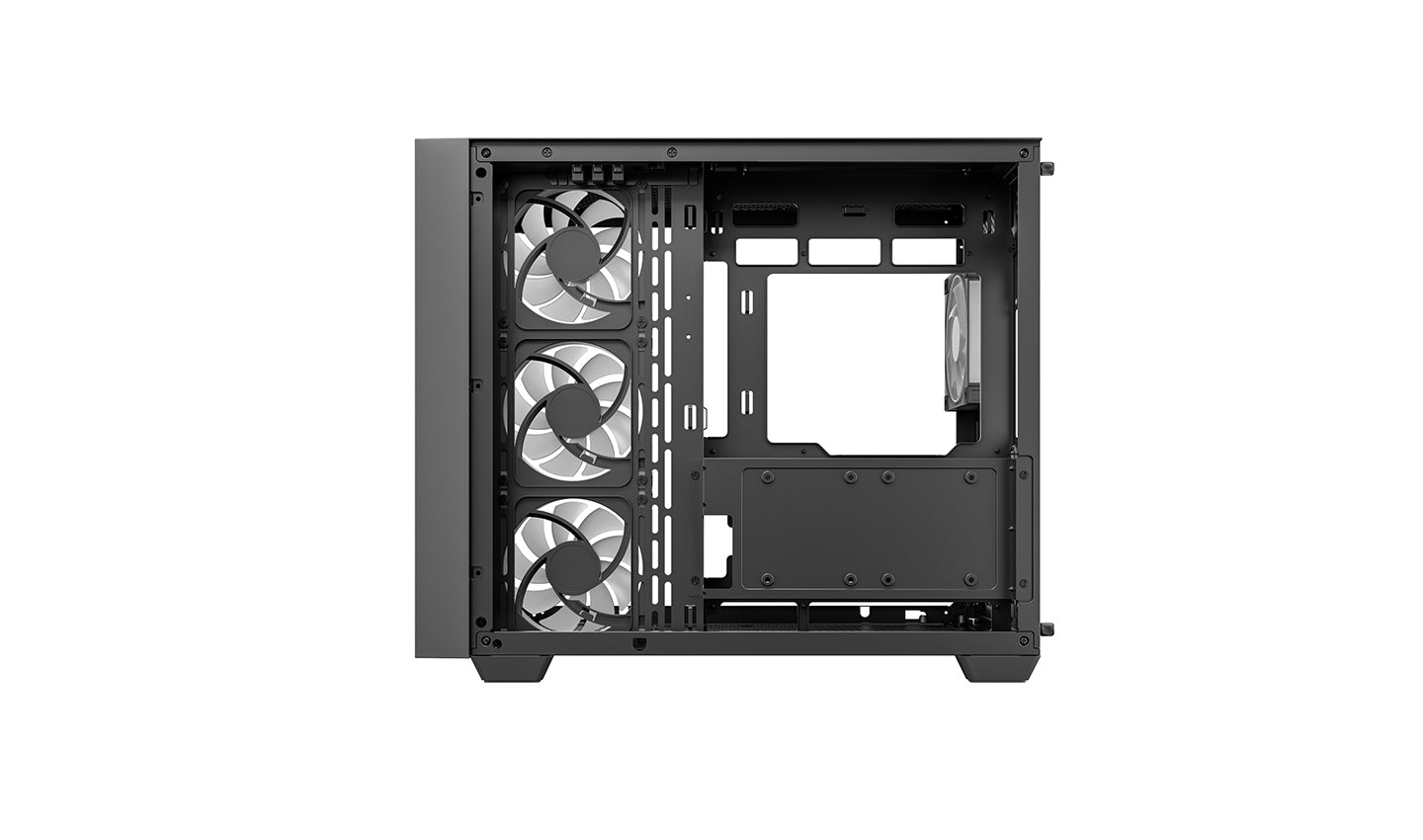

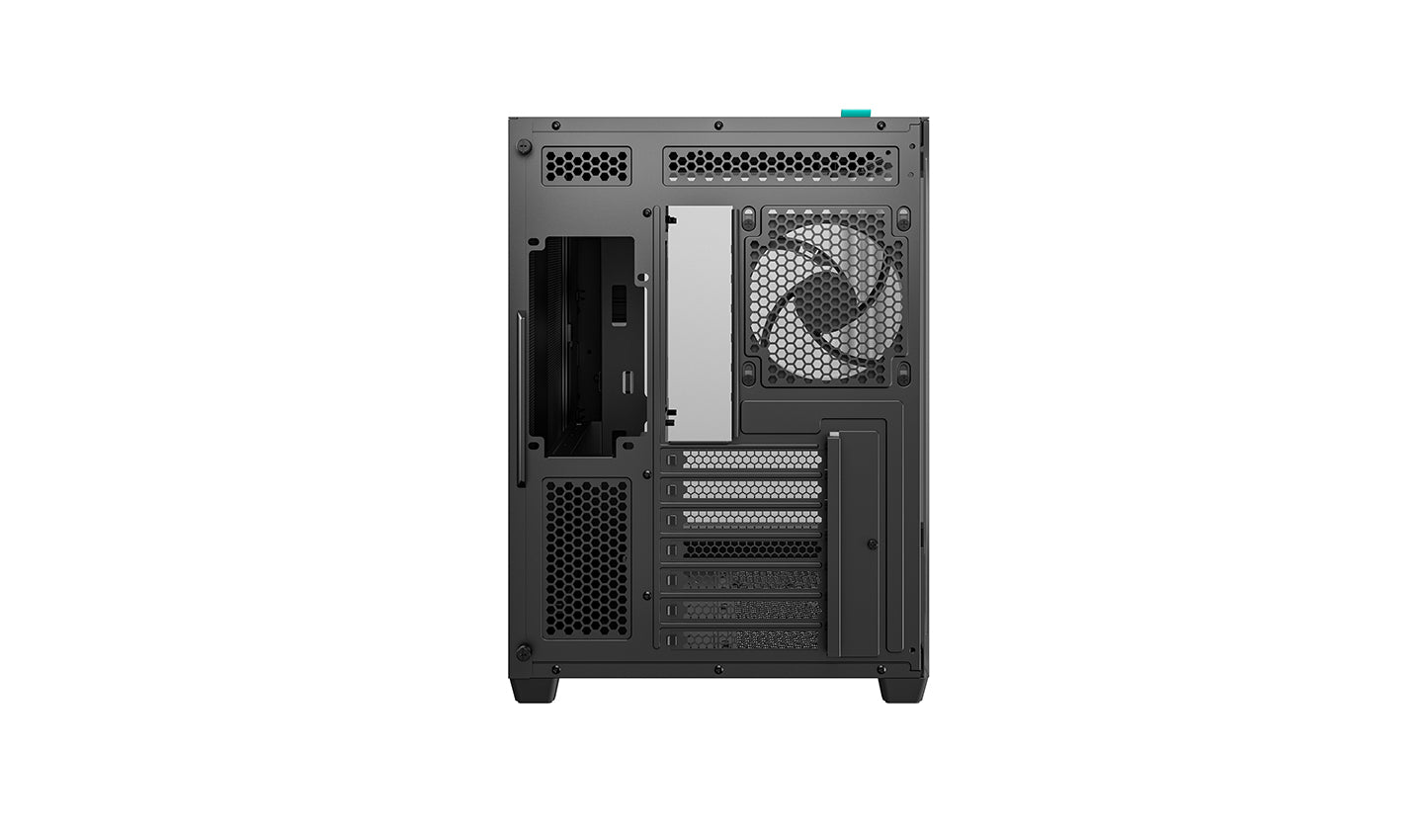

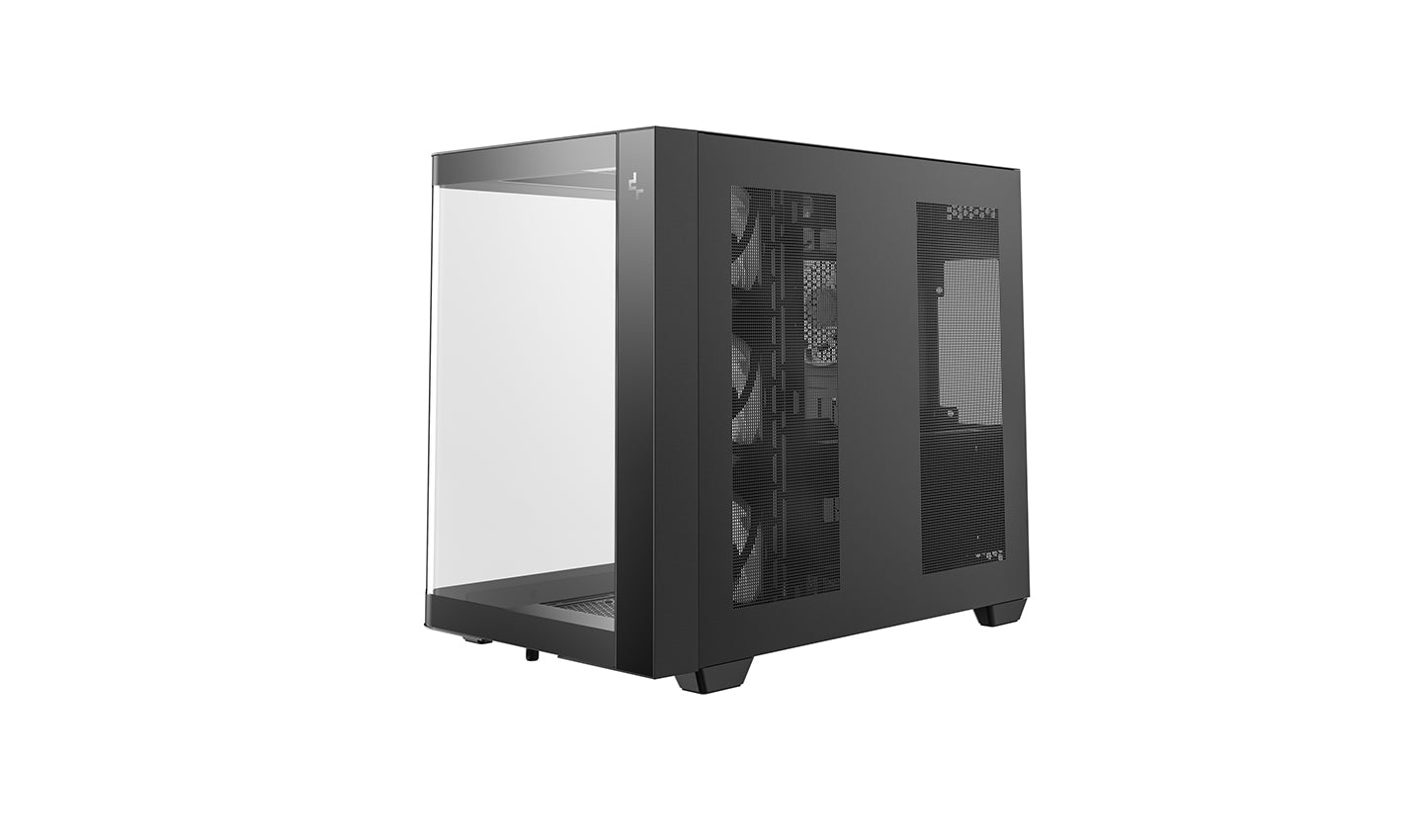

A dual-chamber layout isolates the power supply and storage drives from the main airflow. Large mesh panels maximize ventilation, with side-mounted reverse intake fans drawing in fresh air and the rear fan exhausting heat, creating a direct horizontal airflow path across the case.
MAXIMUM COOLING CAPABILITIES
Never fear the heat with CG530U 4F's exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load.
- Radiators
- Fans (120)
- Fans (140)
Radiator Support:
Top: 120/140/240/280/360mm
Side: 120/140/240/280mm
Bottom: 120/240/360mm
Fan Support:
Top: 3×120mm / 2x140mm
Side: 3×120mm / 2x140mm
Rear: 1×120mm
Bottom: 3×120mm / 3.5 HDD+2×120mm / 2.5 SSD+2×120mm
BROAD HARDWARE SUPPORT
Built to handle demanding hardware, the CG530U 4F supports CPU coolers up to 160mm tall, GPUs up to 410mm long, and PSUs up to 210mm, offering broad compatibility for high-performance builds.
DETAILS THAT MATTER
■ Supports M-ATX and ATX reverse connector motherboards
■ 45mm clearance for cable management
■ Top and bottom dust filters included
EASY I/O ACCESS

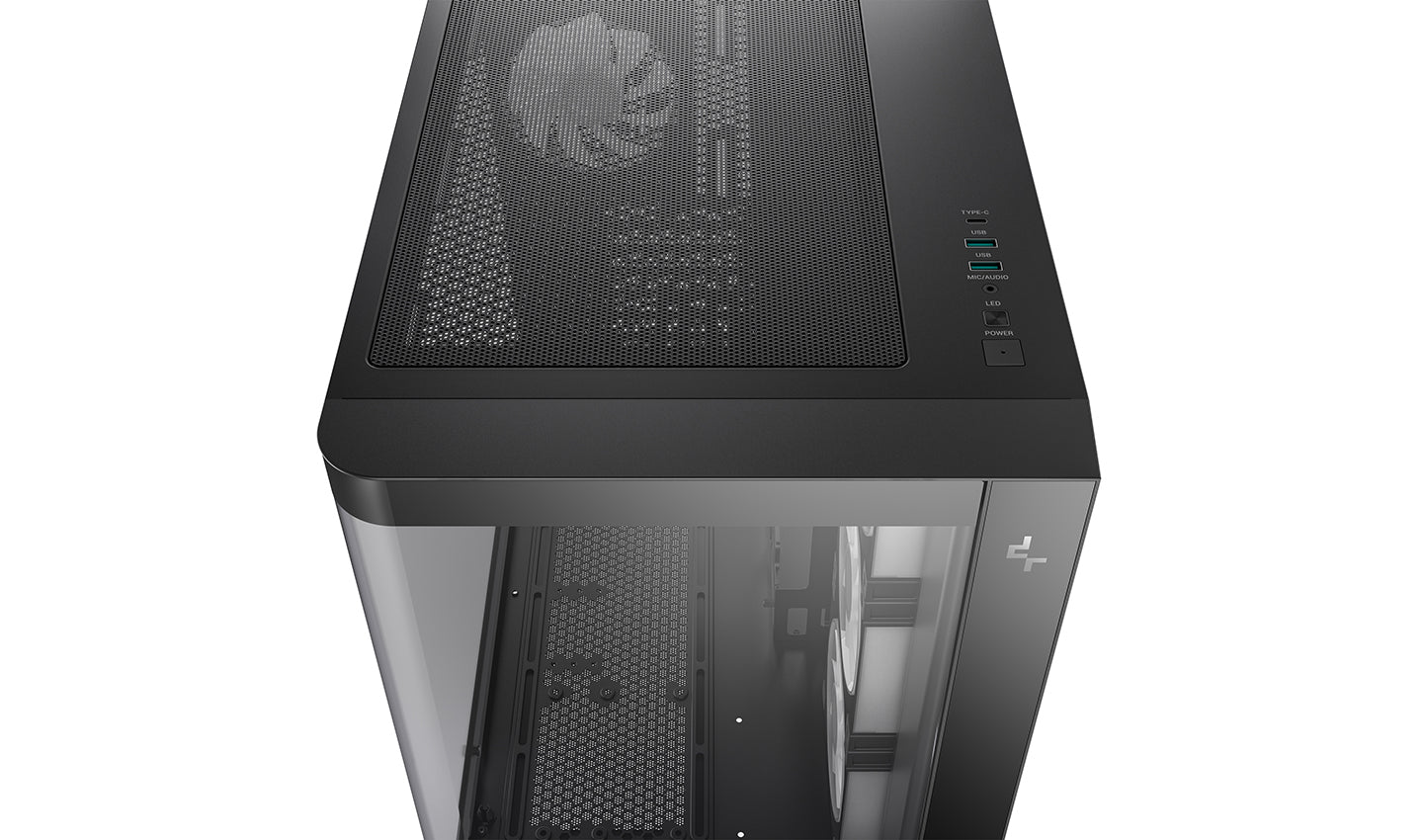

The top I/O panel provides convenient access with two USB 3.0 ports, a Gen2 Type-C port, and a combined audio/mic jack.
Technical Spec
| Product Dimensions | 475×285×380mm(L×W×H) |
| Net Weight | 7.3kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector) |
| Front I/O Ports | USB3.0 x2,Gen2 Type-C x1,Audio/Mic x1,LED |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Side: 3×120mm Rear: 1×120mm |
| Fan Support | Front: NA Top: 3×120mm/2x140mm Side: 3×120mm/2x140mm Rear: 1×120mm Bottom: 3×120mm/3.5 HDD+2x120mm/2.5 SSD+2x120mm |
| Radiator Support | Front: NA Top: 120/140/240/280/360mm Side: 120/140/240/280mm Bottom: 120/240/360mm |
| CPU Cooler Height Limit | 160mm |
| GPU Size Limit | 410mm |
| Power Supply Type | ATX PS2 (maximum length: 210mm)/SFX/SFX-L |
| EAN | 6933412765592 |
| P/N | R-CG530U-BKAGA4-G |
