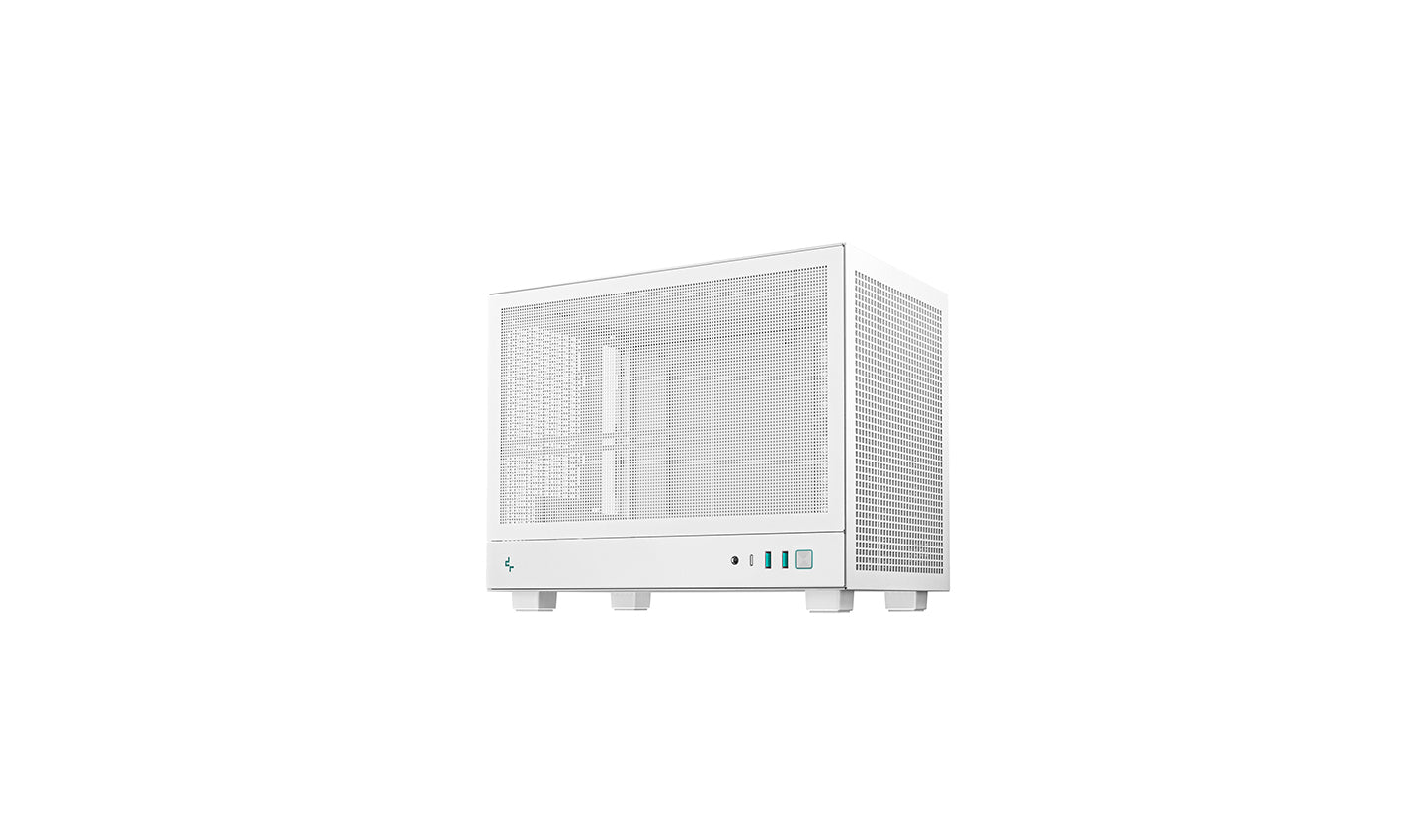

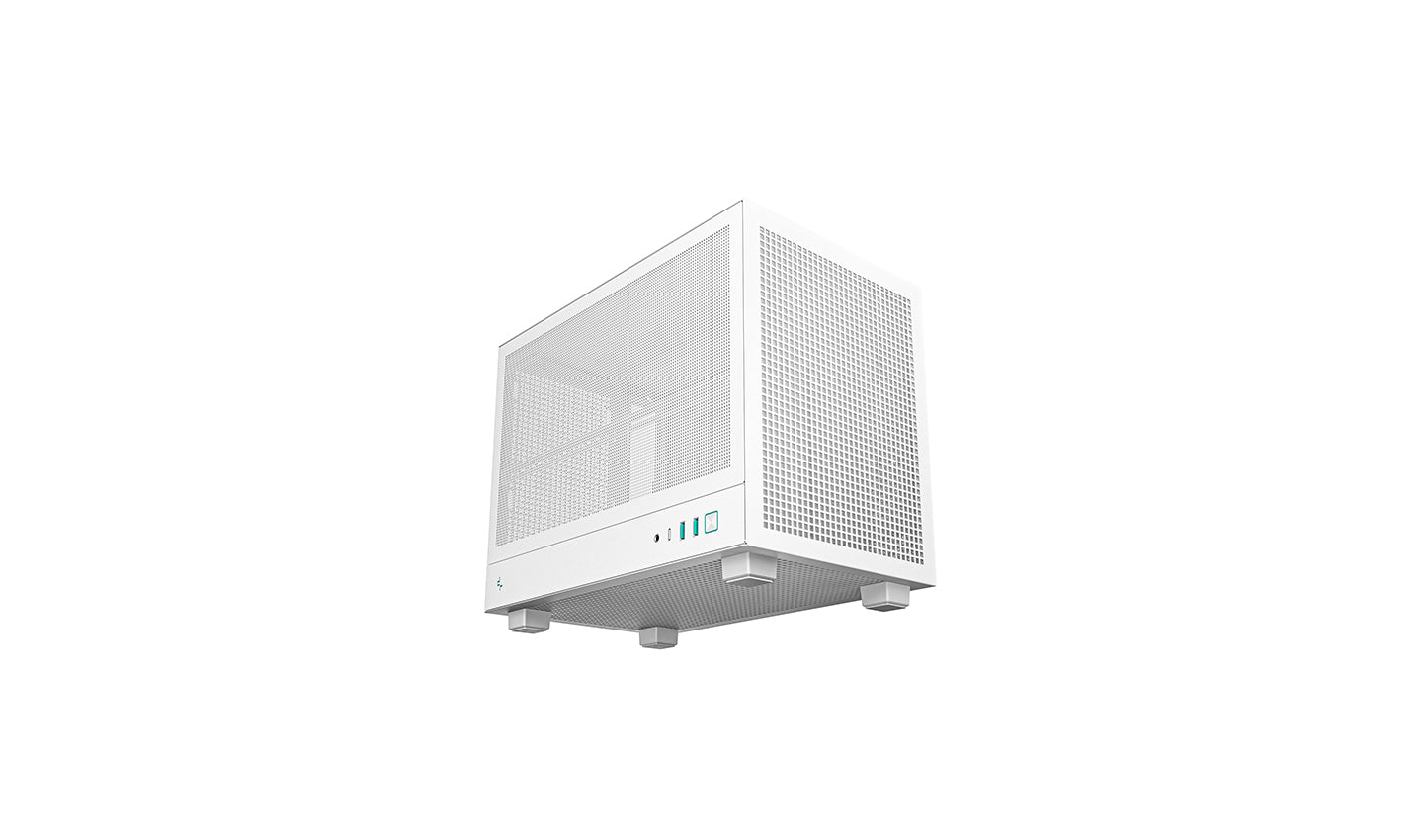

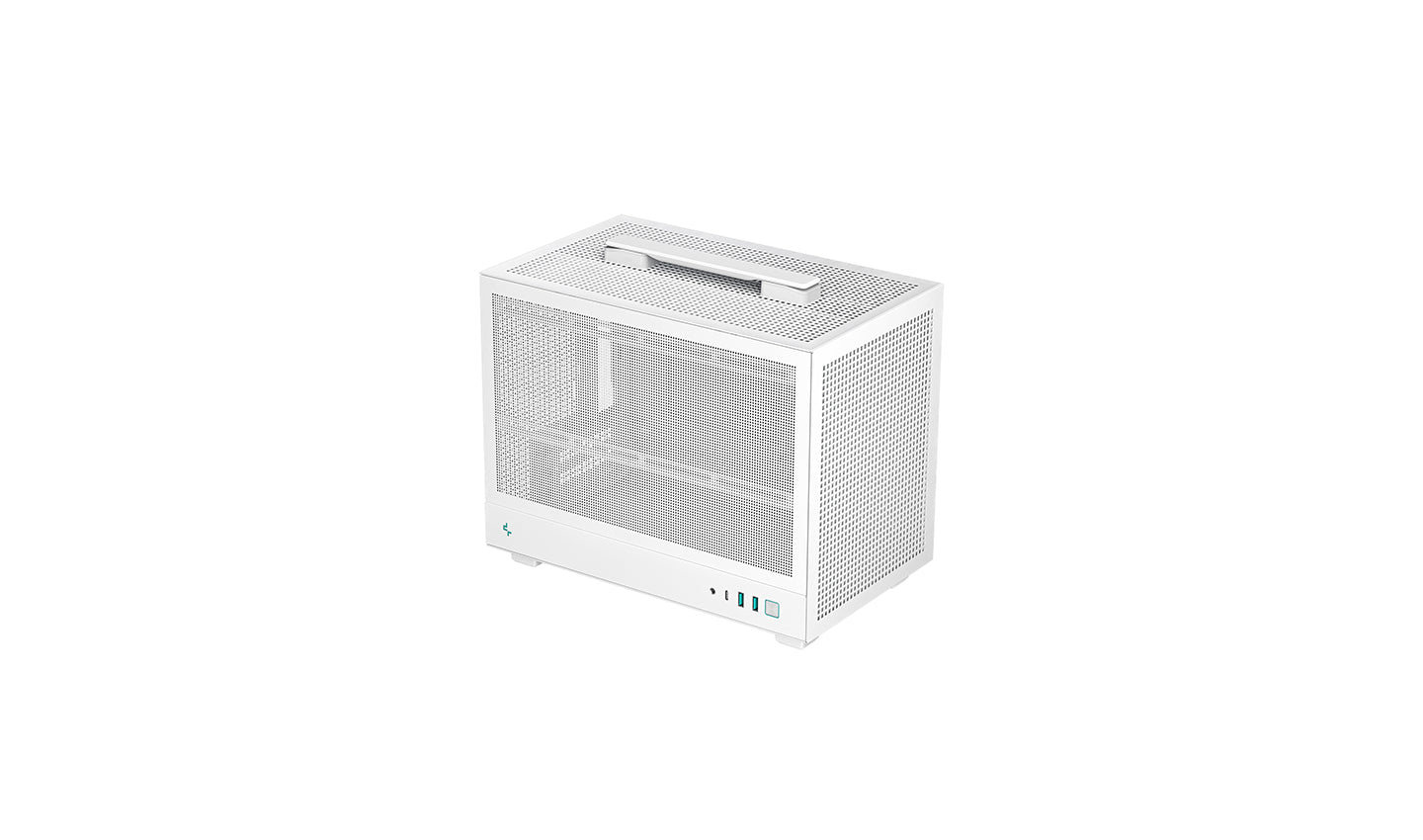

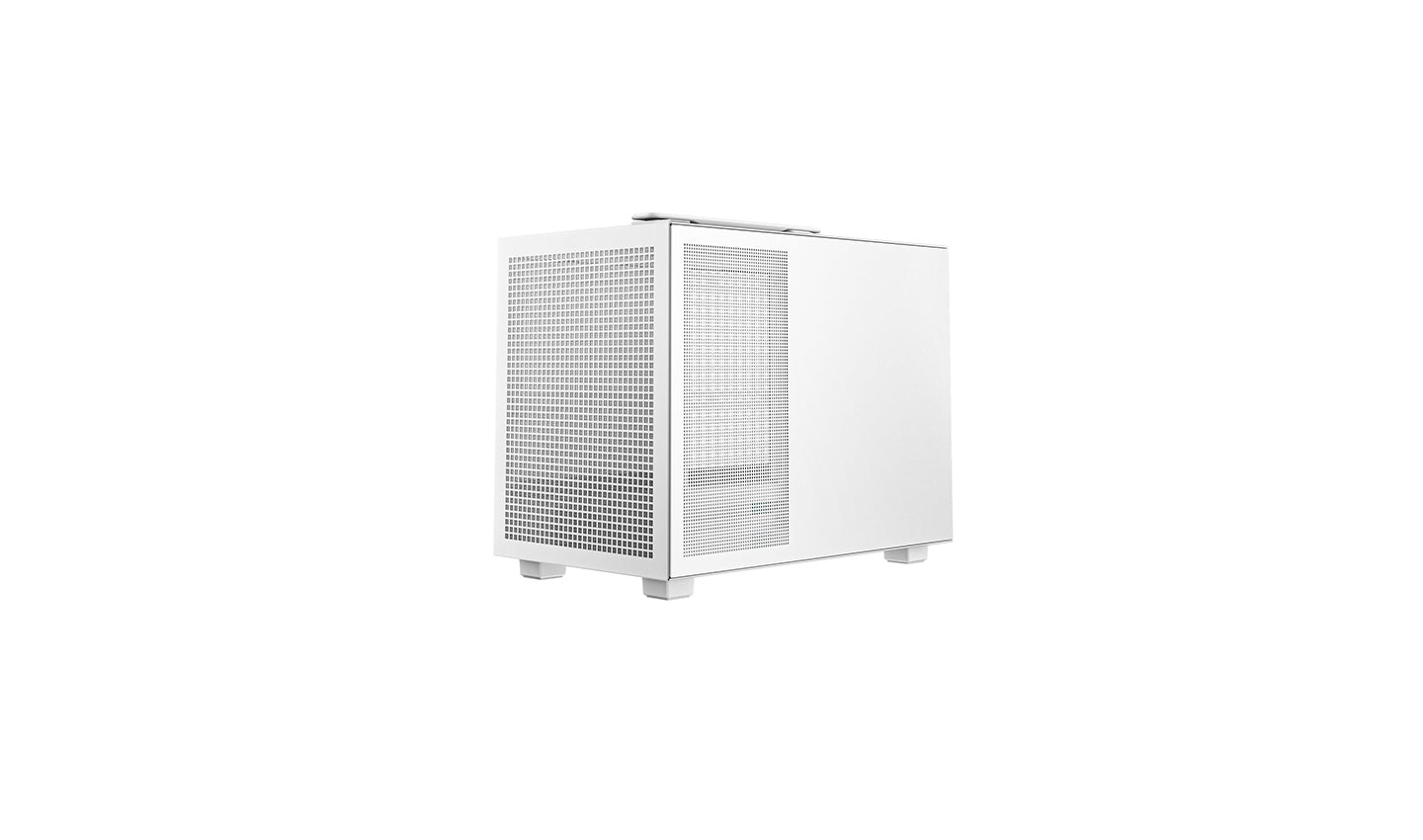

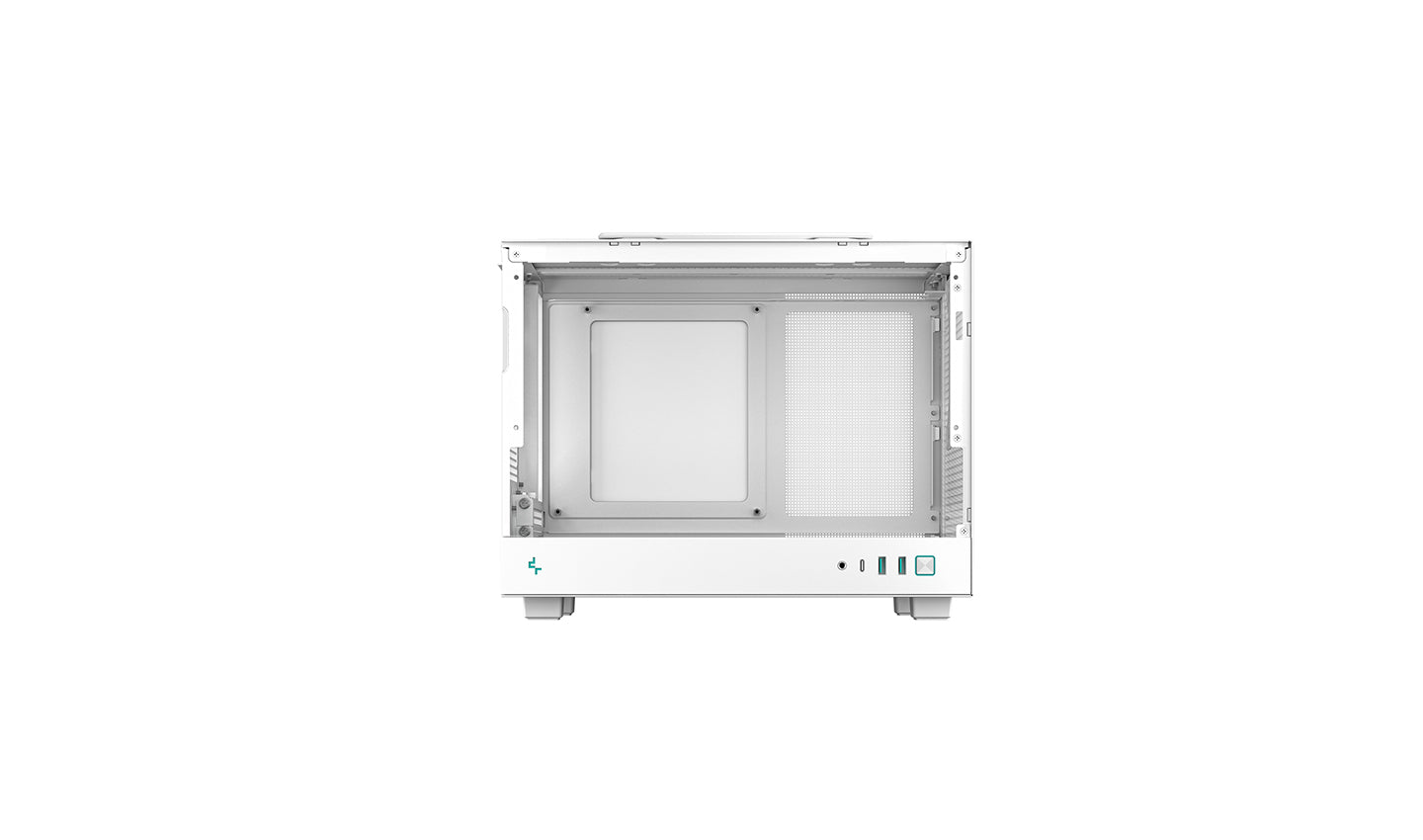

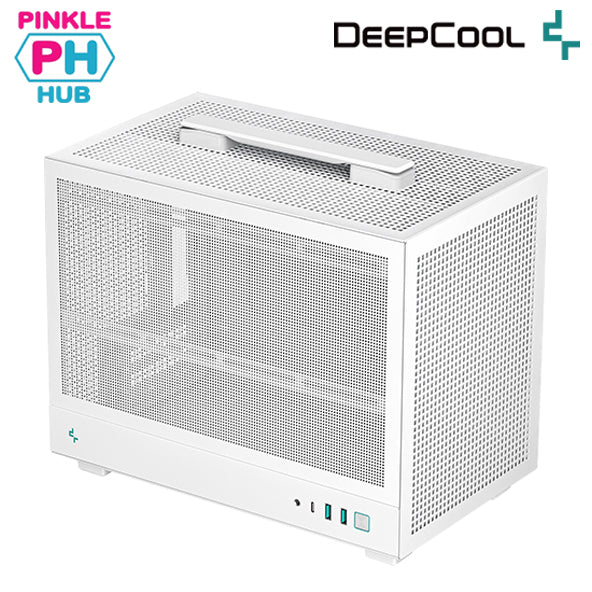

CH160 MESH WH

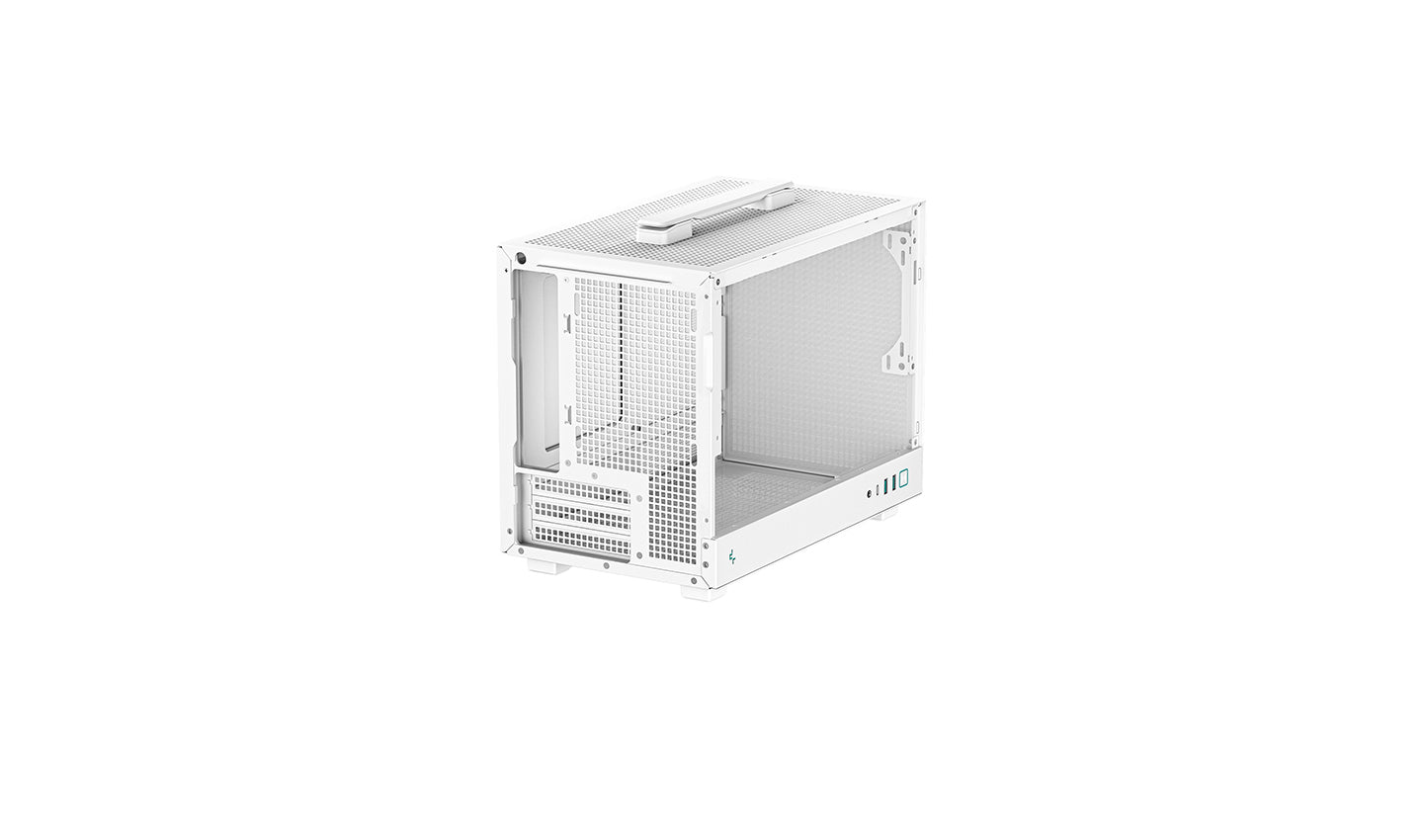

The CH160 MESH WH is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The new mesh configuration allows option to now add in a 240mm AIO. The internal layout provides a lot of flexibility for drives and PSU options.
Technical Spec
|
Product Dimensions |
336×200×283.5mm(L×W×H) |
|
Net Weight |
3.1Kg |
|
Materials |
ABS+PVC+SPCC |
|
Motherboard Support |
Mini-ITX |
|
Front I/O Ports |
USB3.0×2、Audio×1、Gen2 Type-C×1 |
|
3.5" Drive Bays |
1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
|
2.5" Drive Bays |
1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
|
Expansion Slots |
3 Slots |
|
Pre-Installed Fans |
None |
|
Fan Support |
Front: 1×120 mm（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） Top: 2×120mm Side: 2×120mm Rear: 1×120mm |
|
Radiator Support |
Side：240mm |
|
CPU Cooler Height Limit |
172mm |
|
GPU Size Limit |
Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
|
Power Supply Type |
ATX PS2（maximum length: 140mm）/ SFX / SFX-L |
|
EAN |
6933412774006 |
|
P/N |
R-CH160-WHNMI0-G-1 |
