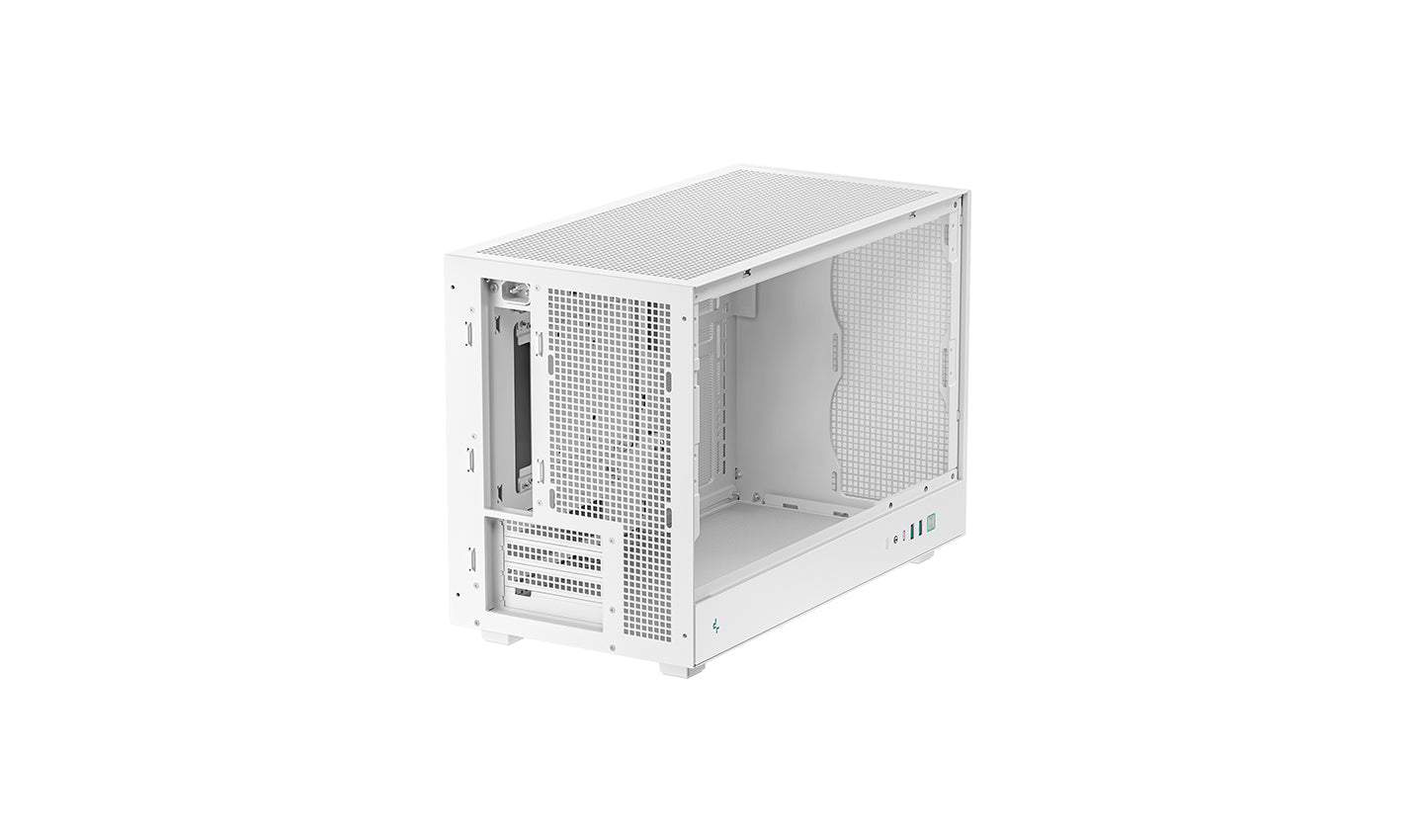

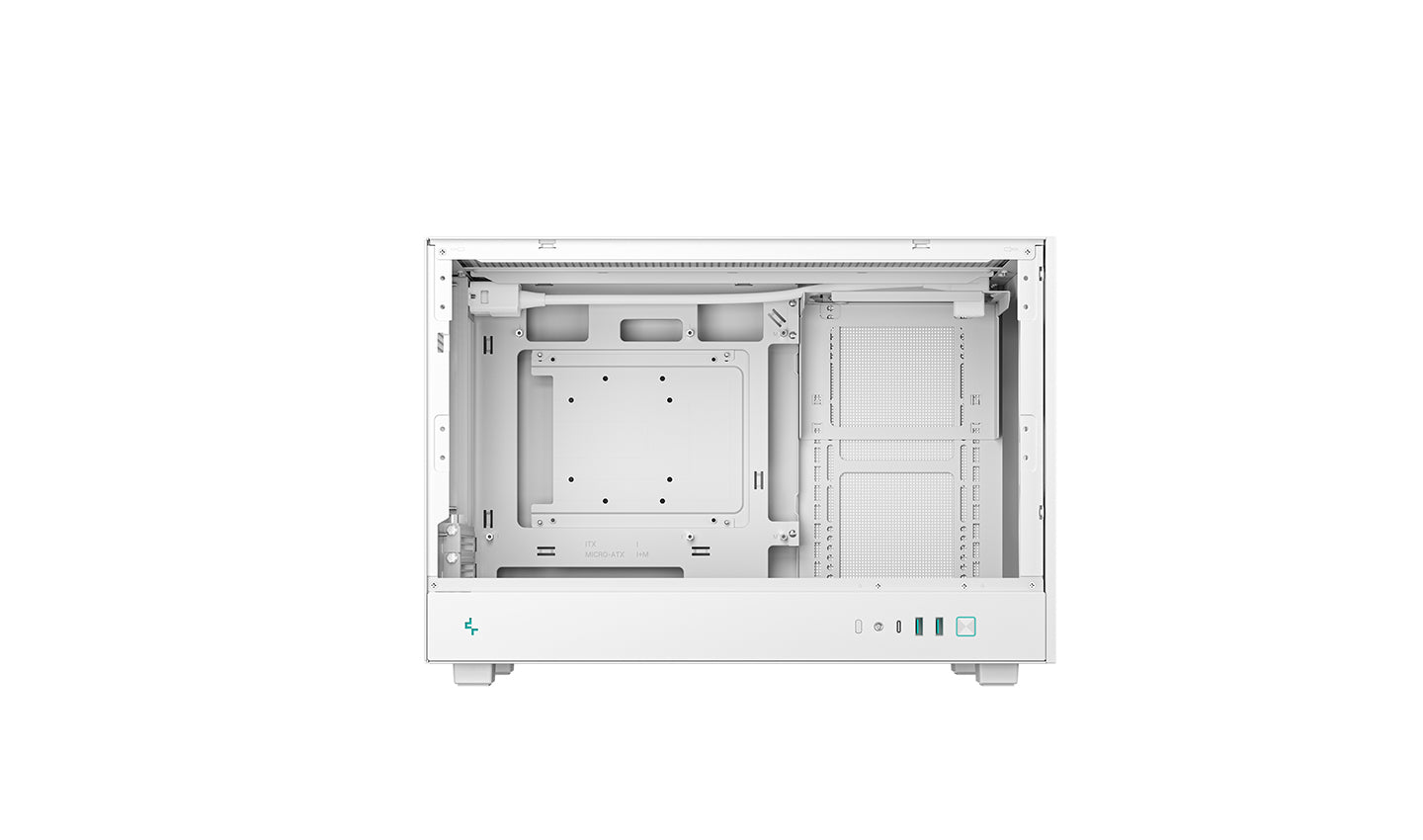

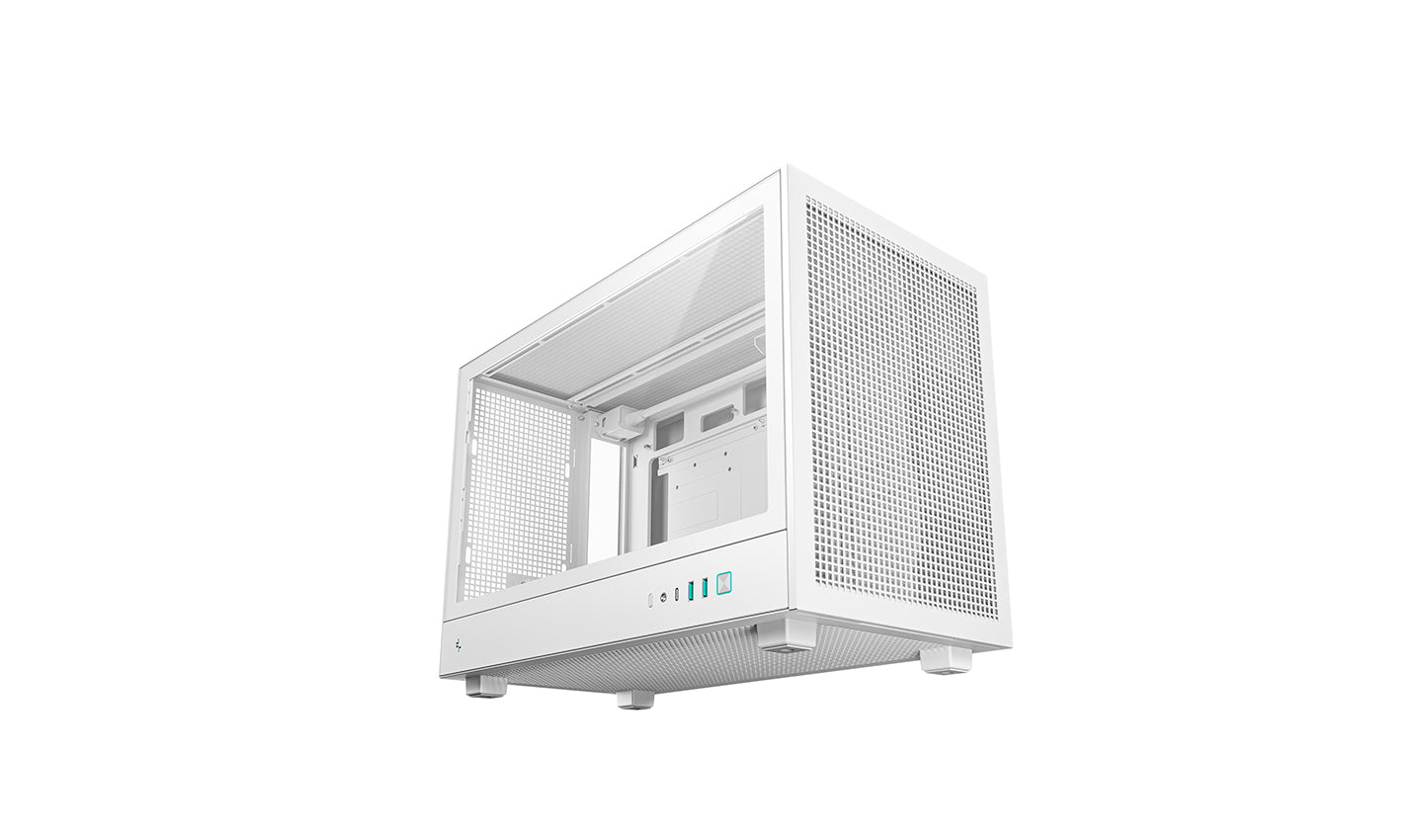

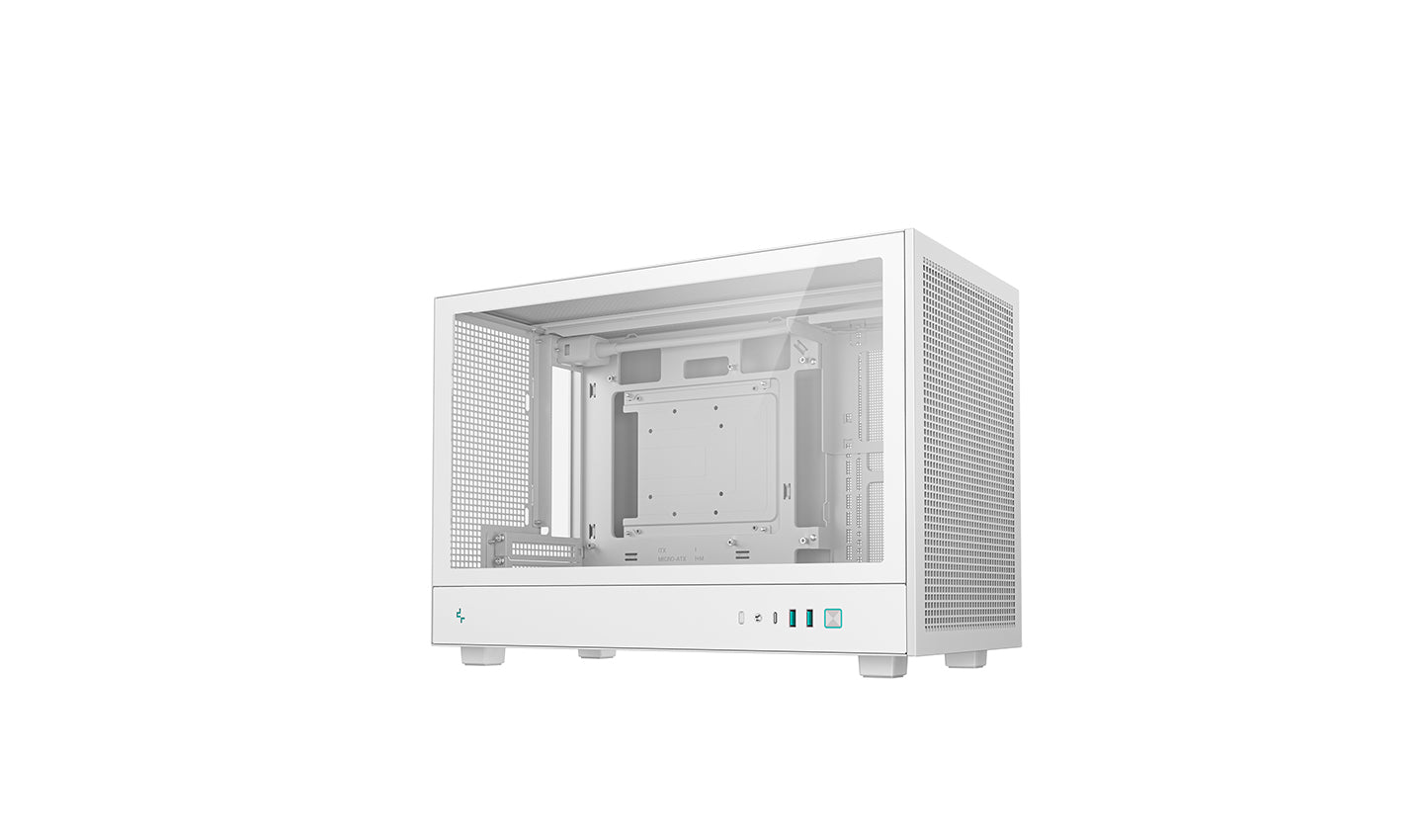

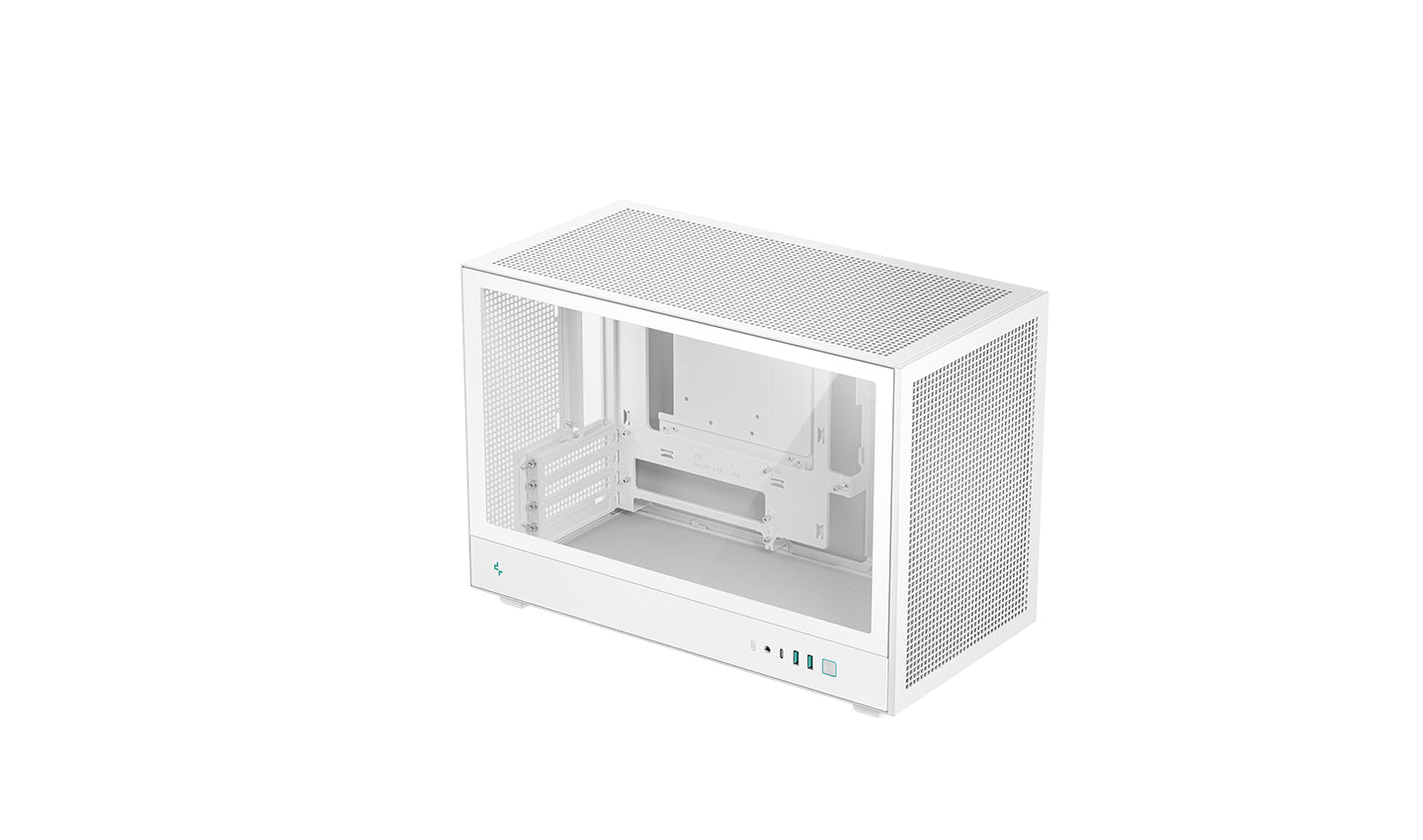

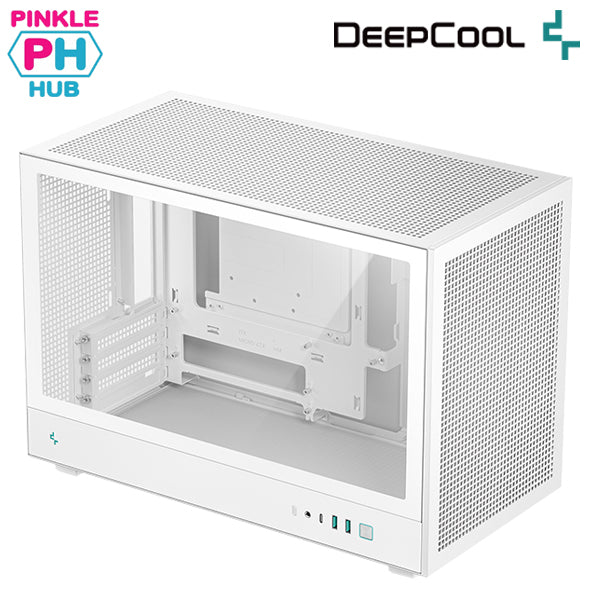

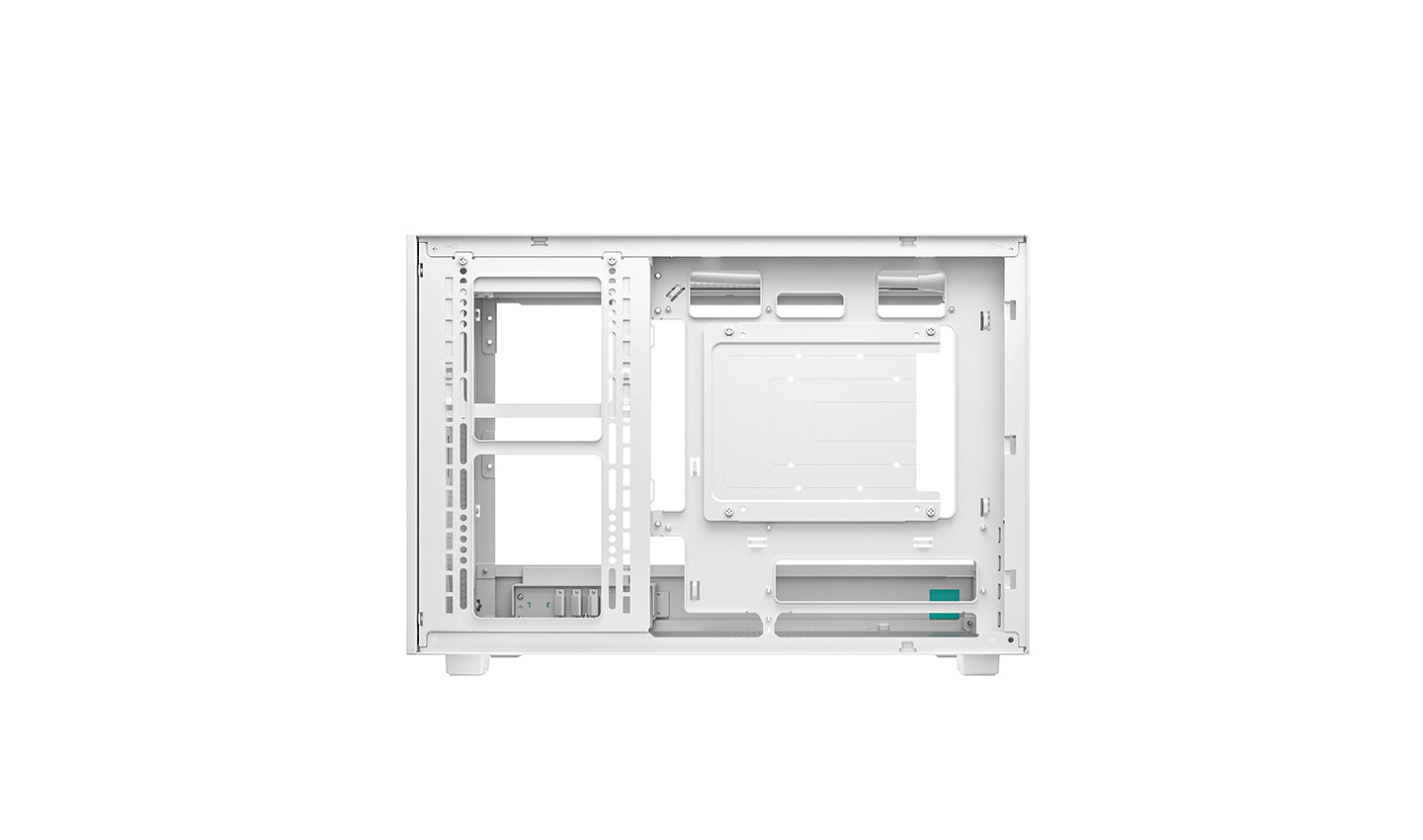

The Micro Form Factor CH260 WH comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance of 29.6mm in the backplane.
SMALL SIZE OUTSIDE, FULL SIZE INSIDE
The CH260 WH provides multiple options in key components compatibility which can support full-size GPU up to 388mm in length or goes even longer to 413mm without front fan placement. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.
UNCOMPROMISED VENTILATION

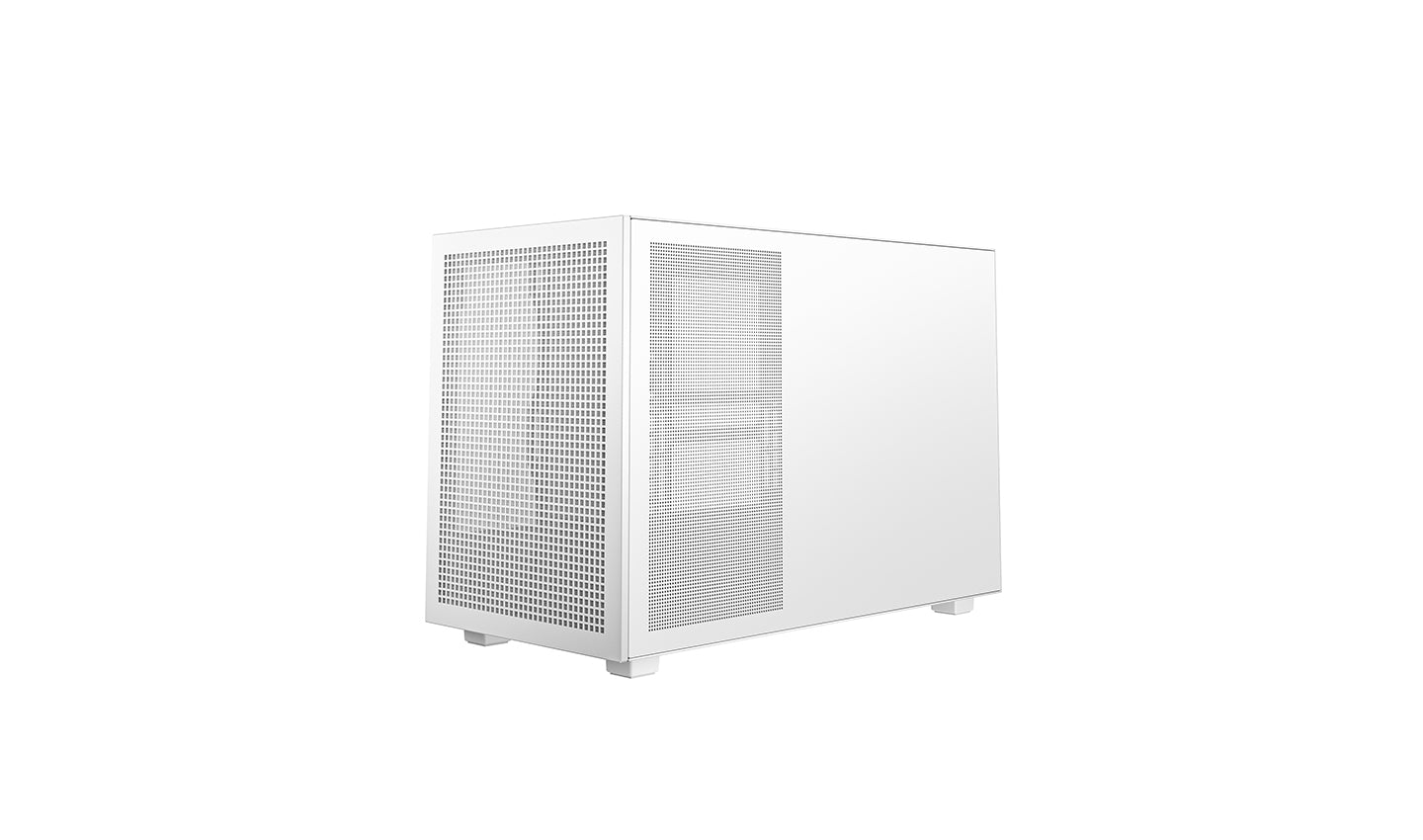

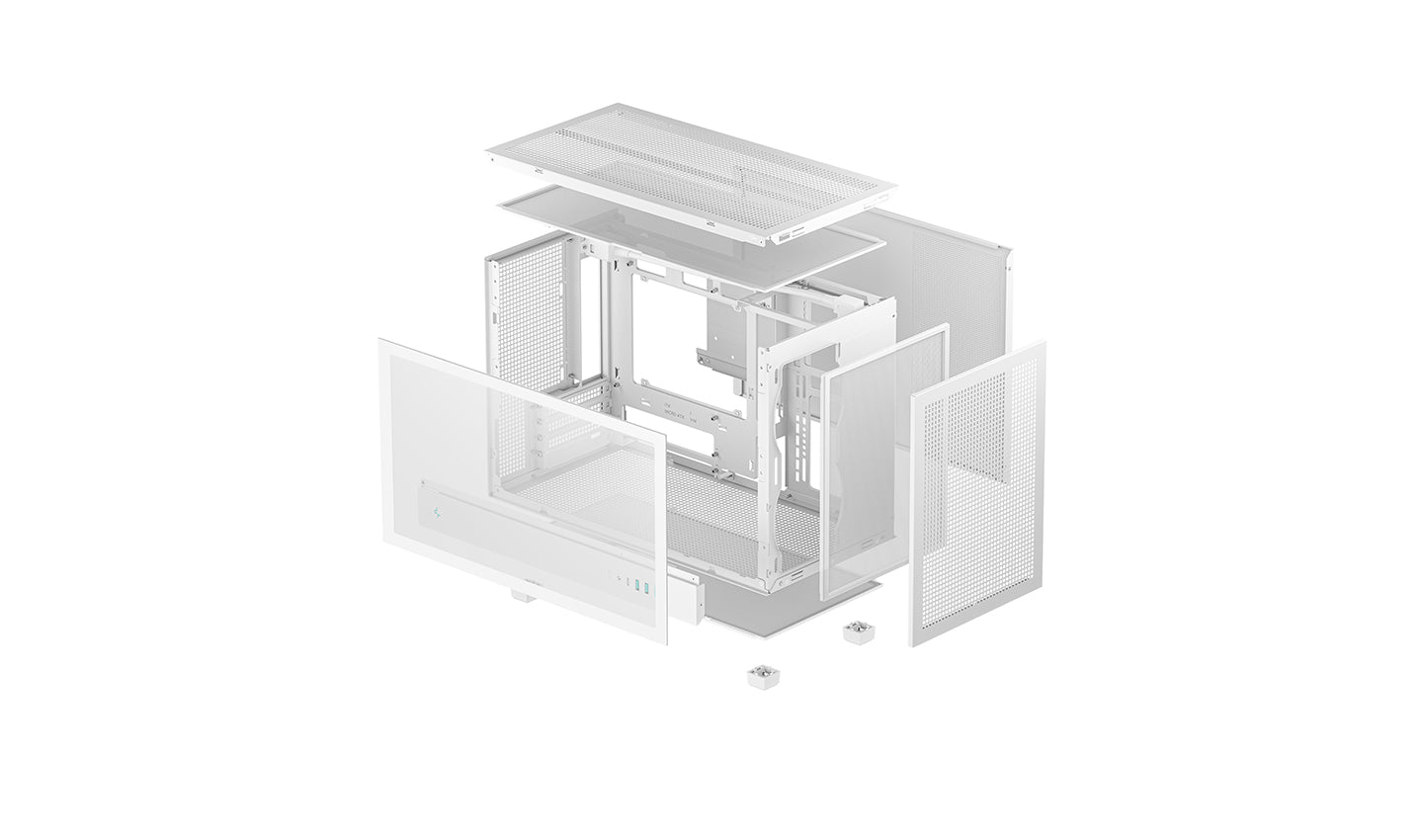

The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on top or a 174mm high tower heat sink on the CPU.
Technical Spec
| Product Dimensions |
438mm*225mm*312.5mm(L×W×H) |
| Net Weight |
5.3Kg |
| Materials |
ABS+SPCC+Tempered Glass |
| Motherboard Support |
Mini-ITX / Micro-ATX
Micro-ATX(Rear Connector) |
| Front I/O Ports |
USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| 3.5" Drive Bays |
1 |
| 2.5" Drive Bays |
1 |
| Expansion Slots |
4Slots |
| Pre-Installed Fans |
None |
| Fan Support |
Front:2×120mm
Top:3×120mm/2×140mm
Rear: 1×120mm |
| Radiator Support |
Front: NA
Top:120/240/360mm
Bottom: NA
Rear:120mm |
| CPU Cooler Height Limit |
174mm |
| GPU Size Limit |
388/413mm（No Front fans） |

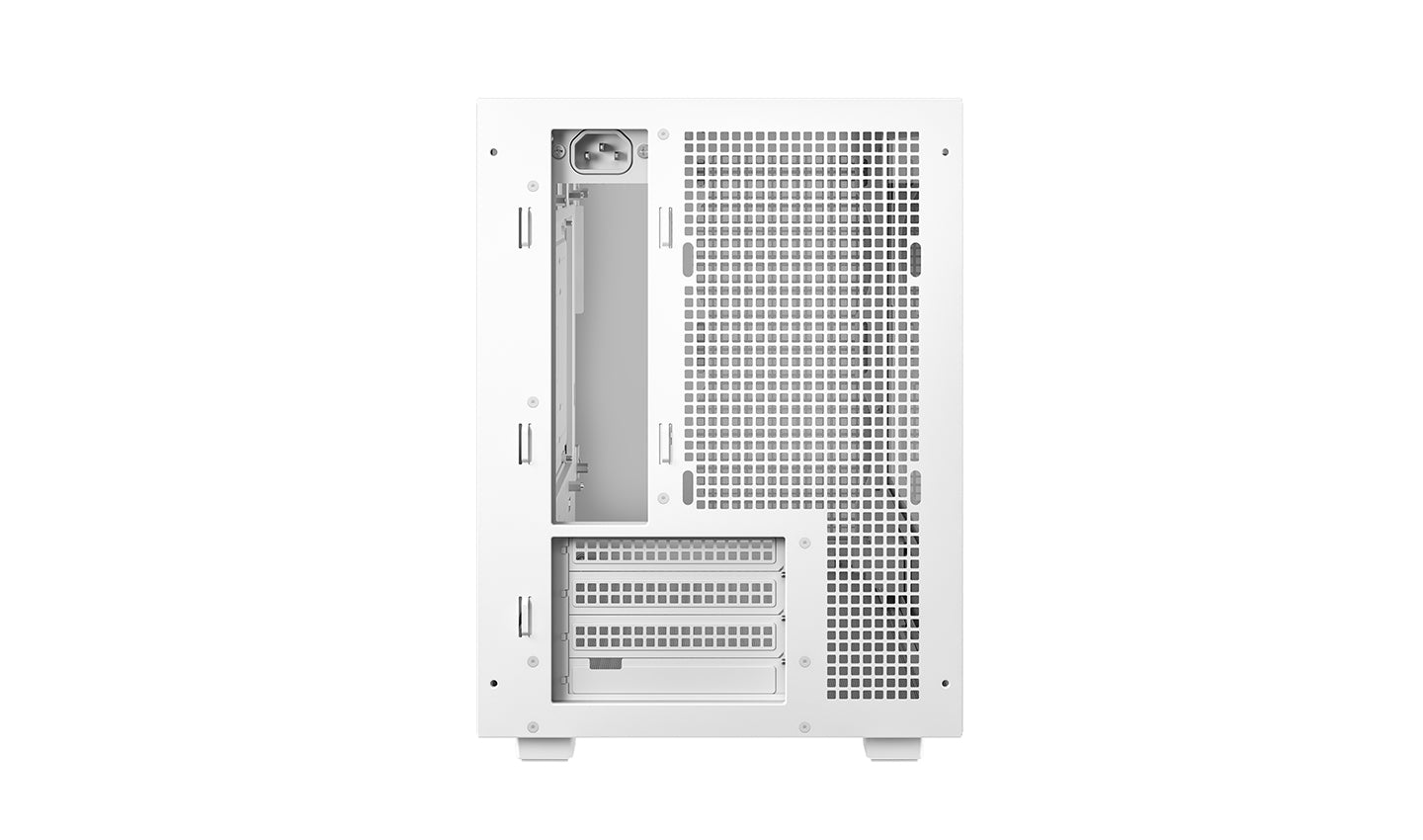

| Power Supply Type |
ATX PS2（maximum length: 150mm） |
| EAN |
6933412765240 |
| P/N |
R-CH260-WHNGM0-G-1 |
