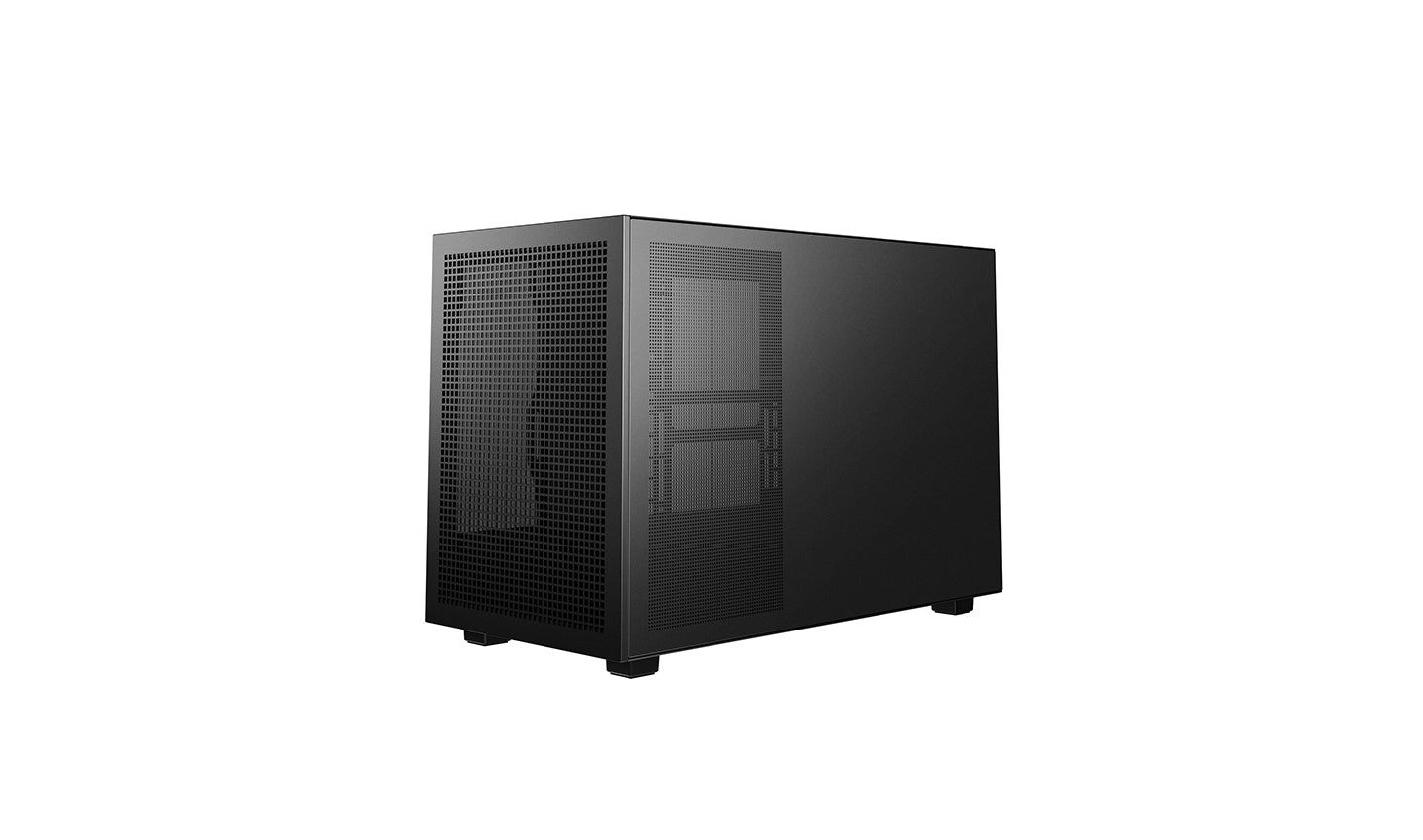

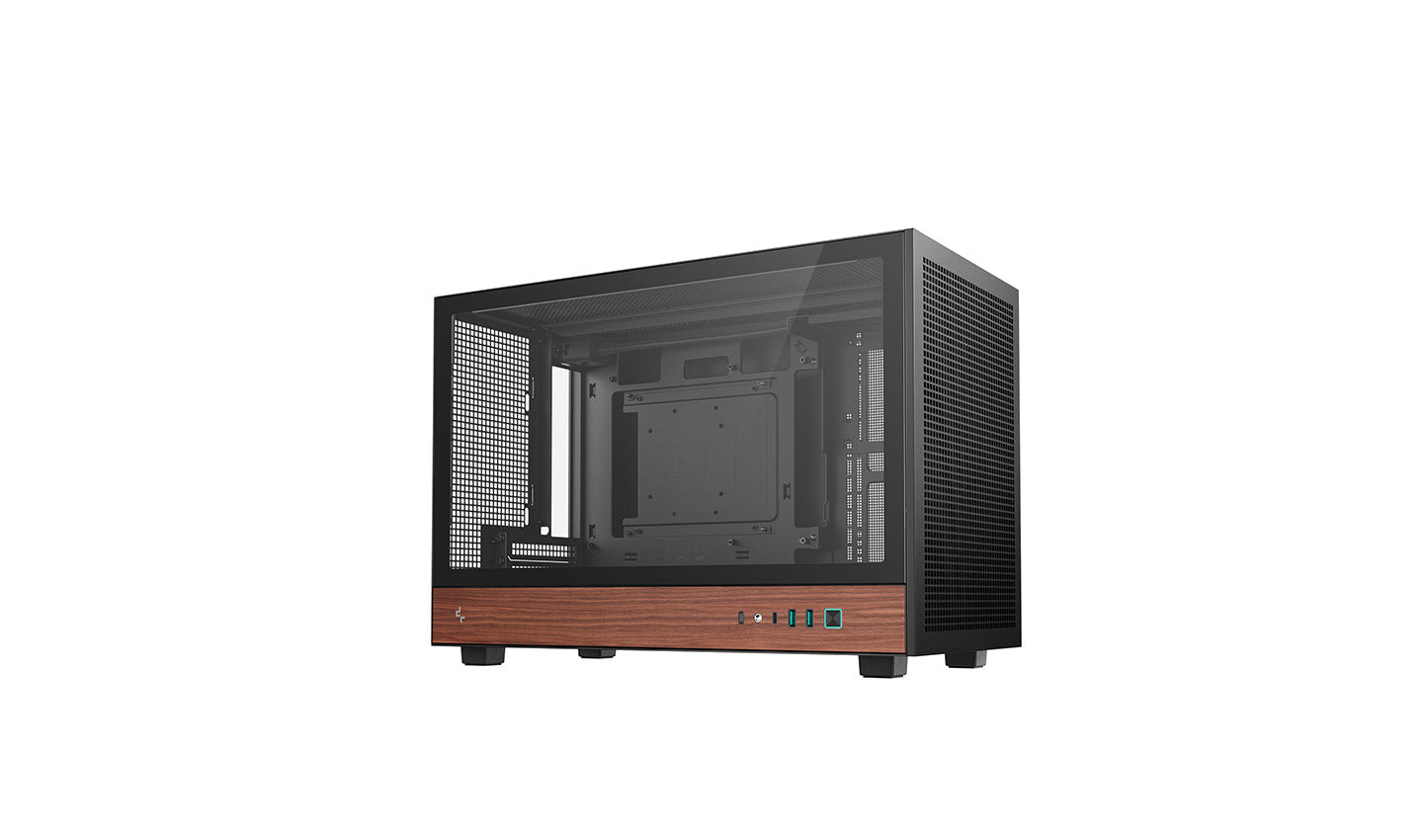

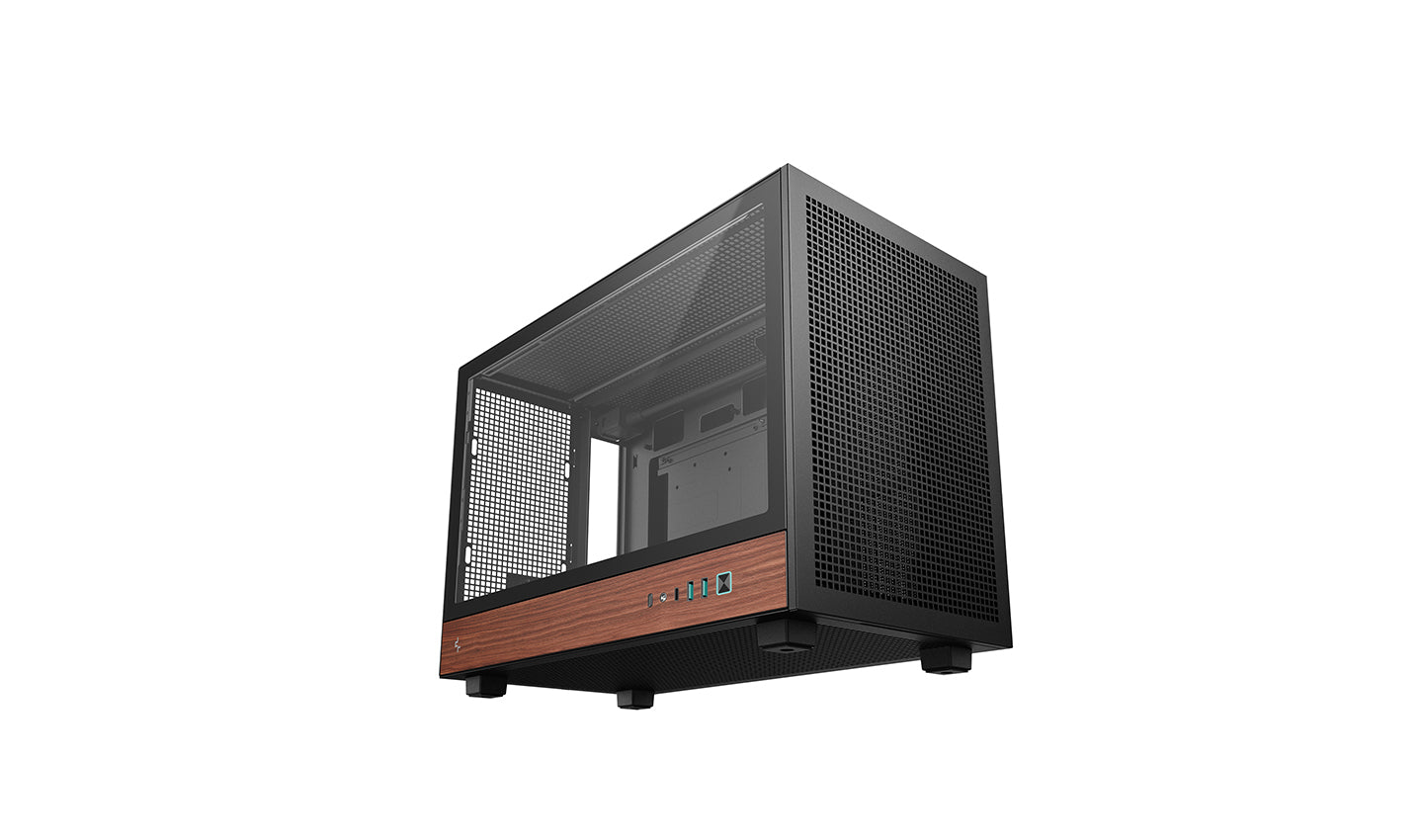

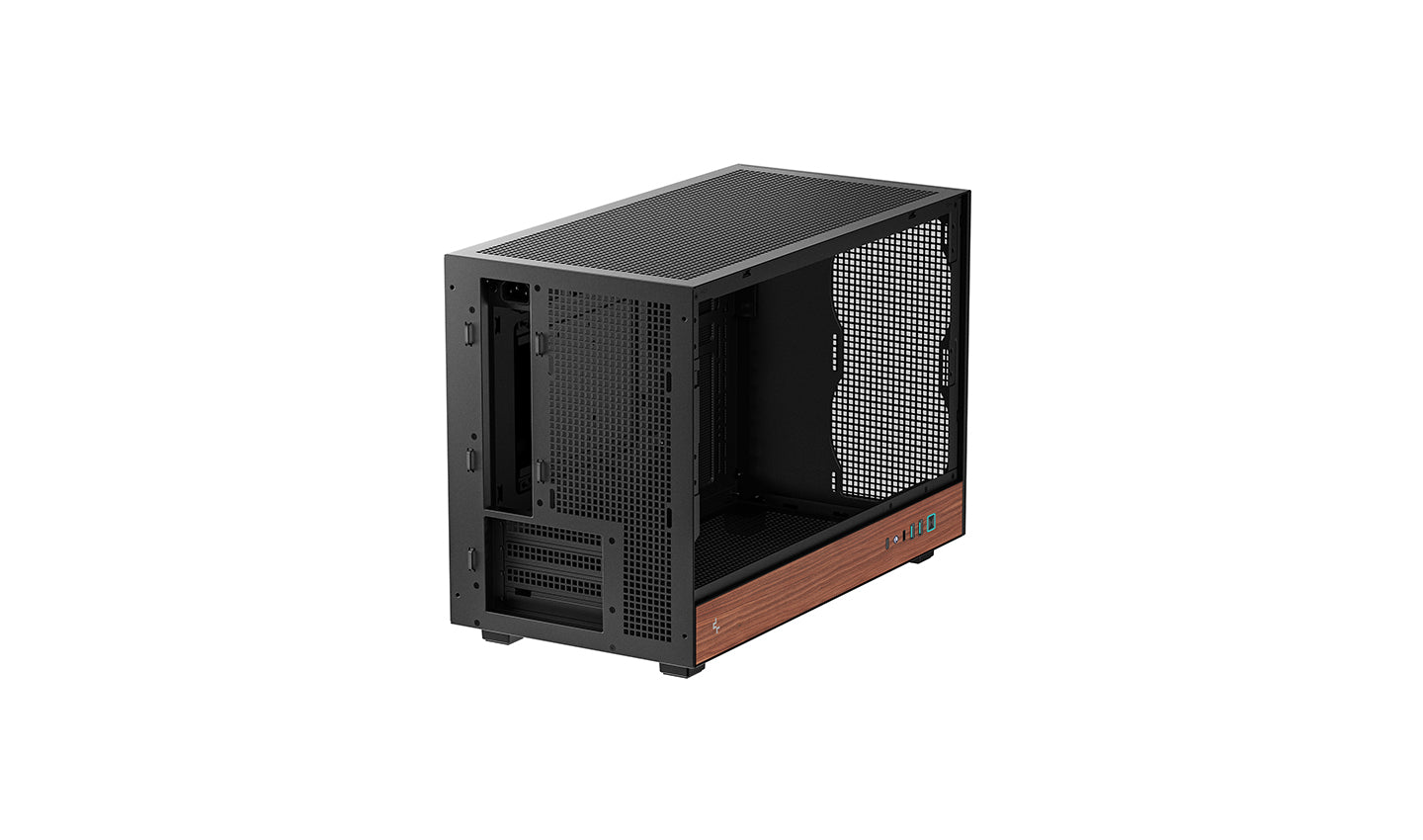

Deepcool CH260 Wood Micro ATX Black
Brand : DEEPCOOL
SKU: SKU: R-CH260-BKNWM0-G-1
5 in stock
Regular price
₱4,150.00
Regular price
Sale price
₱4,150.00
Unit price
per
Couldn't load pickup availability
CH260 WOOD
LEVEL UP TO MICRO-ATX
GO MICRO

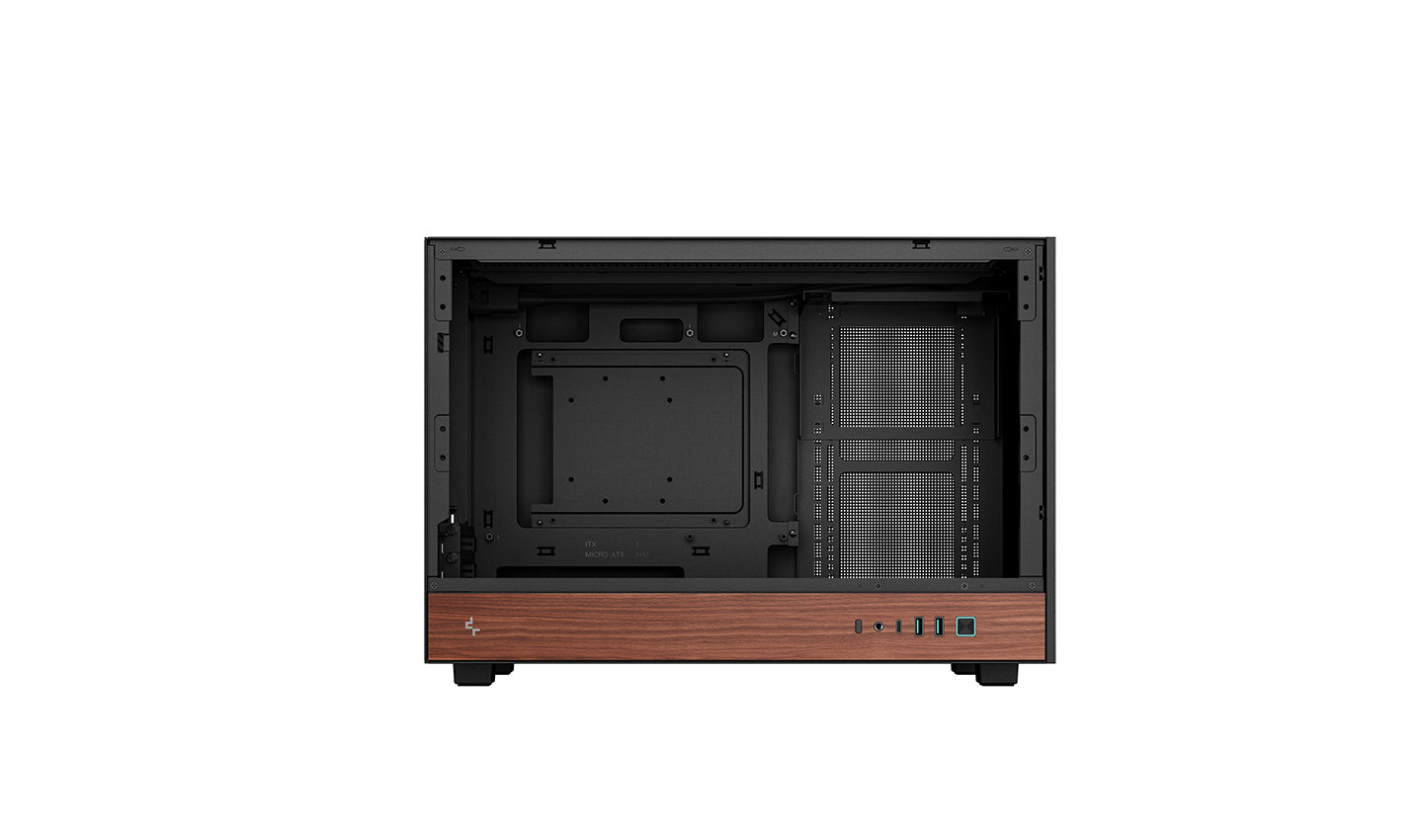

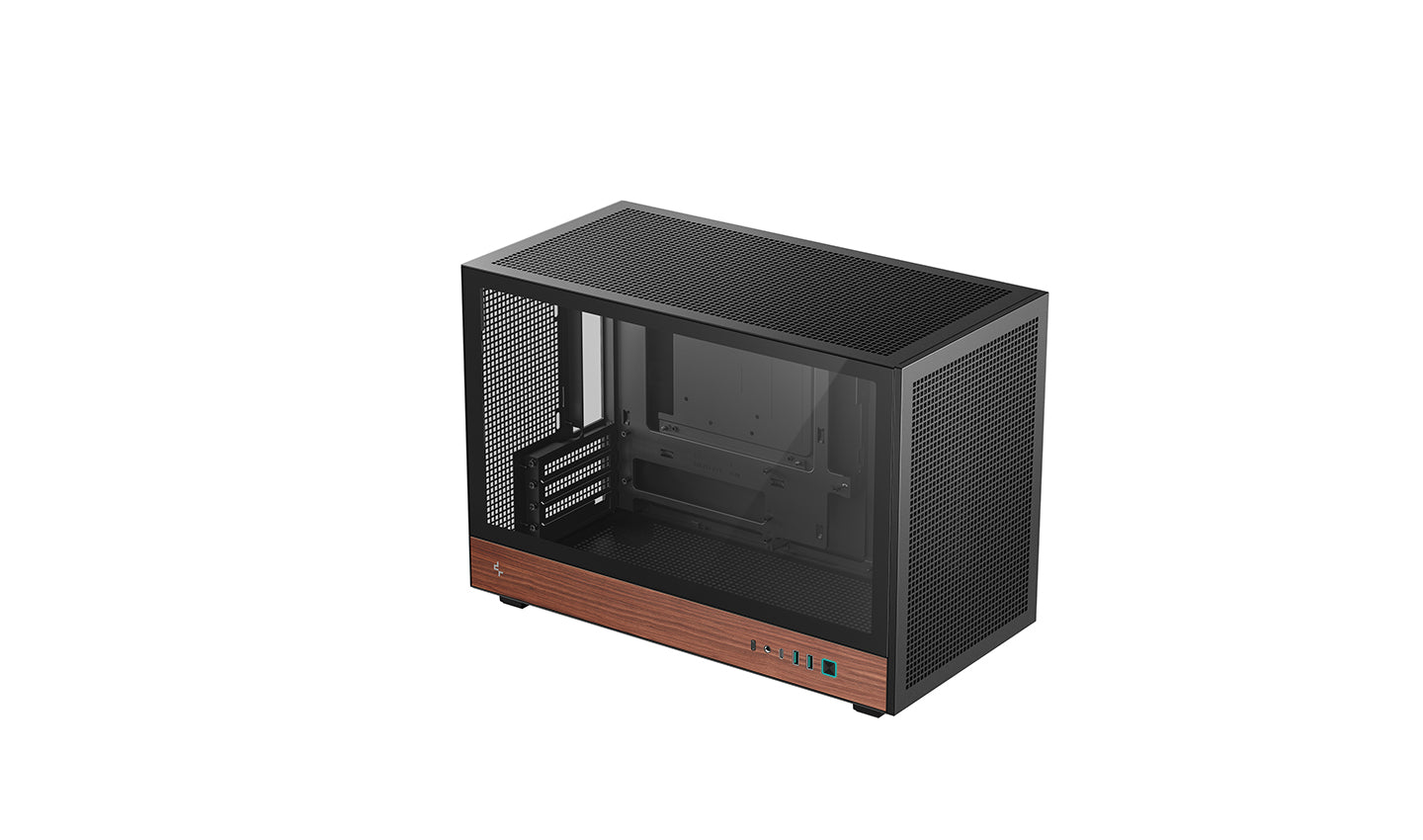

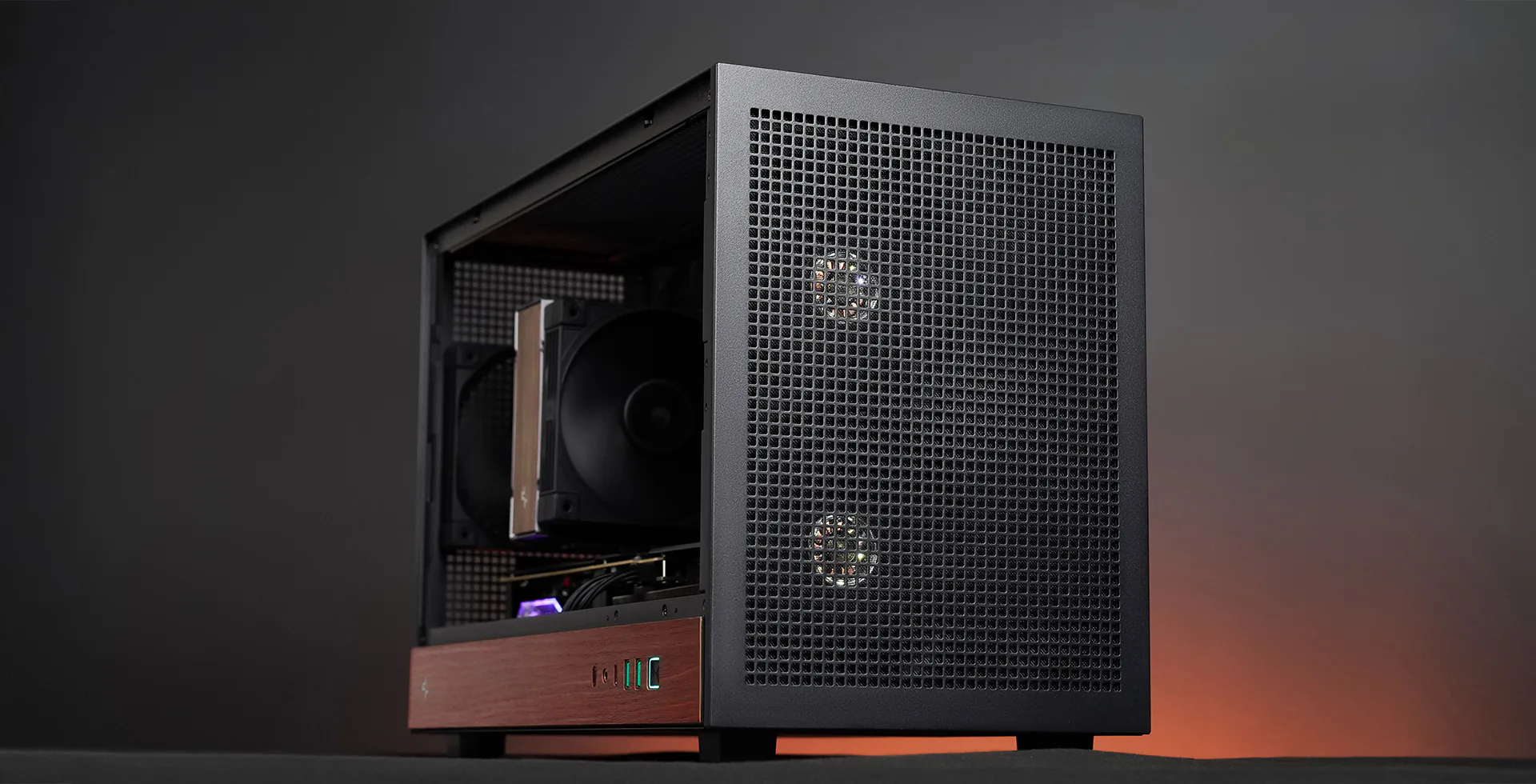

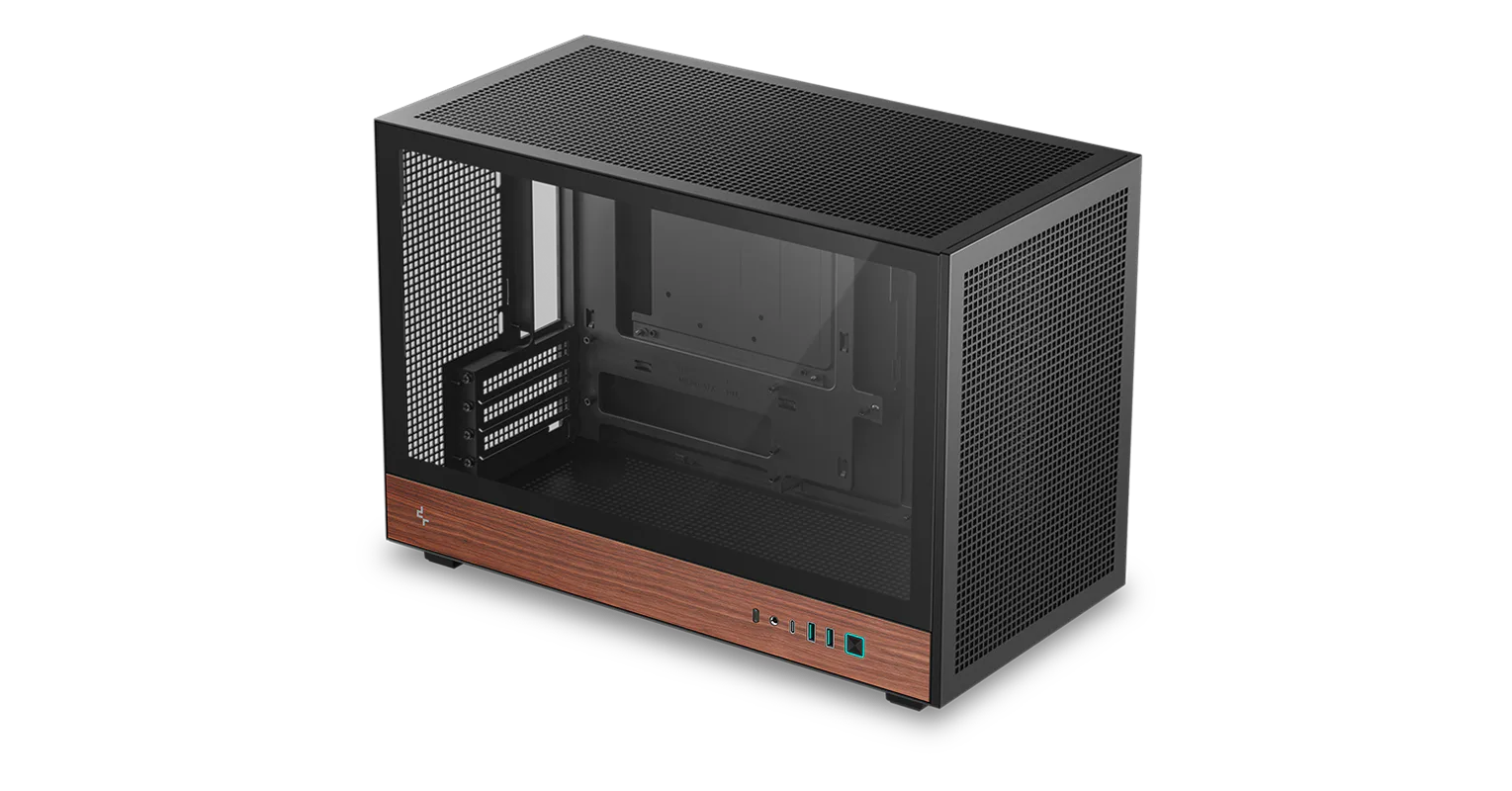

The Micro Form Factor CH260 WOOD comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance of 29.6mm in the backplane.

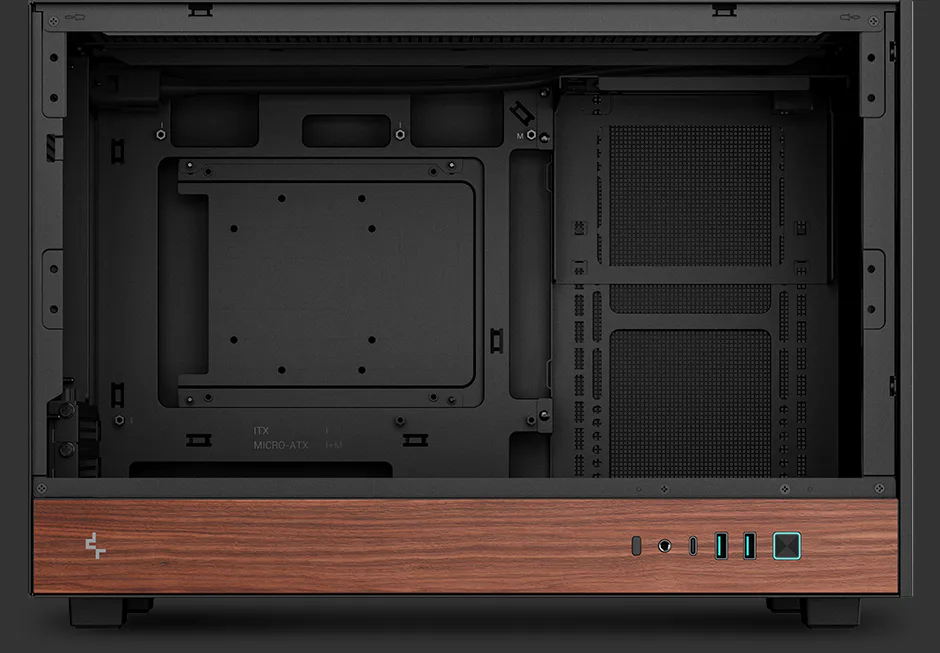

NATURAL AESTHETIC

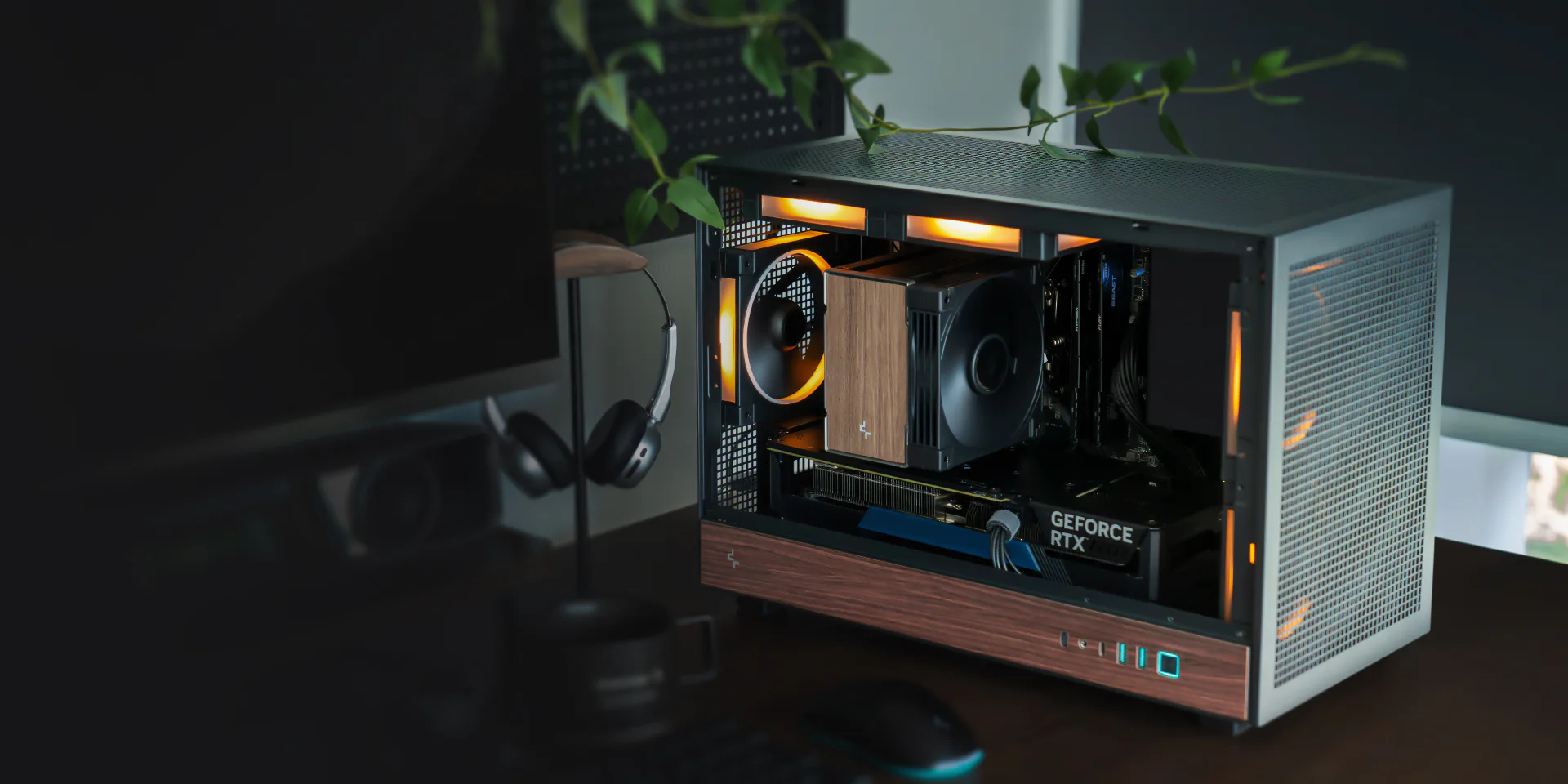

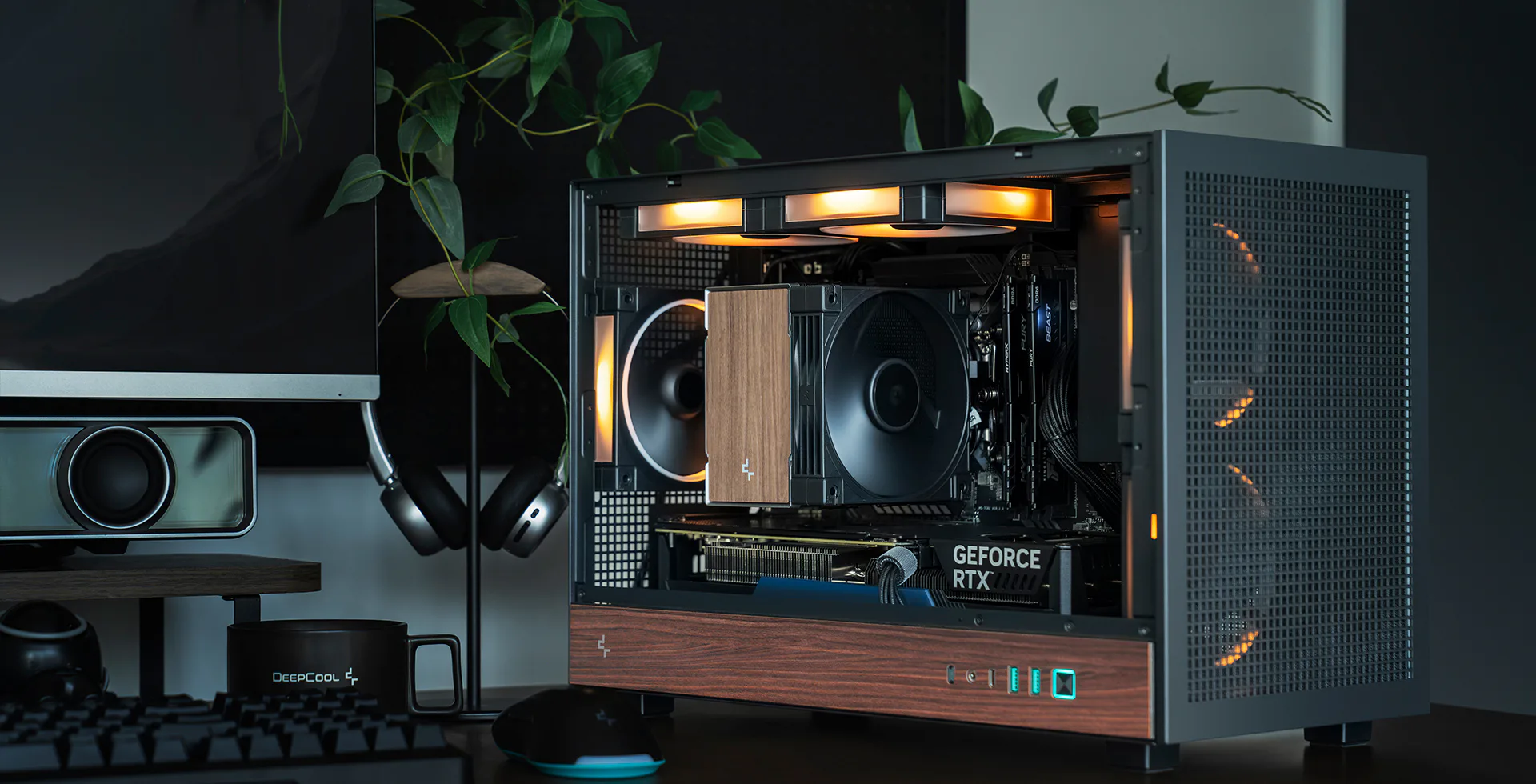

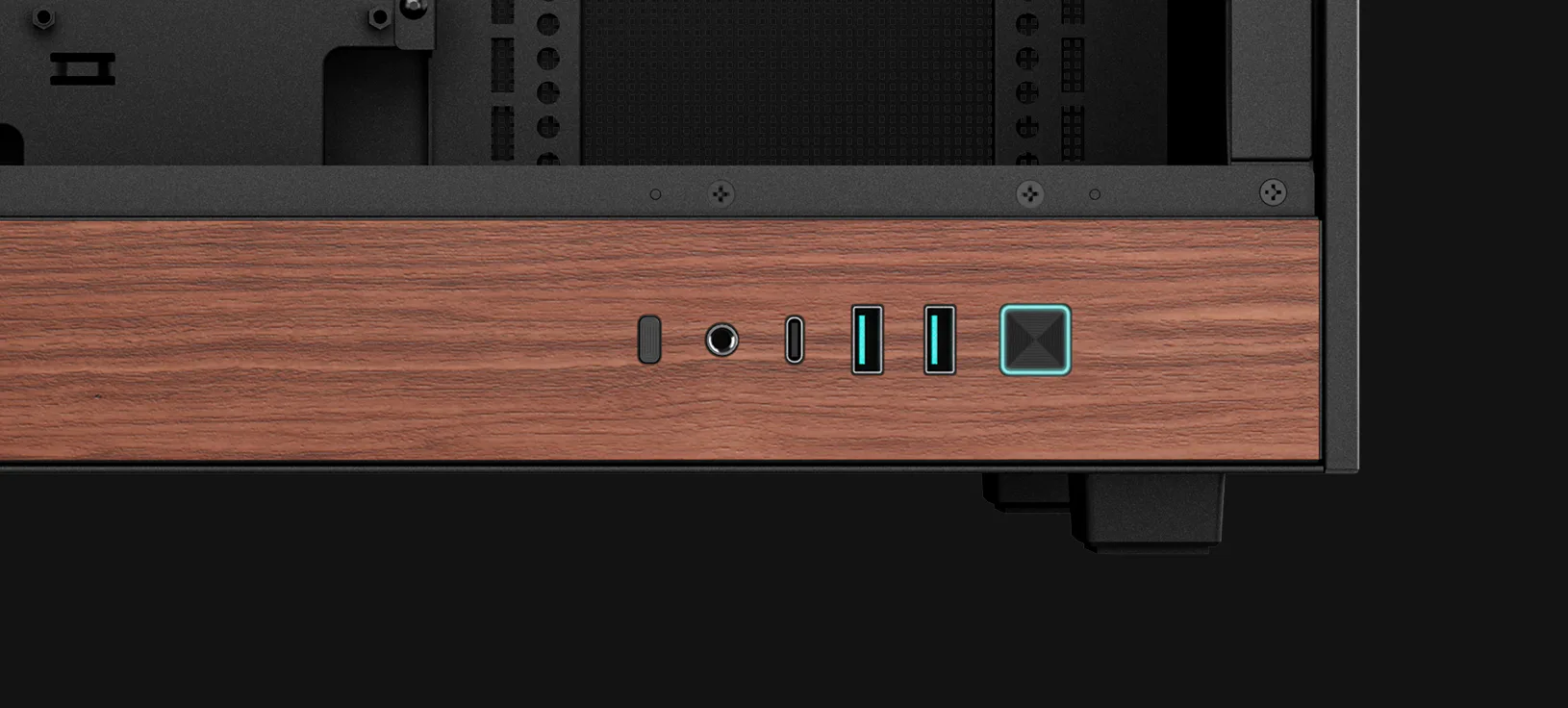

The wood-grain I/O panel adds a natural elegance to the CH260 WOOD, giving your build a furniture-like presence that fits beautifully into modern living spaces.
SMALL SIZE OUTSIDE, FULL SIZE INSIDE

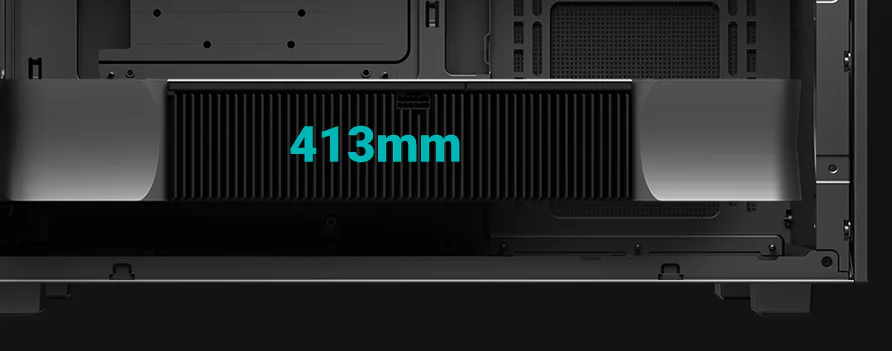

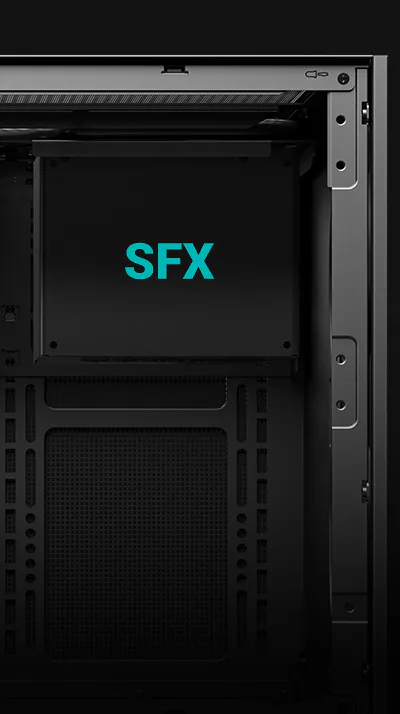

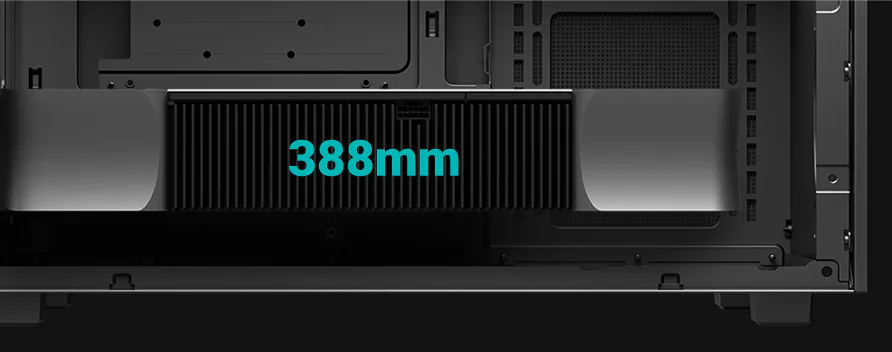

The CH260 WOOD provides multiple options in key components compatibility which can support full-size GPU up to 388mm in length or goes even longer to 413mm without front fan placement. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.
UNCOMPROMISED VENTILATION

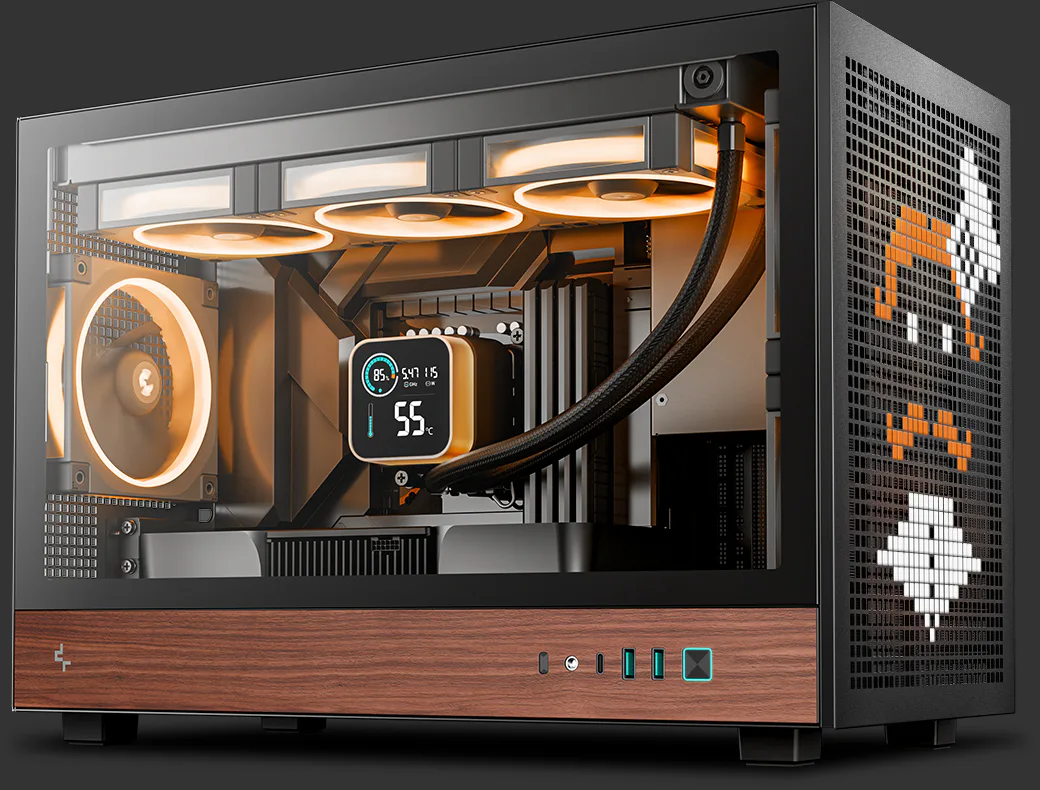

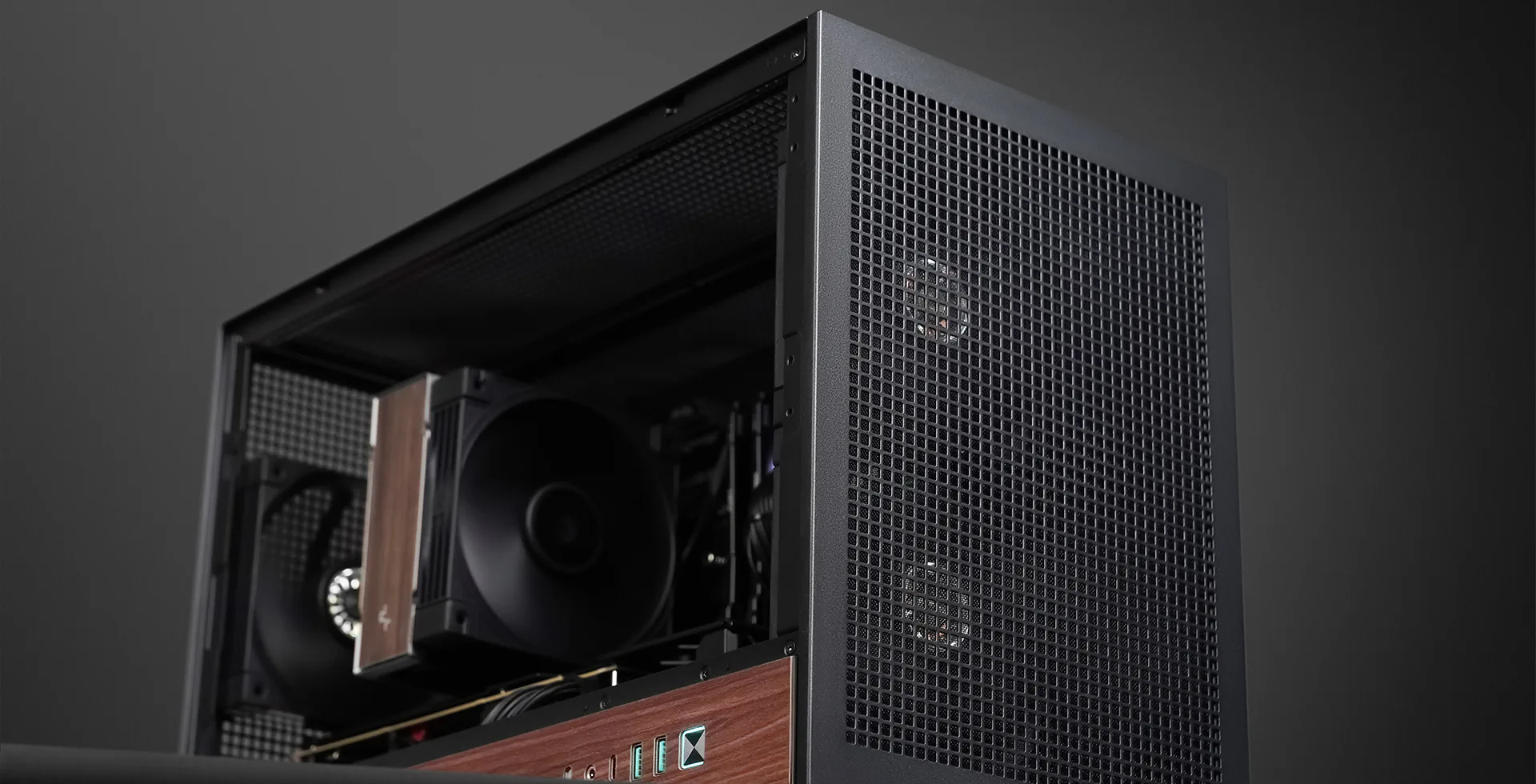

The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on top or a 174mm high tower heat sink on the CPU.
Radiators
120MM
140MM
Cooler
Radiators:
Front: NA
Top: 120/140/240/280/360mm
Bottom: NA
Rear: 120mm

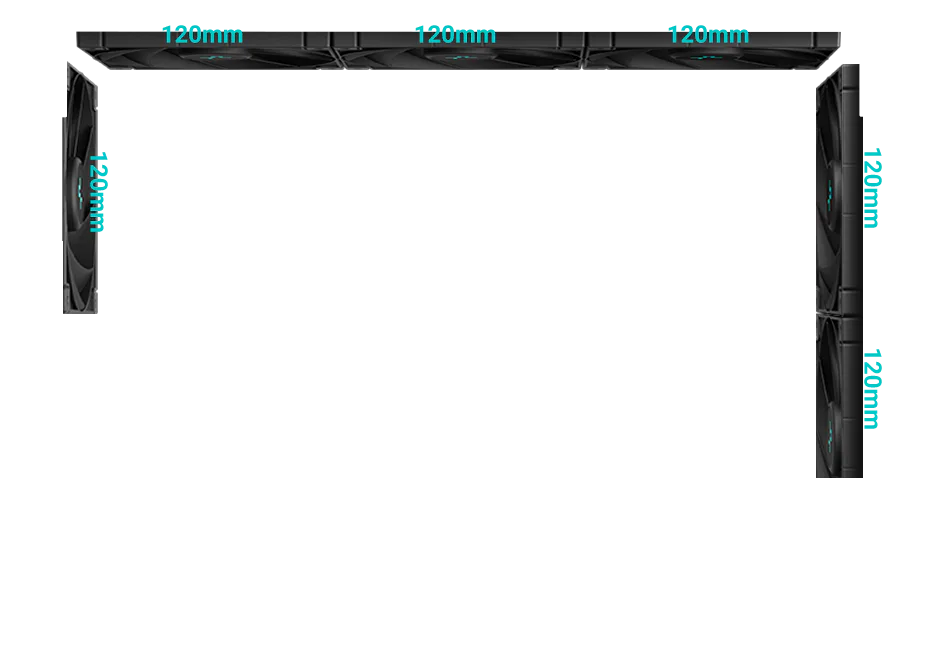

Fans:
Front: 2×120mm
Top: 3×120mm/2×140mm
Rear: 1×120mm

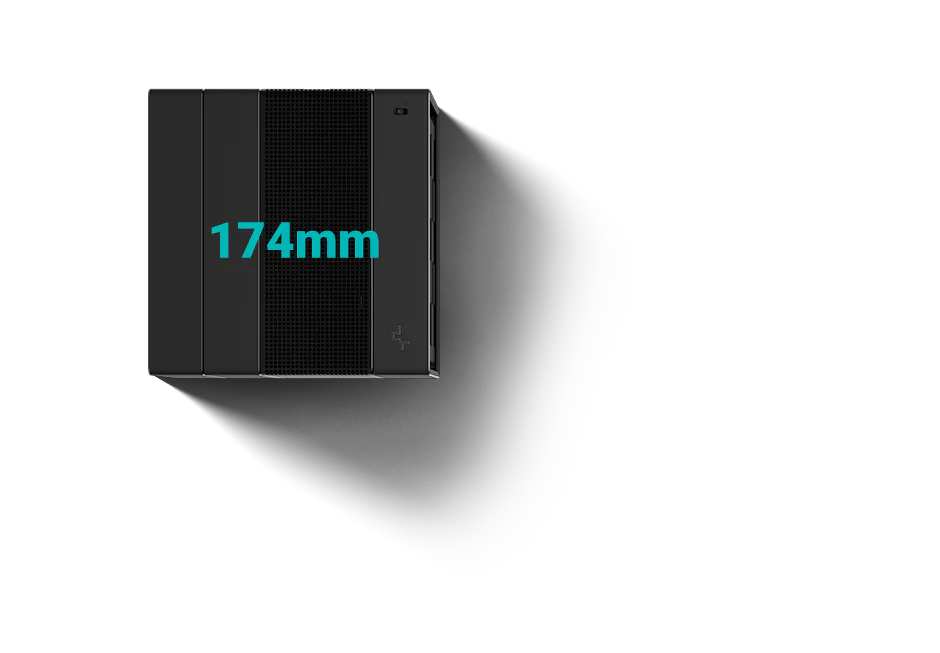

CPU Cooler: 174mm

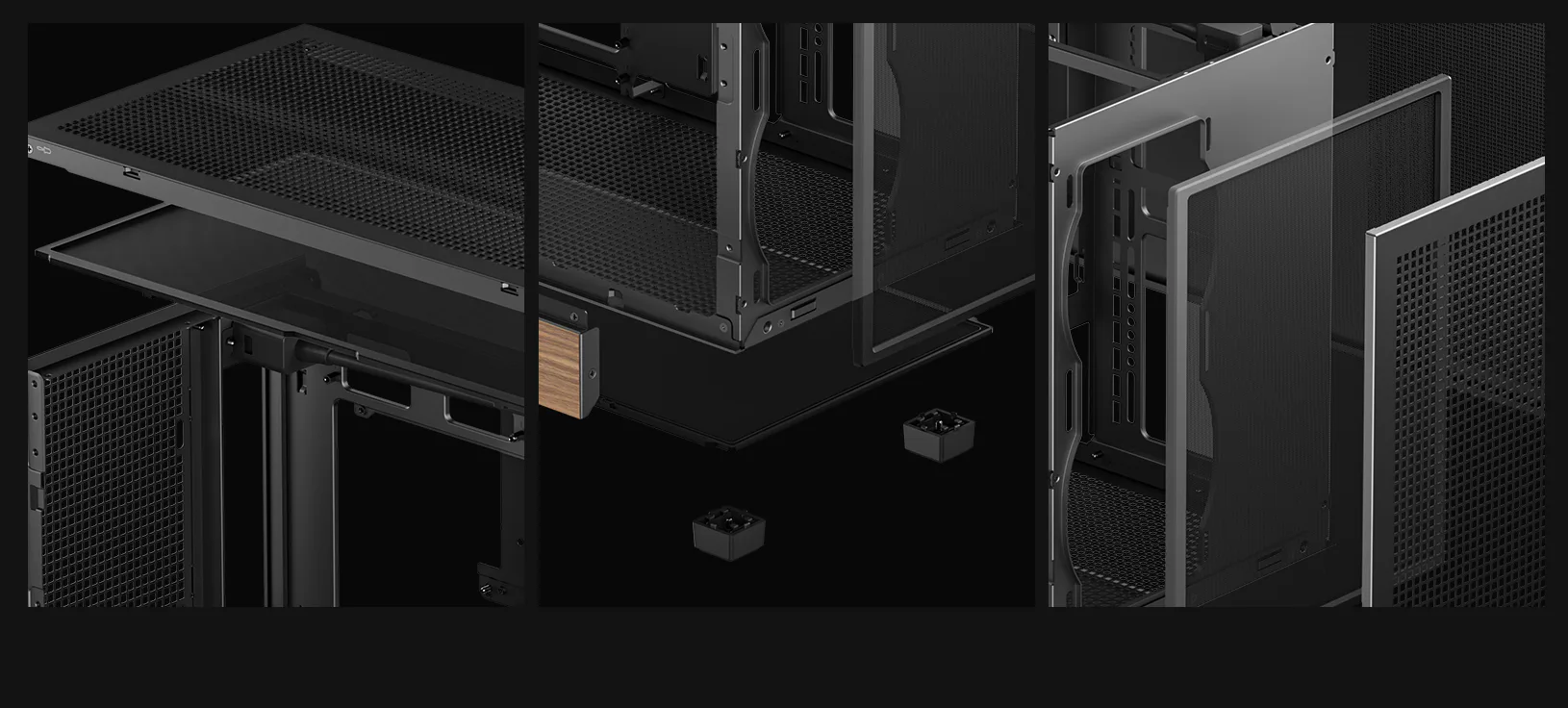

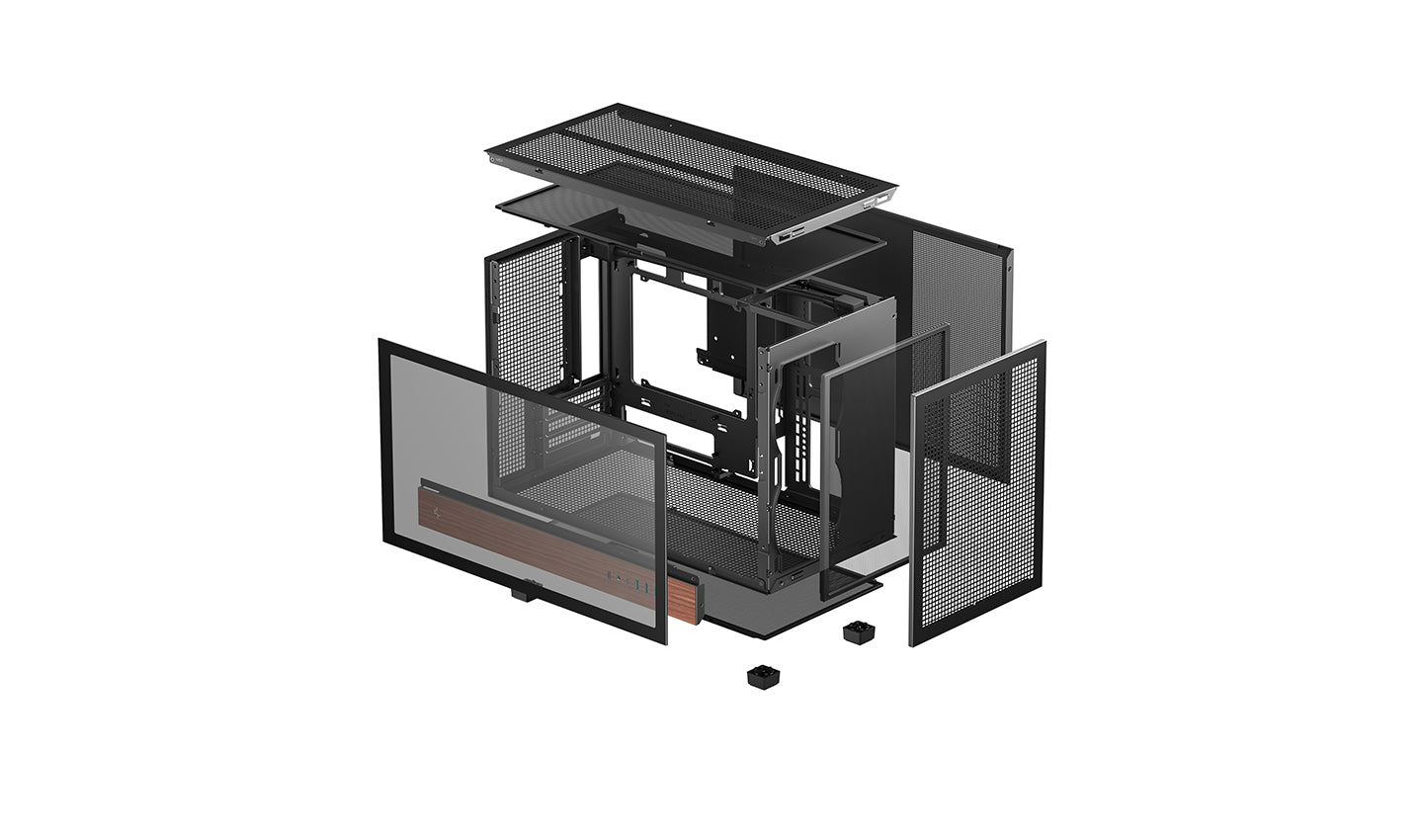

ENHANCED BUILDING EXPERIENCE

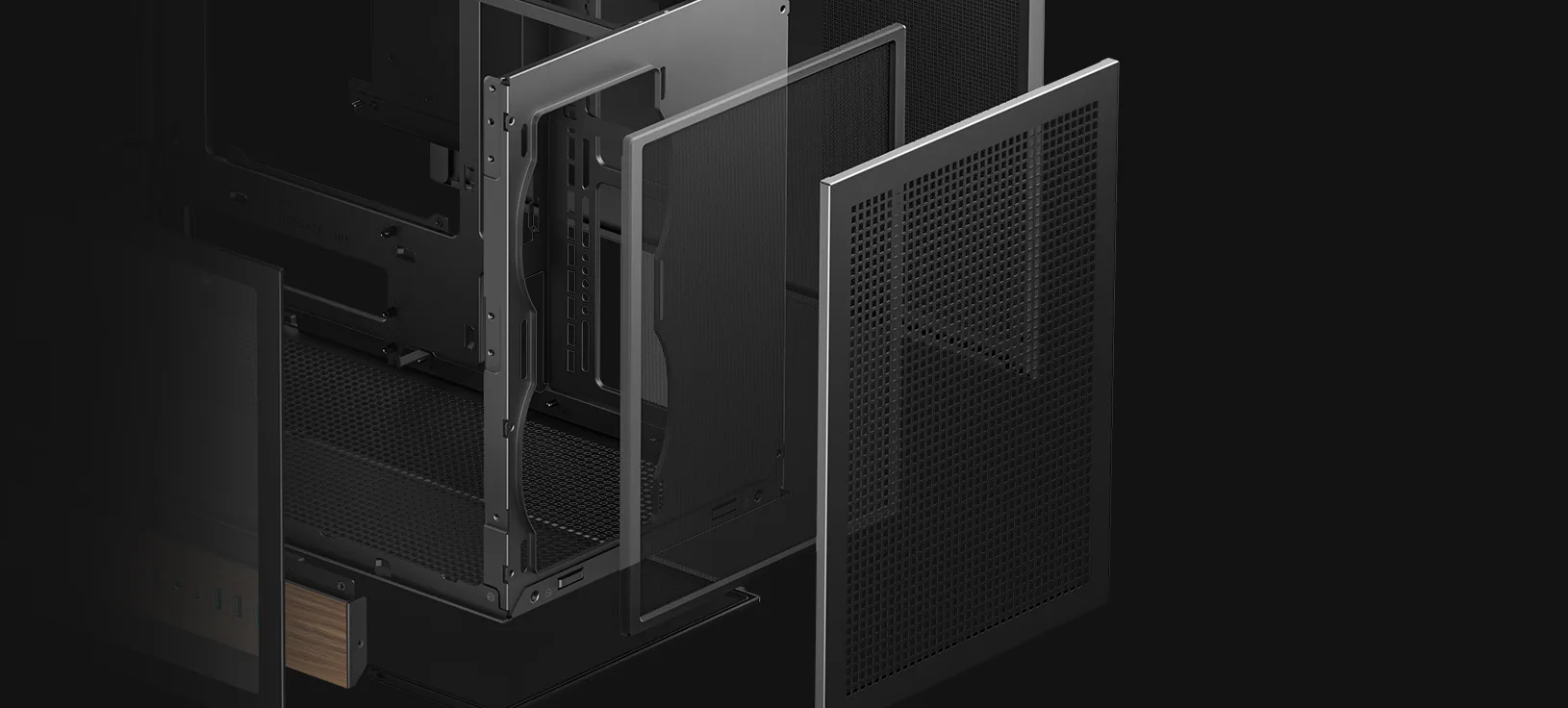

Tool-free access to the front panel.
Modern I/O features two USB 3.0 plus one Gen2 Type-C port, and an Audio/Mic combo jack.
Three removable dust filters for easy cleaning.

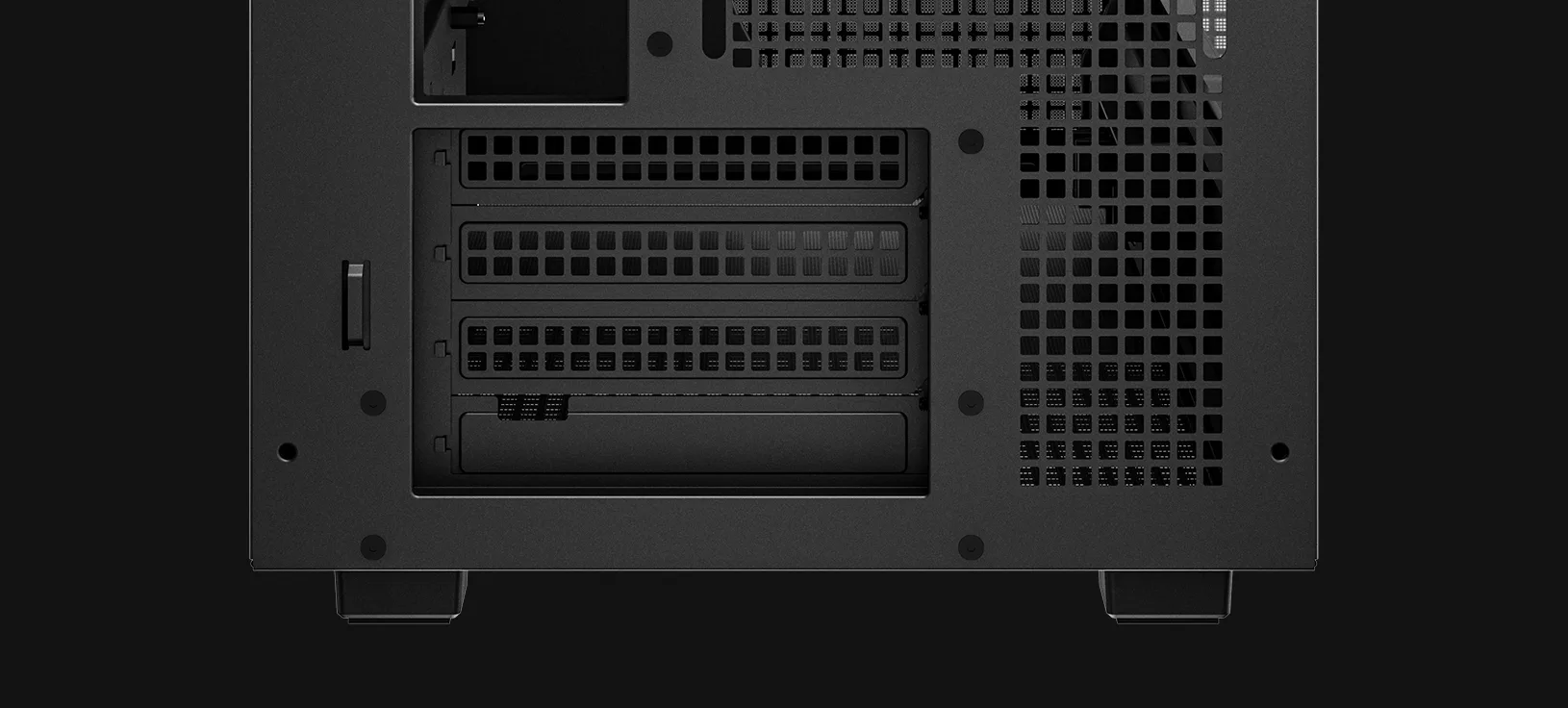

Four independent and reusable PCI-e baffles.
Tool-free access to the front panel.
Modern I/O features two USB 3.0 plus one Gen2 Type-C port, and an Audio/Mic combo jack.
Technical Spec
| Product Dimensions | 438mm*225mm*312.5mm(L×W×H) |
| Net Weight | 5.3Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX Micro-ATX(Rear Connector) |
| Front I/O Ports | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1 |
| Expansion Slots | 4Slots |
| Pre-Installed Fans | None |
| Fan Support | Front:2×120mm Top:3×120mm/2×140mm Rear: 1×120mm |
| Radiator Support | Front: NA Top:120/140/240/280/360mm Bottom: NA Rear:120mm |
| CPU Cooler Height Limit | 174mm |
| GPU Length Limit | 388/413mm（No Front fans） |
| Power Supply Type | ATX PS2（maximum length: 150mm） |
| EAN | 6933412765653 |
| P/N | R-CH260-BKNWM0-G-1 |
