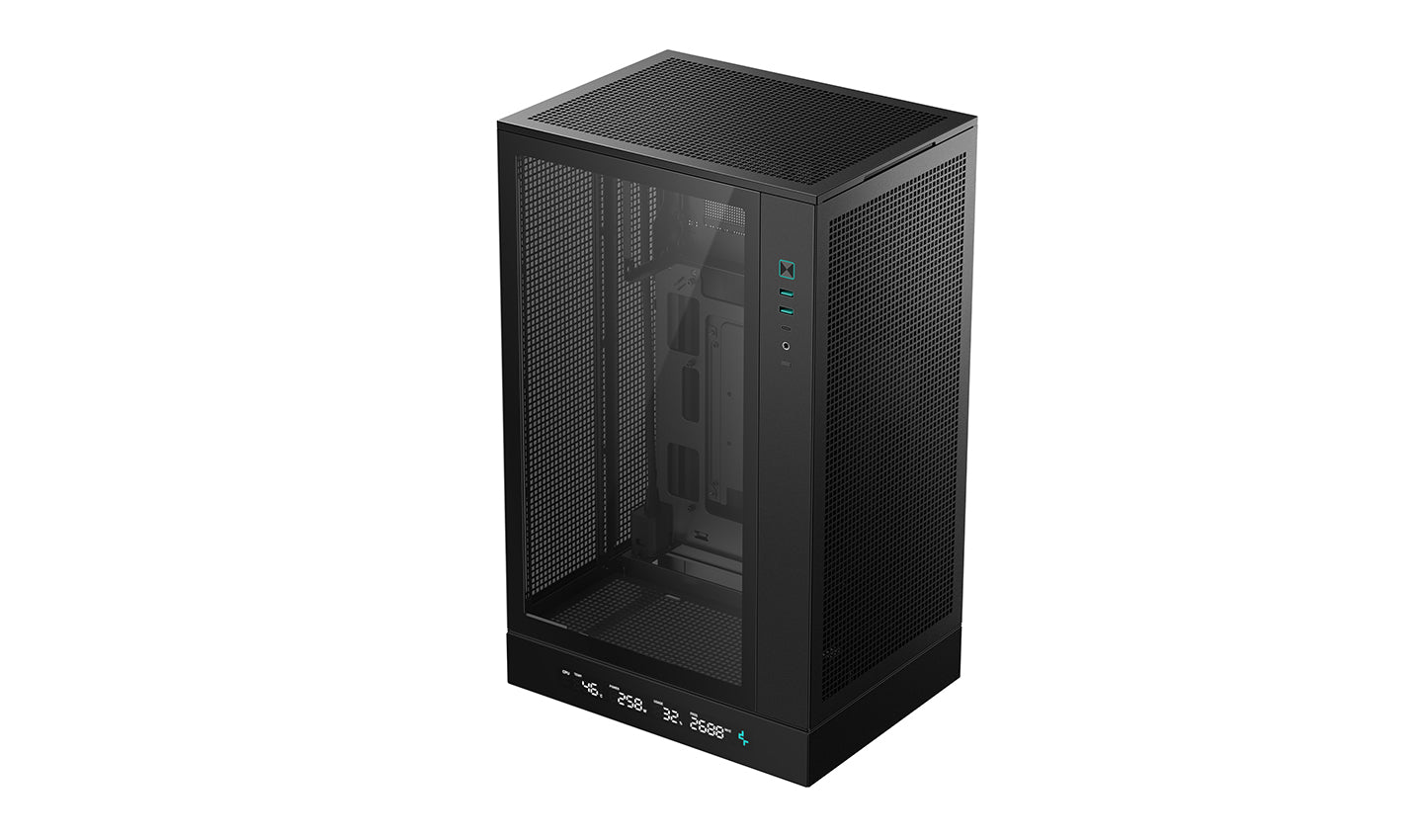

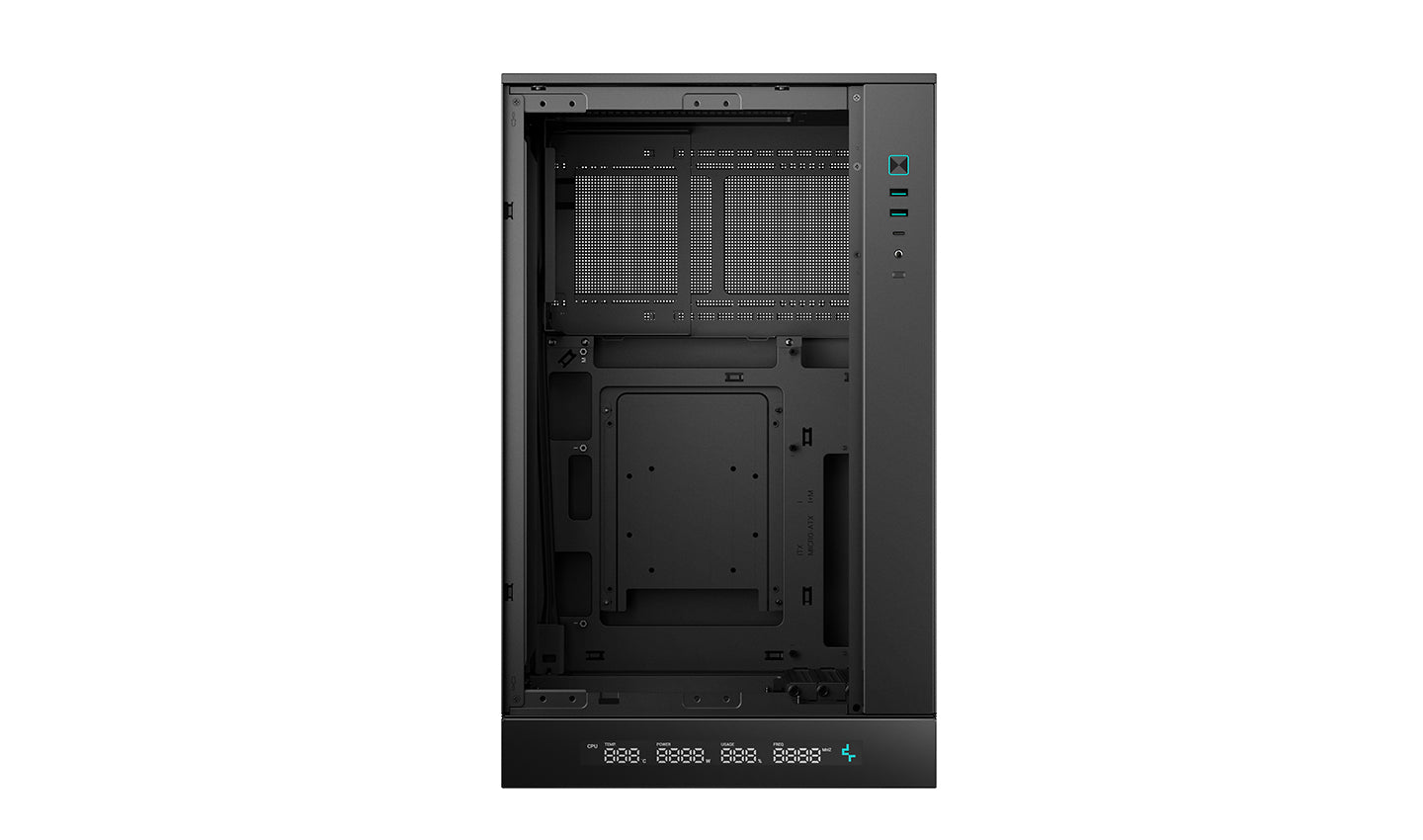

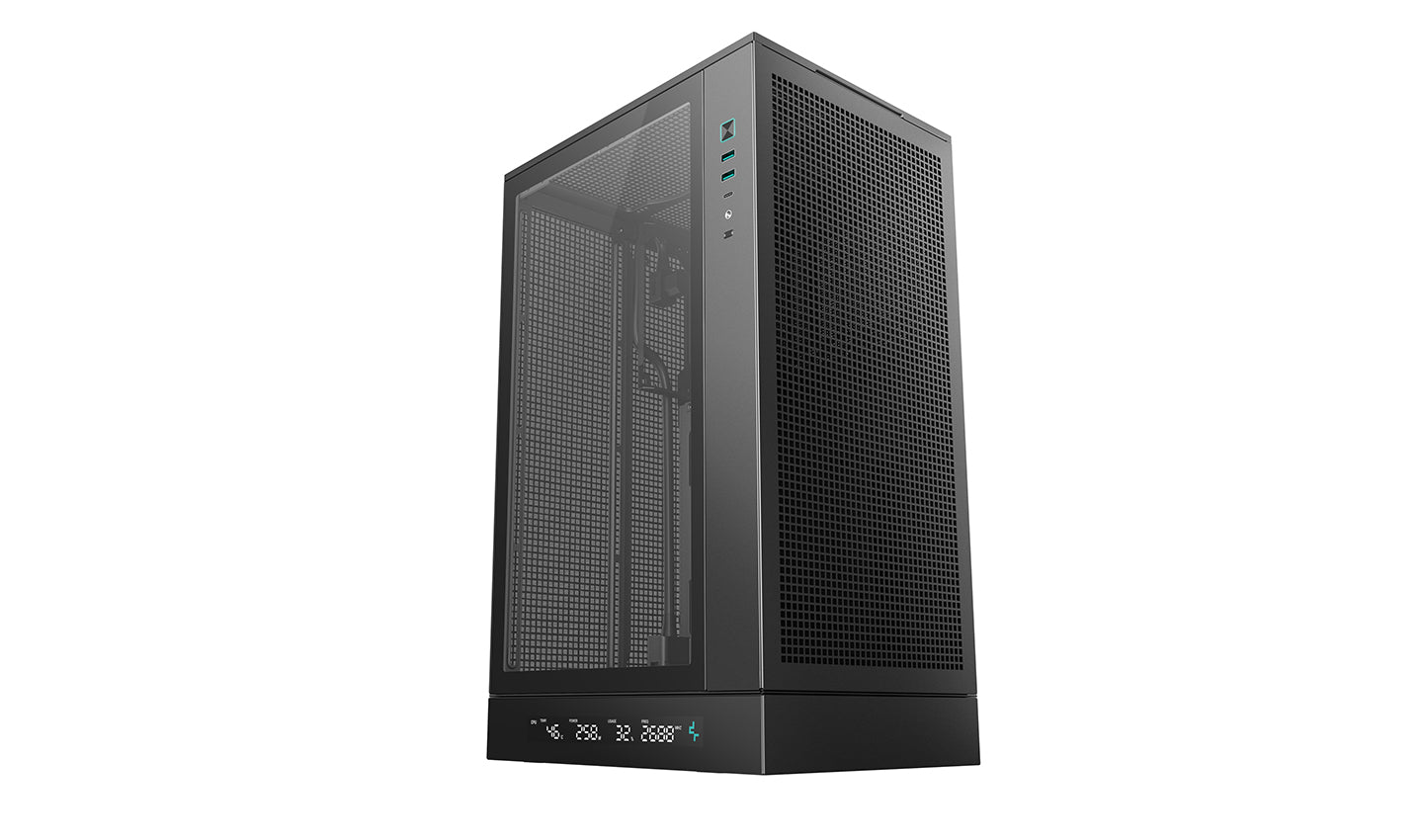

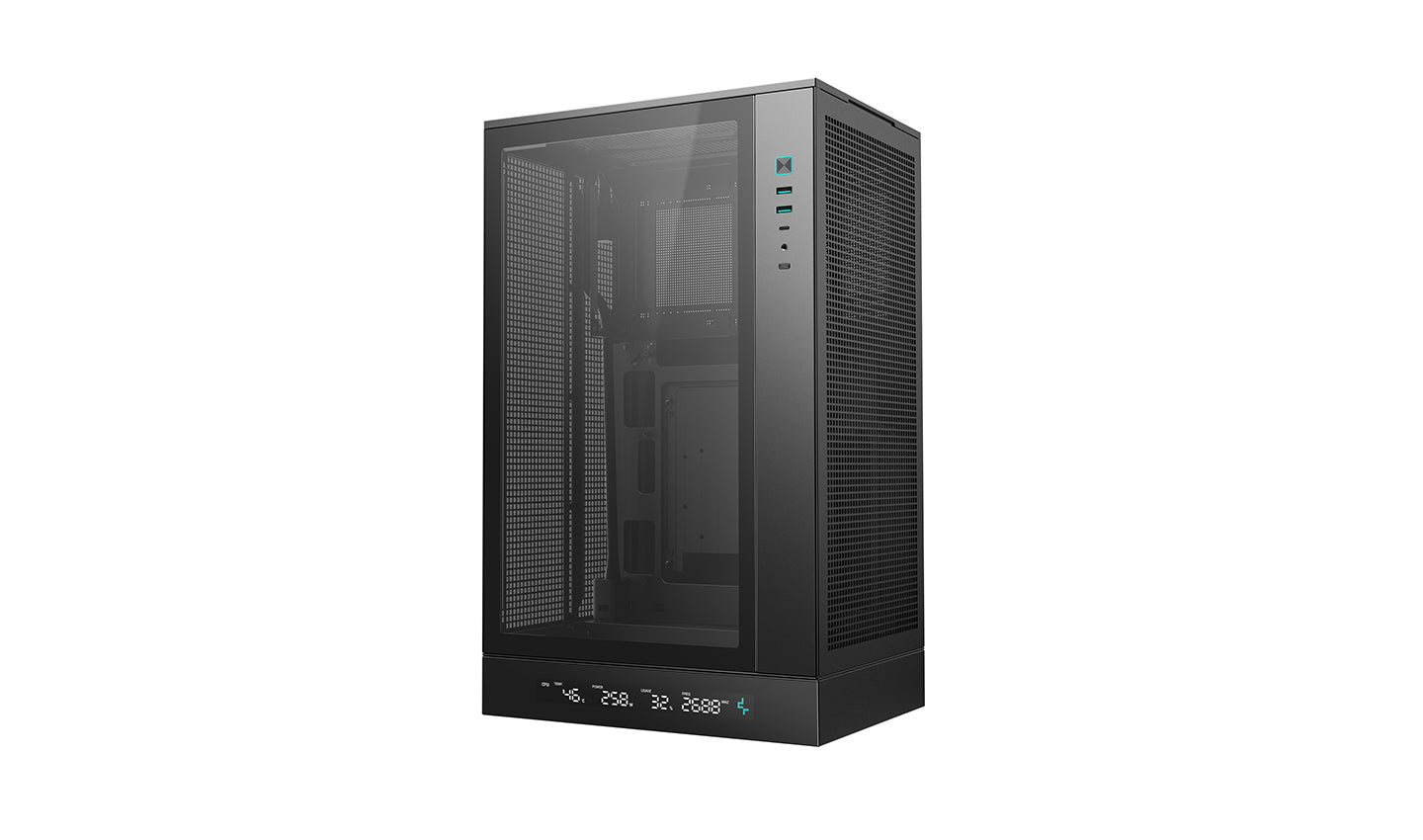

A digital display bar is integrated at the base of the case to monitor your system vitals in real time. The status mode can switch between CPU, GPU, and PSU.
SMALL SIZE OUTSIDE, FULL SIZE INSIDE

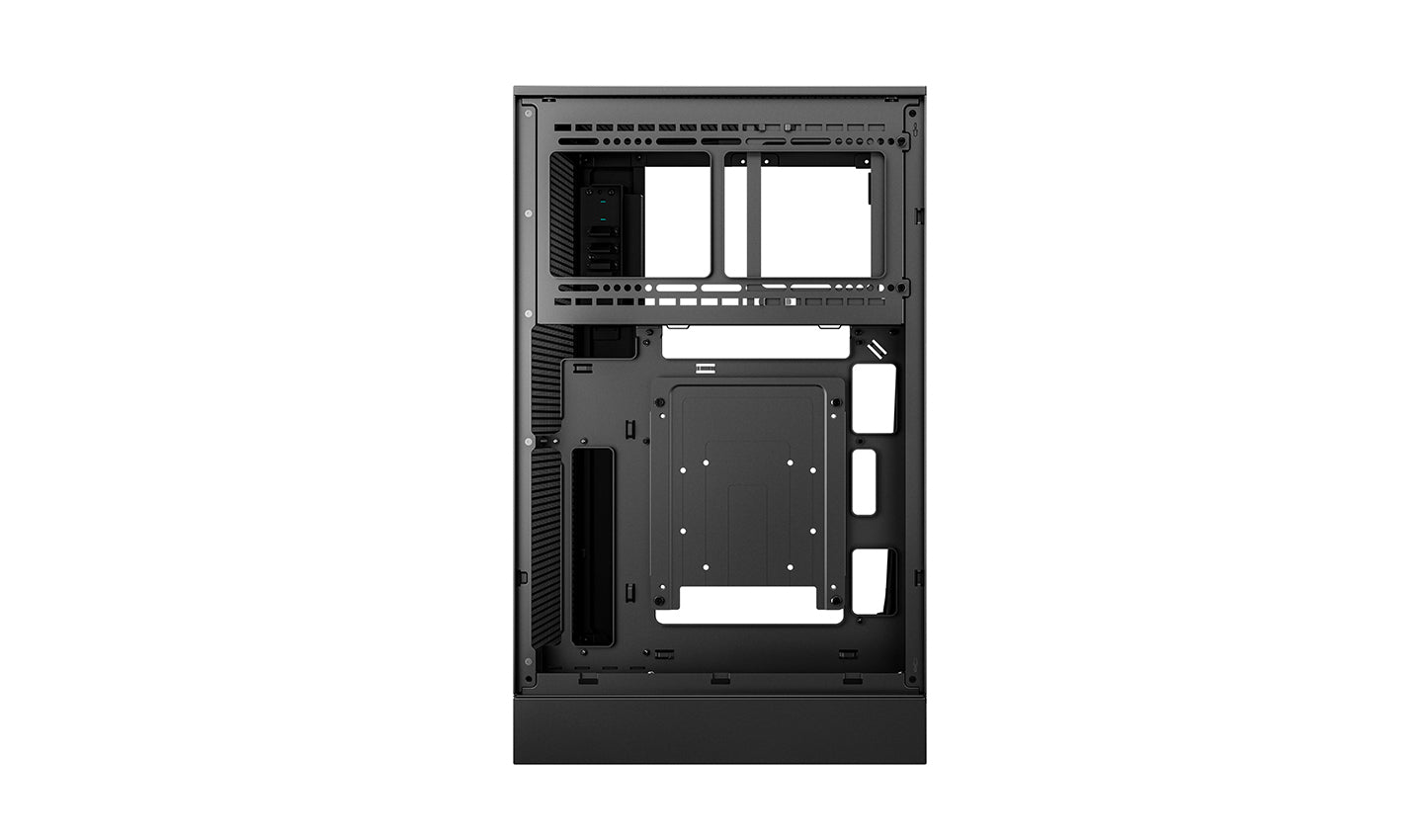

Upgraded on the precedent CH170 series, the CH270 DIGITAL now gives expanded options in key components compatibility that supports full-size GPU up to 388mm in length or goes even longer to 413mm without fan placement on the top. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.
UNCOMPROMISED VENTILATION
The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on the side or a 174mm high tower heat sink on the CPU.
Technical Spec
| Product Dimensions |
296mm*225mm*486mm(L×W×H) |
| Net Weight |
5.8Kg |
| Materials |
ABS+SPCC+Tempered Glass |
| Motherboard Support |
Mini-ITX / Micro-ATX
Micro-ATX(Rear Connector) |
| Front I/O Ports |
USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| 3.5" Drive Bays |
1 |
| 2.5" Drive Bays |
1 |
| Expansion Slots |
4Slots |
| Pre-Installed Fans |
None |
| Fan Support |
Top:2×120mm
Side:3×120mm/2x140mm
Bottom:1×120mm |
| Radiator Support |
Front: NA
Side:120/240/360mm
Bottom: 120mm
Rear:NA |
| CPU Cooler Height Limit |
174mm |
| GPU Size Limit |
388/413mm（No Top fans） |
| Power Supply Type |
ATX PS2（maximum length: 150mm） |
| EAN |
6933412765257 |
| P/N |
R-CH270-BKNDM0-G-1 |
