DEEPCOOL CH360 DIGITAL BLACK, Mini-ITX / Micro-ATX Case
CH360 DIGITAL

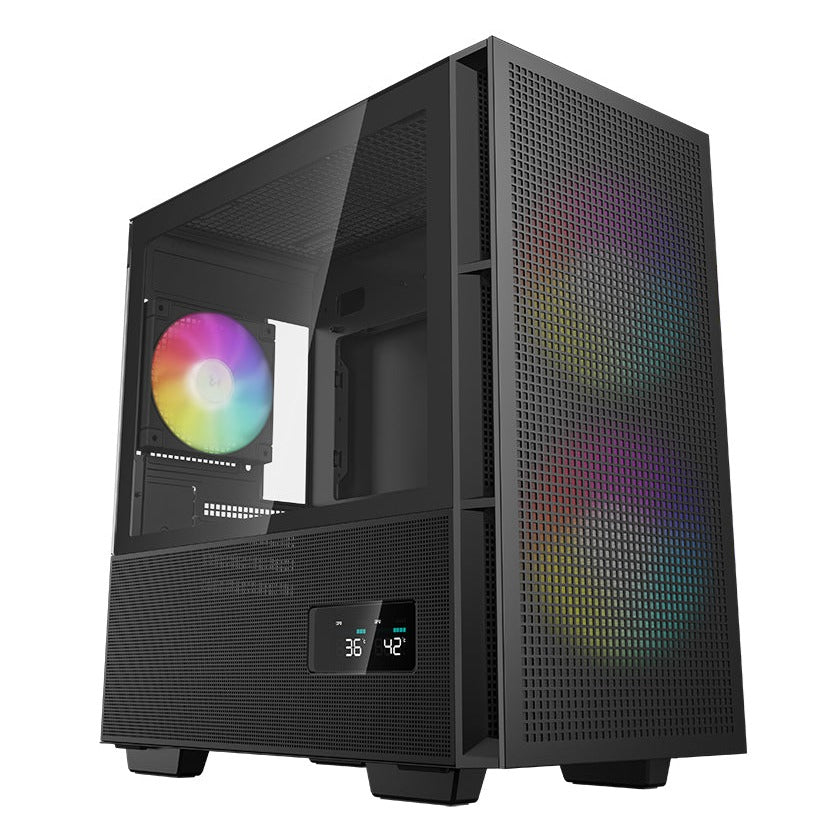

The next generation of airflow cases from Deep Cool has arrived, and they are indeed glorious. The CH360 DIGITAL is a newly designed mATX case with a concentrated focus on increased airflow throughout the entire chassis. Two bright PWM enabled 140mm ARGB fans are mounted in front of the main compartment, a hybrid side panel, and a dual status digital screen sets the CH360 DIGITAL apart from the competition.
A BREATH OF FRESH AIR
The CH360 provides exceptional airflow from all sides of the case; from the high airflow front to the hybrid tempered glass side panel; cool air is always available for the modern power-hungry components.
HYBRID AIRFLOW GLASS SIDE PANEL

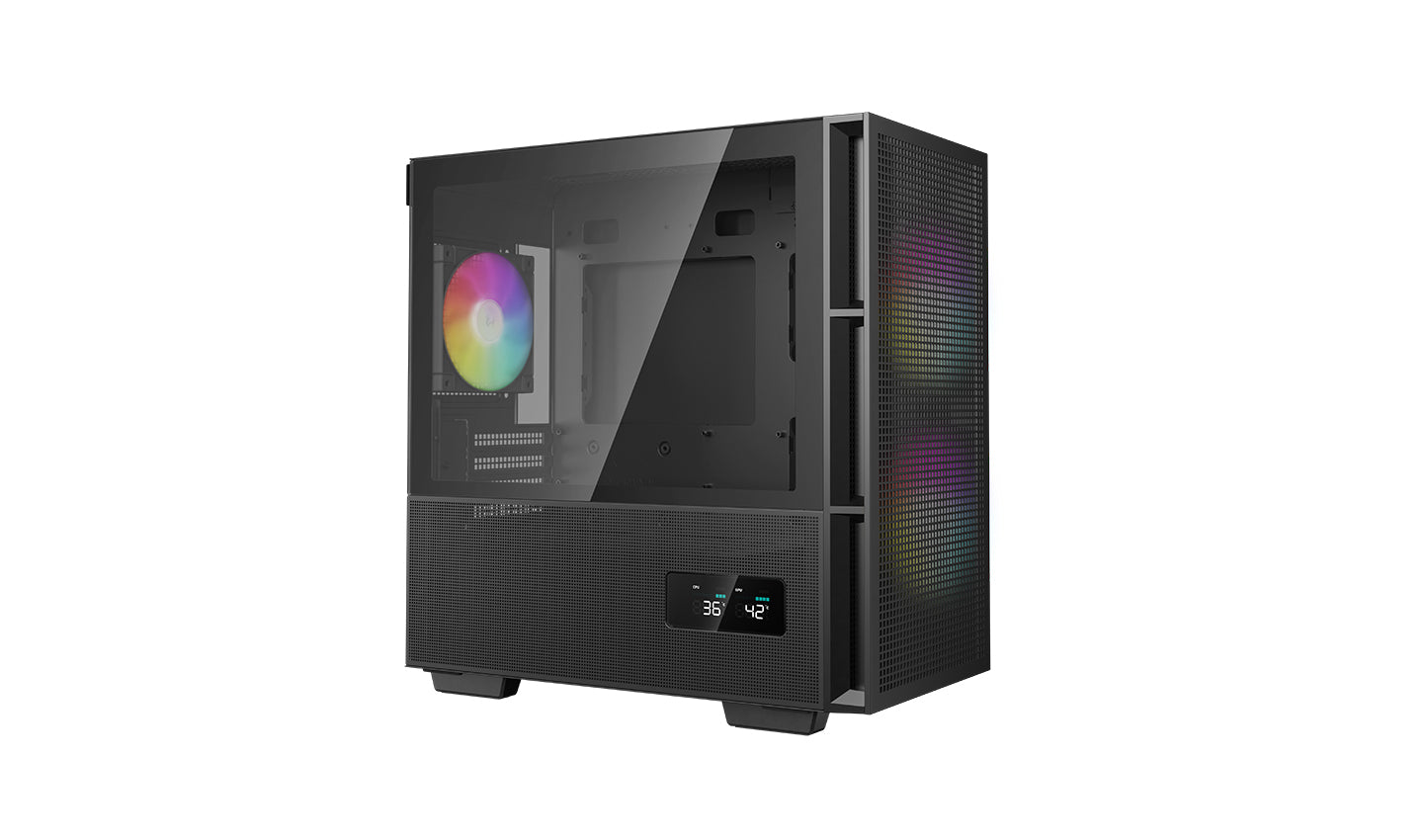

A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.
MAXIMUM COOLING CAPACITY
The CH360 has a plethora of cooling configurations, from the ability to mount a 360mm radiator in front to the two included 140mm ARGB fans up front—the cooling configurations are endless.
LARGE RANGE OF COMPATIBLE COMPONENTS
With the ability to support 165mm tall CPU coolers, 320mm GPUs, and 160mm PSUs; the CH360 can be configured with a wide range of modern components.
BIGGER, BRIGHTER, BETTER

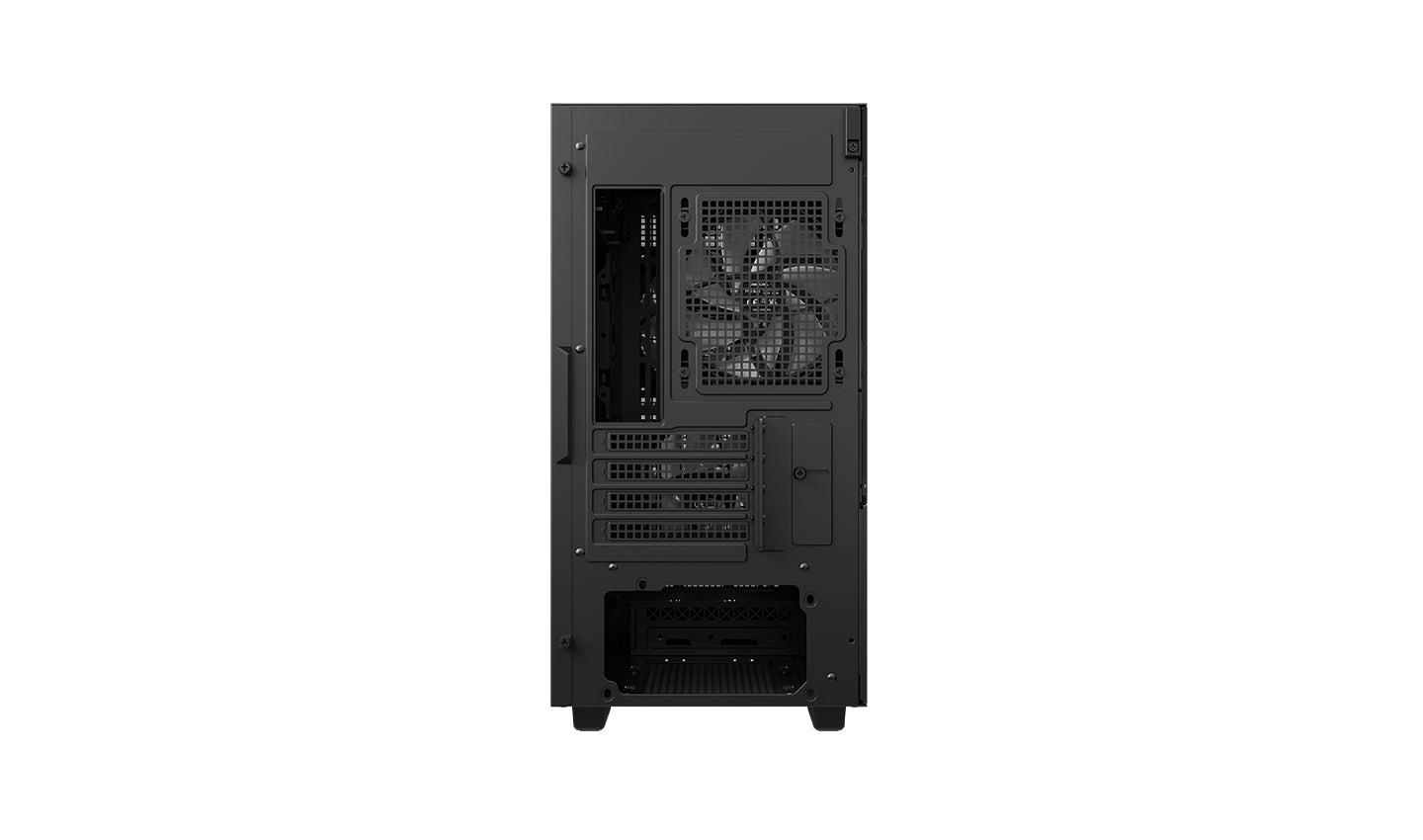

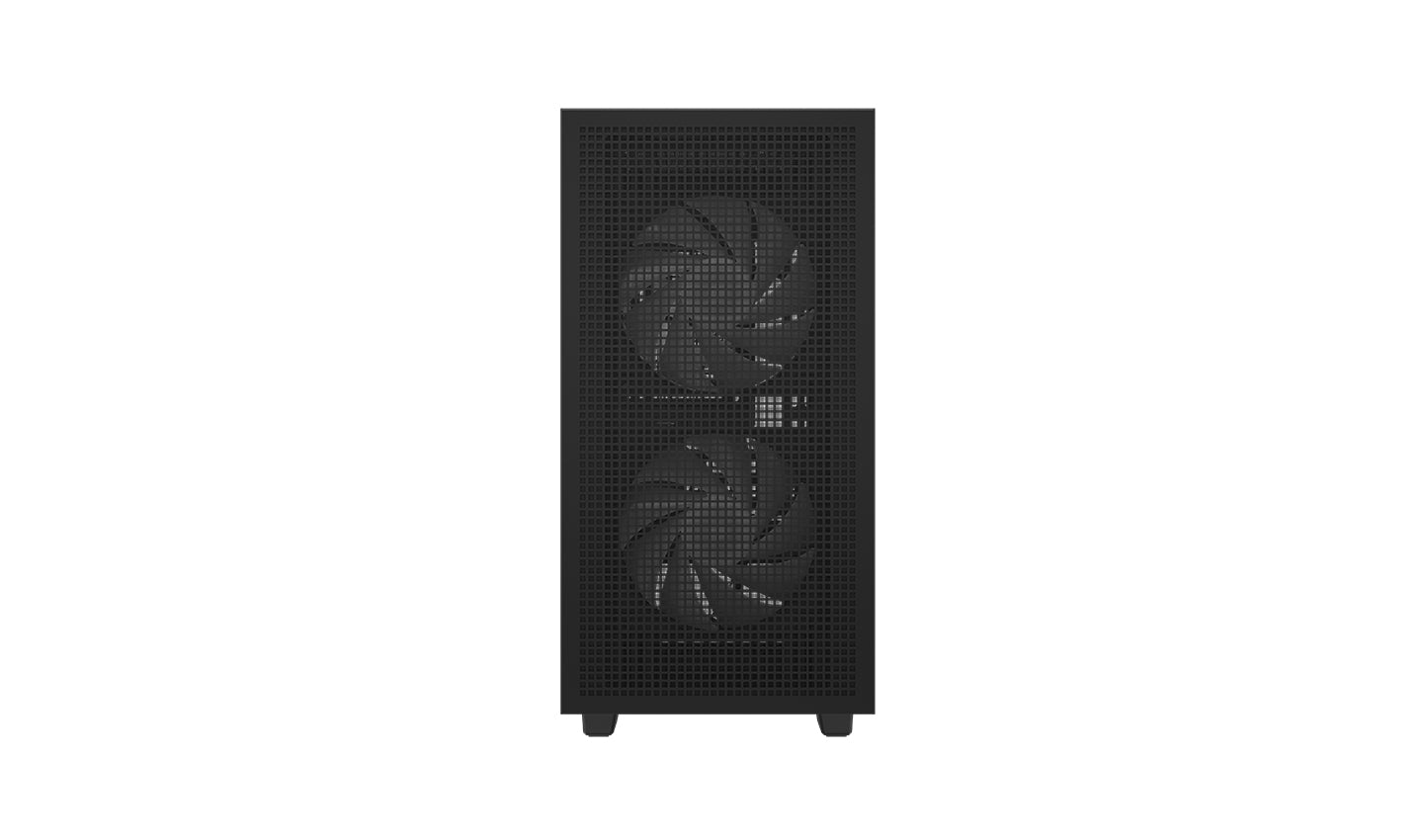

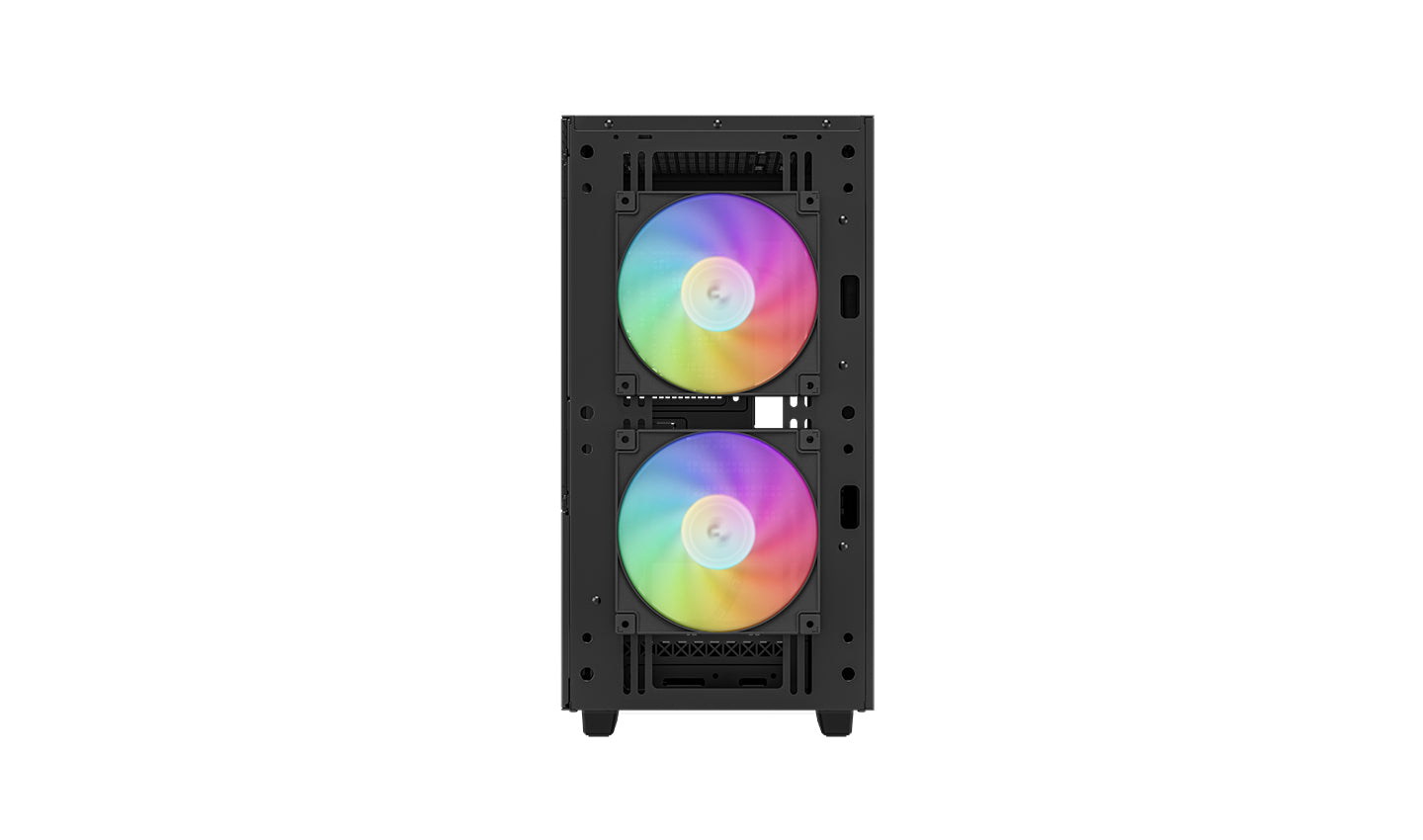

Two luminous PWM-enabled 140mm ARGB fans come pre-installed on the front of the CH360 and introduce an abundant amount of fresh air into the chassis. These fans are mounted outside of the main compartment to provide extra clearance for modern GPUs while maintaining a smaller footprint. A 120mm ARGB fan is included in the rear of the case to help exhaust internal case heat.
STRESS-FREE BUILDING

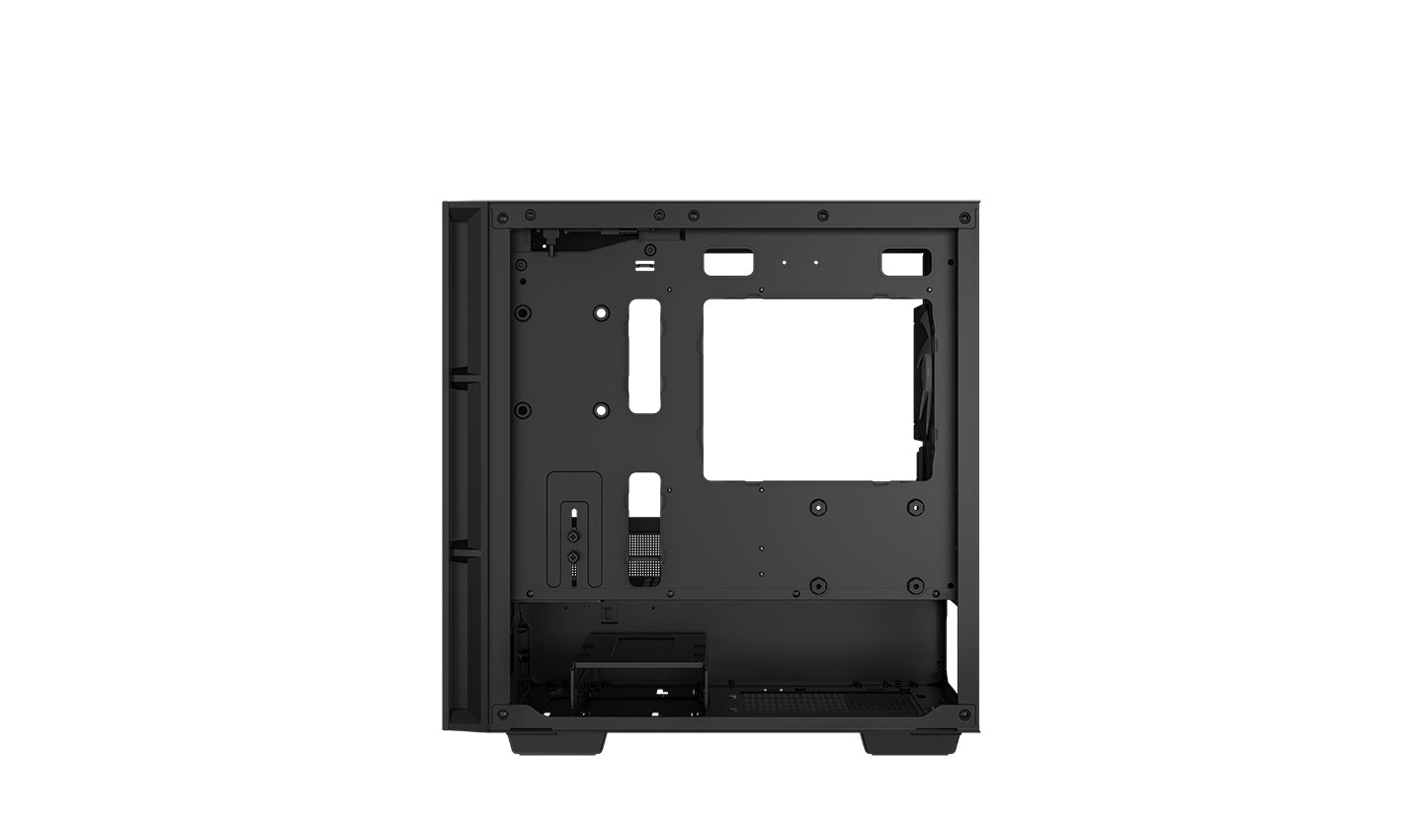

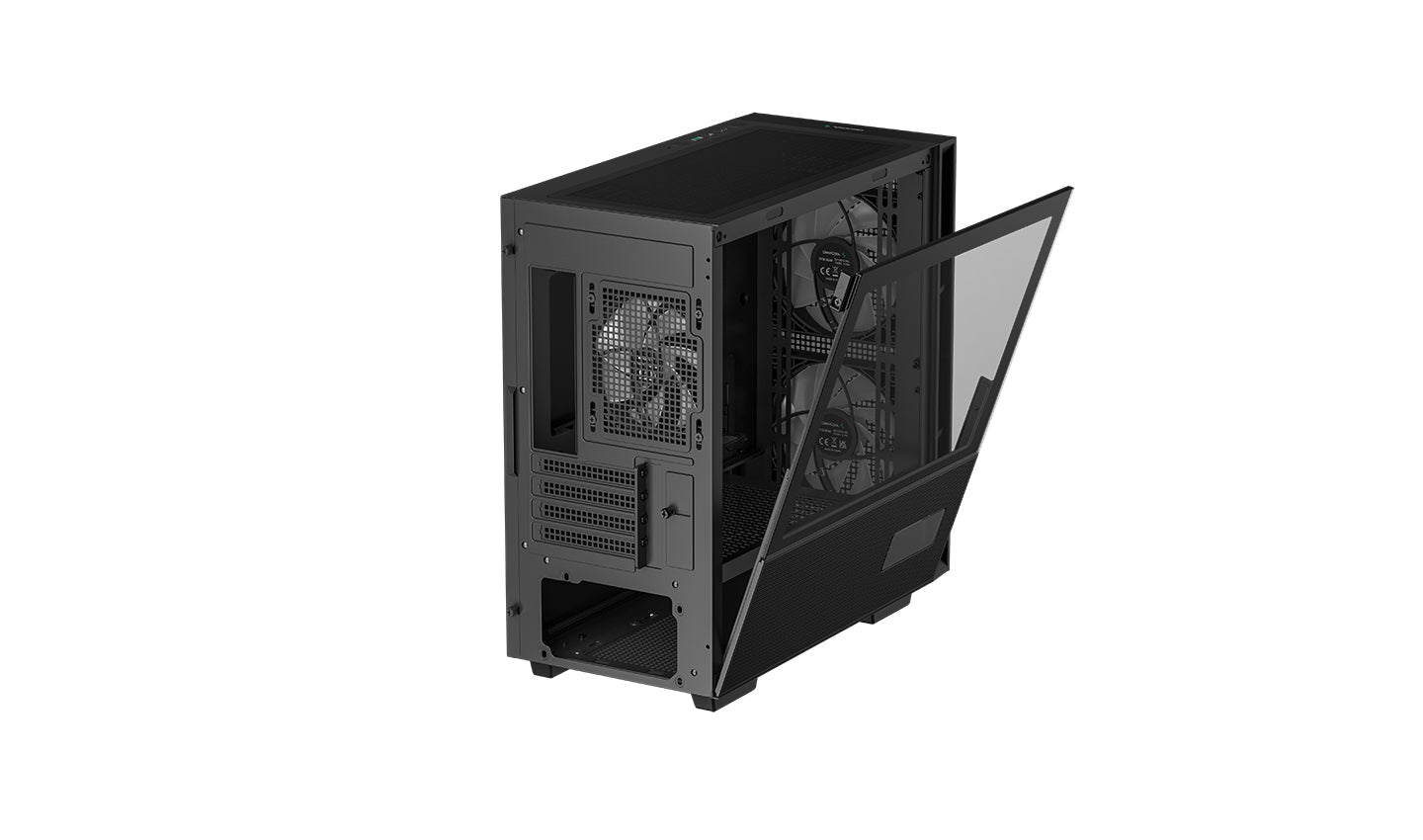

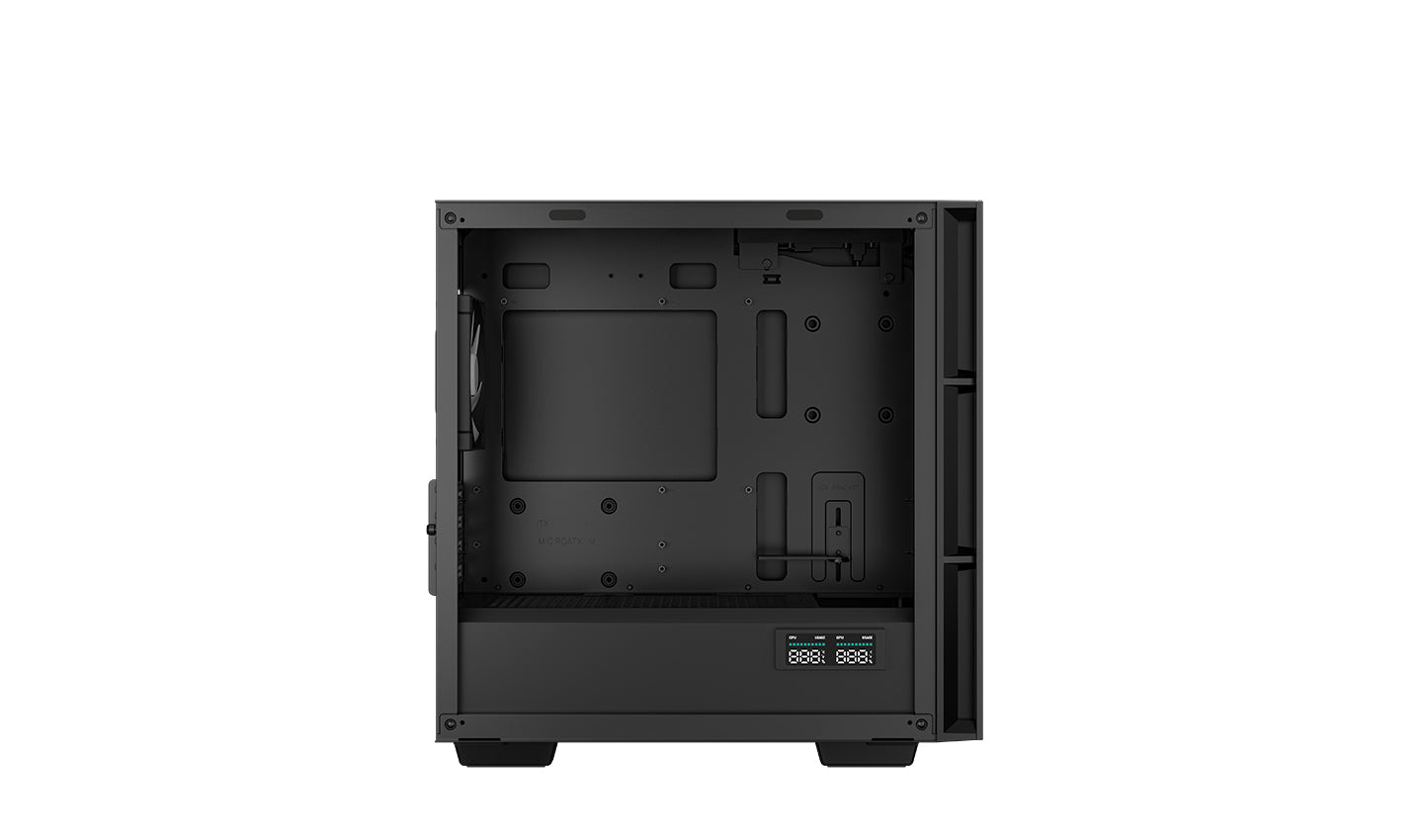

Building and maintaining the CH360 is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, a removeable hard drive cage, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.
Technical Spec
Product Dimensions | 428×215×431mm(L×W×H) |
Net Weight | 6 KG |
Materials | ABS+SPCC+Tempered Glass |
Motherboard Support | Mini-ITX / Micro-ATX |

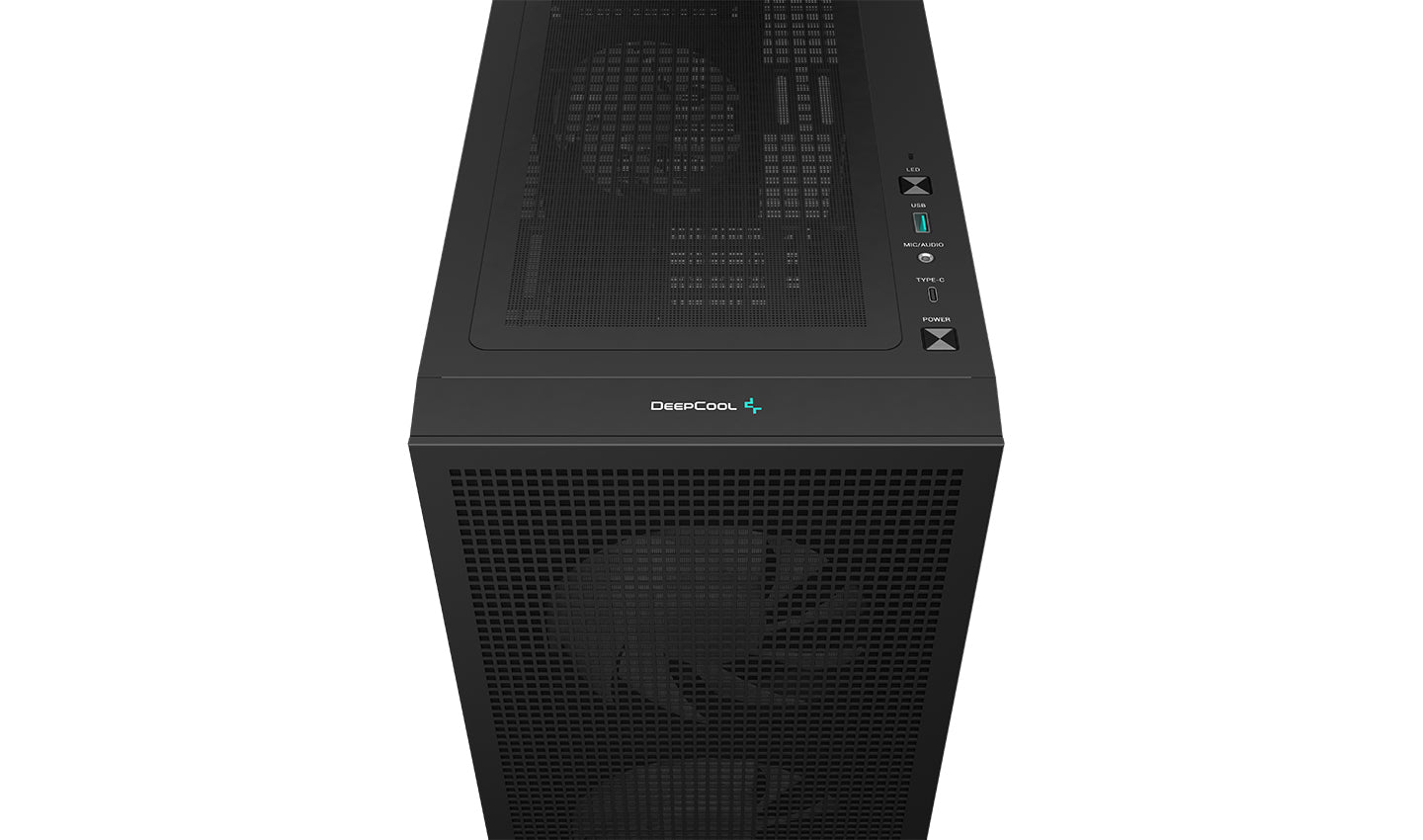

Front I/O Ports | USB3.0×1、Audio×1、TYPE-C×1 |
3.5" Drive Bays | 2 |
2.5" Drive Bays | 2+1 |
Expansion Slots | 4 Slots |
Pre-Installed Fans | Front: 2×140mm ARGB Rear: 1×120mm ARGB |
Fan Support | Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120mm PSU Shrouded: 2×120mm |
Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240mm Rear: 120mm |
CPU Cooler Height Limit | 165mm |
GPU Length Limit | 320mm |
Power Supply Type | ATX PS2 (maximum length: 160mm) |
EAN | 6933412774716 |
P/N | R-CH360-BKAPE3-G-1 |
