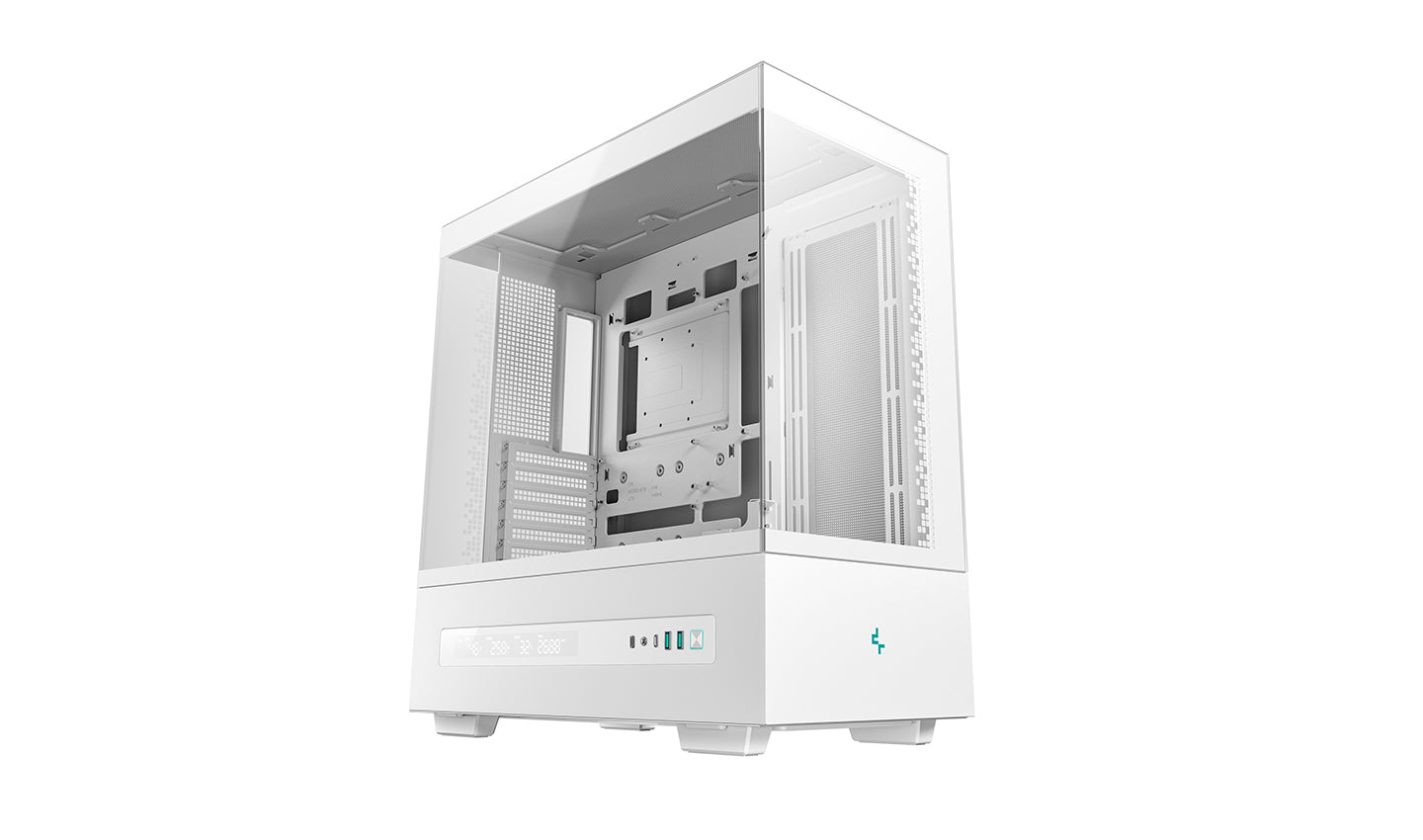

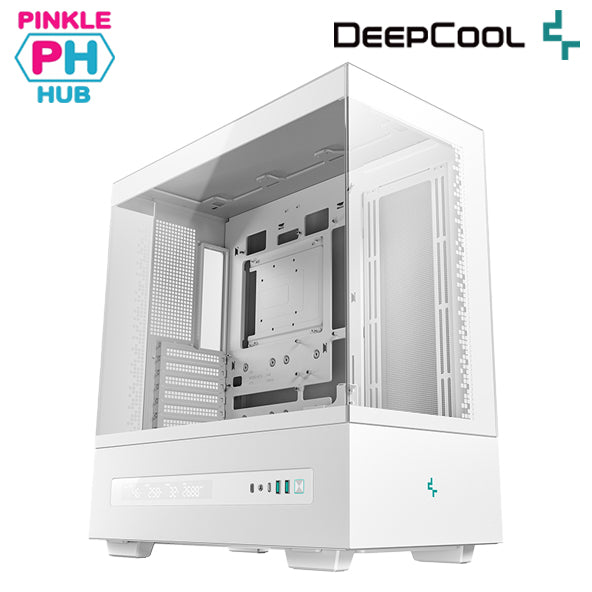

Deepcool CH690 Digital White
Deepcool CH690 Digital White
Brand : DeepCool
SKU: SKU: R-CH690-WHNNA0D-G-1
No reviews
Low stock: 1 left
Regular price
₱7,000.00
Regular price
₱7,840.00
Sale price
₱7,000.00
Unit price
/
per
Couldn't load pickup availability
CH690 DIGITAL WH

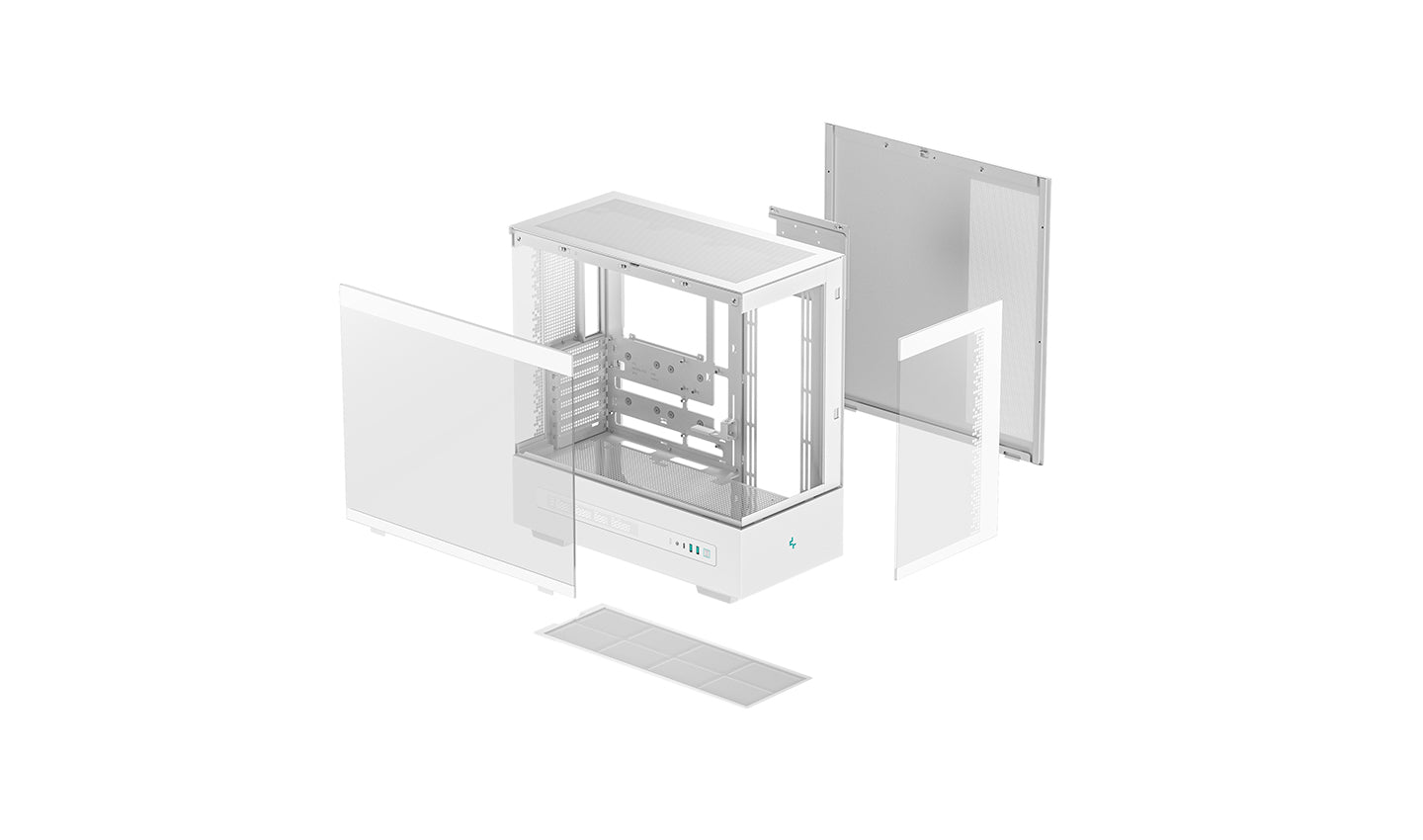

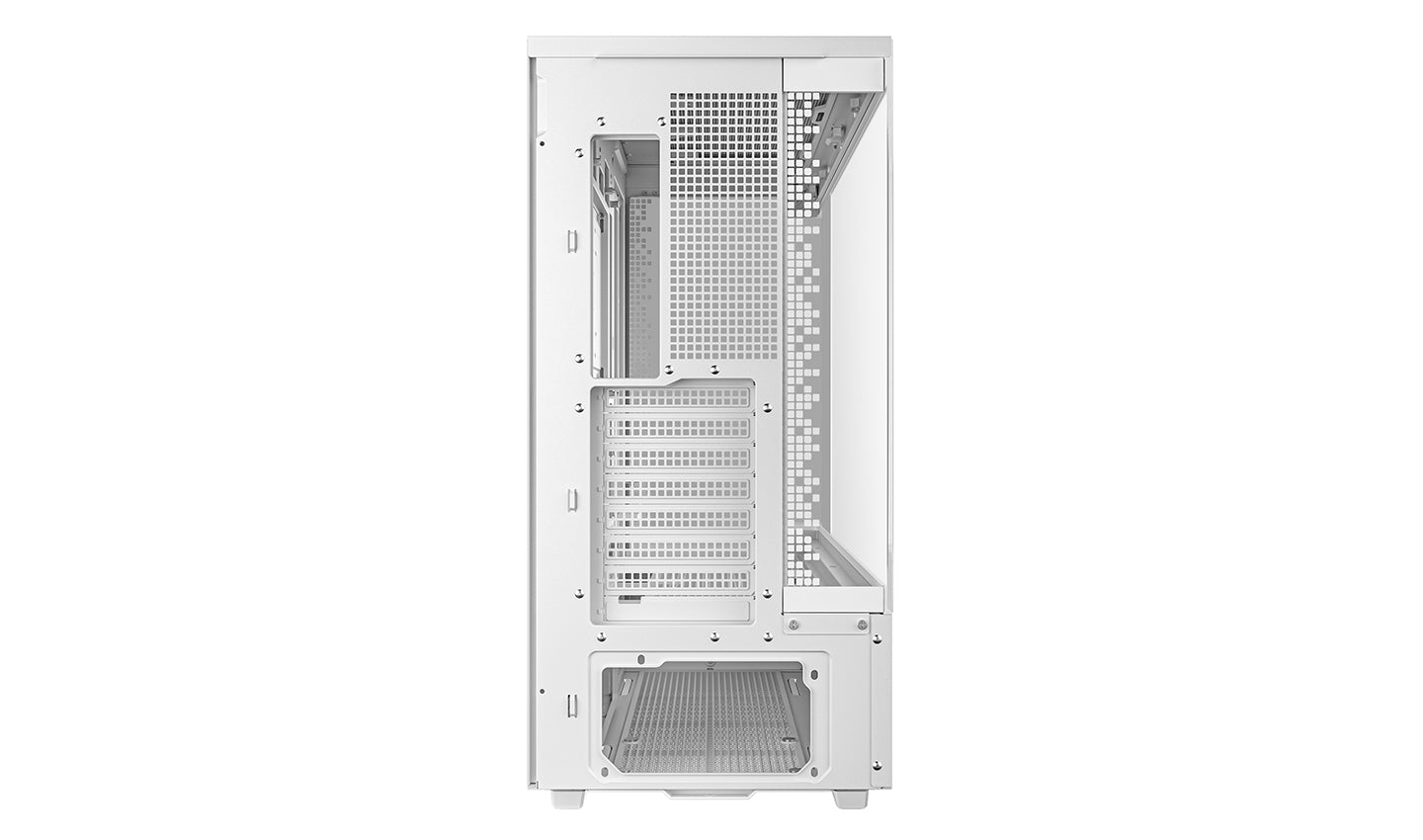

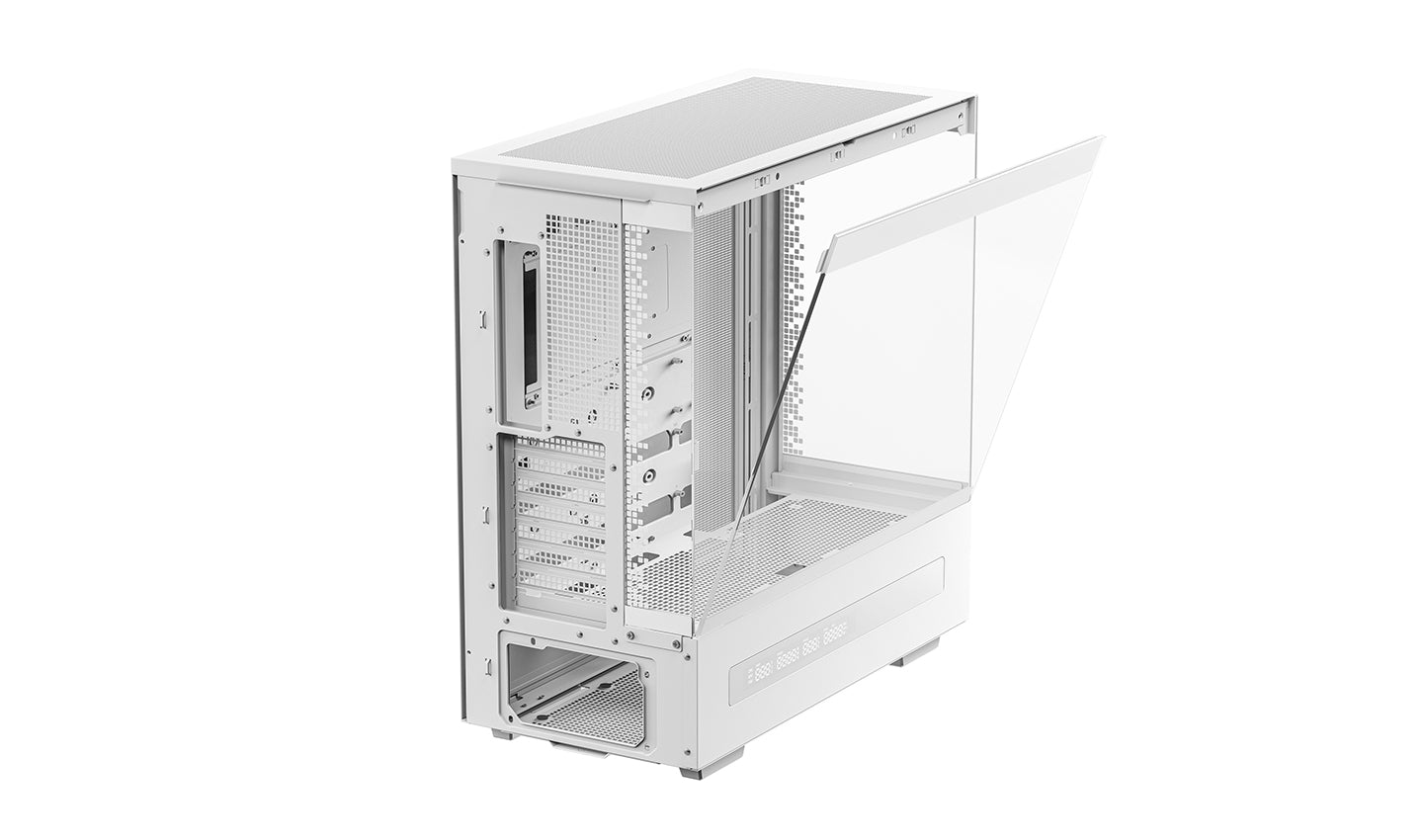

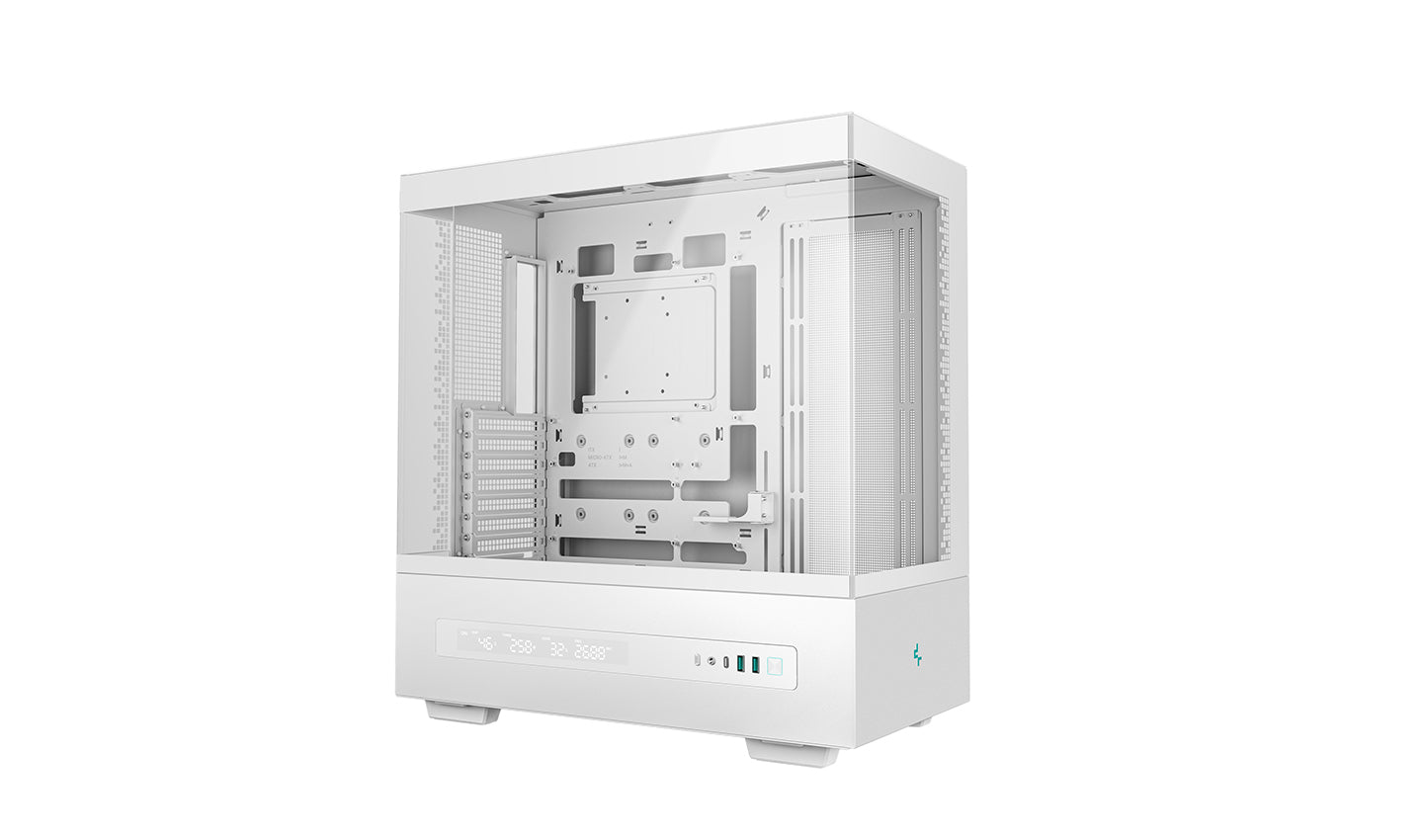

The CH690 DIGITAL WH is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.
CUSTOMIZABLE ELEGANCE, VERSATILITY AND FUNCTIONALITY
The CH690 DIGITAL WH is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.
YES IT FITS
The CH690 DIGITAL WH is engineered for exceptional versatility, accommodating a 180mm PSU and a 450mm GPU with ease. It features up to 8 individual removable expansion slots, providing flexibility for various configurations. Storage options include 1 x 3.5"" drive bay and 2 x 2.5"" drive bays, ensuring ample space for data needs. This case is designed to support a wide range of components, making it an ideal choice for either gaming and professional setups.
DYNAMIC PERFORMANCE AT A GLANCE
The CH690 DIGITAL WH case features a cutting-edge digital display that offers real-time monitoring of system's vital statistics. With switchable modes for CPU, GPU, and PSU, effortlessly track temperature in Fahrenheit or Celsius, power consumption, usage, and frequency. The CPU mode also includes fan speed monitoring, while the PSU mode provides additional insights into fan performance. This sophisticated display transforms the system into a high-tech command center, allowing optimal performance and efficiency at a glance.
COOLING VERSATILITY

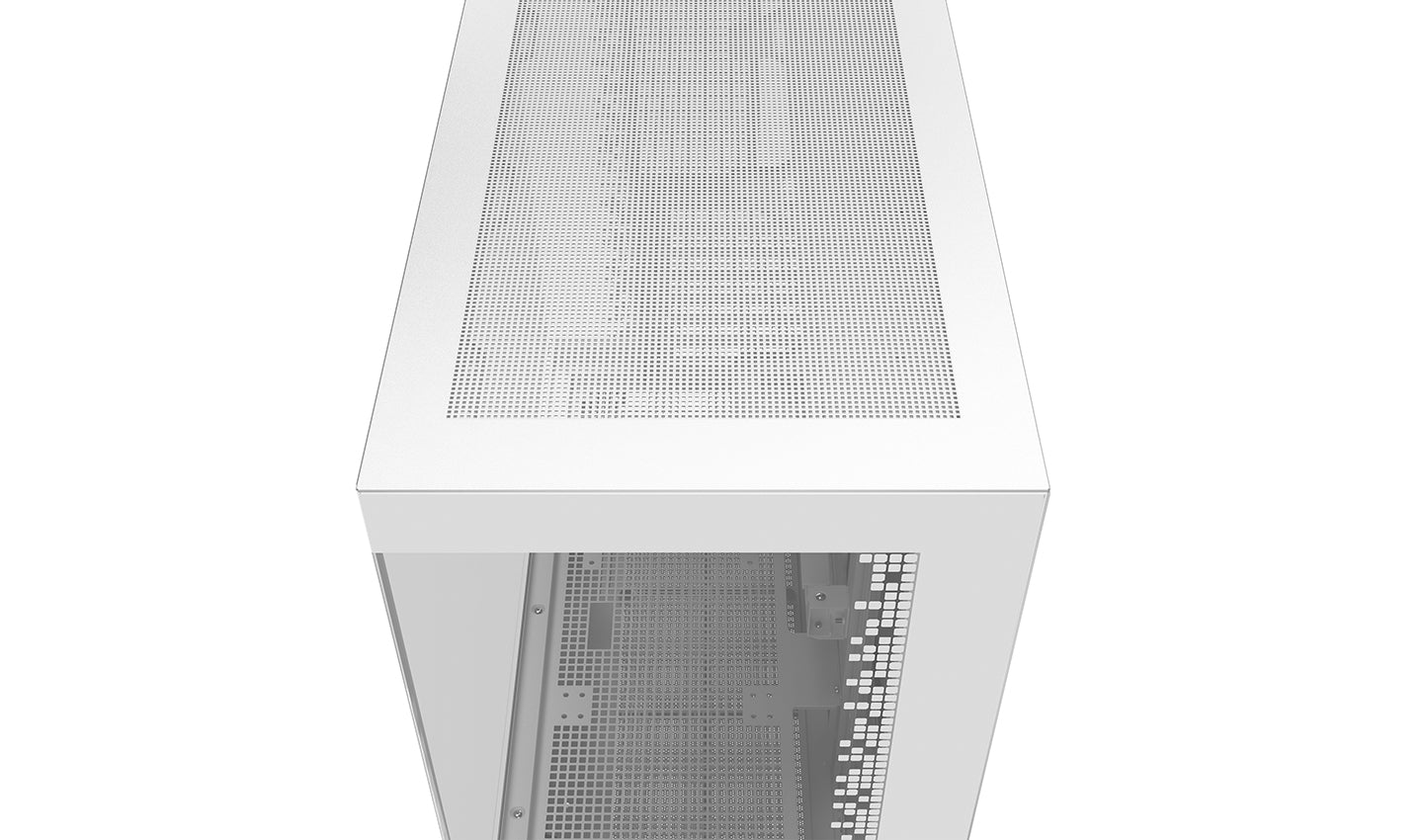

The CH690 DIGITAL WH is designed to adapt to versatile configurations, ensuring efficient heat dissipation through its innovative mesh-designed PSU shroud that creates a vertical airflow channel. It accommodates a wide range of radiator sizes, including up to 420mm on the top, 280mm on the side, and 360mm within the PSU shroud. Additionally, it supports various fan configurations, allowing for up to 3×140mm fans on the top, side, and PSU shroud, along with a 140mm fan at the rear. With the capability to support CPU coolers up to 182mm in height, the CH690 DIGITAL WH is engineered to maintain optimal temperatures for high-performance systems.
Radiator Support:
Top: 120/140/240/280/360/420mm
Side: 120/140/240/280mm
PSU Shrouded:120/240/360mm
Fan Support:
Top: 3×120 / 3×140mm
Side: 3×120 / 3×140mm
PSU Shrouded: 3×120 / 3×140mm
Rear: 1×120 / 1×140mm
CPU Cooler Support:
Up to 182mm
CONVENIENT ACCESS AND SUPPORT

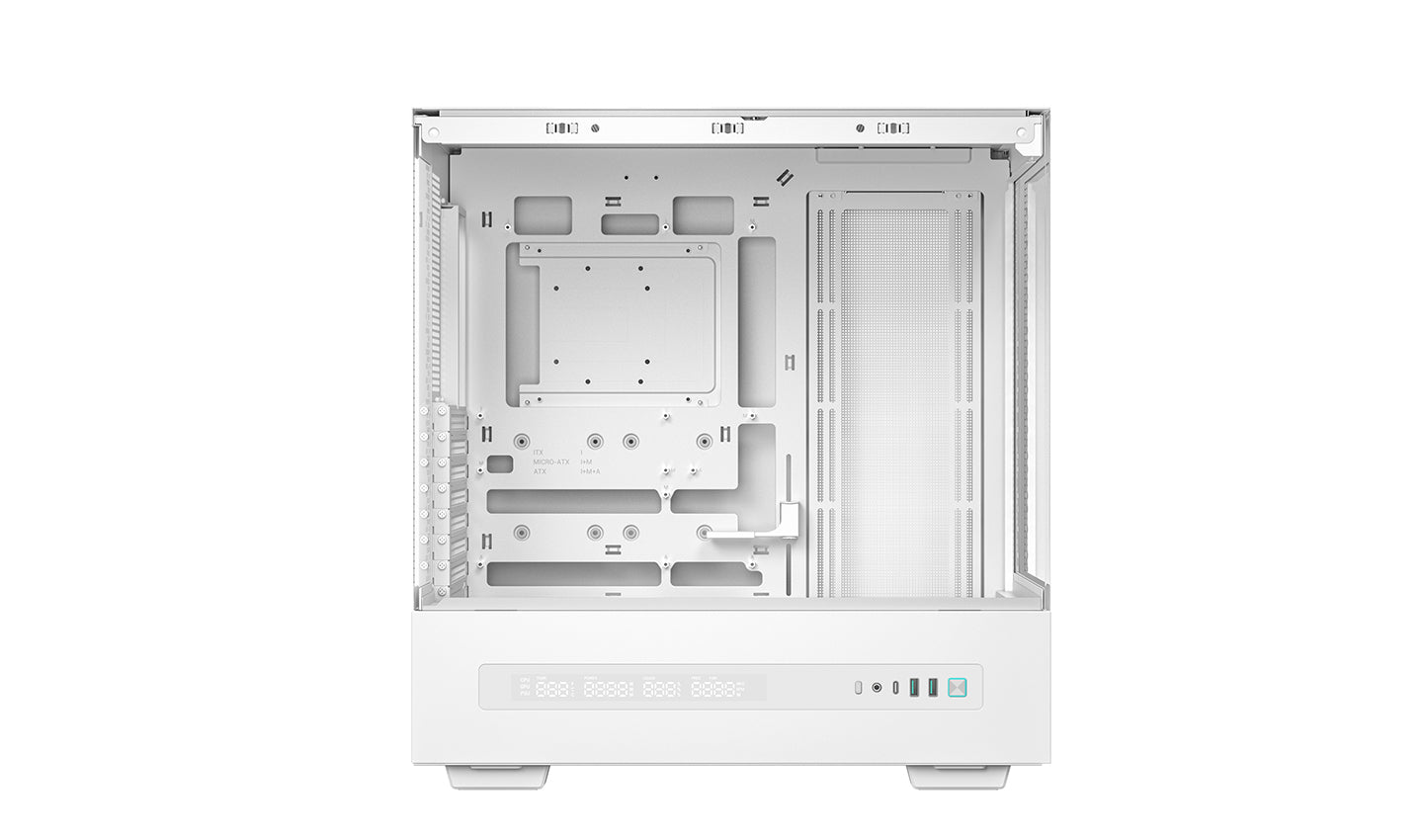

The CH690 DIGITAL WH is designed for convenience and durability, featuring an adjustable GPU holder that provides essential support to prevent GPU sagging resulting to motherboard damage. Its front I/O ports include USB dual 3.0, Audio Jack, and USB Type-C, ensuring easy access to external devices. The CH690 DIGITAL WH also supports rear connector motherboards with a generous 36.5mm width for cable management for effortless organization. Additionally, the bottom of the case is equipped with a magnetic air filter pad, offering easy cleaning and effective dust prevention.
Technical Spec
| Product Dimensions | 481×240×516mm(L×W×H) |
| Net Weight | 9.8Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX ATX(Rear Connector)/Micro-ATX(Rear Connector) |
| Front I/O Ports | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 8Slots |
| Pre-Installed Fans | None |
| Fan Support | Front:NA Top:3×120 / 3×140mm Side:3×120 / 3×140mm PSU Shrouded :3×120 / 3×140mm Rear: 1×120 / 1×140mm |
| Radiator Support | Front: NA Top: 120/140/240/280/360/420mm Side: 120/140/240/280mm Bottom: 120/240/360mm |
| CPU Cooler Height Limit | 182mm |
| GPU Length Limit | 450mm |
| Power Supply Type | ATX PS2（maximum length: 180mm） |
| EAN | 6933412774020 |
| P/N | R-CH690-WHNNA0D-G-1 |
