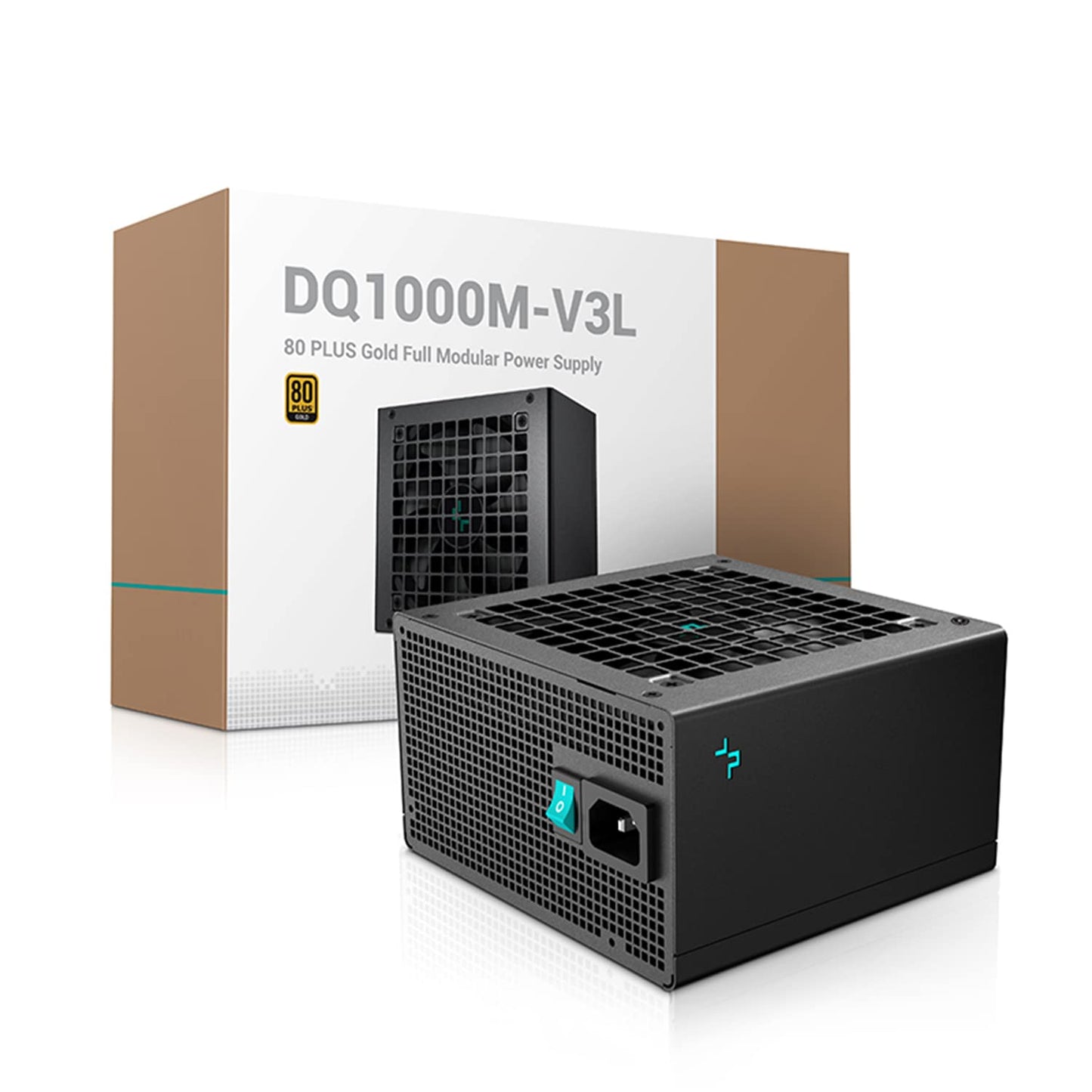

Deepcool DQ1000M-V3L 1000 Watt, 80 Plus Gold Fully Modular Power Supply/PSU for Gaming (PC-R-DQA00M-FB0B-US)

Deepcool DQ1000M-V3L 1000 Watt, 80 Plus Gold Fully Modular Power Supply/PSU for Gaming (PC-R-DQA00M-FB0B-US)

Brand : DeepCool

SKU: SKU:  PC-R-DQA00M-FB0B-US

Regular price ₱7,200.00
Regular price ₱8,400.00 Sale price ₱7,200.00
Sale! Sold out
Taxes included.

13 in stock

DQ1000M-V3L

The DeepCool DQ1000M-V3L is a fully modular power supply that adopts a new pure black shell, is 80 PLUS gold certified, utilizes a mainstream active PFC + full-bridge LLC resonance + DC/DC architecture, and uses all Japanese capacitors. The power output is stable and efficient, making it an excellent choice for AAA game.
80 Plus Gold Fully Modular Power Supply

GO FOR GOLD
The DQ1000M-V3L power supply is 80 Plus Gold certified, will generate clean and consistent power, while reducing heat and noise. The DQ1000M-V3L is energy-efficient, and provides efficiency greater than 92% at 50% load.




DESIGNED AND BUILT SOLID
The internal design is compact, with full Japanese capacitors and materials. The main capacitor is selected from 105℃ bulk capacitor, making it resistant to high temperatures. Solid state capacitors are used for the auxiliary capacitors producing low noise and long life.

IMPROVED COOLING PERFORMANCE
By implementing a new manufacturing process with the adoption of SiC diodes, it produces lower heat loss, while achieving higher efficiency. The seperative heatsink for the LLC mosfet and a large, full copper heatsink for the SR mosfet creates superior heat dissipation.


POWERFUL COOLING WHEN YOU NEED IT; WHISPER QUIET WHEN YOU DON'T!

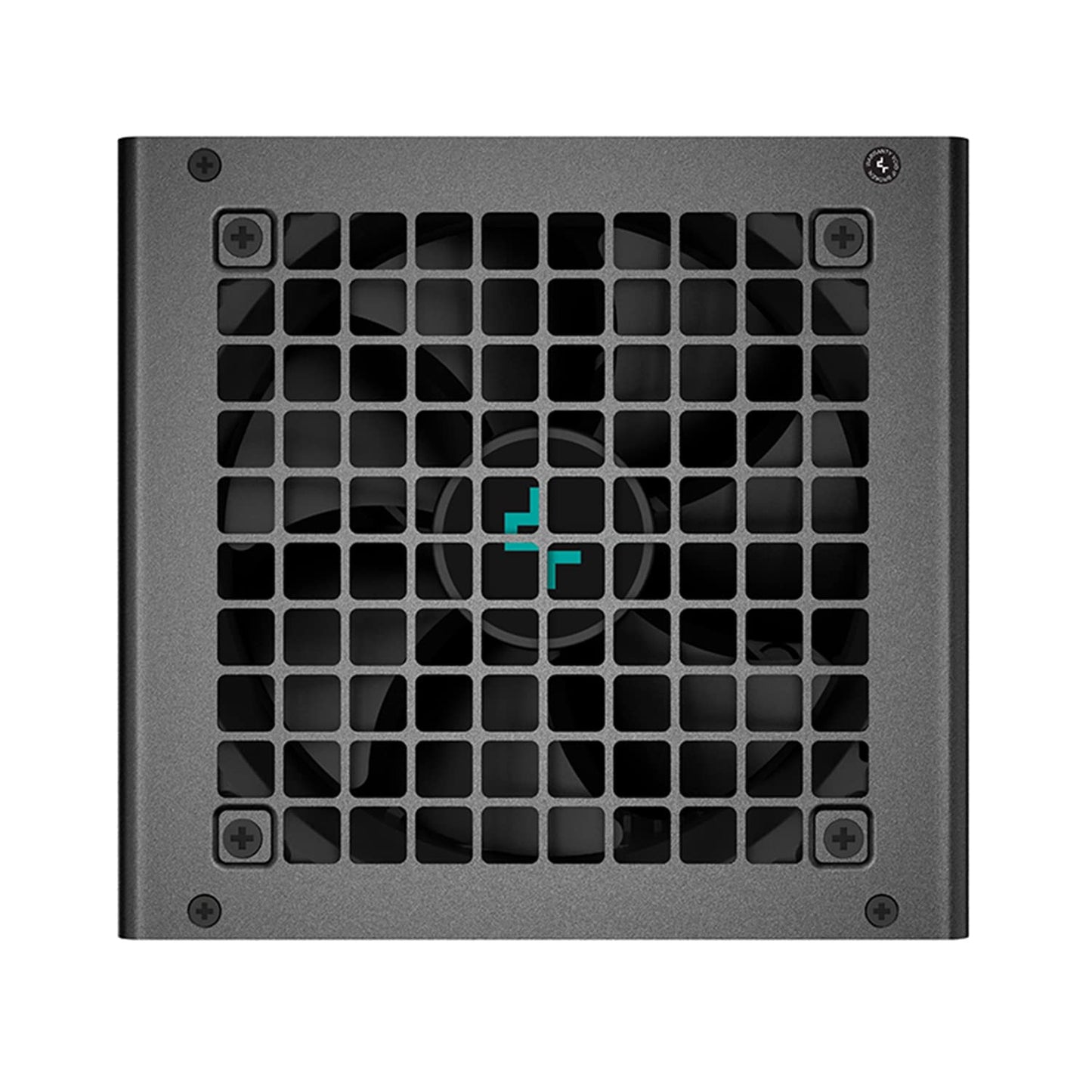

Under low loads, the DQ1000M-V3L will operate at a true zero noise level. At full load, the supported intellegent, temperature-control adjusted, enabled FDB fan provides remarkably low noise cooling, while minimizing noise interference.

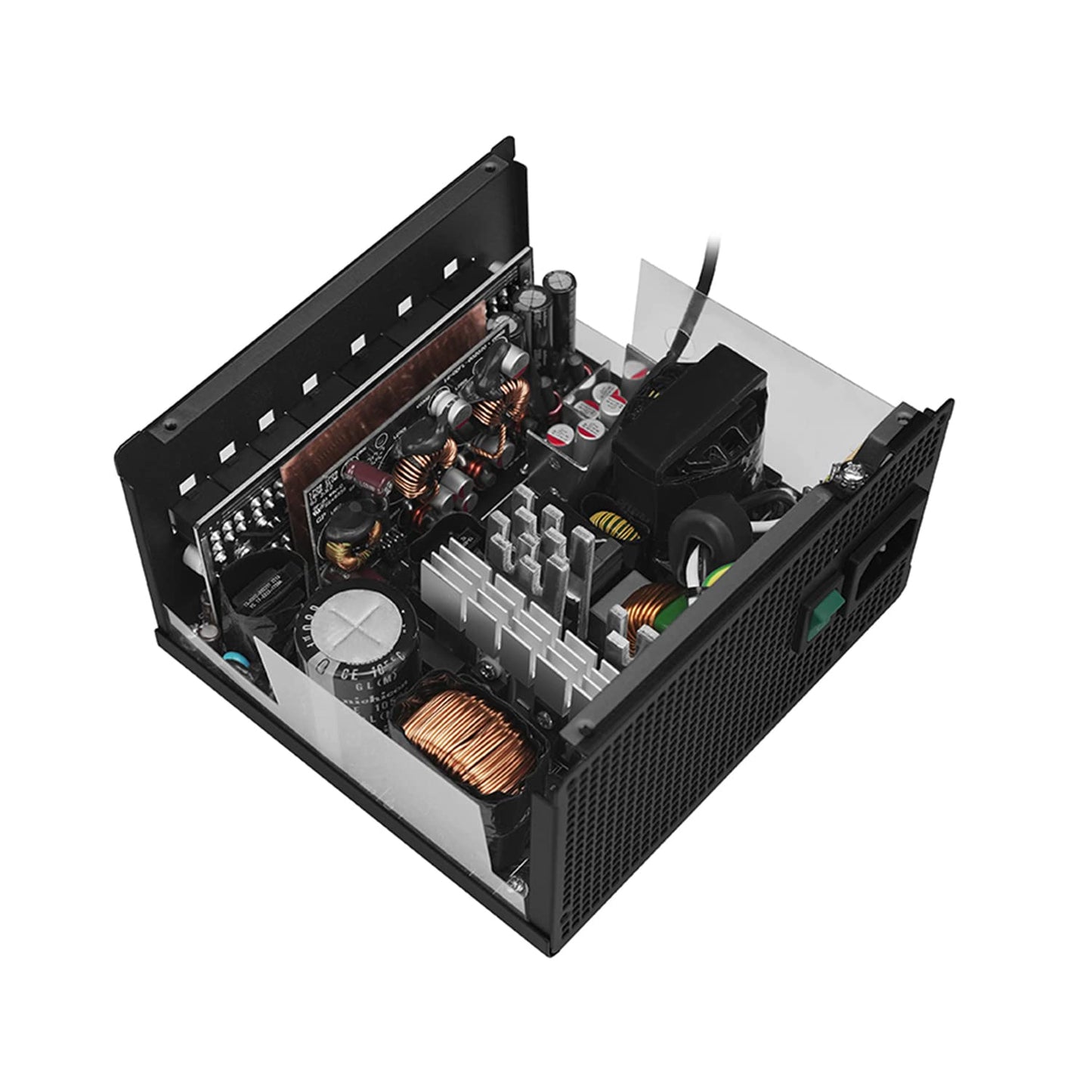

SUPERIORITY IN FIVE MAJOR POINTS OF INTERNAL DESIGN
The DQ1000M-V3L is designed with advanced, mature solution and high specification materials. This focus on detail provides continuous and stable power output for your system.
  • The PFC inductor is composed of iron-silicon aluminum that results in low core loss and longer life of the psu.
  • A 3rd generation super junction MOSFET tube provides a low internal resistance design, reducing conduction loss.
  • The output solid capacitor ripple is lower to meet load variation demand from graphics cards such as RTX30/RX60.
  • Optimized start-up inrush current design, the inrush current is less than 80A to prevent circuit damage.
  • -12V with DC to DC design, optimized ripple and voltage regulators.

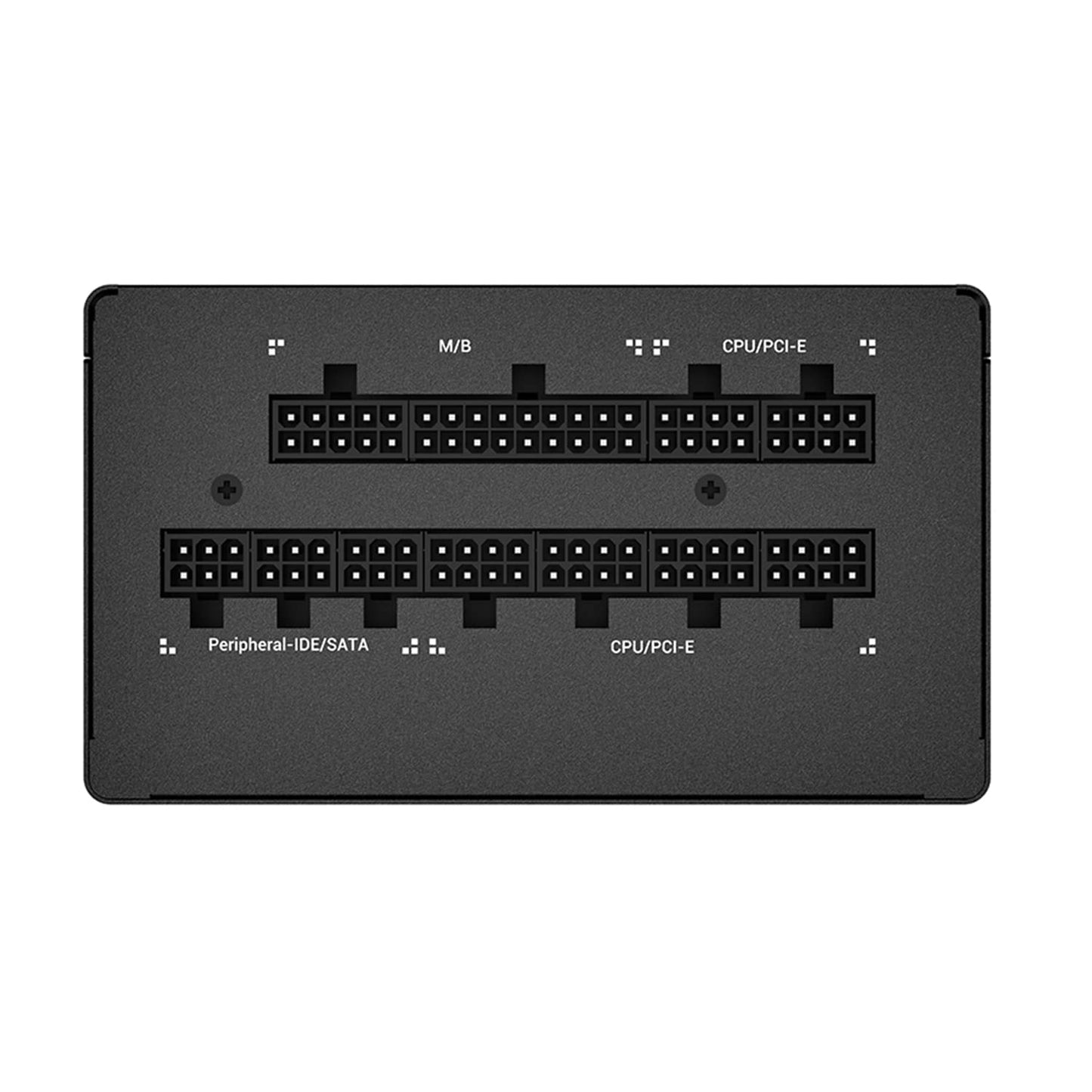

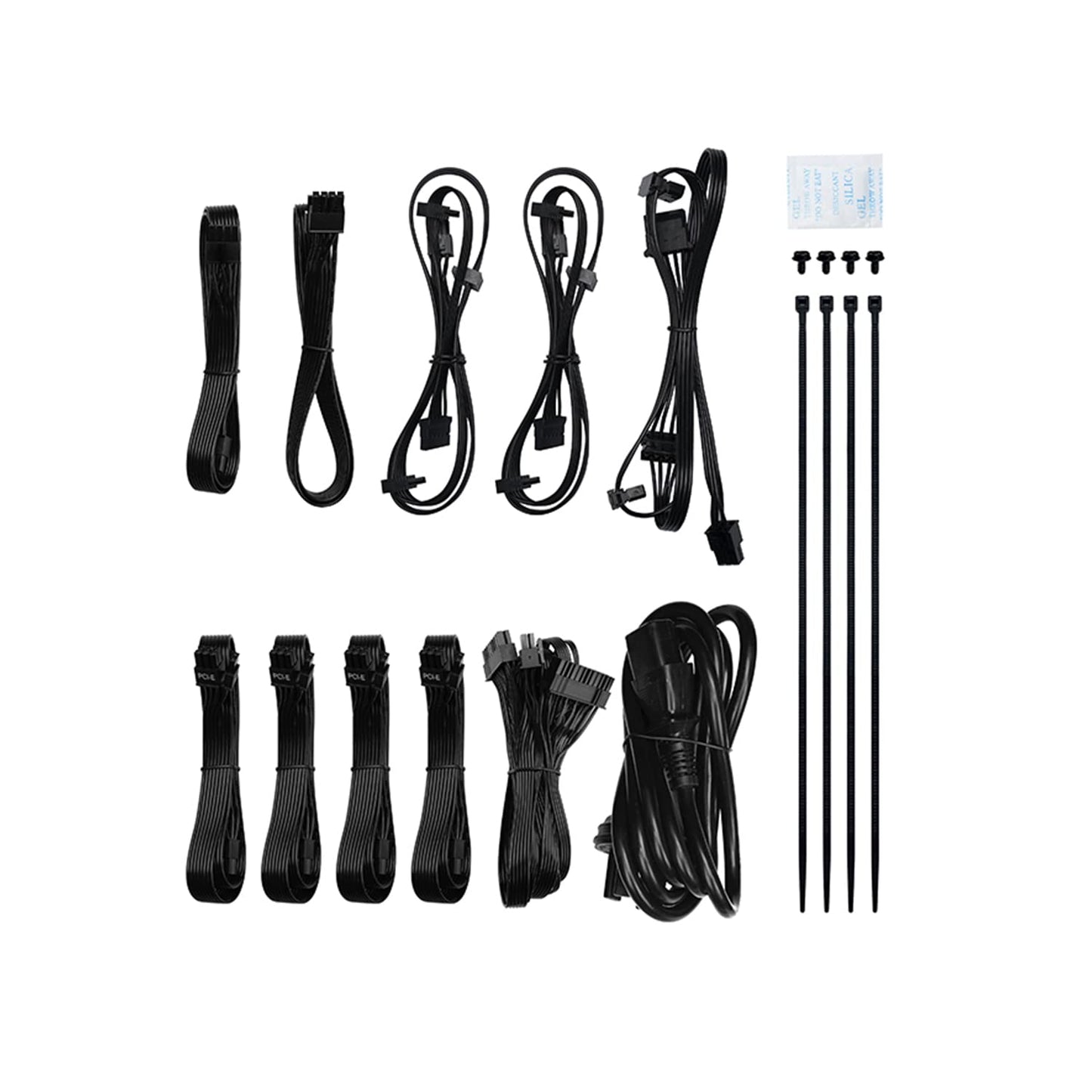

Main Power Connector 24(20+4)Pin × 1
X1
CPU8Pin x 1
X1
CPU8(4+4)Pin x 1
X1
PCI-E(6+2)Pin x 1
X4
SATA x 4
X2
4pin Peripheral x 4
X1

Technical Spec

Type ATX12V V2.4
Product Dimensions 150×140×86mm (W x L x H)
80PLUS Certifications Gold
Fan Size 120mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Topology Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100-500ms
Hold Up Time ≥16ms(80% Load)
Efficiency ≥90% Under Typical Load(50% Loading)
Protection SCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature 0 - 40 °C
Regulatory CB/CCC/CE/FCC/UKCA/BIS/EAC/CAN ICES-003(B)/NMB-003(B)
Erp Regulation ErP 2014
MTBF 100,000 Hours
EAN P/N 6933412715719 R-DQA00M-FB0B-CN
6933412715726 R-DQA00M-FB0B-WO
6933412715733 R-DQA00M-FB0B-BP
6933412716556 R-DQA00M-FB0B-EU
6933412716570 R-DQA00M-FB0B-UK
6933412716587 R-DQA00M-FB0B-US
