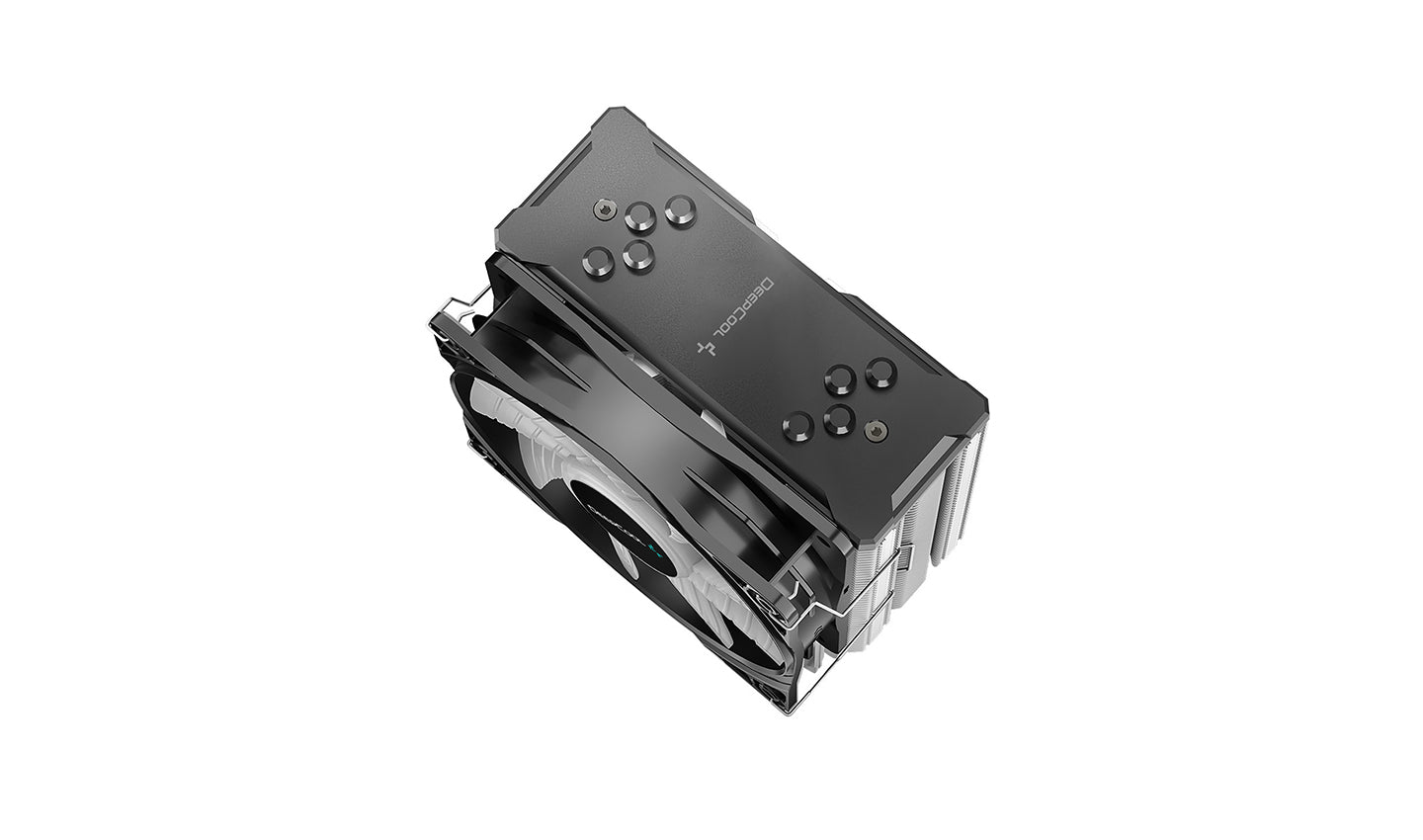

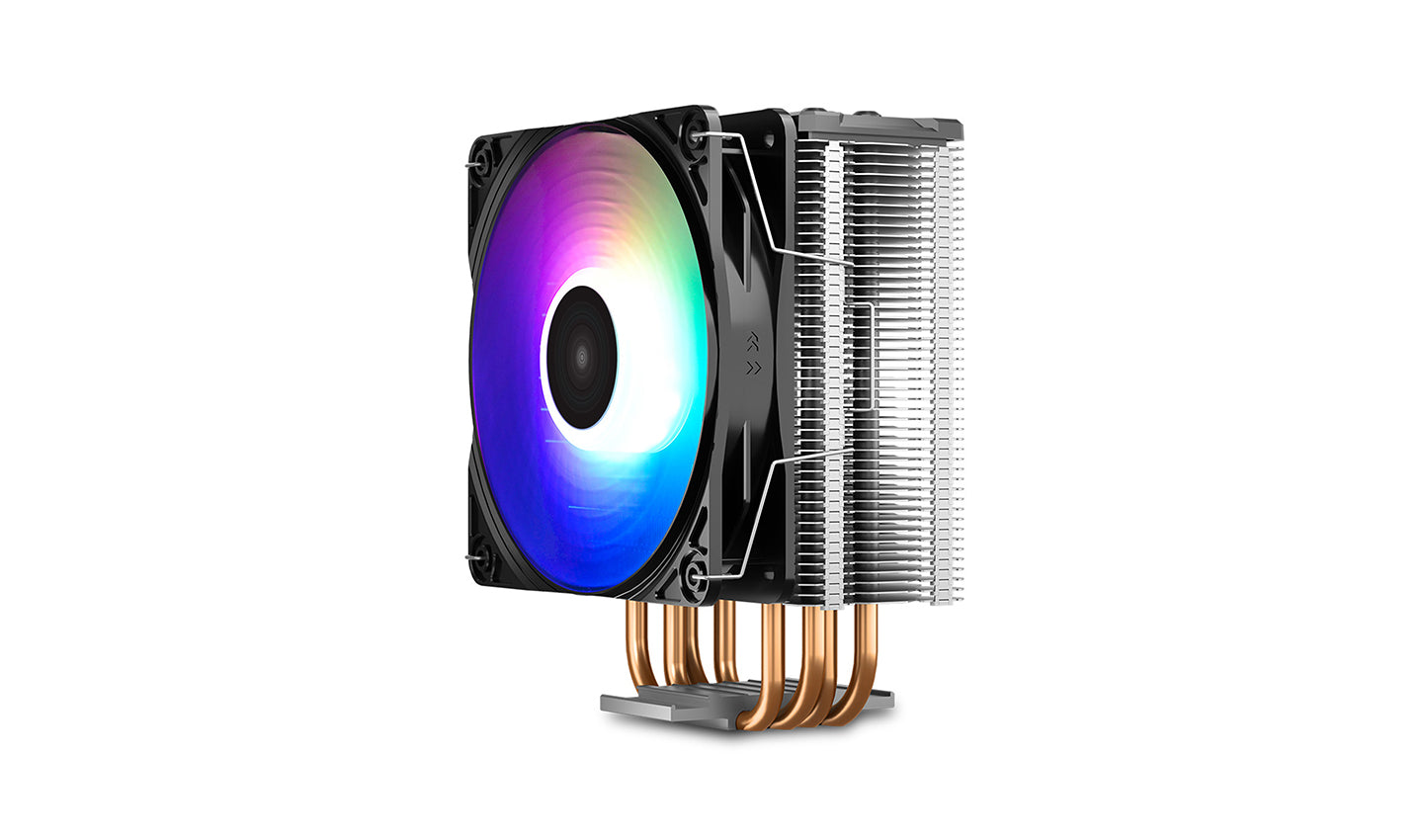

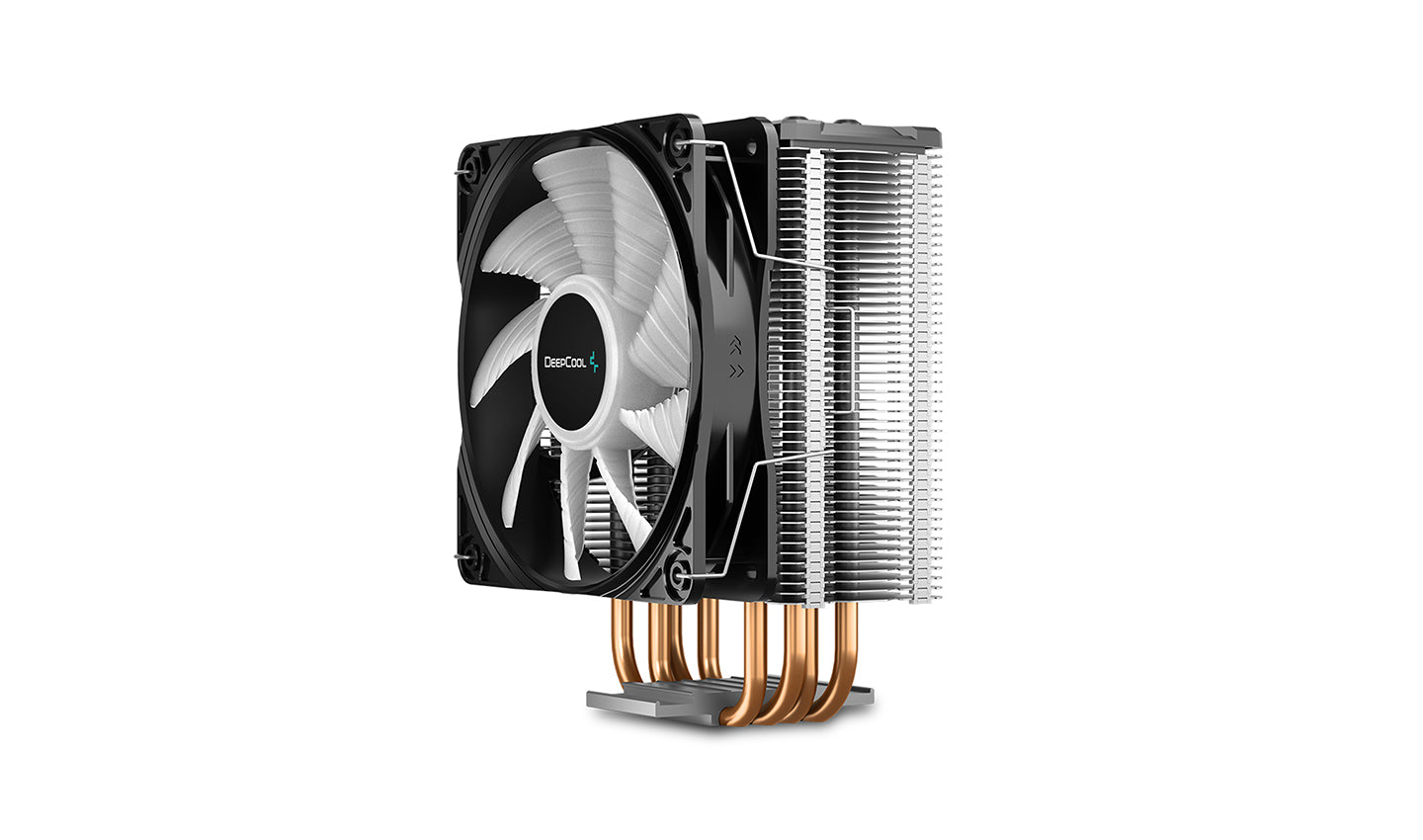

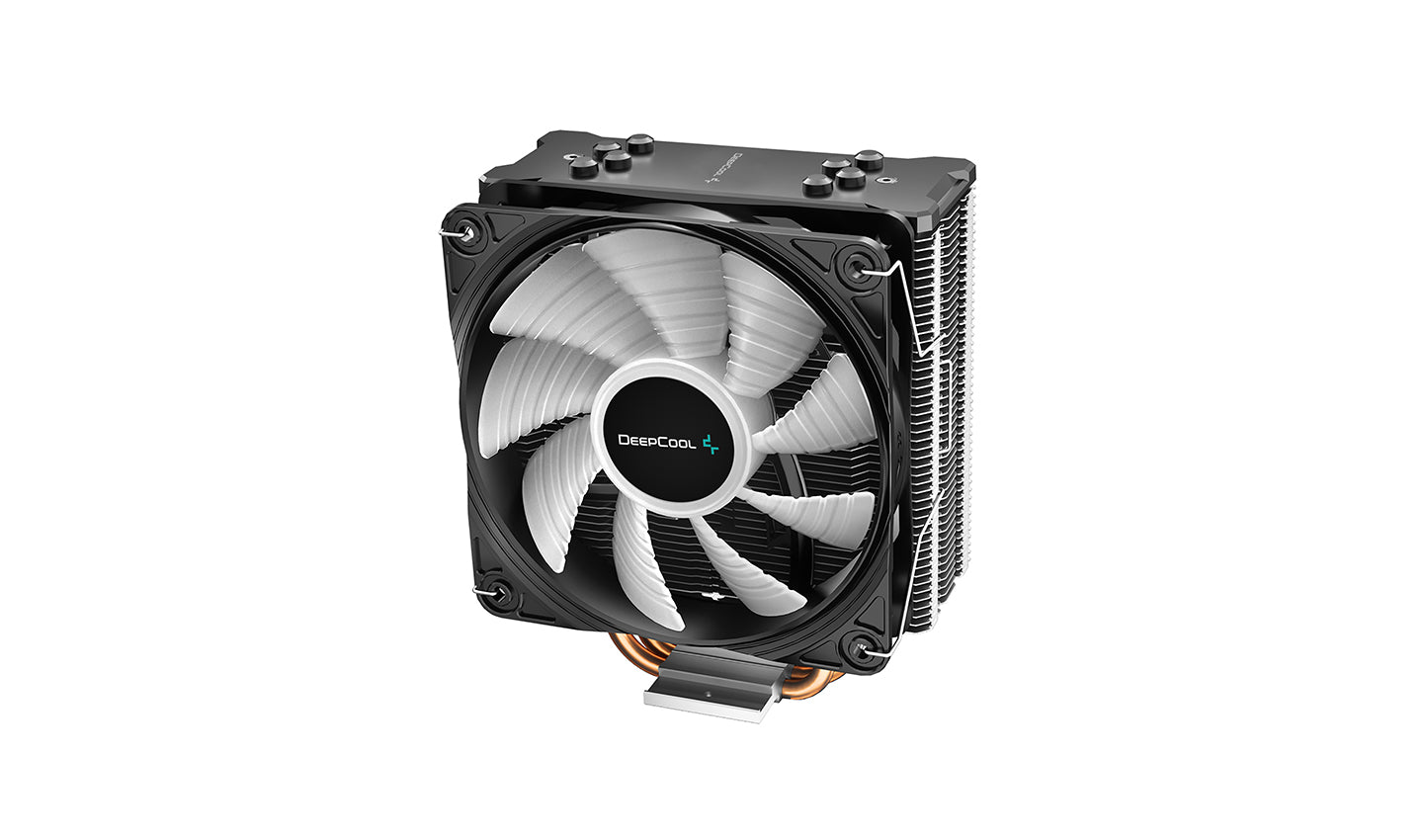

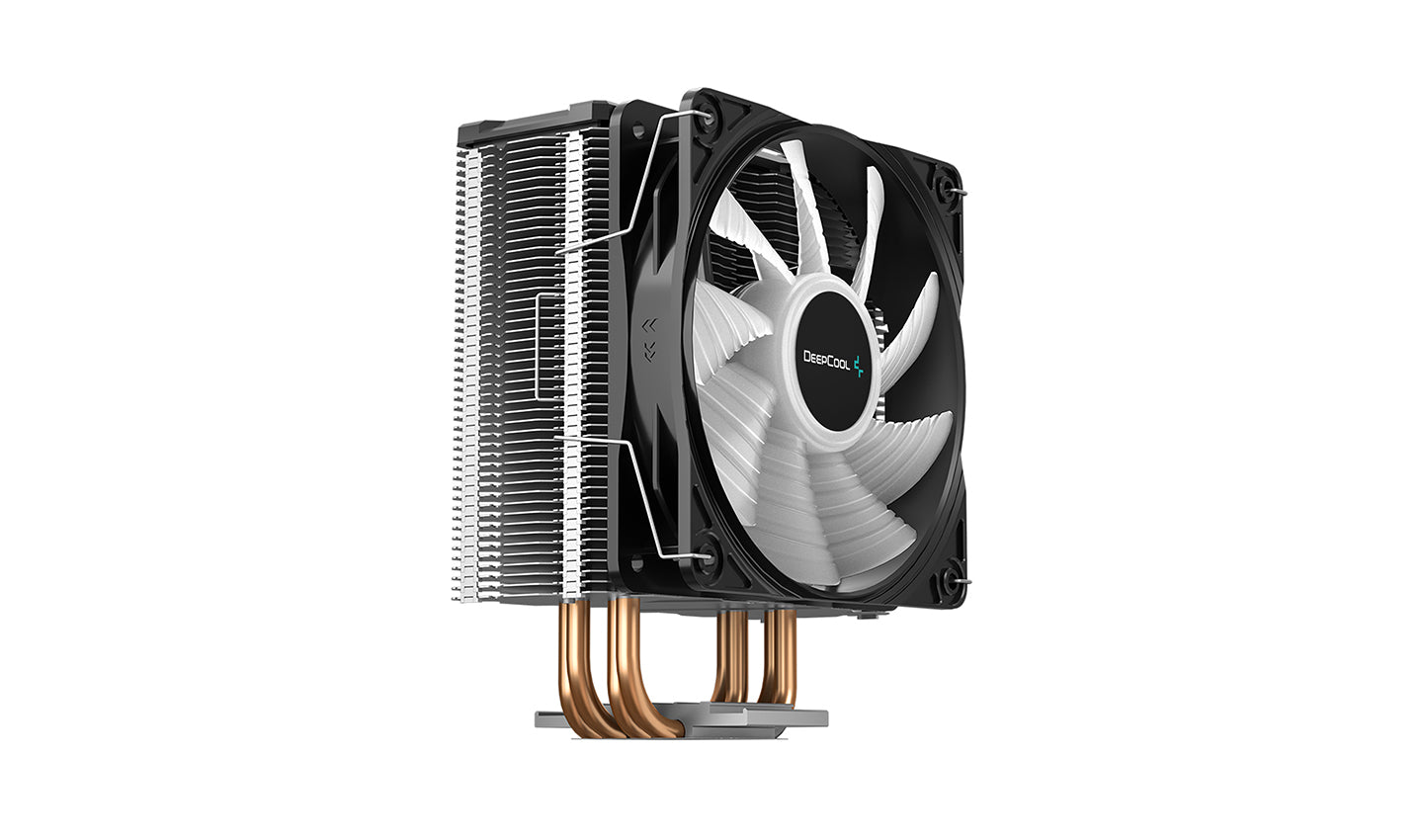

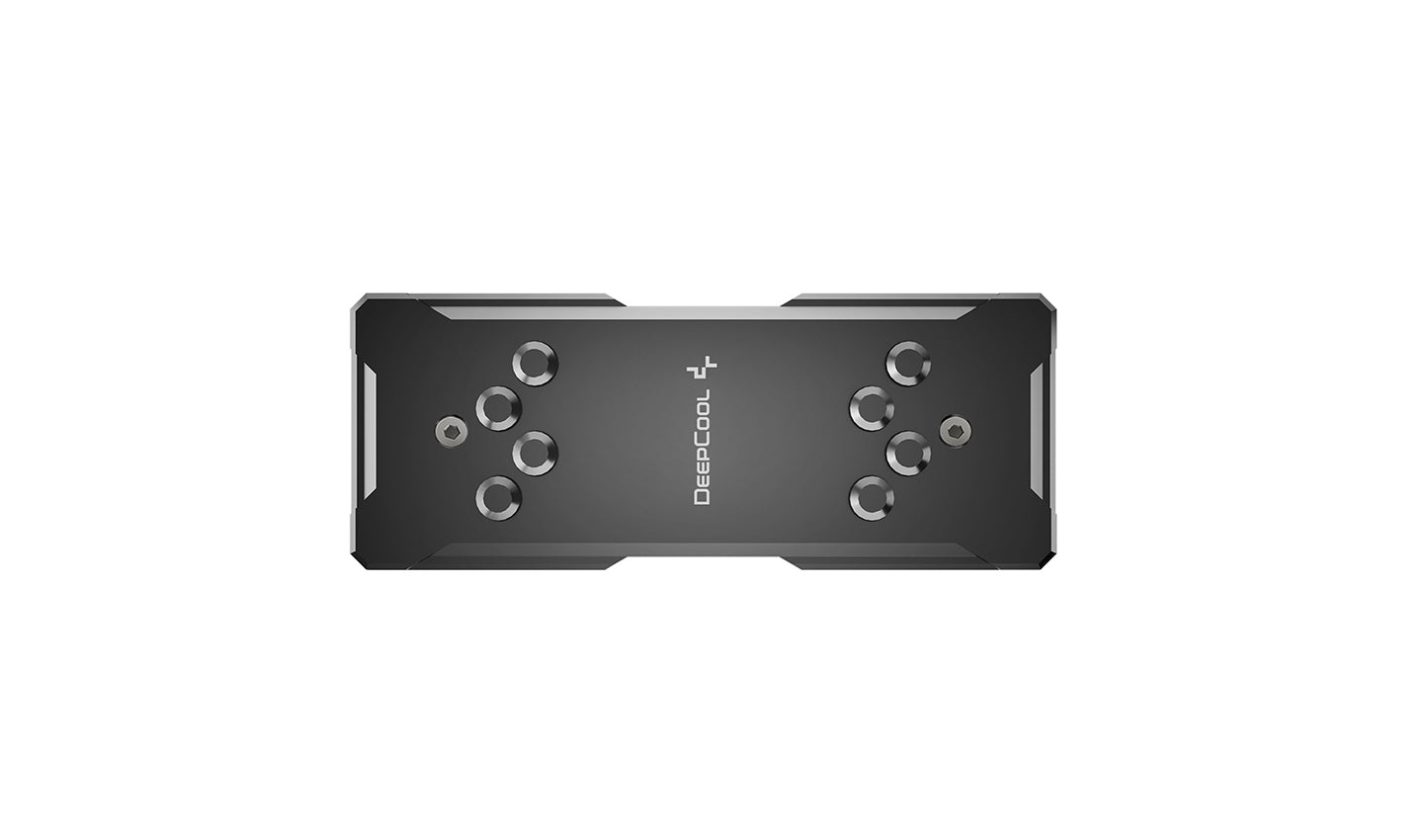

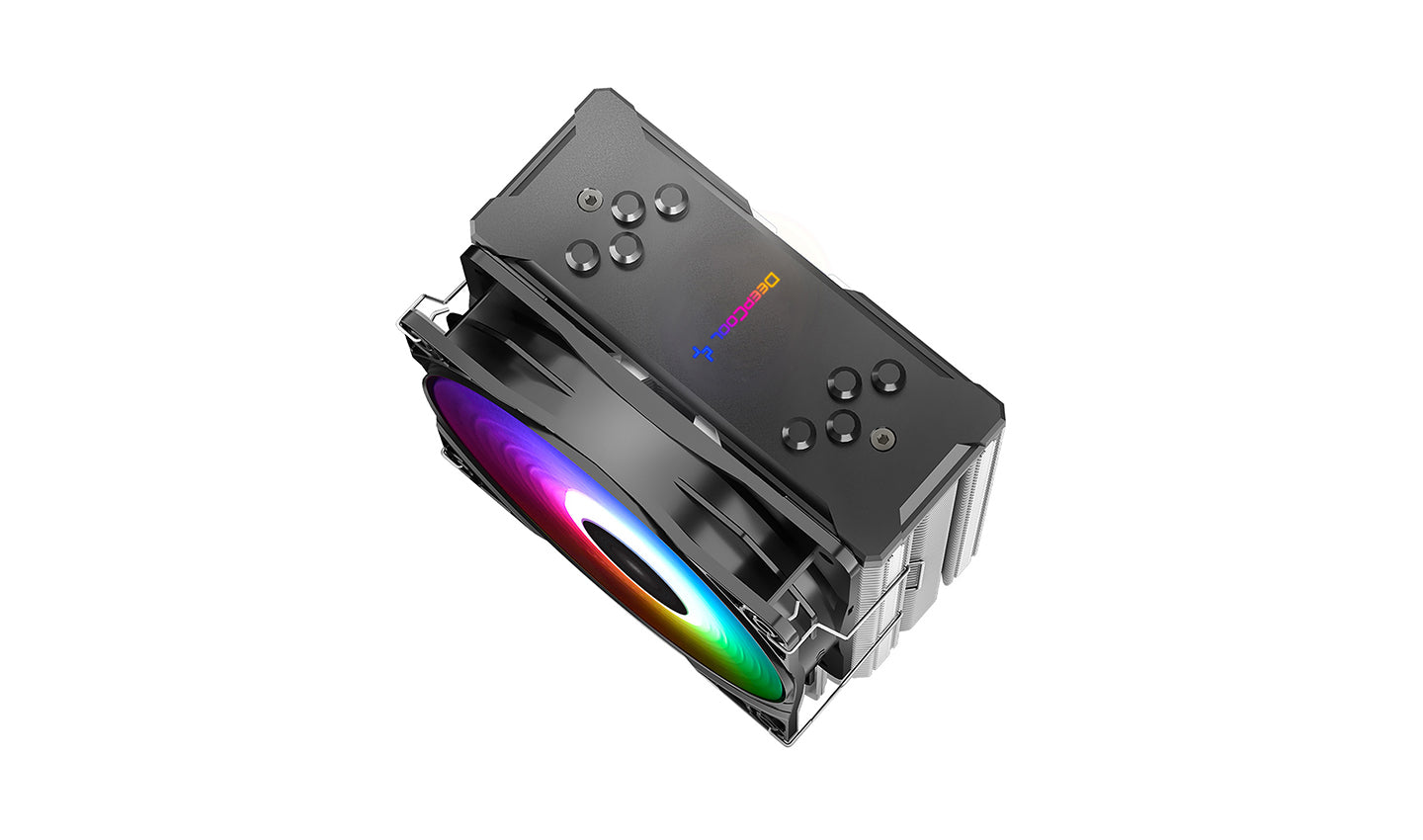

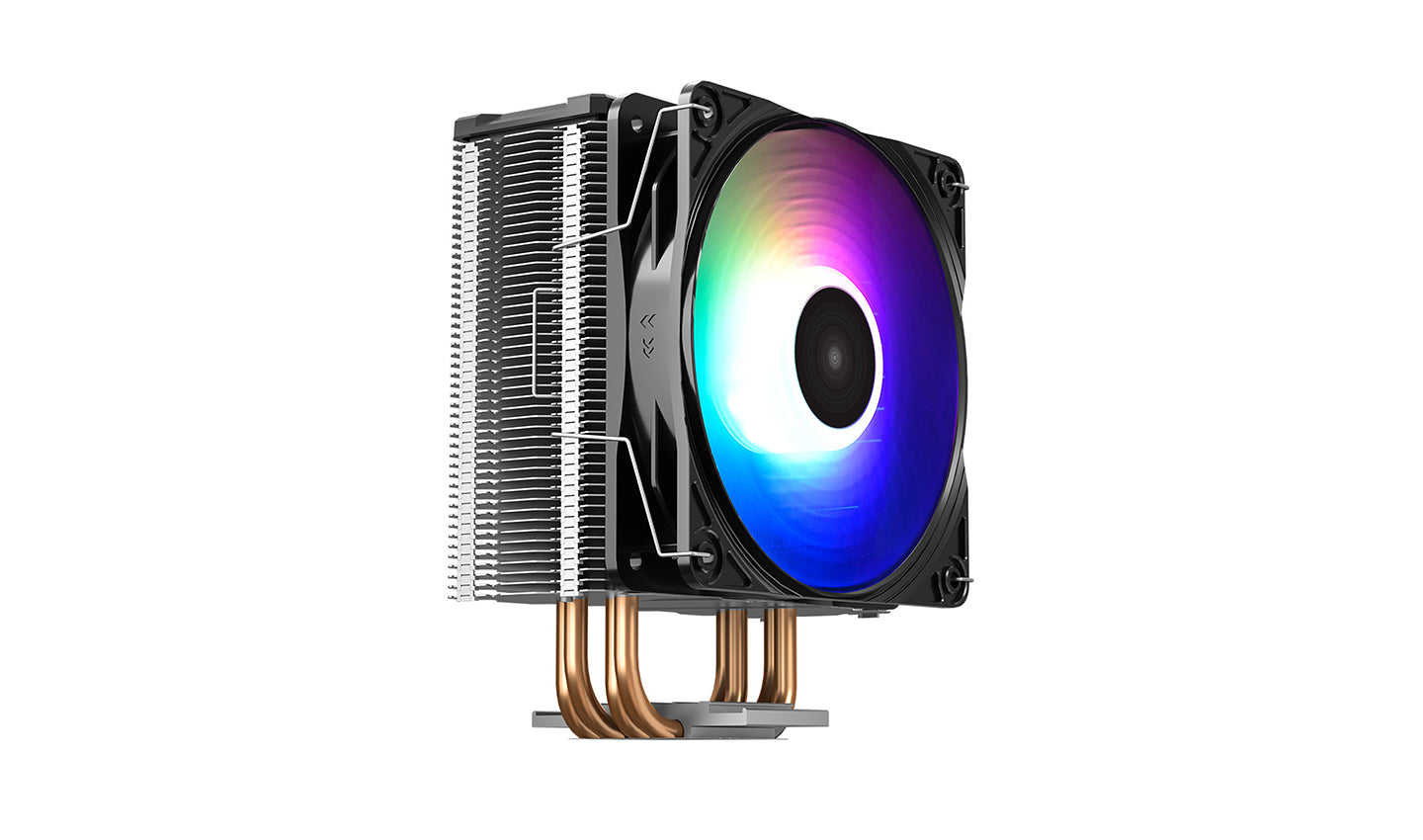

DeepCool GAMMAXX GT A-RGB upgraded PWM fan

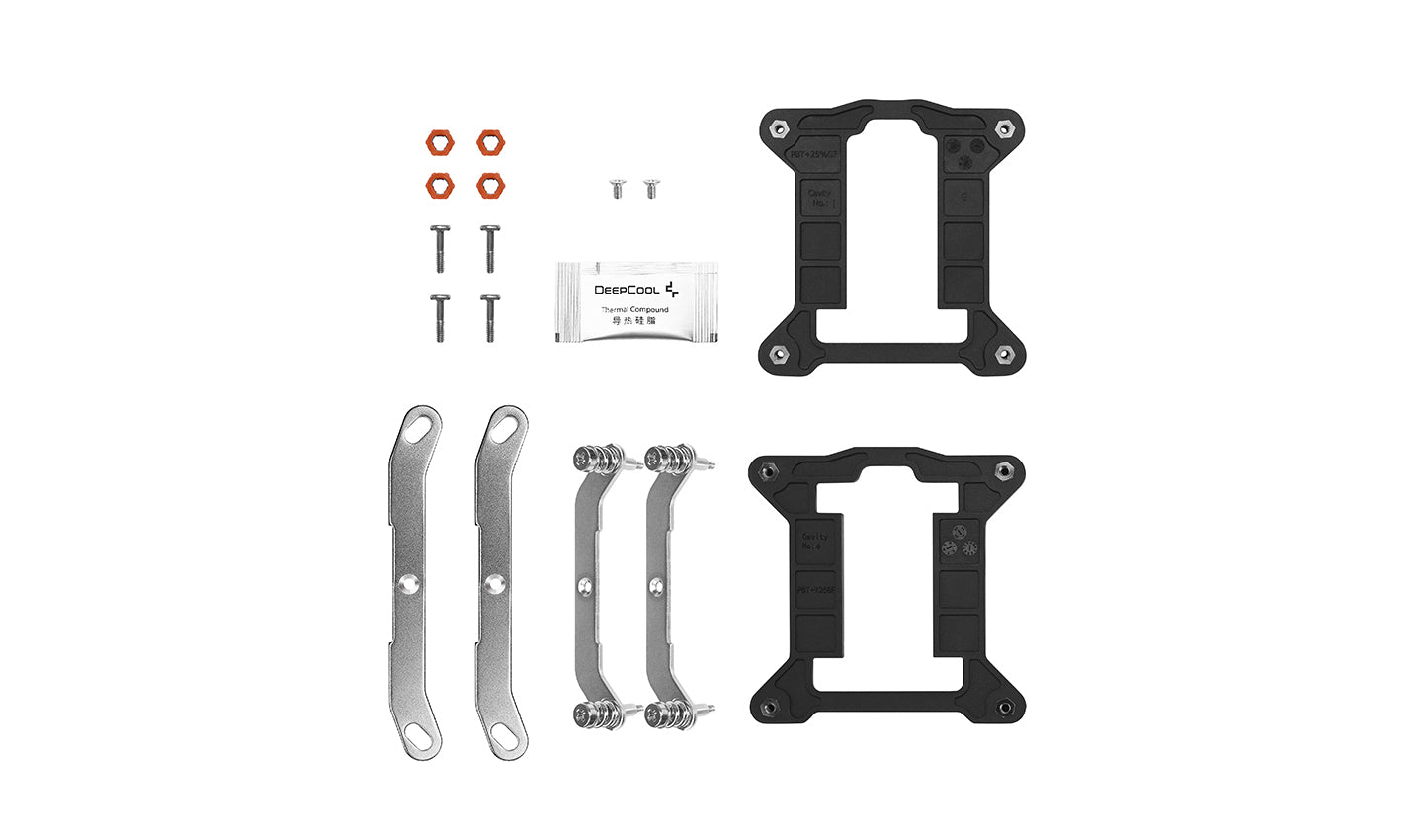

GAMMAXX GT A-RGB is a new model of the renowned GAMMAXX GT series. With an upgraded PWM fan, A-RGB lighting system and mounting tools, GAMMAXX GT A-RGB is apt to provide better and safer cooling performance.

Application For

Intel

LGA1700/LGA1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Product Dimensions	129×86×158mm
Heatsink Dimensions	127×50×155 mm
Net Weight	676 g
Heatpipe	Ø6 mm×4 pcs

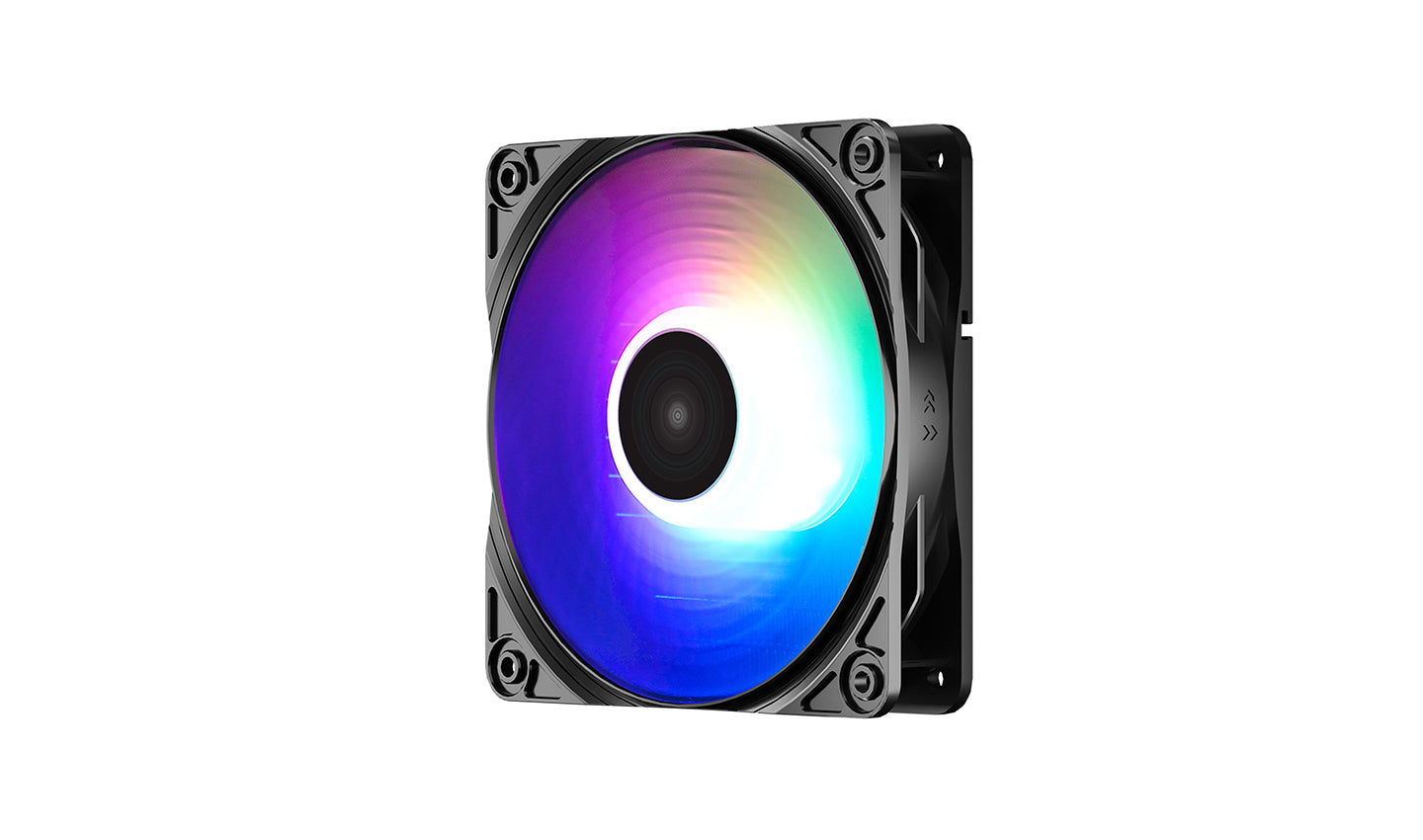

Fan Dimensions	120×120×25mm
Fan Speed	500~1650 RPM±10%
Fan Airflow	64.5 CFM
Fan Air Pressure	2.1 mmAq
Fan Noise	≤27.8 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing

Fan Rated Voltage	12 VDC
Fan Rated Current	0.14 A
Fan Power Consumption	1.68 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.2 W
EAN	6933412726838
P/N	DP-MCH4-GMX-GT-ARGB
