Description
LE520

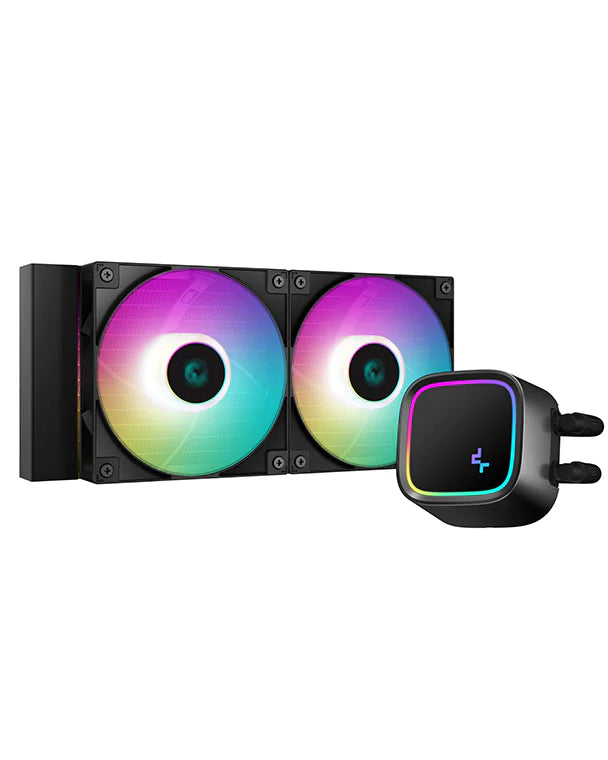

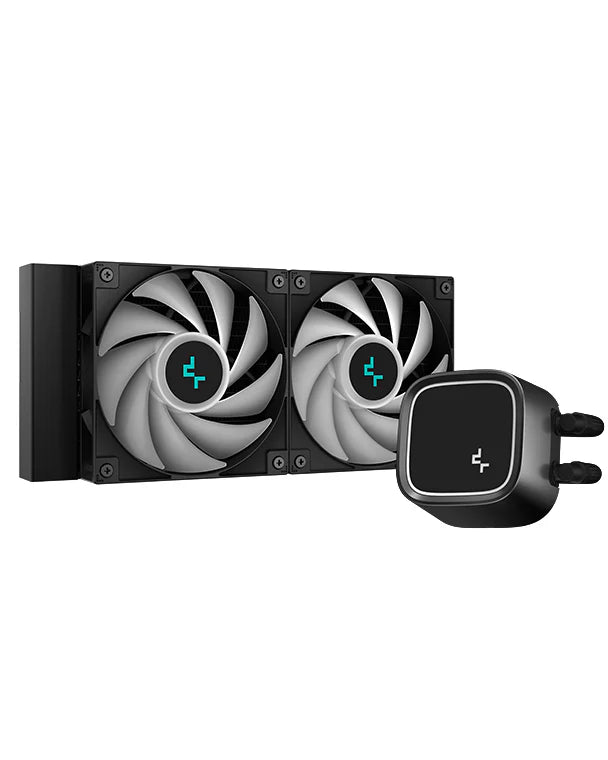

The DeepCool LE520 all-in-one liquid cooler is equipped with new high-performance ARGB fans, thermal paste, and DeepCool's new liquid cooler series design elements.
POWERFUL HEAT DISSIPATION
Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.
NEW SERIES DESIGN
The LE520 features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.

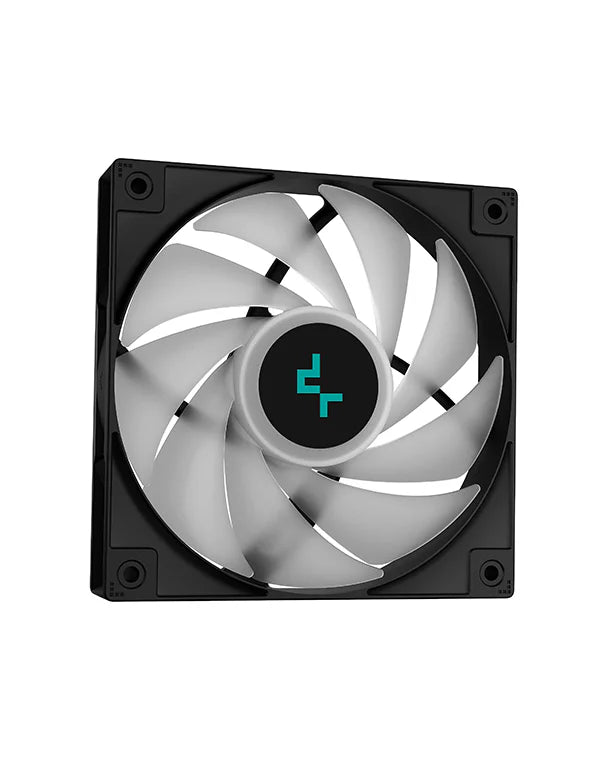

HIGH-PERFORMANCE ARGB FANS
The included high-performance ARGB fans are vibrant, bright, and support various motherboard syncronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
The included high-performance ARGB fans are vibrant, bright, and support various motherboard syncronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
ANTI-LEAK TECHNOLOGY
The LE520 liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight | 1238 g |

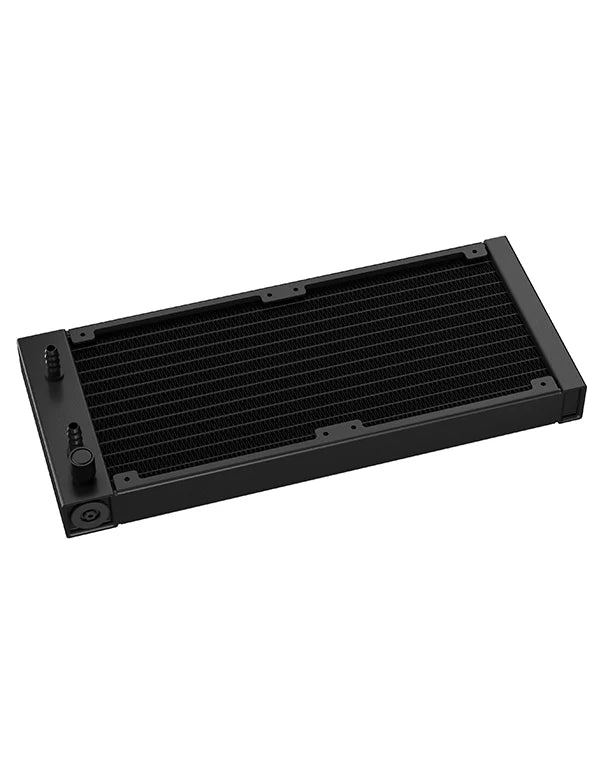

Radiator Dimensions | 282×120×27 mm(L×W×H) |
Radiator Material | Aluminum |
Tube length | 410 mm(L×W×H) |
Pump Dimensions | 91×80×52 mm(L×W×H) |
Pump Speed | 2400 RPM±10% |
Pump Noise | 17.8 dB(A) |
Pump Connector | 3-pin |
Pump Rated Voltage | 12 VDC |
Pump Rated Current | 0.2 A |
Pump Power Consumption | 2.4 W |
Fan Dimensions | 120×120×25 mm(L×W×H) |
Fan Speed | 500~2250RPM±10% |
Fan Airflow | 85.85 CFM |
Fan Air Pressure | 3.27 mmAq |
Fan Noise | ≤32.9 dB(A) |
Fan Connector | 4-pin PWM |
Bearing Type | Hydro Bearing |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.25 A |
Fan Power Consumption | 3.0 W |
LED Type | Addressable RGB LED |
LED Connector | 3-pin(+5V-D-G) |
LED Rated Voltage | 5 VDC |
LED Power Consumption | 2.25 W(PUMP)/ 2.1 W(FAN×2) |
EAN | 6933412728047 |
P/N | R-LE520-BKAMMN-G-1 |
