Description

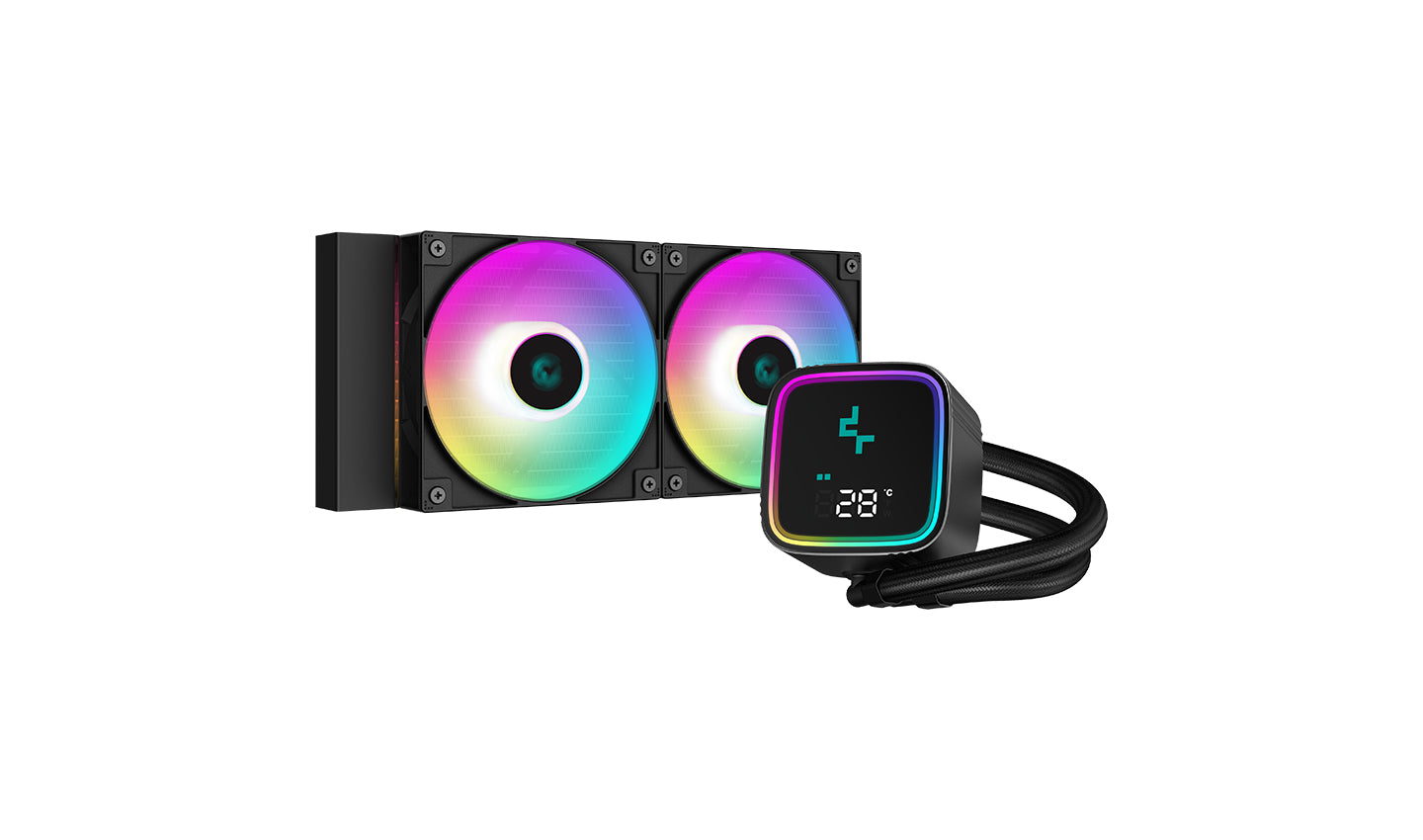

LS520 SE DIGITAL
The LS520 SE DIGITAL WH cooler is an upgraded version of DeepCool's LS SE liquid coolers. Everything you love from DeepCool AIOs, but with the inclusion of a CPU status screen! Clear up precious room on your desktop by moving the CPU monitoring software off your monitor and onto the pump in your computer tower
LARGE MIRROR WITH ARGB HALOS
The signature large mirror plate of the LS SE series is unmistakable, but the LS SE DIGITAL coolers also utilize a bright gradient ARGB double halo effect that encapsulates the premium aesthetics of the LS SE DIGITAL pump design: beautifully bright as well as being functional. The ARGB of the entire cooler can be easily synced to ARGB headers on compatible motherboards.
EFFICIENT ARGB FANS

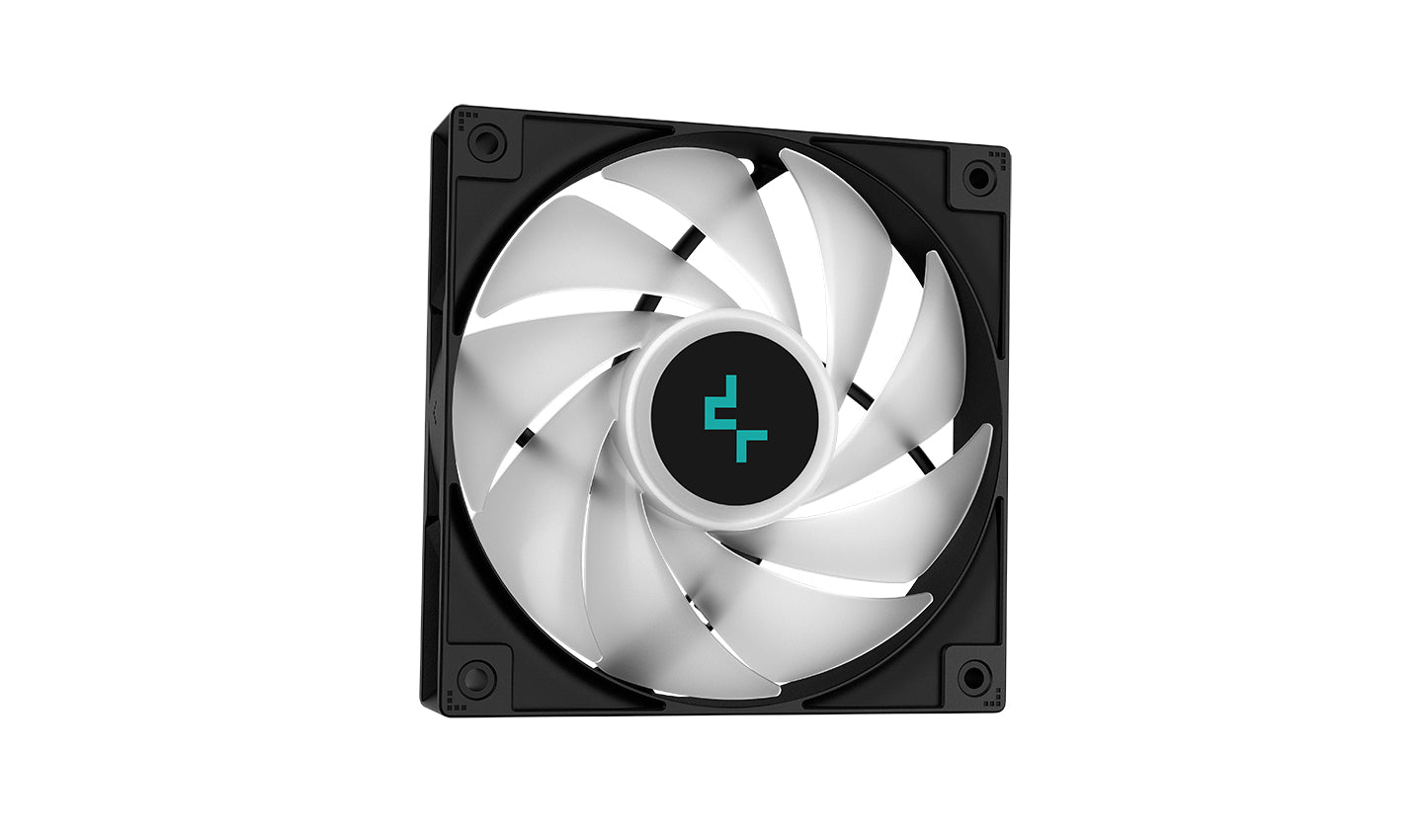

Optimized ARGB PWM fans are included with the LS520 SE DIGITAL WH and have been fine-tuned to provide excellent cooling performance with a whisper-quiet, long-life Hydrodro bearing. The LS520 SE DIGITAL WH includes two of these specialized fans, which have an easy-to-manage 7-pin cable.
KEEPING IT SIMPLE
Full control of the real-time status screen is provided via a simple-to-use application. Once installed, the entire application is found in the Notification Center of the taskbar, where you can switch what metrics you would like to monitor, switch between languages, and choose between Celsius and Fahrenheit. The only interface that will be required is a connection to a USB 2.0 header on the motherboard.DeepCool-DIGITAL Setup.zip
SLEEK, CLEAN,AND STRONG
Aluminum was chosen to provide a pristine appearance while also adding extra rigidity to the pump housing. The large mirror, gradient ARGB halos, and status screen add the finishing touch.
ANTI-LEAK TECHNOLOGYThe LS SE DIGITAL
liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure, this leads to a longer useful life while reducing the possibility of leaks.
QUICK AND EASY

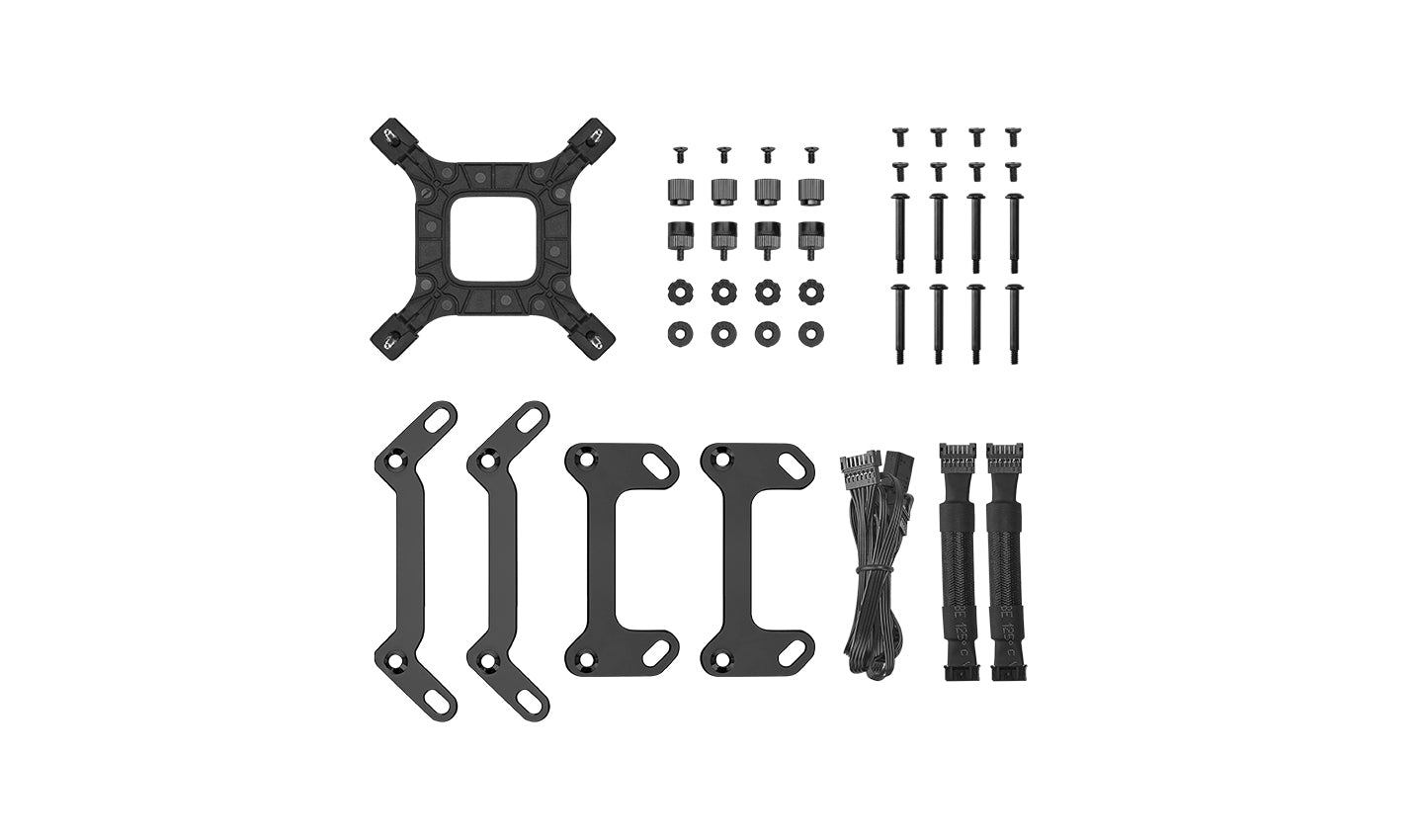

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LS SE DIGITAL to the latest mainstream CPUs is included in the box, so you are ready to go.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight | 1394g |

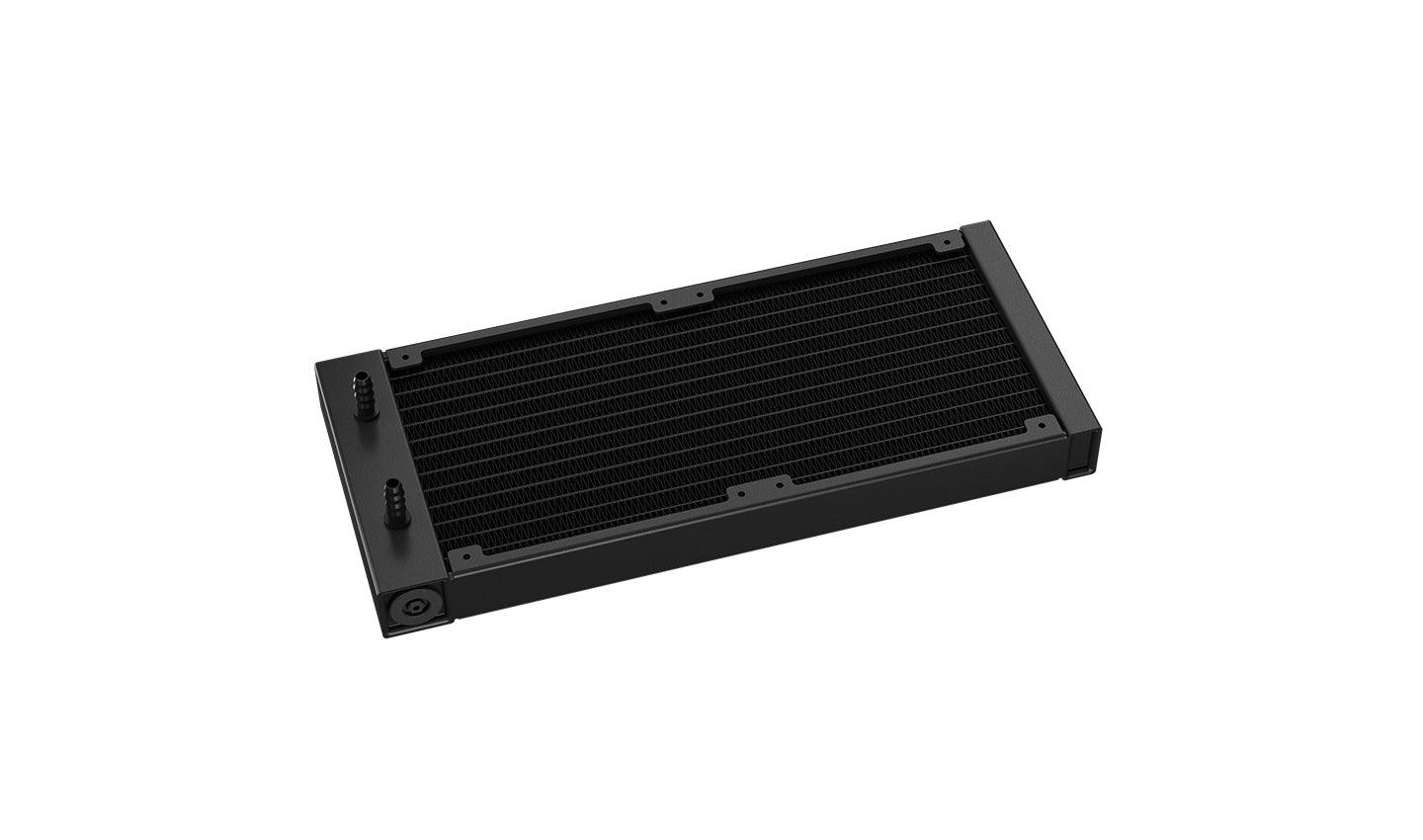

Radiator Dimensions | 282×120×27 mm(L×W×H) |
Radiator Material | Aluminum |
Tube length | 410 mm |

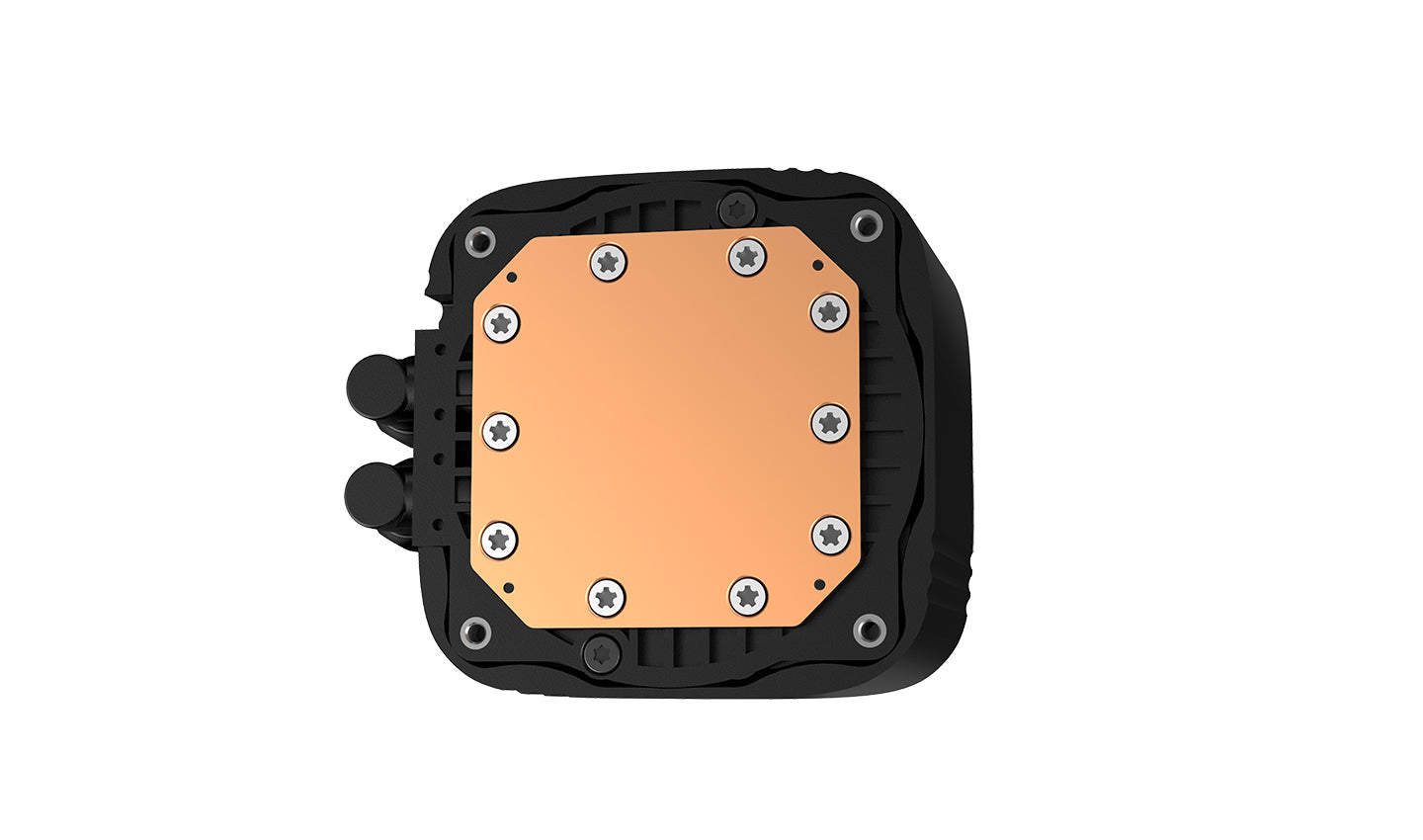

Pump Dimensions | 85×73×55 mm(L×W×H) |
Pump Speed | 3100 RPM±10% |
Pump Noise | 19 dB(A) |
Pump Connector | 3-pin |
Pump Rated Voltage | 12 VDC |
Pump Rated Current | 0.35A |
Pump Power Consumption | 4.2W |
Fan Dimensions | 120×120×25 mm(L×W×H) |
Fan Speed | 500~2250 RPM±10% |
Fan Airflow | 85.85 CFM |
Fan Air Pressure | 3.27 mmAq |
Fan Noise | ≤32.9 dB(A) |
Fan Speed (with LSP) | 500~1600 RPM±10% |
Fan Airflow (with LSP) | 60.85 CFM |
Fan Air Pressure (with LSP) | 1.65 mmAq |
Fan Noise (with LSP) | ≤28.2 dB(A) |
Fan Connector | 7-pin |
Bearing Type | Hydro Bearing |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.25 A |
Fan Power Consumption | 3.0 W |
LED Type | Addressable RGB LED |
LED Connector | 3-pin(+5V-D-G) |
LED Rated Voltage | 5 VDC |
LED Power Consumption | 2.7 W(PUMP)/ 2.1 W(FAN×2) |
Display Type | LED Digital Display |
EAN | 6.93341E+12 |
P/N | R-LS520-BKAMMD-G-1 |
