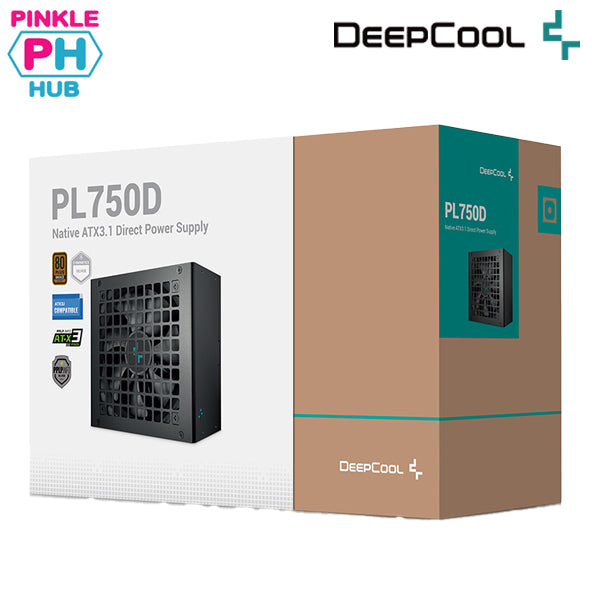

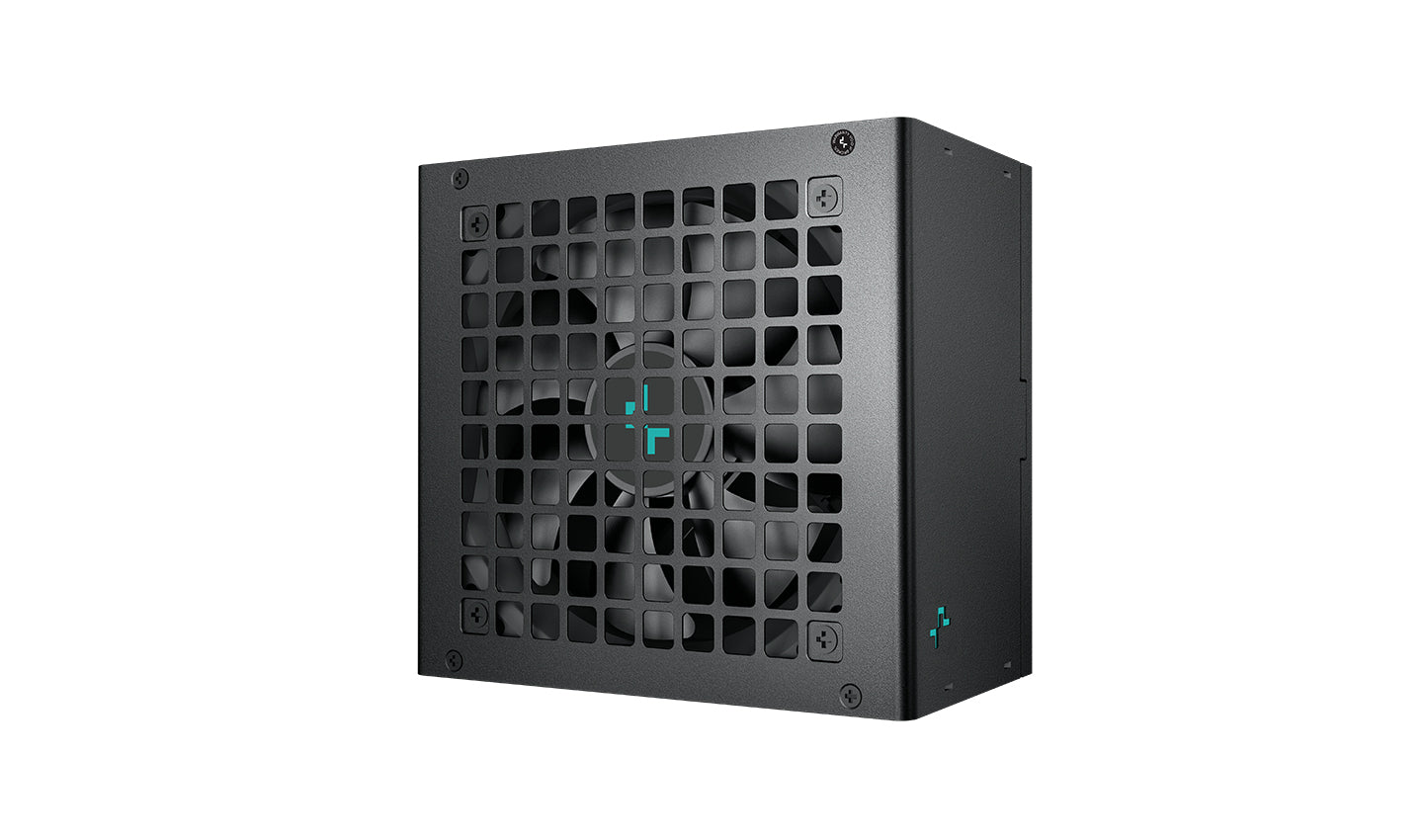

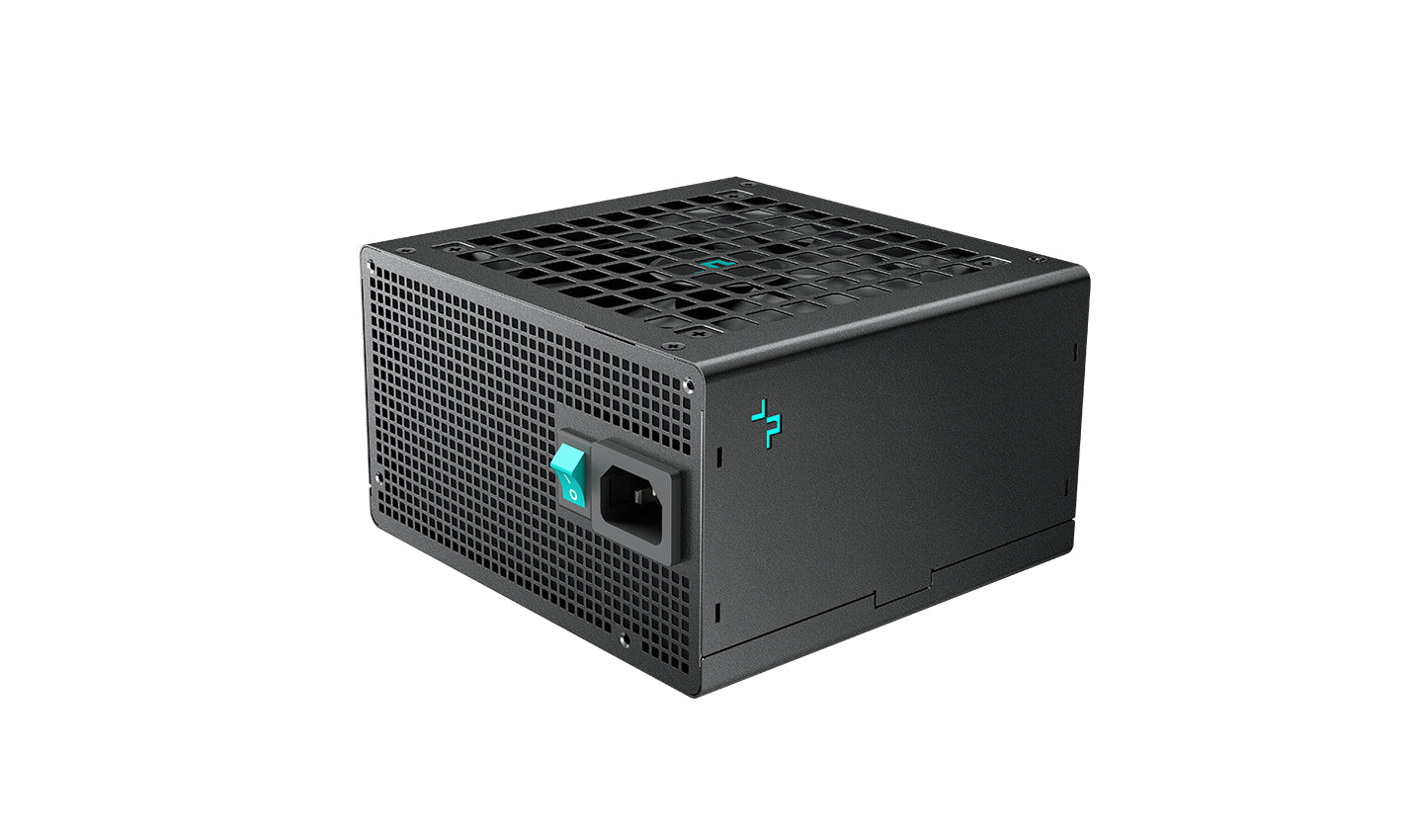

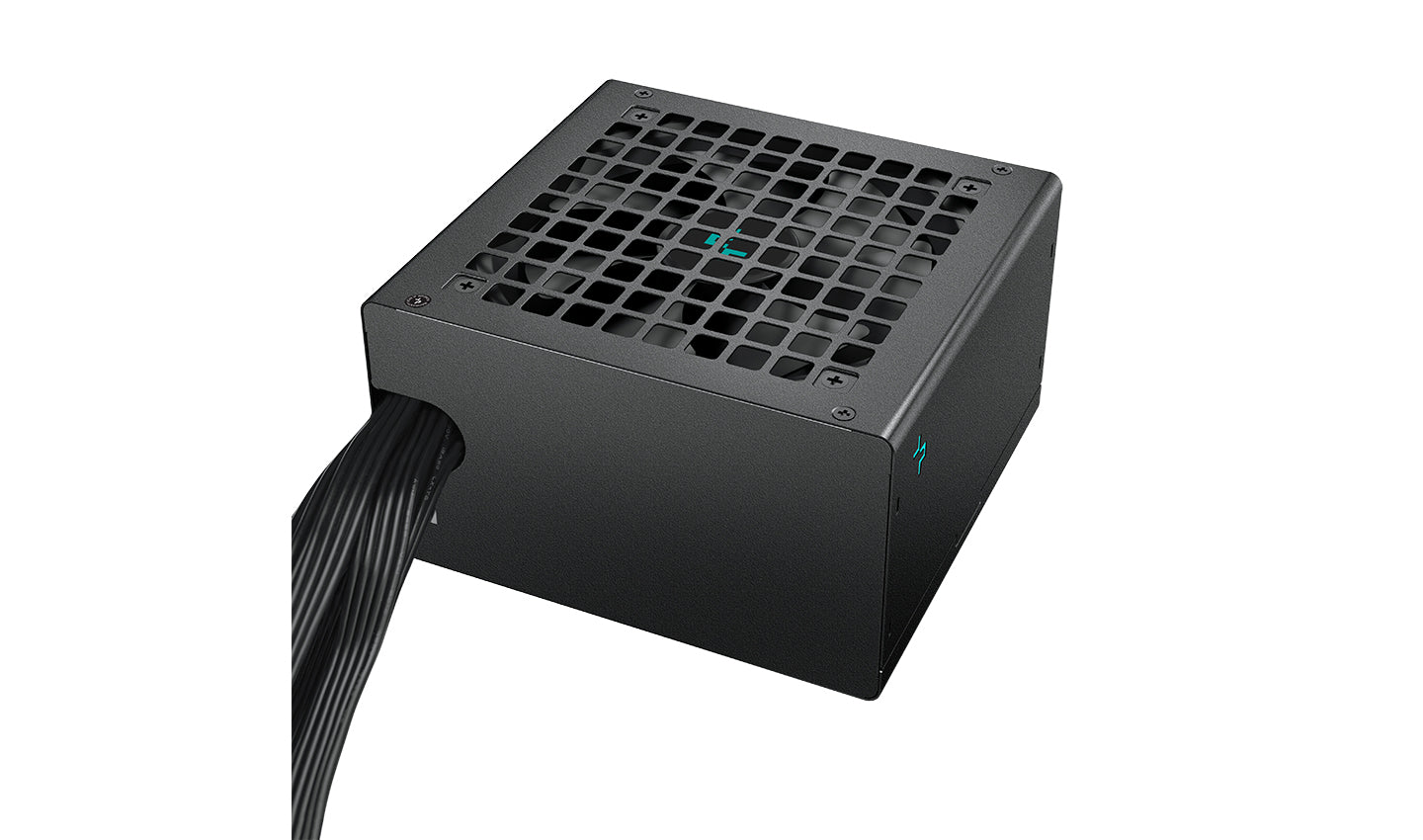

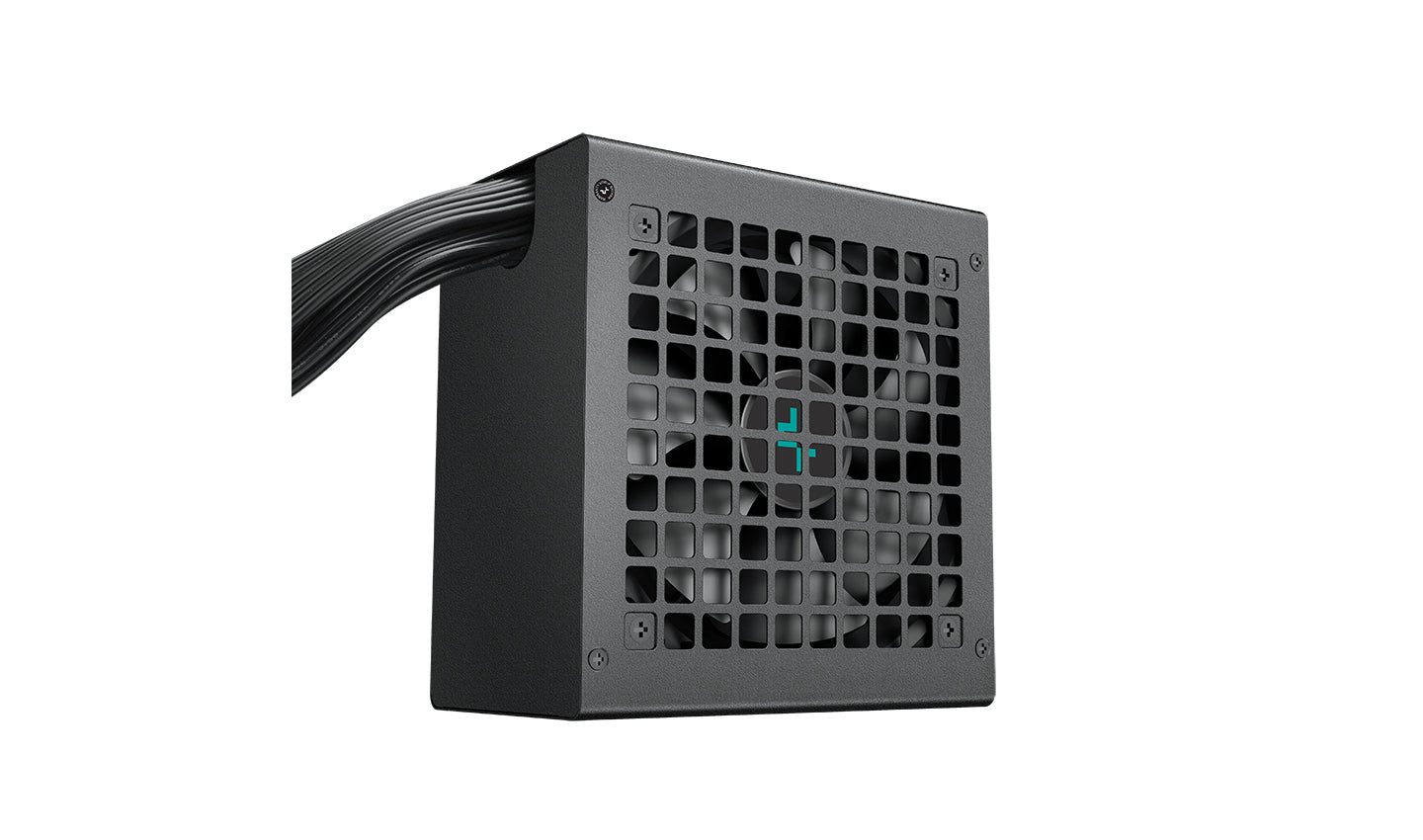

The PL750D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
Technical Spec
Type
ATX12V V3.1
Product Dimensions
150×140×86mm (W x L x H)
Efficiency certification
80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II 级

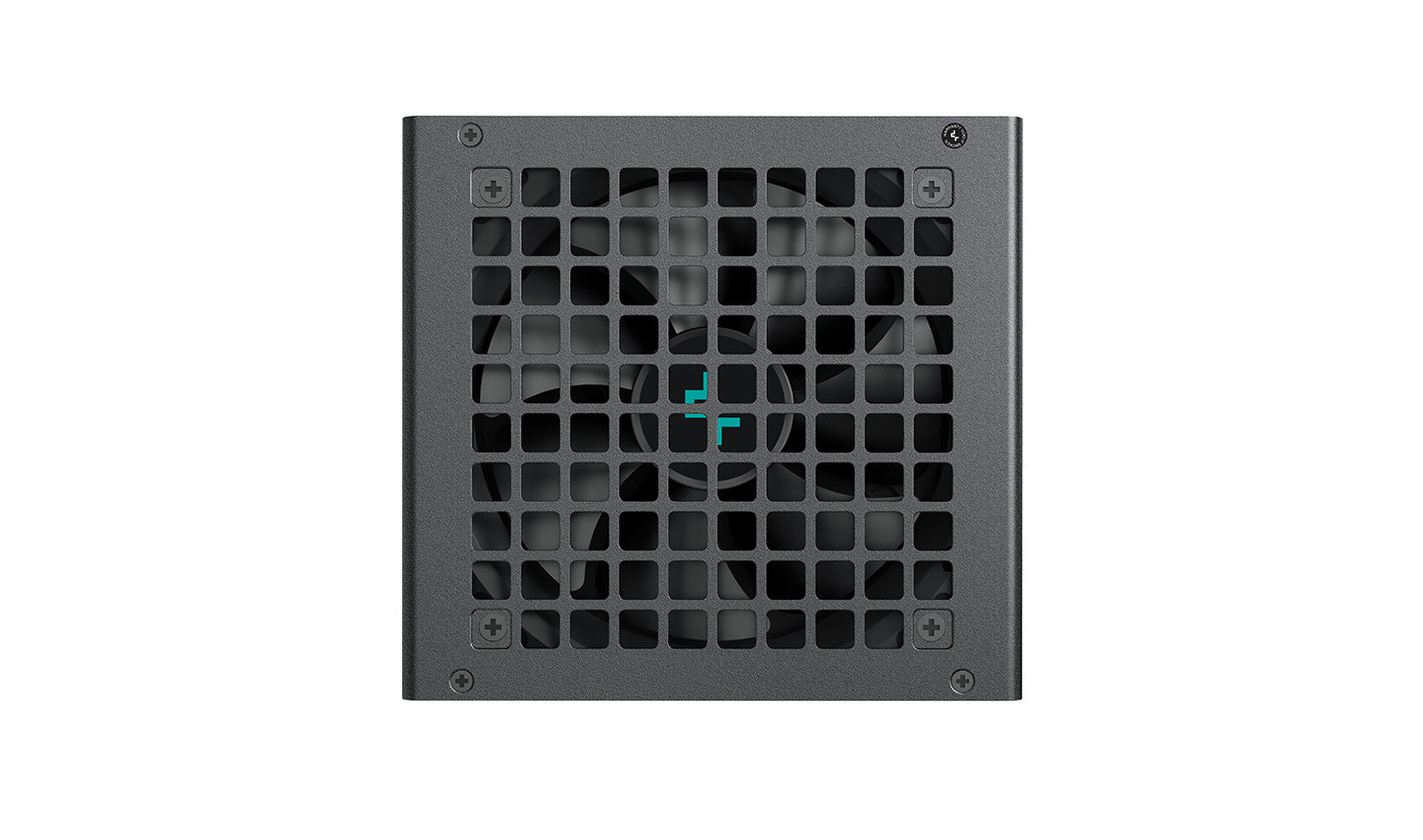

Fan Size
120mm
Fan Bearing
HYB(Hydro Bearing)
Topology
Active PFC+DC to DC
Capacitors
Chinese Electrolytic Capacitors
Power Good Signal
100-150ms
Hold Up Time
≥16ms
Efficiency
≥85% Under Typical Load(50% Loading)
Protection
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature
0 - 40℃
Regulatory
CE/FCC/CCC/RCM/EAC/BIS/ CAN ICES-003(B)/NMB-003(B) /TUV-RH
