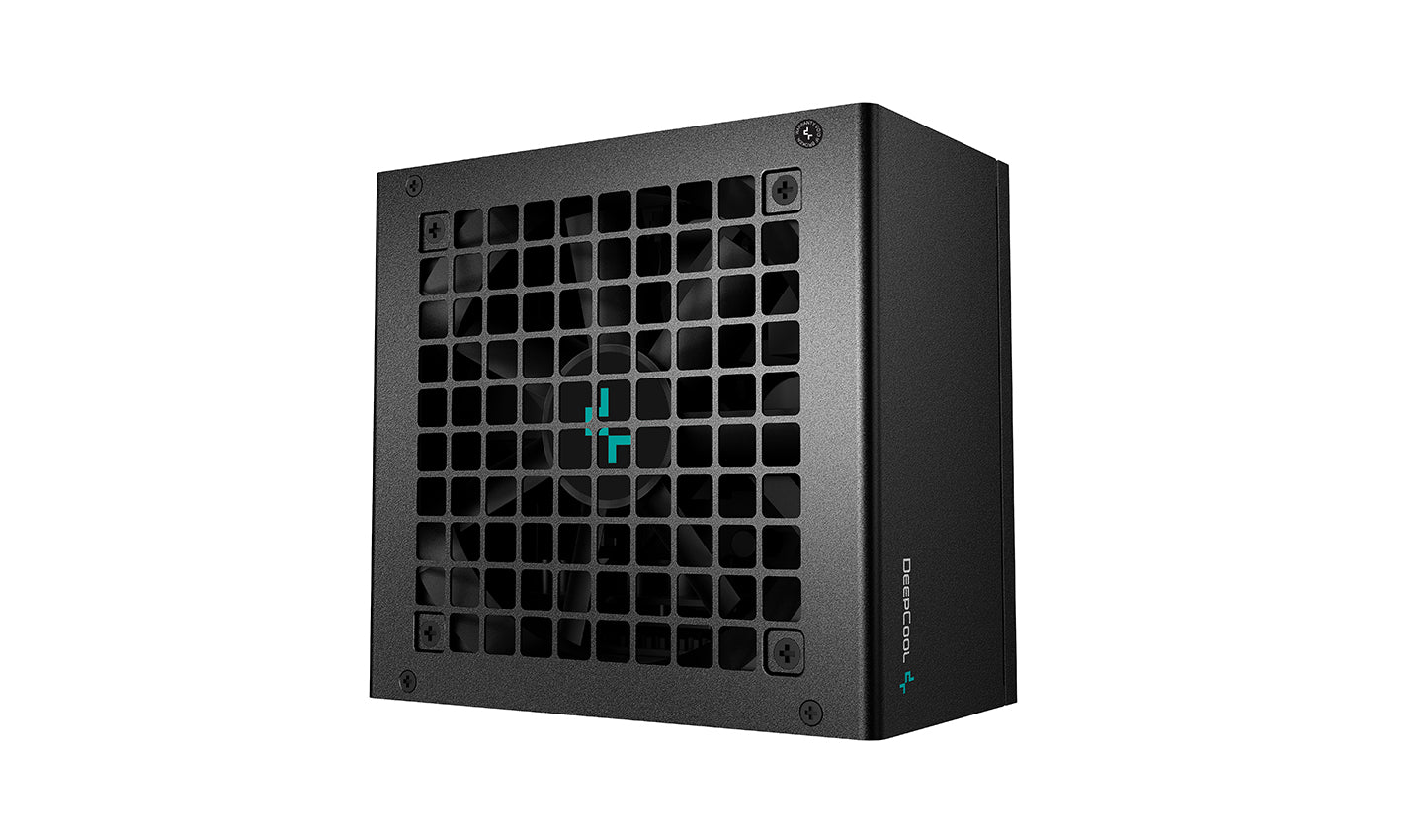

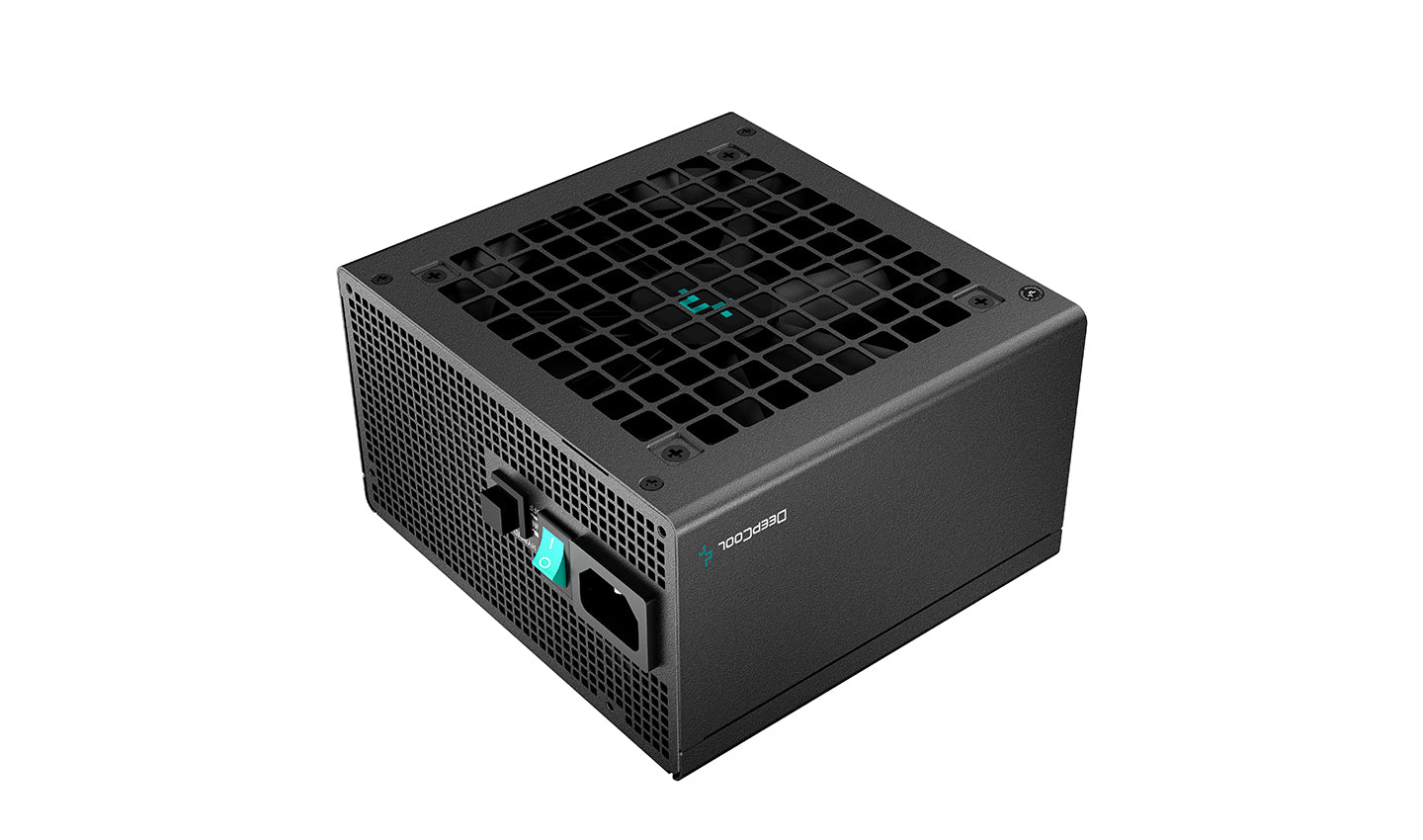

DeepCool PQ750M / PQ850M / PQ1000M Power Supply

DeepCool PQ750M / PQ850M / PQ1000M Power Supply

Brand : DeepCool

SKU:  PQ850M

₱7,020.00
₱7,605.00 ₱7,020.00
Sale! Sold out
Taxes included.

Low stock: 6 left

Model
PQ750M
Introducing a new generation of power reliability, the DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.
Visit official website: DeepCool PQ750M
Technical Spec

Type ATX12V V2.4
Product Dimensions 150×140×86mm (W x L x H)
80PLUS Certifications GOLD

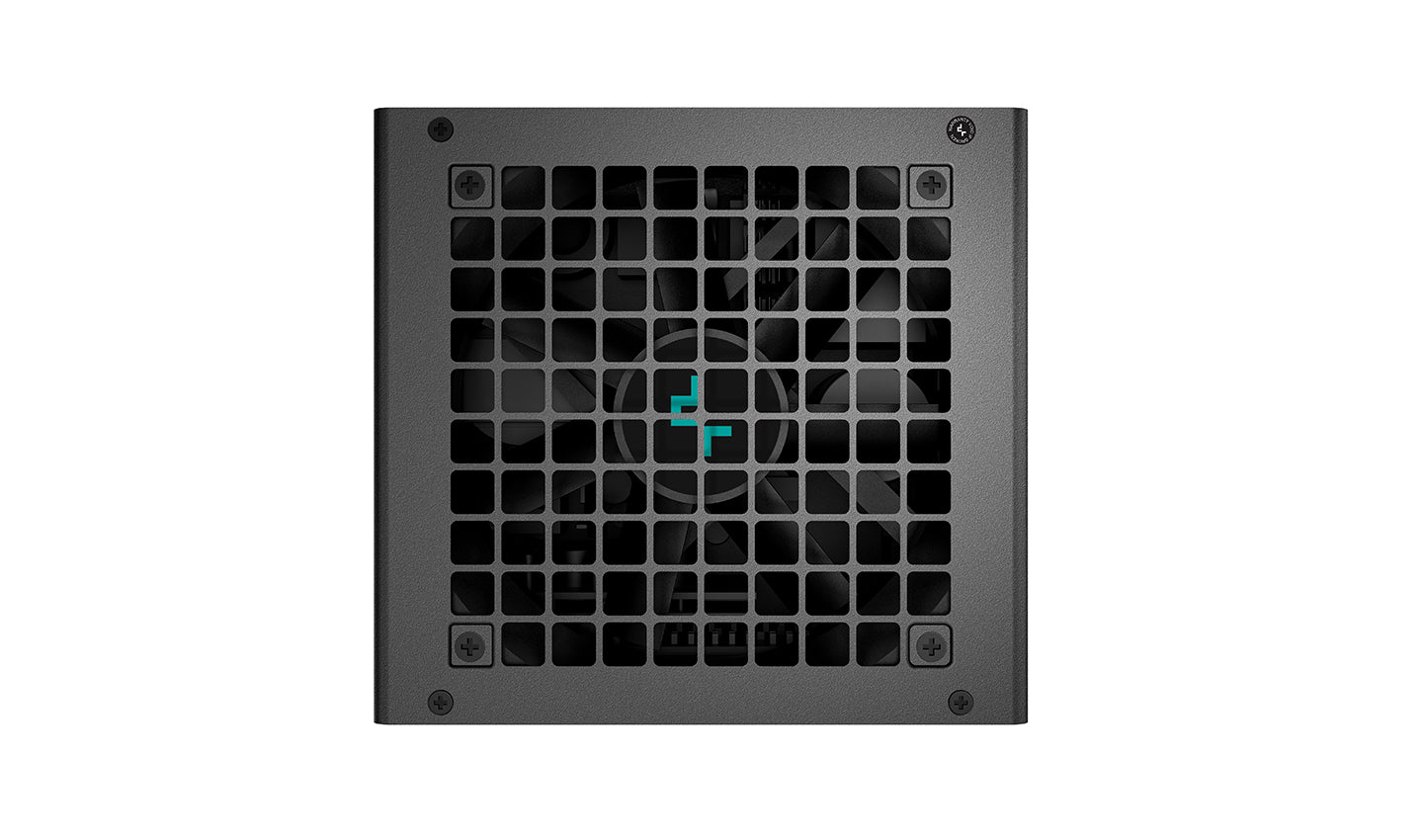

Fan Size 120mm
Fan Bearing FDB

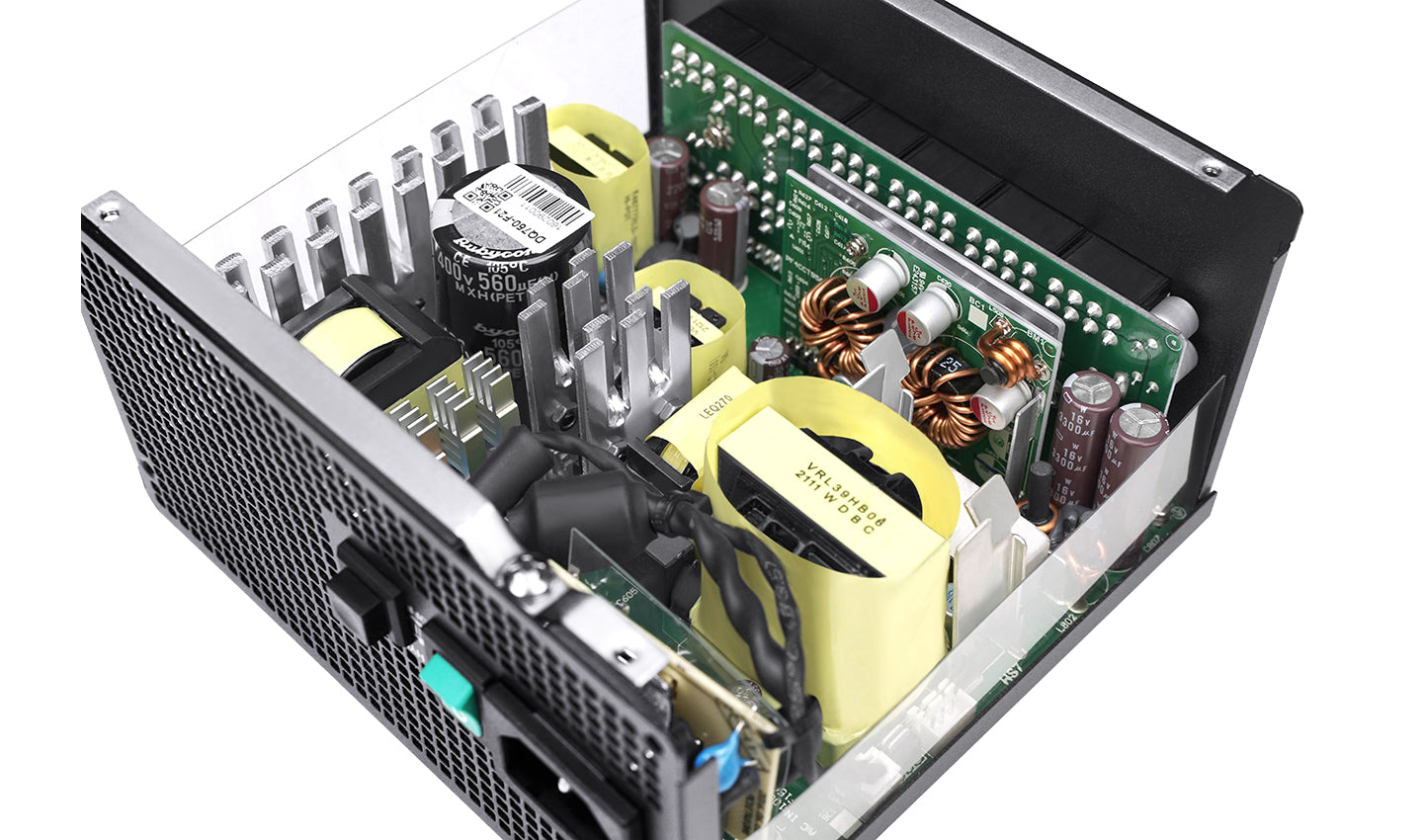

Topology Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100-500ms
Hold Up Time ≥16ms (90% load)
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
Regulatory CCC/CE/FCC/TUV-SUD/cTUVus/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA
Erp Regulation ErP 2013
MTBF 100,000 Hours
Warranty 10 Years
EAN P/N 6933412701804 R-PQ750M-FA0B-CN
6933412701811 R-PQ750M-FA0B-AU
6933412701828 R-PQ750M-FA0B-EU
6933412701835 R-PQ750M-FA0B-JP
6933412701842 R-PQ750M-FA0B-UK
6933412701859 R-PQ750M-FA0B-US
6933412701866 R-PQ750M-FA0B-AR
6933412701873 R-PQ750M-FA0B-BR
6933412701880 R-PQ750M-FA0B-WO
6933412701897 R-PQ750M-FA0B-BP
PQ850M

Introducing a new generation of power reliability, the DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.

Visit official website: DeepCool PQ850M

Technical Spec
Type ATX12V V2.4
Product Dimensions 150×140×86mm (W x L x H)
80PLUS Certifications GOLD
Fan Size 120mm
Fan Bearing FDB
Topology Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100-500ms
Hold Up Time ≥16ms (90% load)
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
Regulatory CCC/CE/FCC/TUV-SUD/cTUVus/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA
Erp Regulation ErP 2013
MTBF 100,000 Hours
Warranty 10 Years
EAN P/N 6933412701903 R-PQ850M-FA0B-CN
6933412701910 R-PQ850M-FA0B-AU
6933412701927 R-PQ850M-FA0B-EU
6933412701934 R-PQ850M-FA0B-JP
6933412701941 R-PQ850M-FA0B-UK
6933412701958 R-PQ850M-FA0B-US
6933412701965 R-PQ850M-FA0B-AR
6933412701972 R-PQ850M-FA0B-BR
6933412701989 R-PQ850M-FA0B-WO
6933412701996 R-PQ850M-FA0B-BP

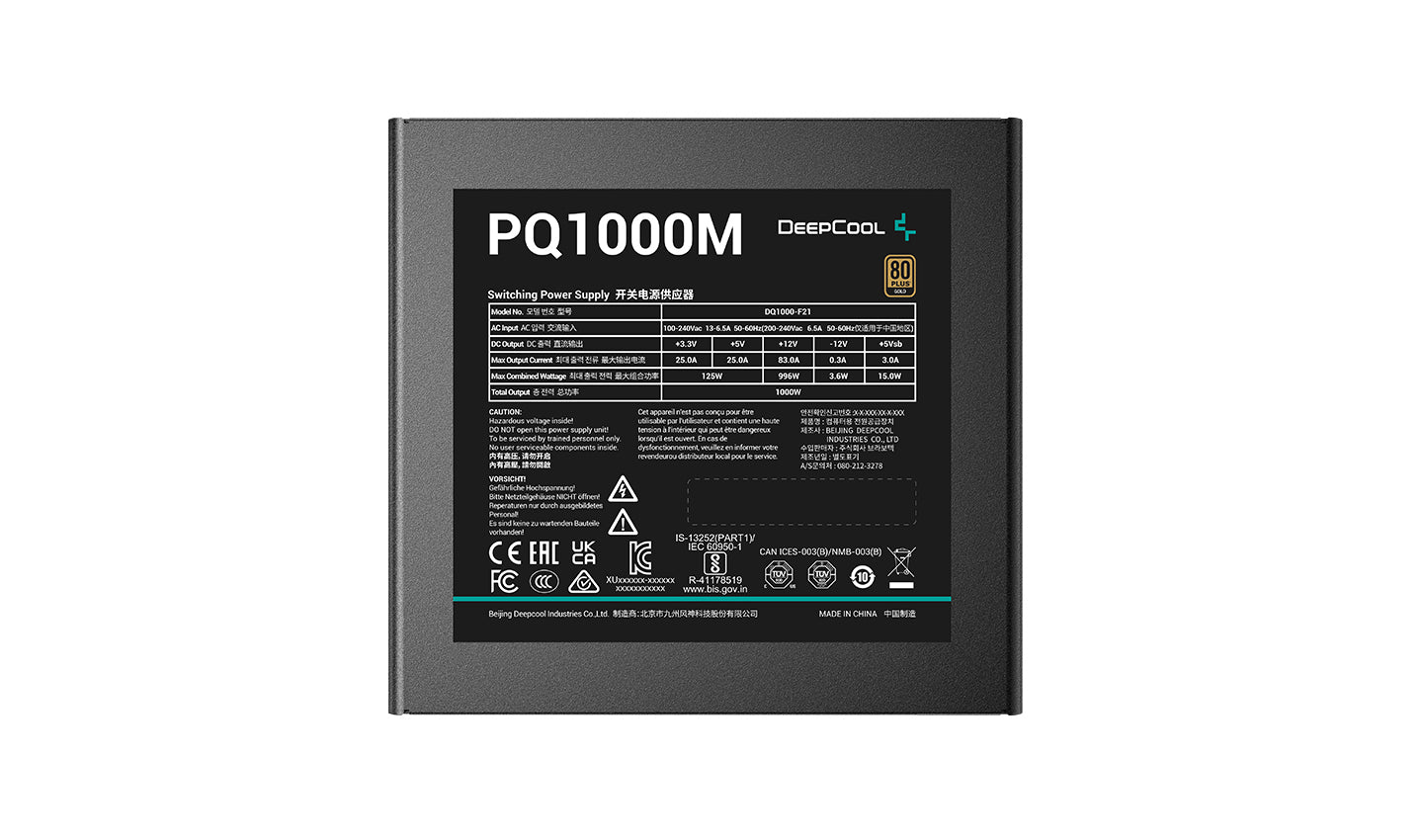

PQ1000M

Introducing a new generation of power reliability, the DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.

Visit official website: DeepCool PQ1000M

Technical Spec
Type ATX12V V2.4
Product Dimensions 150×140×86mm (W x L x H)
80PLUS Certifications GOLD
Fan Size 120mm
Fan Bearing FDB
Topology Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100-500ms
Hold Up Time ≥16ms (80% load))
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature 0 - 40 °C
Regulatory CCC/CE/FCC/TUV-SUD/cTUVus/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA
Erp Regulation ErP 2013
MTBF 100,000 Hours
Warranty 10 Years
EAN P/N 6933412702009 R-PQA00M-FA0B-CN
6933412702016 R-PQA00M-FA0B-AU
6933412702023 R-PQA00M-FA0B-EU
6933412702030 R-PQA00M-FA0B-JP
6933412702047 R-PQA00M-FA0B-UK
6933412702054 R-PQA00M-FA0B-US
6933412702061 R-PQA00M-FA0B-AR
6933412702078 R-PQA00M-FA0B-BR
6933412702085 R-PQA00M-FA0B-WO
6933412702092 R-PQA00M-FA0B-BP
