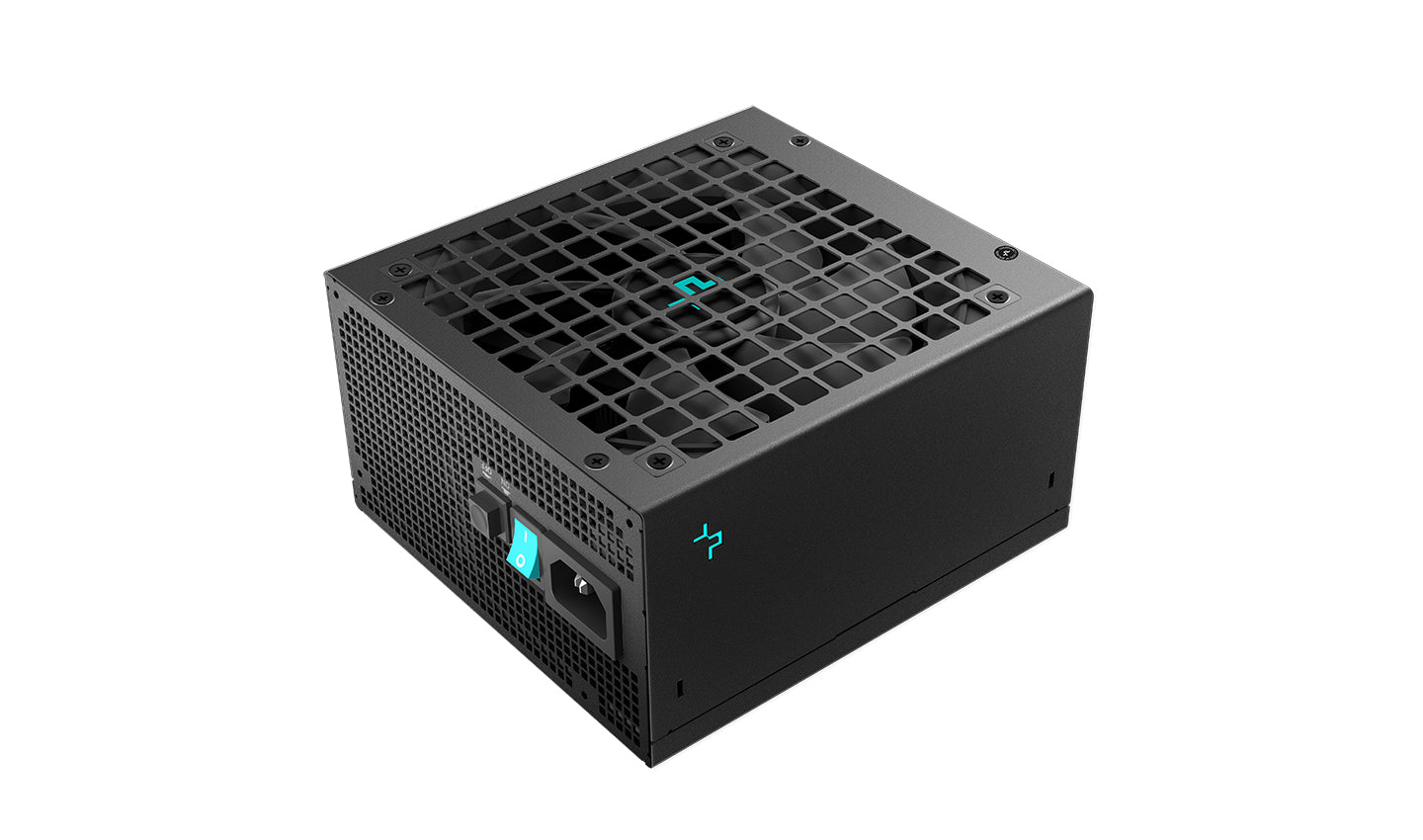

DEEPCOOL PX1000G 80Plus GOLD/Cybenetics_Platinum ATX12V V3.0 Power Supply (R-PXA00G-FC0B-US)
DEEPCOOL PX1000G 80Plus GOLD/Cybenetics_Platinum ATX12V V3.0 Power Supply (R-PXA00G-FC0B-US)
Brand : DeepCool
SKU: SKU: R-PXA00G-FC0B-US
Regular price
₱9,600.00
Regular price
₱10,000.00
Sale price
₱9,600.00
Unit price
per
Taxes included.
Low stock: 6 left
Couldn't load pickup availability
PX1000G (R-PXA00G-FC0B-US)

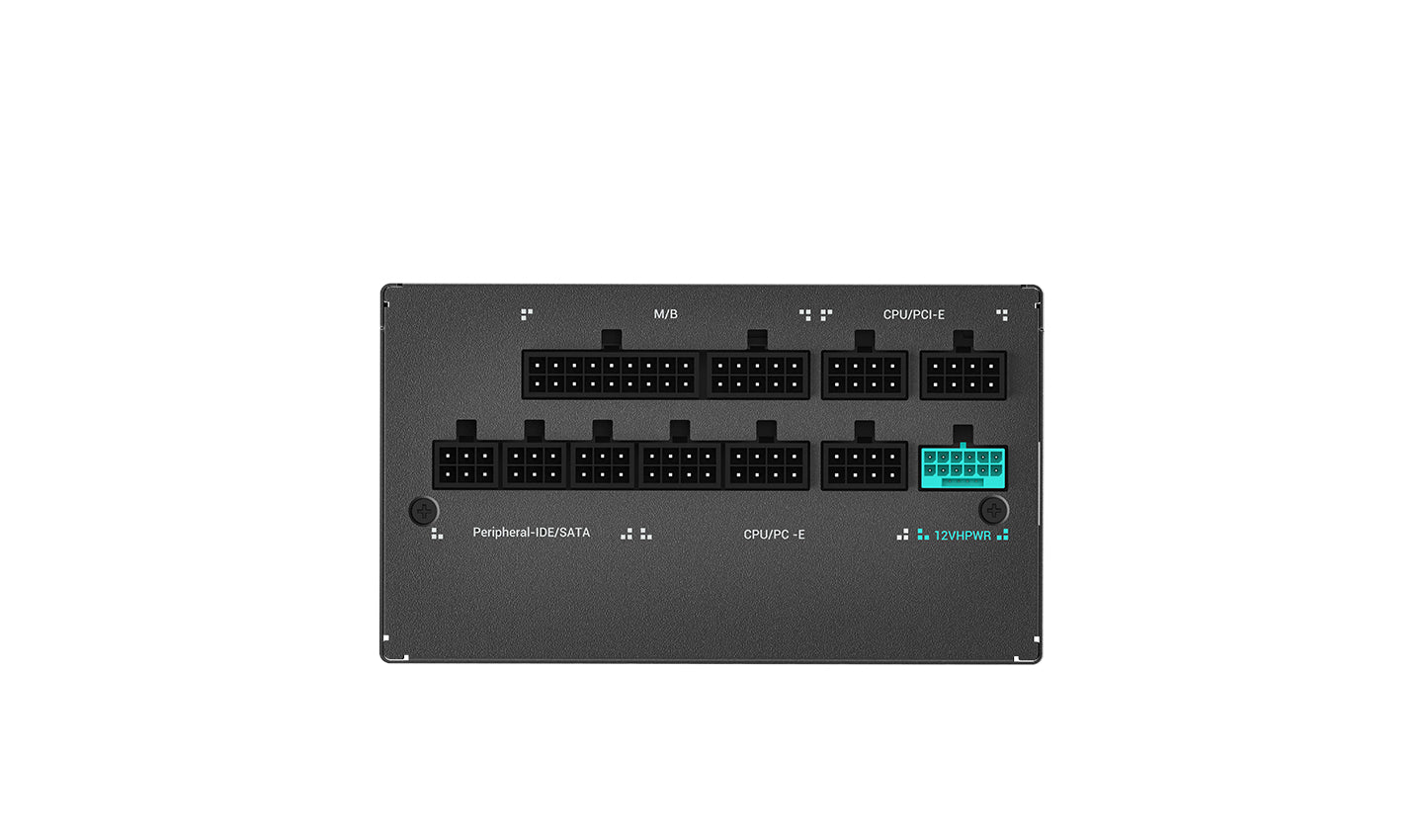

The DeepCool PX1000G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1000G provides stable power for a wide range of components.
PCI-E 5.0 POWER PERFECTED
Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.
|
 |

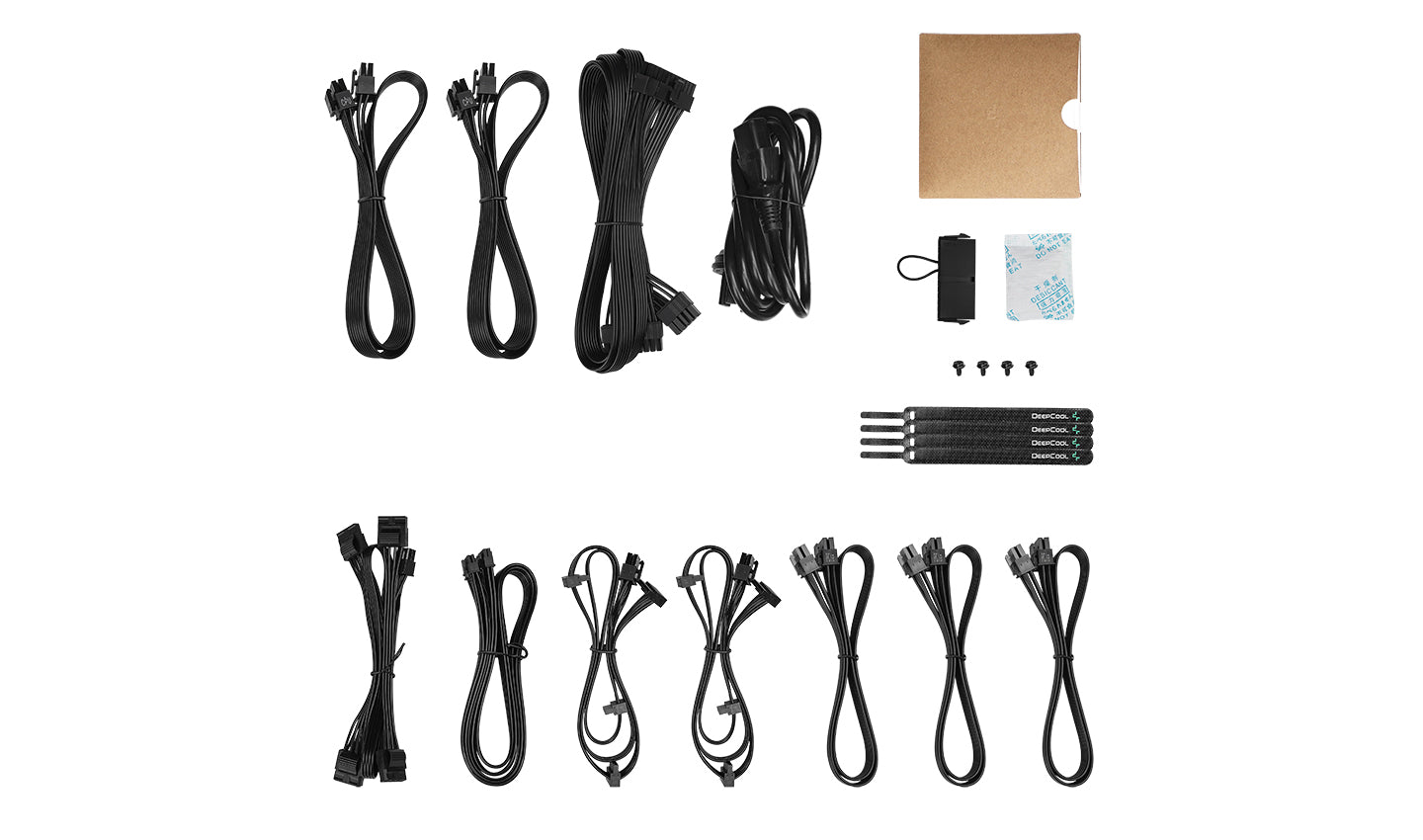

Main Power Connector 24 (20+4)Pin x1
X1
CPU (4+4)Pin x 1
X2
PCI-E (6+2)Pin x1
X3
SATA x4
X2
12VHPWR (16Pin) x1
X1
4Pin Peripheral x4
X1
Technical Spec
| Type | ATX12V V3.0 |
| Product Dimensions | 150×160×86mm (W x L x H) |
| Efficiency certification | 80Plus GOLD/Cybenetics_Platinum |

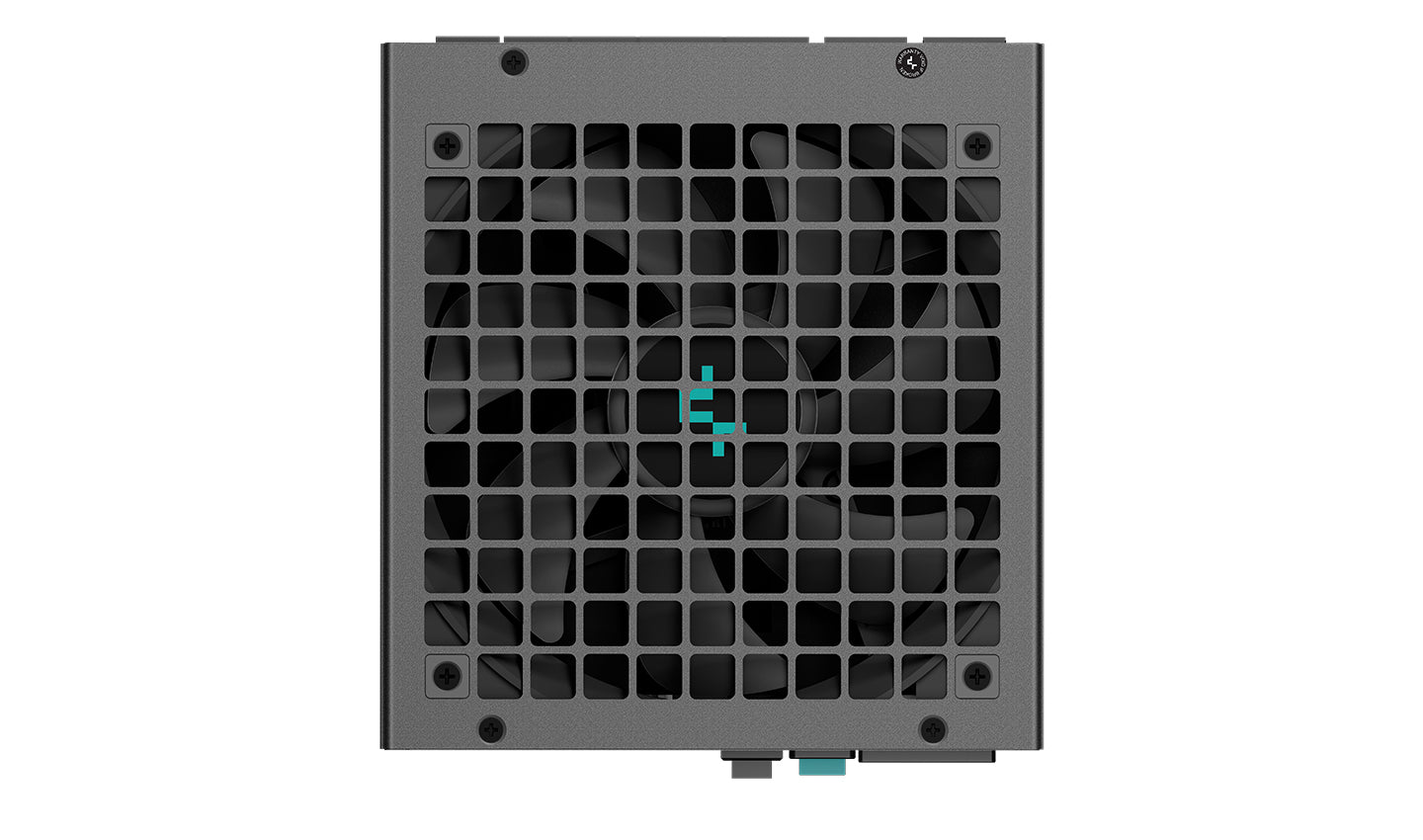

| Fan Size | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |

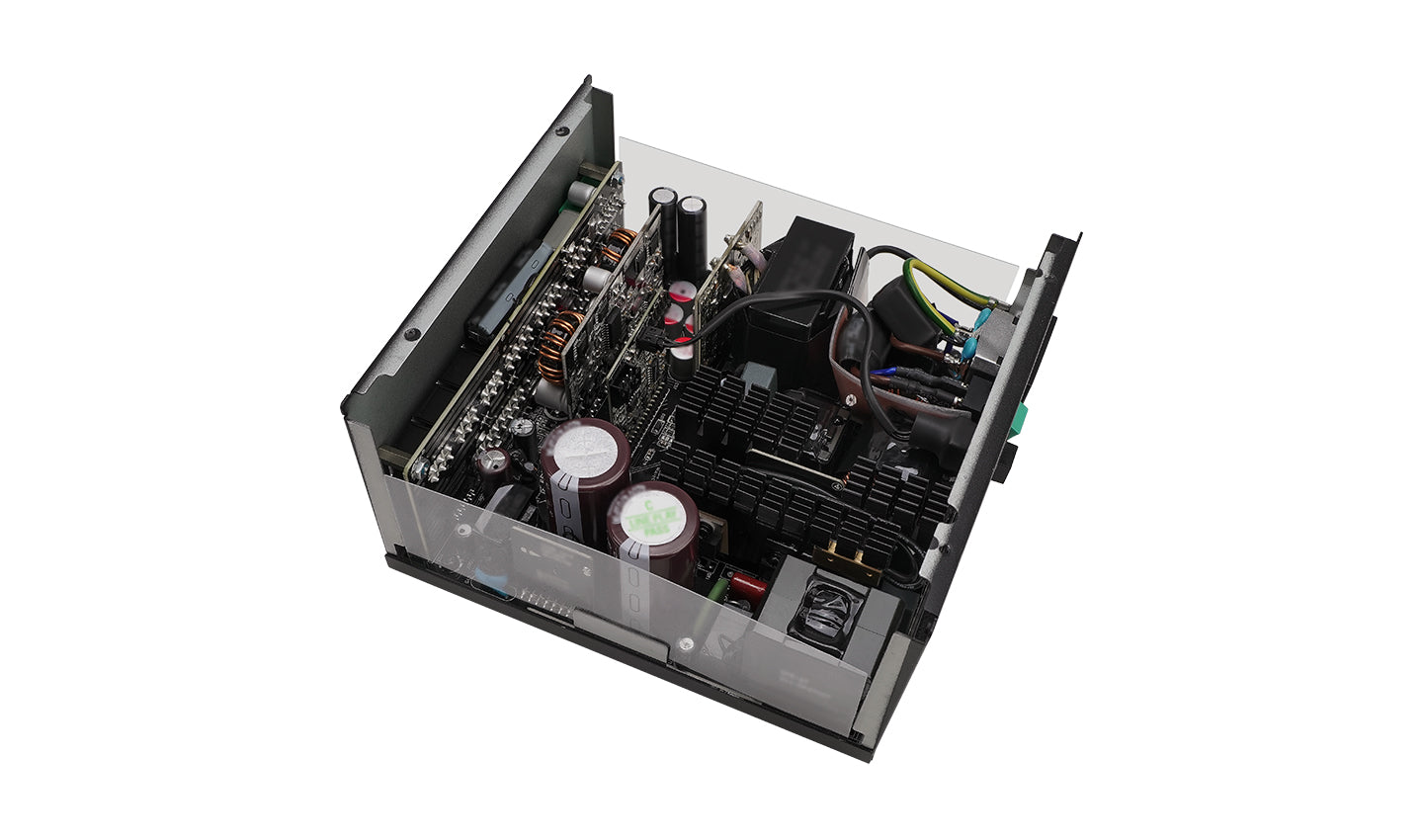

| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Full Japan Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC; |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman |
| MTBF | 100,000 Hours |
