Description

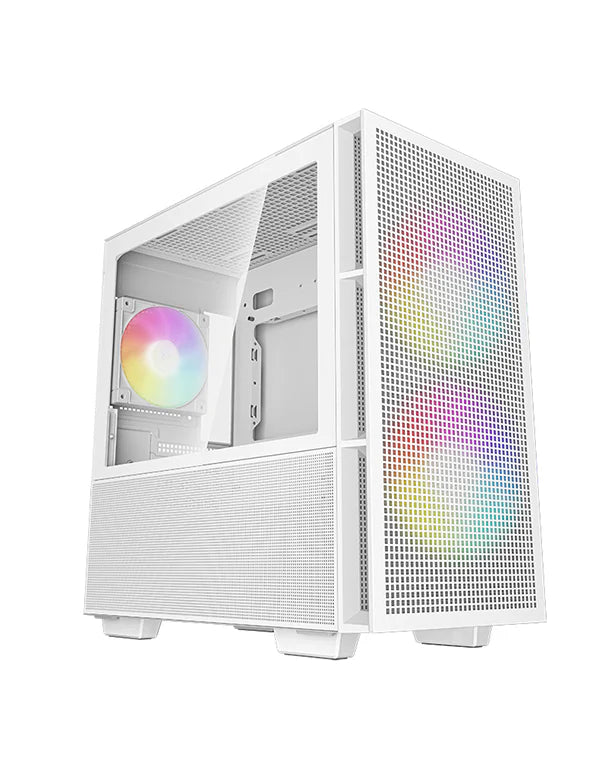

DEEPCOOL CH360 WHITE, Mini-ITX / Micro-ATX Case
A BREATH OF FRESH AIR

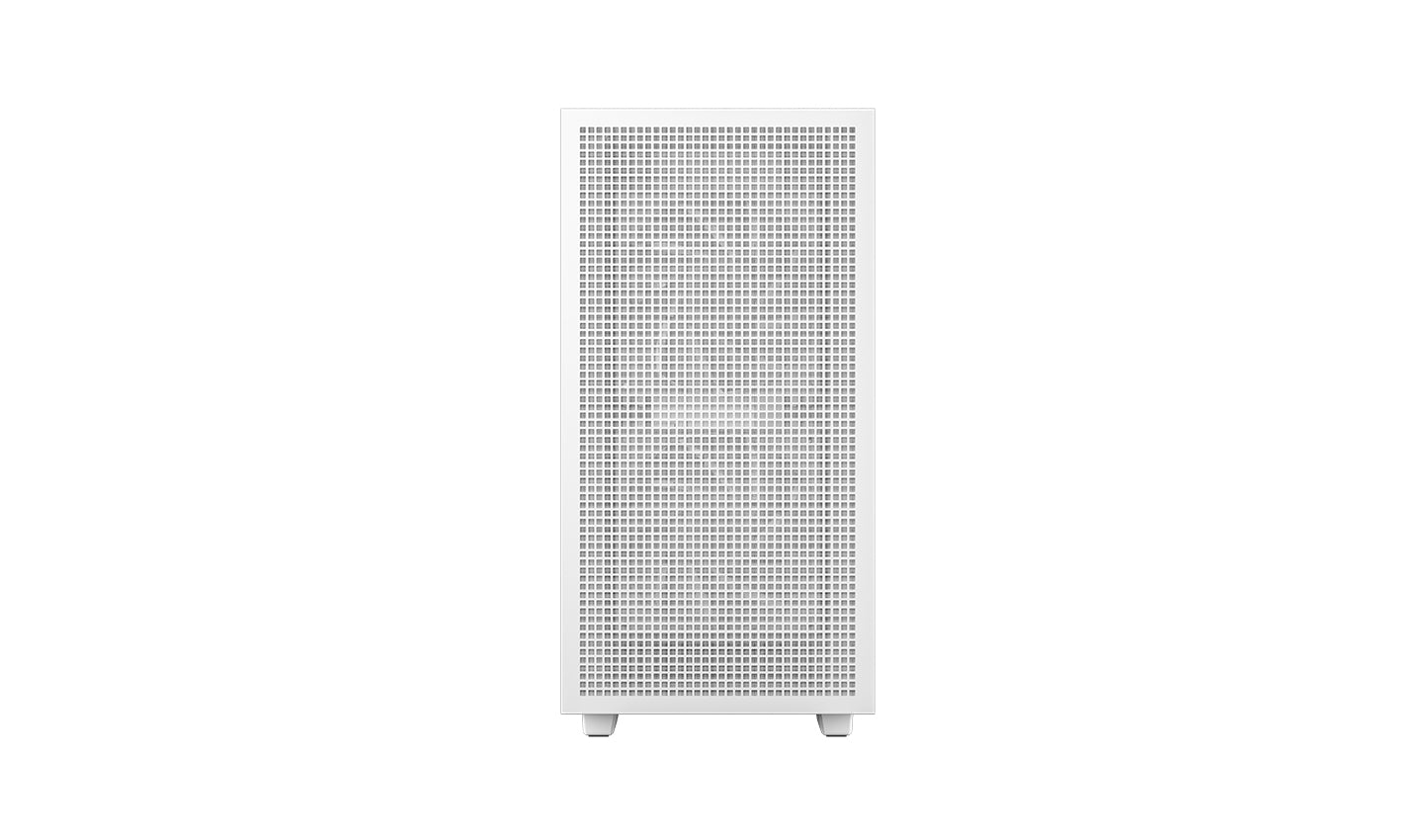

The CH360 WH provides exceptional airflow from all sides of the case; from the high airflow front to the hybrid tempered glass side panel; cool air is always available for the modern power-hungry components.
HYBRID AIRFLOW GLASS SIDE PANEL

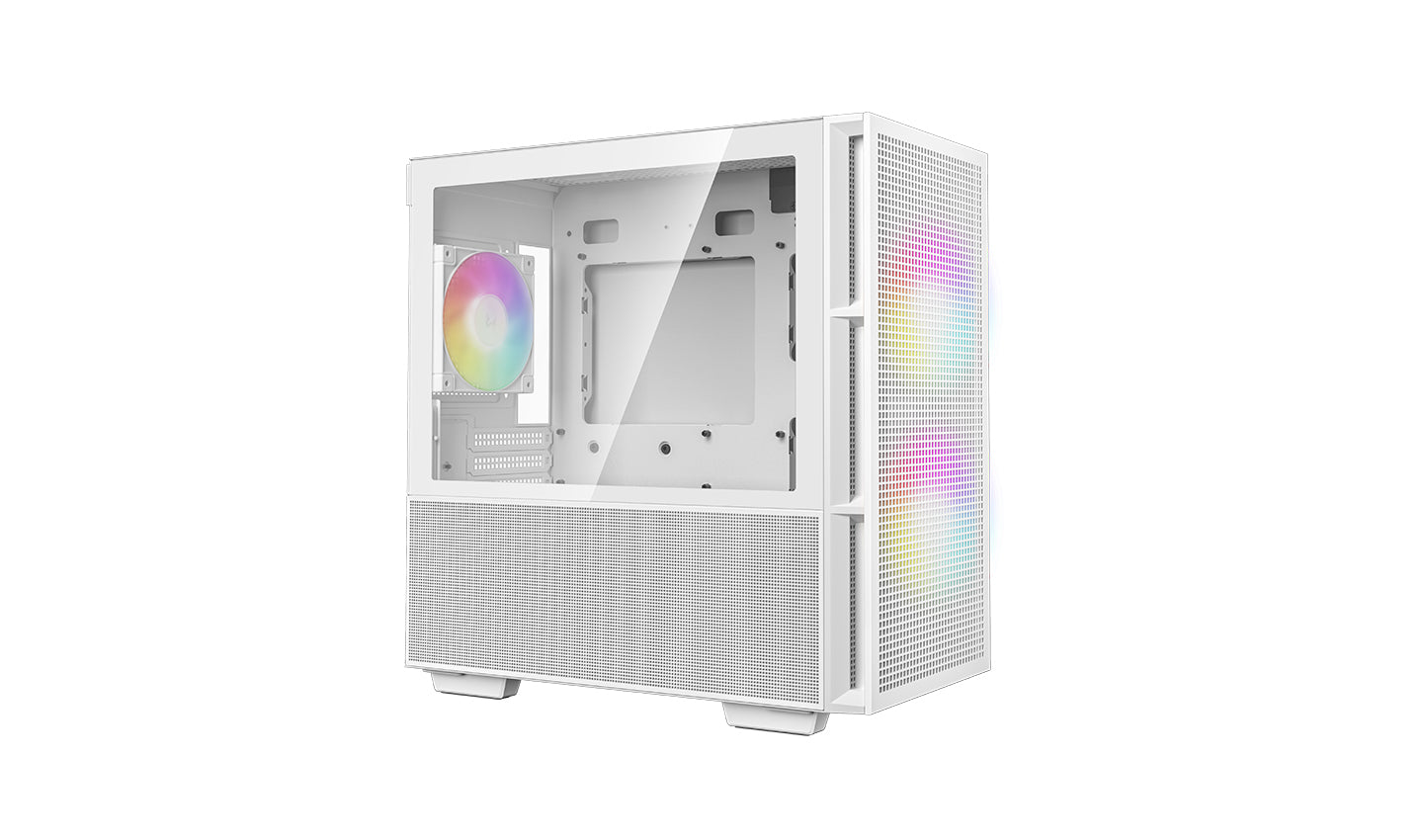

A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.
MAXIMUM COOLING CAPACITY
The CH360 WH has a plethora of cooling configurations, from the ability to mount a 360mm radiator in front to the two included 140mm ARGB fans up front—the cooling configurations are endless.
LARGE RANGE OF COMPATIBLE COMPONENTS
With the ability to support 165mm tall CPU coolers, 320mm GPUs, and 160mm PSUs; the CH360 WH can be configured with a wide range of modern components.
BIGGER, BRIGHTER, BETTER

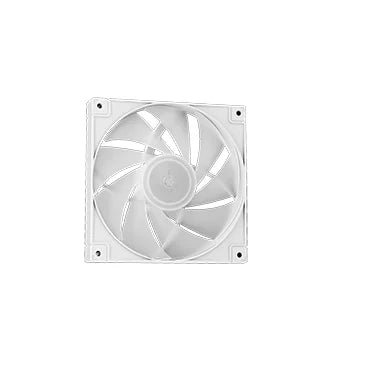

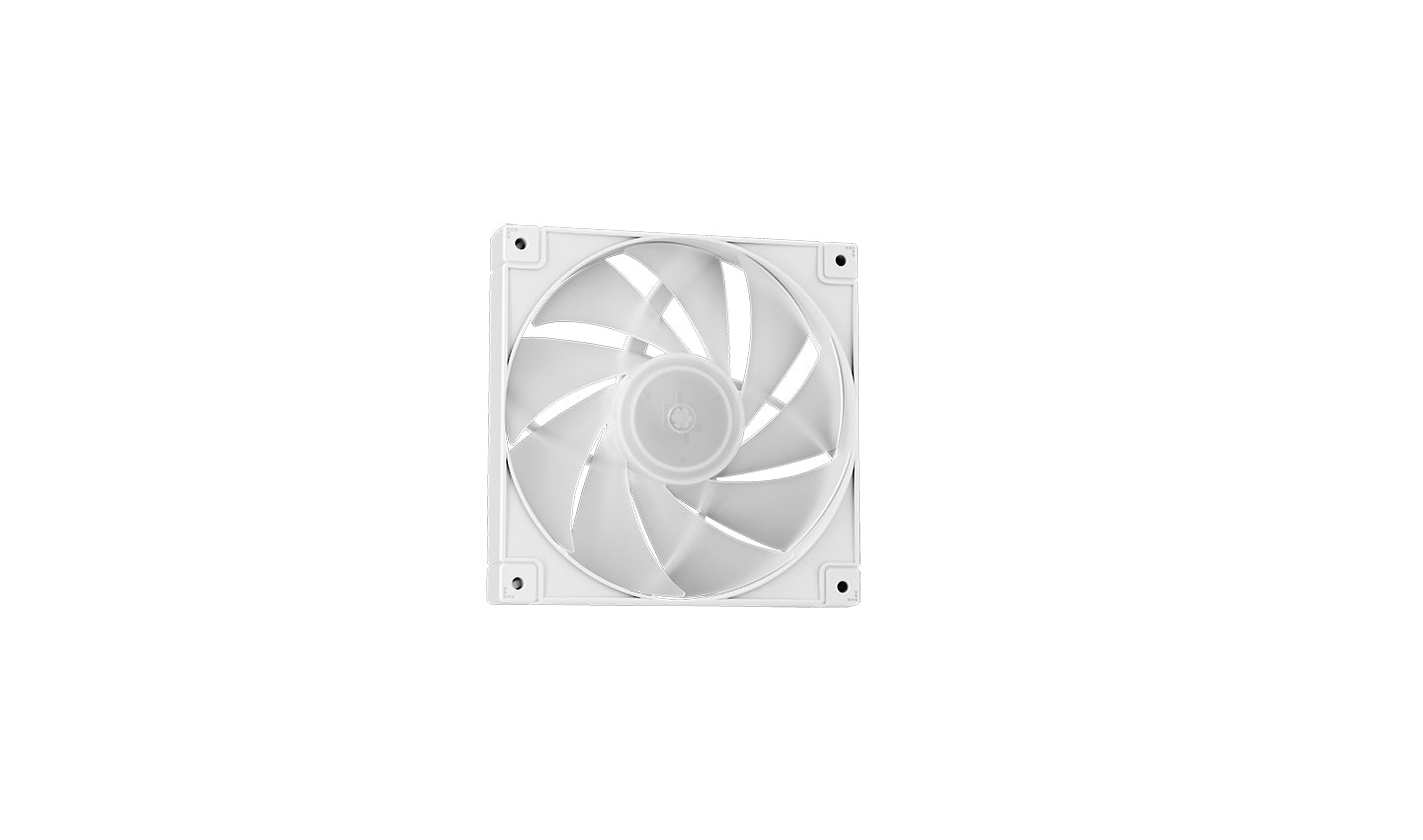

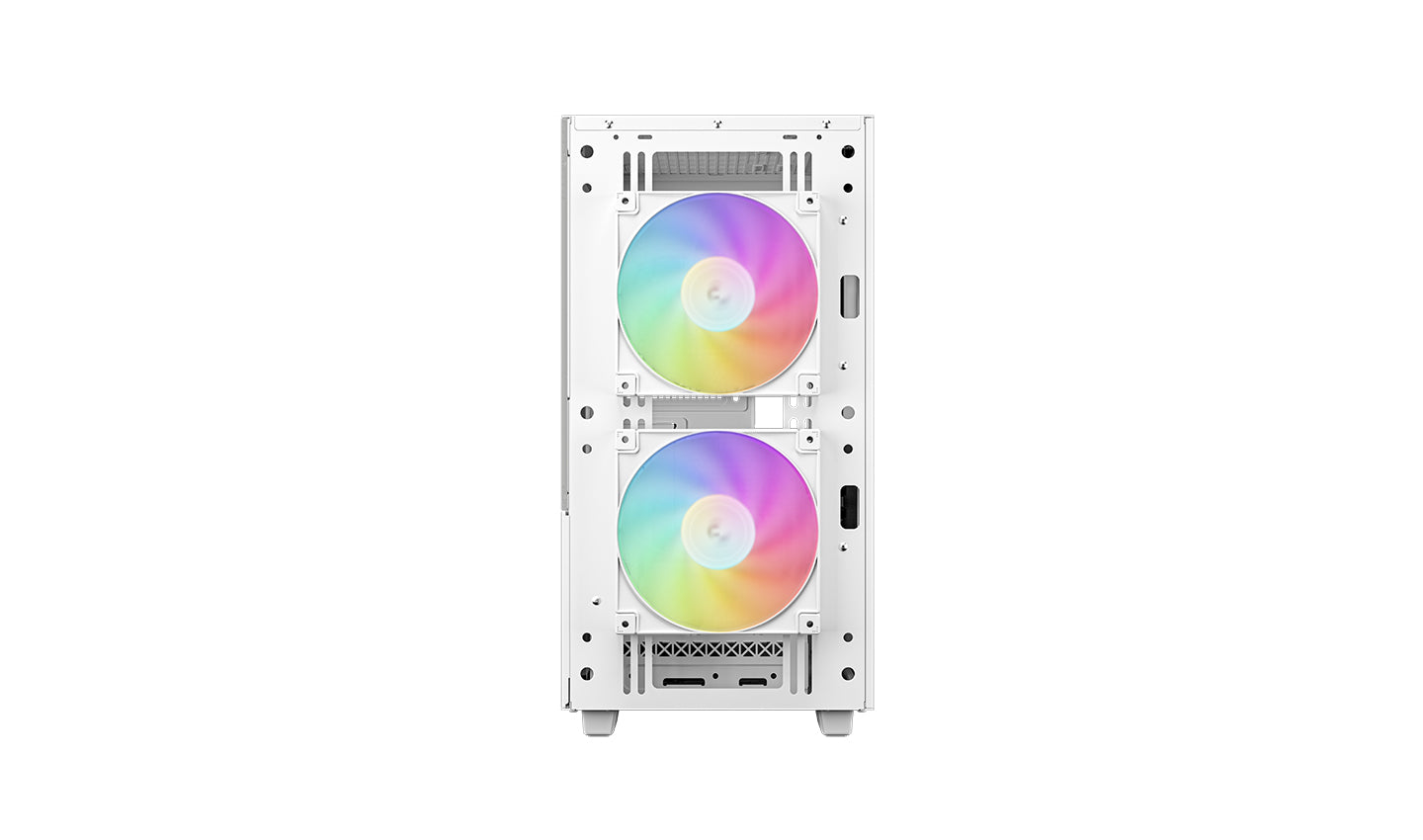

Two luminous PWM-enabled 140mm ARGB fans come pre-installed on the front of the CH360 WH and introduce an abundant amount of fresh air into the chassis. These fans are mounted outside of the main compartment to provide extra clearance for modern GPUs while maintaining a smaller footprint. A 120mm ARGB fan is included in the rear of the case to help exhaust internal case heat.
STRESS-FREE BUILDING

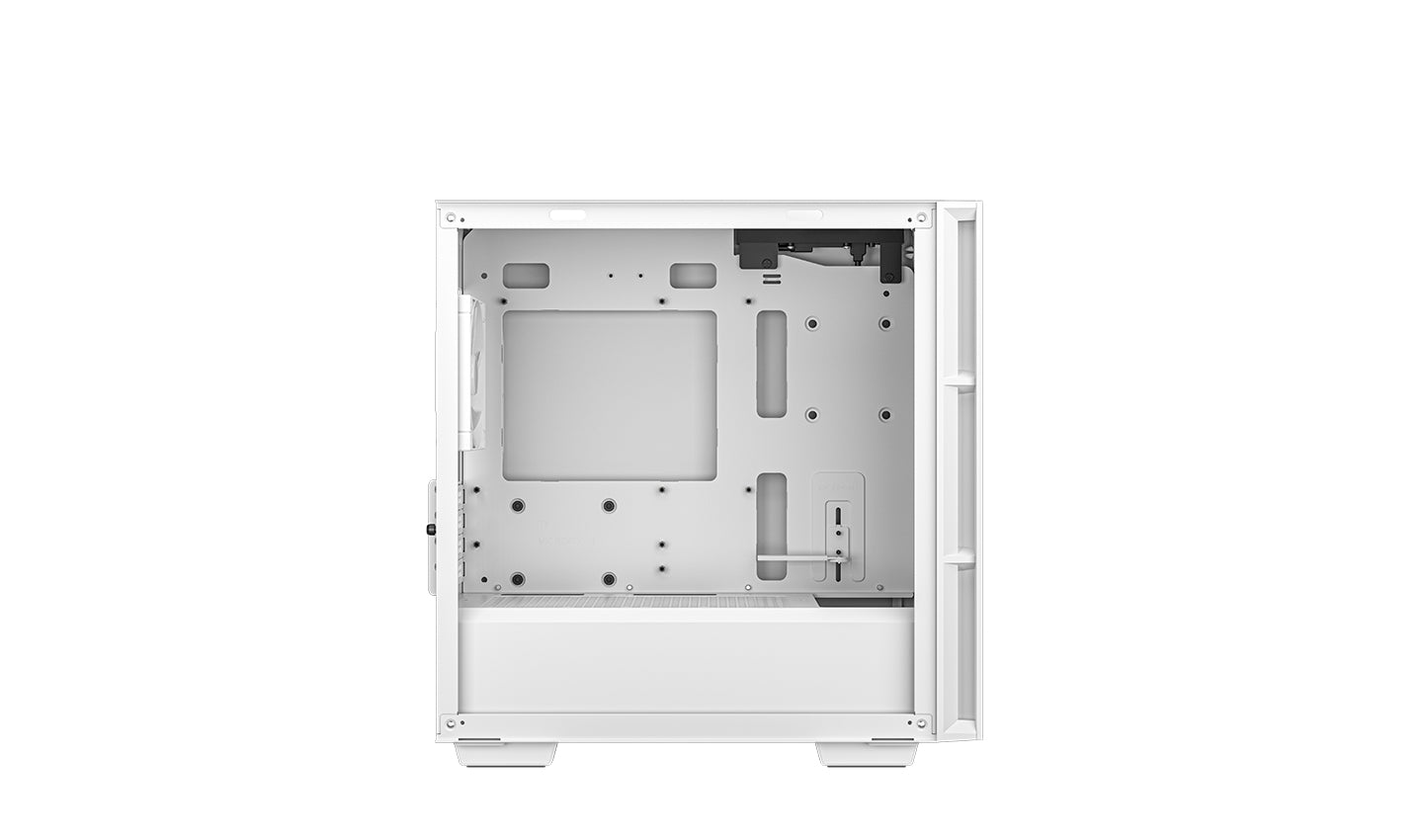

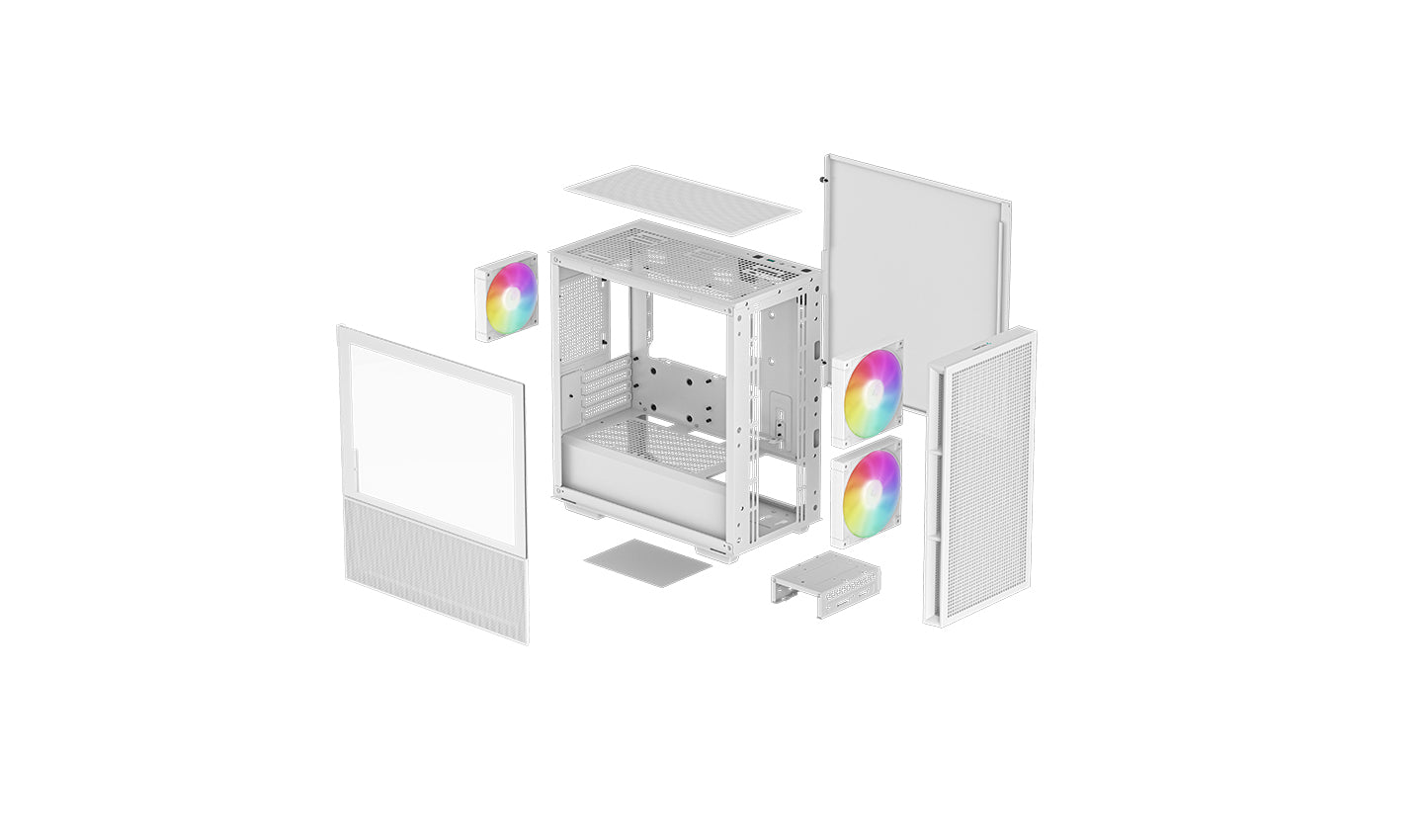

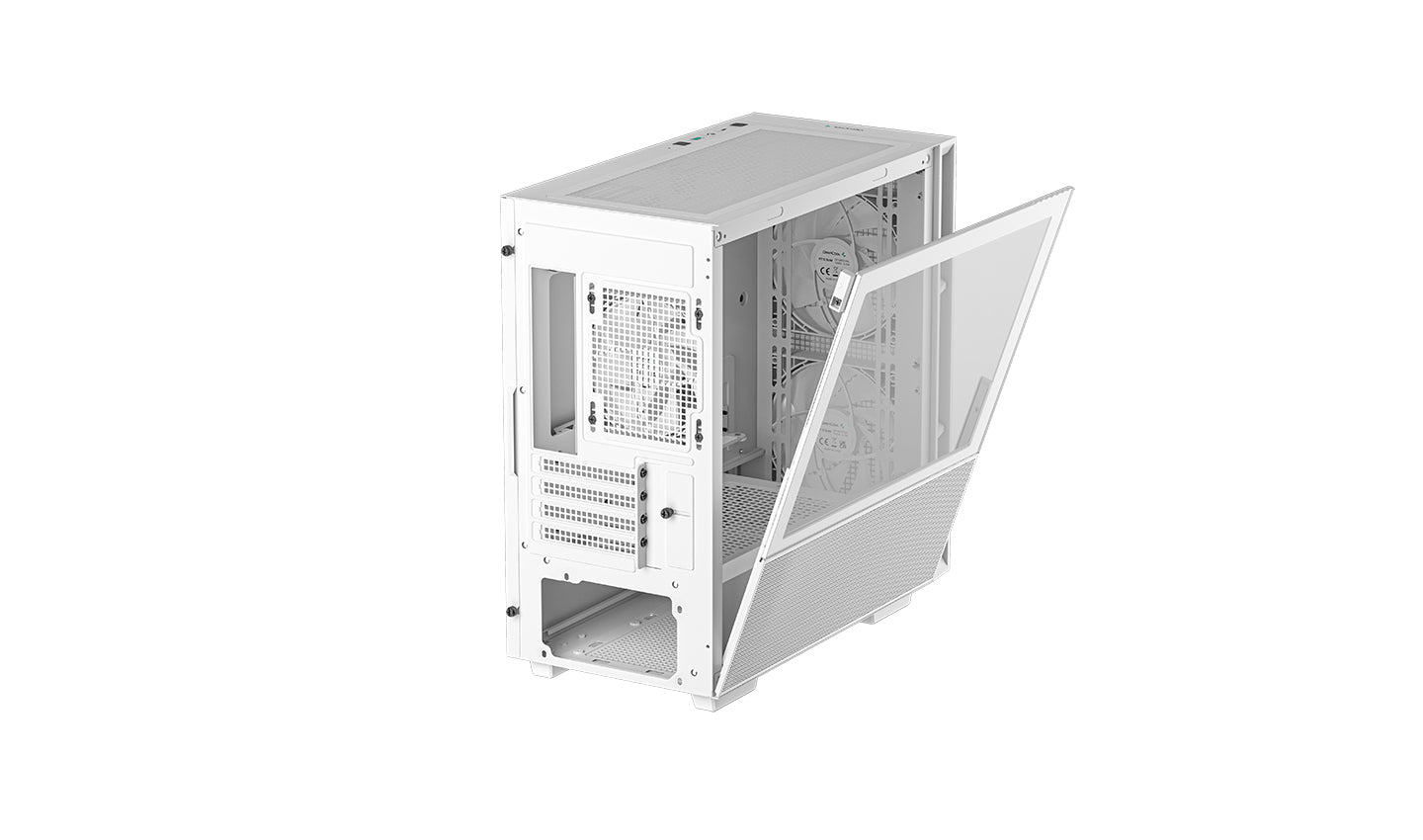

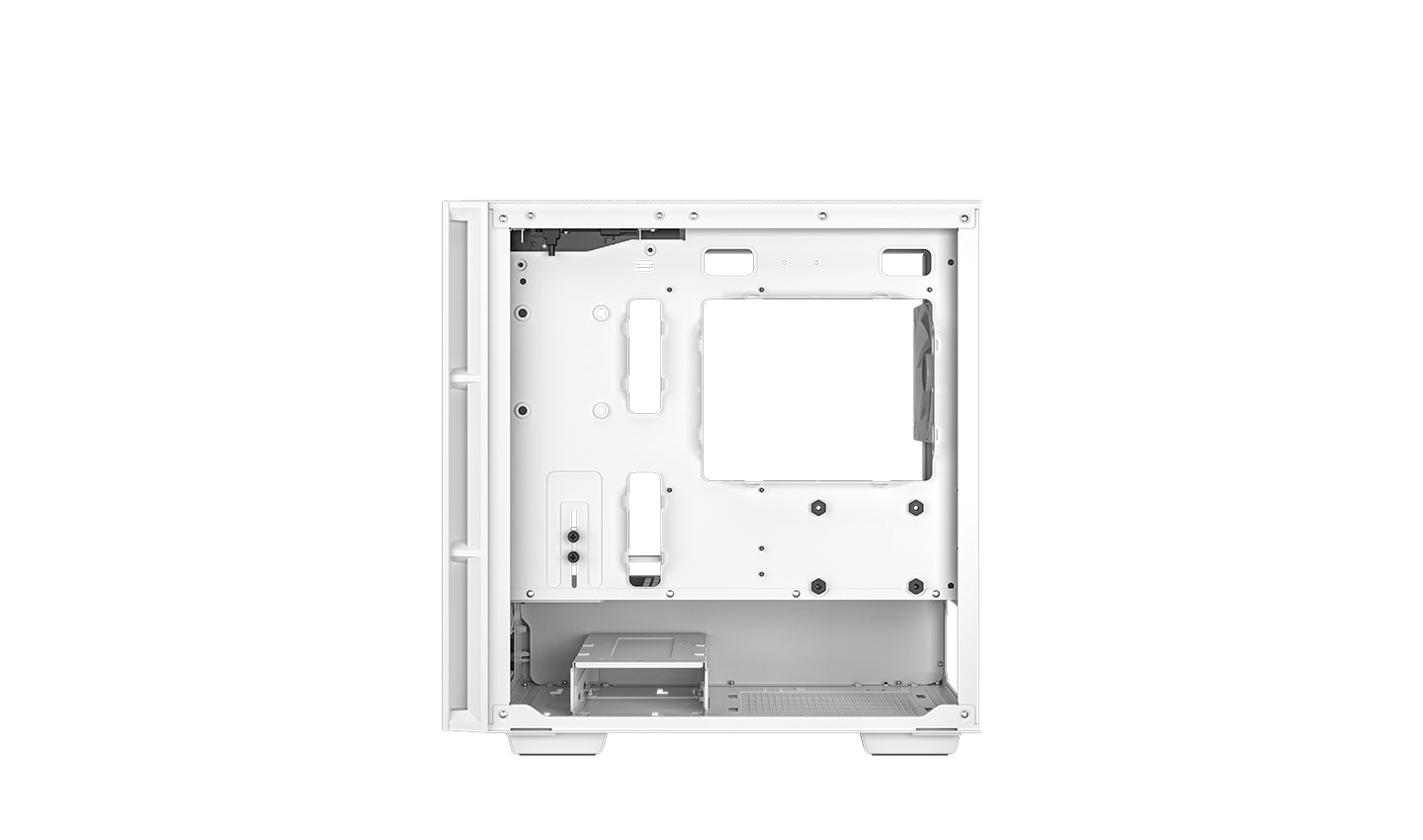

Building and maintaining the CH360 WH is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, a removeable hard drive cage, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.
CONVENIENCE AT ARM'S REACH

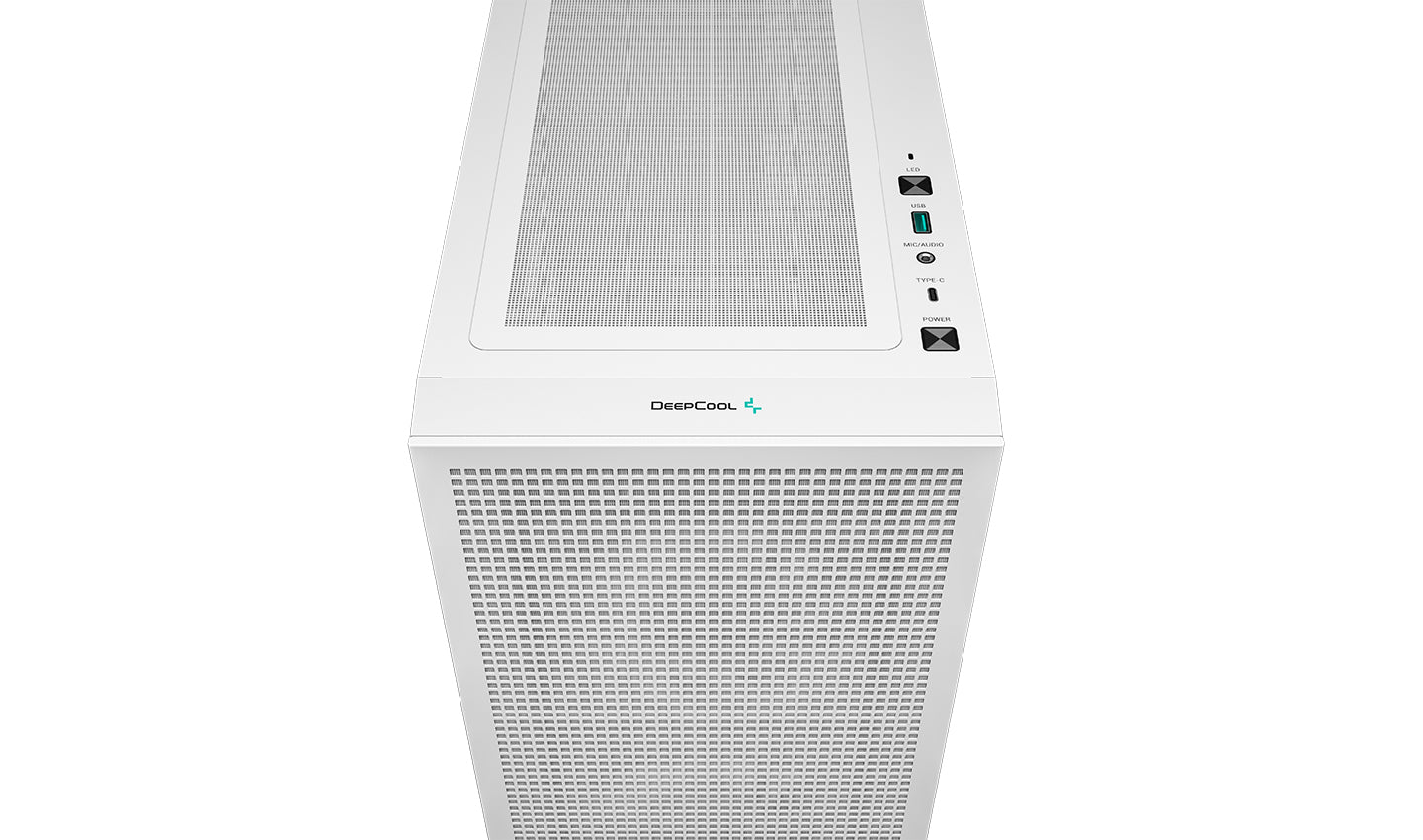

Everything necessary for daily routines is within reach with a Type-C, a USB 3.0 port, and a hybrid audio port, all conveniently located on the case I/O panel.
Technical Spec
Product Dimensions | 428×215×431mm(L×W×H) |
Net Weight | 6 KG |
Materials | ABS+SPCC+Tempered Glass |
Motherboard Support | Mini-ITX / Micro-ATX |
Front I/O Ports | USB3.0×1、Audio×1、TYPE-C×1 |
3.5" Drive Bays | 2 |
2.5" Drive Bays | 2+1 |
Expansion Slots | 4 Slots |
Pre-Installed Fans | Front: 2×140mm ARGB Rear: 1×120mm ARGB |
Fan Support | Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120mm PSU Shrouded: 2×120mm |
Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240mm Rear: 120mm |
CPU Cooler Height Limit | 165mm |
GPU Length Limit | 320mm |
Power Supply Type | ATX PS2 (maximum length: 160mm) |
EAN | 6933412774709 |
P/N | R-CH360-WHAPE3-G-1 |
