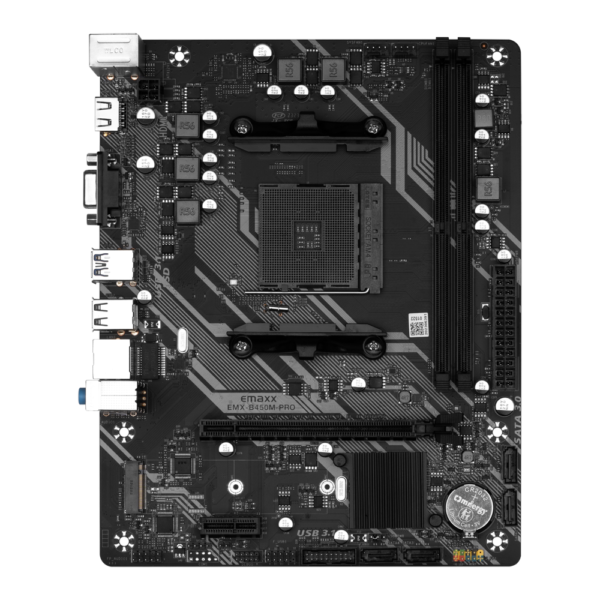

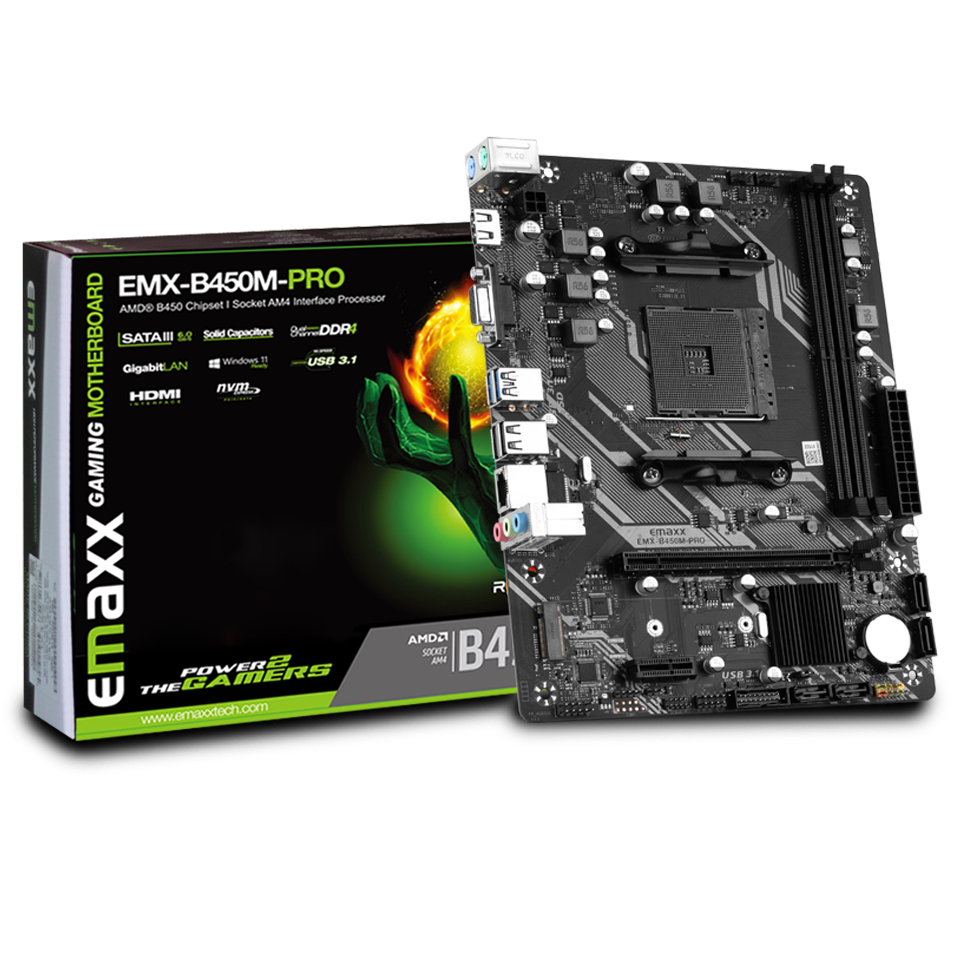

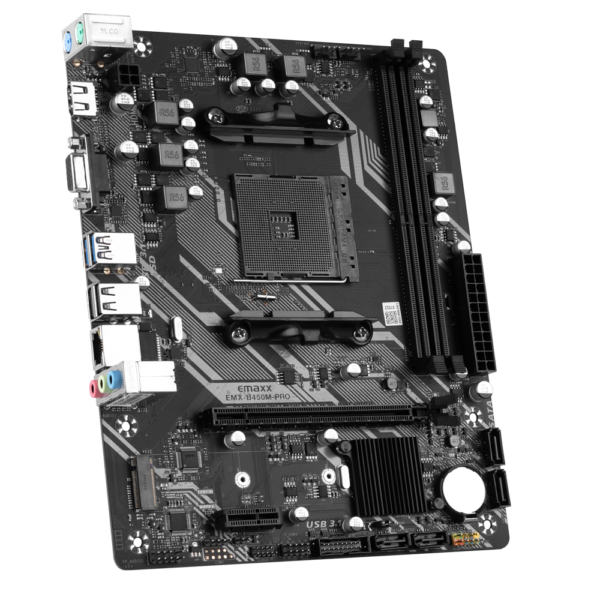

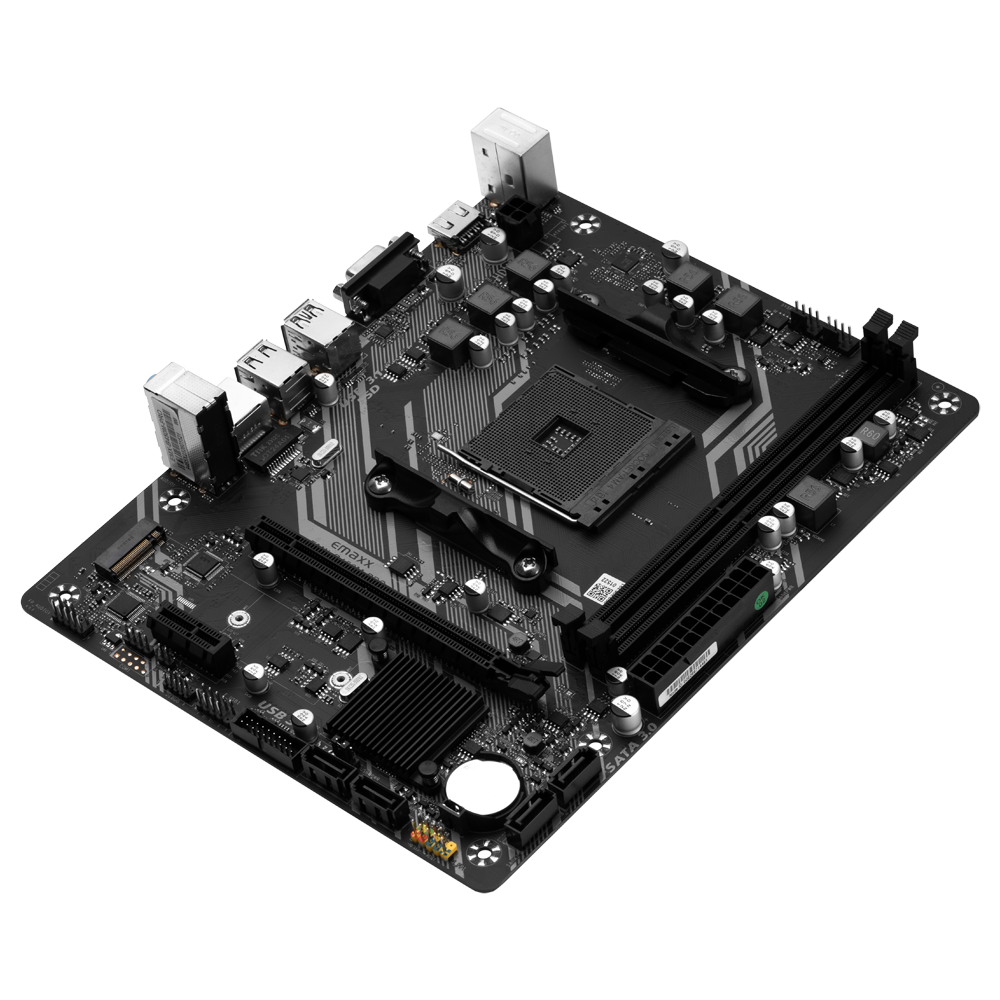

EMAXX EMX-B450M-PRO AMD Motherboard ® B450 Chipset,Socket AM4 Processor,Dual DDR4, 2*DIMM

• AMD® B450 Chipset
• Socket AM4 Processor
• Dual DDR4, 2*DIMM
• M.2 Slot (* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU)
• Onboard Gigabit Ethernet Lan
• Onboard 5.1 Channel HD Audio

Expansion Slots

• 1 PCIEX16 3.0
• 1 PCIEX1 3.0

Internal Connectors

• Power: 1 x 24-Pin Power Connector / 1 x 4-Pin Power Connector
• Storage: 4 x SATA III Connectors (6Gb/s)
• Cooling: 1 x CPU Fan / 1 x System Fan
• I/O: 1 x Front Panel Header / 1 x Front Audio Header / 1x clear CMOS jumper
• 1 x USB 3.0 (Front) / 1 x USB 2.0 (Front)
• Form Factor: Micro ATX Form Factor Dimension: 220mm x 175mm

Rear panel Connectors
1 x PS/2 Keyboard/Mouse /2 x USB 3.2 Ports/2 x USB 2.0 Ports/1 x HDMI Port/1 x VGA Port/1 x LAN Port/3 x Audio Jacks

Included in the Box

• 1 EMX-B450M-PRO Motherboard
• 1 User Manual
• 1 SATA cable
• I/O Shield
