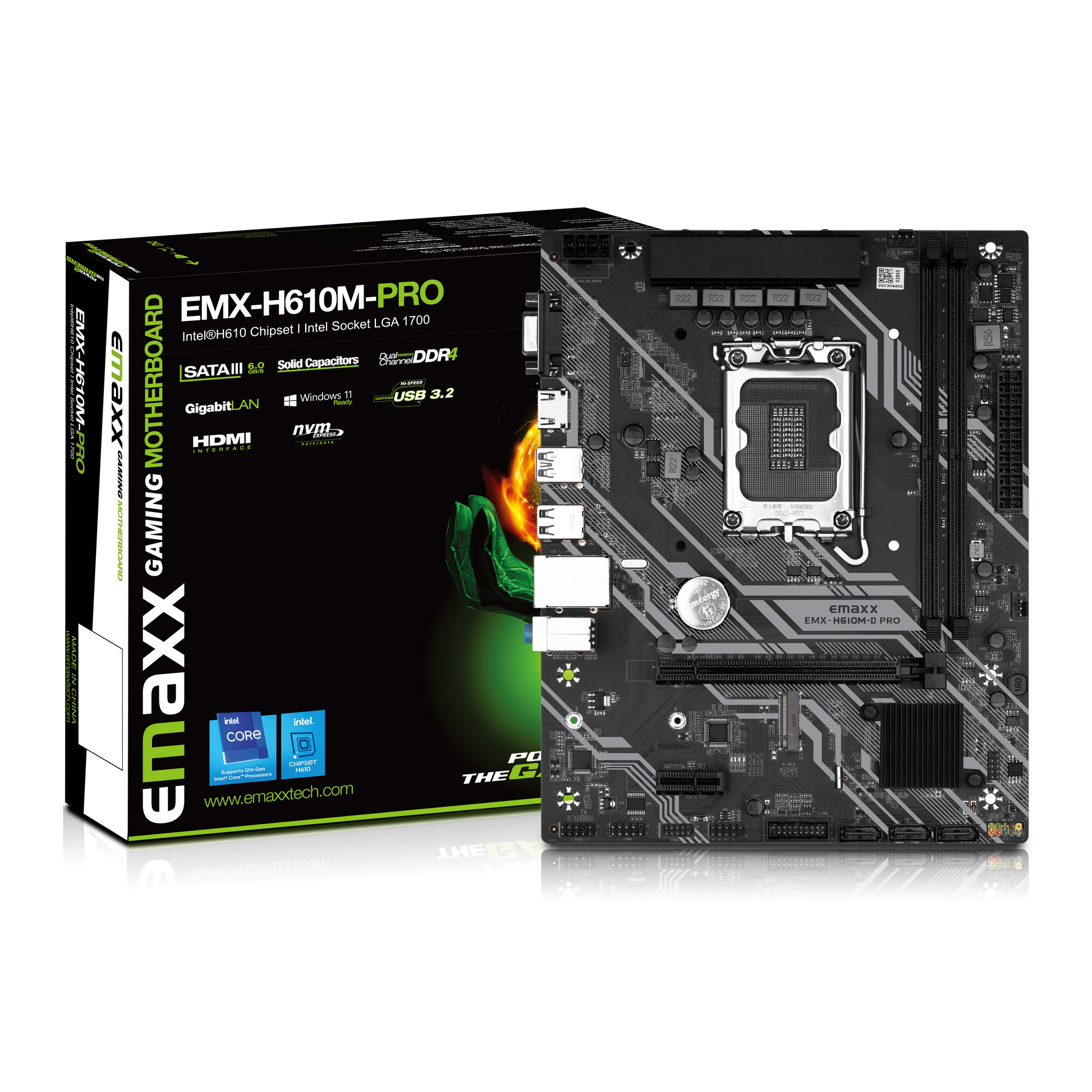

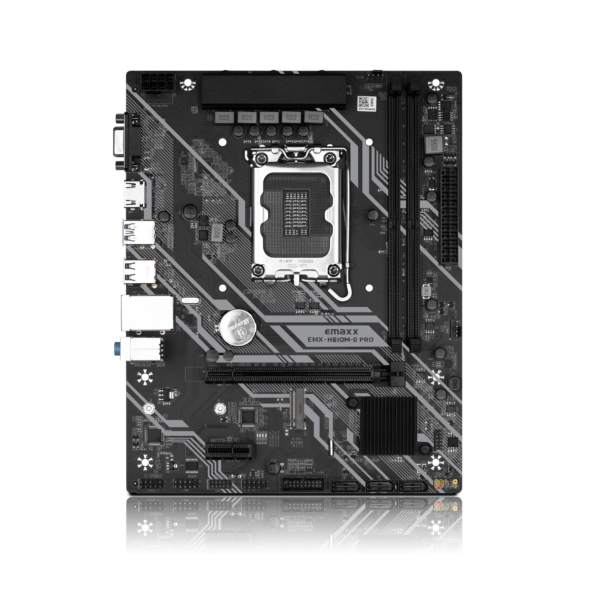

EMAXX EMX-H610M-PRO MATX MB Intel®H610 high-speed chipset, Intel Socket LGA 1700, 12th/13th generation processor

• Intel®H610 high-speed chipset
• Intel Socket LGA 1700
• 12th/13th generation processor
• (CPU overclocking technology is not supported)
• Dual DDR4, 2*DIMM
• M.2 Slot
• Onboard Gigabit Ethernet Lan
• Onboard 5.1 Channel HD Audio

Expansion Slots

• 1 PCIEX16 4.0
• 1 PCIEX1 3.0

Internal Connectors

• Power: 1 x 24-Pin Power Connector / 1 x 4-Pin/8-Pin Power Connector
• Storage: 3x SATA3.0 interfaces /1 m.2 slot 1x M.2 X4 3.0 slot (supporting 2242/2280 PCIE X4/X2 channel SSD)
• Cooling: 1 x CPU Fan / 1 x System Fan
• I/O: 1 x Front Panel Header / 1 x Front Audio Header / 1 Header Comport / 1x clear CMOS jumper /1 x USB 3.0 (Front) / 1 x USB 2.0 (Front)
• Form Factor: Micro ATX Form Factor Dimension: 225mm x 180mm

Rear panel Connectors
2 x USB 3.2 Ports/4 x USB 2.0 Ports/1 x HDMI Port/1 x VGA Port/1 x LAN Port/3 x Audio Jacks

Included in the Box

• 1 EMX-H610M-D Motherboard
• 1 Quick Installation Guide
• 2 SATA cables
• 1 Driver and Utility DVD
• I/O Shield
