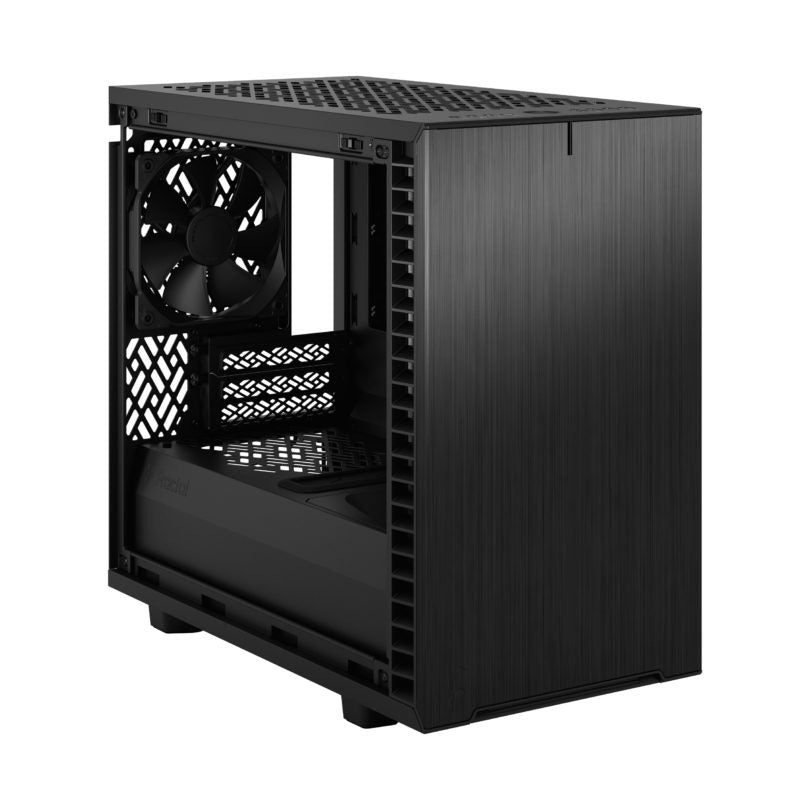

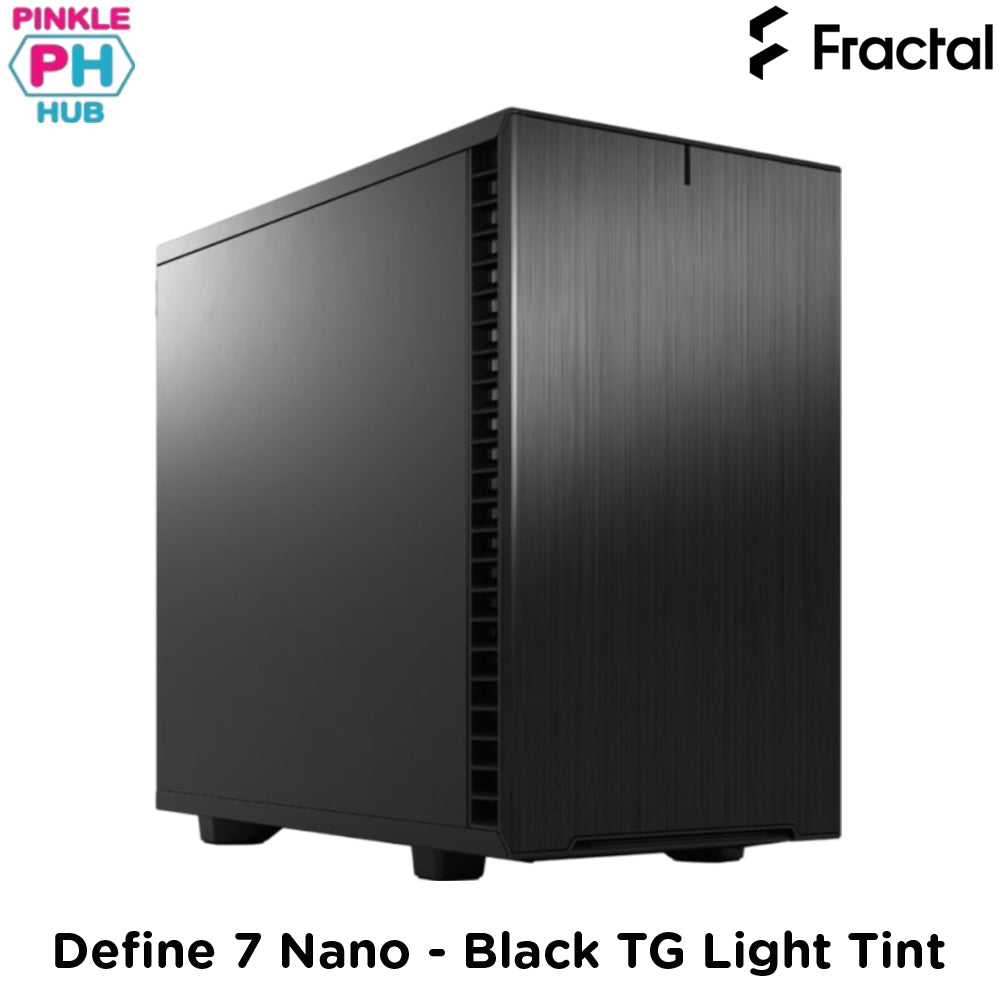

FRACTAL Define 7 Nano - Black TG Light Tint

FRACTAL Define 7 Nano - Black TG Light Tint

Brand : FRACTAL

SKU:  FD-C-DEF7N-02

₱7,200.00
₱8,400.00 ₱7,200.00
Sale! Sold out
Taxes included.

Low stock: 1 left

Define 7 Nano

The Define 7 Nano re-defines precision, bringing clean design and a host of features from its larger siblings to a minimized form factor. The compact yet spacious interior can accommodate all Mini ITX and Mini-DTX motherboards, and the option to house a GPU up to 306 mm, making it highly versatile.



  • • Compact yet spacious interior accommodates any Mini ITX and Mini-DTX motherboard
  • • Room for GPU up to 306 mm with a 25 mm front fan
  • • Flexible storage option supporting one 3.5” drive and three 2.5’’ drives

pecifications

  • 3.5"/2.5" drive mounts
    1 (included)
  • 2.5" drive mounts
    3 (2 included)
  • Expansion slots
    2

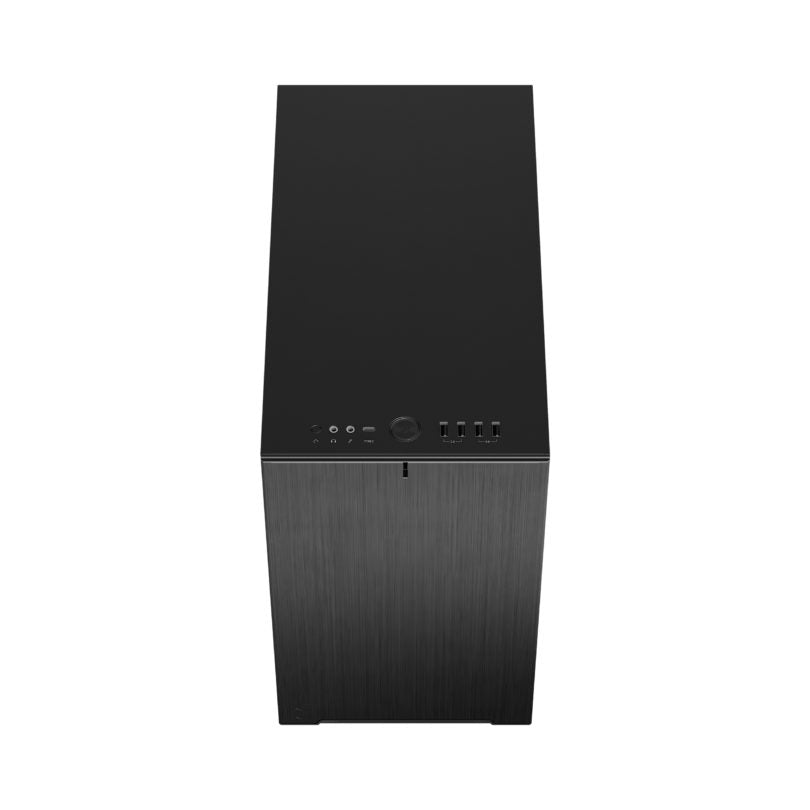

  • Front interface
    1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, 2x USB 2.0, Audio
  • Total fan mounts
    6x 120 mm or 3x 140 mm (top 140mm fan mount requires 15 mm slim fans)
  • Front fan
    2x 120/140 mm (1x Dynamic X2 GP-14 included)
  • Top fan
    2x 120 or 1x 140 slim fan (max 15 mm)
  • Rear fan
    1x 120 mm (1x Dynamic X2 GP-12 included)
  • Bottom fan
    1x 120 mm (requires removal of HDD tray)

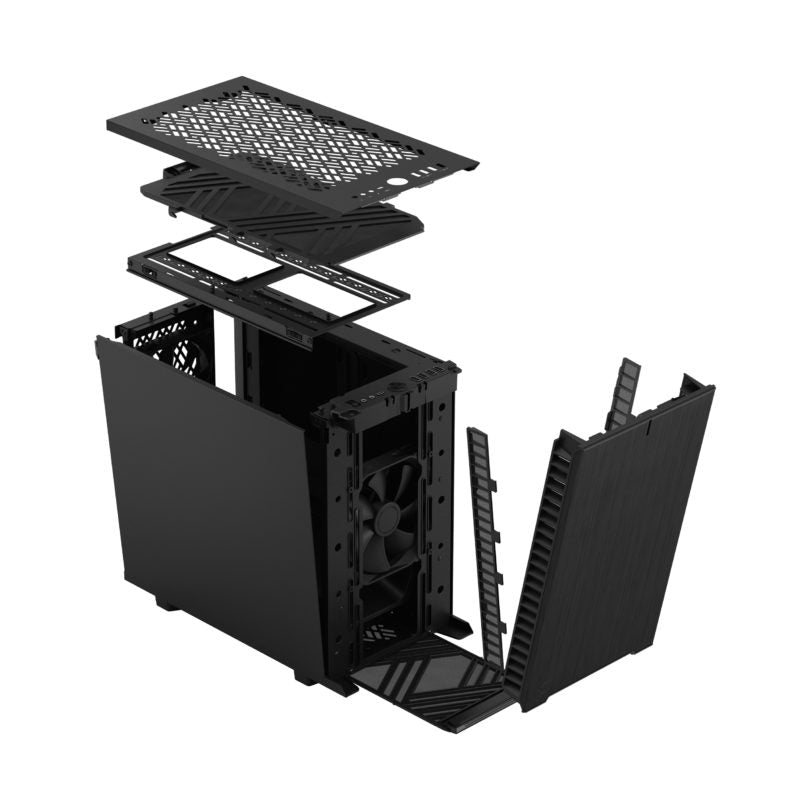

  • Dust filters
    Top, Front, Bottom and PSU

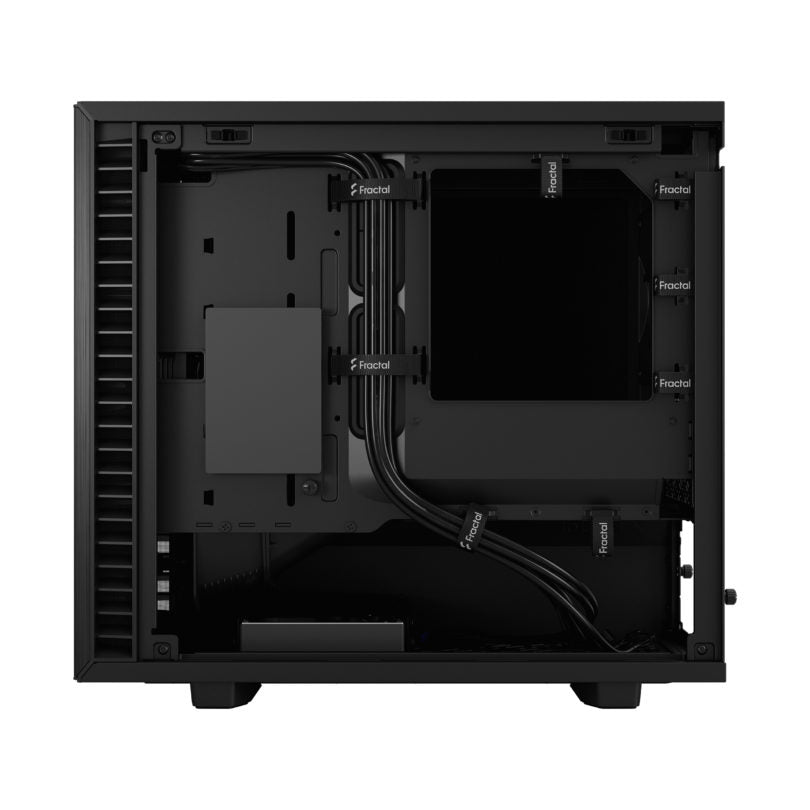

  • Cable routing space
    15-25 mm
  • Cable routing grommets
    Yes
  • Fixed cable ties
    Yes
  • Tool-less push-to-lock
    Both side panels
  • Captive thumbscrews
    SSD and PSU brackets
  • Left side panel
    Industrial sound-damped steel (Solid) or Tinted Glass panel (TG)
  • Right side panel
    Industrial sound-damped steel

Compatibility

  • Motherboard compatibility
    Mini ITX / Mini-DTX
  • Power supply type
    ATX
  • Front radiator
    120/240, 140/280 mm (316 mm max height, 146 mm max width, 280 mm recommended in “push” configuration for easier fit)
  • Top radiator
    N/A
  • Rear radiator
    120 mm
  • Bottom radiator
    N/A
  • PSU max length
    165 mm recommended (200 mm without HDD-tray and modular air duct)
  • GPU max length
    331 mm, 306 mm with front fan
  • GPU max thickness
    57 mm / 2.8 slot
  • CPU cooler max height
    167 mm

Dimensions

  • Case dimensions (LxWxH)
    399 x 205 x 361 mm
  • Case dimensions w/o feet/protrusions/screws
    390 x 205 x 345 mm
  • Net weight
    7.1kg (TG) / 7.2kg (solid)
  • Package dimensions (LxWxH)
    417 x 277 x 471 mm
  • Gross weight
    8.5kg (TG) / 8.6 (solid)

Other

  • Package contents
    Define 7 Nano computer case, User manual, Accessory box, Ventilated top panel
  • SKU
    Black TG Light Tint: FD-C-DEF7N-02
  • EAN
    Black TG Light Tint: 7340172702849
  • UPC
    Black TG Light Tint: 843276102845
  • JAN
    Black TG Light Tint: 4537694282321
