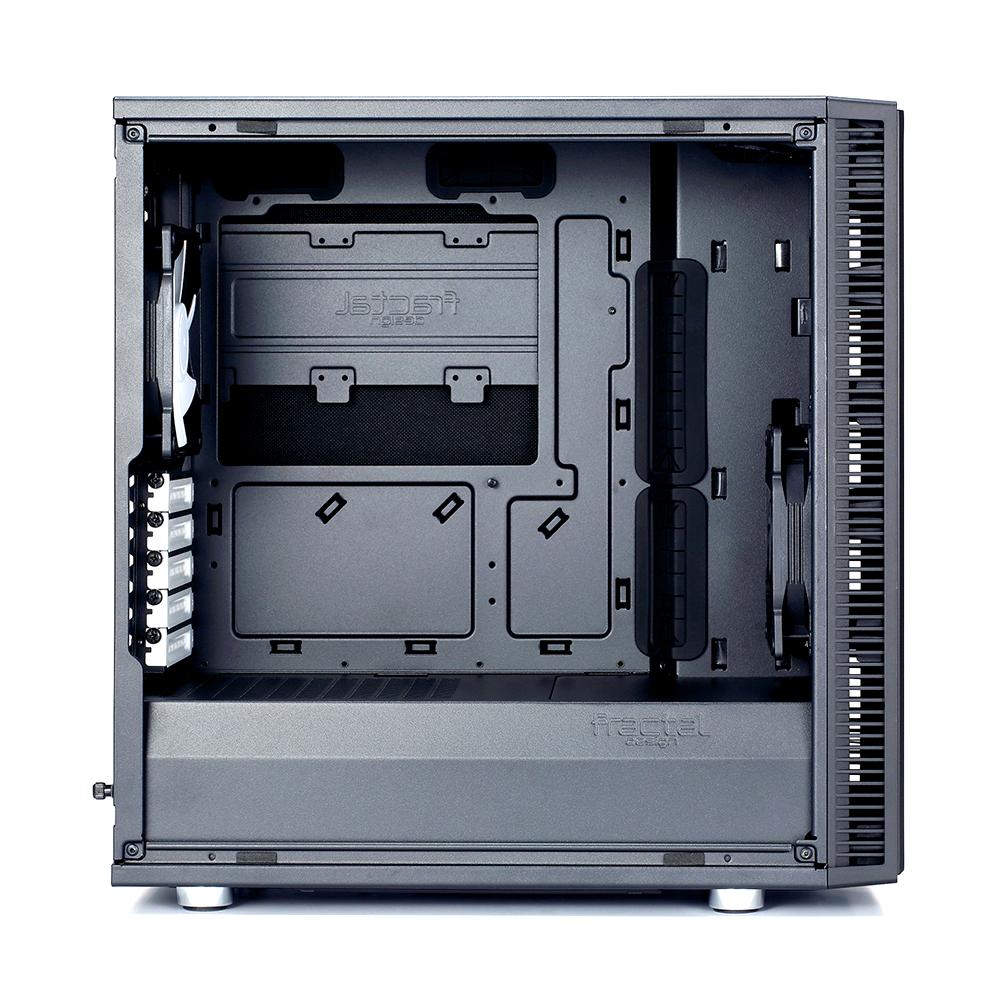

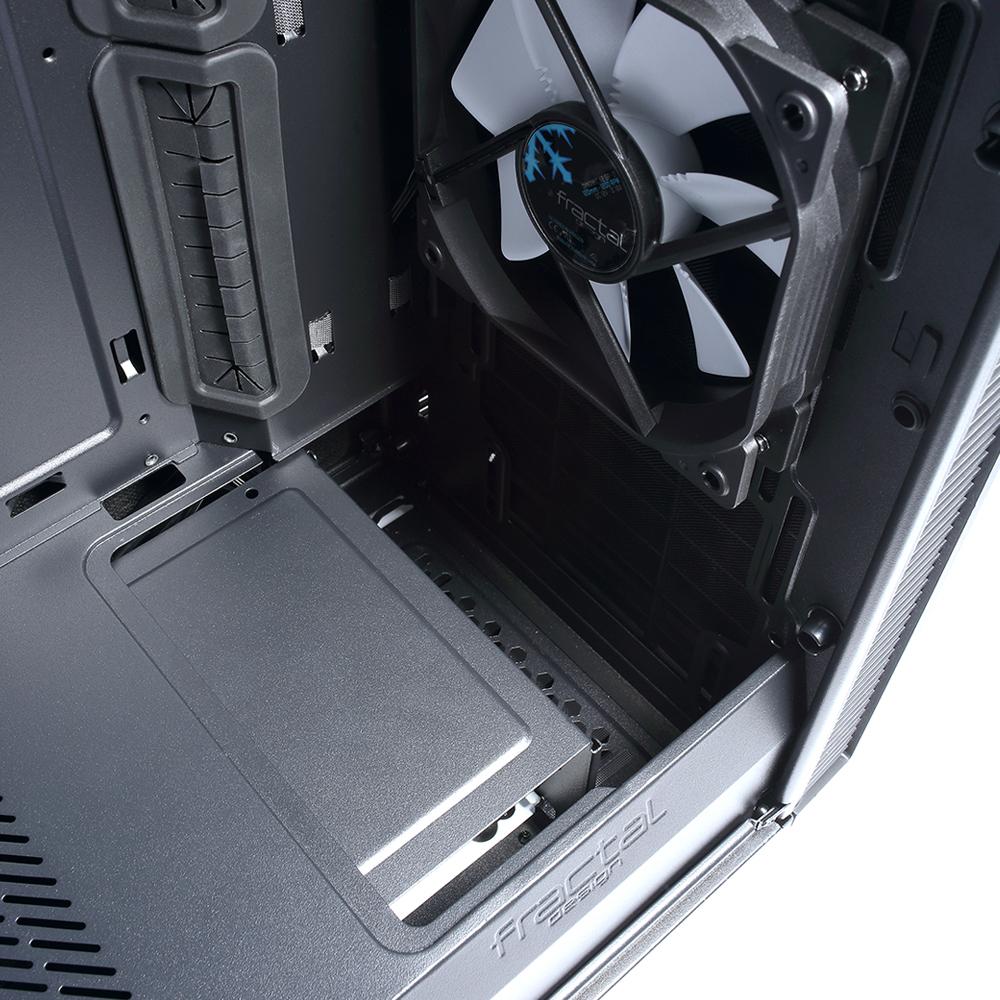

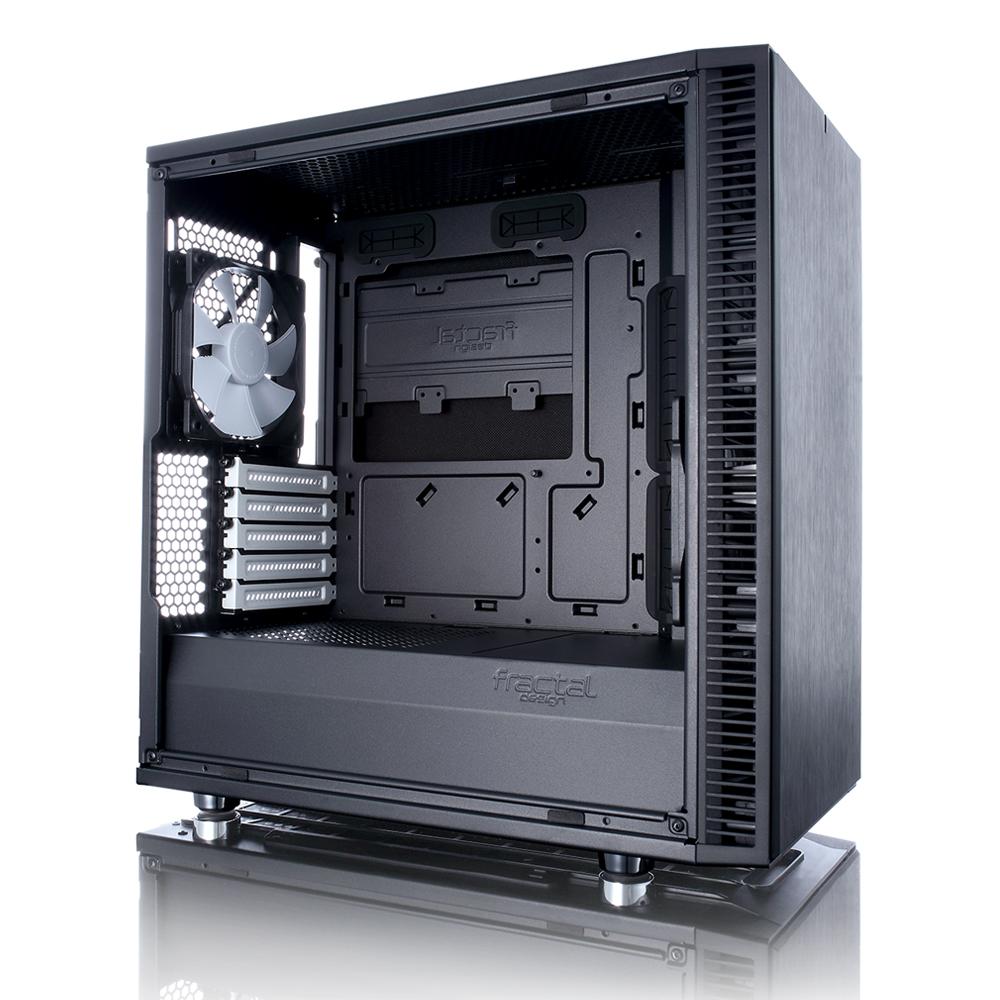

FRACTAL Define Mini C - Black - Window
FRACTAL Define Mini C - Black - Window
Brand : Fractal Design
SKU: SKU: FD-CA-DEF-MINI-C-BK-W
Low stock: 1 left
Couldn't load pickup availability
Key features
● Define Series sound dampening with ModuVent™ technology for silent operation in a compact micro ATX form factor.
● Optimized for high airflow and silent computing.
● Side and front panels are lined with industrial-grade sound dampening material.
● Flexible storage options with room for up to 5 drives.
● Comes with two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans optimized to deliver maximum airflow while still maintaining
a low noise level.
● Equipped with 5 PCI expansion slots for powerful dual GPU setups.
● Open air designed interior creates an unobstructed airflow path from the front intake to the rear exhaust.

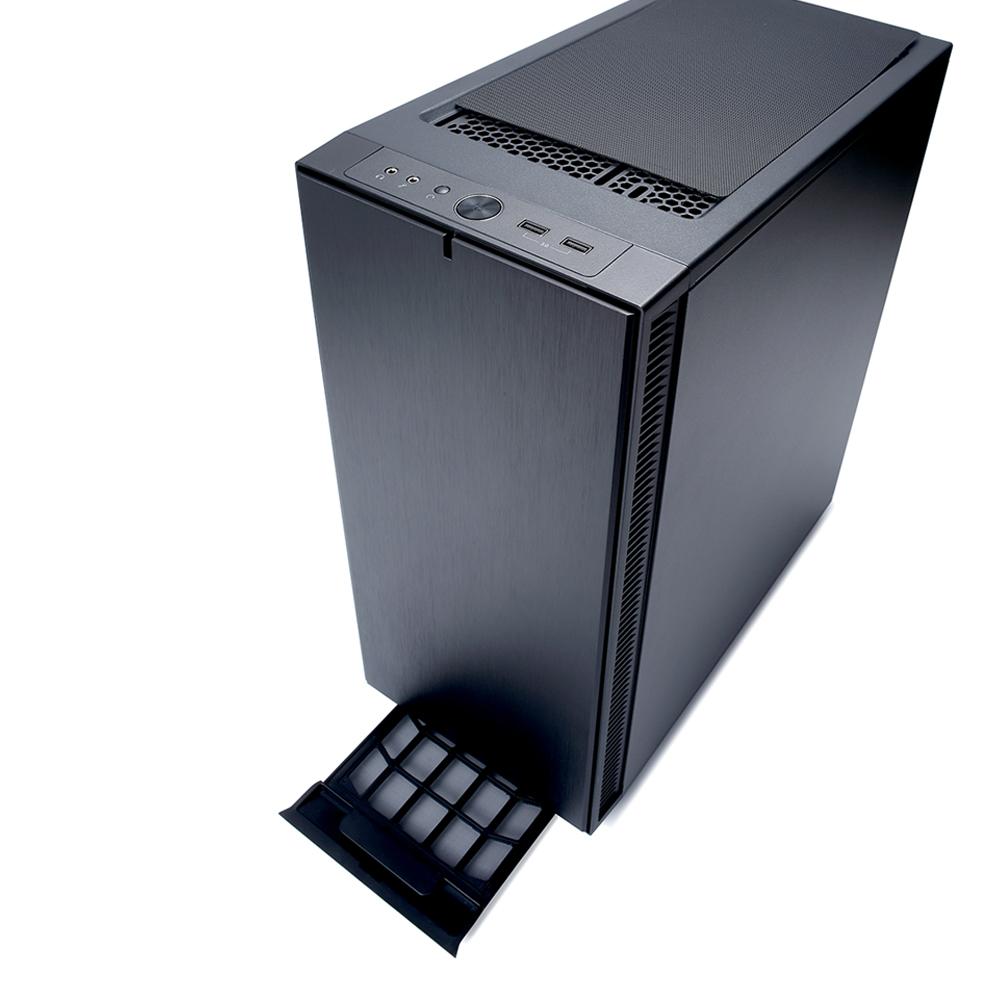

● Easy-to-clean high airflow nylon filters on the front and base with full PSU coverage and front access for convenience.
● Includes optional top filter to prevent dust buildup when ModuVent is removed for additional fan slots.

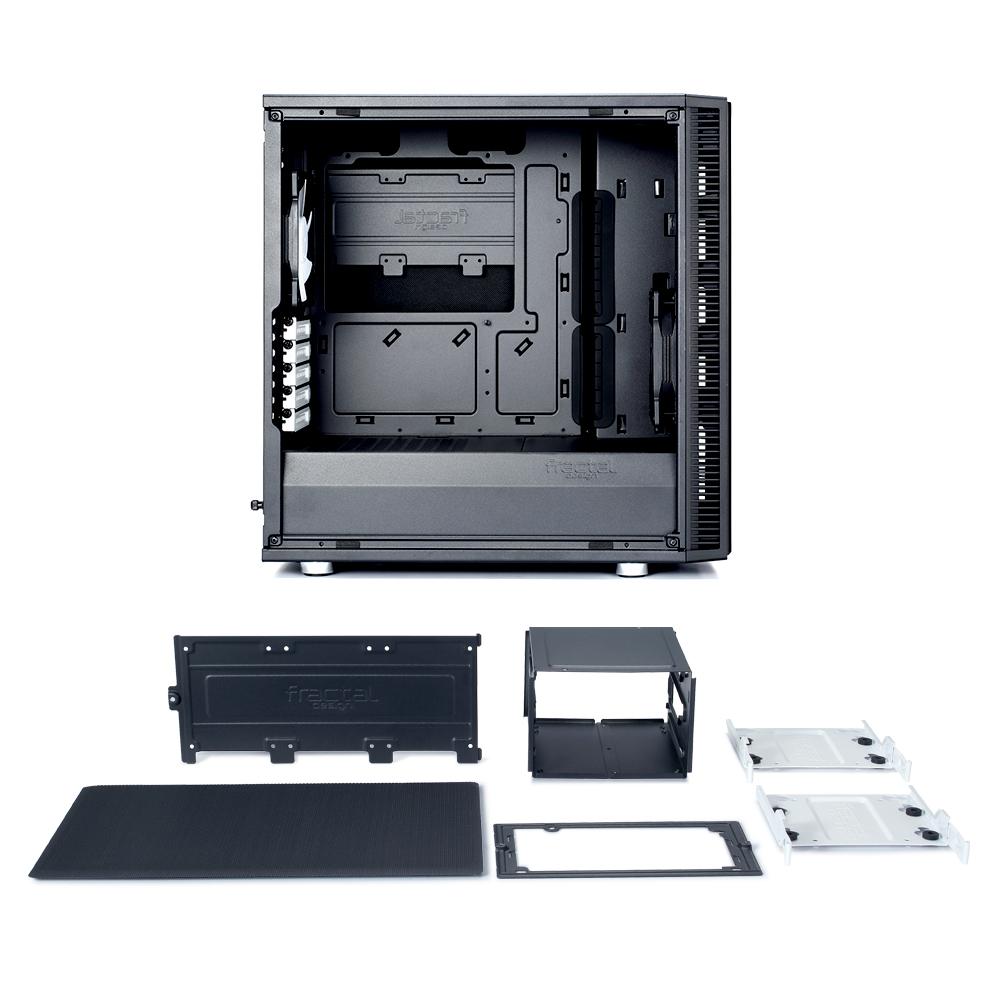

● Power supply shroud conceals drive cage and excess cabling for an even quieter and cleaner looking interior free of airflow obstructions
General specification
MODEL: Define Mini C- Black -Window
3.5" or 2.5" Drive capacity • 2
Dedicated 2.5" drive capacity • 3

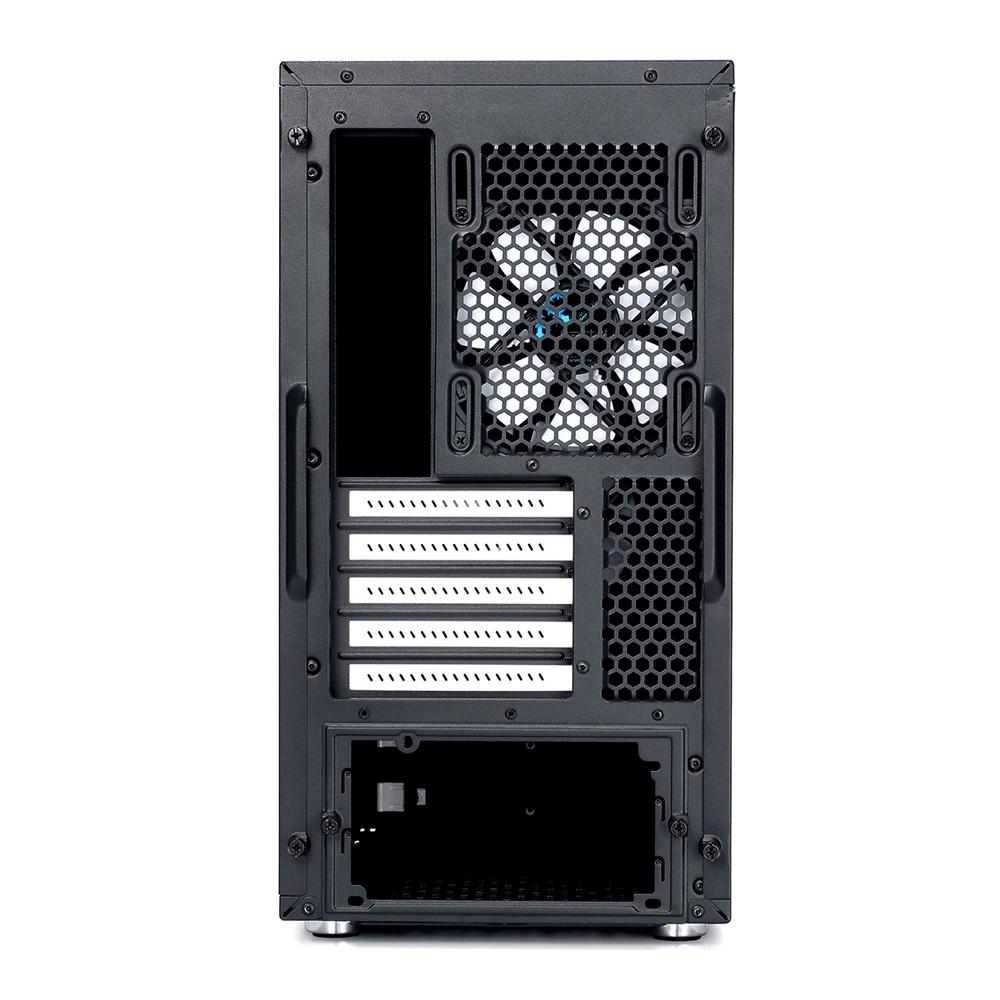

Expansion slots • 5
Motherboard compatibility • mATX, ITX
Power supply type • ATX
Total fan mounts • 6
Front fan • 2 x 120/140
• 1 x Dynamic X2 GP-12 included
Top fan • 2 x 120/140
Rear fan • 1 x 120
• 1 x Dynamic X2 GP-12 included
Bottom fan •1 x 120
Side fan • No

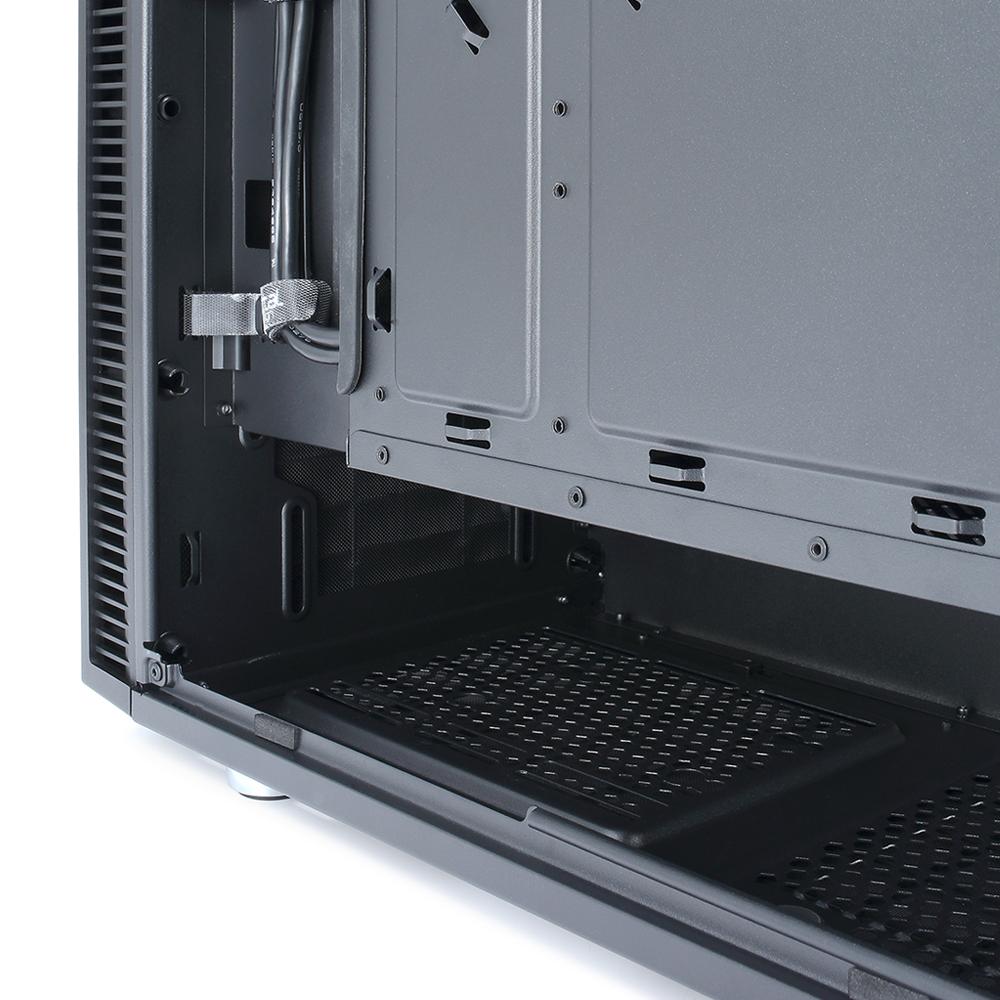

Dust filters • Bottom fan + PSU
• Front fans
• Top panel
Front radiator • 120/240mm
• 140/280mm (max width 144mm)
Top radiator • 120/240mm (max component height on motherboard 40 mm)
Rear radiator • 120mm (max width 125mm)
Power supply depth limit • Maximum 175mm recommended
Graphics card length limit • Max 315mm with front fan mounted
CPU cooler height limit • 168mm

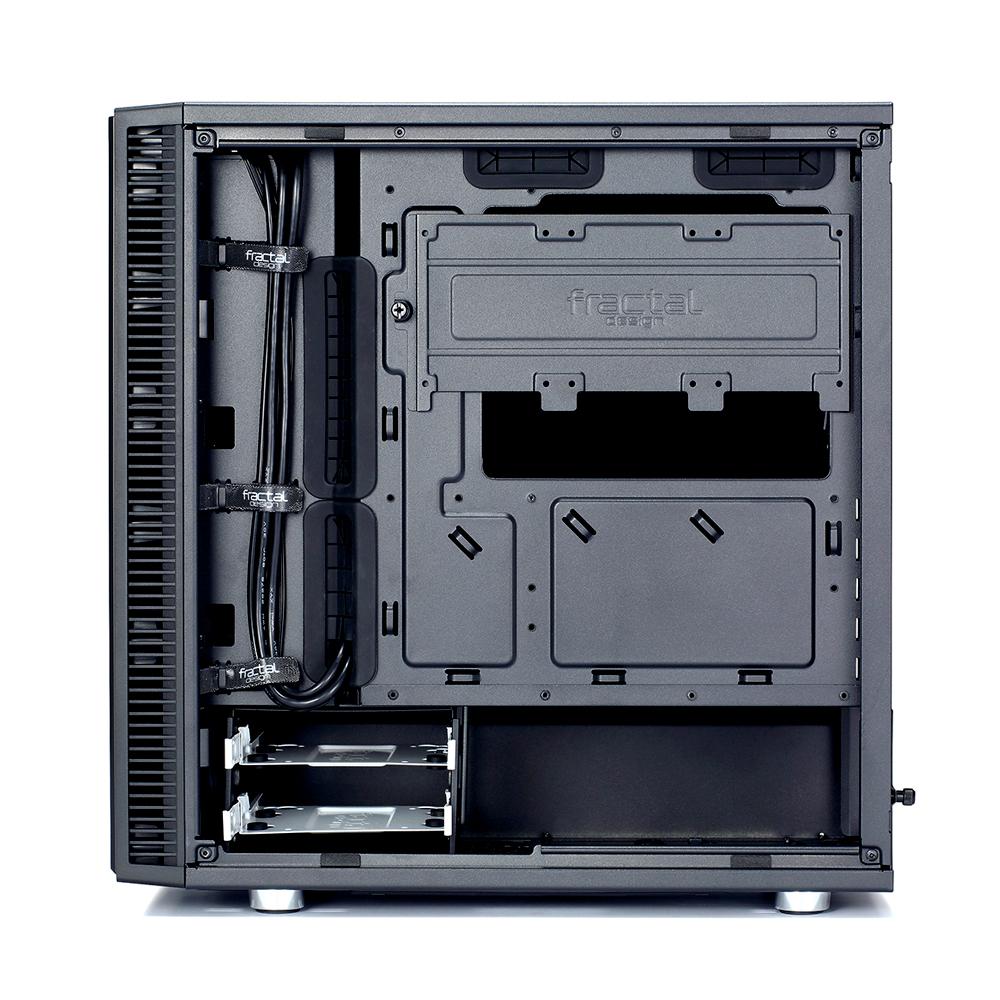

Cable routing • 15-35mm space
Cable routing grommets • Yes
Fixed Velcro straps • Yes
Captive thumbscrews • Both side panels
• SSD brackets

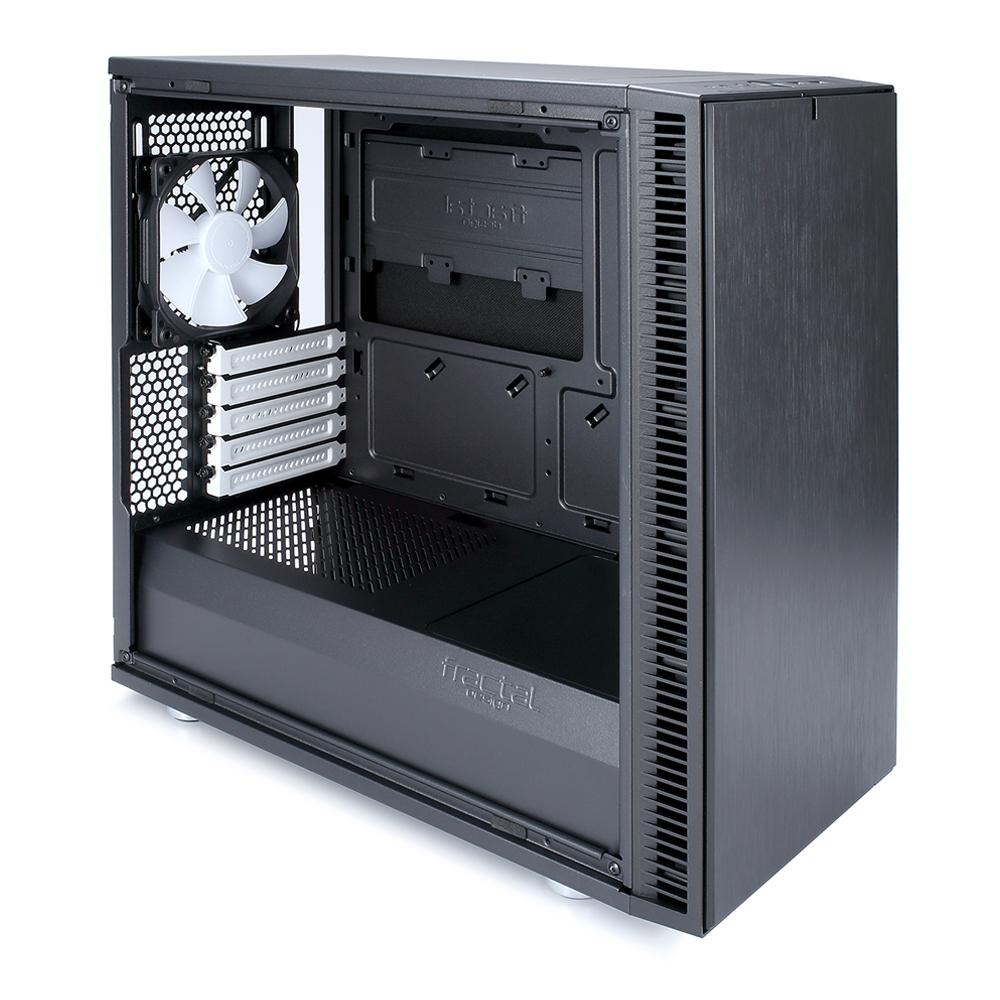

Left side panel • Clear transparent window
Right side panel • Dense sound-dampening material
