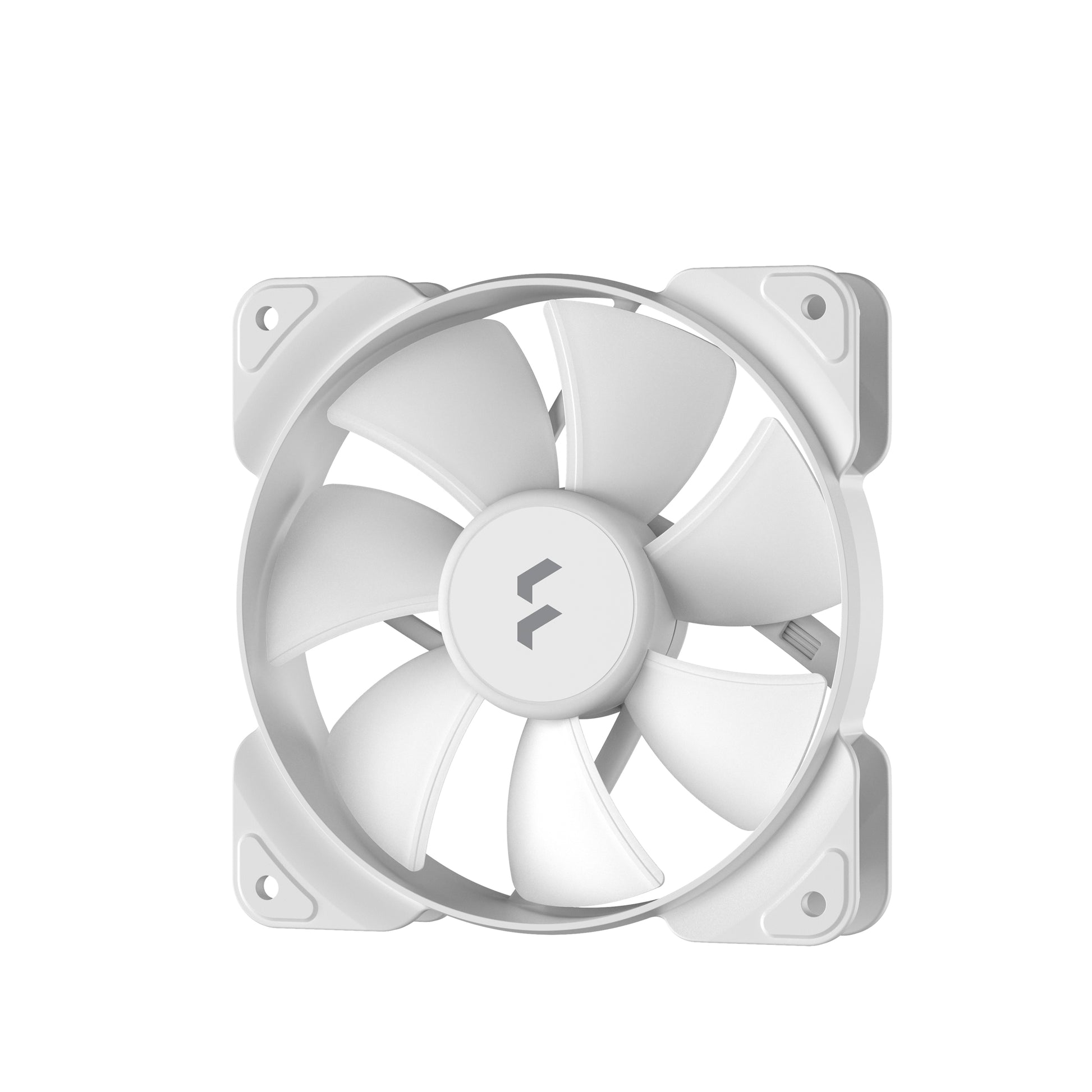

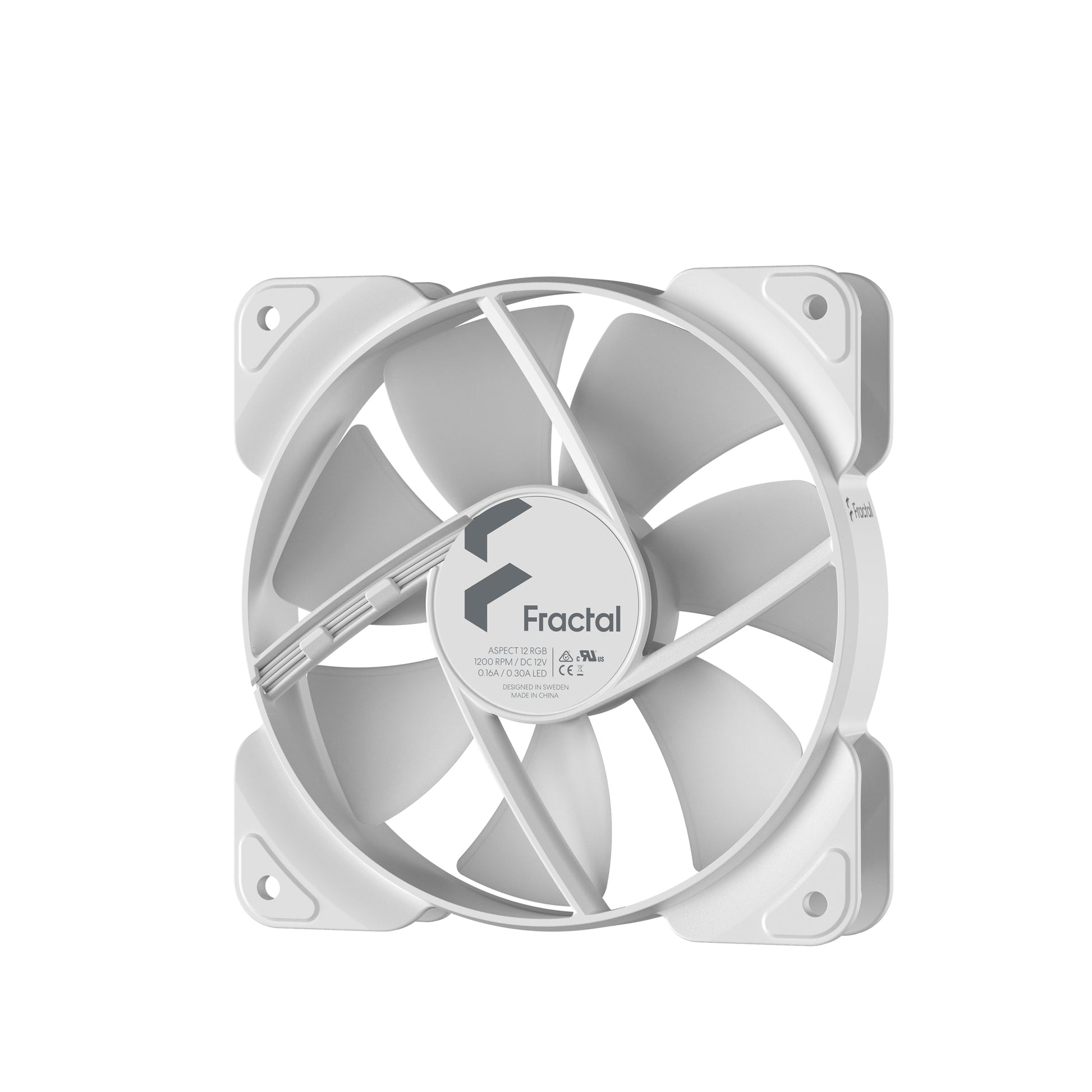

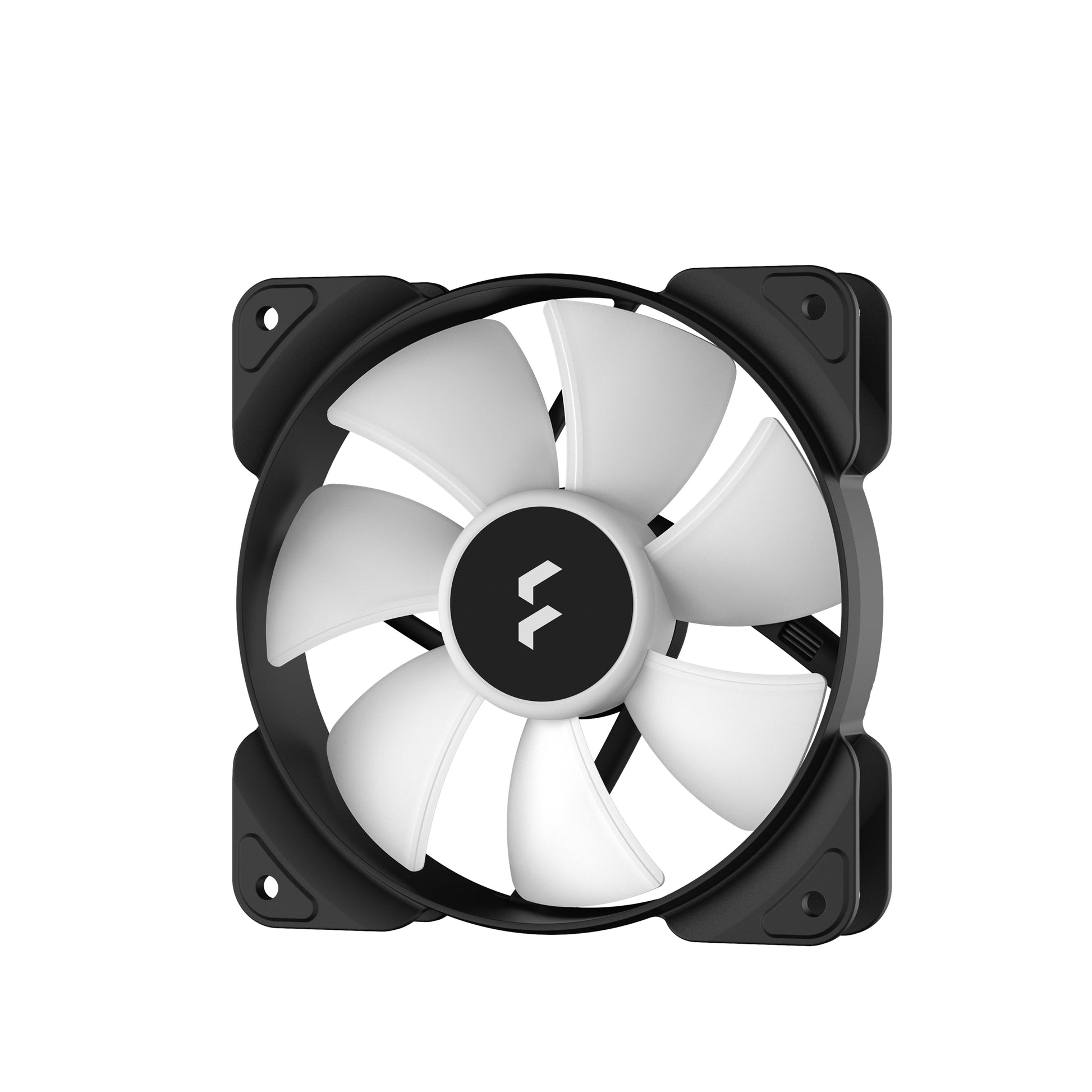

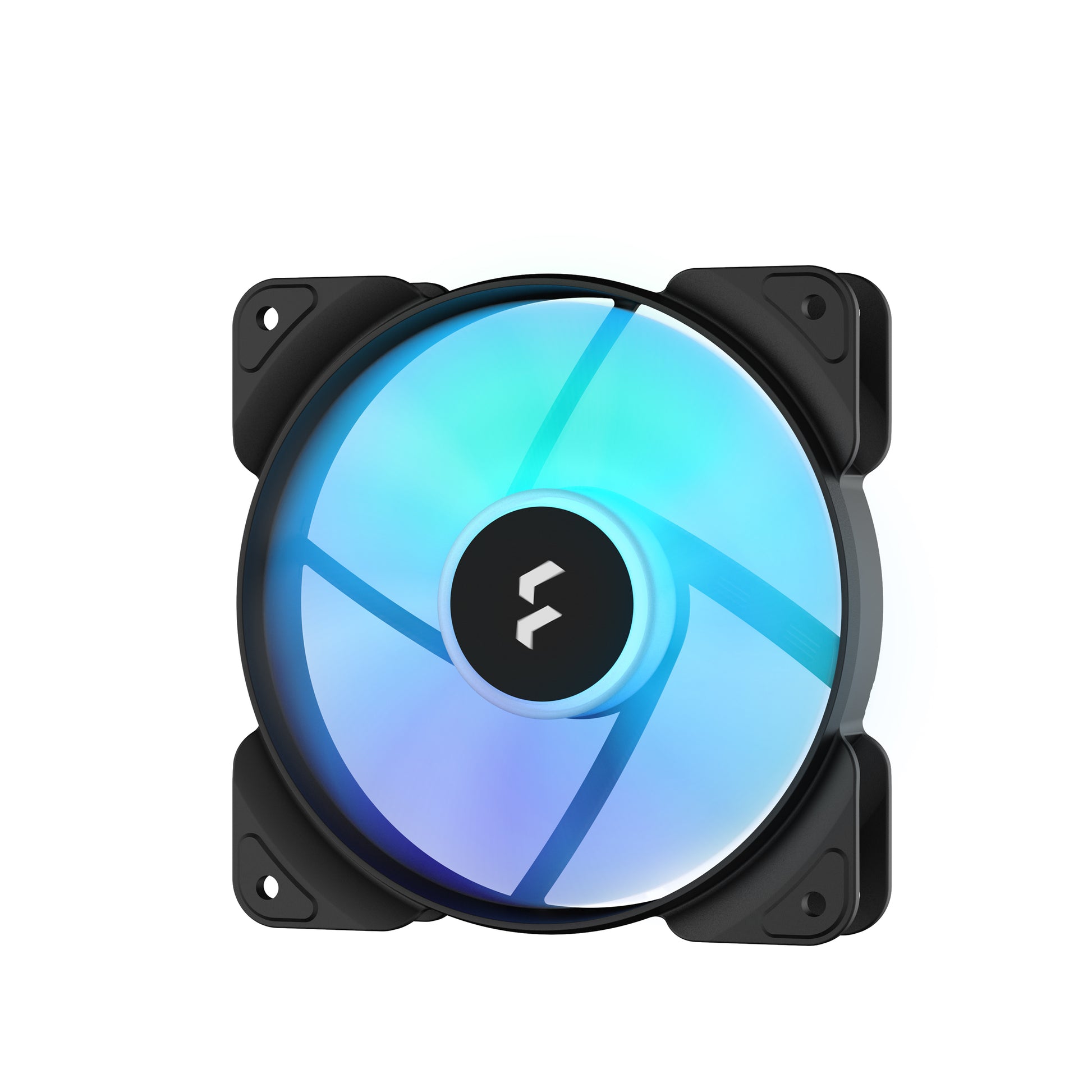

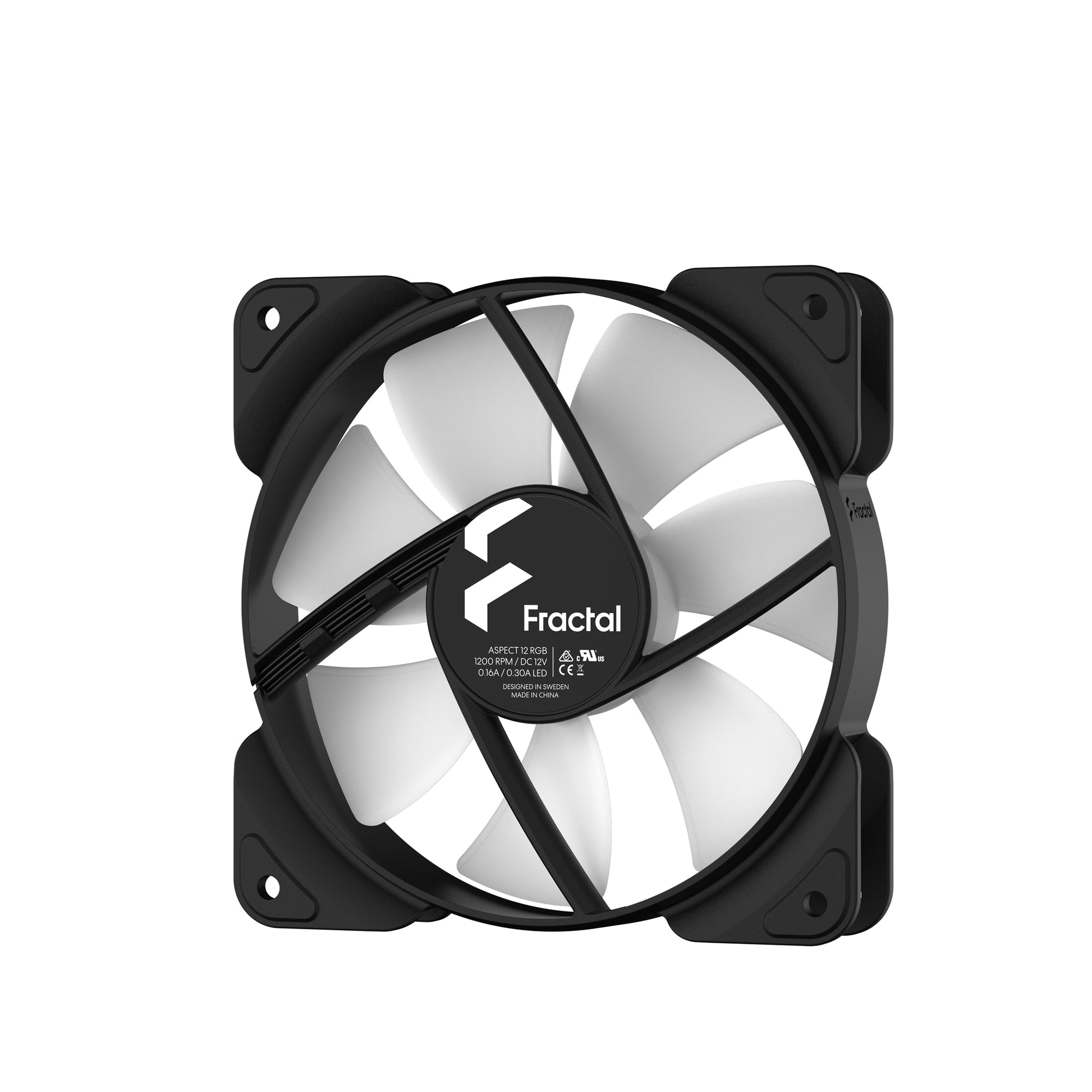

Fractal Design Aspect 12 RGB

Fractal Design Aspect 12 RGB

Brand : Fractal Design

SKU:  FD-F-AS1-1204

₱640.00
₱690.00 ₱640.00
Sale! Sold out
Taxes included.

15 in stock

Color

Aspect 12 RGB

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.

  • Less turbulence thanks to aerodynamic stator struts
  • 6 individually addressable hub-mounted RGB LEDs
  • Supports ASUS AURA, Gigabytes Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

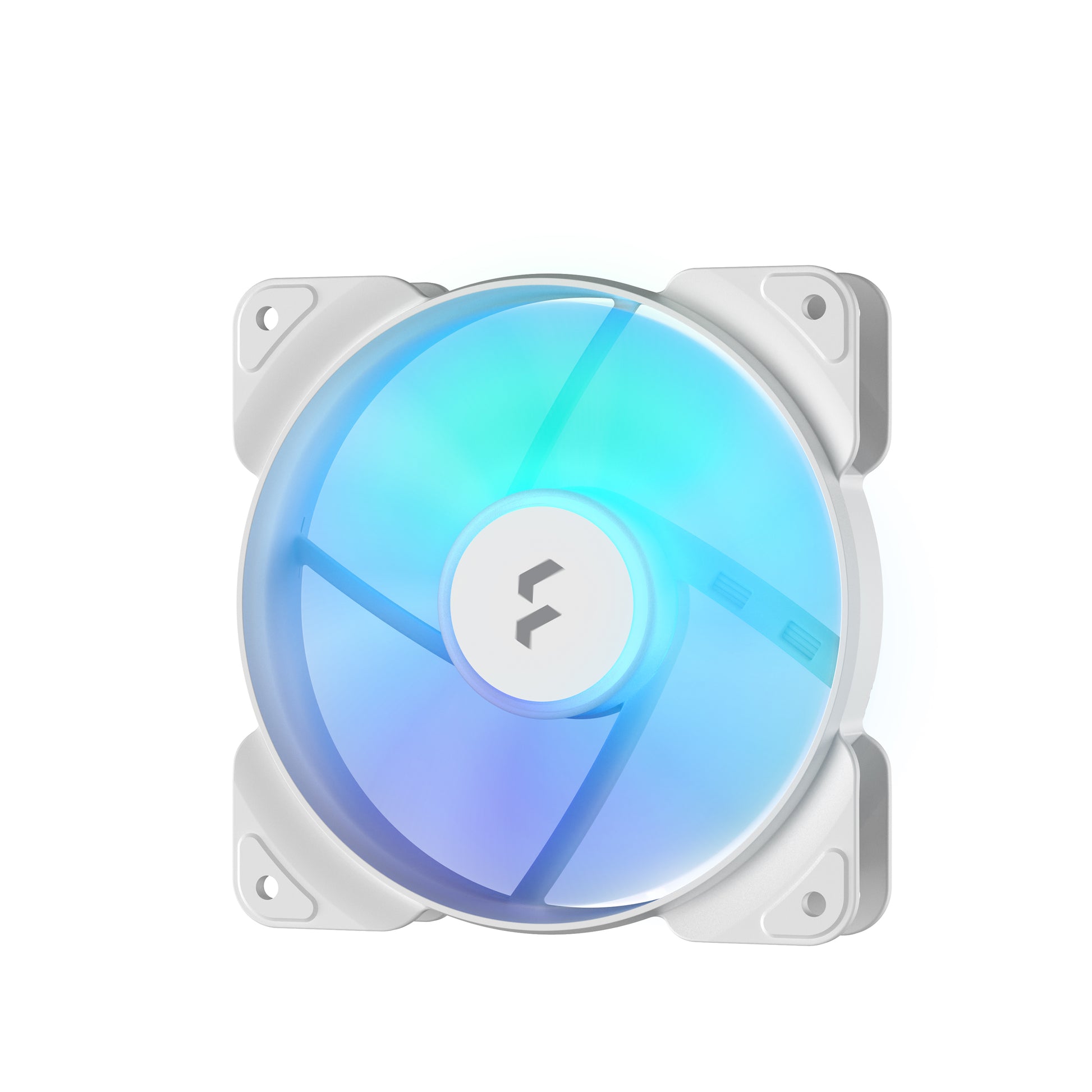

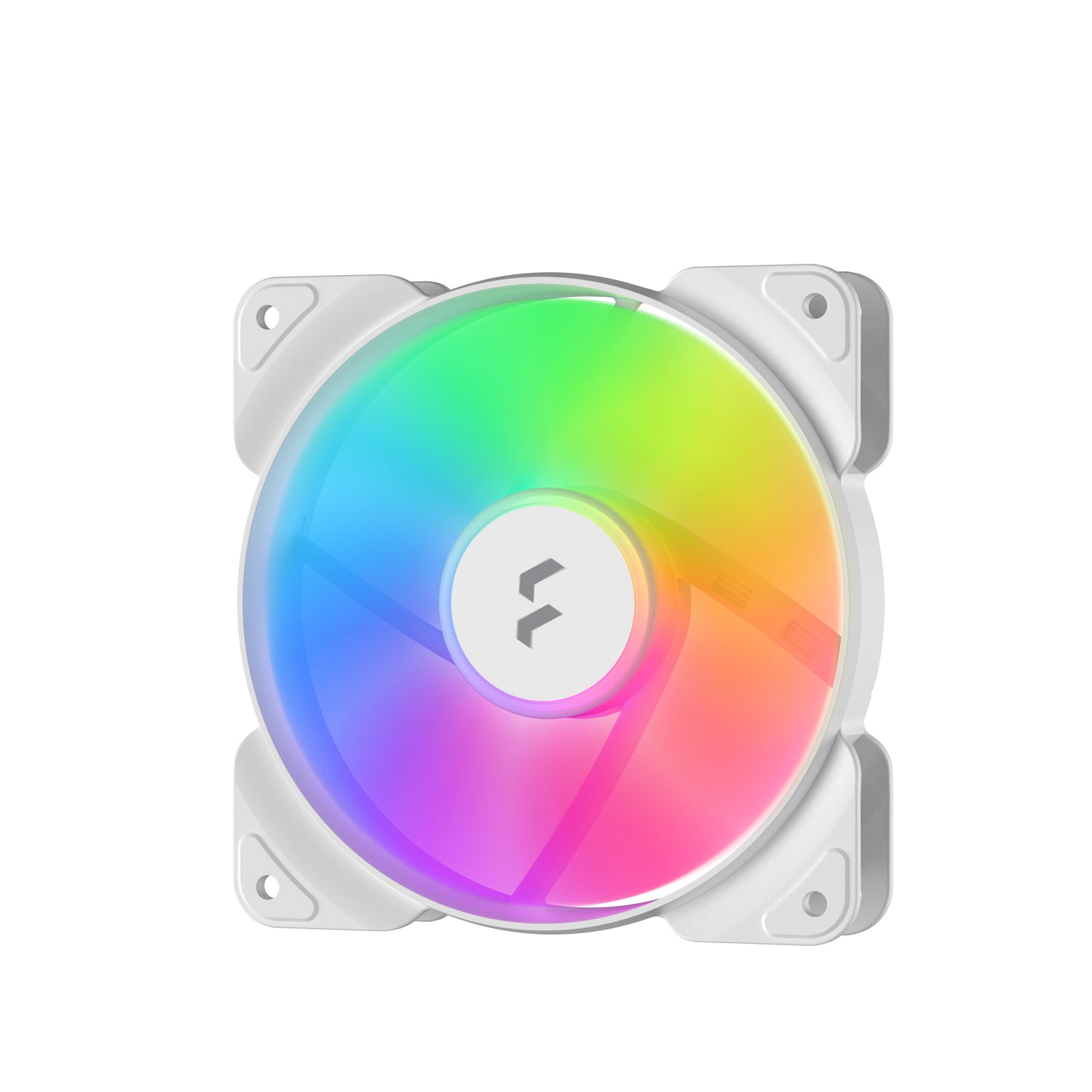

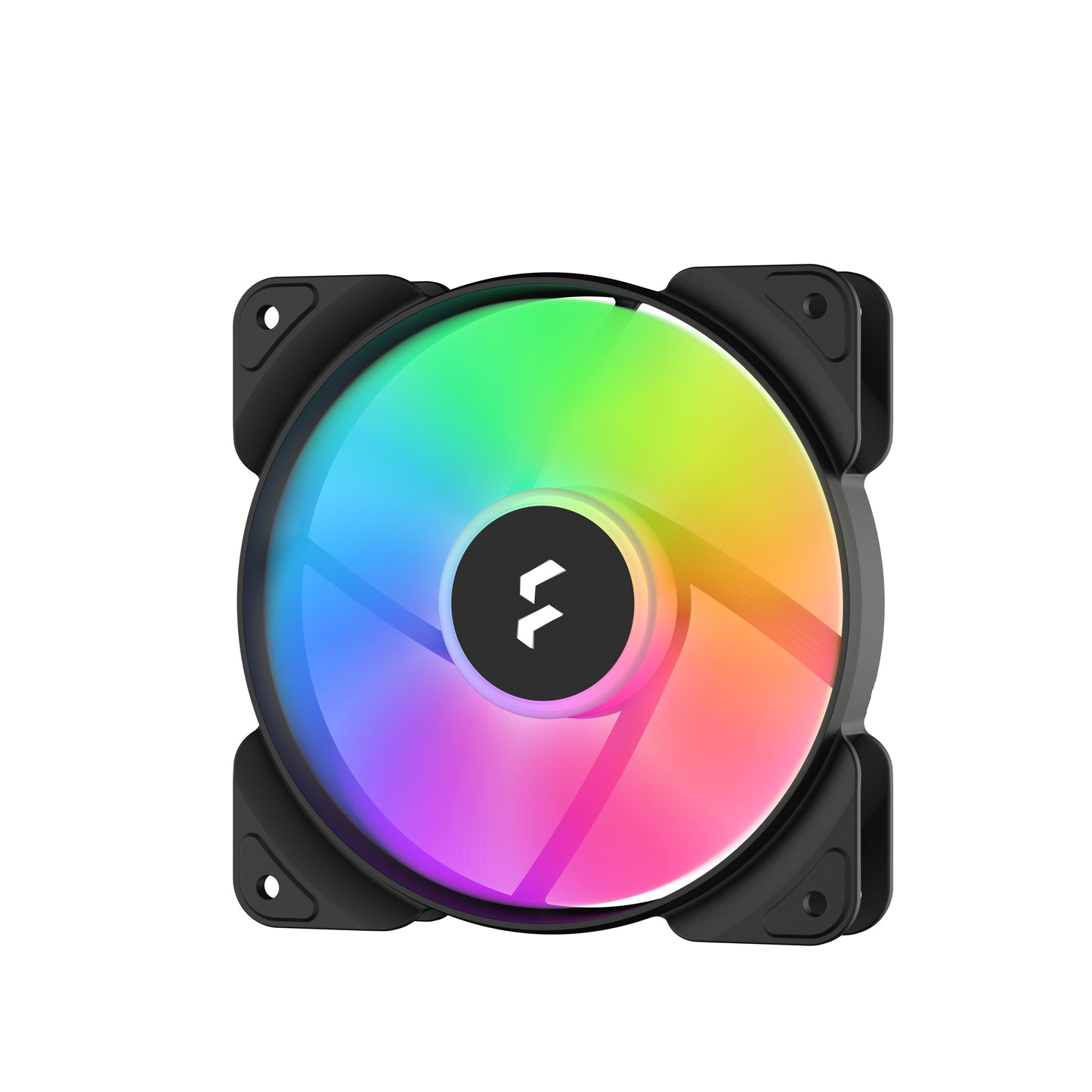

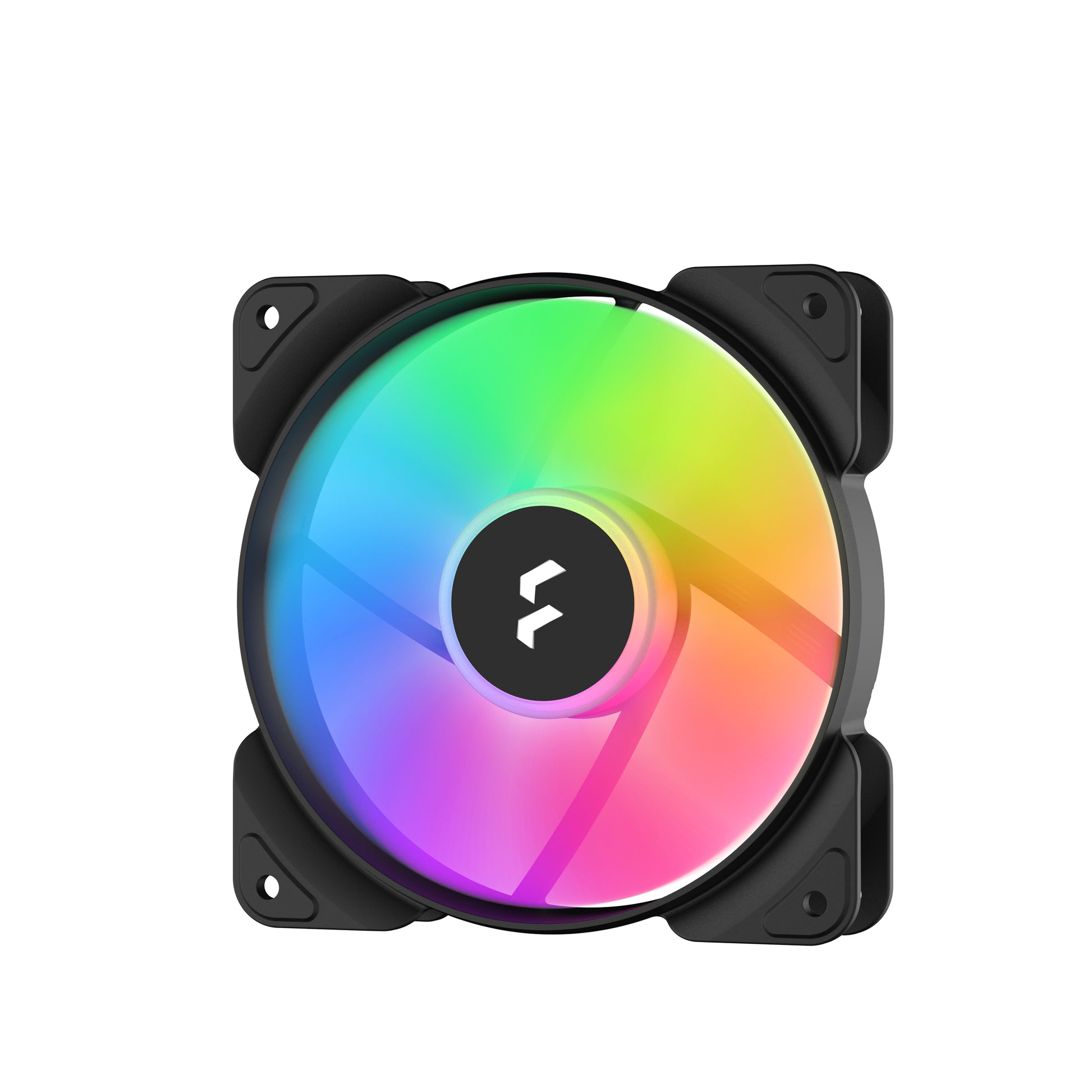

In living color

  • Let your system shine with six individually addressable hub-mounted RGB LEDs

  • The aerodynamic stator struts decrease turbulence and noise caused by flowing air

  • The Aspect frame offers aesthetics without compromising on performance

Rifle bearings
More efficient than standard sleeve bearings

Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency

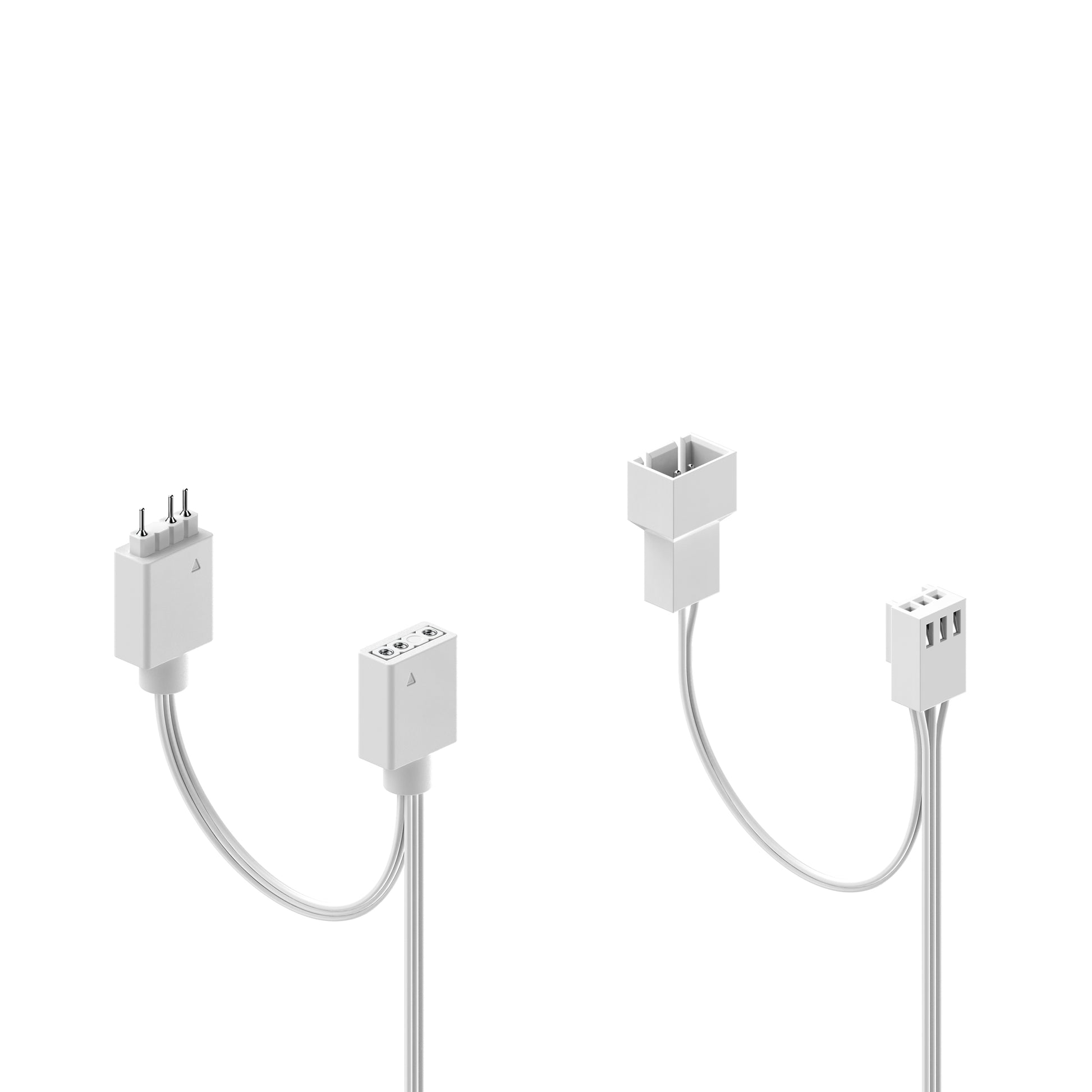

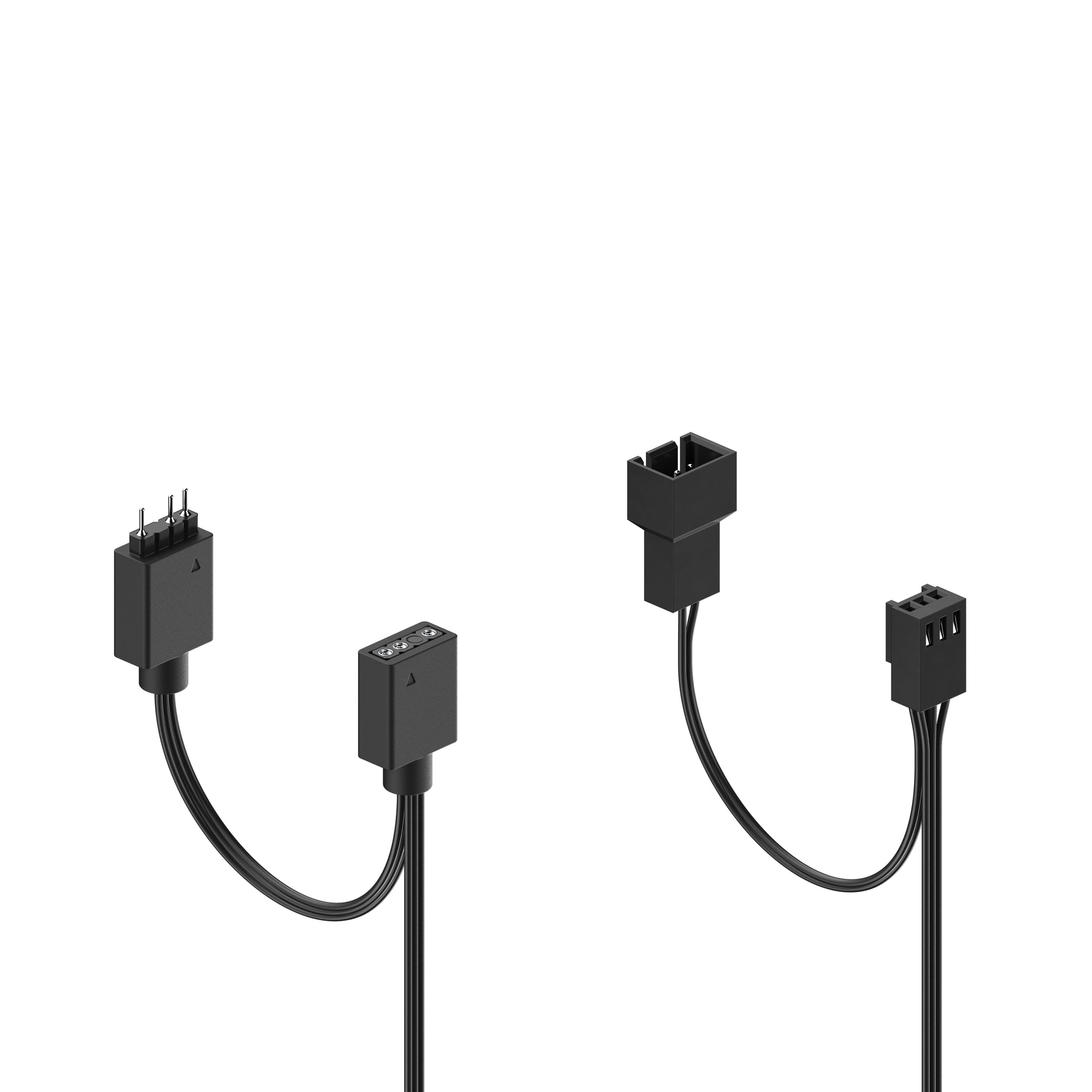

Chain Feature
Simplify cable management by using the Aspect chain feature for multiple units

Specifications

  • Size
    120 x 120 x 25 mm
  • Screw hole pattern
    105 x 105 mm
  • LED type
    Addressable RGB
  • Power connector
    3-pin
  • Bearing
    Rifle
  • Number of blades
    7
  • Rotational speed
    1200 RPM
  • Noise level
    18.3 dB(A)
  • Max airflow (CFM)
    32 CFM
  • Max airflow (m³/h)
    54.4 m³/h
  • Max pressure
    1.20 mm H2O
  • Fan typical input power
    0.96 W
  • Fan max input current
    0.16 A
  • Fan input voltage
    12 V
  • Minimum startup voltage
    7 V
  • LED rated voltage
    5 V
  • LED rated current
    0.3 A
  • LED Rated input power
    1.5 W
  • MTTF
    90.000 h
  • Unit weight
    135 g
  • Cable length
    500 mm
  • Cable type
    Black ribbon (allows chaining)

Other

  • Package contents
    Aspect Fan 4x Fan screw (12x in 3-pack)
  • Package weight
    155 g / 3pack: 408 g
  • Packaging dimensions including hanging tab
    123 x 192 x 30 mm / 3 pack: 123 x 192 x 87 mm
  • Packaging dimensions excluding hanging tab (WxHxD)
    123 x 150 x 30 mm / 3 pack: 123 x 150 x 87 mm
  • EAN
    Black - 7340172703310 / White - 7340172703556 / Black 3-pack - 7340172703518
  • UPC
    Black - 843276103316 / White - 843276103552/ Black 3-pack - 843276103514
  • JAN
    Black - 4537694287487 / White - 4537694288958/ Black 3-pack - 4537694288309
  • Product code
    Black - FD-F-AS1-1204 / White - FD-F-AS1-1208 / Black 3-pack - FD-F-AS1-1206
  • Warranty
    2 Years
