Description

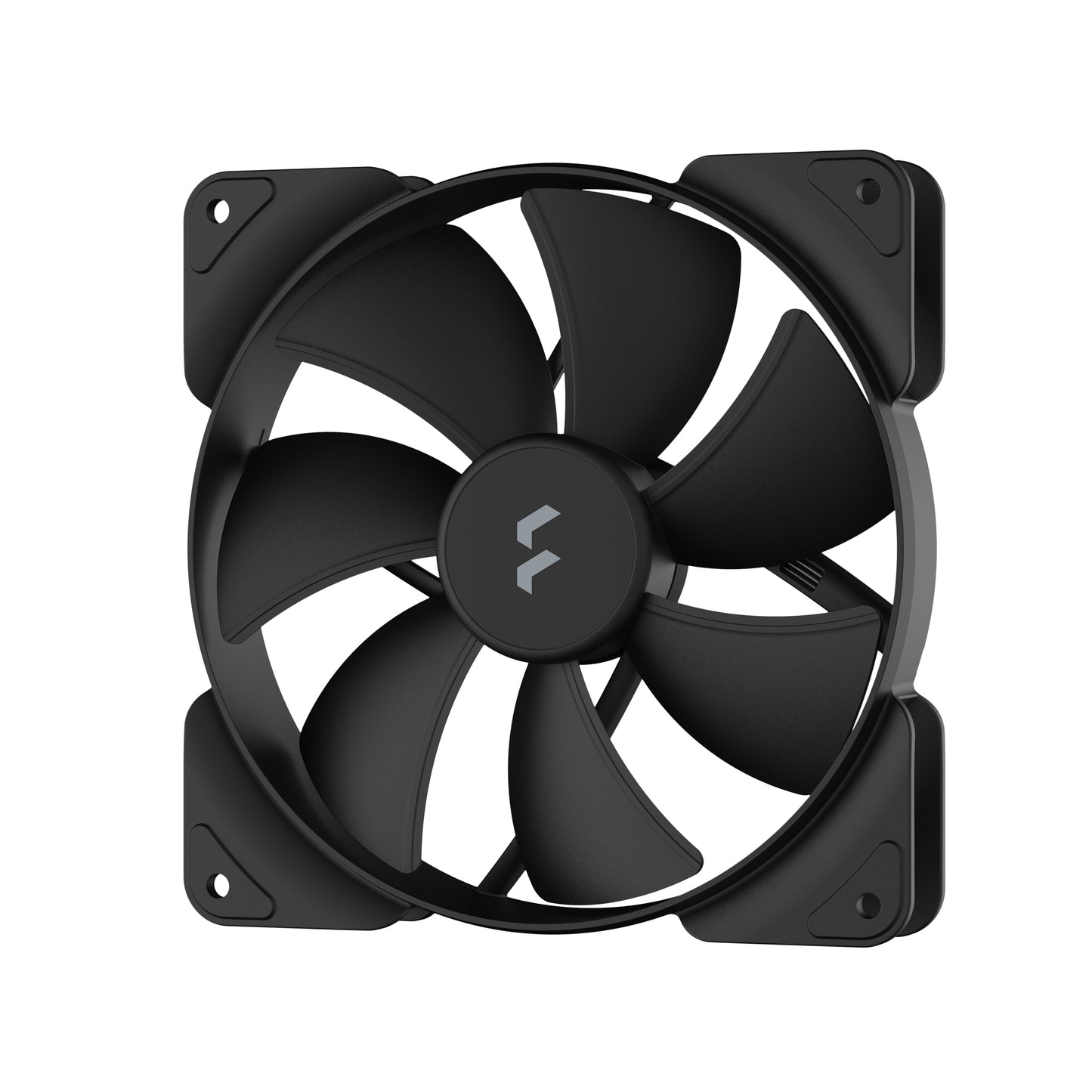

Aspect 14
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
- Less turbulence thanks to aerodynamic stator struts
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- Supports chaining to simplify cable management
Less turbulence
-
The aerodynamic stator struts decrease turbulence and noise caused by flowing air
-
The Aspect frame offers aesthetics without compromising on performance
-
Available in black or white
Minimalistic nozzle frame
The Aspect frame offers aesthetics without compromising with performance
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency

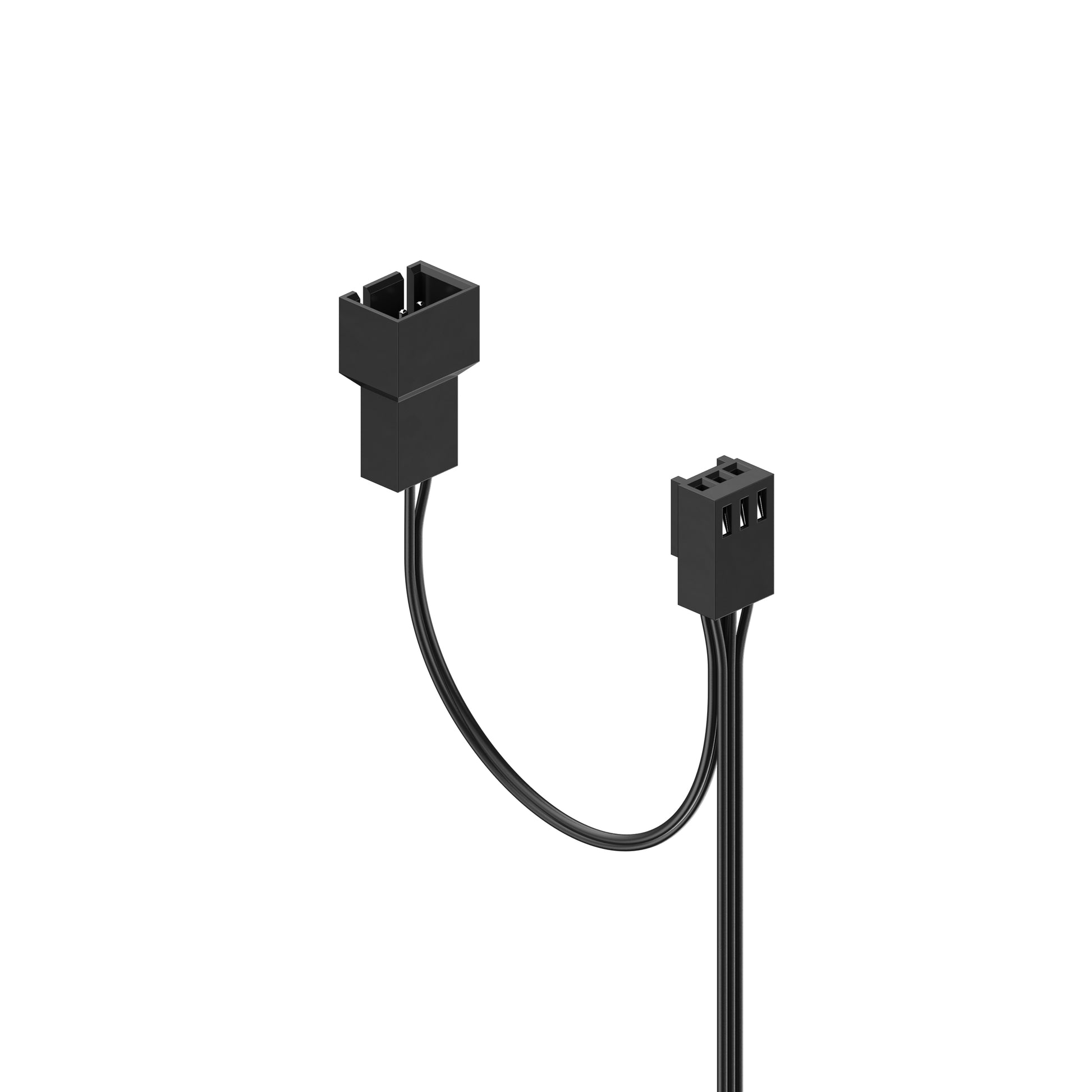

Chain feature
Simplify cable management by using the Aspect chain feature for multiple units
Specifications
-
Size140 x 140 x 25 mm
-
Screw hole pattern125 x 125 mm
-
Power connector3-pin
-
BearingRifle
-
Number of blades7
-
Rotational speed1000 RPM
-
Noise level19.5 dB(A)
-
Max airflow (CFM)41 CFM
-
Max airflow (m³/h)69.7 m³/h
-
Max pressure1.02 mm H2O
-
Fan typical input power0.96 W
-
Fan max input current0.14 A
-
Fan input voltage12 V
-
Minimum startup voltage7 V
-
MTTF90.000 h
-
Unit weight155 g
-
Cable length500 mm
-
Cable typeBlack/white ribbon (allows chaining)
Other
-
Package contentsAspect Fan, 4x Fan screw
-
Package weight187 g
-
Packaging dimensions including hanging tab143 x 212 x 30 mm
-
Packaging dimensions excluding hanging tab (WxHxD)143 x 170 x 30 mm
-
EANBlack - 7340172703334, White - 7340172703341
-
UPCBlack - 843276103330, White - 843276103347
-
JANBlack - 4537694287500, White - 4537694287517
-
Product codeBlack - FD-F-AS1-1401, White - FD-F-AS1-1402
-
Warranty2 Years
