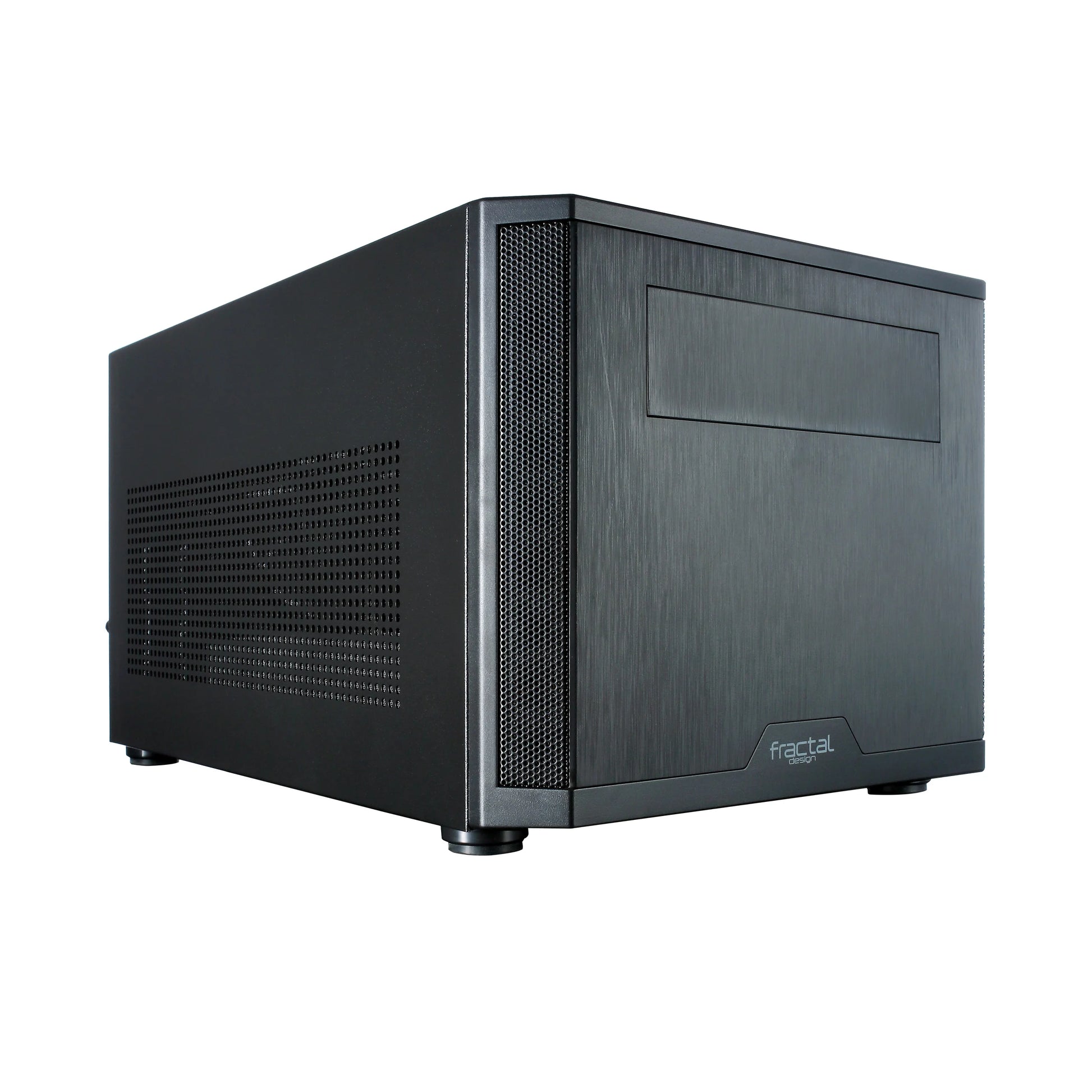

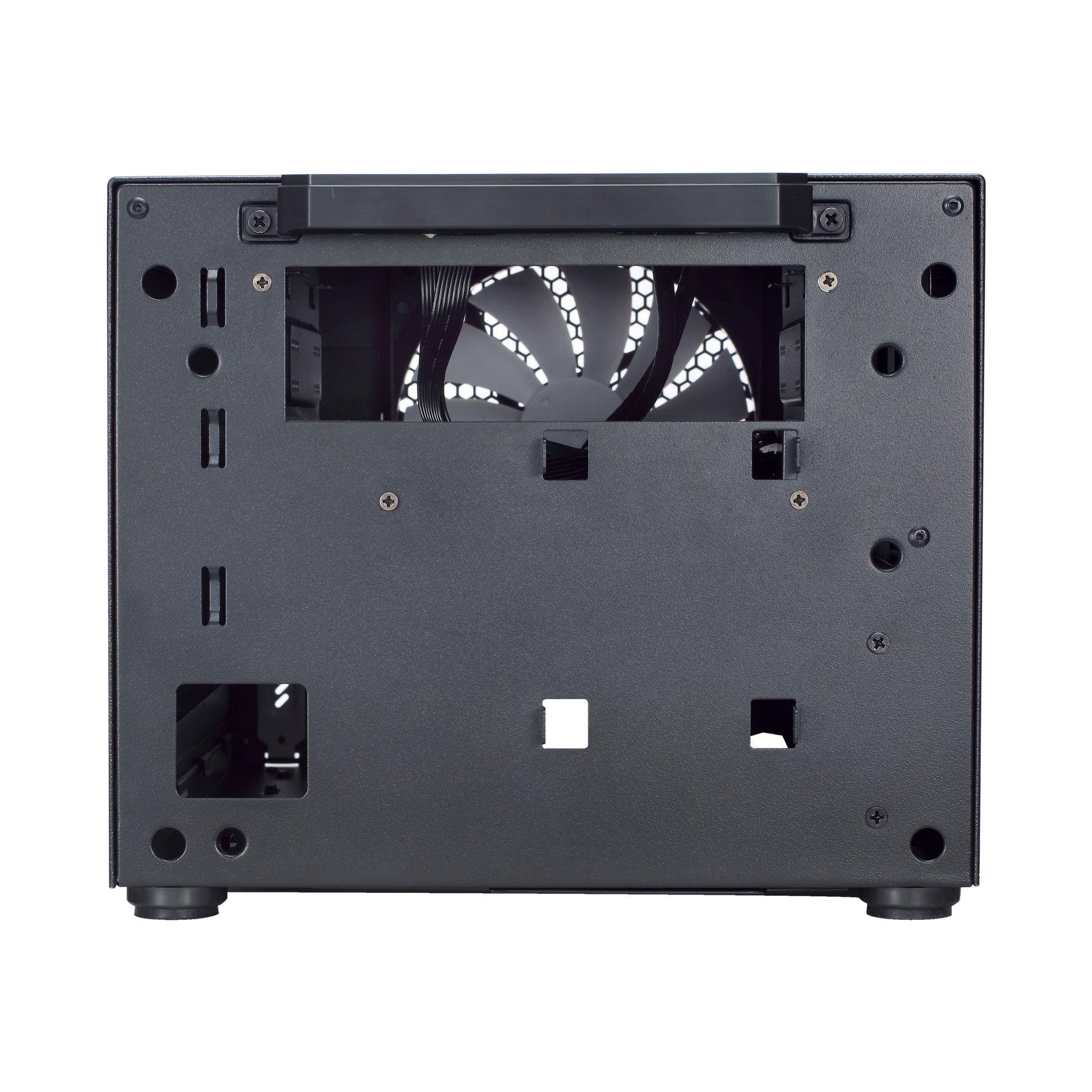

Fractal Design Core 500 - Mini ITX, Mini DTX - Small Form Factor Computer Case

Fractal Design Core 500 - Mini ITX, Mini DTX - Small Form Factor Computer Case

Brand : Fractal Design

SKU: SKU:  FD-CA-CORE-500-BK

Regular price ₱4,310.00
Regular price ₱4,667.00 Sale price ₱4,310.00
Sale! Sold out
Taxes included.

Low stock: 10 left

Core 500

A small, compact chassis that lets you build computer without compromising on component selection

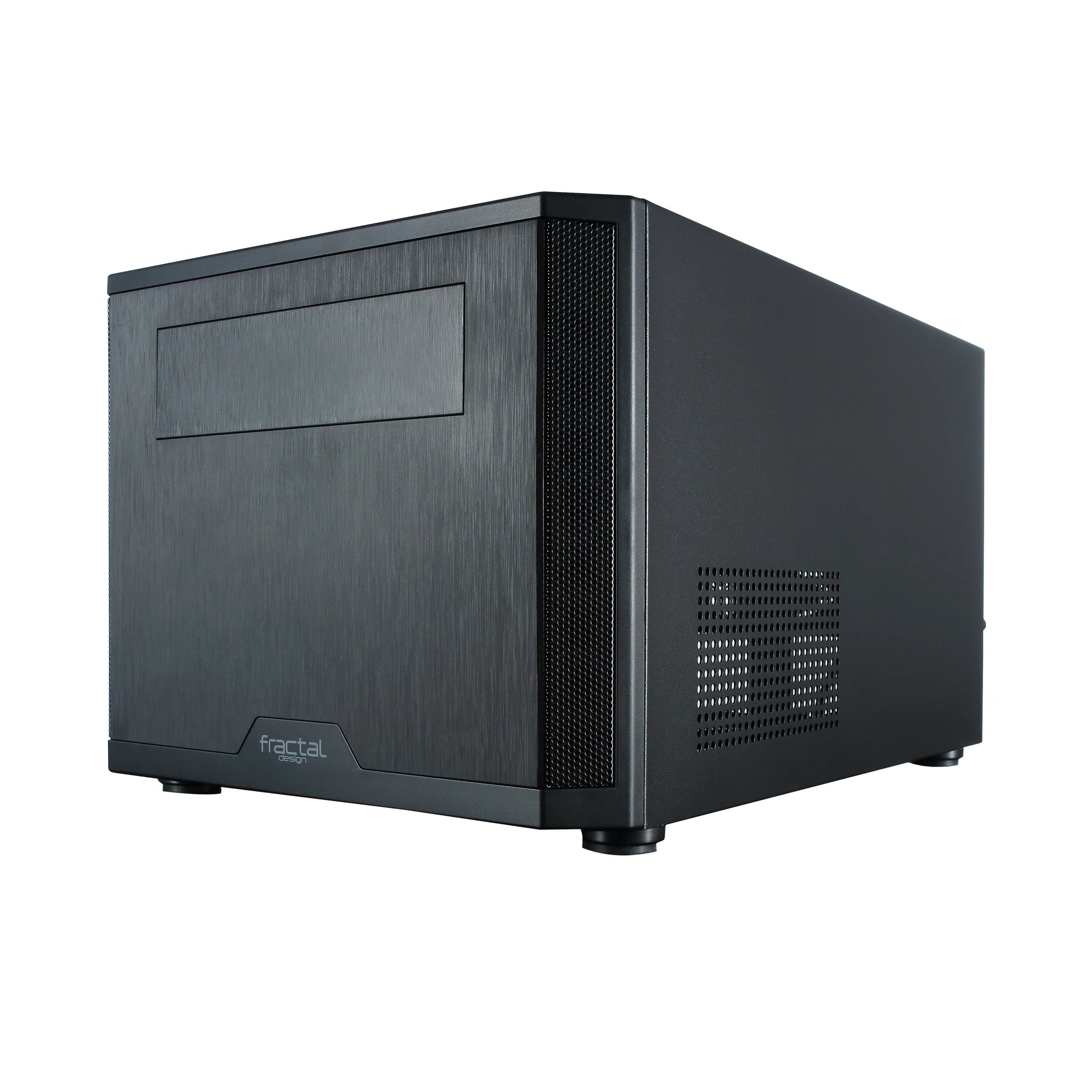

  • Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
  • Very compact case with a volume of only 19.5 liters
  • Extremely good water cooling support for its size, supporting radiators up to 280 mm long

Specifications

  • Motherboard compability : Mini ITX, Mini DTX motherboard compatibility; NOTE: motherboards with SATA ports that are angled 90 degrees may conflict with installation in the case.
  • Expansion slots : 2
  • 3.5" HDD Positions : 3
  • 2.5" HDD Positions : 3

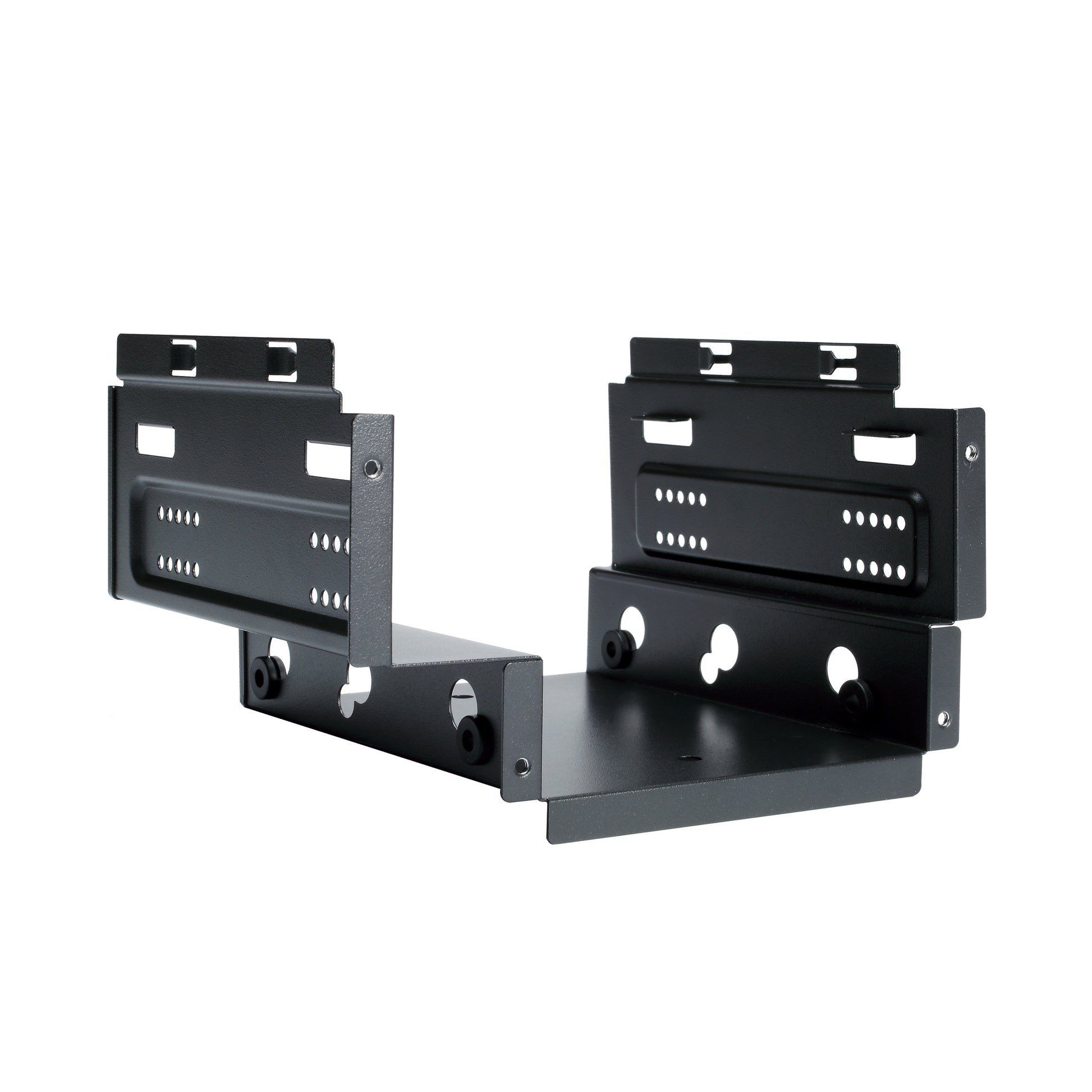

  • 5.25" Bay : 1 (removable)
  • CPU Cooler height : Up to 170 mm
  • ATX PSU size : Up to 170 mm in length (non modular PSUs); ATX PSUs, up to 160 mm in length (modular PSUs)
  • Graphic card size : Up to 310 mm in length (note: graphics cards longer than 170 mm will not fit with PSUs that exceed 170 mm)
  • Volume : 19.5 litres
  • Dimensions (WxHxD) : 250 x 203 x 367 mm
  • Case dimensions - with feet/screws/protrusions : 250 x 213 x 380 mm
  • Net weight : 4.4 kg
  • Package dimensions (WxHxD) : 285 x 335 x 450 mm
  • Package weight : 5.3 kg

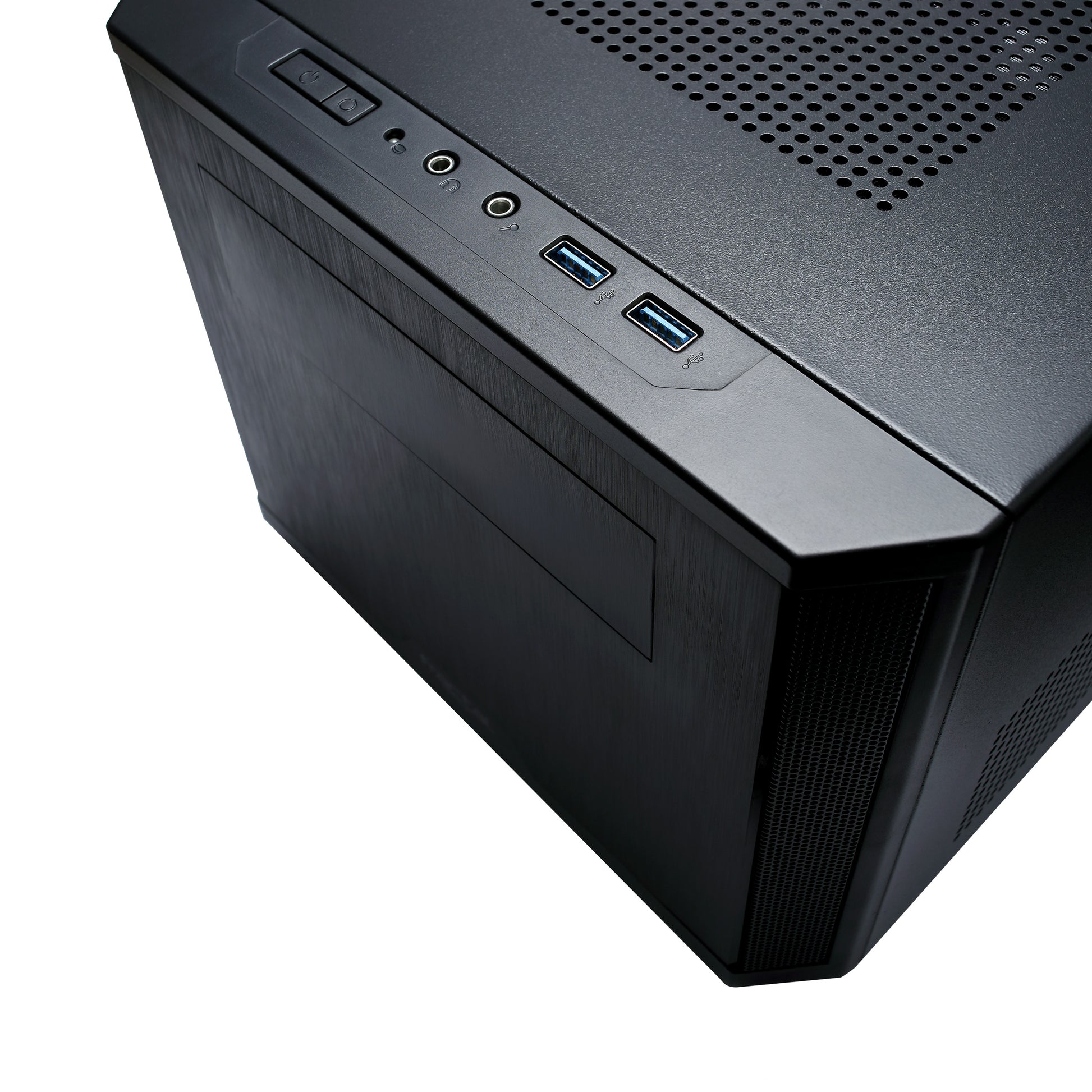

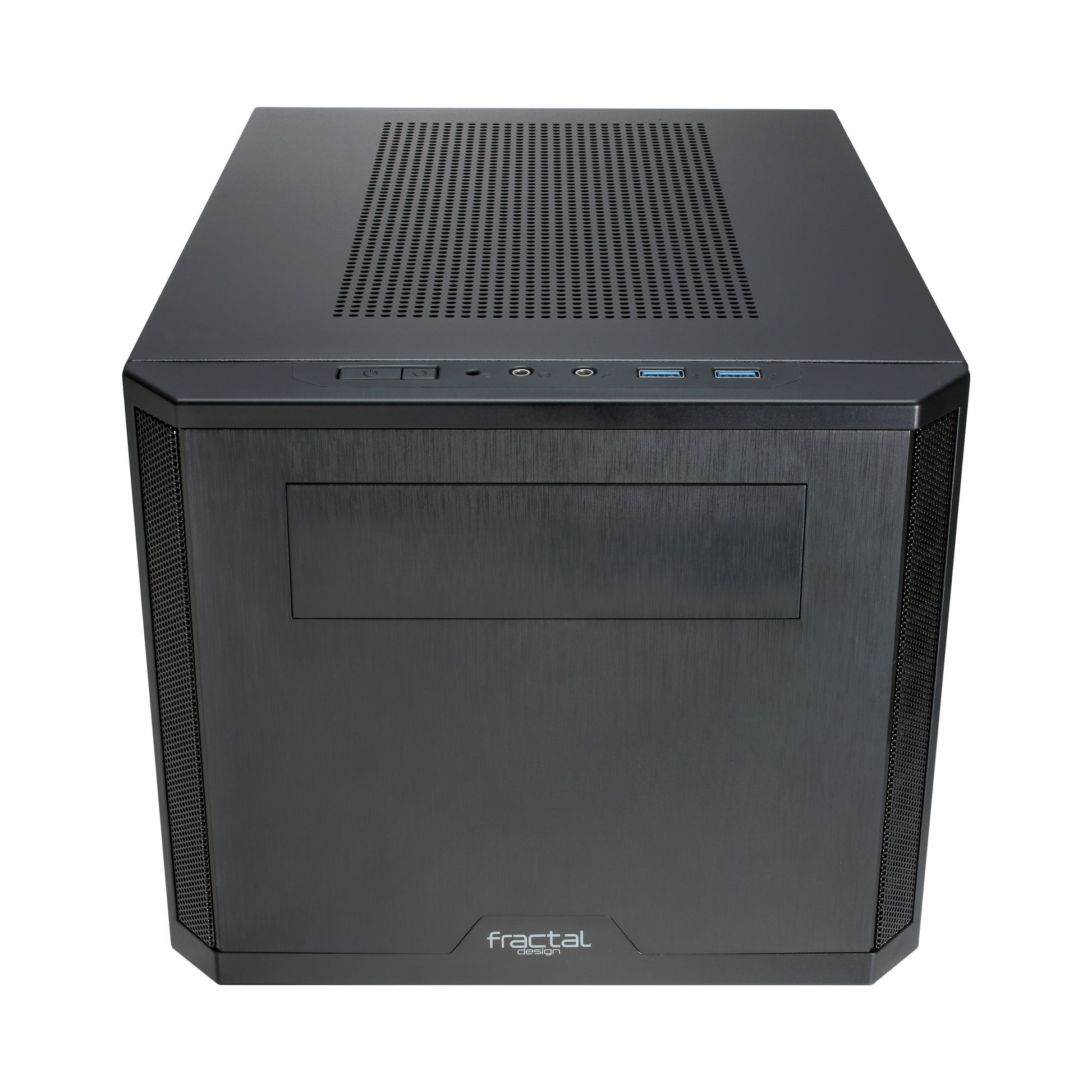

  • Front interface : 2 x USB 3.0, Audio in/out, Power button with LED (white), HDD activity LED (white) & Reset button
  • Max GPU thickness : 44 mm

Cooling system

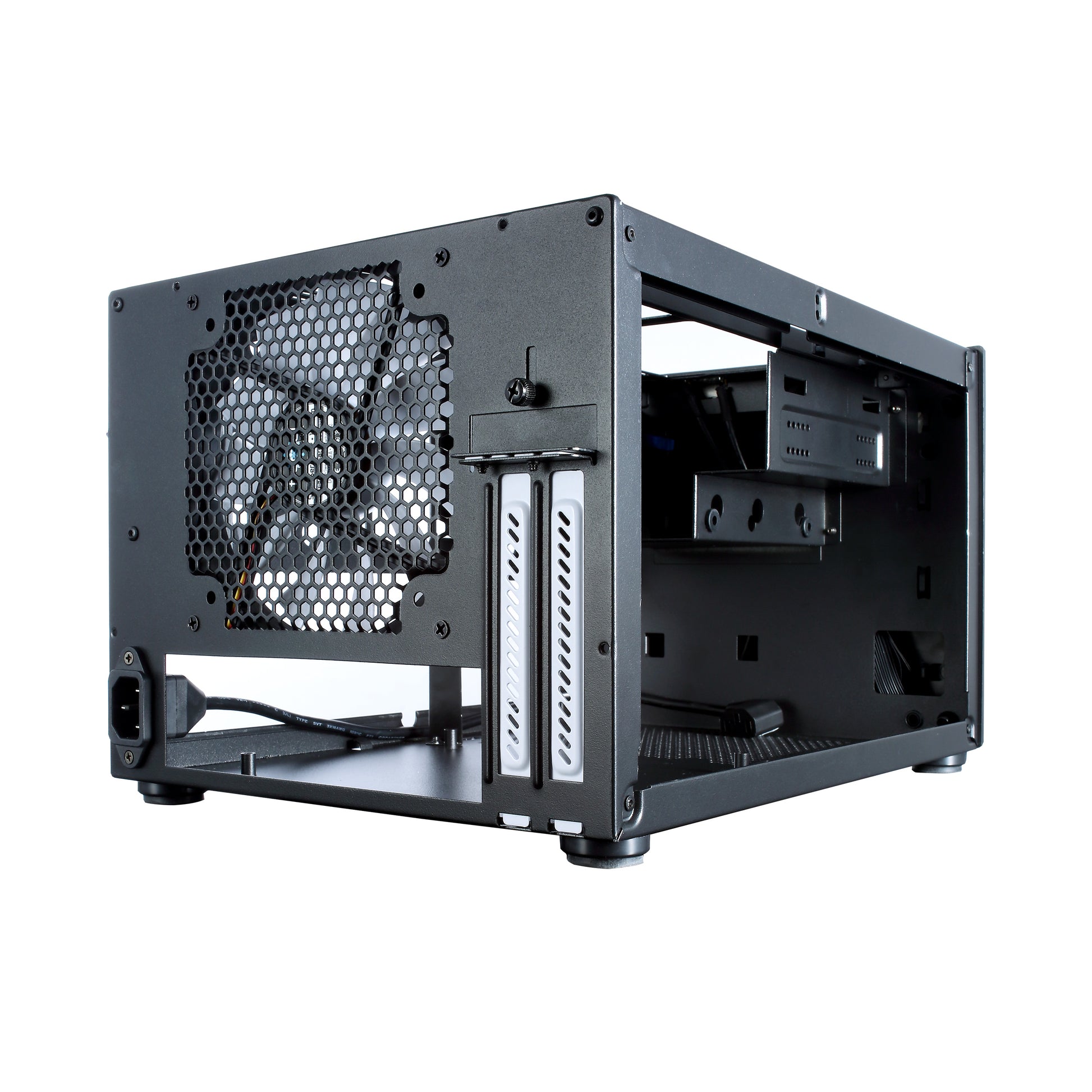

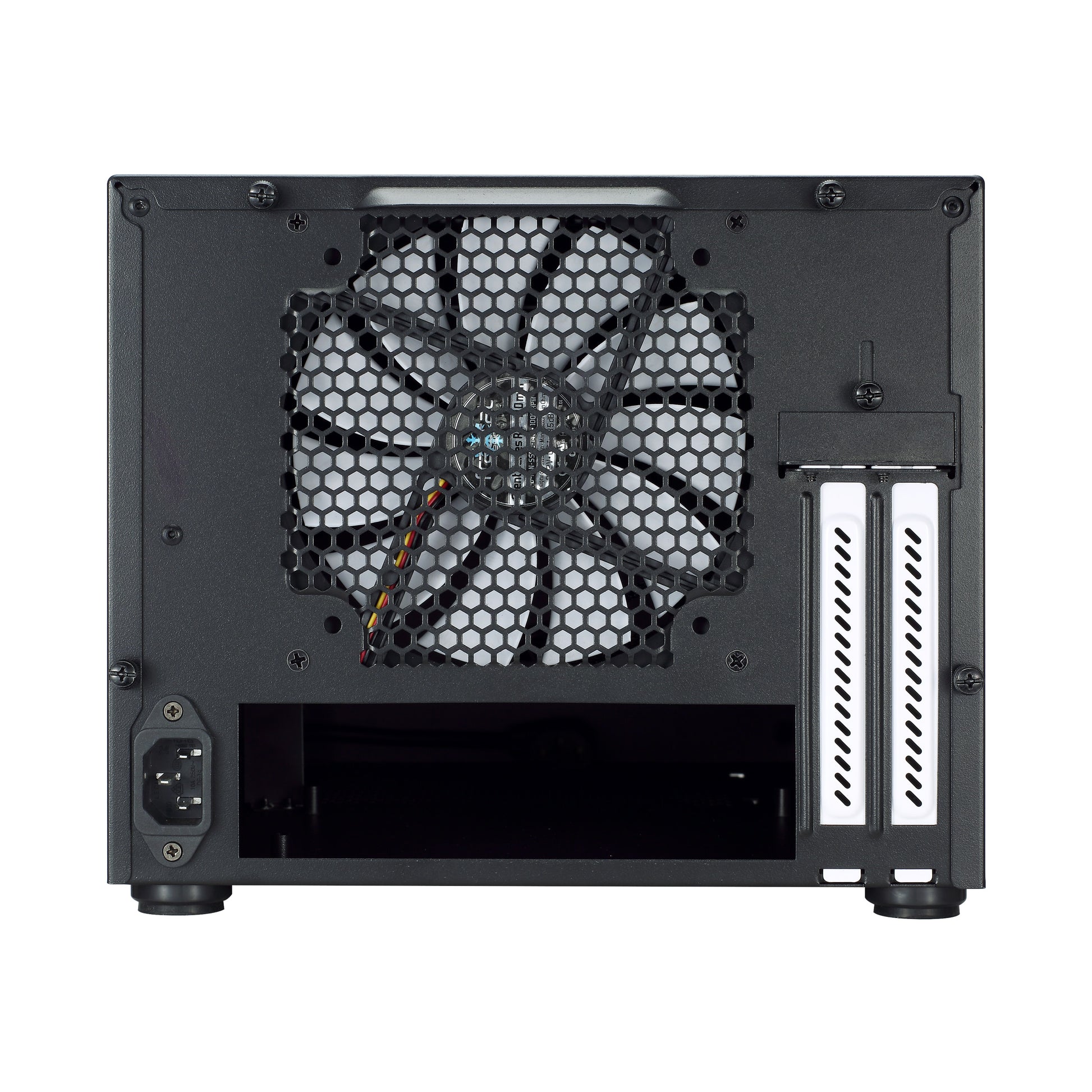

  • Rear : 1x 120/140 mm fan (included is 1 Fractal Design Silent Series R3 fan, 1000 RPM speed)
  • Top : 2x 120/140 mm fan (not included)
  • Water cooling top (note: not compatible with AIO water cooler units that feature the pump on the radiator) : 280, 240, 140 and 120 mm radiators. (Thickness limitation of 100 mm for both radiator + fan) (240 and 280 mm radiators require removal of the ODD bay) (280 mm radiator can be maximum 325 mm in length)
  • Water cooling rear : 120 mm radiator (without a device in the rear 3.5" HDD position)

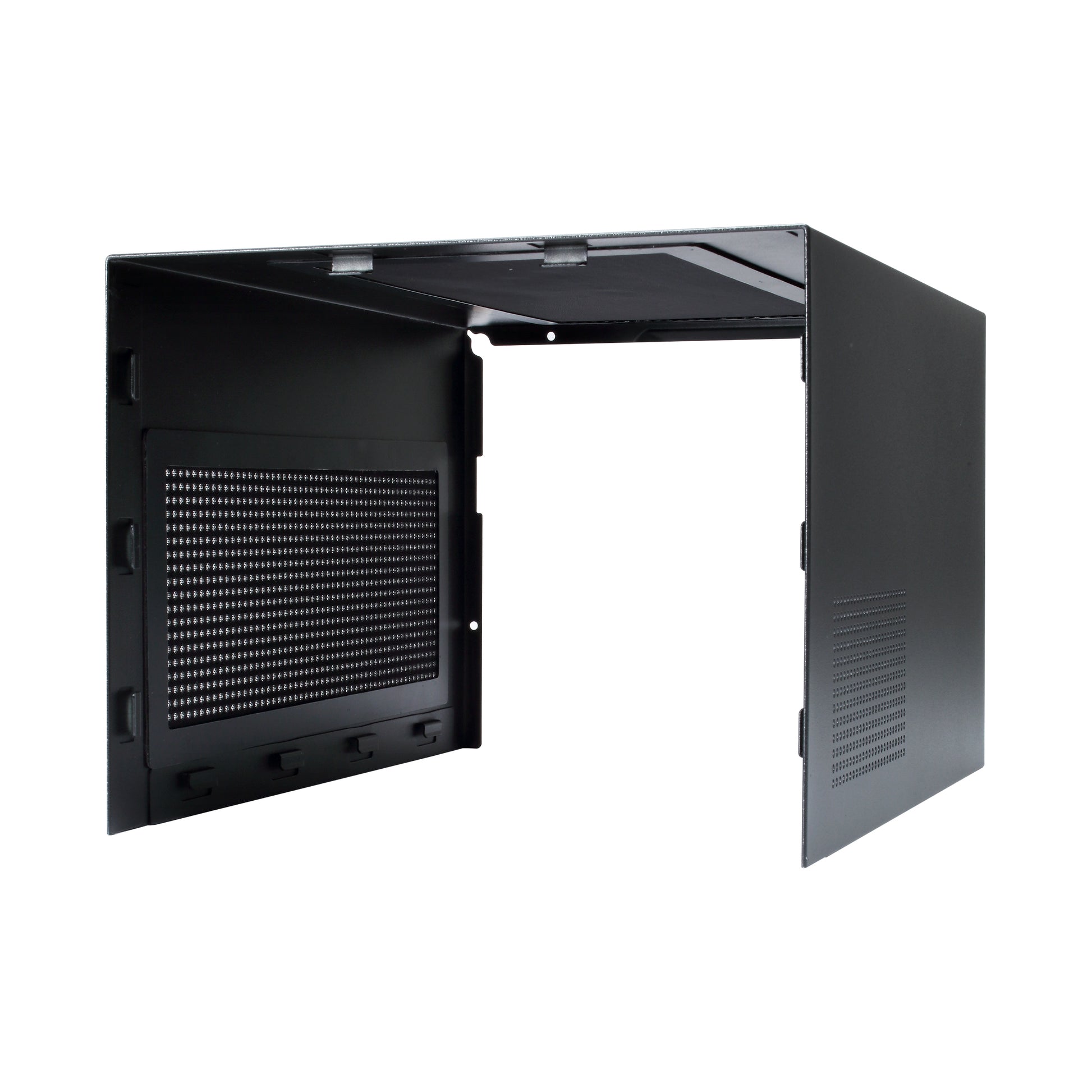

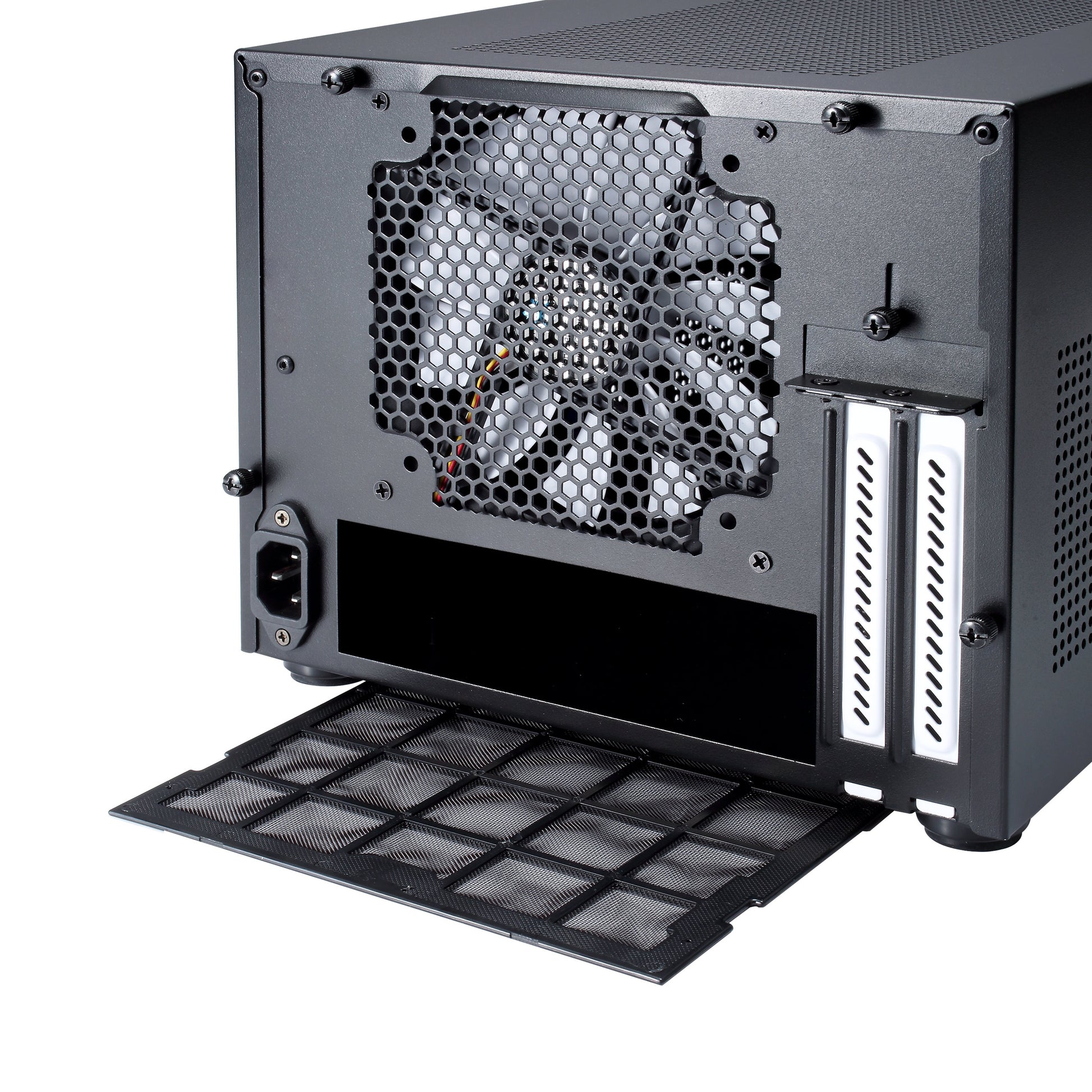

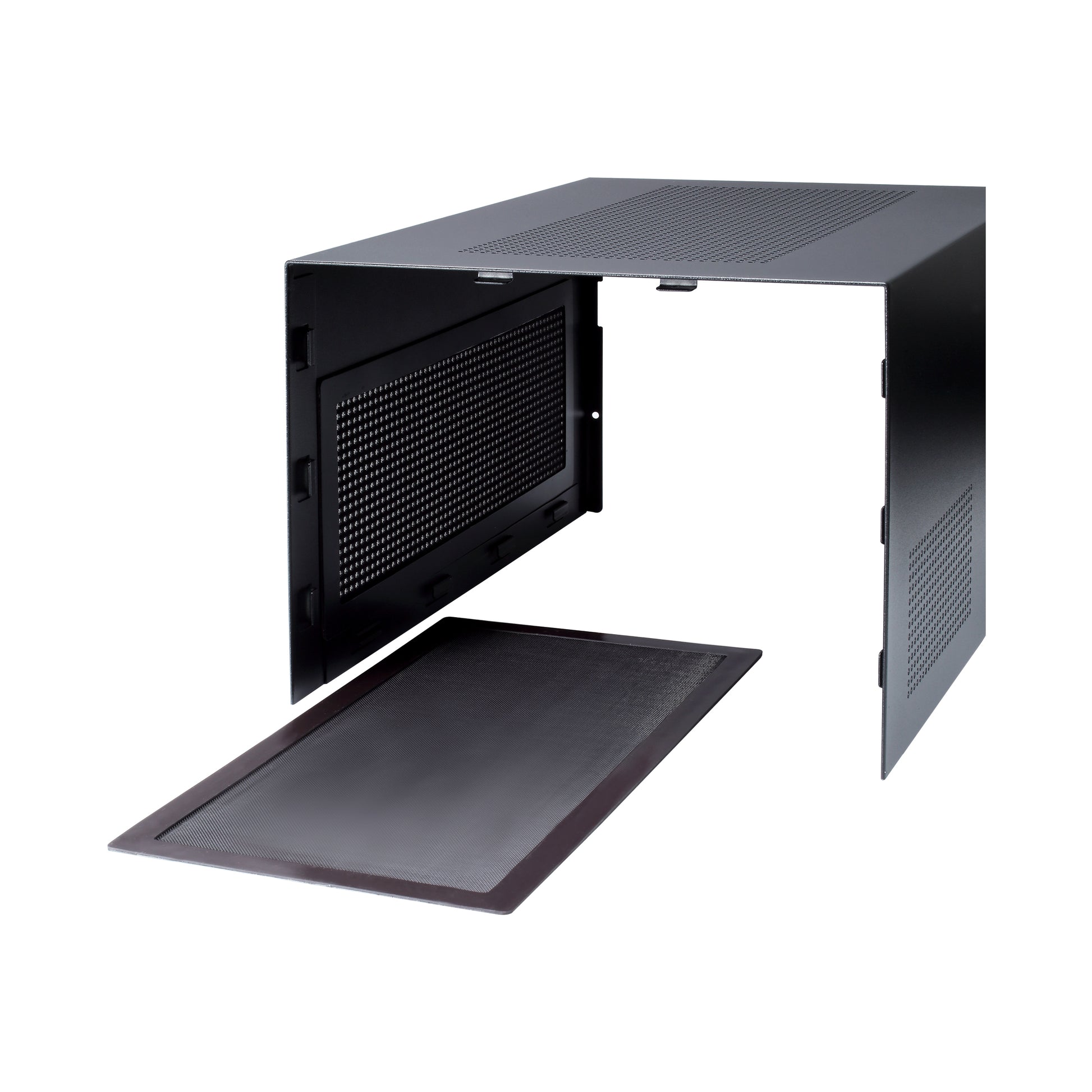

  • Dust filters : Magnetic filters on side and top panel, PSU filter

Package contents & other

  • Warranty : 2 Years
  • Package contents : Core 500 computer case, user manual and accessory box
  • EAN/GTIN-13 : 7350041082644
  • UPC : 817301012645
  • Product code : FD-CA-CORE-500-BK
  • Available for system integrators : Yes
