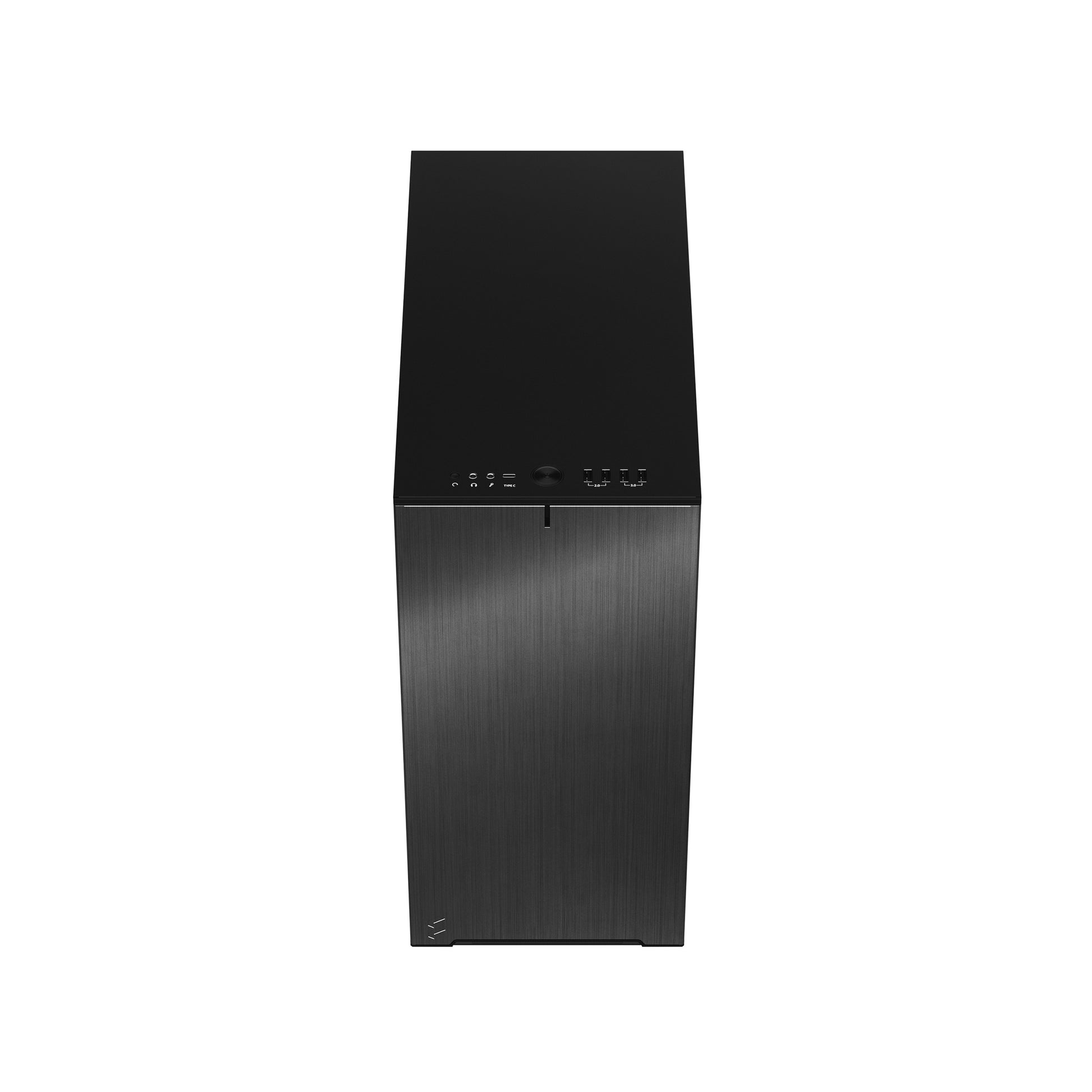

Fractal Design Define 7 Compact Black TG Light Tint

Fractal Design Define 7 Compact Black TG Light Tint

Brand : Fractal Design

Regular price ₱7,035.00
Sale price ₱7,035.00
Regular price ₱7,620.00 -8%
Sale! Sold out

Define 7 Compact

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

  • Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
  • Fits GPUs up to 360 mm with a 240 mm radiator in the top

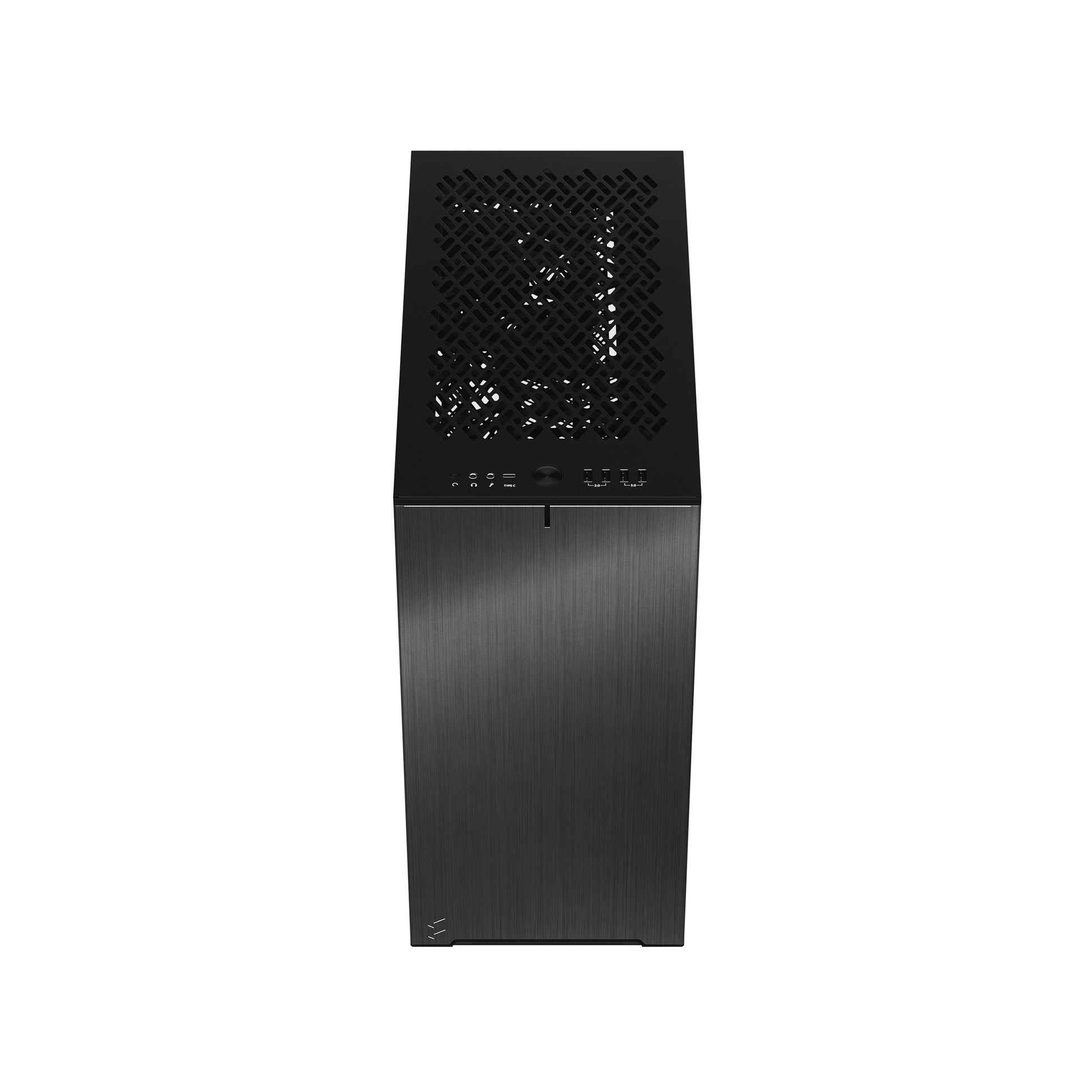

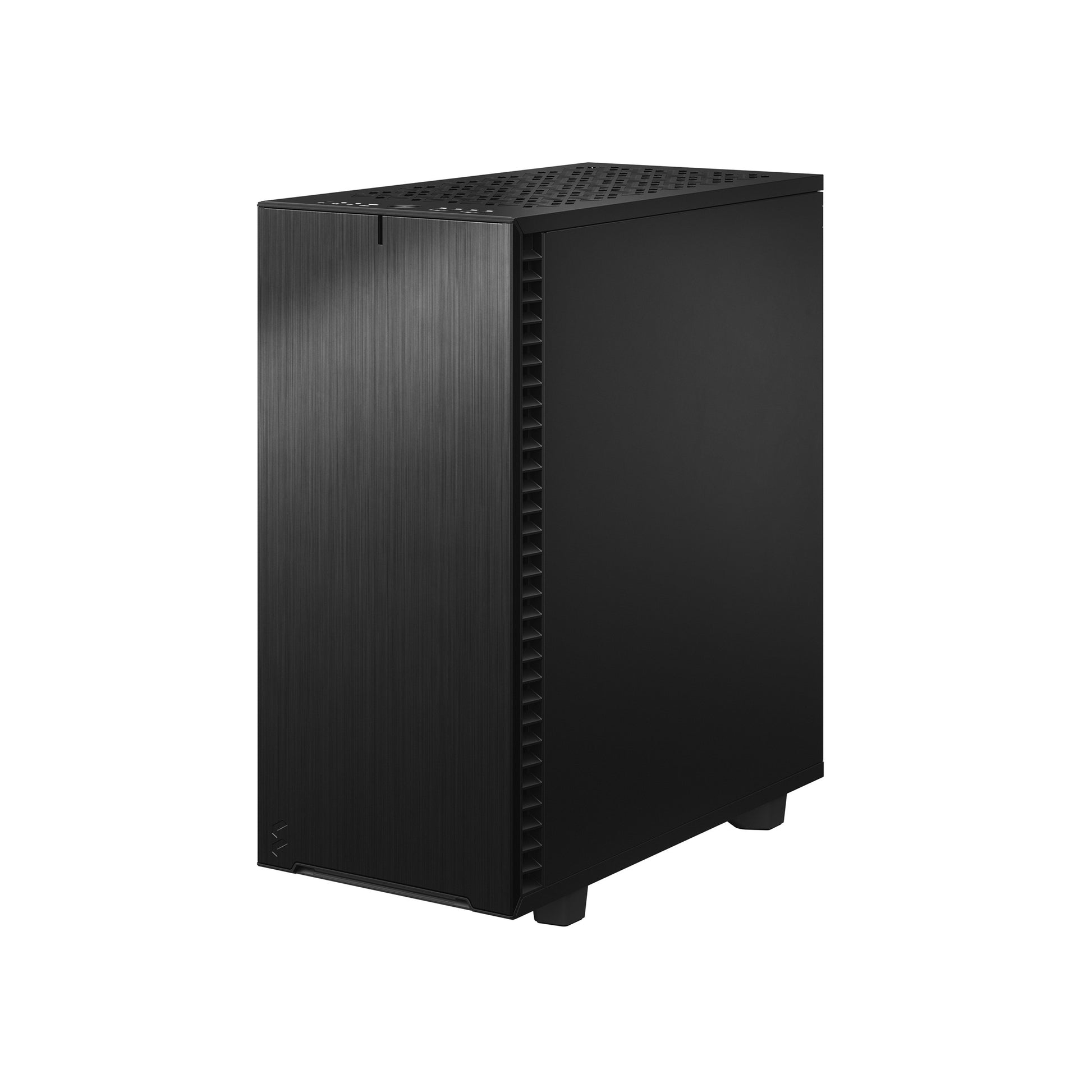

  • Top panel effortlessly swaps from solid steel to filtered ventilation

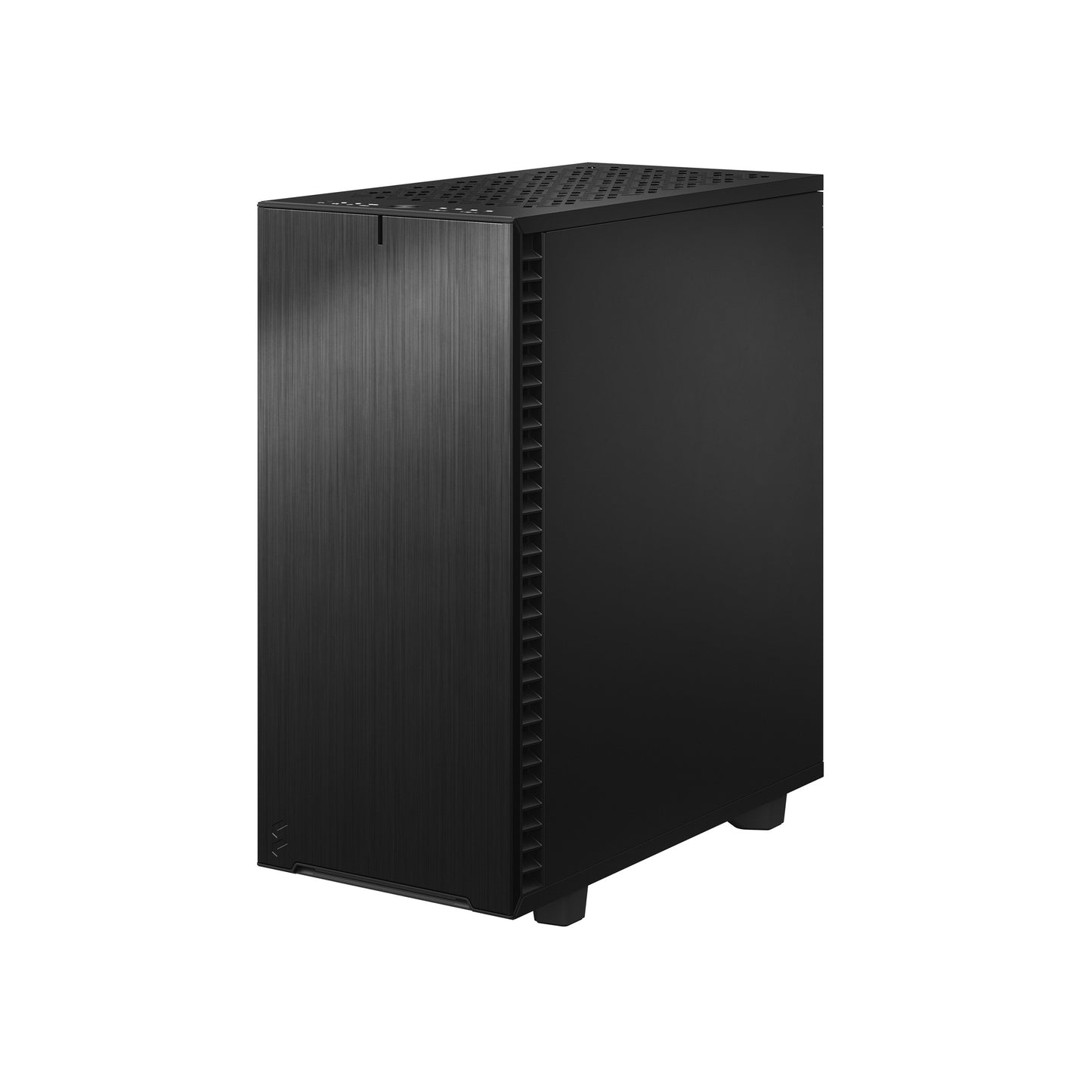

A cleaner look

Brushed aluminum front and interchangeable side panels give a very clean look

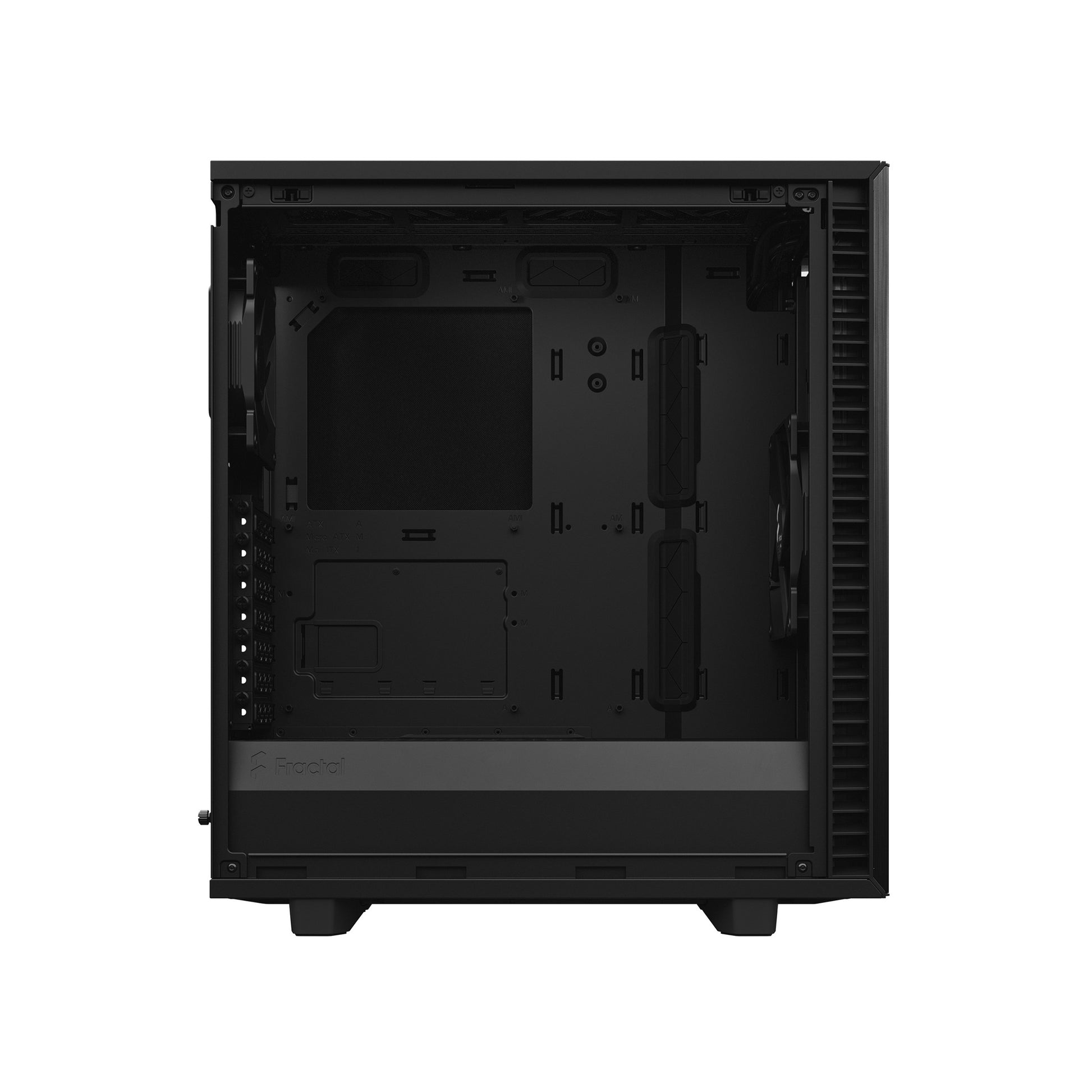

Compact yet spacious

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

Remarkably quiet

  • Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation

  • Brushed aluminum front and top-latching side panels offer a clean sophisticated look

  • Top panel effortlessly swaps from solid steel to filtered ventilation

Substantial cooling

  • Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm

  • 1x 120 mm and 1x 140 mm Dynamic X2 fans included

  • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

Robust Front I/O

Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbp

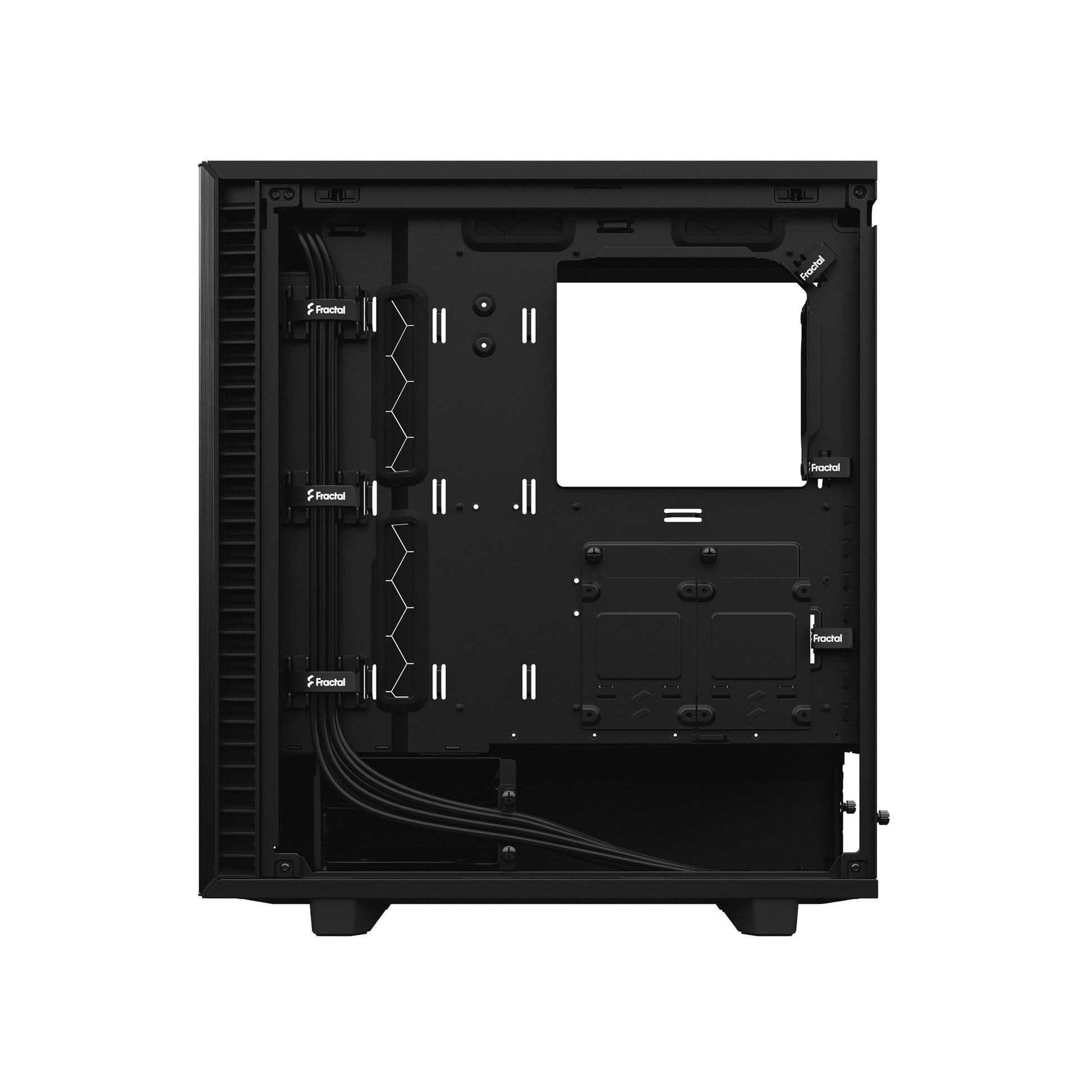

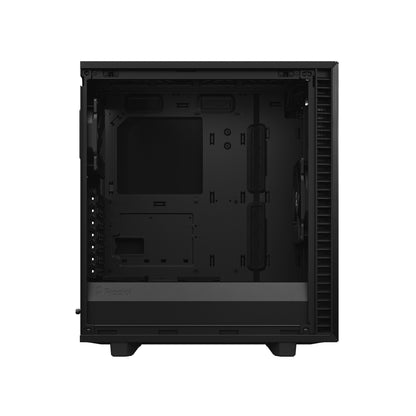

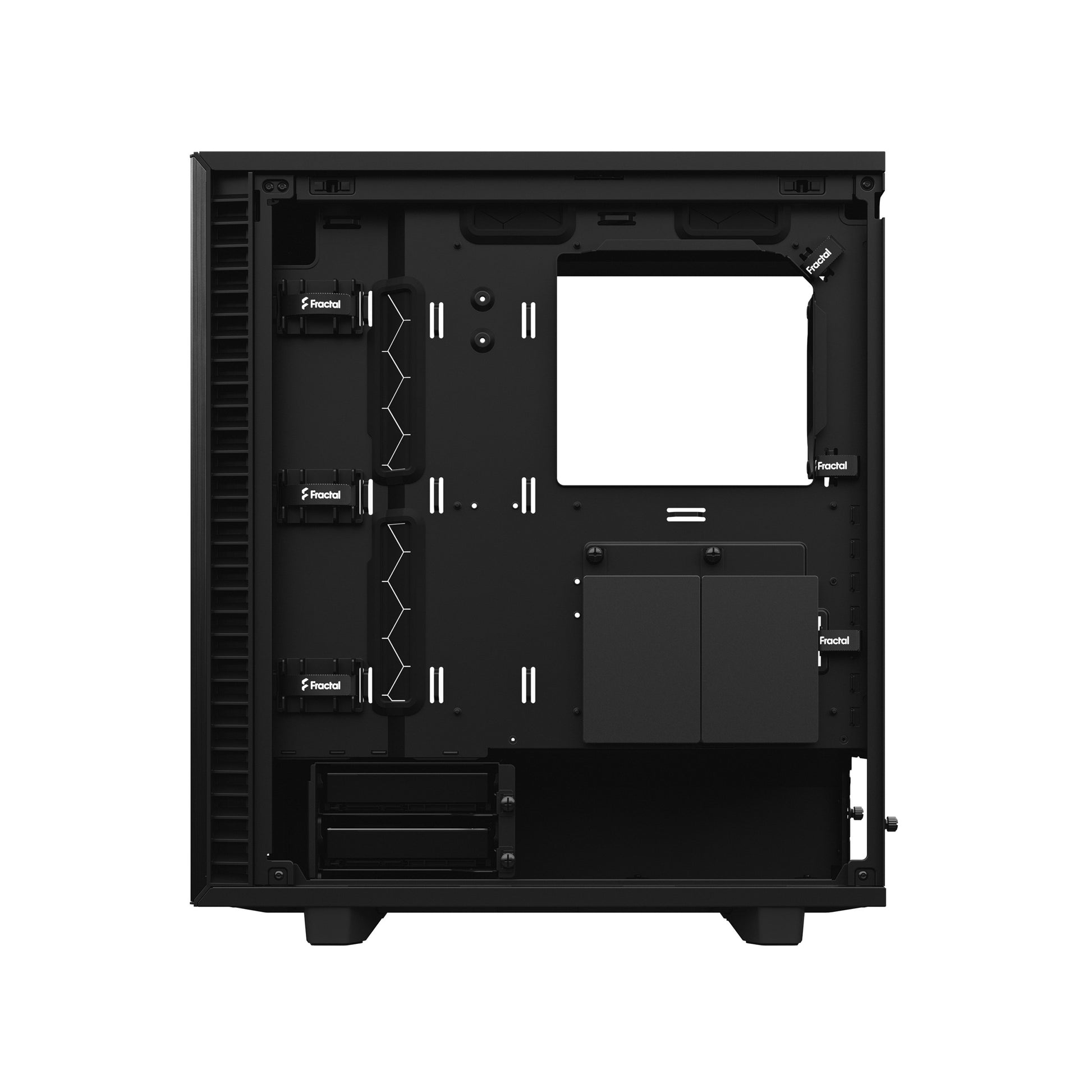

Concealed storage
You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate

More in store
A pair of SSDs are easily mounted straight on the PSU shroud

Front, top and base
Easy-to-clean high airflow nylon filters

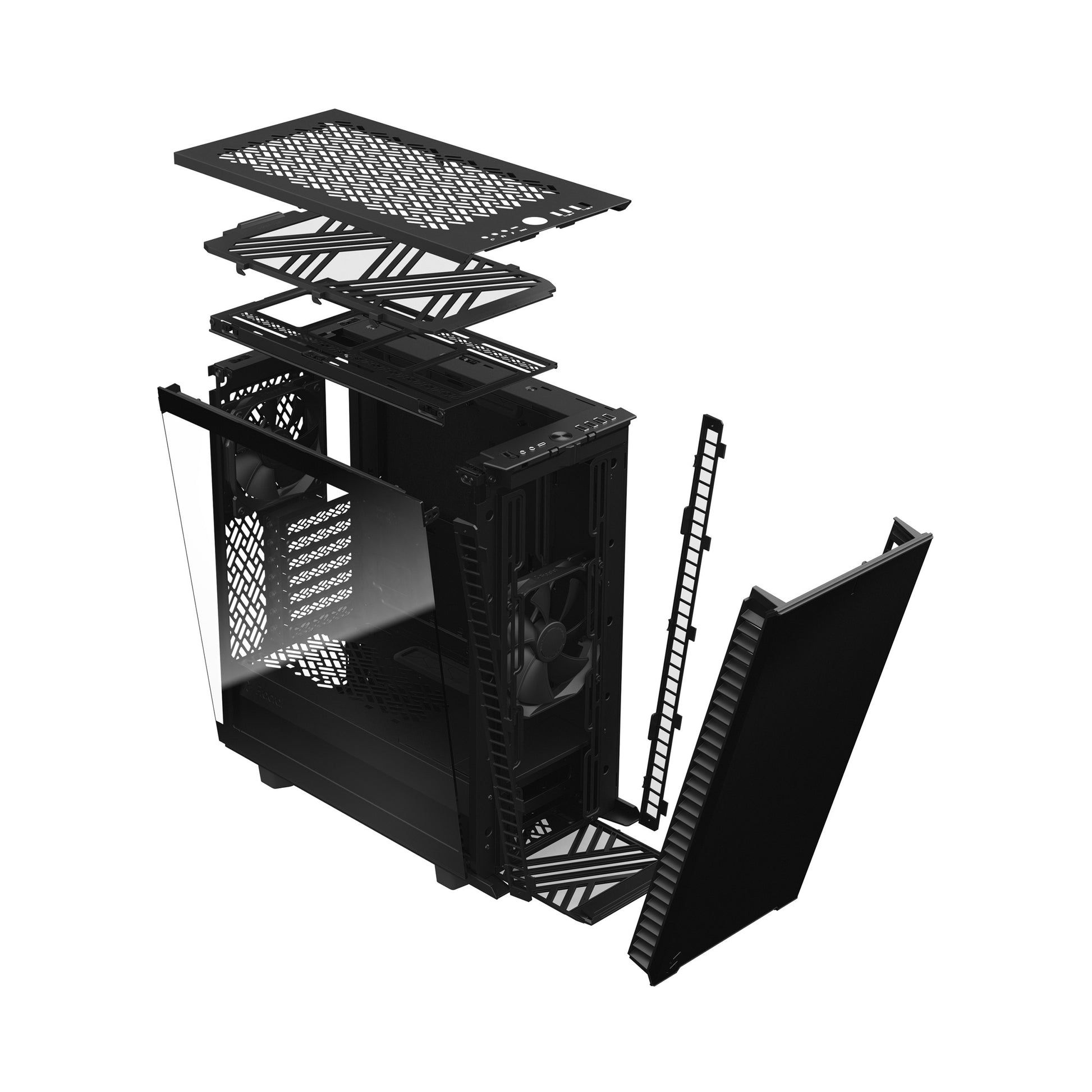

Open access

Remove the entire top to build and route with zero hindrance

Specifications

  • 3.5"/2.5" drive mounts
    2
  • Dedicated 2.5" drive mounts
    2 trays included, 4 positions total
  • Expansion slots
    7
  • Front interface
    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio I/O, Power button, Reset button
  • Total fan mounts
    7x 120 or 4x 140 mm and 2x 120 mm
  • Front fan
    3x 120 or 2x 140 mm, (1x Dynamic X2 GP-14 included)
  • Top fan
    2x 120 or 2x 140 mm
  • Rear fan
    1x 120 mm, (1x Dynamic X2 GP-12 included)
  • Bottom fan
    1x 120 mm (requires removal of HDD cage)
  • Dust filters
    Top, 2x front, full length bottom
  • Fixed velcro straps
    Yes
  • Cable routing grommets
    Yes
  • Captive thumbscrews
    HDD brackets, SSD brackets, PSU bracket
  • Left side panel
    Industrial sound-damped steel or Tempered Glass
  • Right side panel
    Industrial sound-damped steel

Compatibility

  • Motherboard compatibility
    ATX / mATX / Mini-ITX
  • Power supply type
    ATX
  • PSU max length
    200 mm total (165 mm w/ HDD cage and front fan)
  • GPU max length
    341 mm (360 mm without front fan)
  • CPU cooler max height
    169 mm
  • Front radiator
    Up to 360/280 mm (max 145 mm width)
  • Top radiator
    Up to 240 mm
  • Rear radiator
    120 mm
  • Bottom radiator
    120 mm (requires removal of HDD cage)
  • Cable routing space
    17-28 mm

Dimensions

  • Case dimensions (LxWxH)
    427 x 210 x 474 mm
  • Case dimensions w/o feet/protrusions/screws
    415 x 210 x 451 mm
  • Package dimensions (LxWxH)
    536 x 310 x 521 mm
  • Net weight
    Solid version: 8.61 kg, TG Version: 8.76 kg
  • Package weight
    Solid version: 10.87 kg, TG Version: 11.04 kg
  • Volume
    39.3 liters

Other

  • Warranty
    2 Years
  • Package contents
    Define 7 Compact, Accessory box, User manual, Ventilated top panel
  • EAN
    Black Solid - 7340172702160, White Solid - 7340172702764, Black TG Dark Tint - 7340172702177, Black TG Light Tint - 7340172702184, White TG Clear Tint - 7340172702719
  • UPC
    Black Solid - 843276102166, White Solid - 843276102760, Black TG Dark Tint - 843276102173, Black TG Light Tint - 843276102180, White TG Clear Tint - 843276102715
  • JAN
    Black Solid - 4537694275712, White Solid - 4537694280839, Black TG Dark Tint - 4537694275729, Black TG Light Tint - 4537694275736 , White TG Clear Tint - 4537694280822
  • Product code
    Black Solid - FD-C-DEF7C-01, White Solid - FD-C-DEF7C-05, Black TG Dark Tint - FD-C-DEF7C-02, Black TG Light Tint - FD-C-DEF7C-03, White TG Clear Tint - FD-C-DEF7C-04
