Fractal Design Define C Window (FD-CA-DEF-C-BK-TG)

Fractal Design Define C Window (FD-CA-DEF-C-BK-TG)

Brand : Fractal Design

Regular price ₱7,240.00
Sale price ₱7,240.00
Regular price ₱7,840.00 -8%
Sale! Sold out

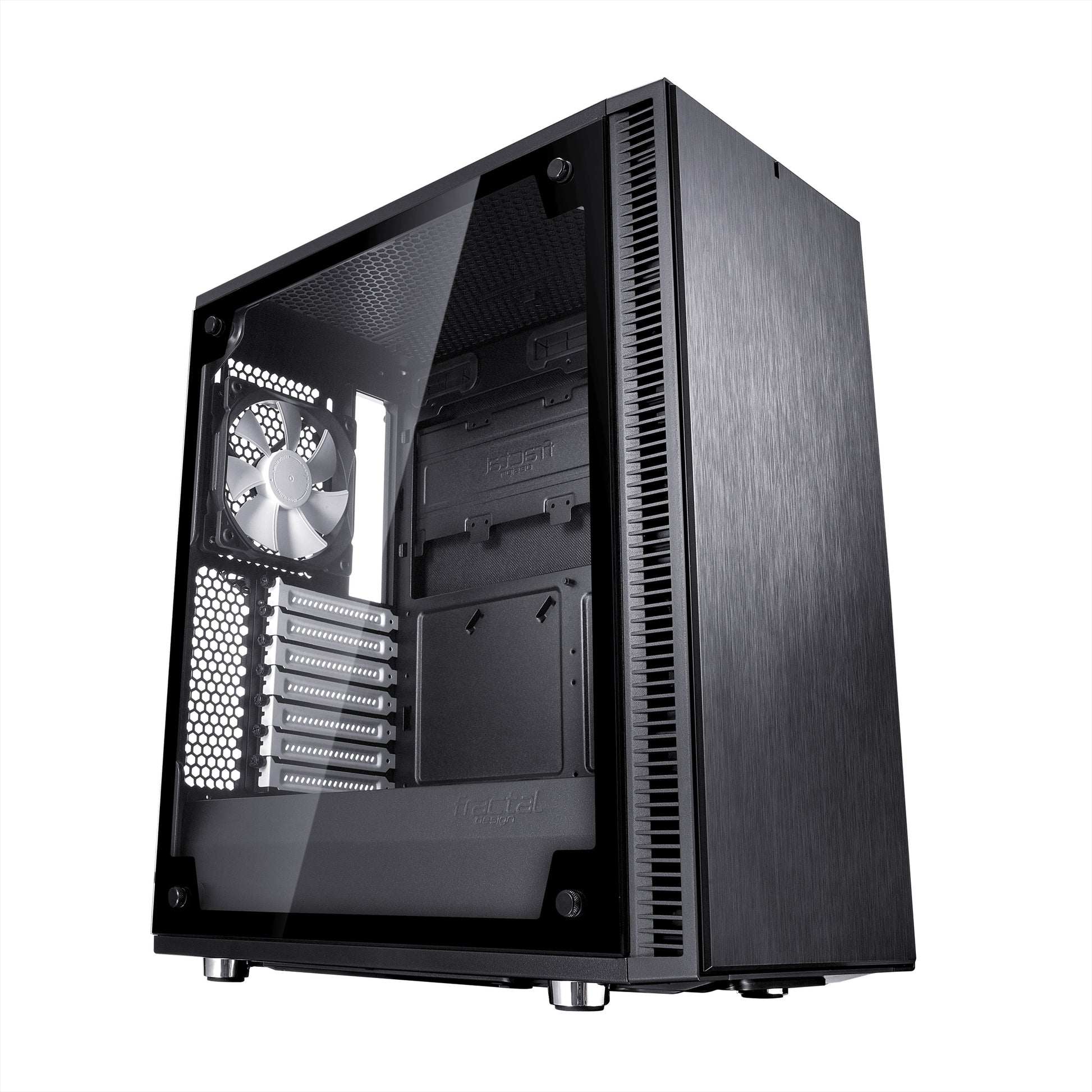

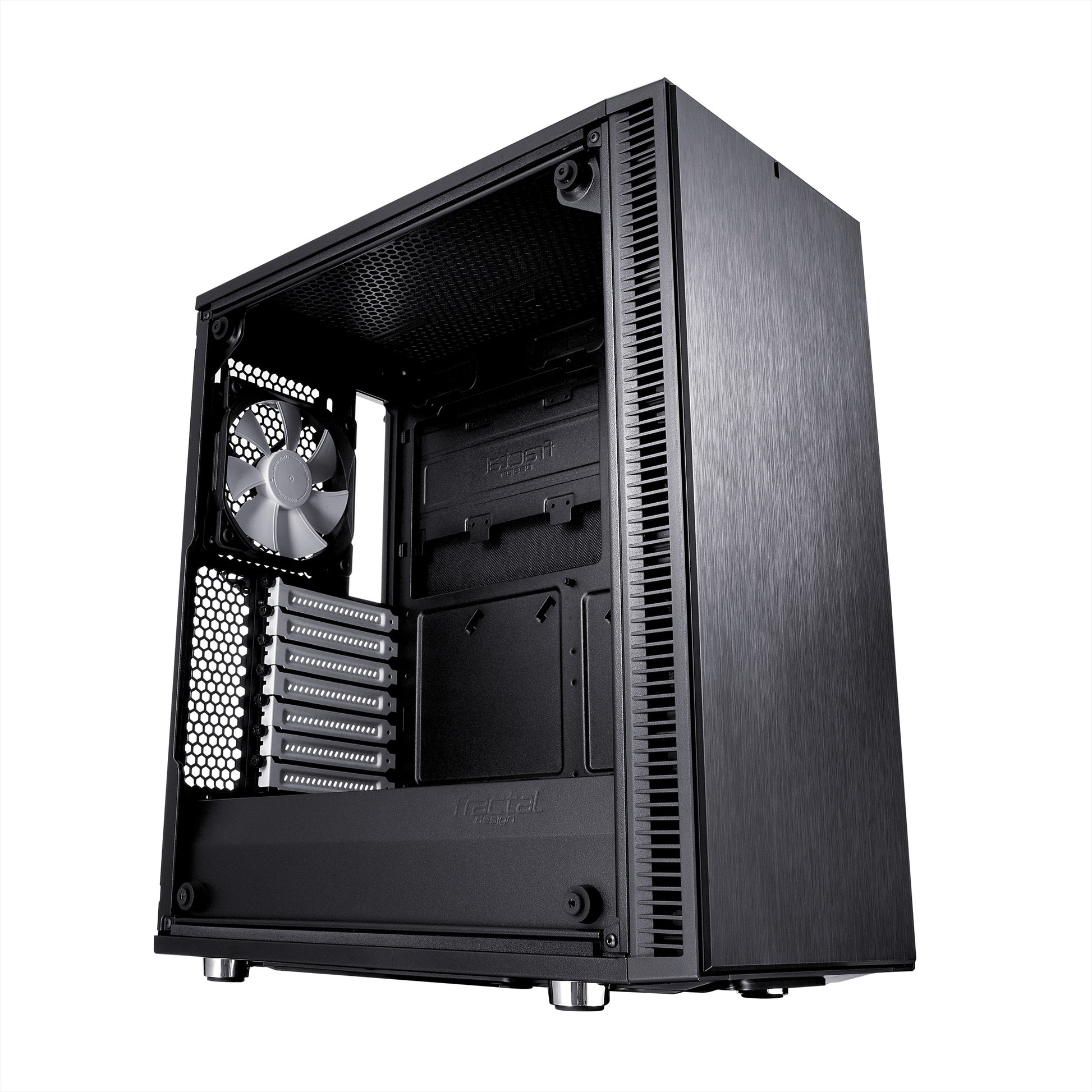

Define C Tempered Glass

Created for those who demand a flexible platform for a powerful ATX or Micro ATX build that wastes no space, the Define C TG is the perfect solution to accomplish this balance of capacity and efficiency while opening up the side thanks to a full tempered glass side panel

  • Sound dampening with ModuVent™ technology for silent operation
  • Optimized for high airflow and silent computing
  • Tempered glass side panel for a clean looking exterior with full interior visibility

Optimized for high airflow and silent computing
Extensive cooling support via both air and water are offered to make sure even the most powerful systems can be cooled effectively
Define Series sound dampening with ModuVent™ technology for silent operation in a compact full ATX or Micro ATX form factor

Side and front panels are lined with industrial-grade sound dampening material

Comes with two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans optimized to deliver maximum airflow while still maintaining a low noise level

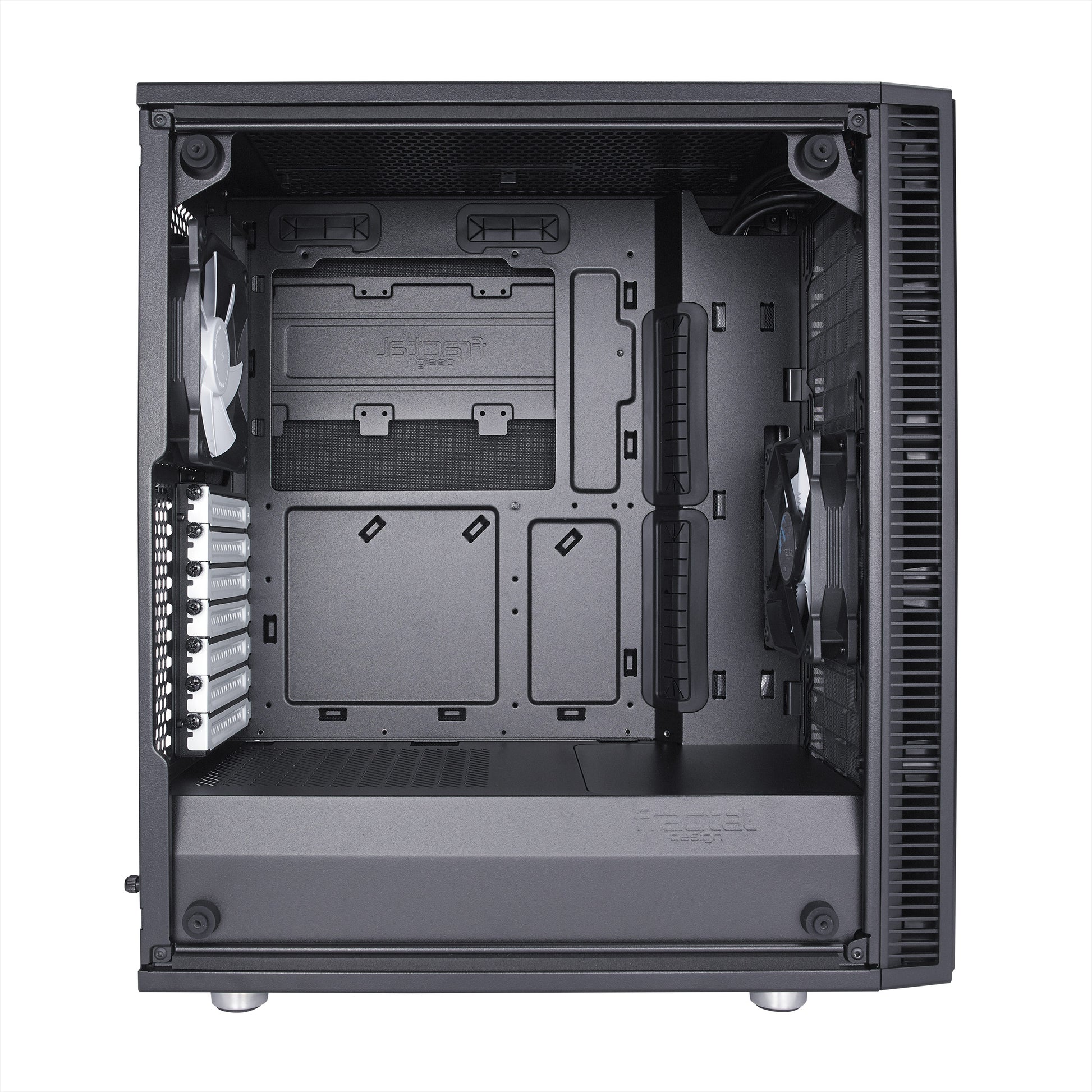

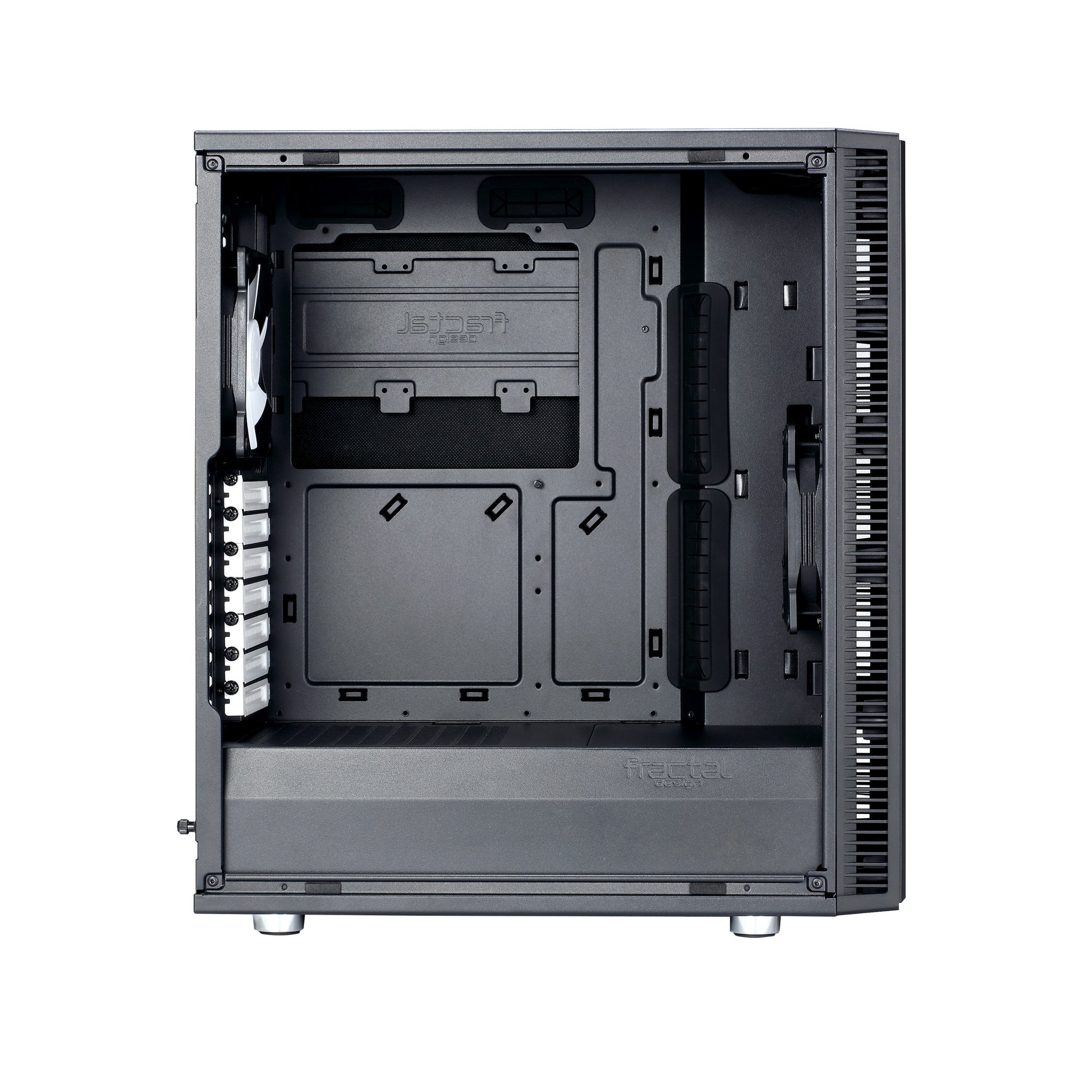

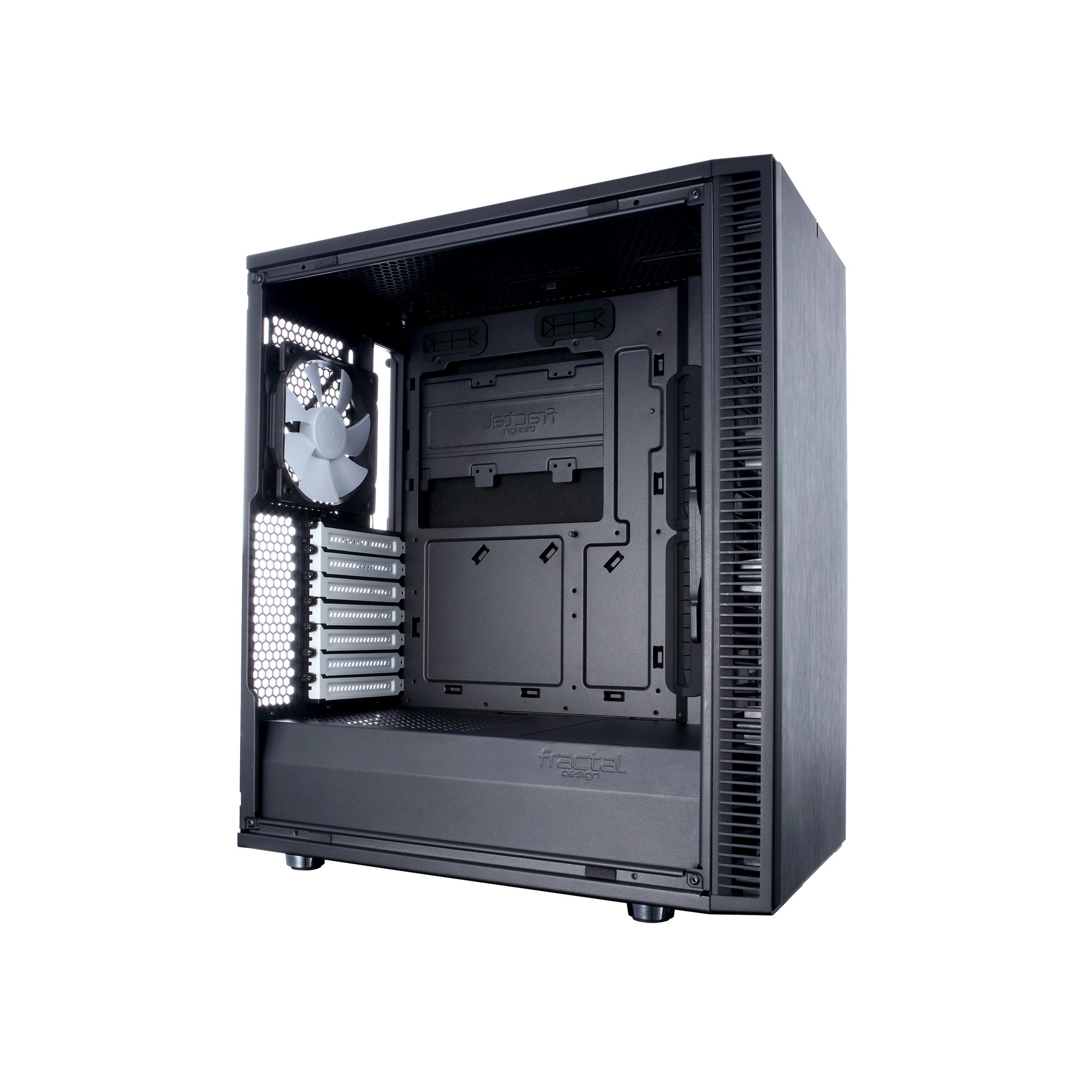

Open air designed interior creates an unobstructed airflow path from the front intake to the rear exhaust

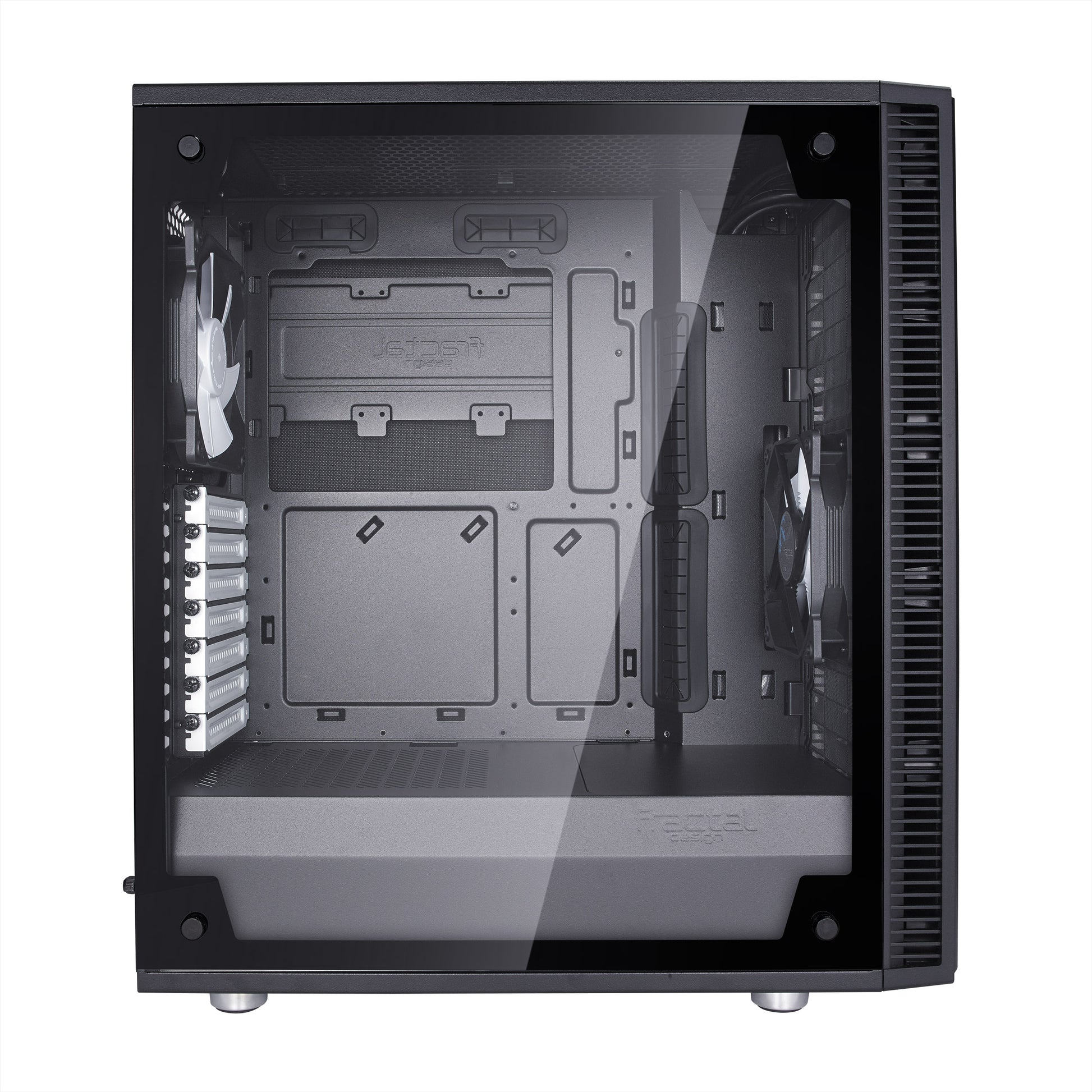

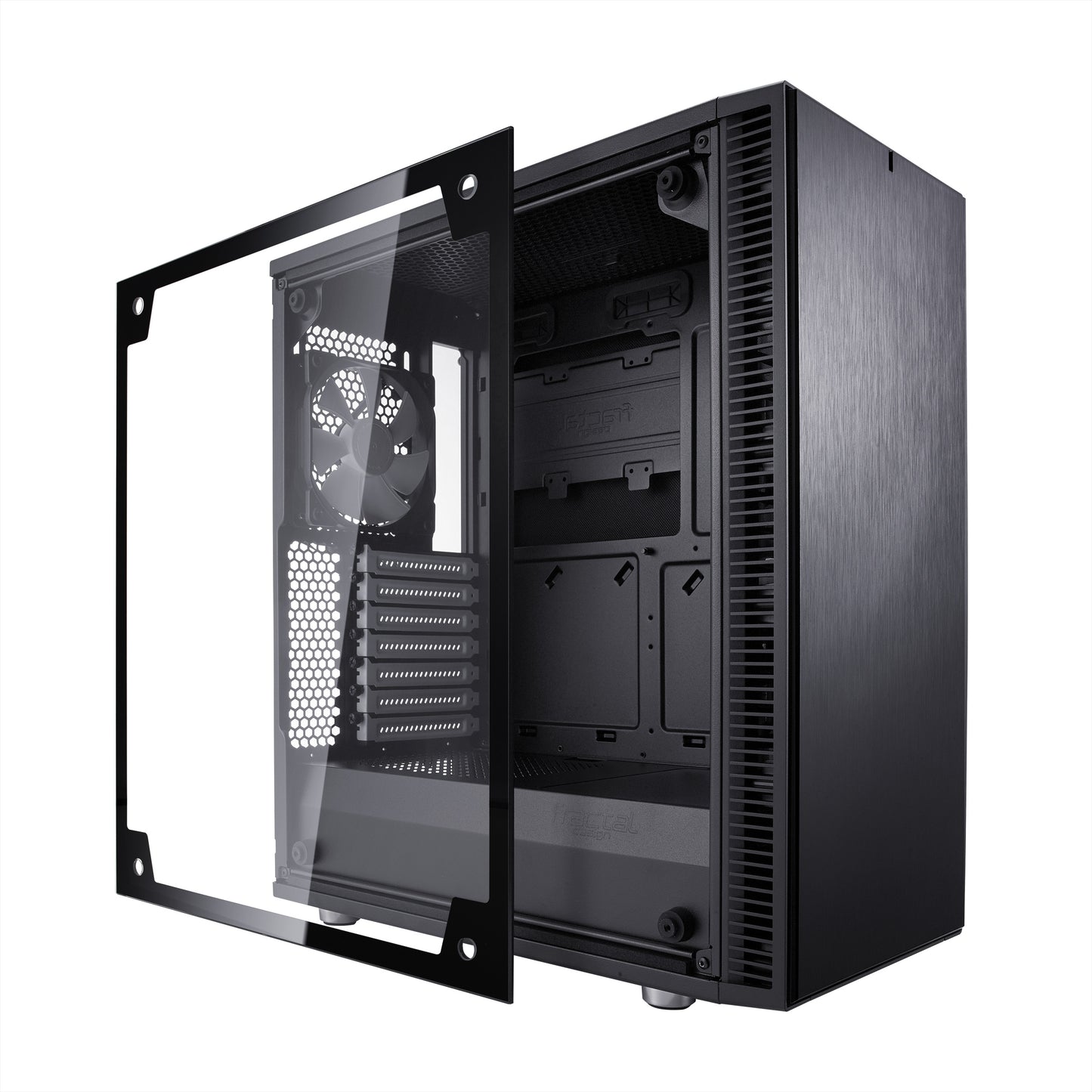

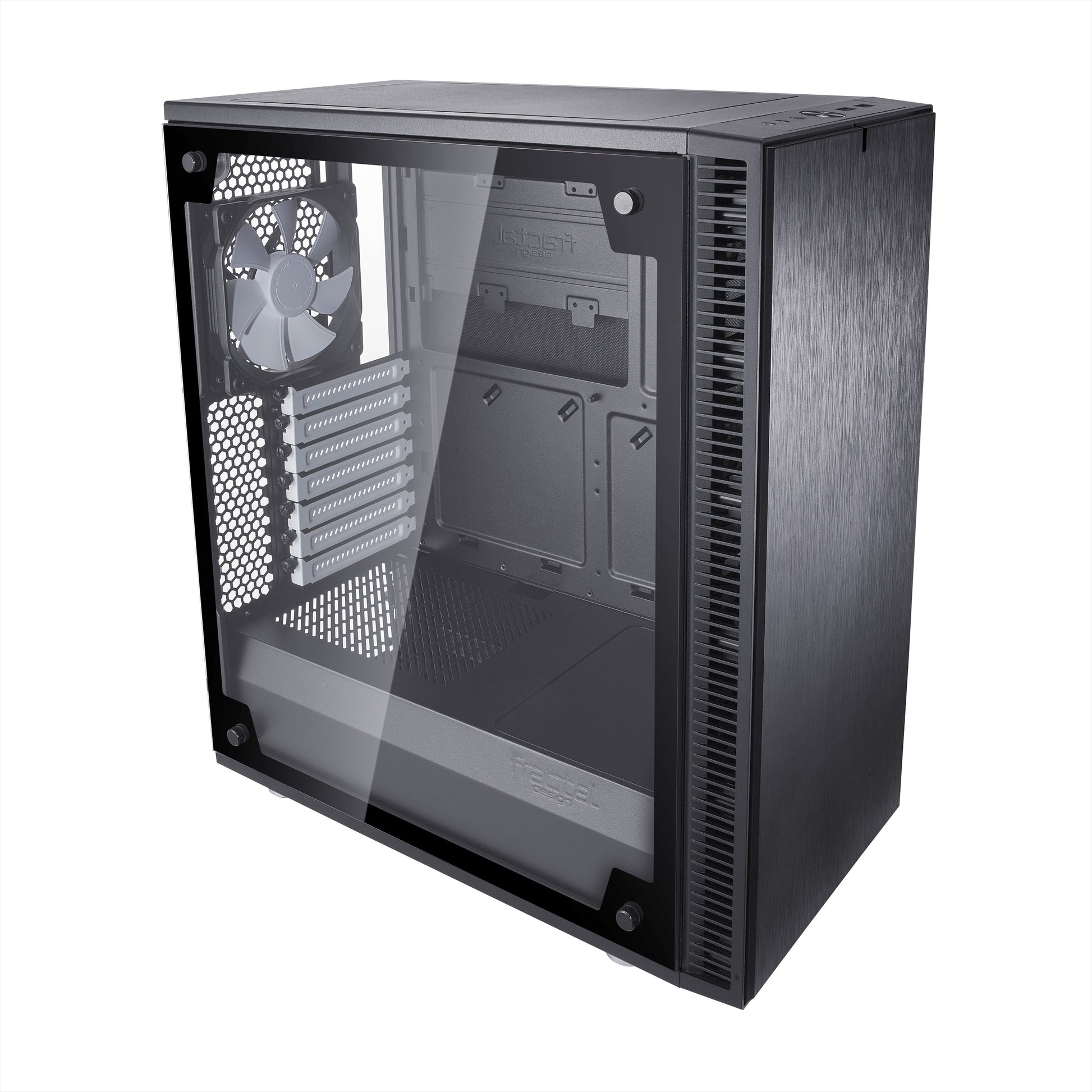

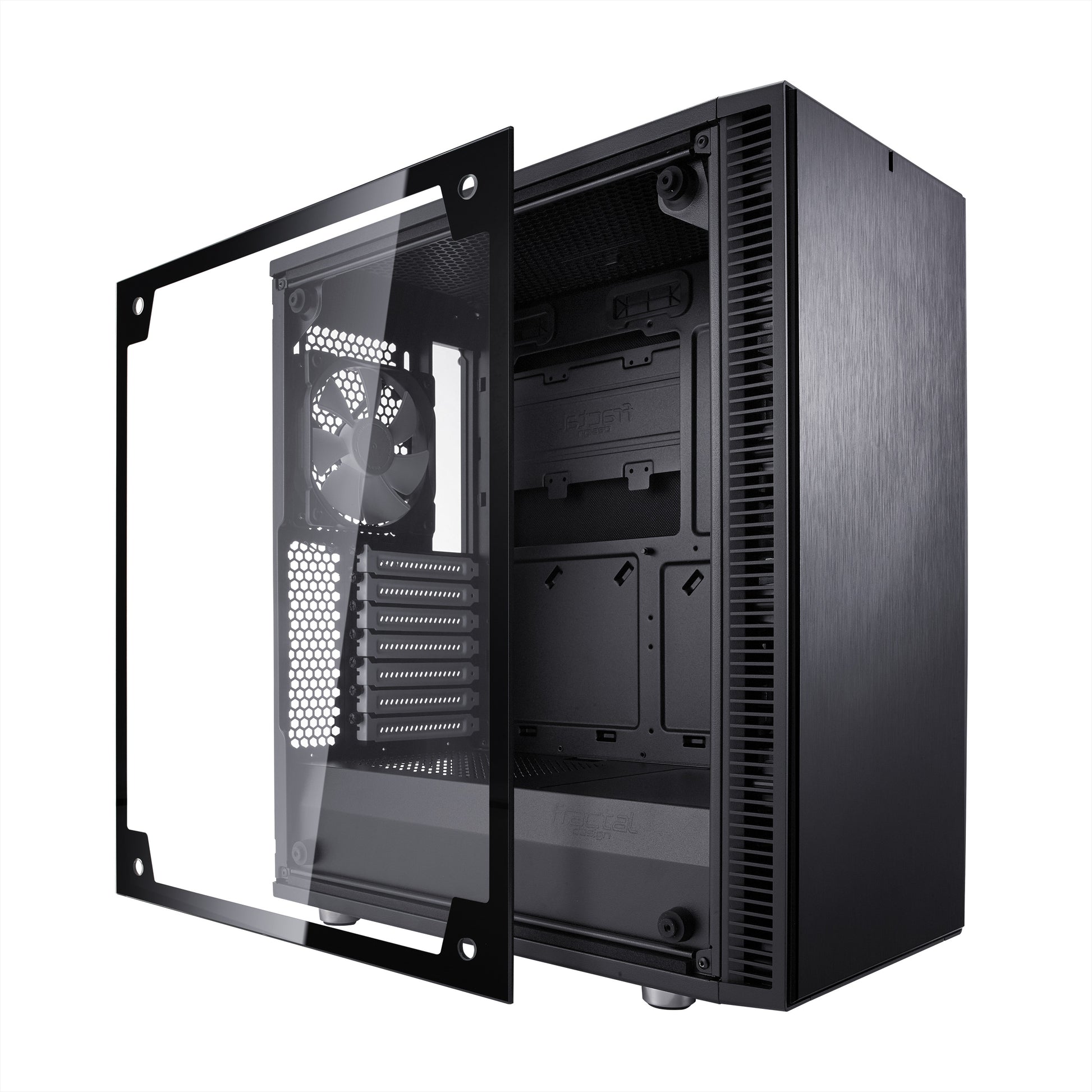

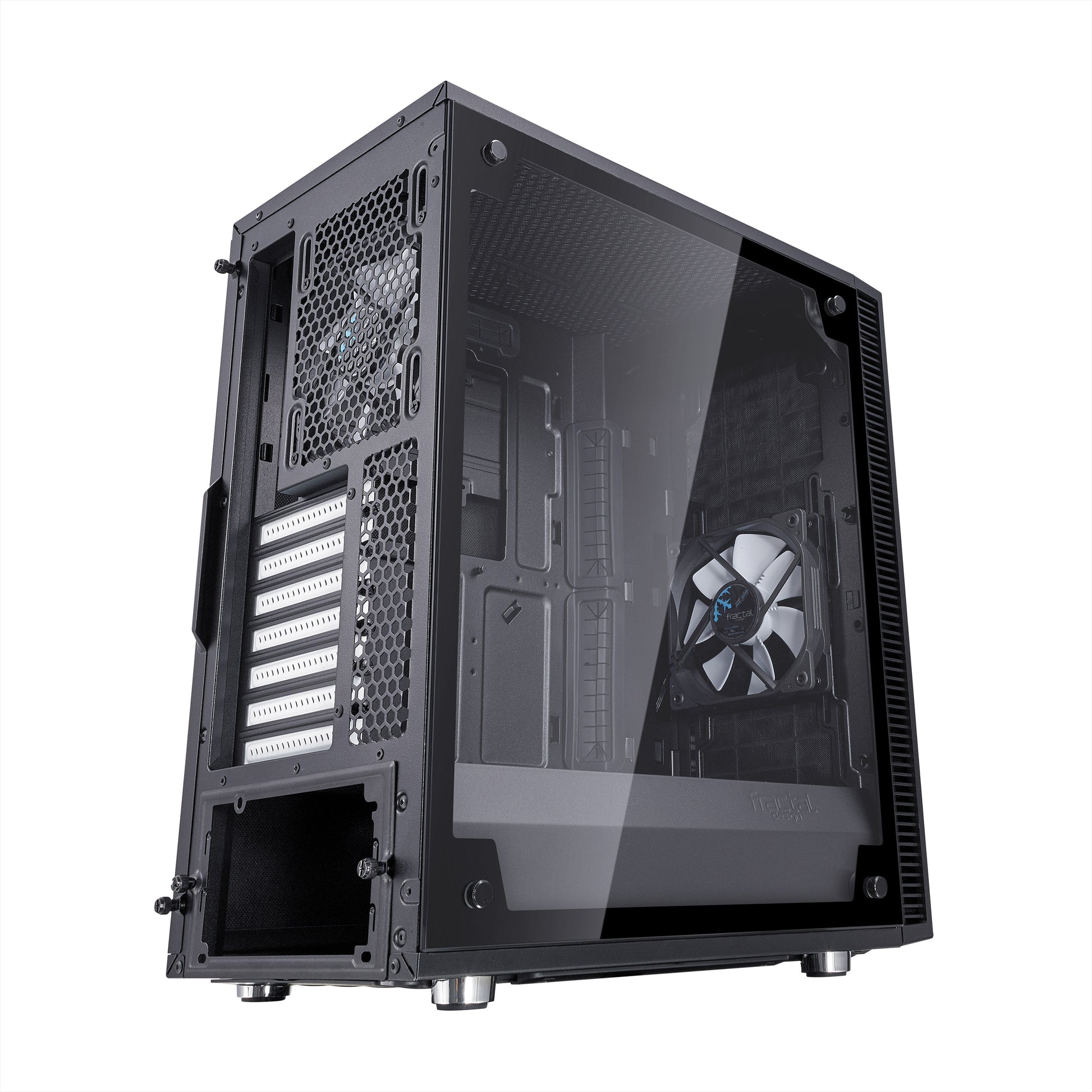

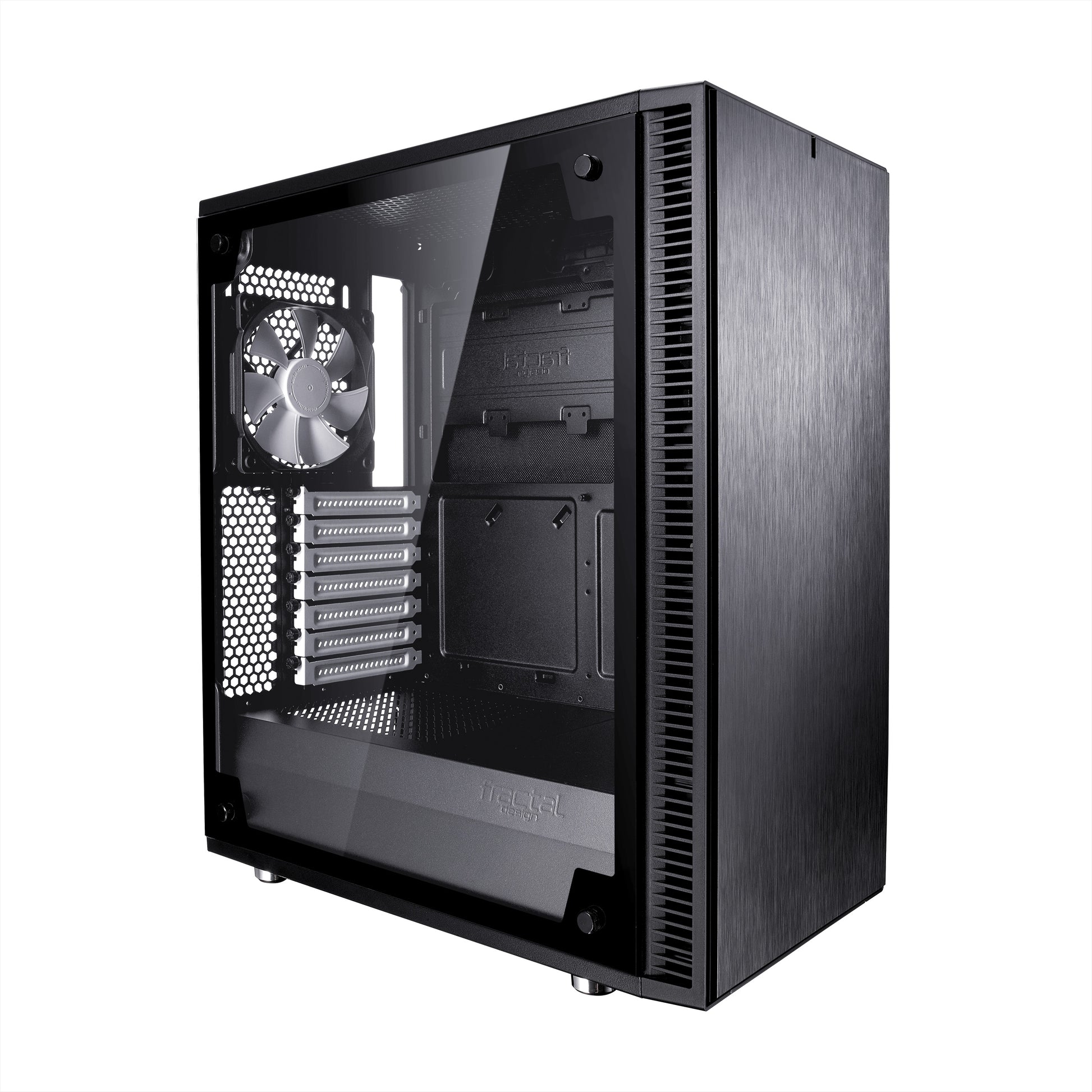

Full interior visibility
Tempered glass side panel for a clean looking exterior with full interior visibility

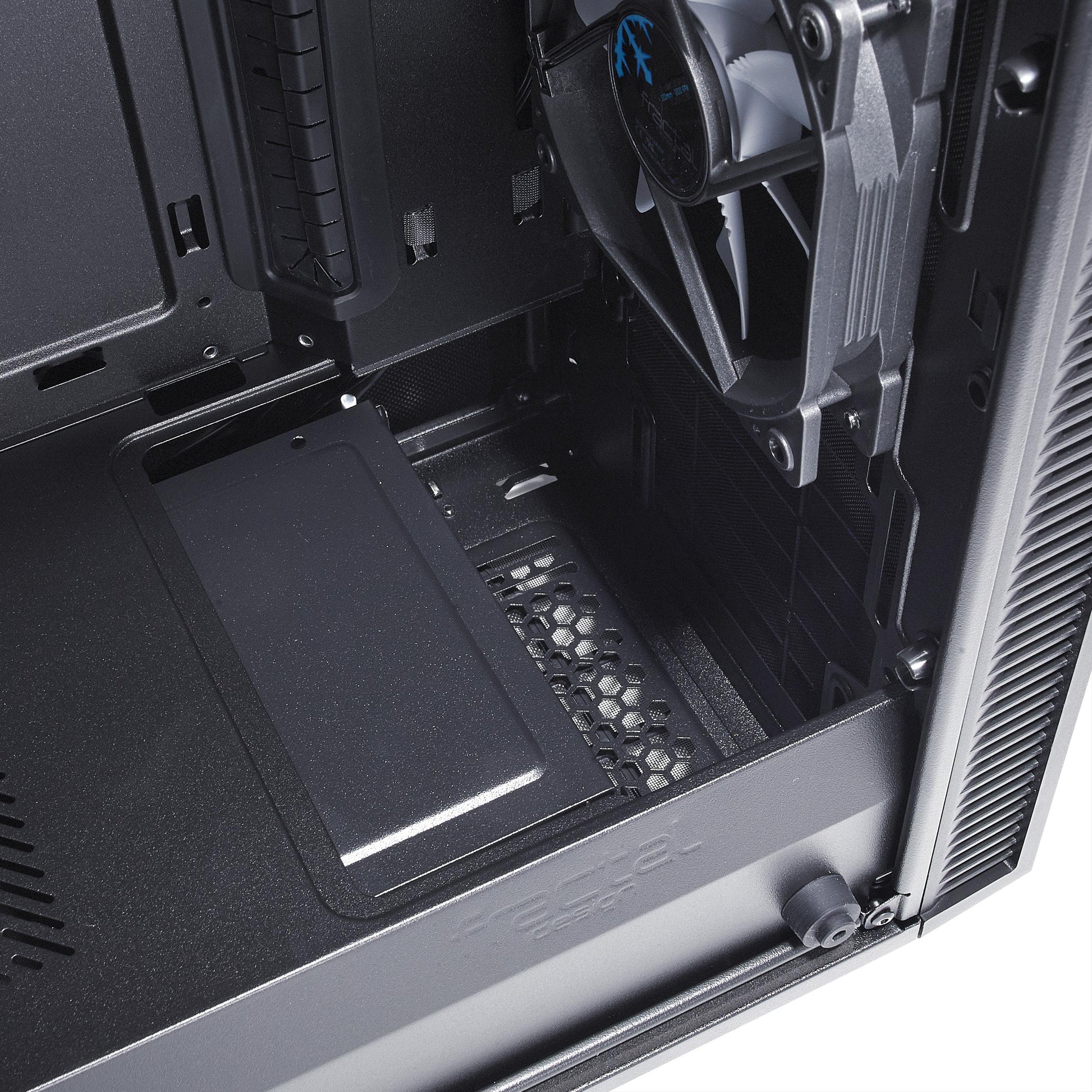

Easy-to-clean filters
Easy-to-clean high airflow nylon filters on the front and base with full PSU coverage and front access for convenience

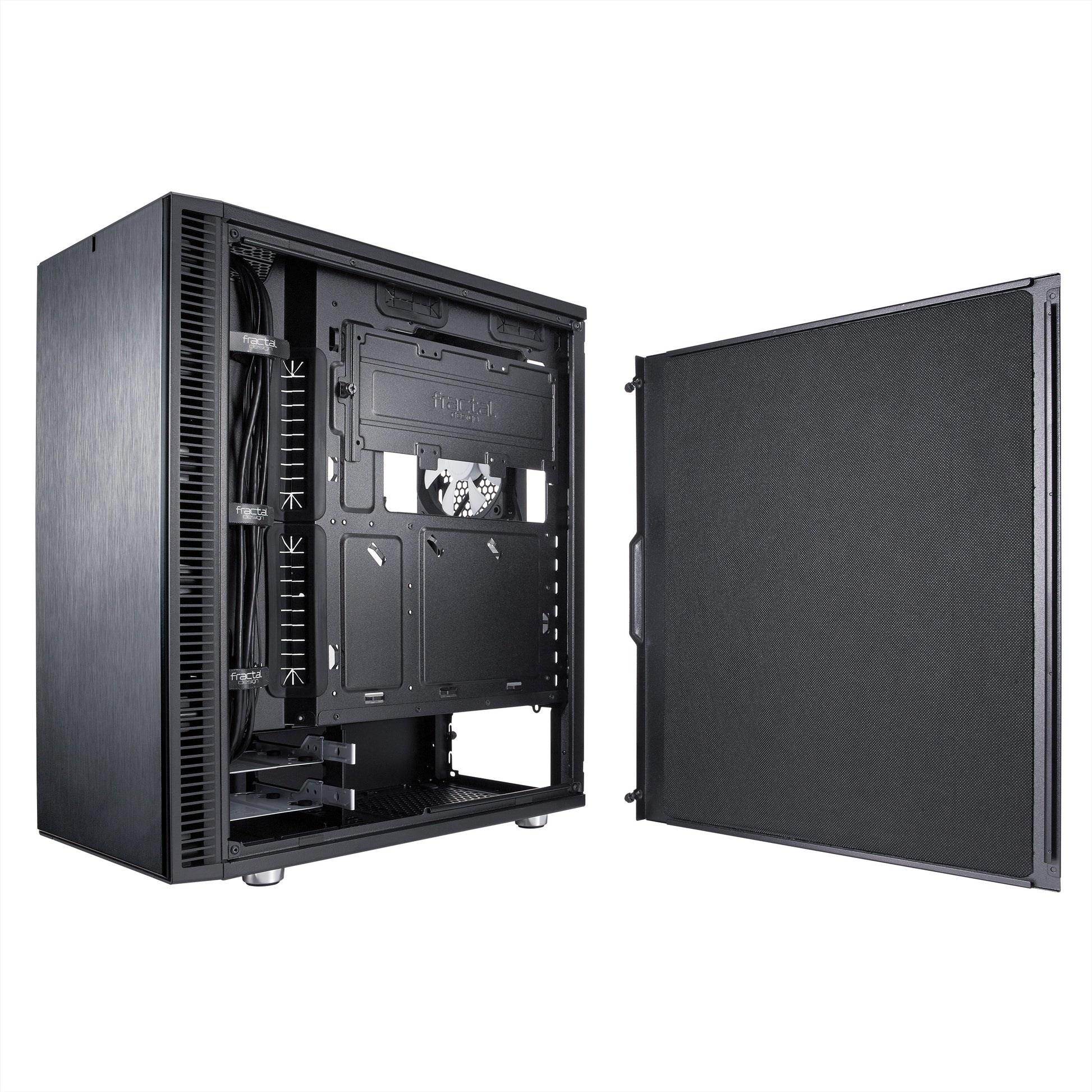

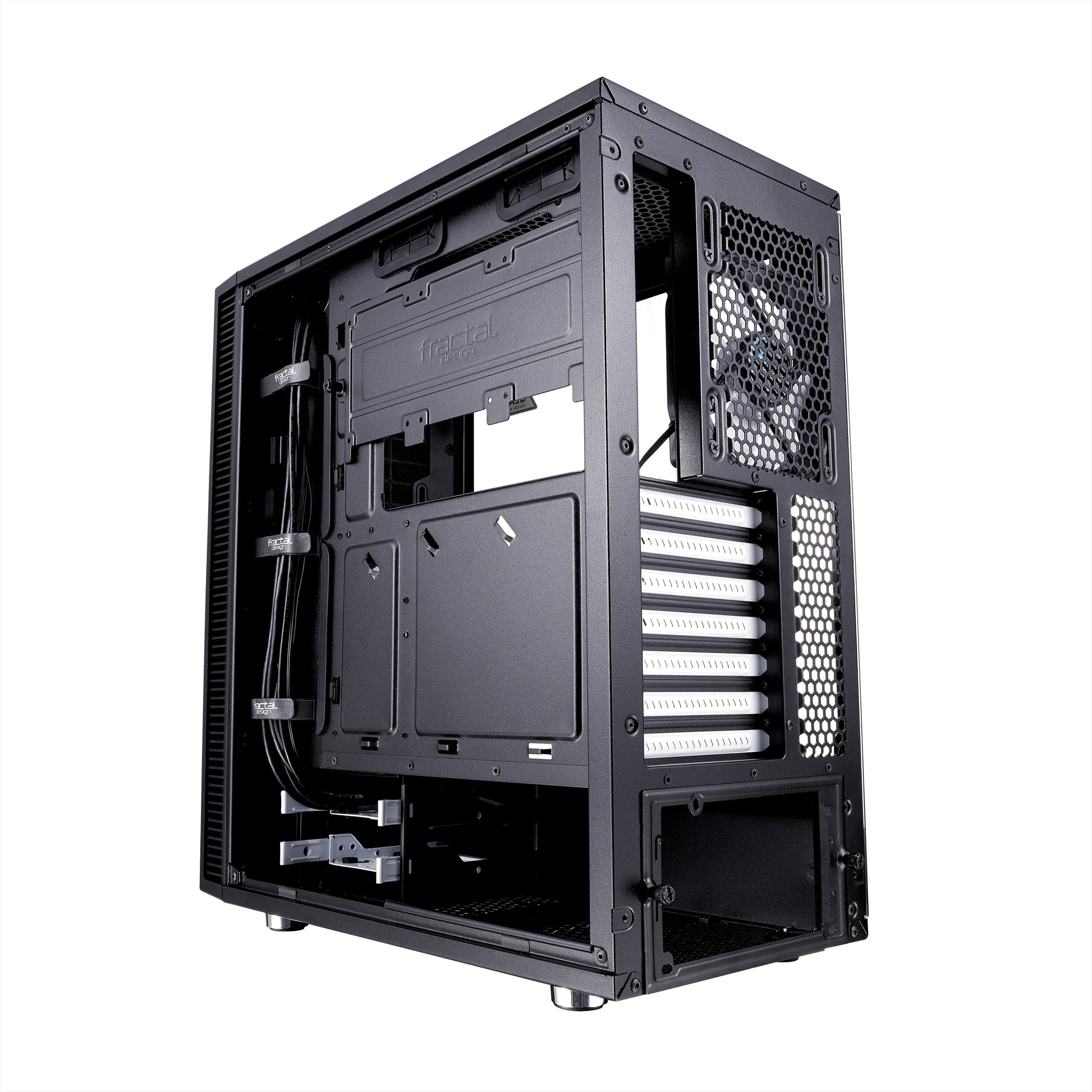

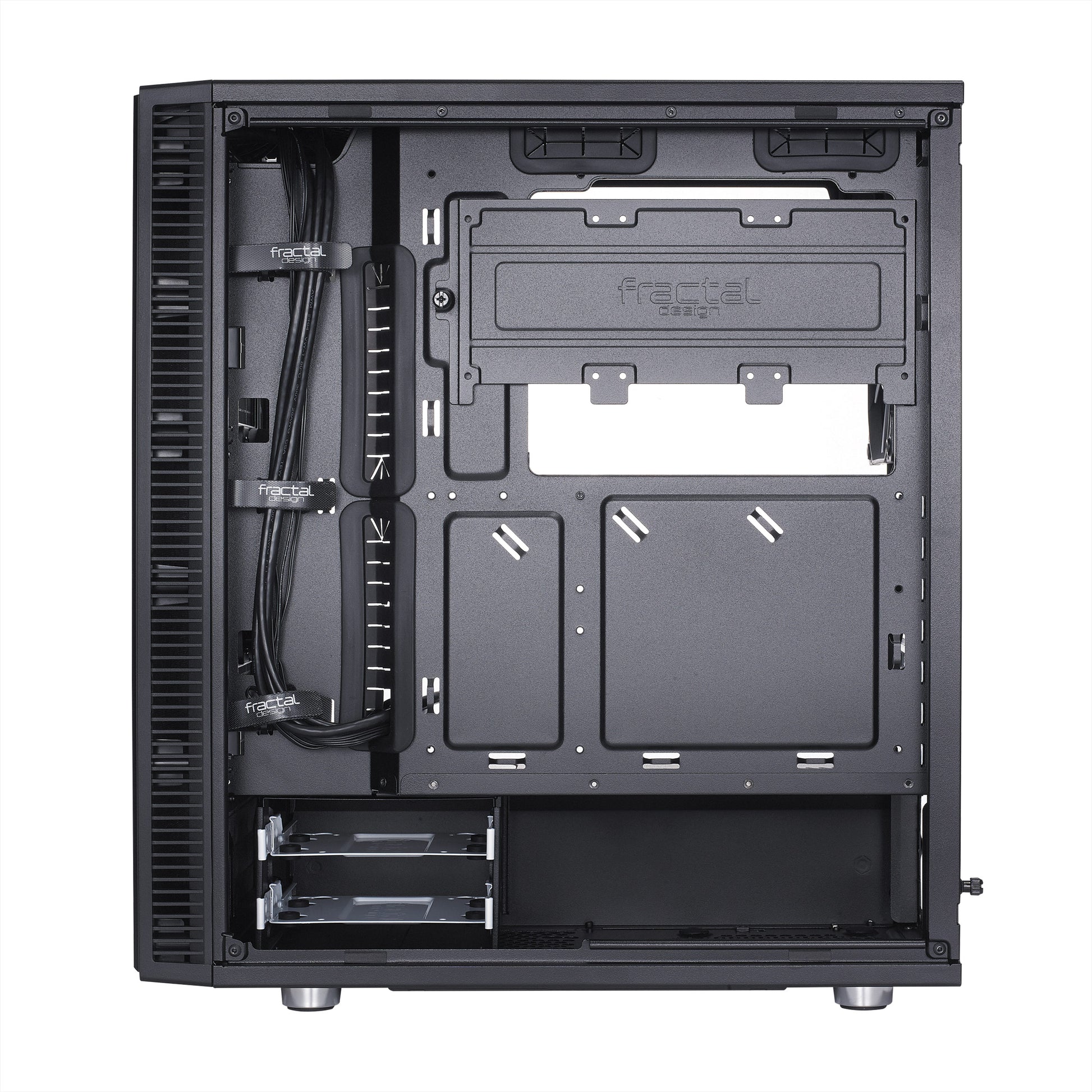

Hide the mess

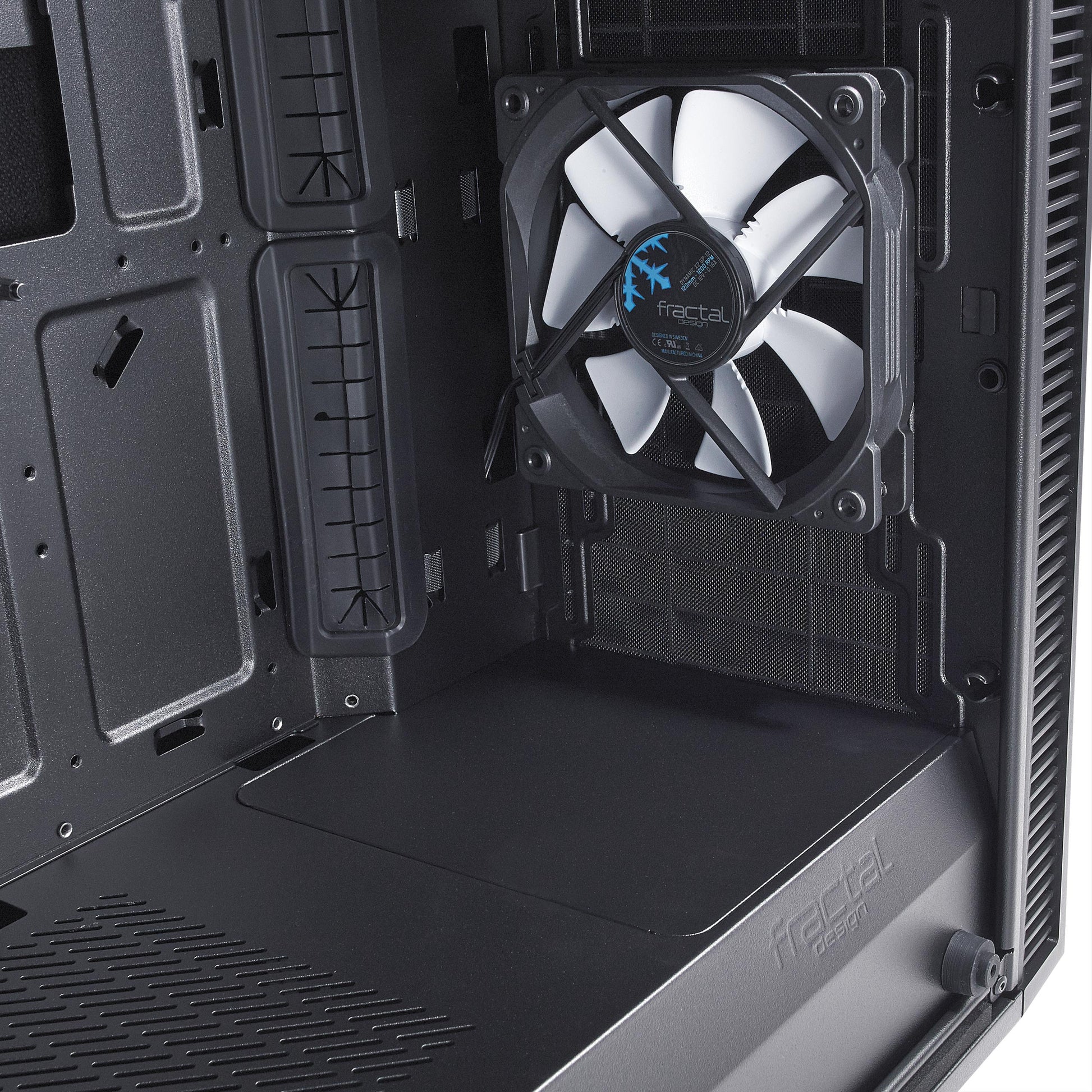

Power supply shroud conceals drive cage and excess cabling for an even quieter and cleaner looking interior free of airflow obstructions 

Smart layout and functionality
The open air design offers unobstructed airflow across your core components with high performance and silent computing in mind at every step.
Flexible storage options with room for up to five drives

Includes optional top filter to prevent dust buildup when ModuVent is removed for additional fan slots



Specifications

  • 3.5" or 2.5" Drive capacity
    2
  • Dedicated 2.5" drive capacity
    3 (Maximum 2.5" drive thickness is 10 mm)
  • Expansion slots
    7
  • Front ports
    2x USB 3.0, Audio in/out, Power button with LED, HDD activity LED, Reset button
  • Total fan mounts
    7
  • Front fan
    3x 120 or 2x 140 (1x Dynamic X2 GP-12 included)
  • Top fan
    2x 120/140
  • Rear fan
    1x 120 (1x Dynamic X2 GP-12 included)
  • Bottom fan
    1x 120
  • Dust filters
    Bottom fan + PSU, Front fans, Top panel (optional)
  • Cable routing grommets
    Yes
  • Fixed Velcro straps
    Yes
  • Captive thumbscrews
    Both side panels, SSD brackets
  • Left side panel
    Tempered Glass
  • Right side panel
    Industrial sound-dampened steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    ATX, mATX, ITX
  • Front radiator
    120/240/360 mm or 140/280 mm
  • Top radiator
    120/240 mm (max component height on motherboard 40 mm)
  • Rear radiator
    120 mm (max width 125 mm)
  • PSU max length
    Maximum 175 mm recommended
  • GPU max length
    Max 315 mm with front fan mounted
  • CPU cooler max height
    172 mm
  • Cable routing space
    15-35 mm

Dimensions

  • Case dimensions (LxWxH)
    399 x 212 x 440 mm
  • Case dimensions - with feet/protrusions/screws
    413 x 217 x 453 mm
  • Net weight
    7.2 kg
  • Package dimensions (LxWxH)
    543 x 295 x 484 mm
  • Package weight
    8.7 kg
  • Volume
    36.9 liters

Other

  • Warranty
    2 Years
  • Package contents
    Define C TG computer case; User manual; Accessory box; Optional top filter
  • EAN
    7350041085683
  • UPC
    817301015684
  • Product code
    FD-CA-DEF-C-BK-TG
