Fractal Design Define Mini C (FD-CA-DEF-MINI-C-BK)

Fractal Design Define Mini C (FD-CA-DEF-MINI-C-BK)

Brand : Fractal Design

SKU: SKU:  FD-CA-DEF-MINI-C-BK

Regular price ₱5,905.00
Regular price ₱6,400.00 Sale price ₱5,905.00
Sale! Sold out
Taxes included.

Low stock: 3 left

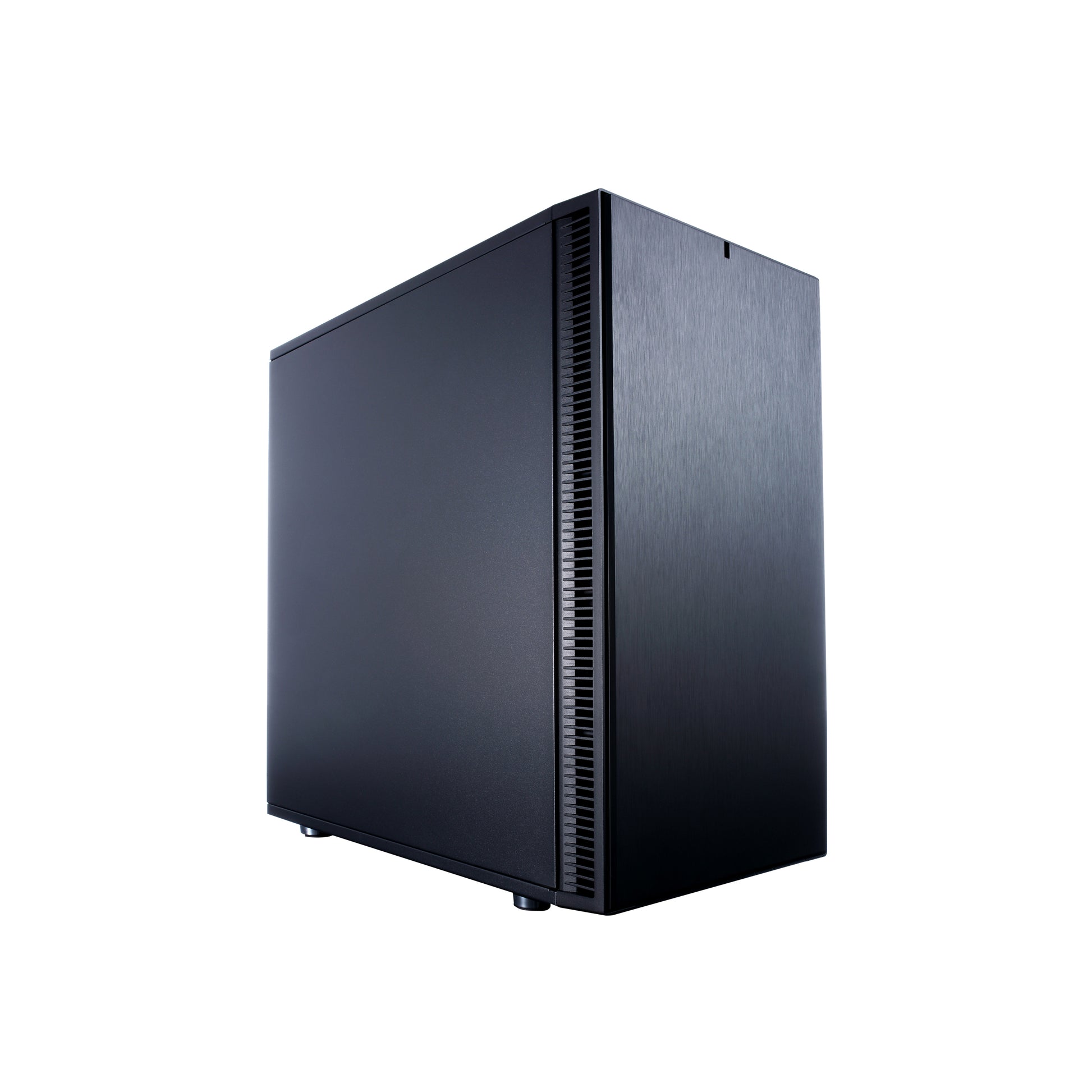

Define Mini C

Created for people who demand a flexible platform for a powerful Micro ATX build that wastes no space, the Define Mini C is the perfect solution to achieve this balance of capacity and efficiency

  • Sound dampening with ModuVent™ technology for silent operation
  • Optimized for high airflow and silent computing

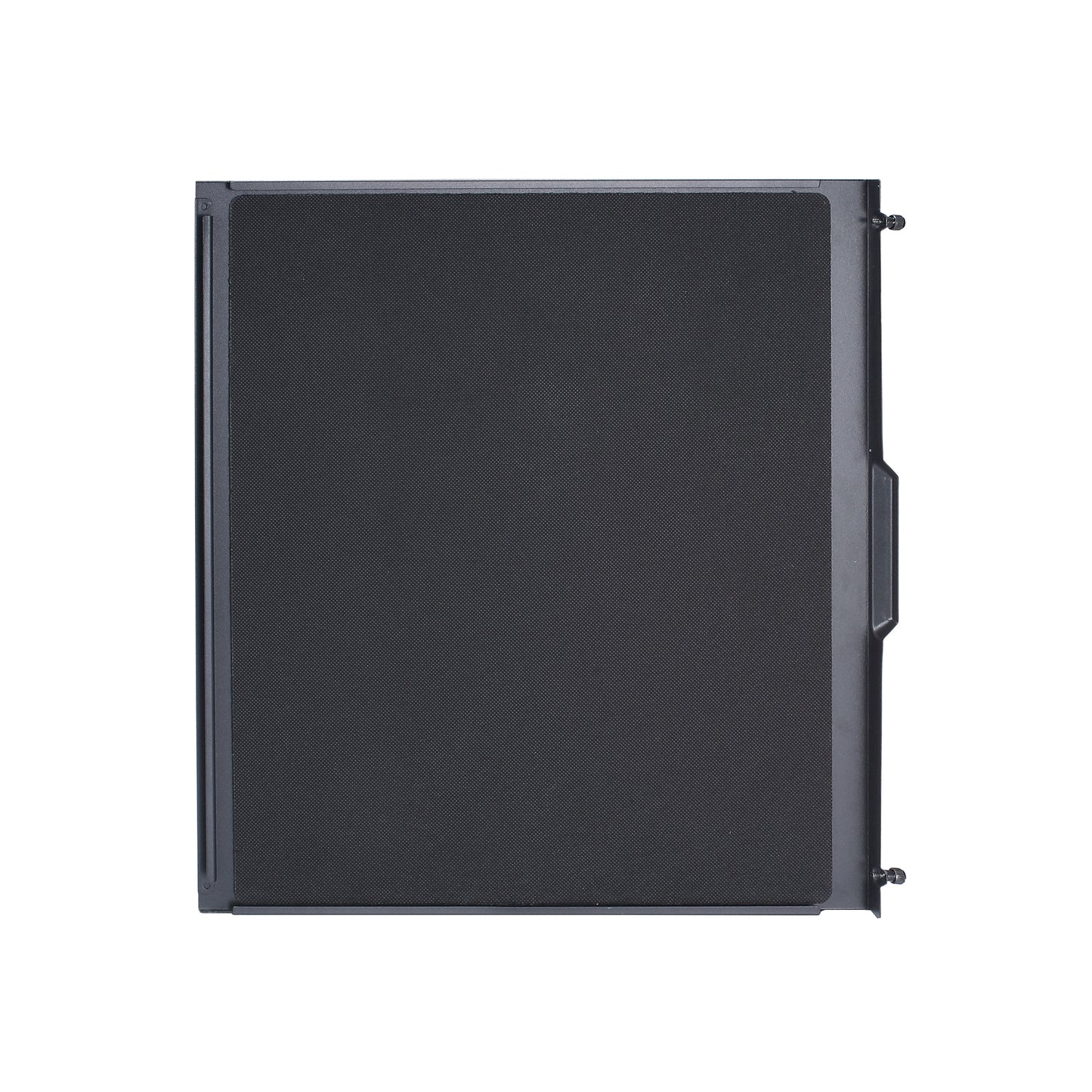

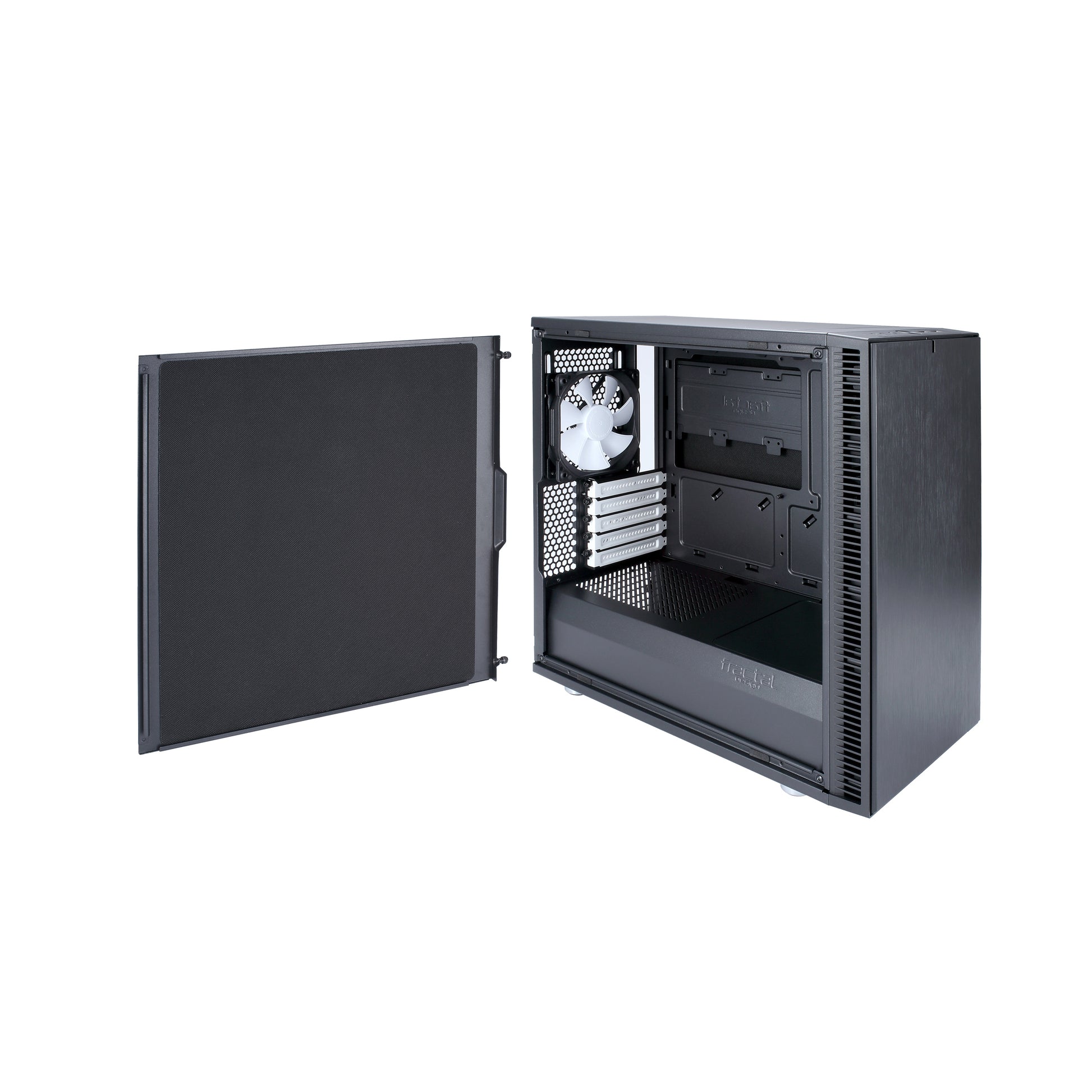

  • Side and front panels are lined with industrial-grade sound dampening material

    Bring your system together in an exquisite way

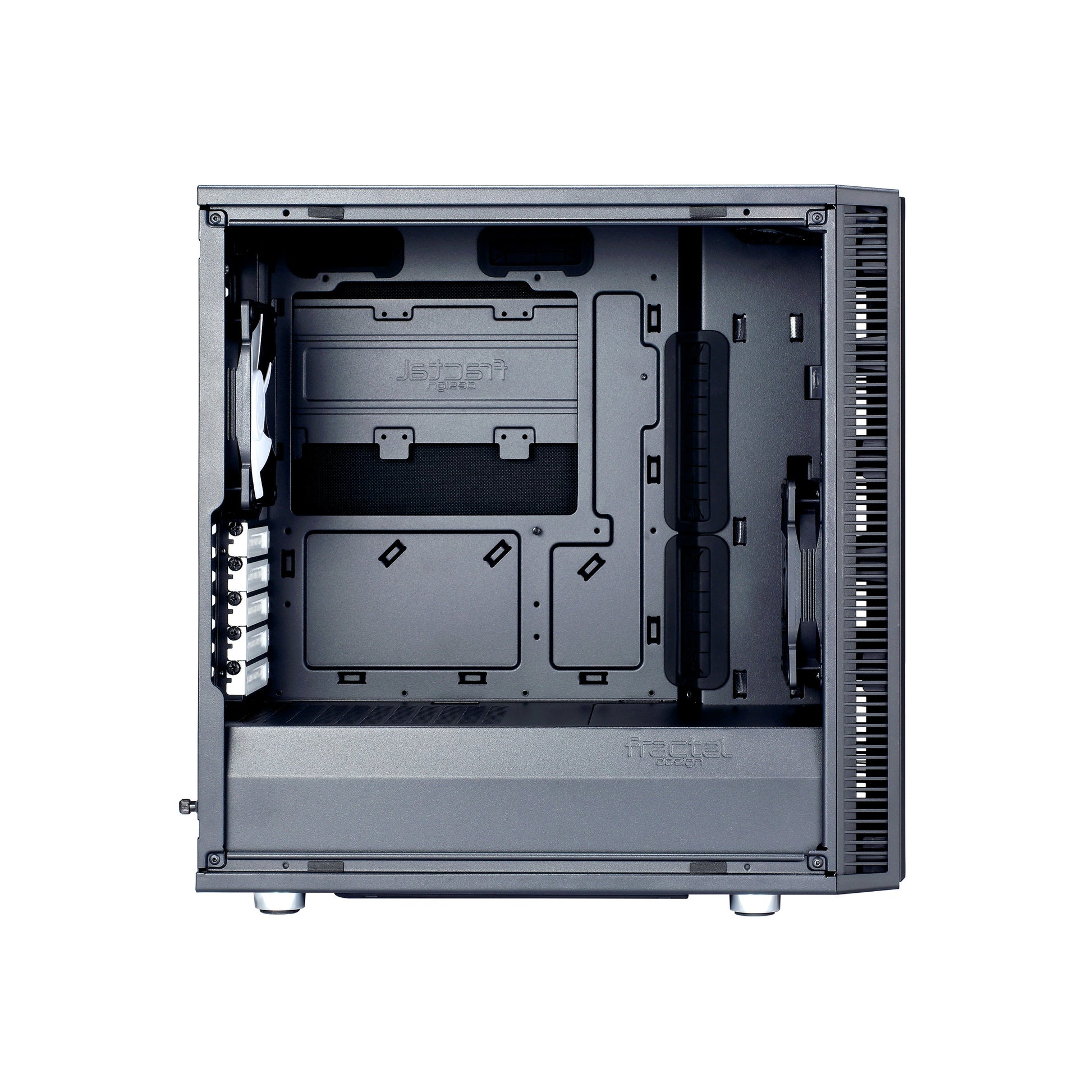

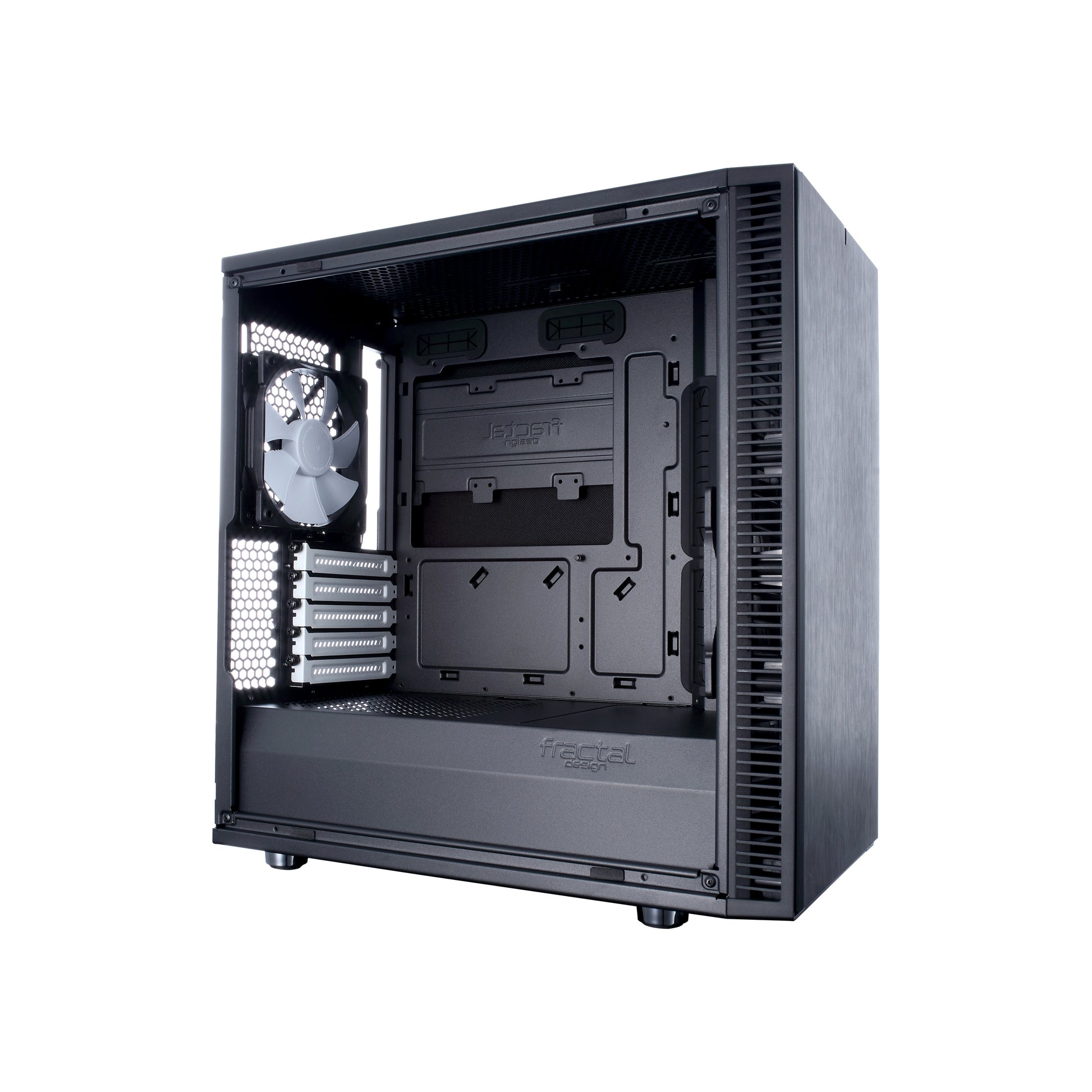

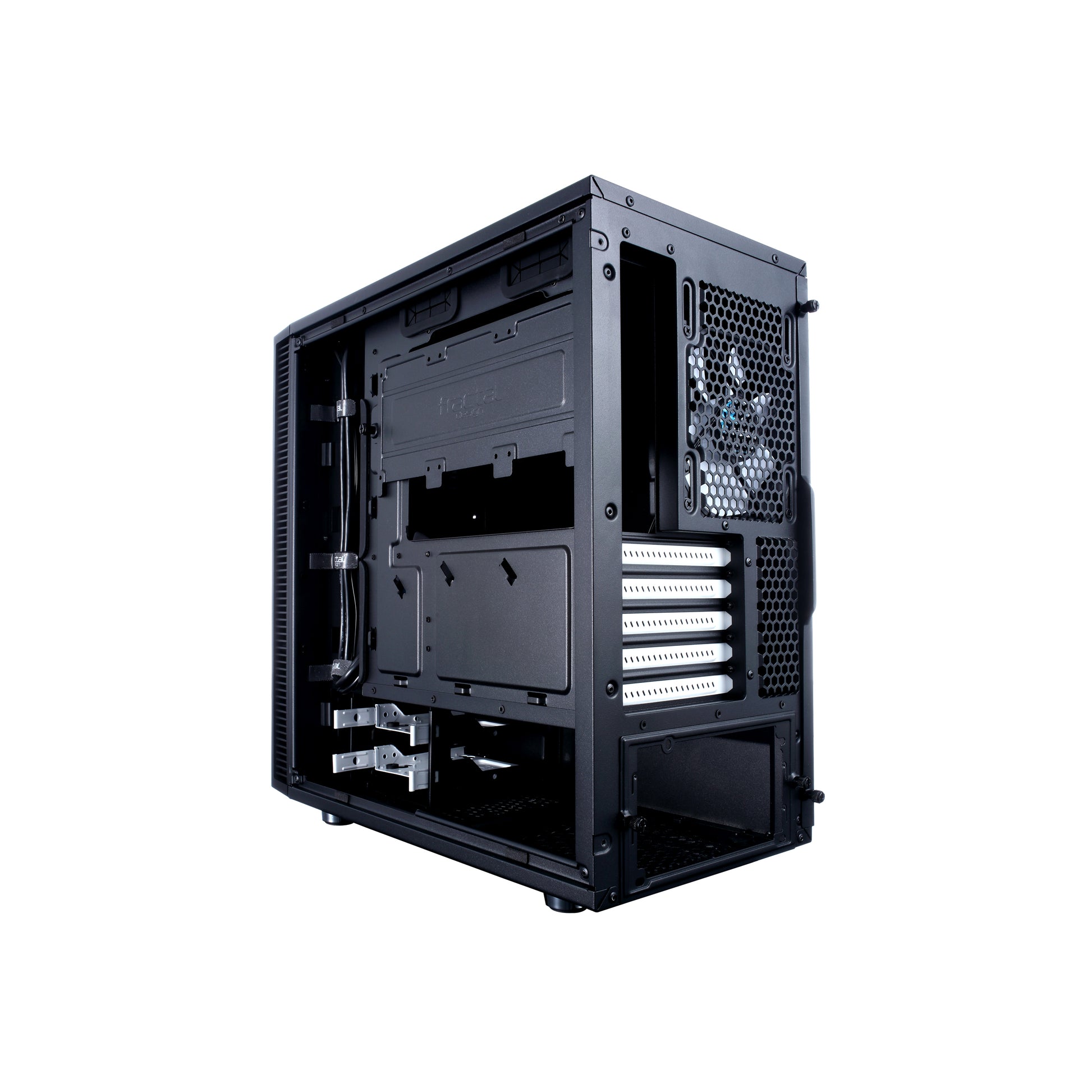

    The open air design offers unobstructed airflow across your core components with high performance and silent computing in mind at every step. Extensive cooling support via both air and water are offered to make sure even the most powerful systems can be cooled effectively.

    Carrying signature Define series traits, the Define Mini C brings with it that iconic front panel design, dense sound dampening material throughout and ModuVent technology in the top panel.

    Compact silence

    • Side and front panels are lined with industrial-grade sound dampening material

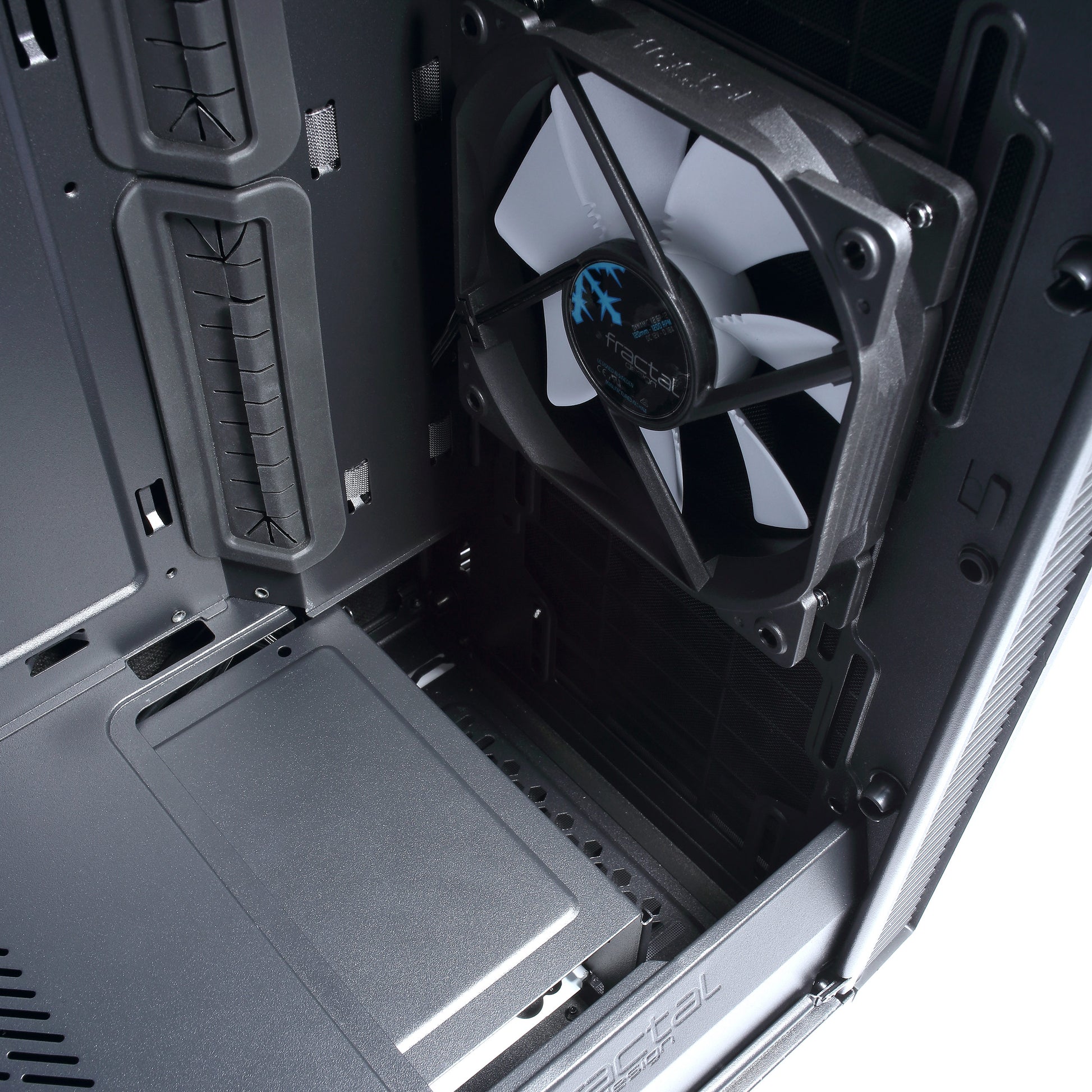

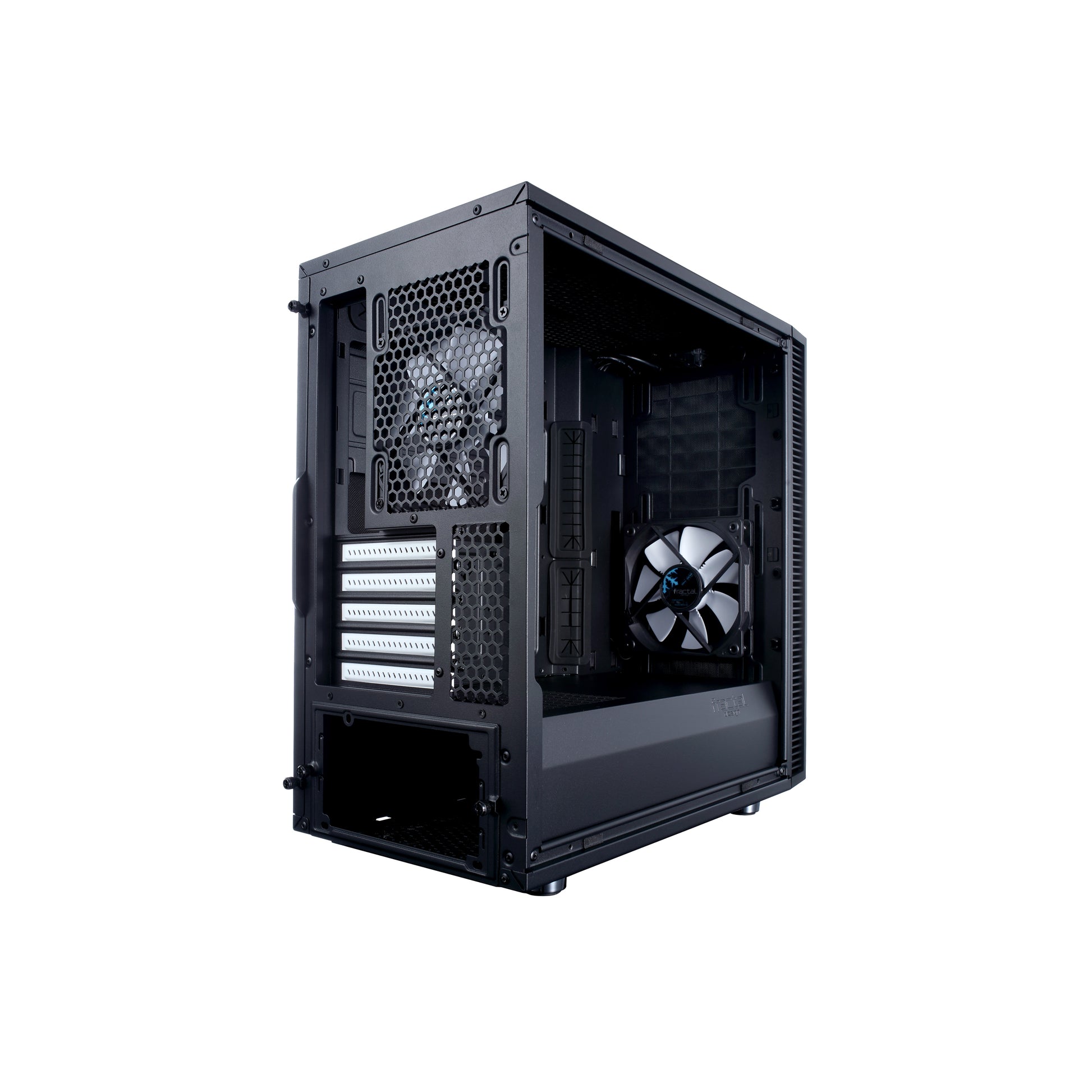

    • Comes with two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans optimized to deliver maximum airflow while still maintaining a low noise level

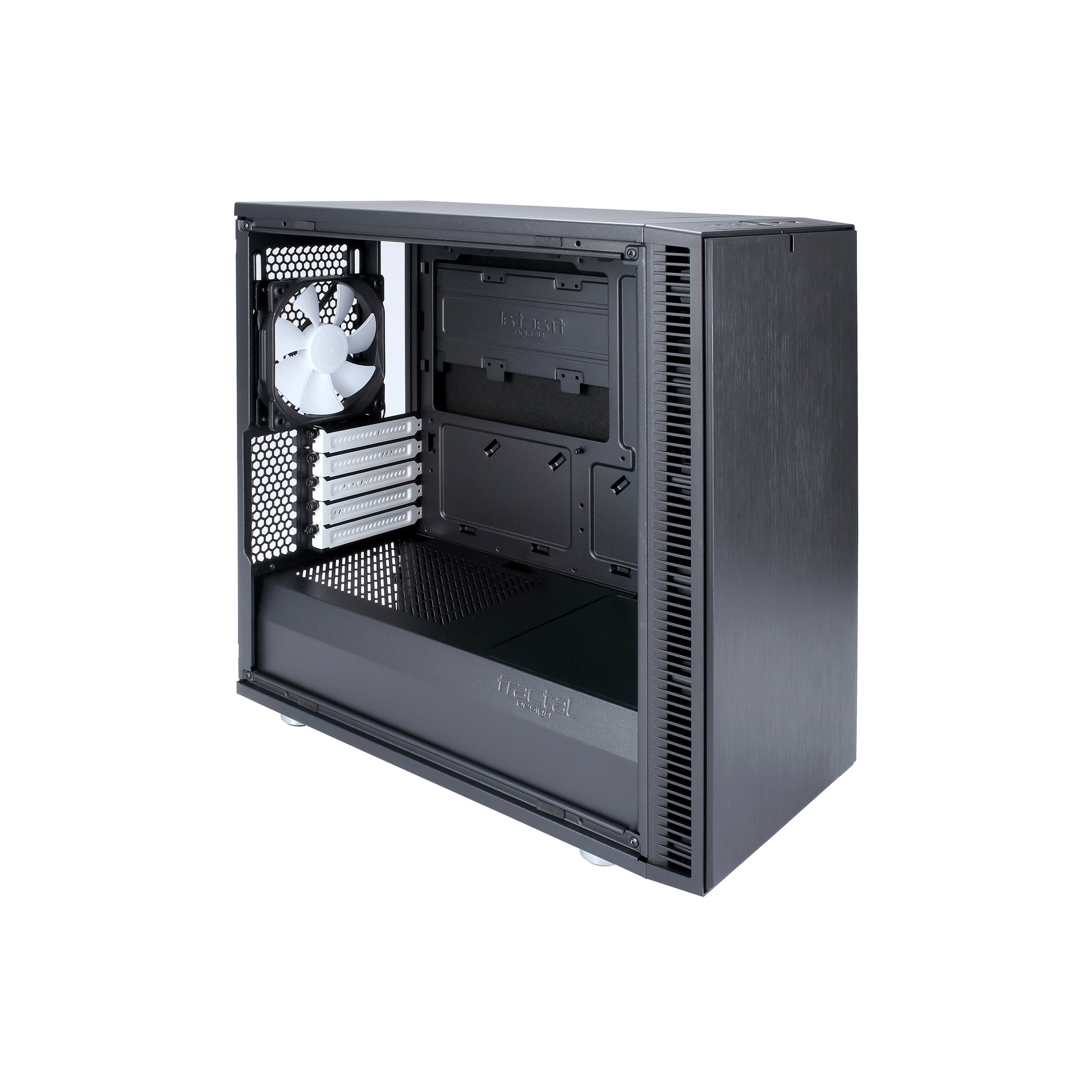

    • Open air designed interior creates an unobstructed airflow path from the front intake to the rear exhaust
    • Includes optional top filter to prevent dust buildup when ModuVent is removed for additional fan slots.

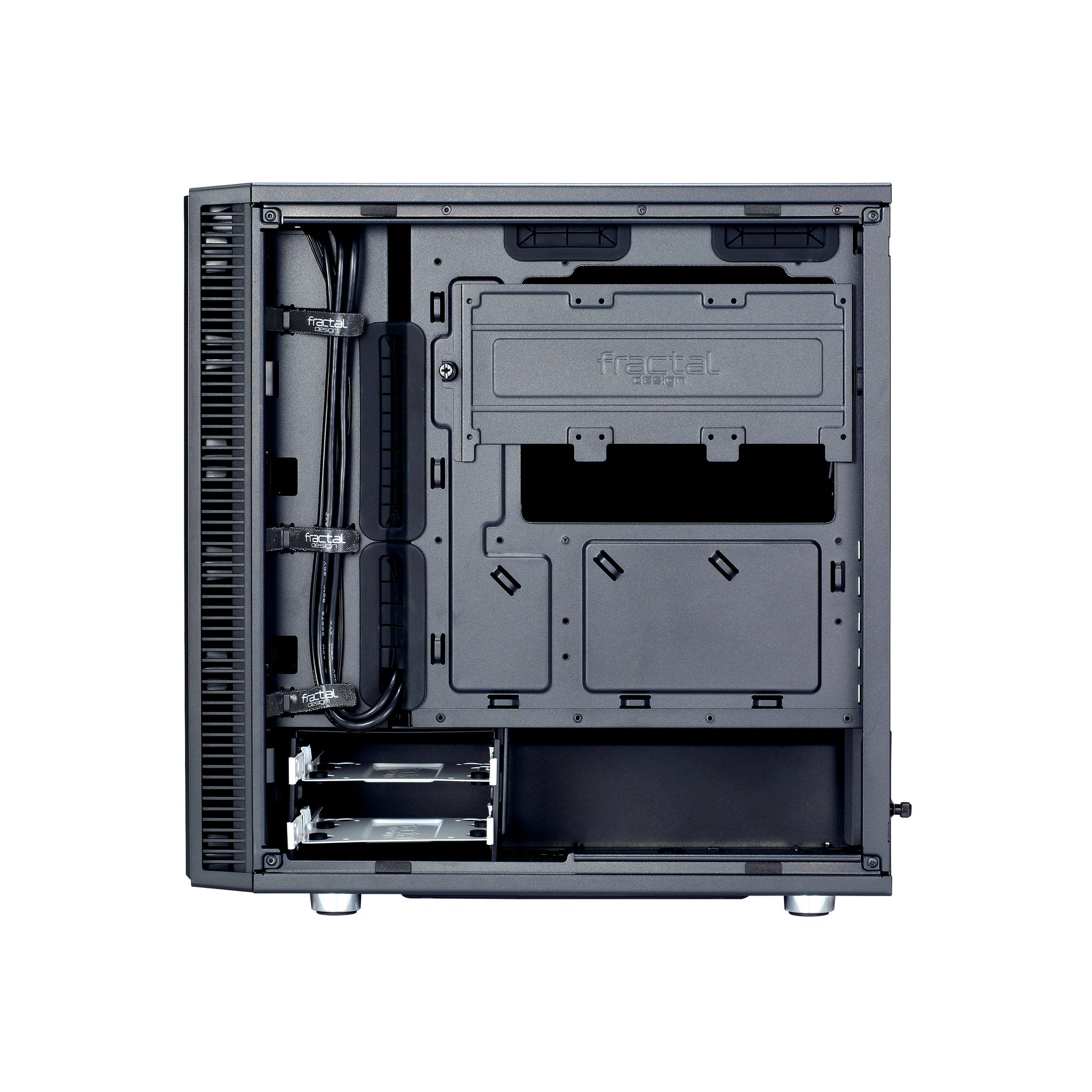

    • Dedicated SSD plates behind the motherboard tray



    HDD Position
    Flexible storage options with room for up to five drives


    Optional filter included
    Includes optional top filter to prevent dust buildup when ModuVent is removed for additional fan slots


    Supports dual GPU's

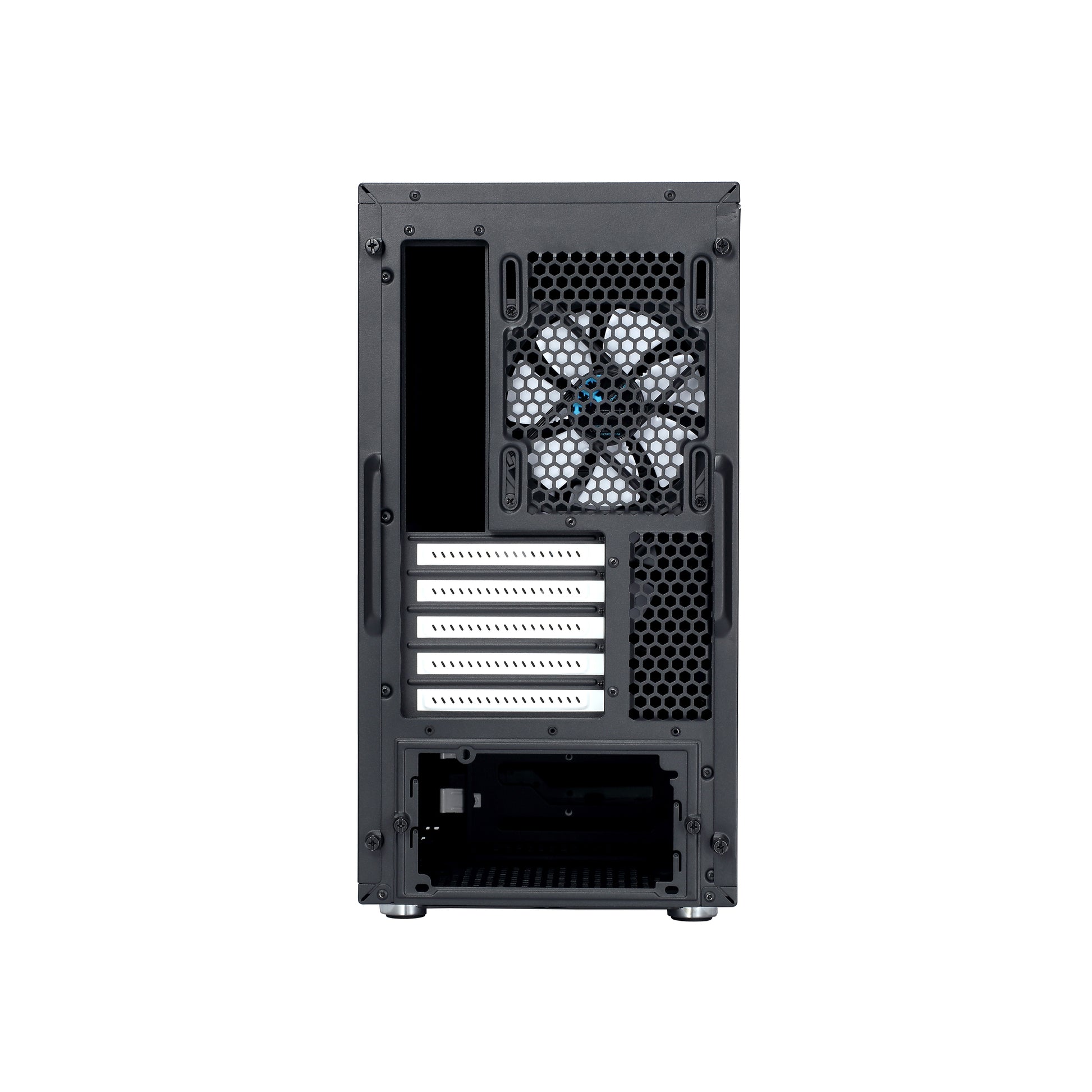

    Equipped with five PCI expansion slots for powerful dual GPU setups


    Smart layout & spacious storage
    Flexible storage options with room for up to 5 drives

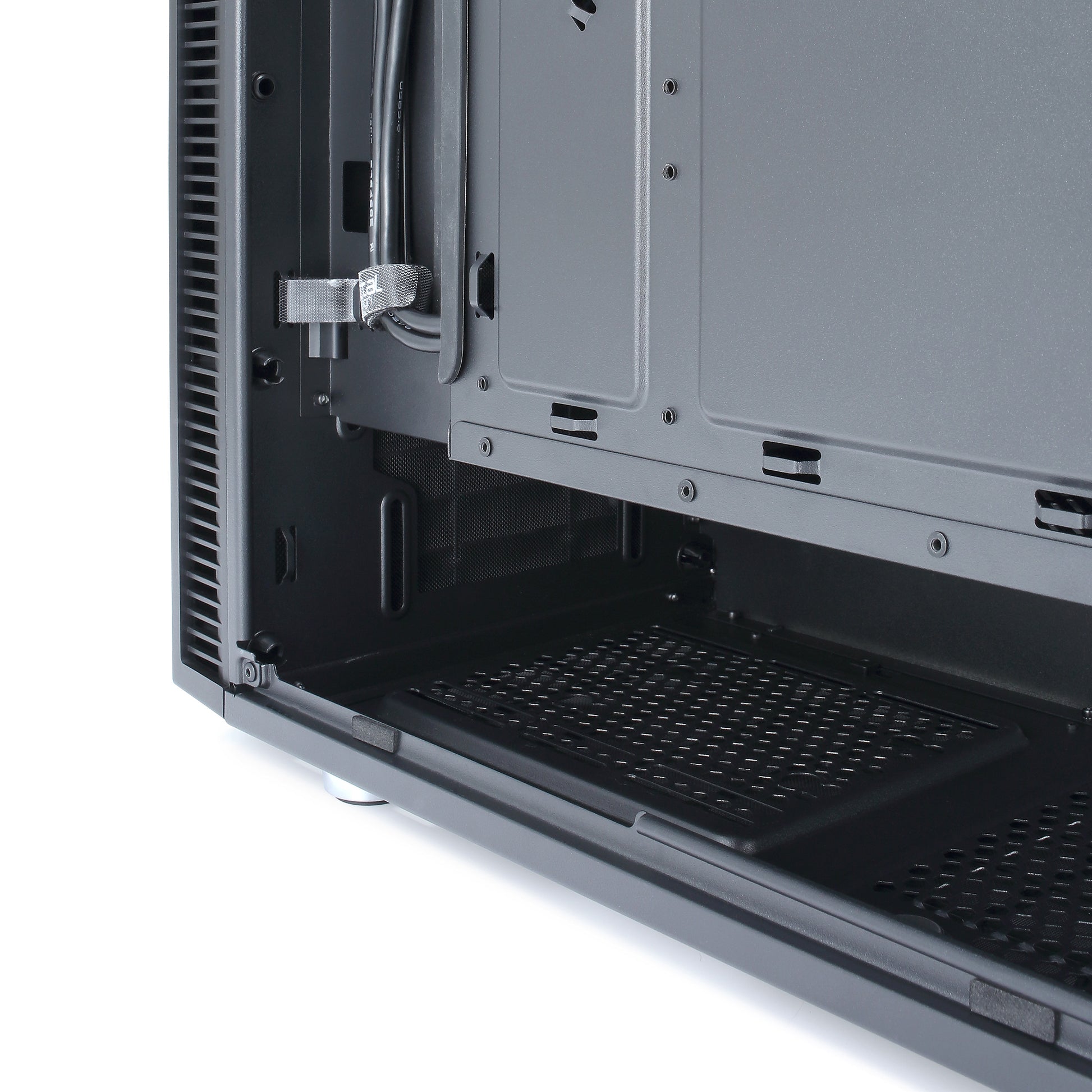

    Power supply shroud conceals drive cage and excess cabling for an even quieter and cleaner looking interior free of airflow obstructions.

    • Equipped with five PCI expansion slots for powerful dual GPU setups.
    • Easy-to-clean high airflow nylon filters on the front and base with full PSU coverage and front access for convenience.
    • Optimized for high airflow and silent computing.

    Specifications

    • 3,5" HDD positions
      2
    • 2,5" HDD/SSD positions
      3 (maximum 2.5" drive thickness is 10mm)
    • Expansion slots
      5

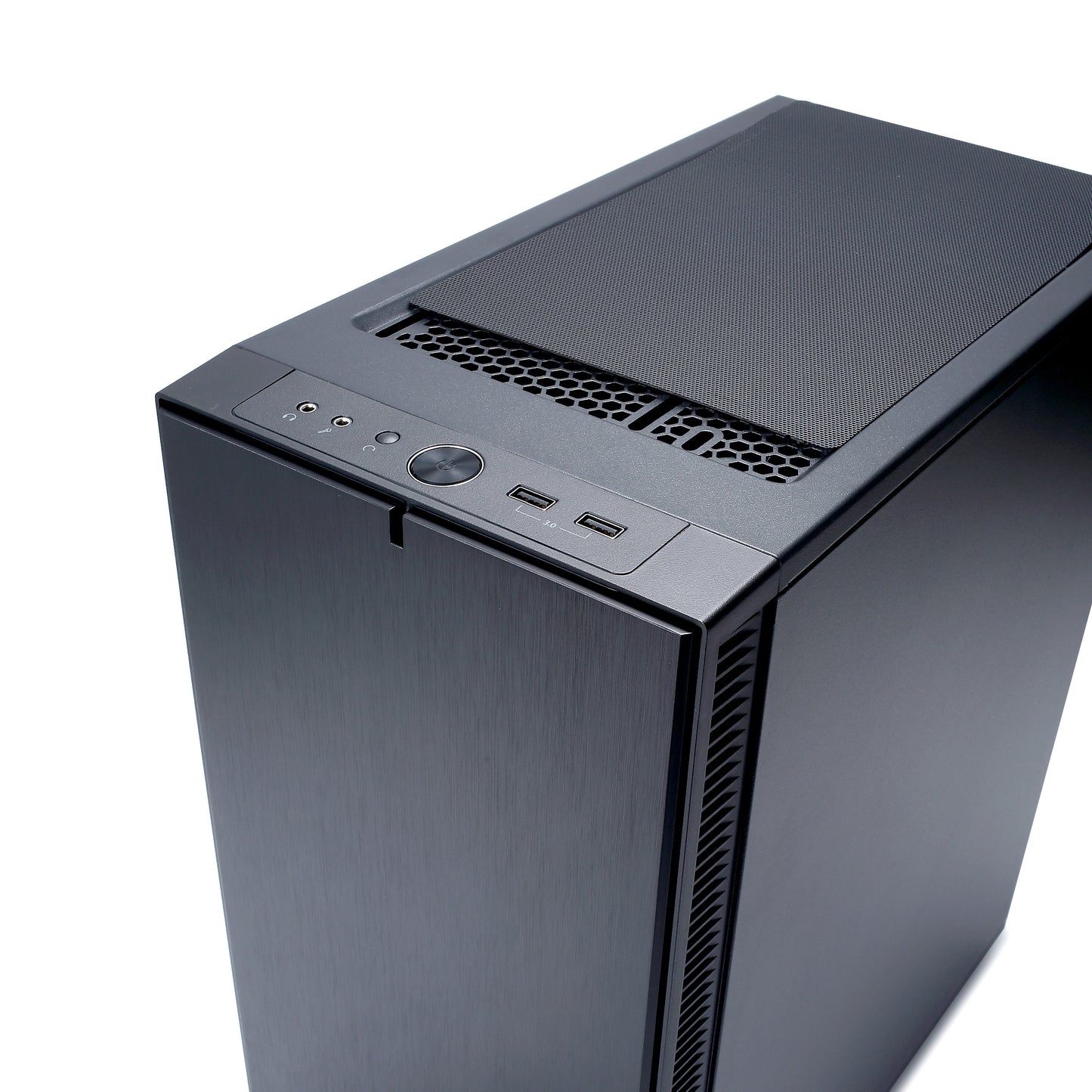

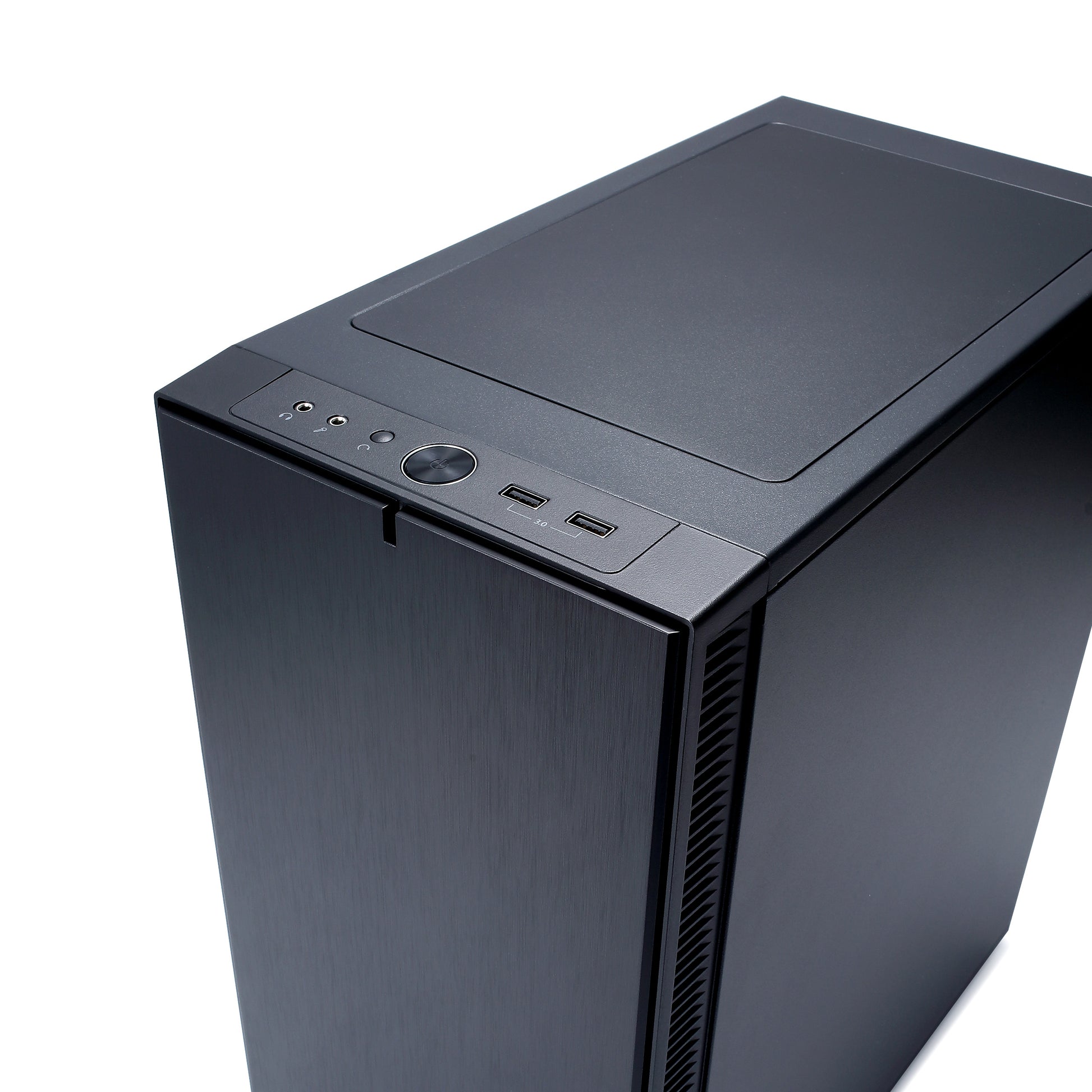

    • Front ports
      2x USB 3.0, Audio in/out, Power button with LED, HDD activity LED, Reset button
    • Total fan mounts
      7
    • Front fan
      3x 120 mm or 2x 140 mm (1x Fractal Design Dynamic X2 GP12 fan included)
    • Top fan
      2x 120/140 mm
    • Rear fan
      1x 120 mm (1x Fractal Design Dynamic X2 GP12 fan included)
    • Bottom fan
      1x 120 mm
    • Dust filters
      Bottom fan + PSU, Front fans, Top panel (optional)
    • Cable routing grommets
      Yes
    • Fixed velcro straps
      Yes
    • Captive thumbscrews
      Both side panels, SSD brackets

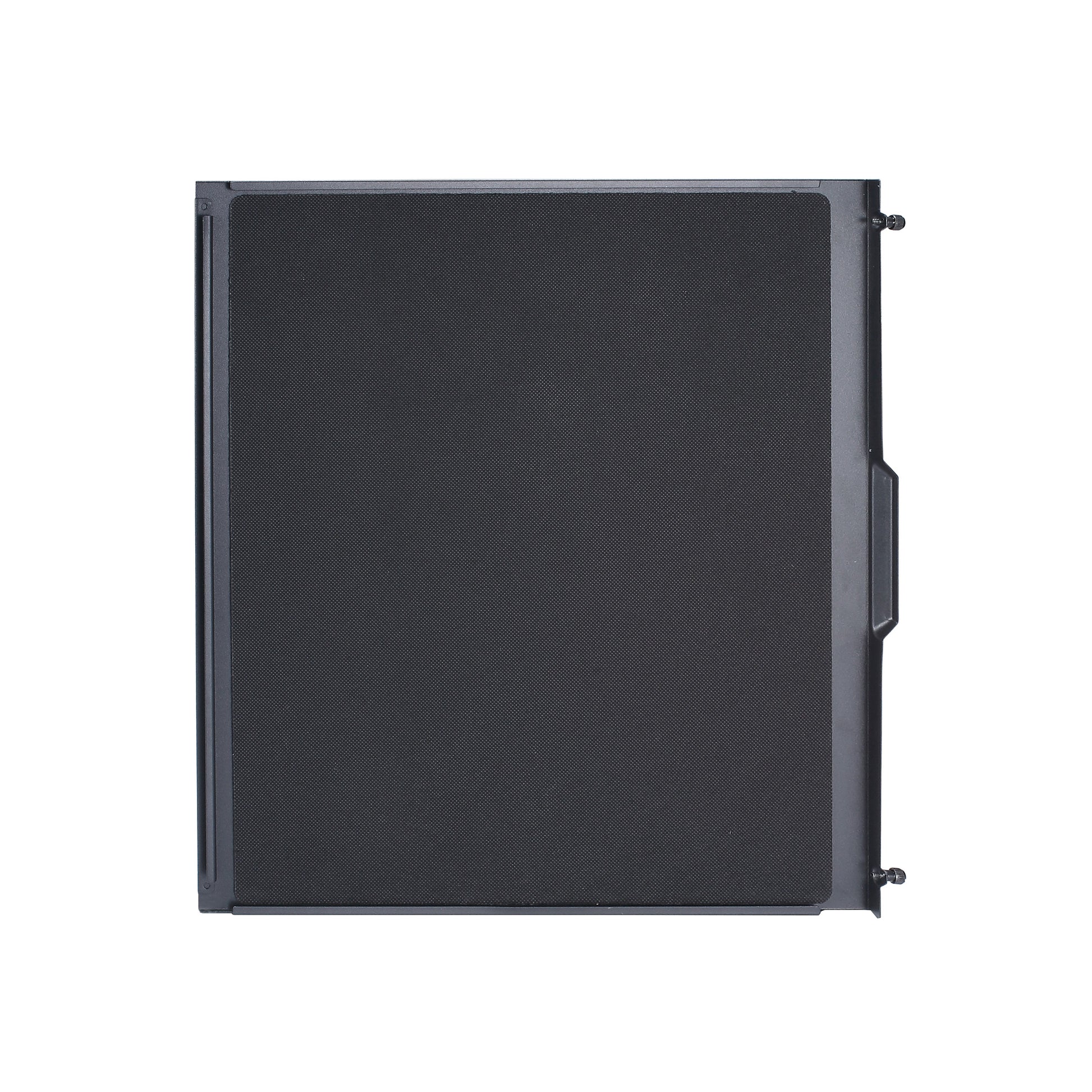

    • Left side panel
      Industrial sound-dampened steel
    • Right side panel
      Industrial sound-dampened steel

    Compatibility

    • Power supply type
      ATX
    • Motherboard compatibility
      Micro ATX, ITX
    • Front radiator
      280, 240, 140 and 120 mm, max width 144 mm
    • Top radiator
      240 and 120 mm, max component height on motherboard 40mm
    • Rear radiator
      120 mm, max width 125 mm
    • PSU max length
      175 mm
    • GPU max length
      315 mm in length with front fans mounted
    • CPU cooler max height
      170 mm
    • Cable routing space
      15-35 mm

    Dimensions

    • Case dimensions (WxHxD)
      210 x 399 x 399 mm
    • Case dimensions - with feet/protrusions/screws
      210 x 412 x 413 mm
    • Net weight
      6.9 kg
    • Package dimensions (WxHxD)
      290 x 484 x 502 mm
    • Package weight
      8.3 kg
    • Volume
      33.4 liters

    Other

    • Warranty
      2 Years
    • Package contents

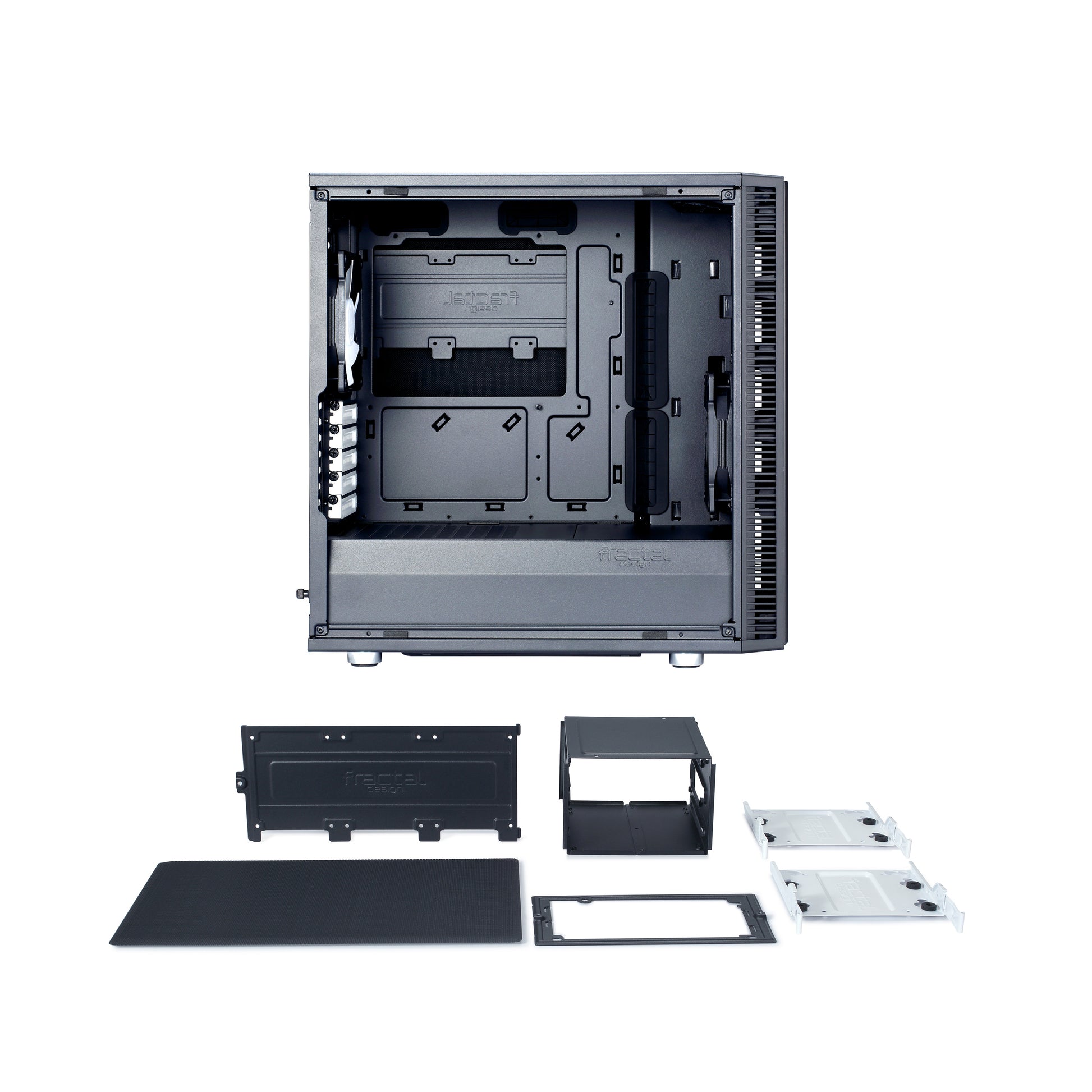

      Define Mini C computer case, User manual, Accessory box, Optional top filter
    • EAN
      7350041084327
    • UPC
      817301014328
    • Product code
      FD-CA-DEF-MINI-C-BK
    • Additional information
      Also available for System Integrators
