Description

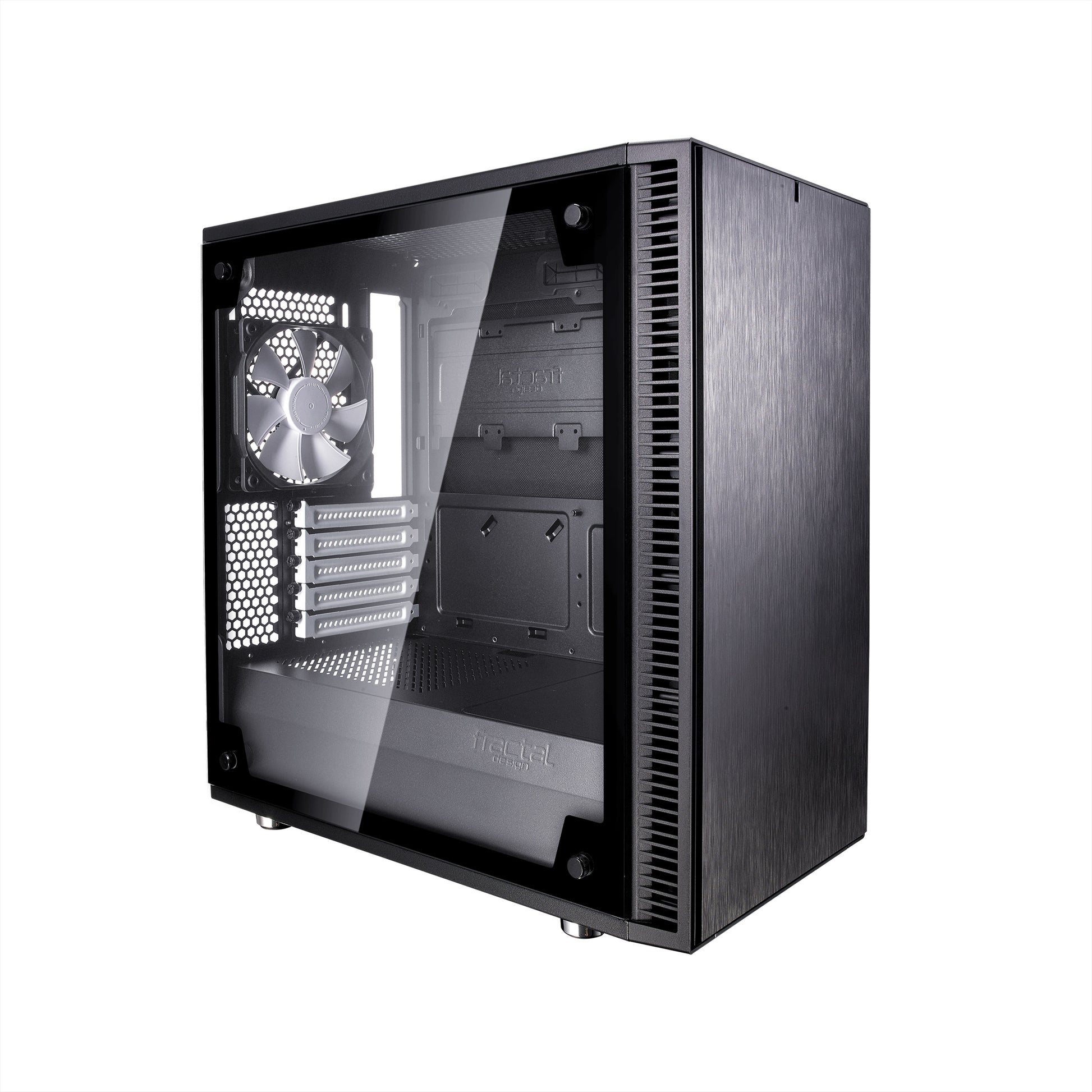

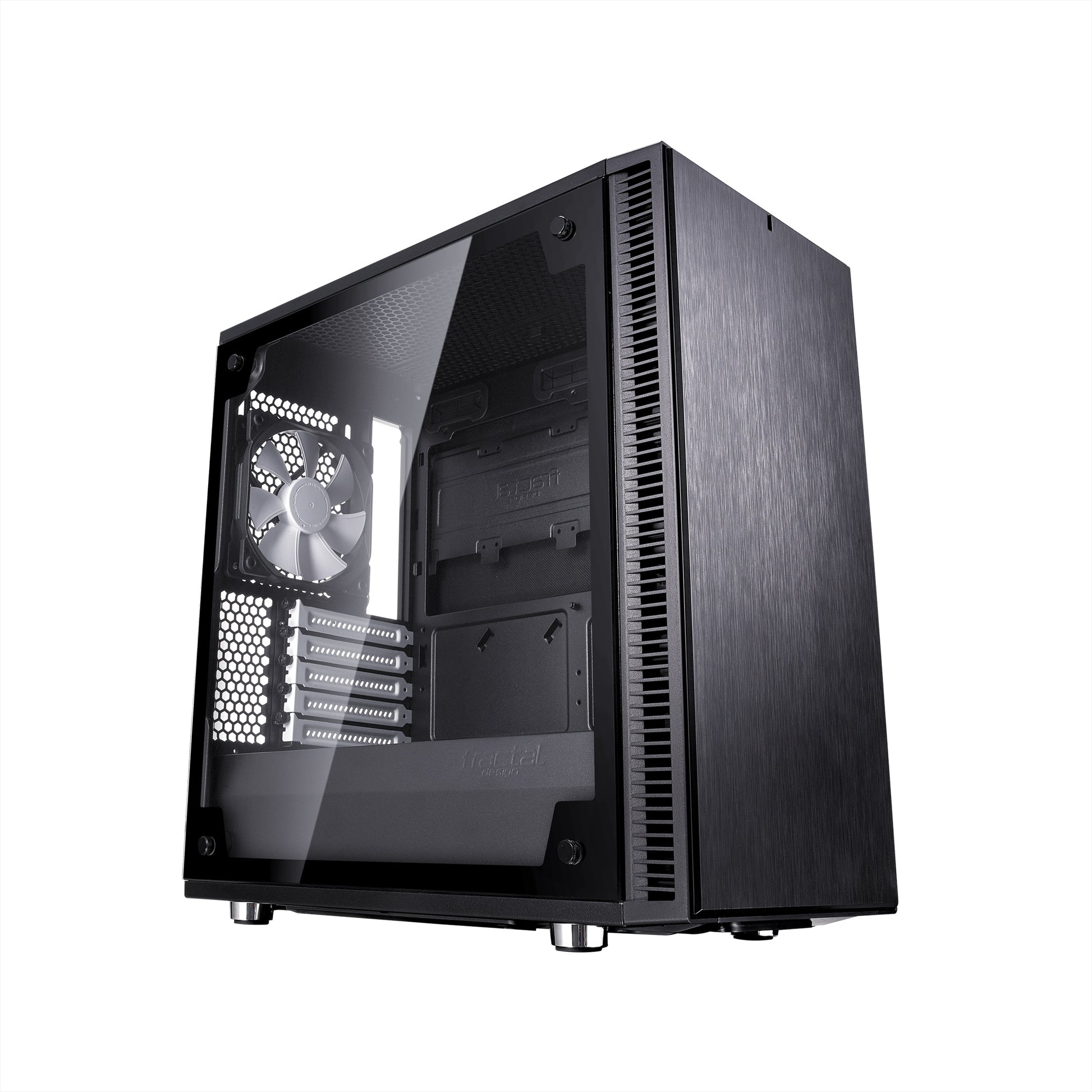

Define Mini C Tempered Glass
Smaller than your average Micro ATX case, the Define Mini C TG with its optimized interior provides the perfect base for users. The open air design offers unobstructed airflow across your core components with high performance and silent computing in mind at every step.
- ModuVent™ technology for silent operation in a compact ATX or mATX form factor
- Optimized for high airflow and silent computing
- Tempered glass side panel for a clean looking exterior with full interior visibility
Bring your system together in an exquisite way
Extensive cooling support via both air and water are offered to make sure even the most powerful systems can be cooled effectively. Carrying signature Define series traits, the Define C TG Series brings with it that iconic front panel design, dense sound-dampening material throughout and ModuVent technology in the top panel.
Optimized for high airflow and silent computing
Extensive cooling support via both air and water are offered to make sure even the most powerful systems can be cooled effectively
Tempered glass side panel for a clean looking exterior with full interior visibility
Define Series sound dampening with ModuVent™ technology for silent operation in a compact full ATX or Micro ATX form factor

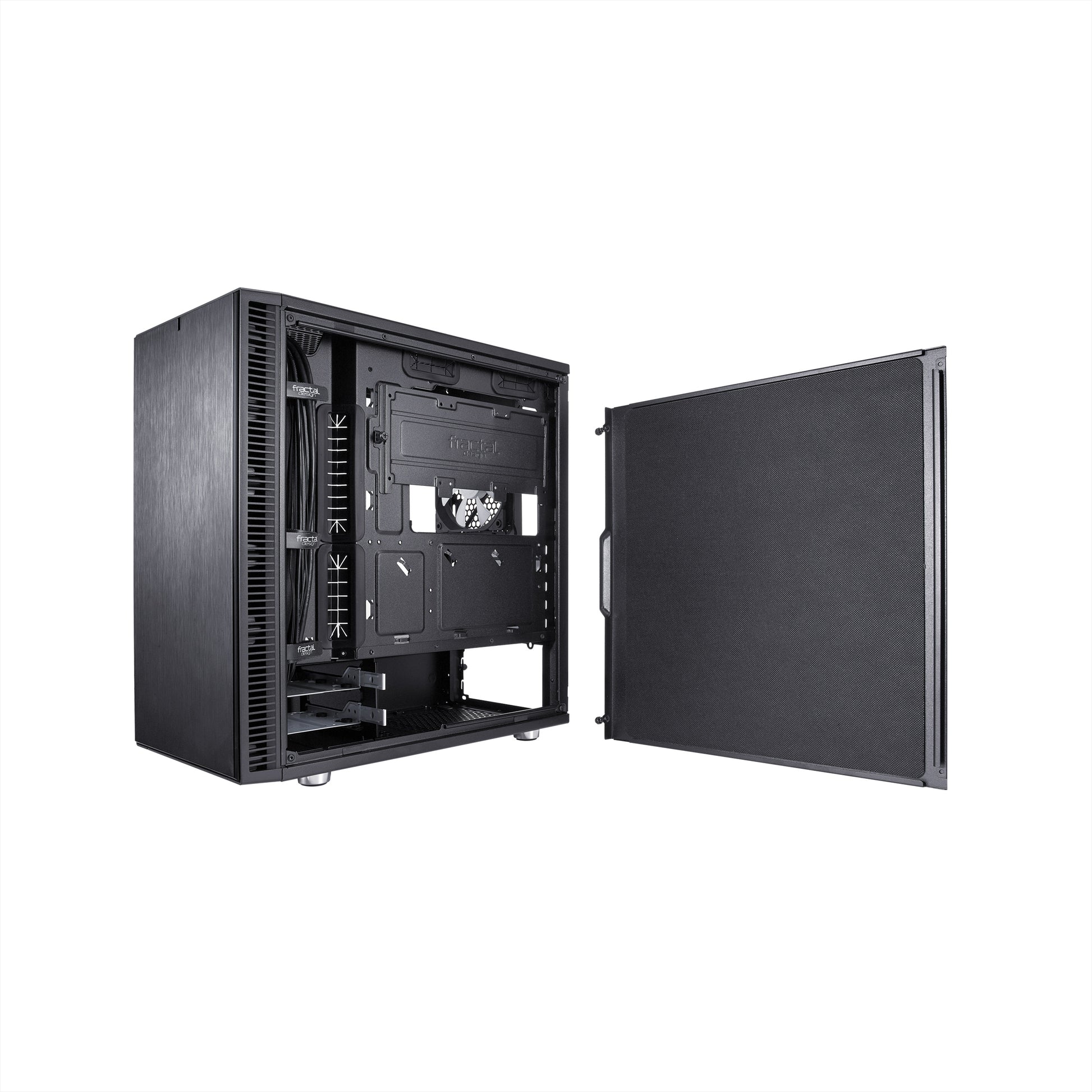

Side and front panels are lined with industrial-grade sound dampening material

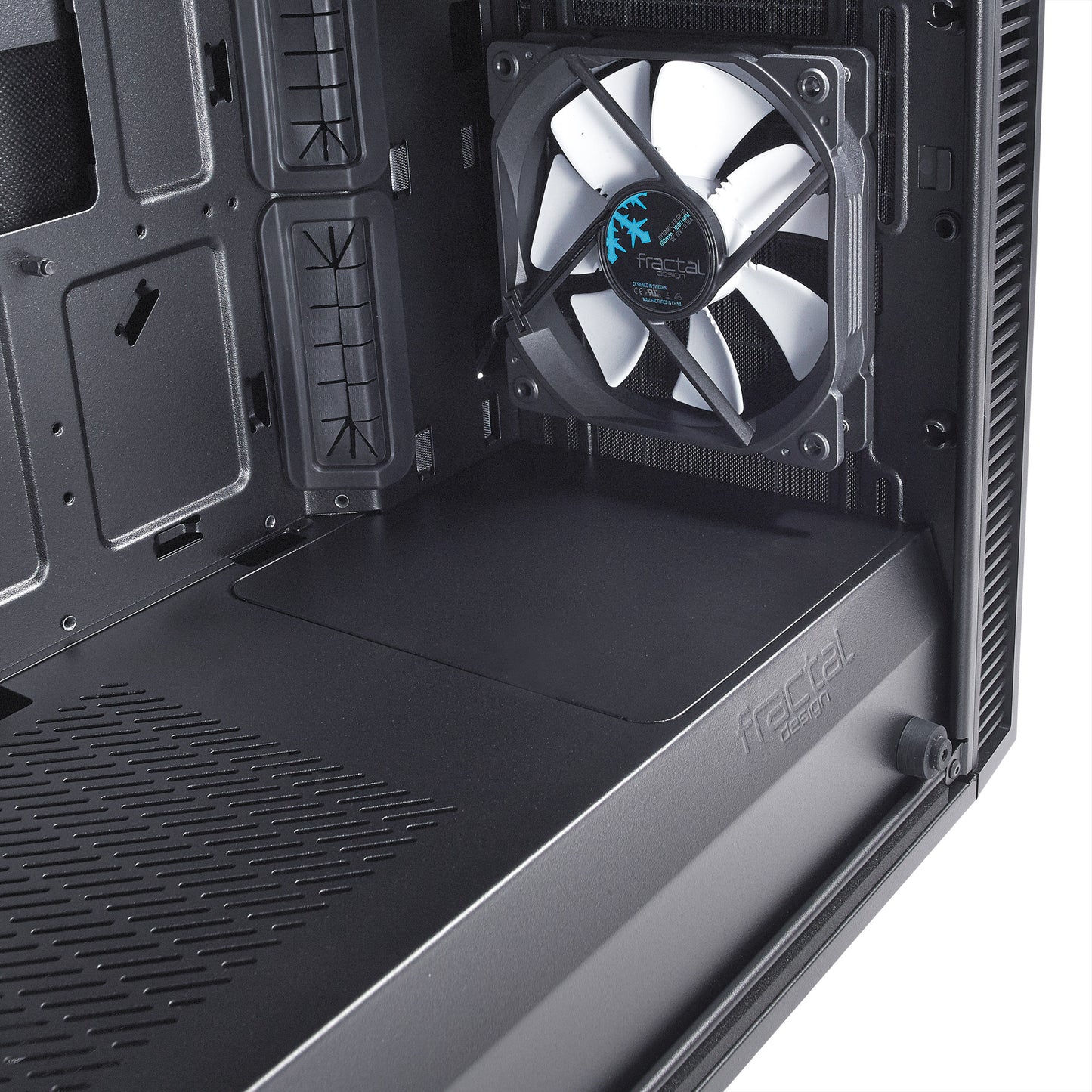

Two pre-installed Fractal Design Dynamic X2 GP-12 120 mm fans optimized for maximum airflow at a low noise level

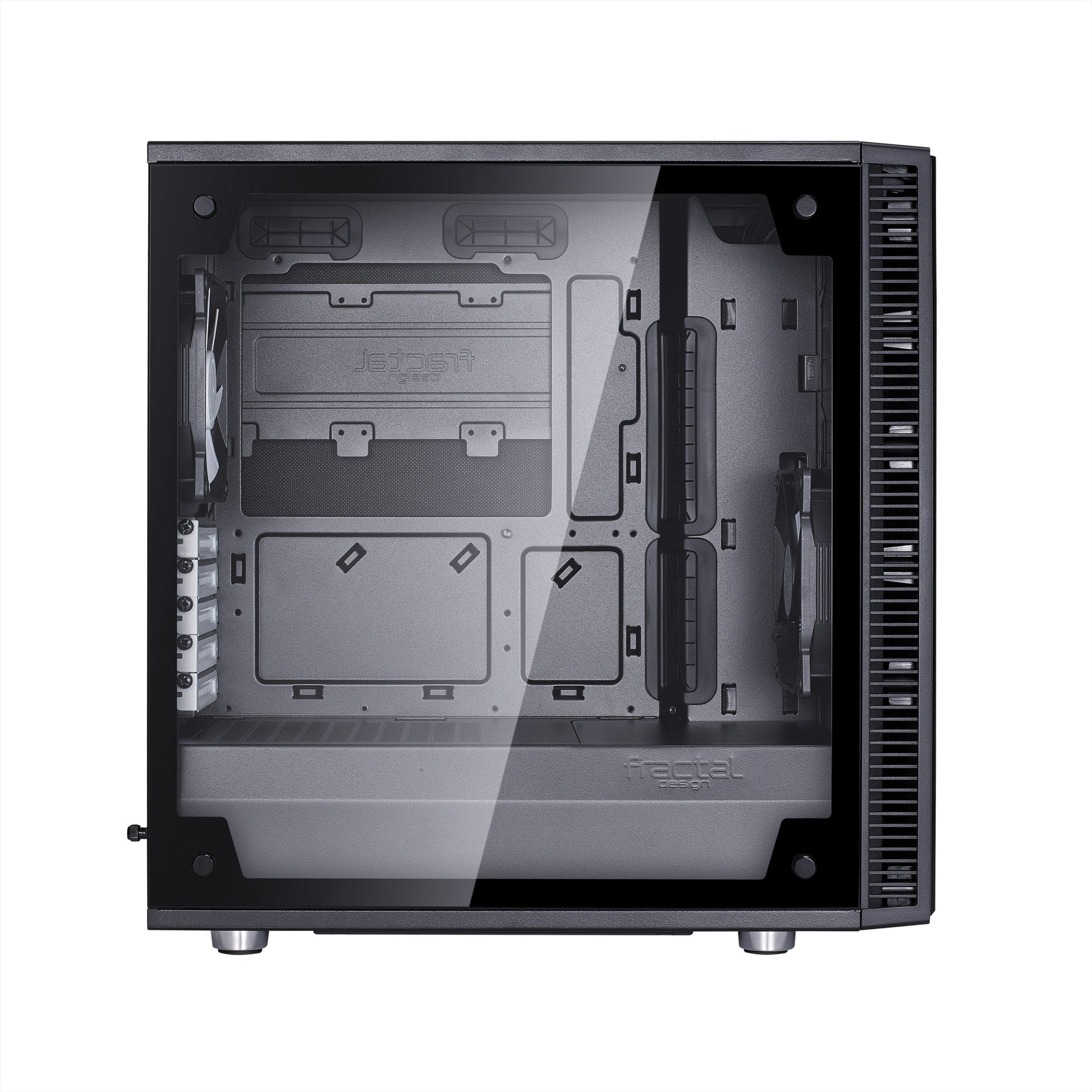

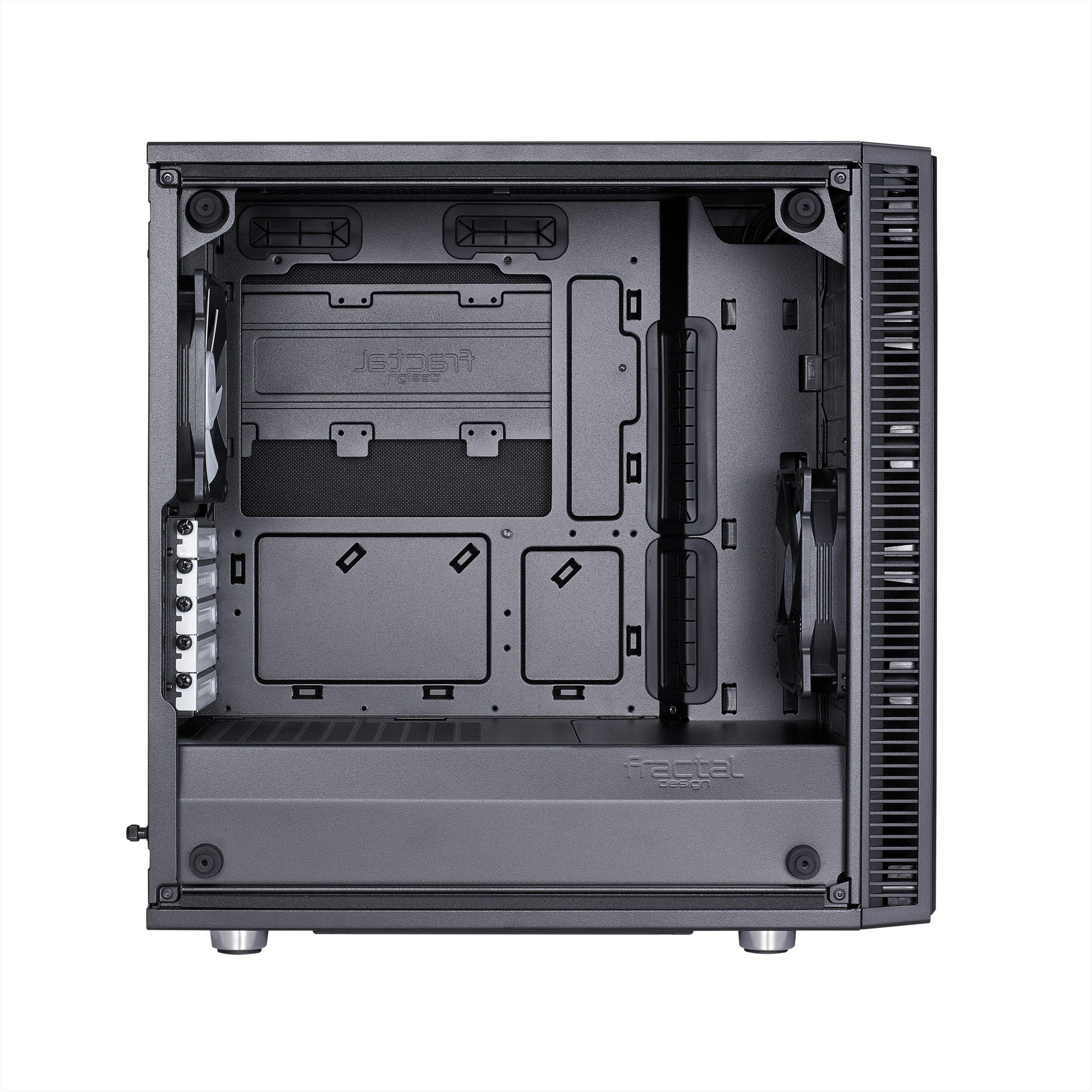

Full interior visibility

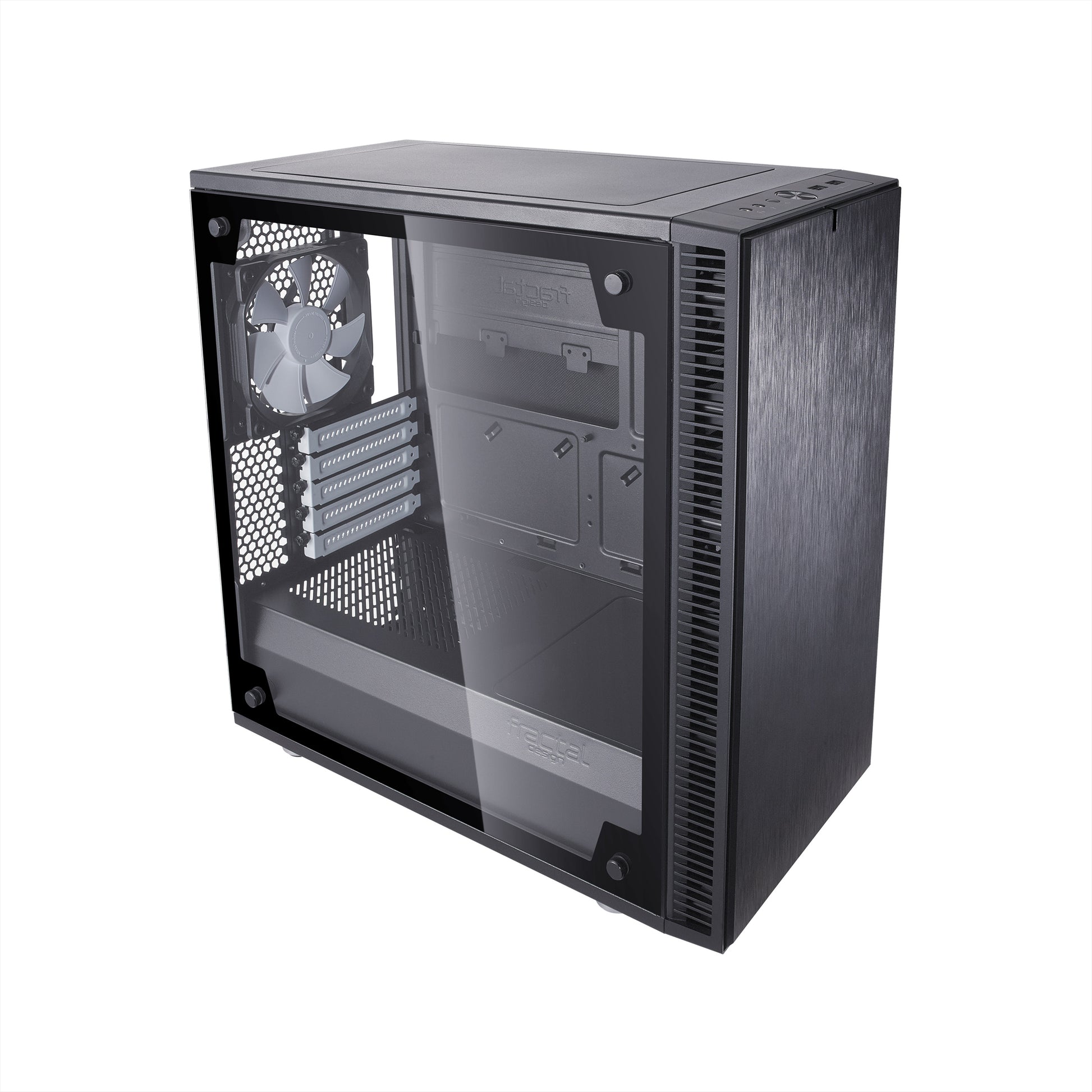

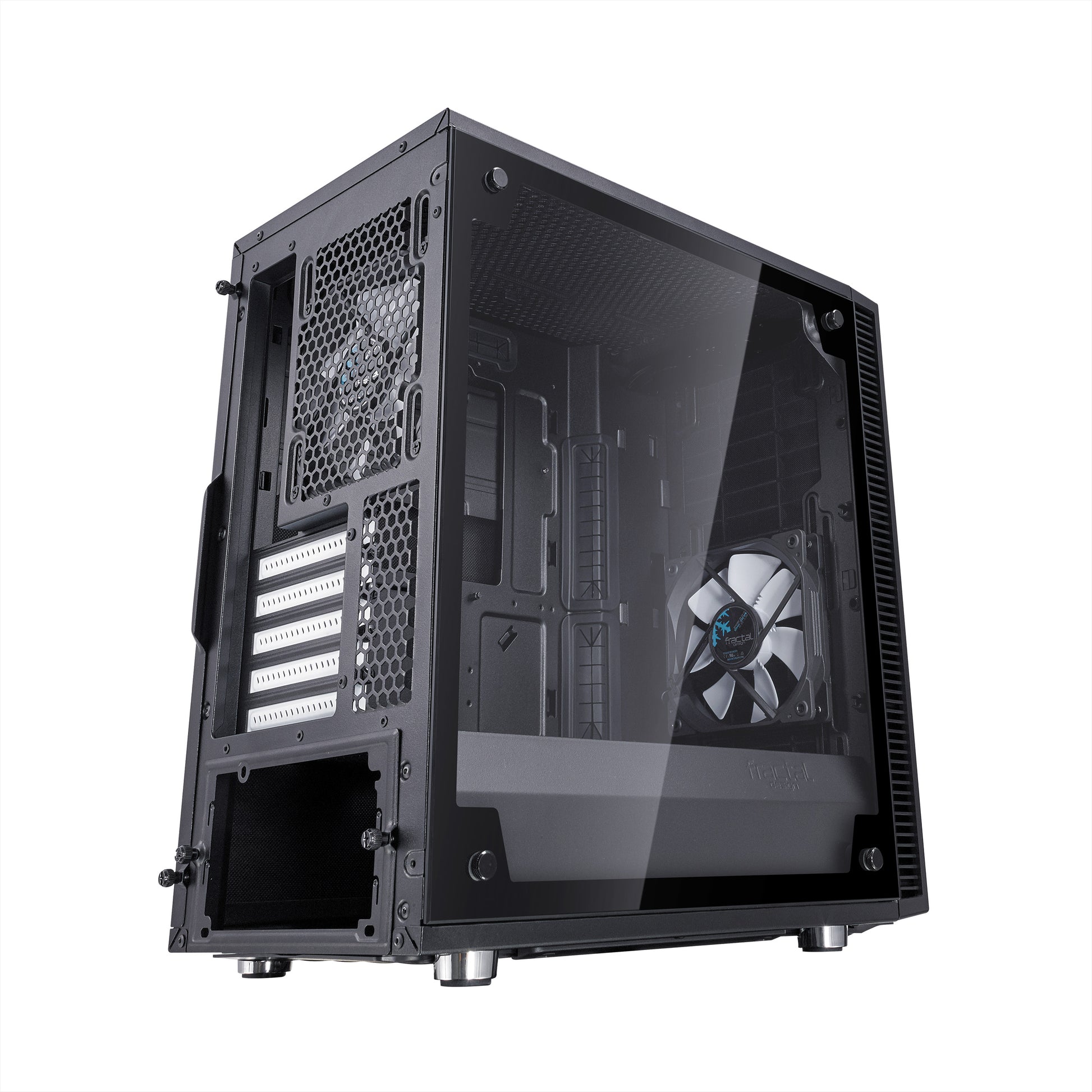

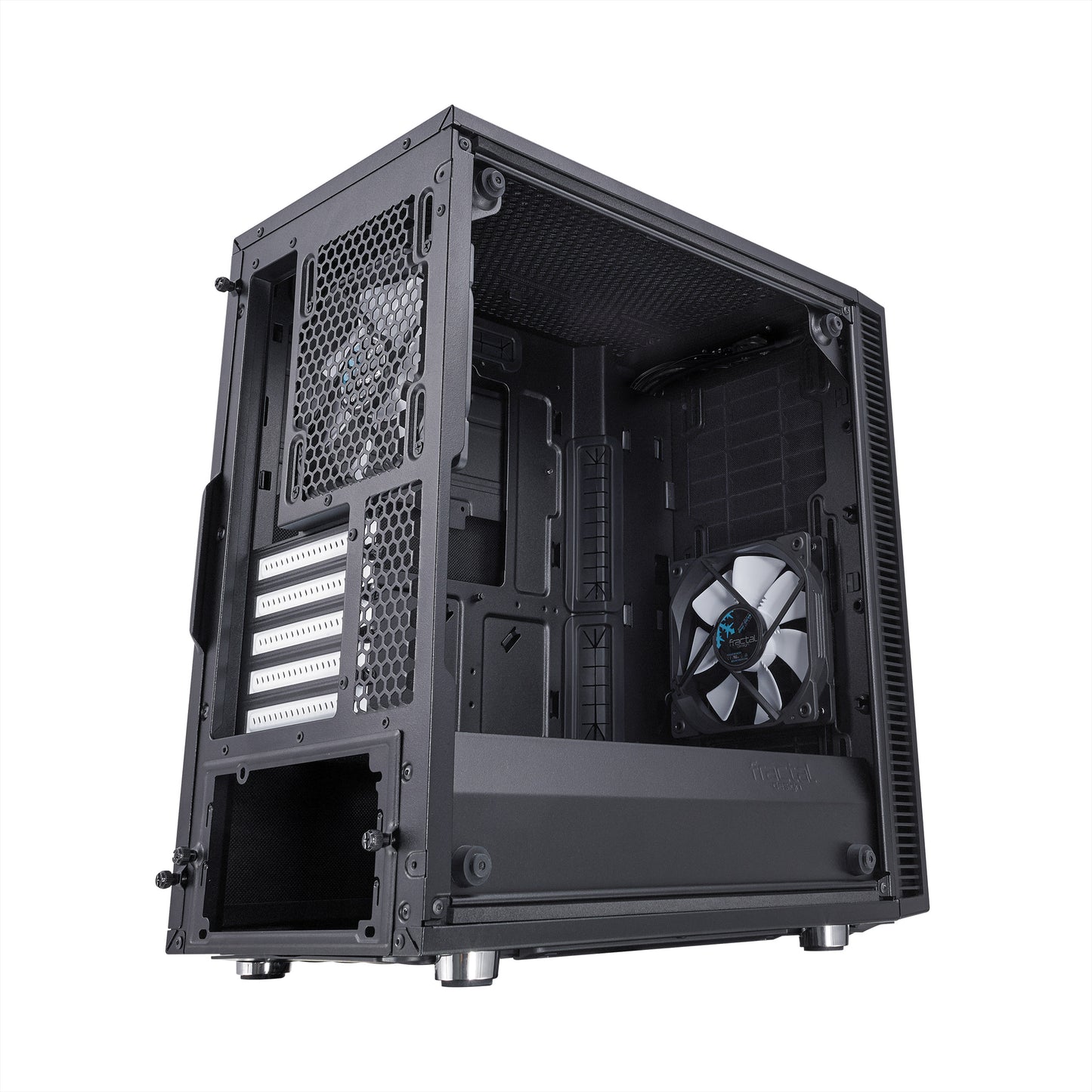

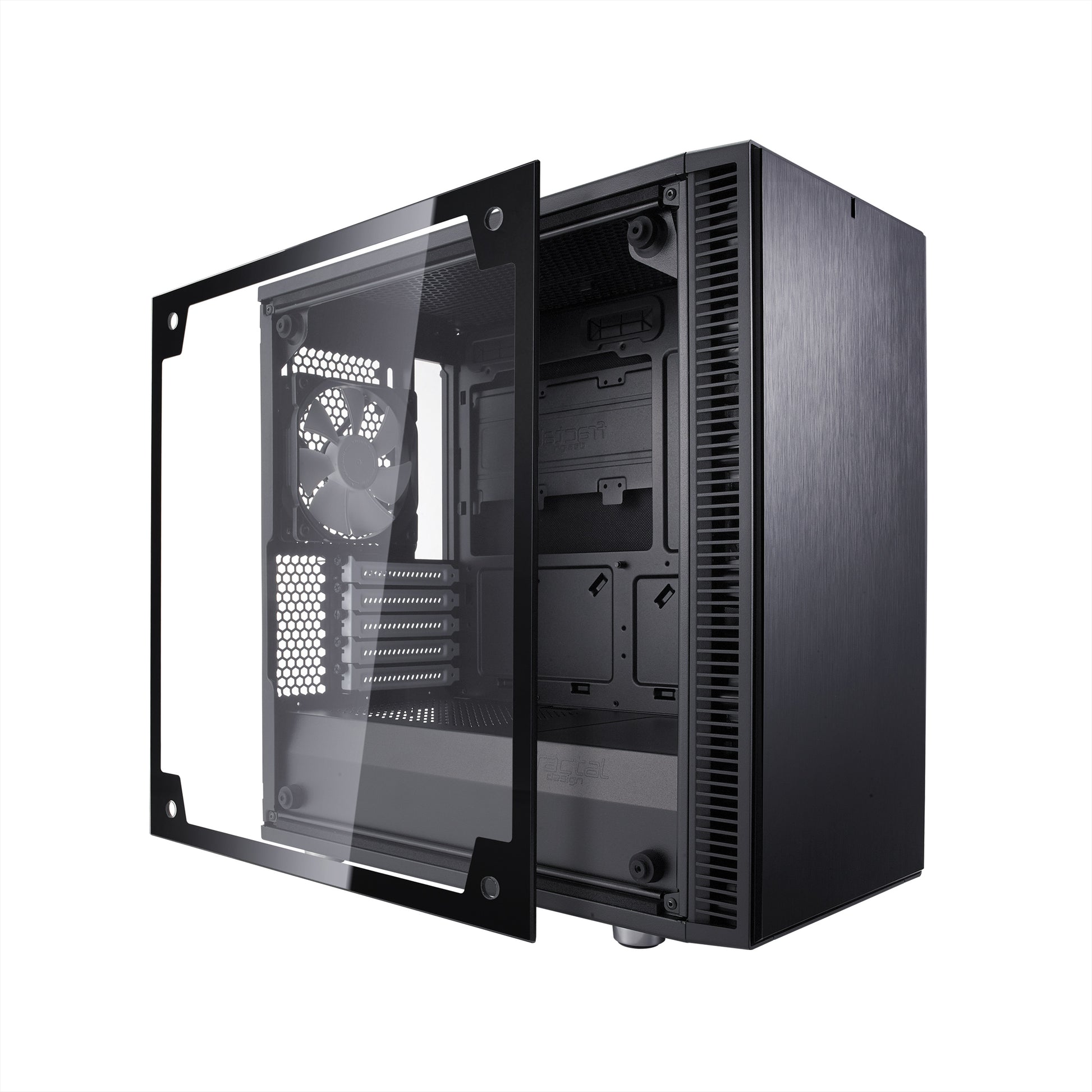

Tempered glass side panel for a clean looking exterior with full interior visibility
HDD position
Flexible storage options with room for up to five drives
Supports dual GPU's

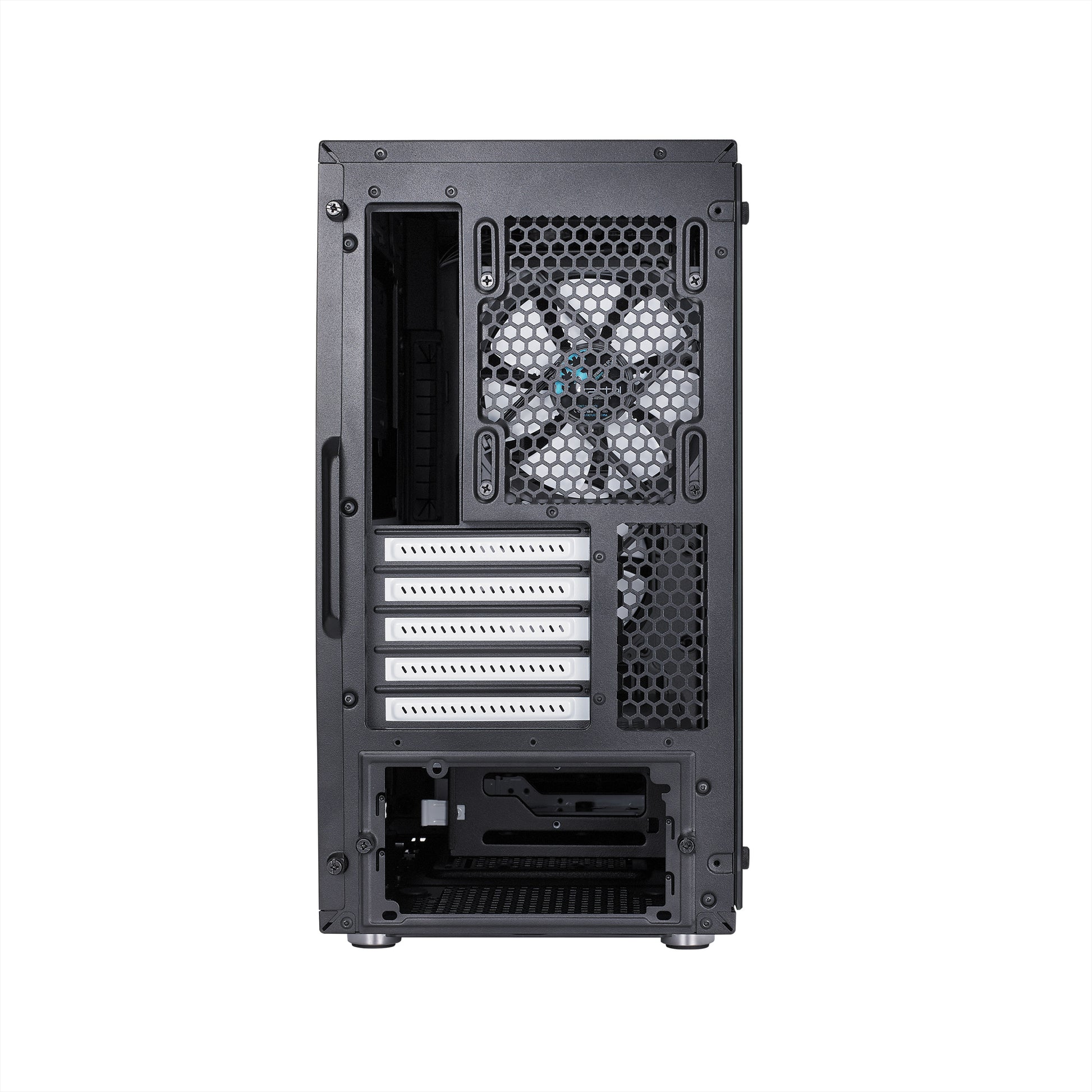

Equipped with five PCI expansion slots for powerful dual GPU setups.

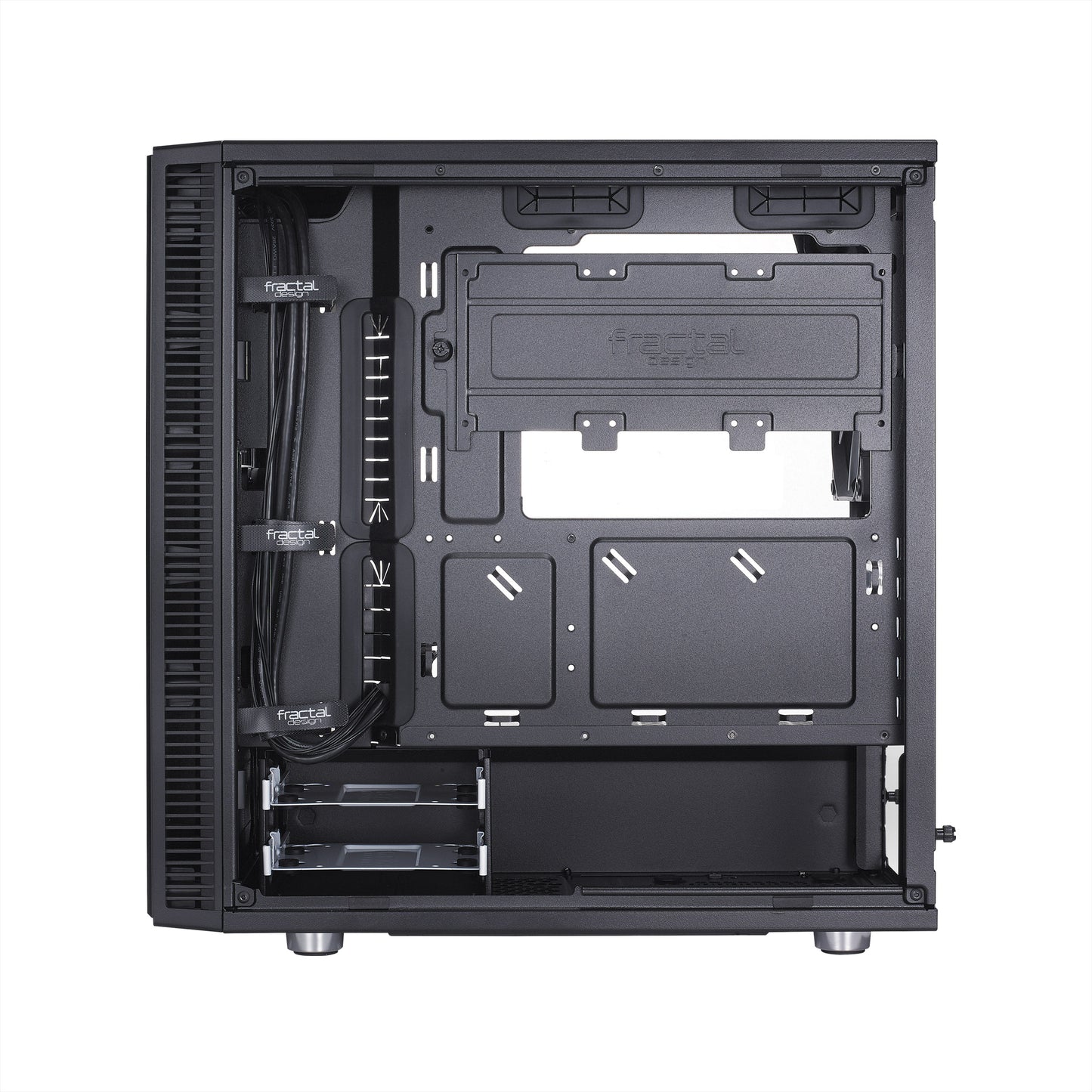

Flexible layout and storage
Flexible storage options with room for up to five drives
Includes optional top filter to prevent dust buildup when ModuVent is removed for additional fan slots

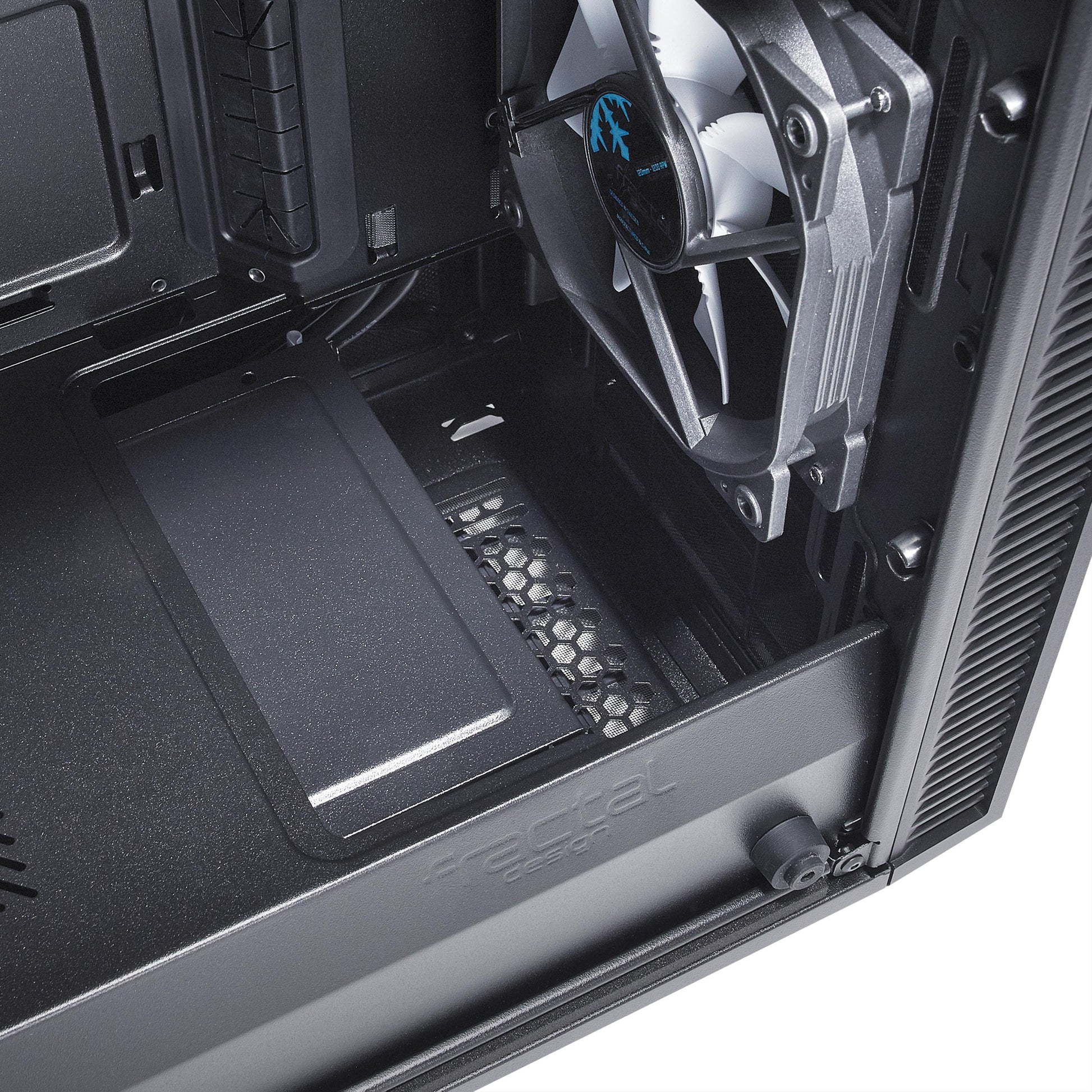

Easy-to-clean high airflow nylon filters on the front and base with full PSU coverage and front access for convenience

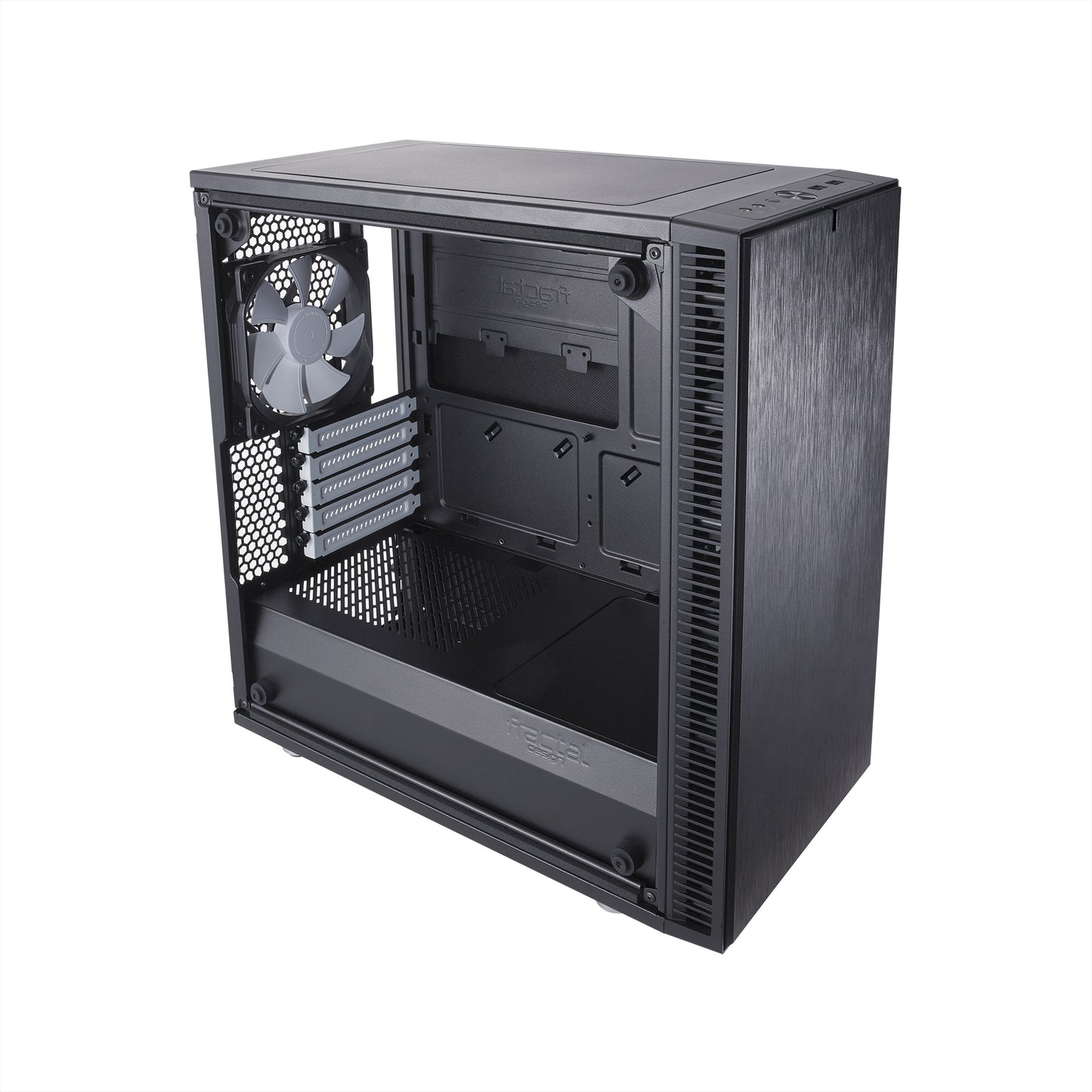

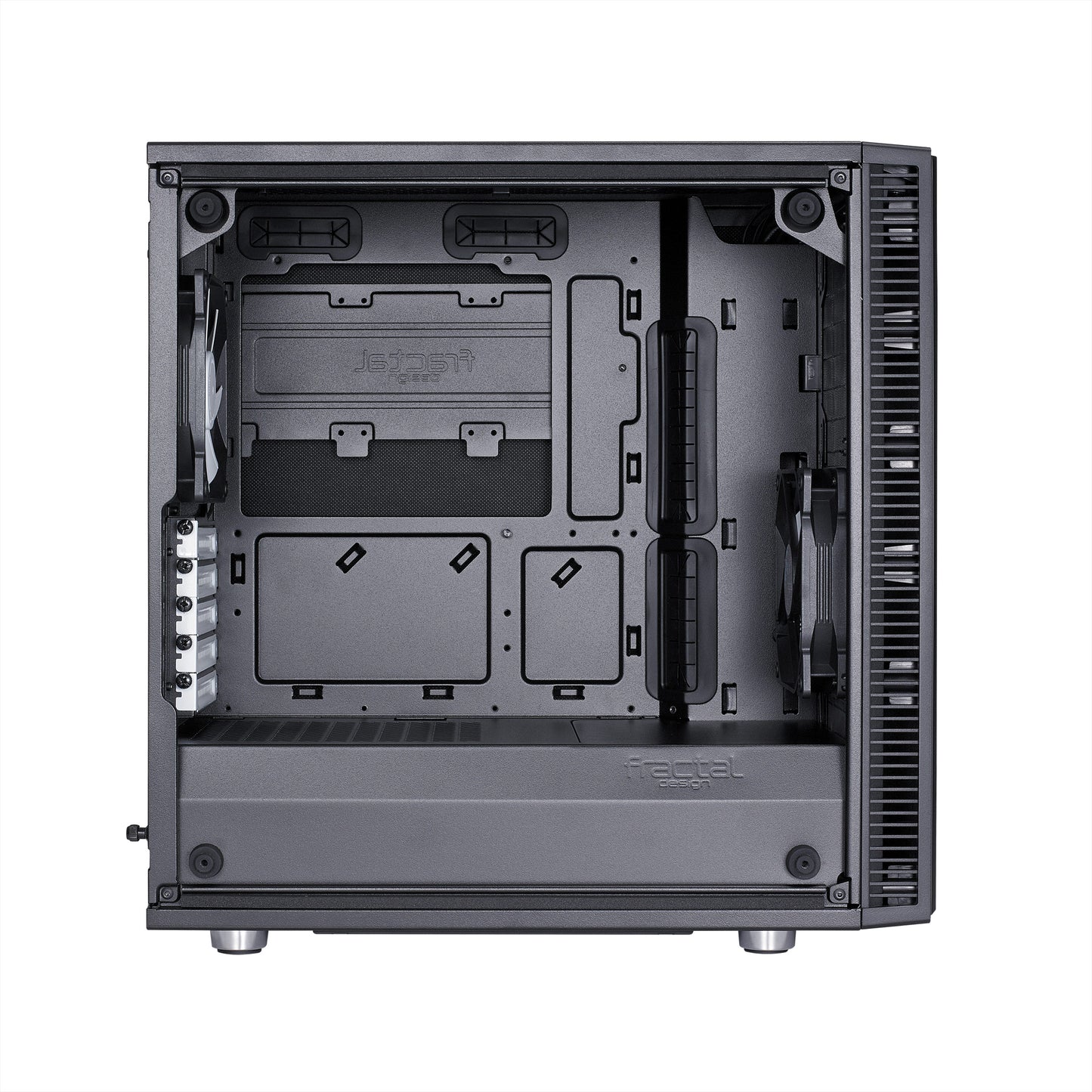

Open air interior creates an unobstructed airflow path from the front intake to the rear exhaust
Specifications
-
3.5" or 2.5" Drive capacity2
-
Dedicated 2.5" drive capacityDedicated 2.5" drive capacity 3 (Maximum 2.5" drive thickness is 10 mm)
-
Expansion slots5
-
Front ports2 USB 3.0, Audio in/out, Power button with LED, HDD activity LED, Reset button
-
Total fan mounts5
-
Front fan3x 120 mm or 2x 140 mm (1x Dynamic X2 GP-12 included)
-
Top fan2x 120/140
-
Rear fan1x 120 mm (1x Dynamic X2 GP-12 included)
-
Bottom fan1x 120 mm
-
Dust filtersBottom fan + PSU, Front fans, Top panel (optional)
-
Cable routing grommetsYes
-
Fixed velcro strapsYes
-
Captive thumbscrewsBoth side panels, SSD brackets
-
Left side panelTempered Glass
-
Right side panelIndustrial sound-dampened steel
Compatibility
-
Power supply typeATX
-
Motherboard compatibilitymATX, ITX
-
Front radiator120/240 mm or 140/280 mm (max width 144 mm)
-
Top radiator120/240 mm (max component height on motherboard 40 mm)
-
Rear radiator120 mm (max width 125 mm)
-
PSU max length175 mm
-
GPU max length315 mm with front fan mounted
-
CPU cooler max height172 mm
-
Cable routing space15-35 mm
Dimensions
-
Case dimensions (LxWxH)399 x 212 x 399 mm
-
Case dimensions - with feet/protrusions/screws413 x 217 x 412 mm
-
Net weight6.8 kg
-
Package dimensions (LxWxH)502 x 295 x 484 mm
-
Package weight8.1 kg
-
Volume33.4 liters
Other
-
Warranty2 Years
-
Package contentsDefine Mini C TG computer case, User manual, Accessory box, Optional top filter
-
EAN7350041085690
-
UPC817301015691
-
Product codeFD-CA-DEF-MINI-C-BK-TG
