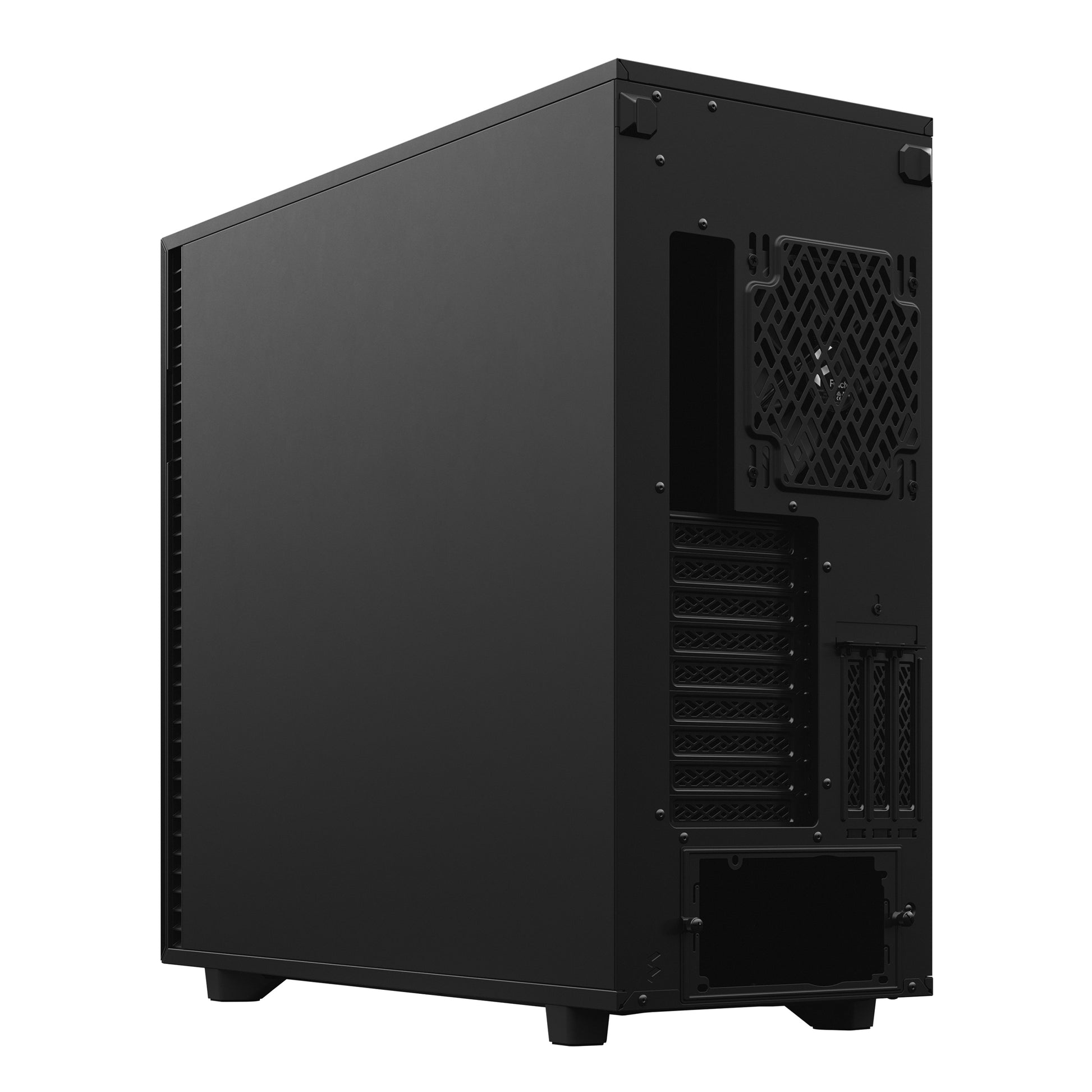

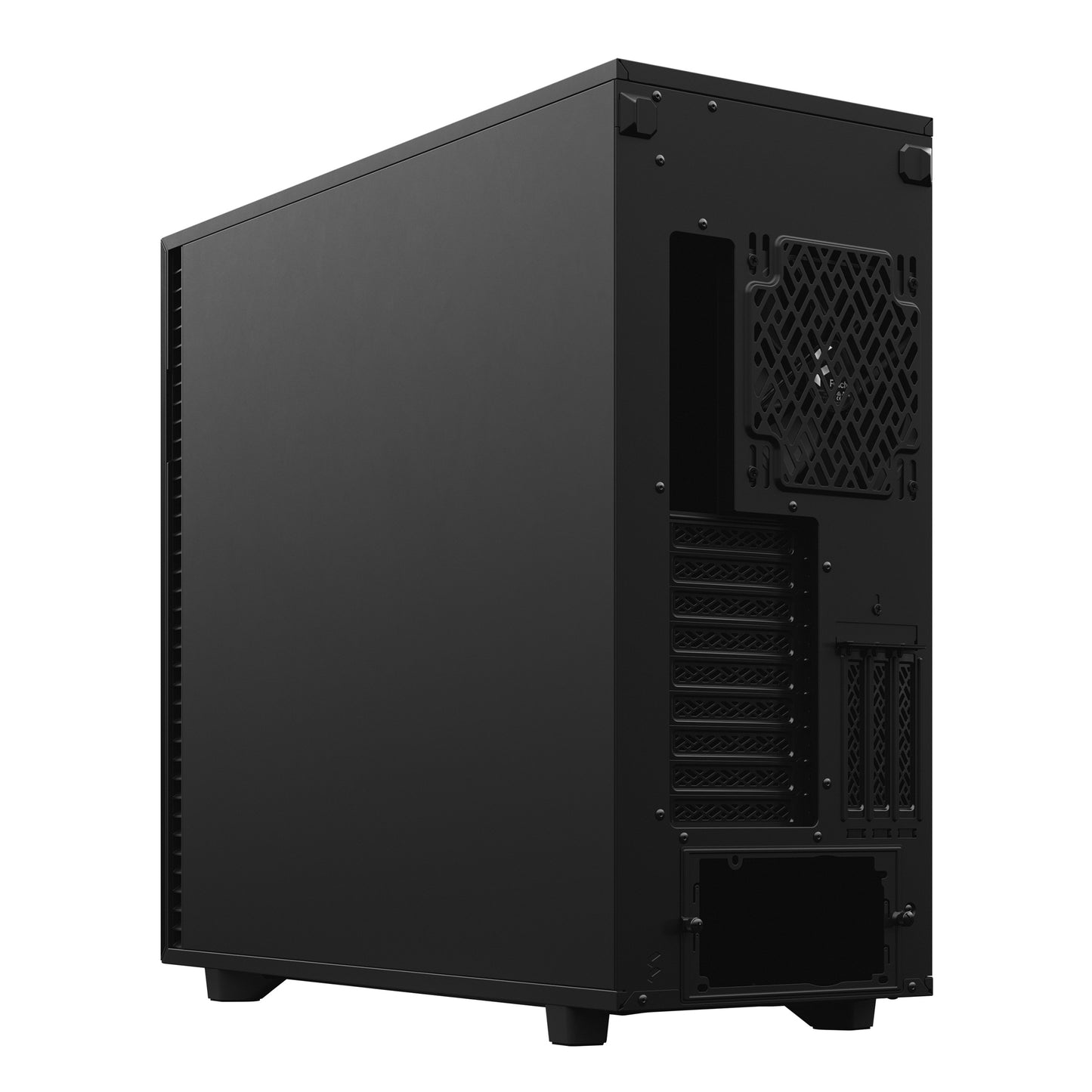

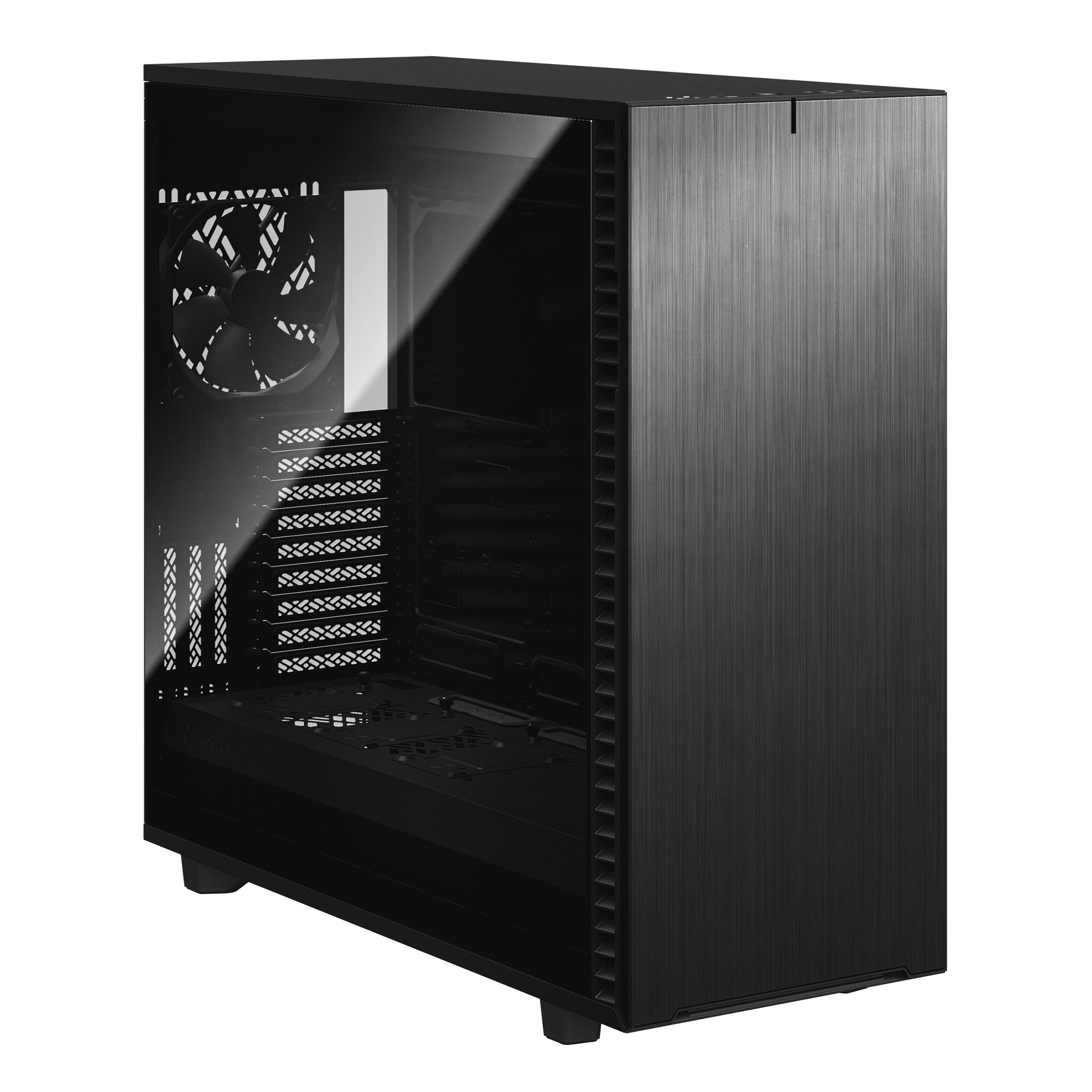

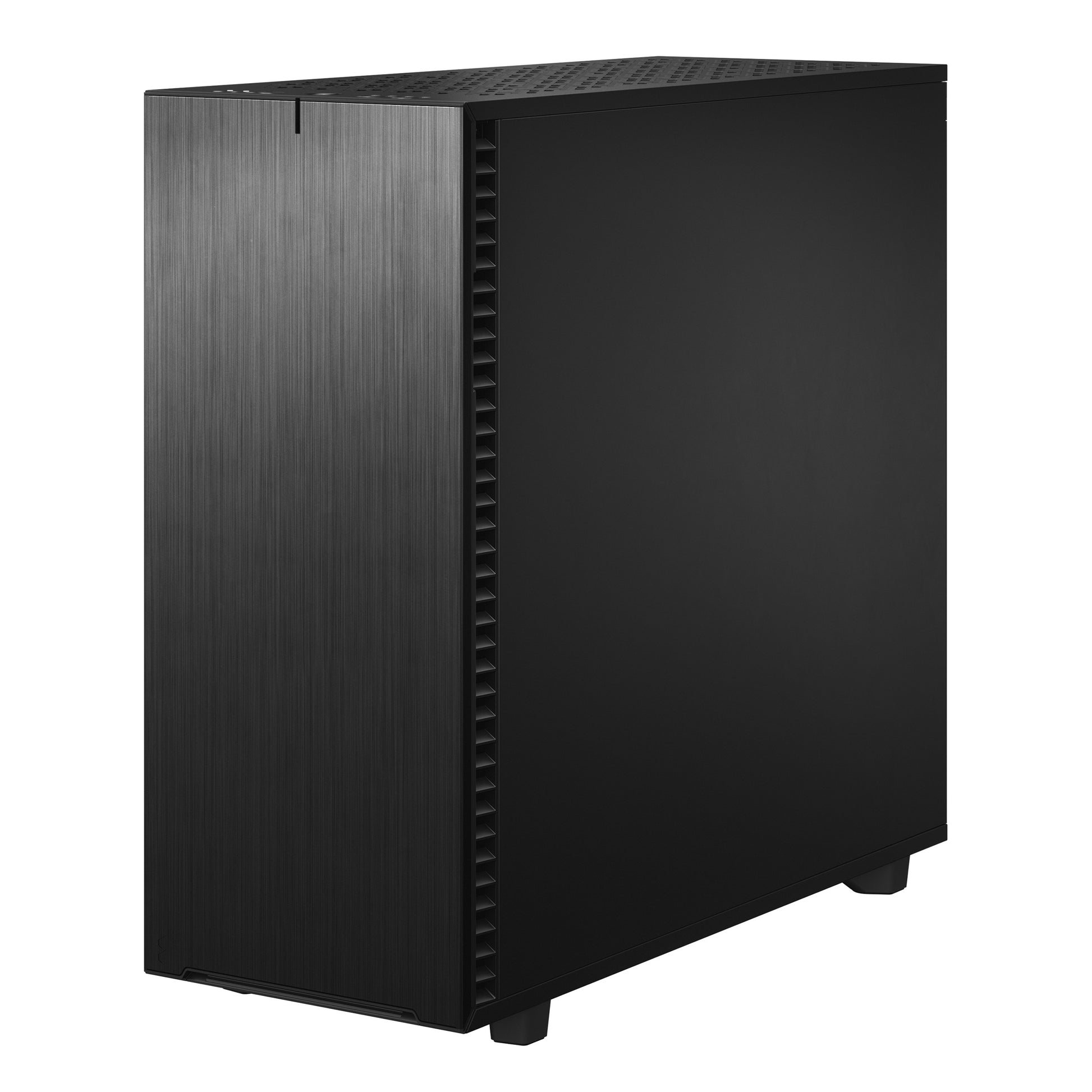

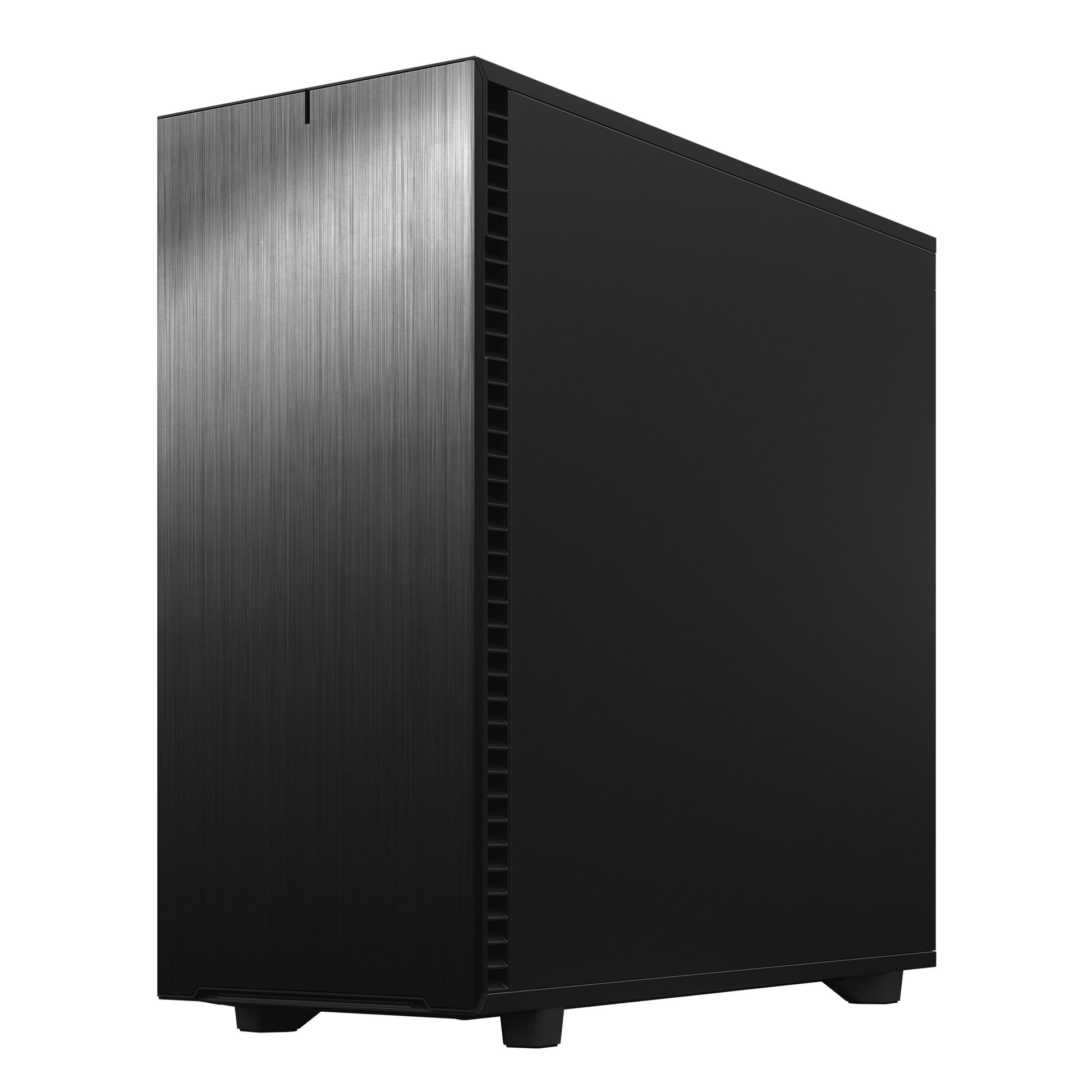

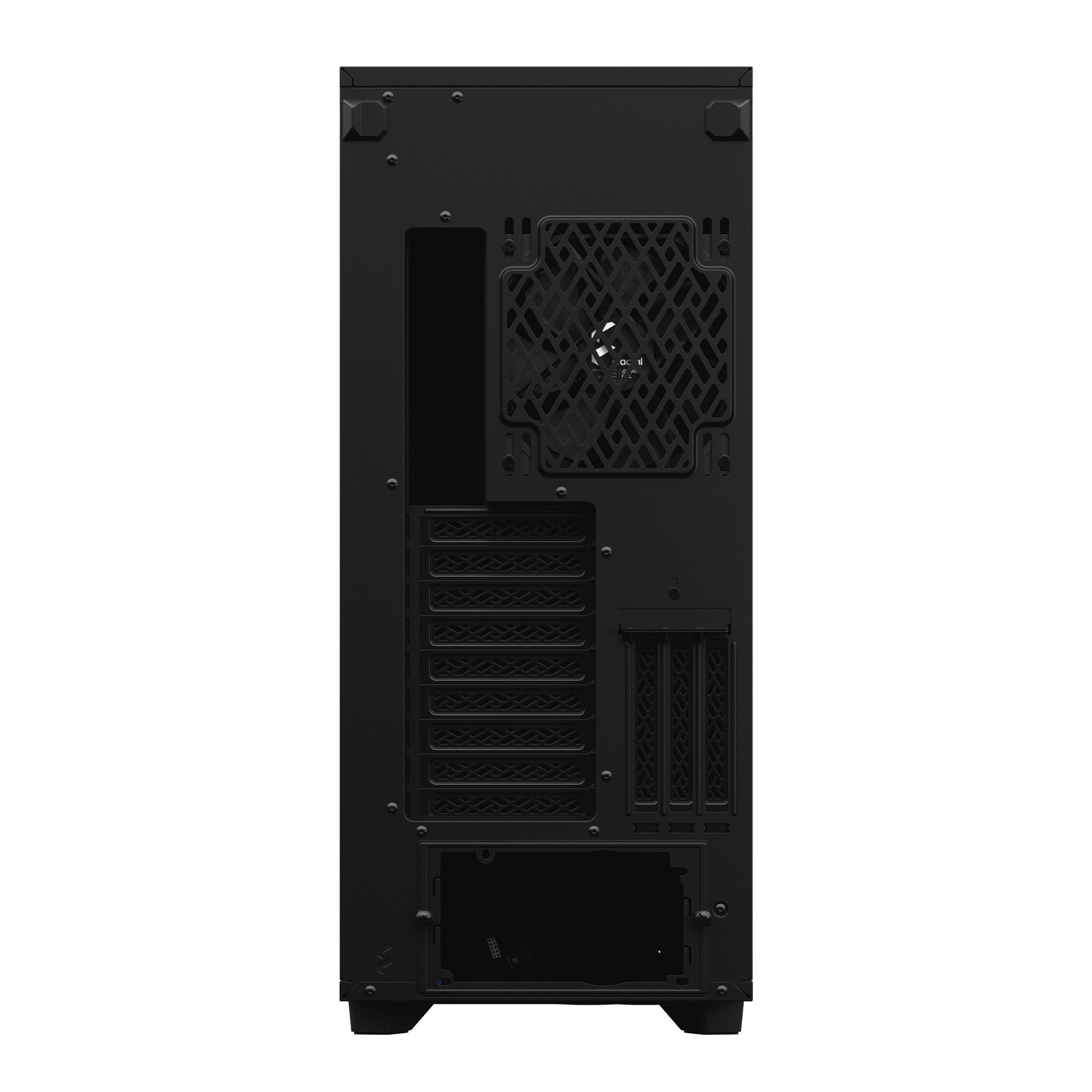

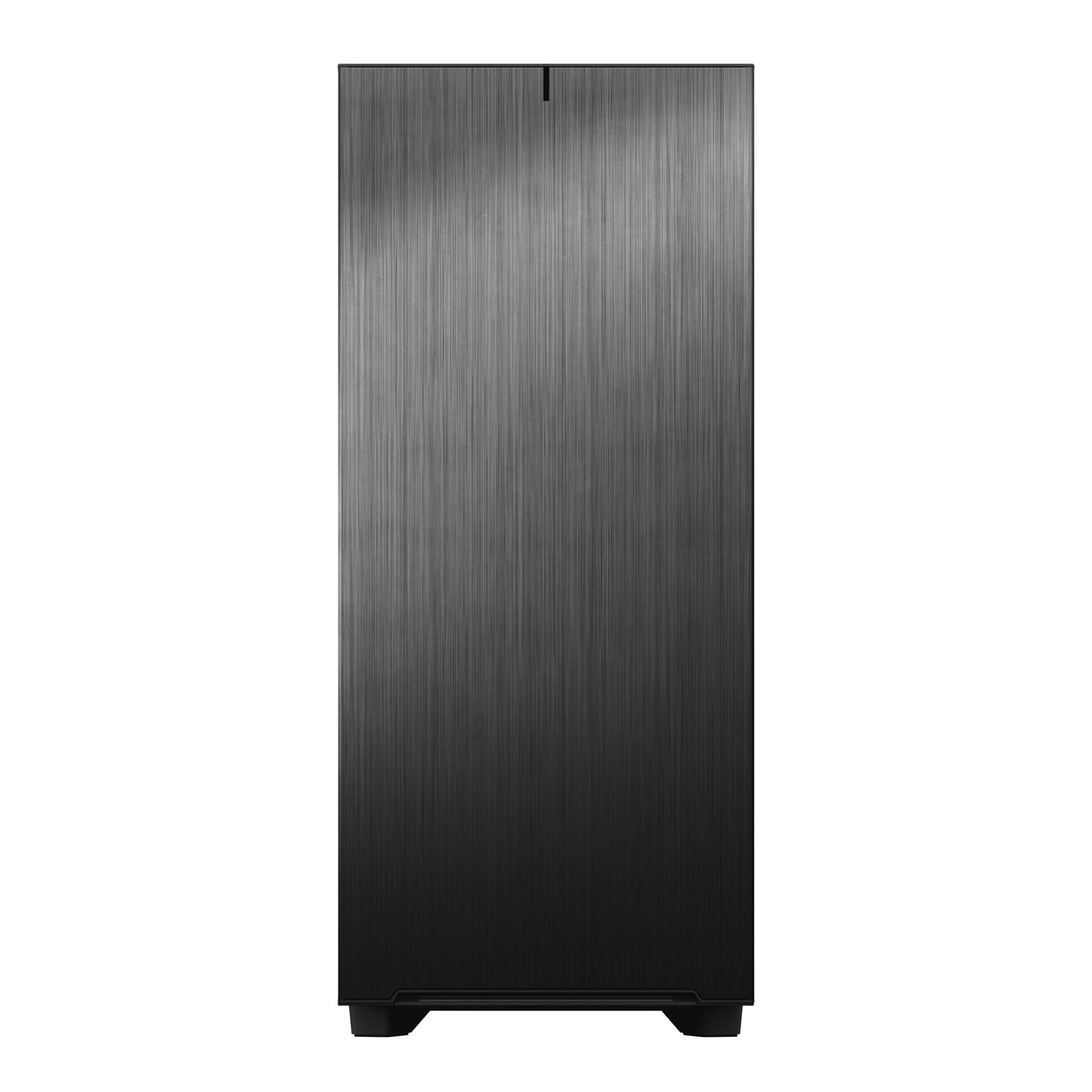

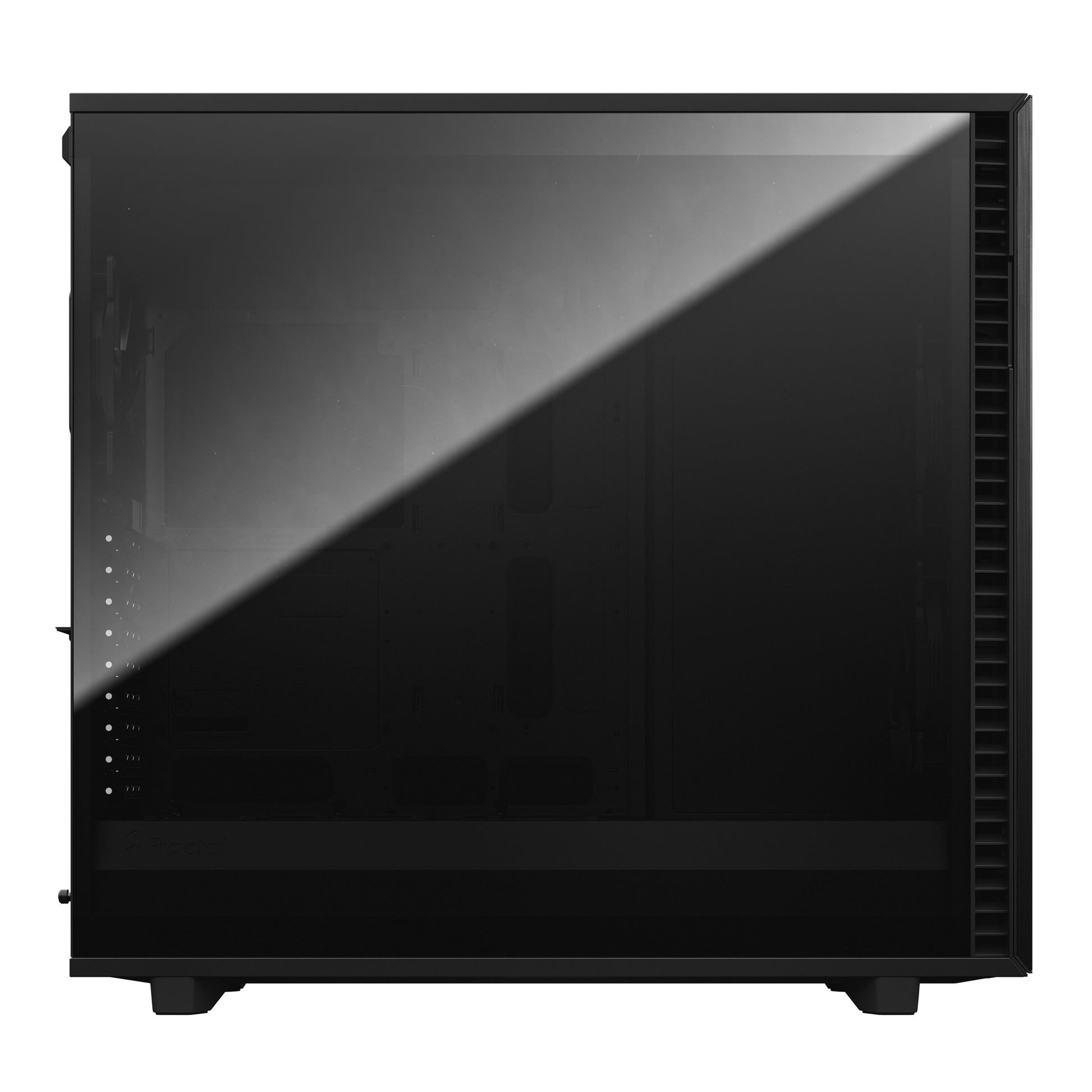

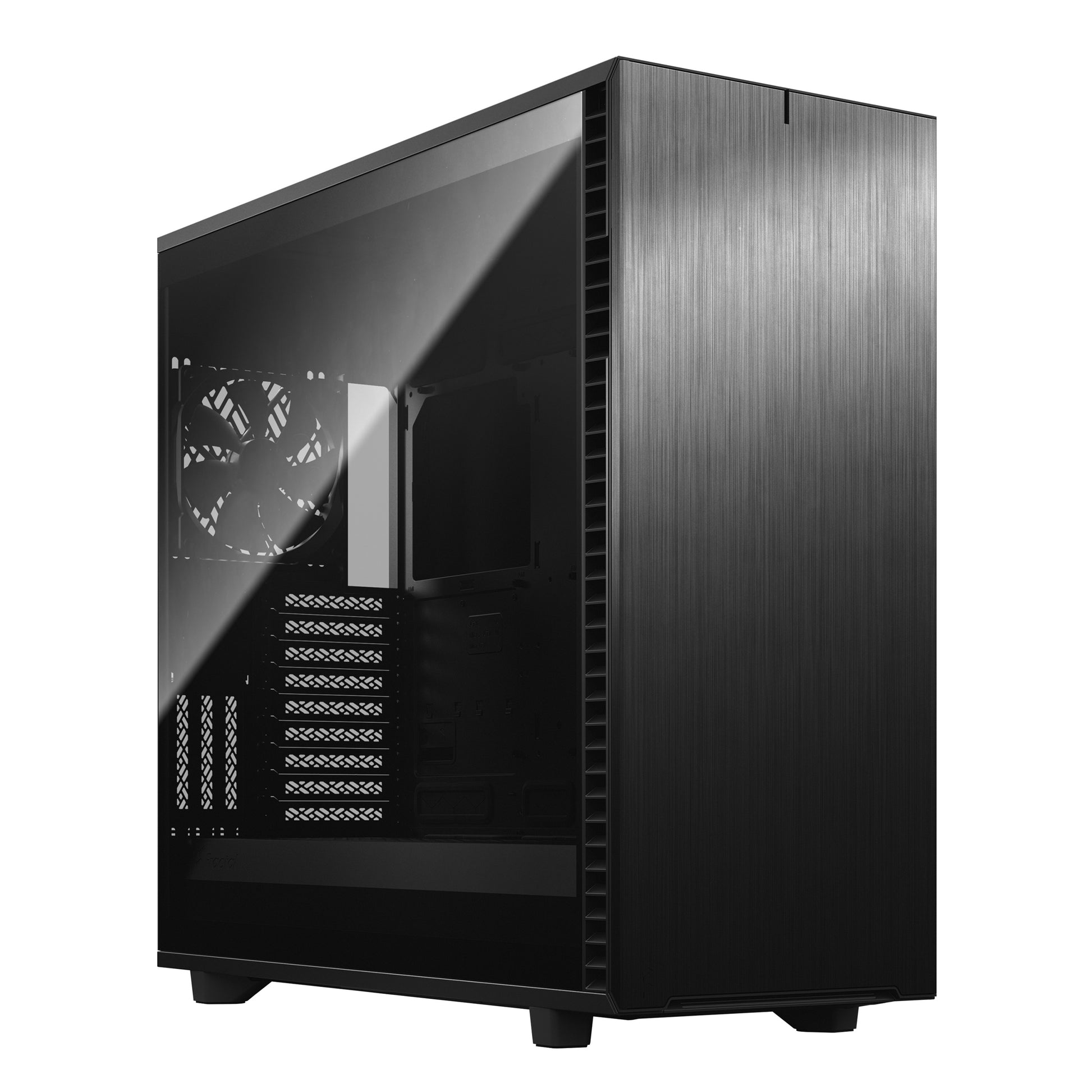

Fractal Design Define 7 XL - Black TG Dark Tint - Full Tower Computer Case E-ATX (FD-C-DEF7X-03)

Fractal Design Define 7 XL - Black TG Dark Tint - Full Tower Computer Case E-ATX (FD-C-DEF7X-03)

Brand : Fractal Design

Regular price ₱13,368.00
Sale price ₱13,368.00
Regular price ₱14,482.00 -8%
Sale! Sold out

Define 7 XL  - Black TG Dark Tint (FD-C-DEF7X-03)

The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.

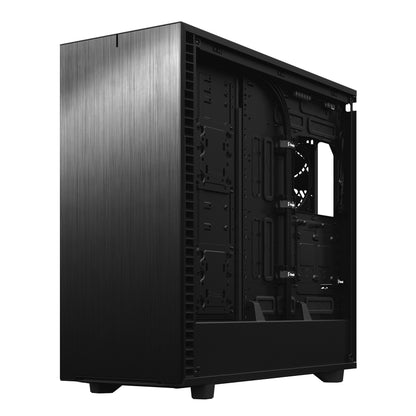

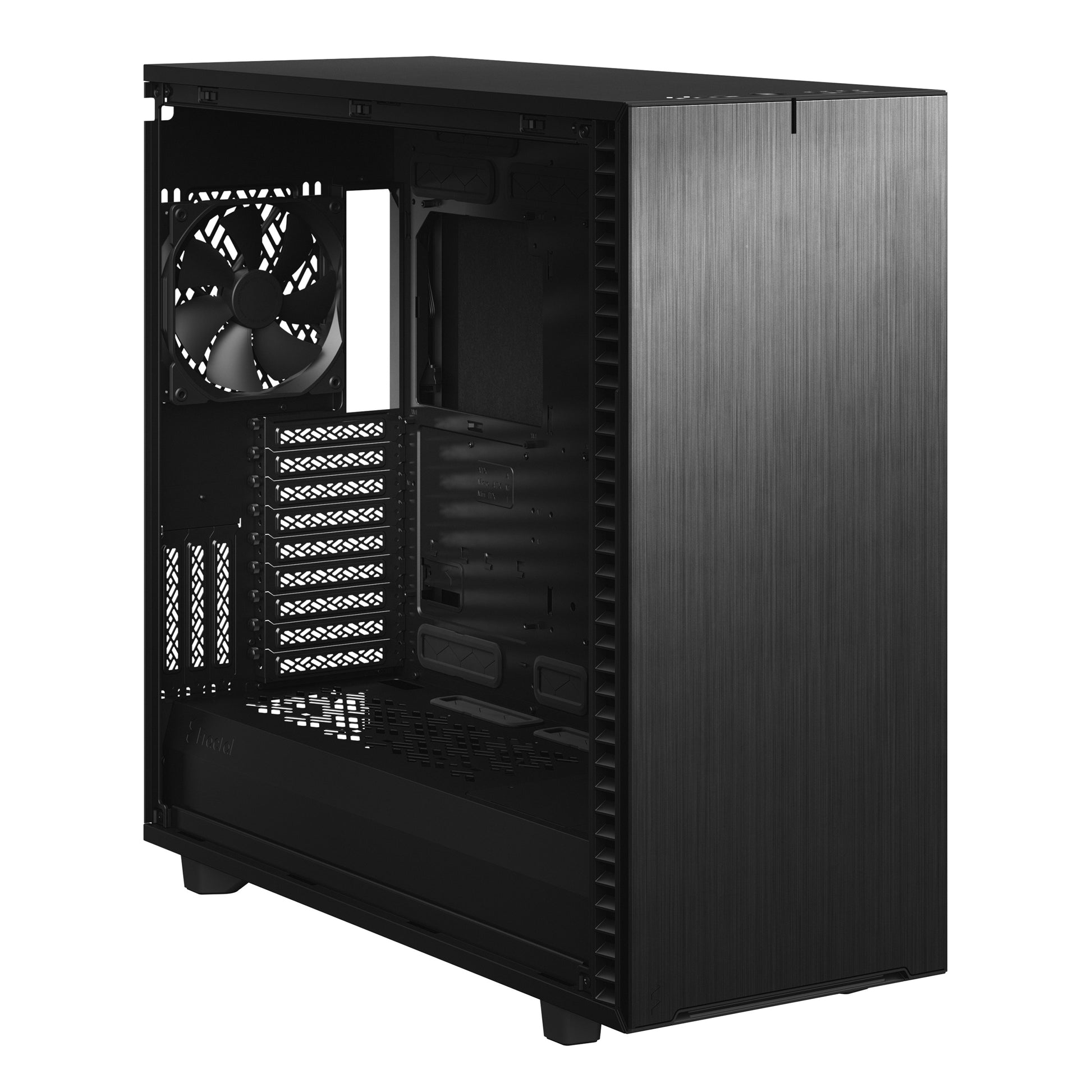

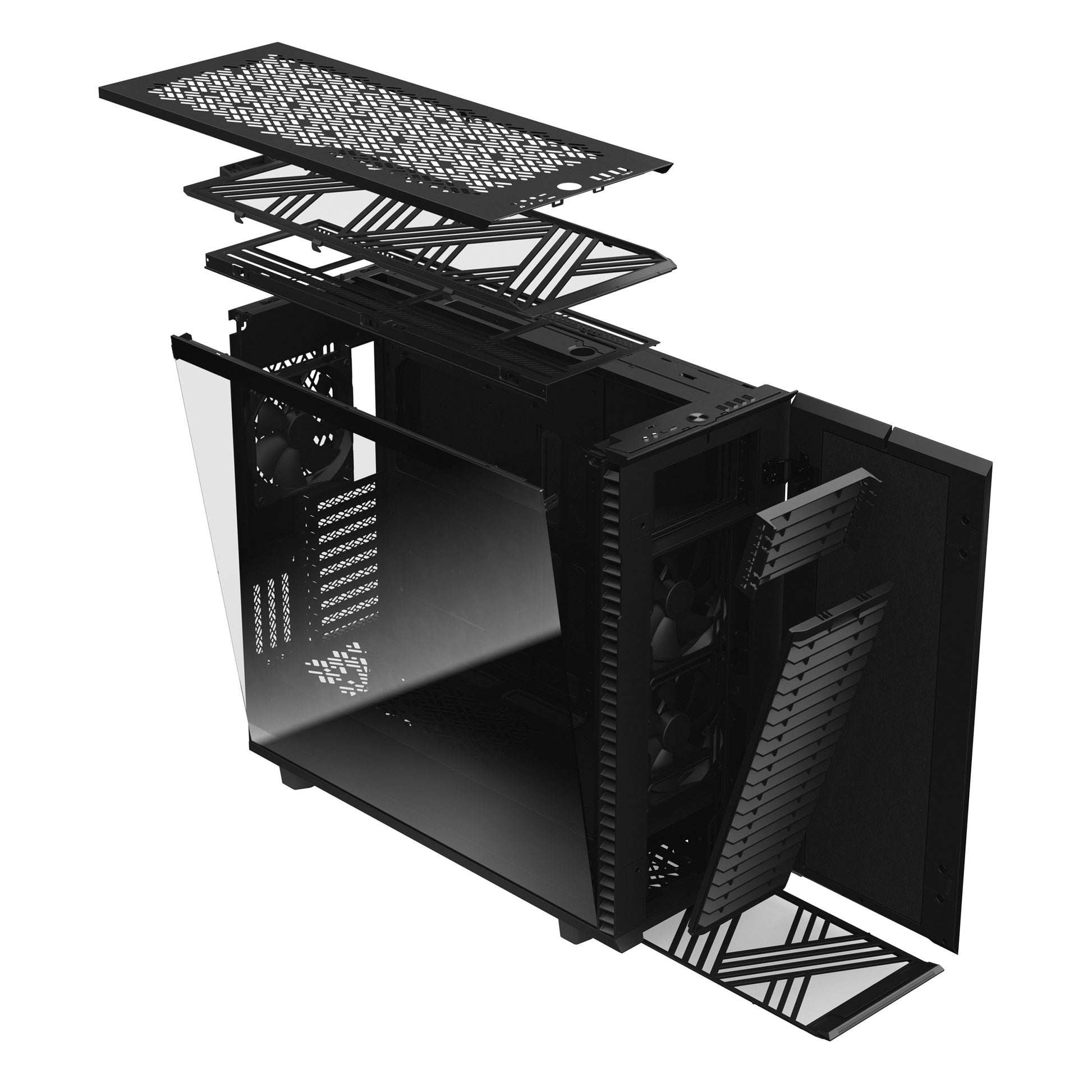

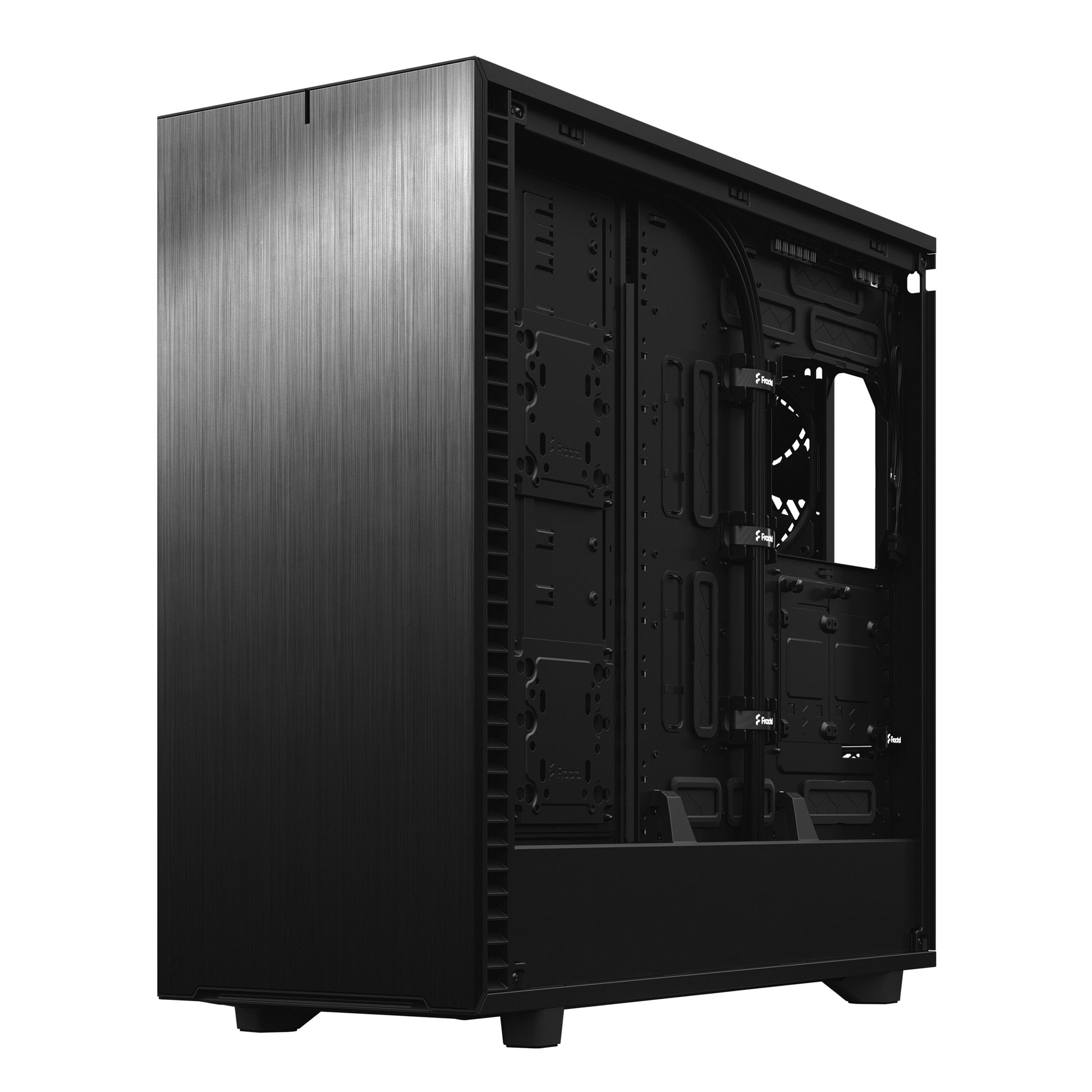

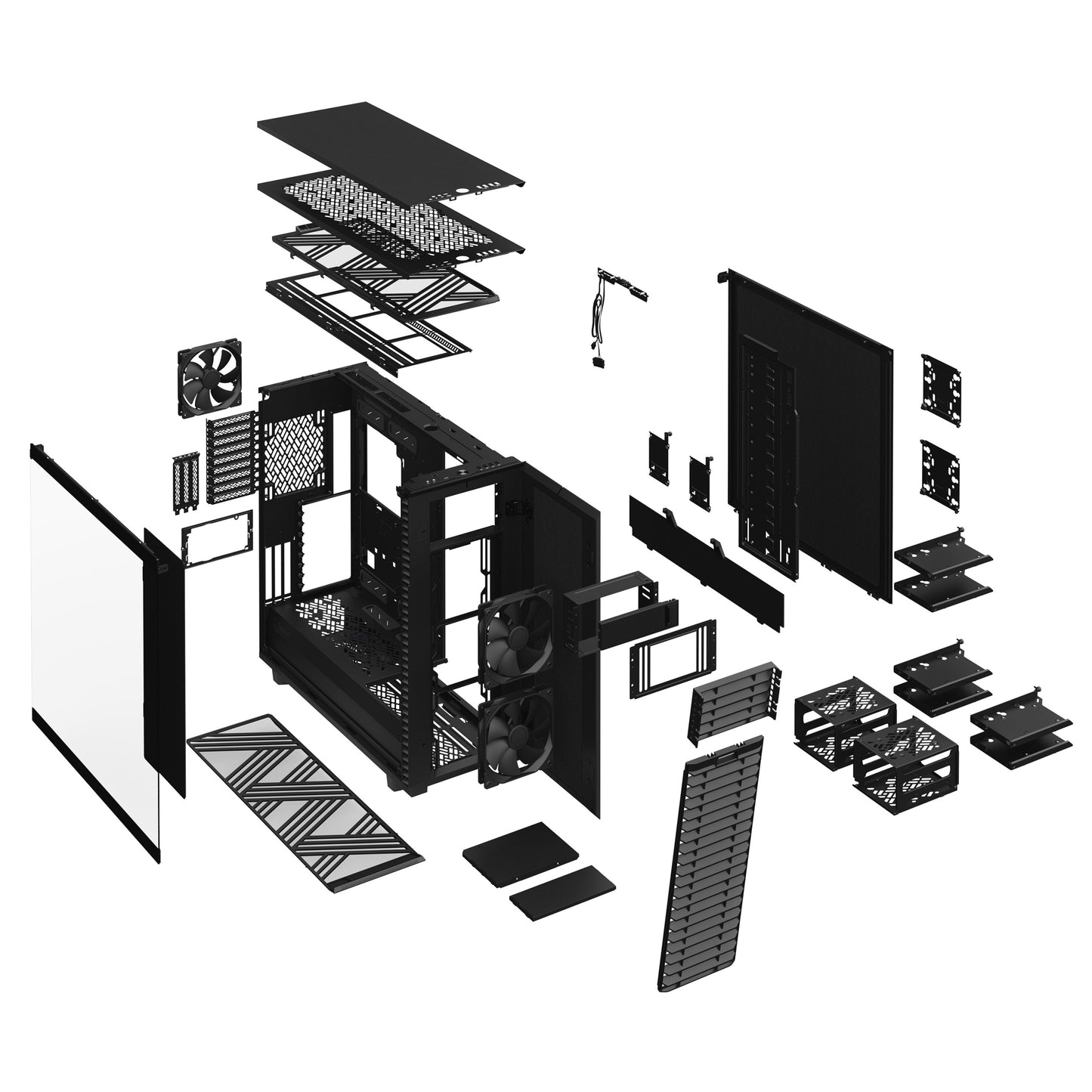

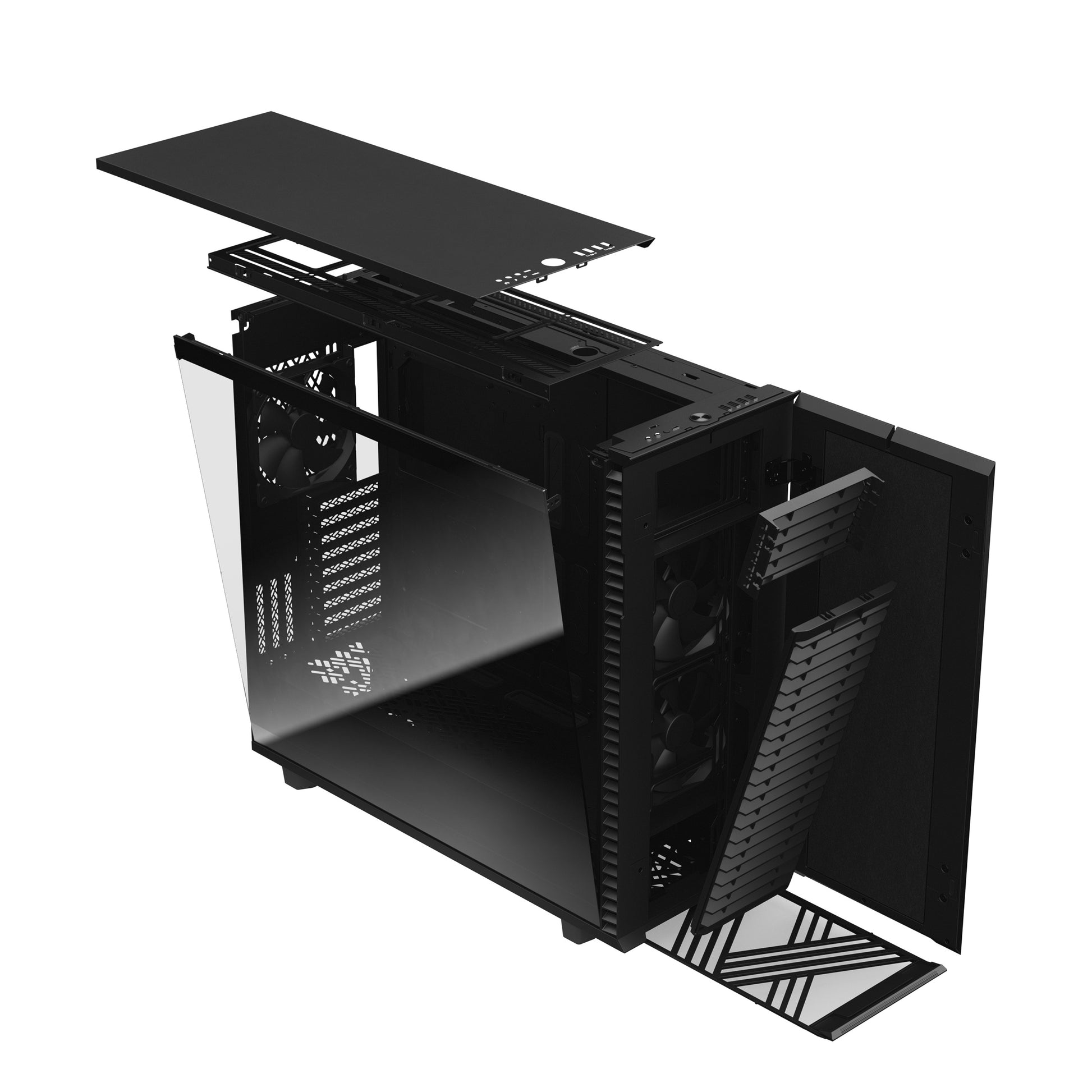

  • • New chassis design opens up to fully expose the case interior

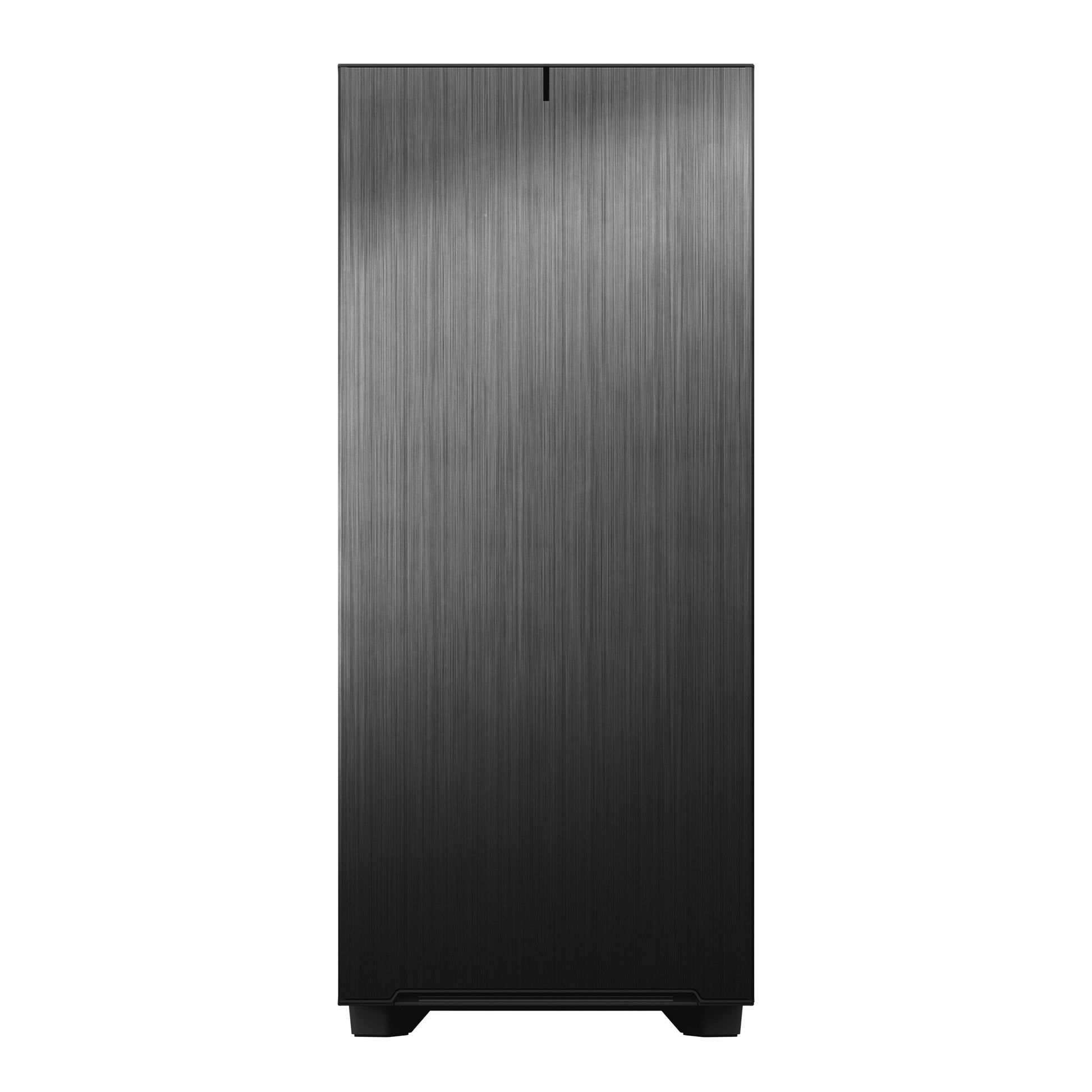

  • • Anodized aluminum front panel with reversible dual-handed hinges

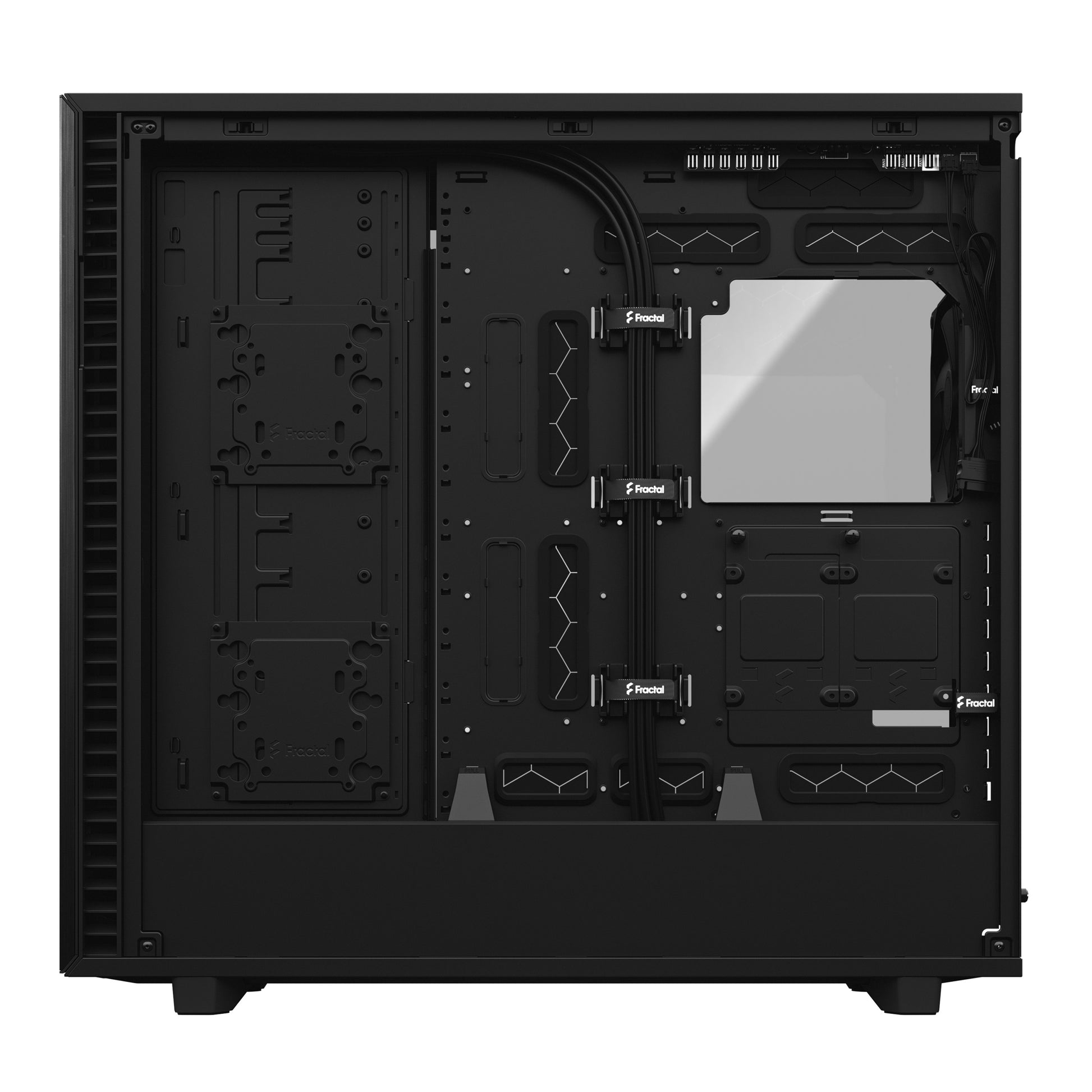

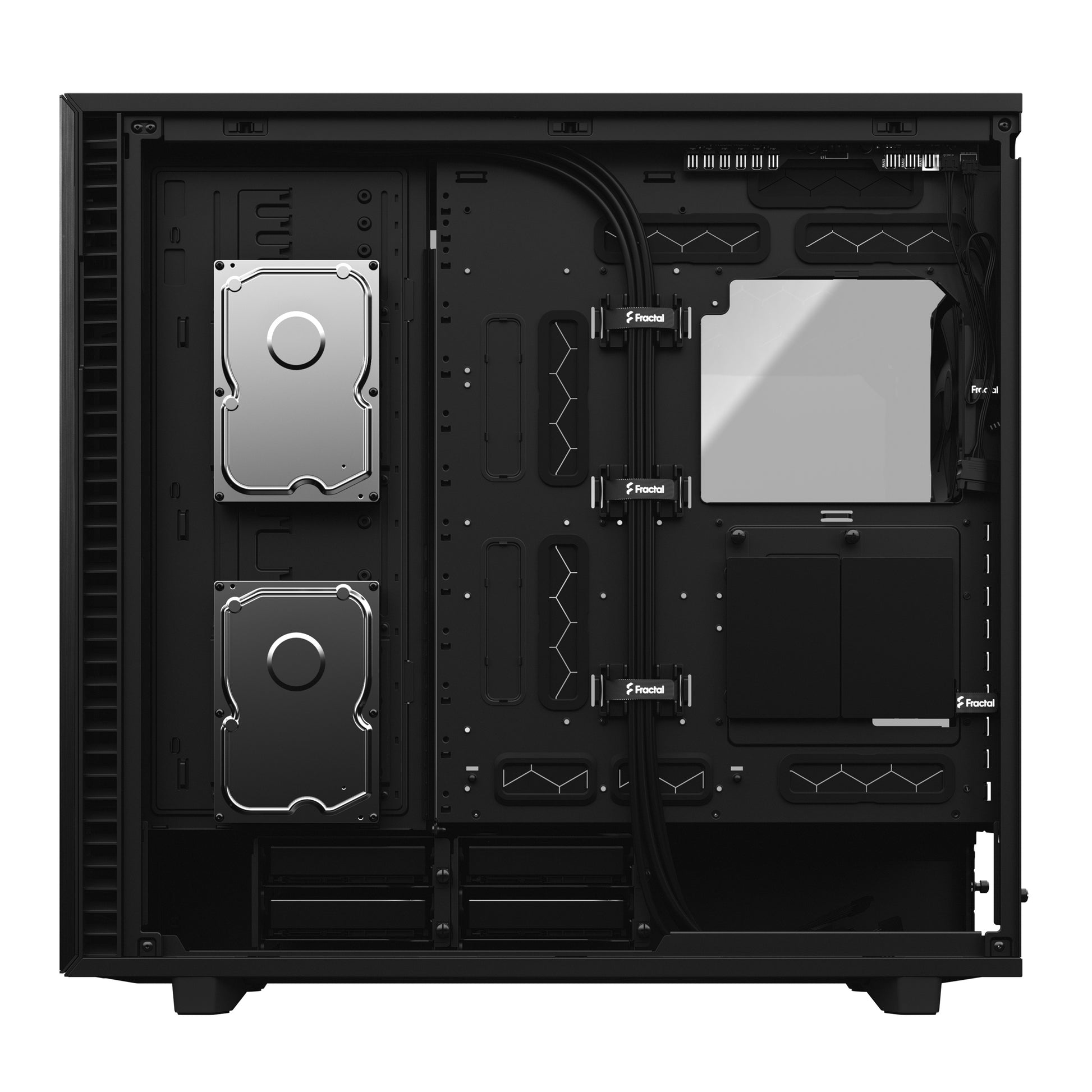

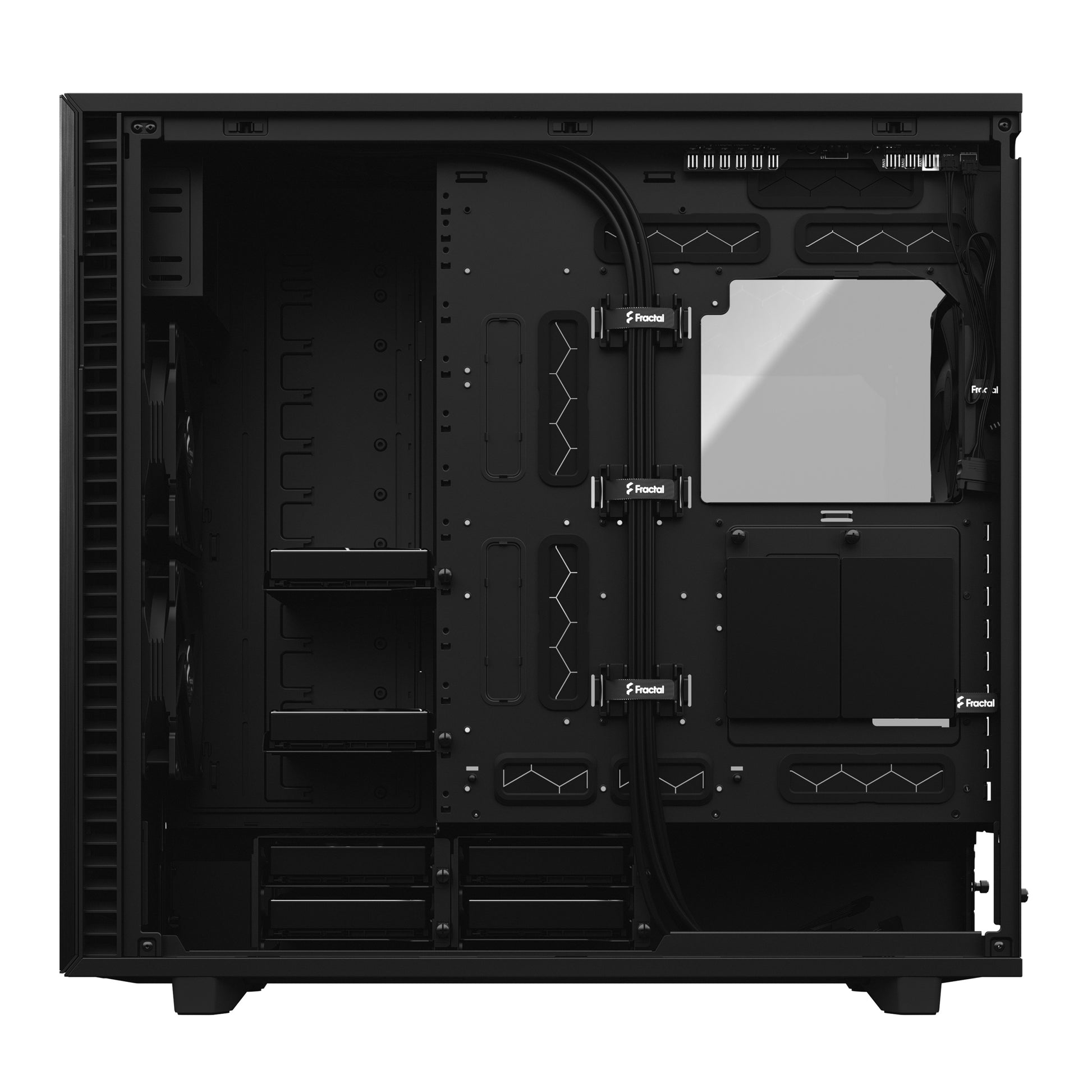

  • • Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout

Specifications

  • 3.5"/2.5" Universal drive brackets : 6 + 2 included, 18 positions total
  • Dedicated 2.5" drive brackets : 2 included, 5 positions total
  • 5.25” drive mounts : 2

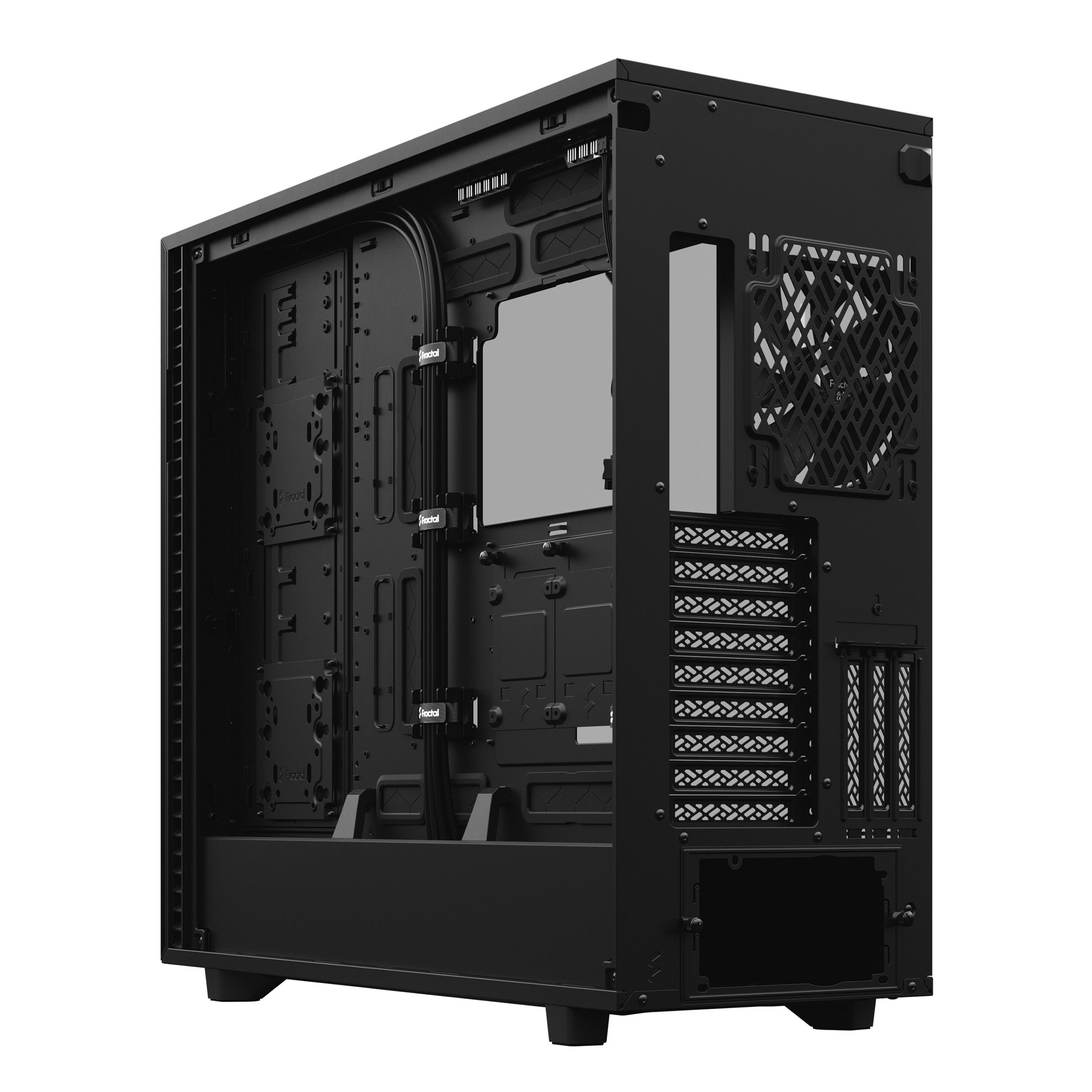

  • Expansion slots : 9 + 3

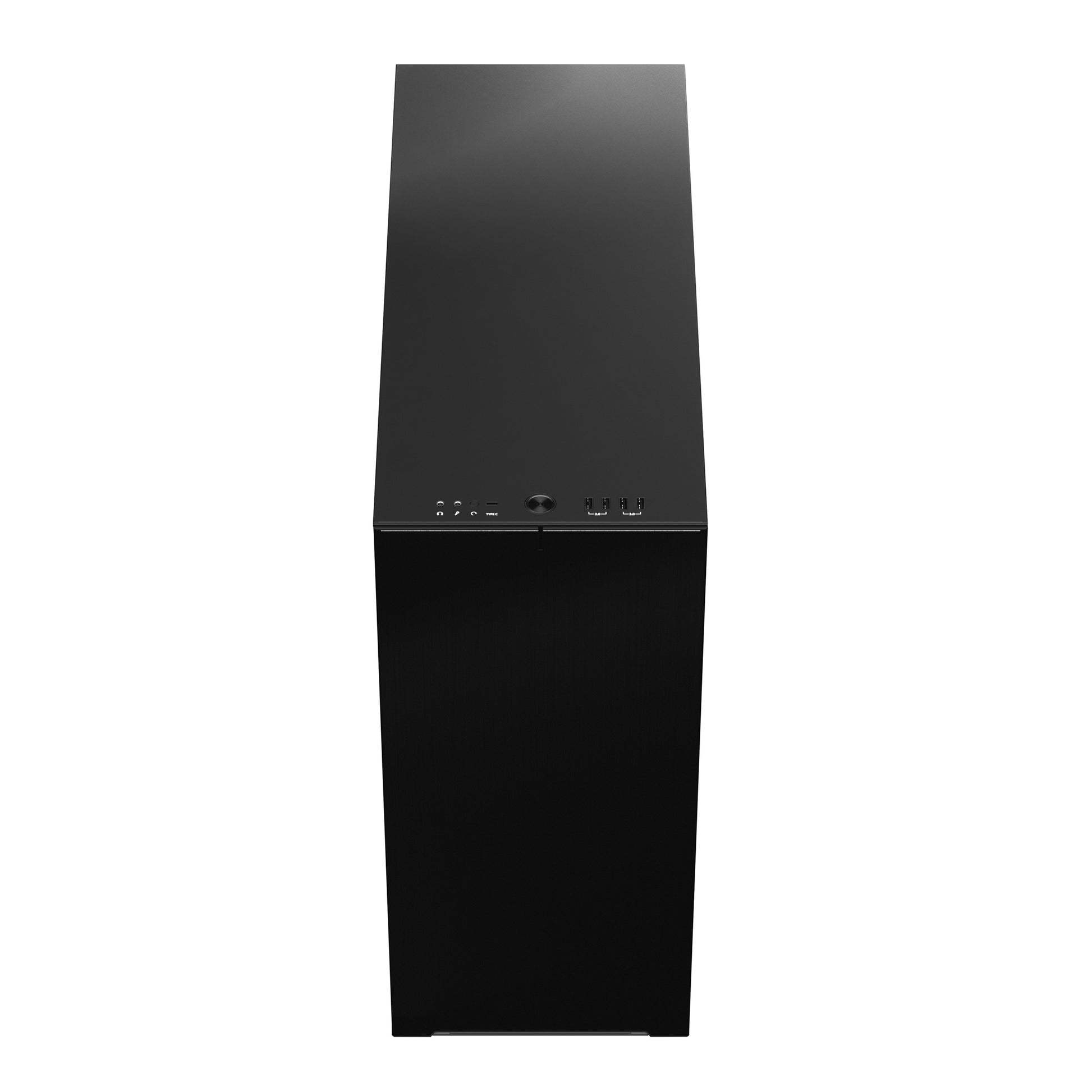

  • Front ports : 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
  • Total fan mounts : 11 x 120 mm or 9 x 140 mm

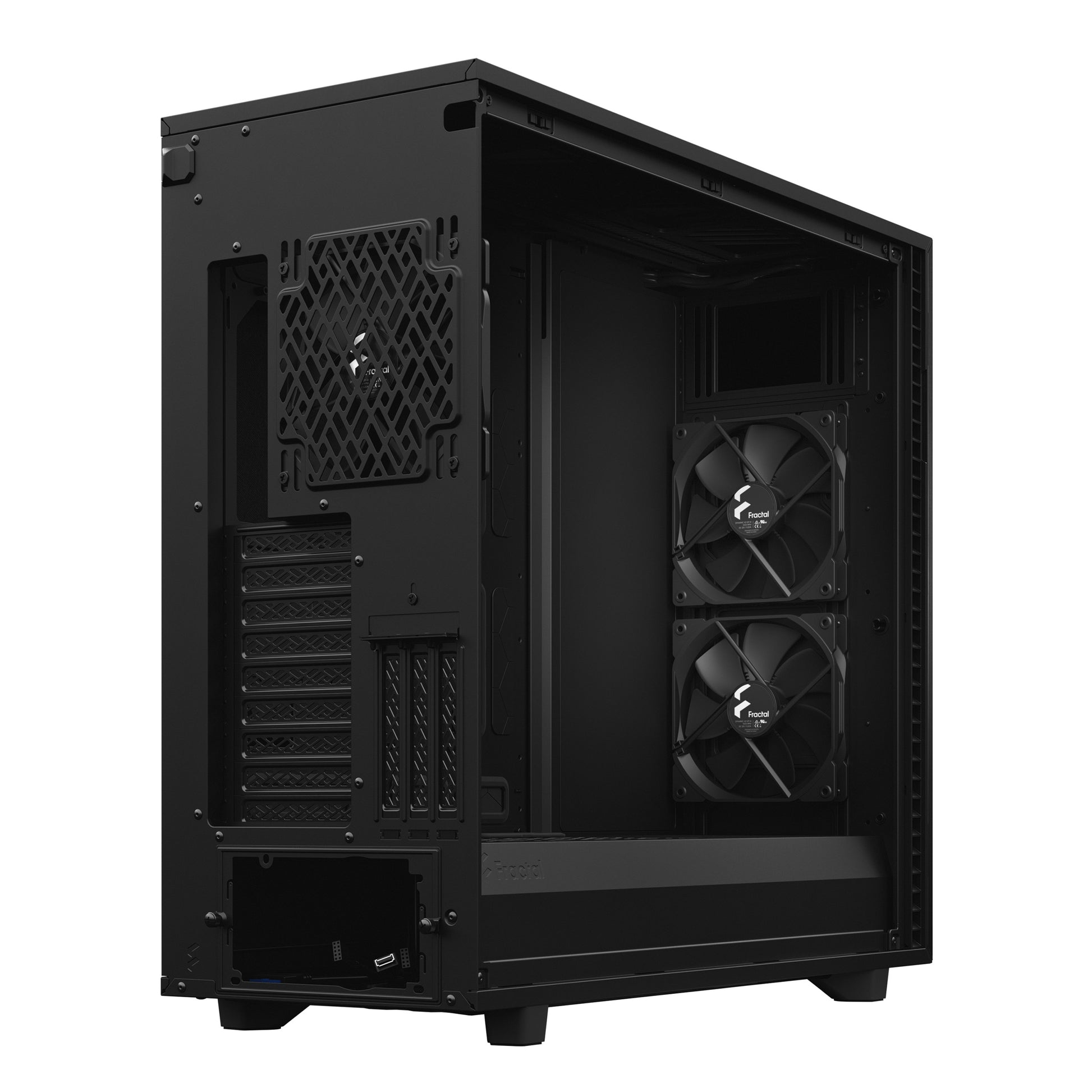

  • Front fan : 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
  • Top fan : 4 x 120 mm or 3 x 140 mm
  • Rear fan : 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
  • Bottom fan : 2 x 120/140 mm
  • Dust filters : Top, 2 x Front, Bottom + PSU
  • Fixed velcro straps : Yes
  • Cable routing grommets : Yes
  • Captive thumbscrews : HDD brackets, SSD brackets, PSU bracket
  • Left side panel : Industrial sound-damped steel or Tempered Glass
  • Right side panel : Industrial sound-damped steel

Compatibility

  • Motherboard compatibility : E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
  • Power supply type : ATX
  • PSU max length : 250 mm (both HDD cages installed)
  • GPU max length : Storage layout: 359 mm - Open layout: 549 mm (524 mm w/ front fan)
  • CPU cooler max height : 185 mm
  • Front radiator : Up to 480/420 mm
  • Top radiator : Up to 480/420 mm
  • Rear radiator : 120 mm
  • Bottom radiator : Up to 240/280 mm
  • Cable routing space : 30 mm
  • Vertical GPU Support (with Flex B-20 or Flex VRC-25)
    65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling

Dimensions

  • Case dimensions (LxWxH) : 604 x 240 x 566 mm
  • Case dimensions w/o feet/protrusions/screws : 590 x 240 x 548 mm
  • Package dimensions (LxWxH) : 646 x 357 x 708 mm
  • Net weight : Solid Version: 16.53 kg, TG Version: 16.64 kg
  • Package weight : Solid Version: 18.73 kg, TG Version: 18.84 kg
  • Volume : 77.6 liters

Other

  • Warranty : 2 Years

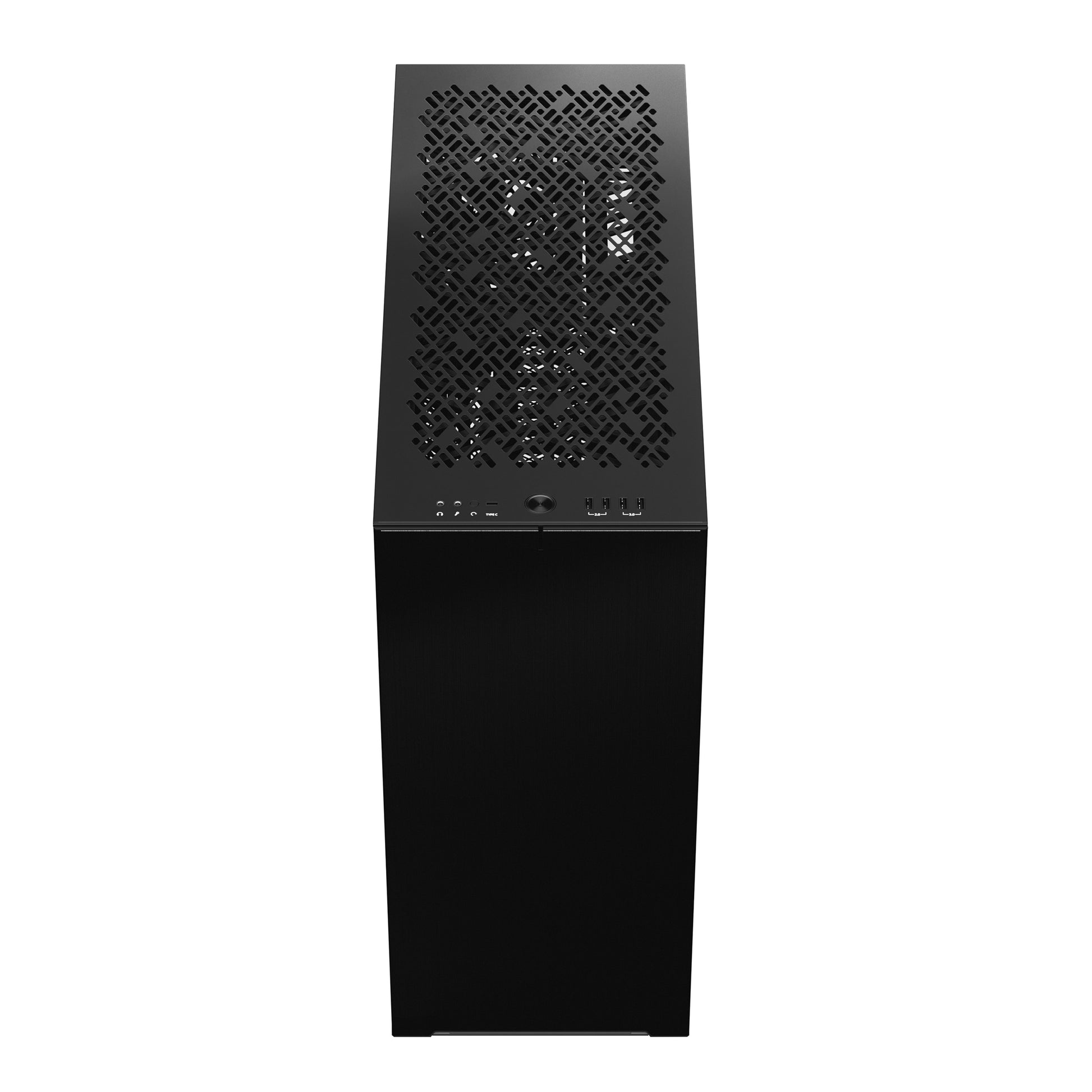

  • Package contents : Define 7 XL - Accessory box - User manual - Ventilated top panel - ODD bracket - ODD bay cover - 2 x HDD/SSD trays
  • EAN : Solid: 7340172702047, TG Dark Tint: 7340172702061, TG Light Tint: 7340172702054
  • UPC : Solid: 843276102043 TG Dark Tint: 843276102067, TG Light Tint: 843276102050
  • JAN : Solid: 4537694274296 TG Dark Tint: 4537694275385, TG Light Tint: 4537694274302
  • Product code  : Solid: FD-C-DEF7X-01, TG Dark Tint: FD-C-DEF7X-03, TG Light Tint: FD-C-DEF7X-02
