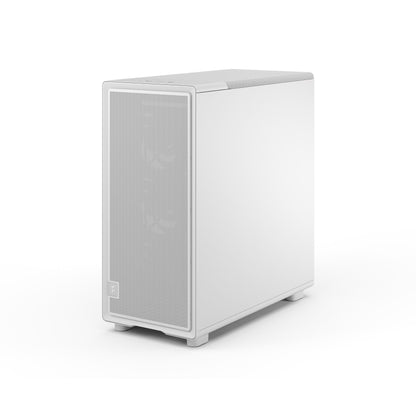

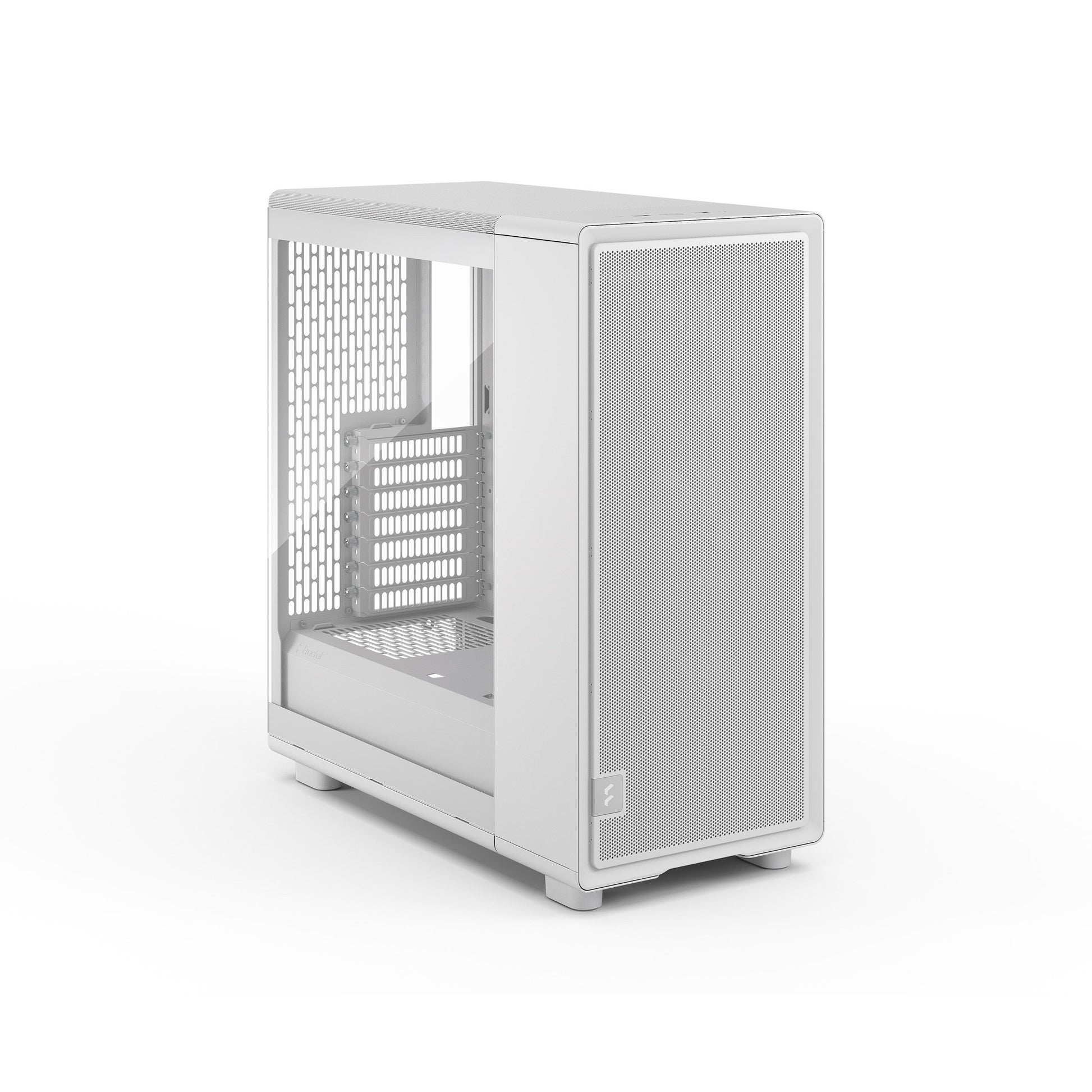

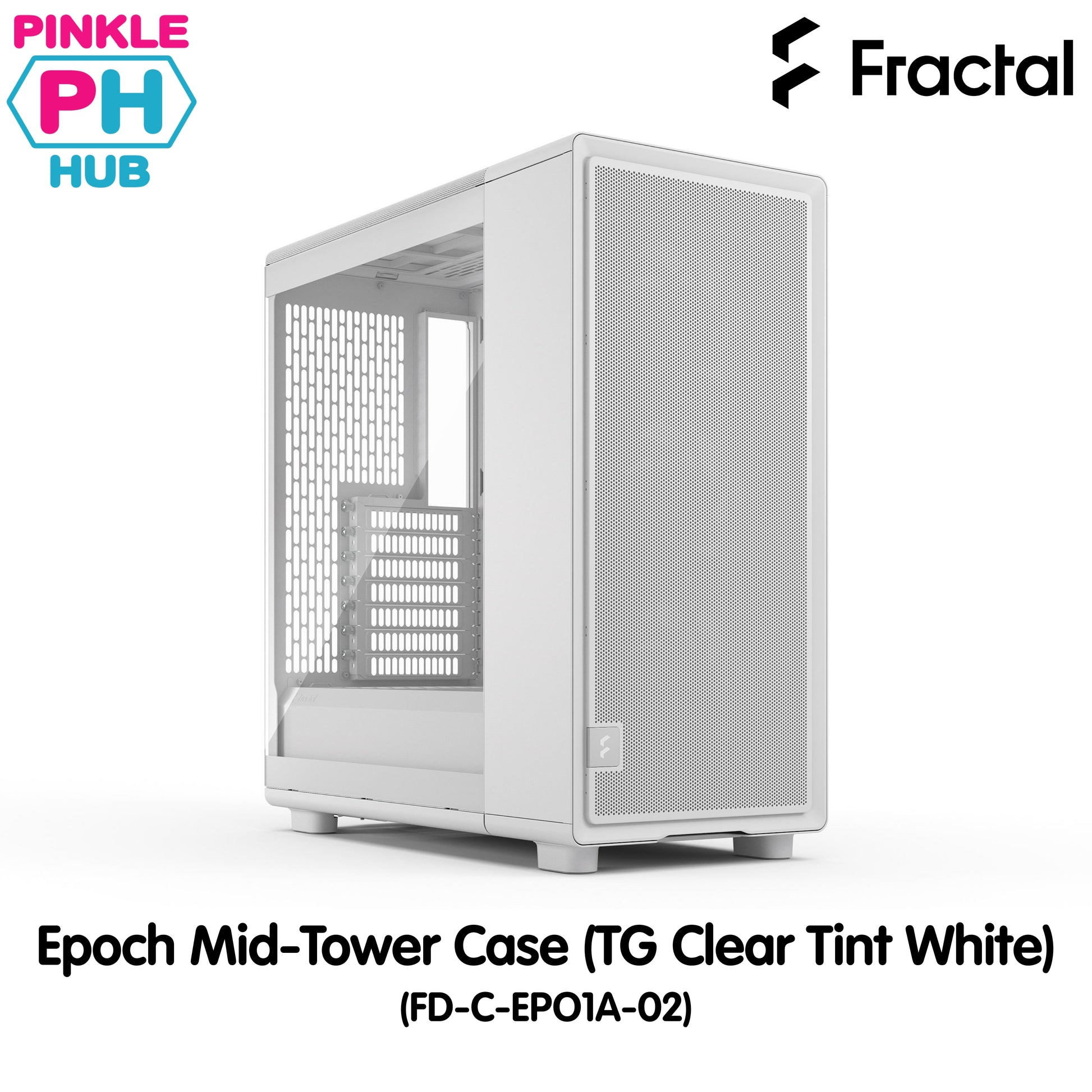

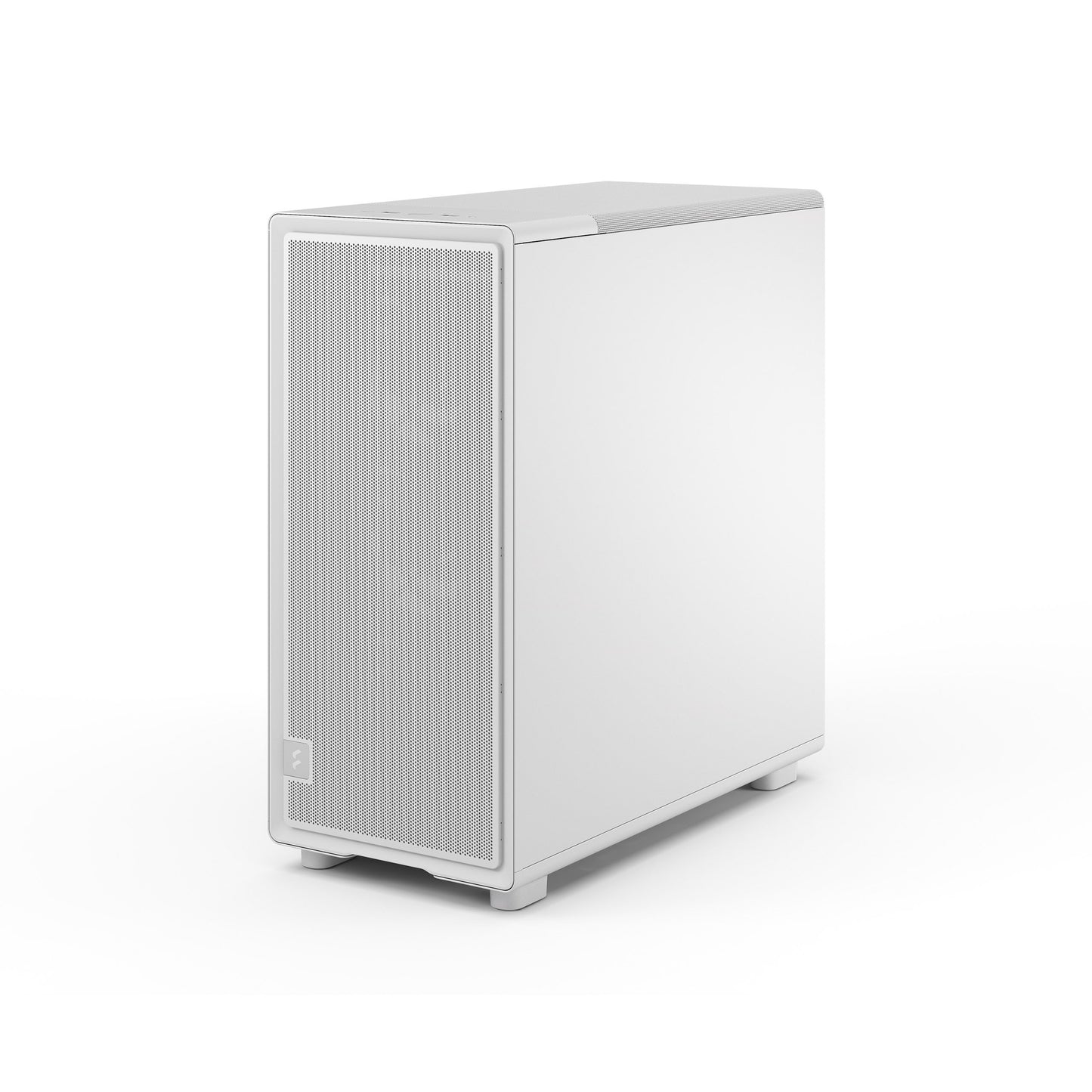

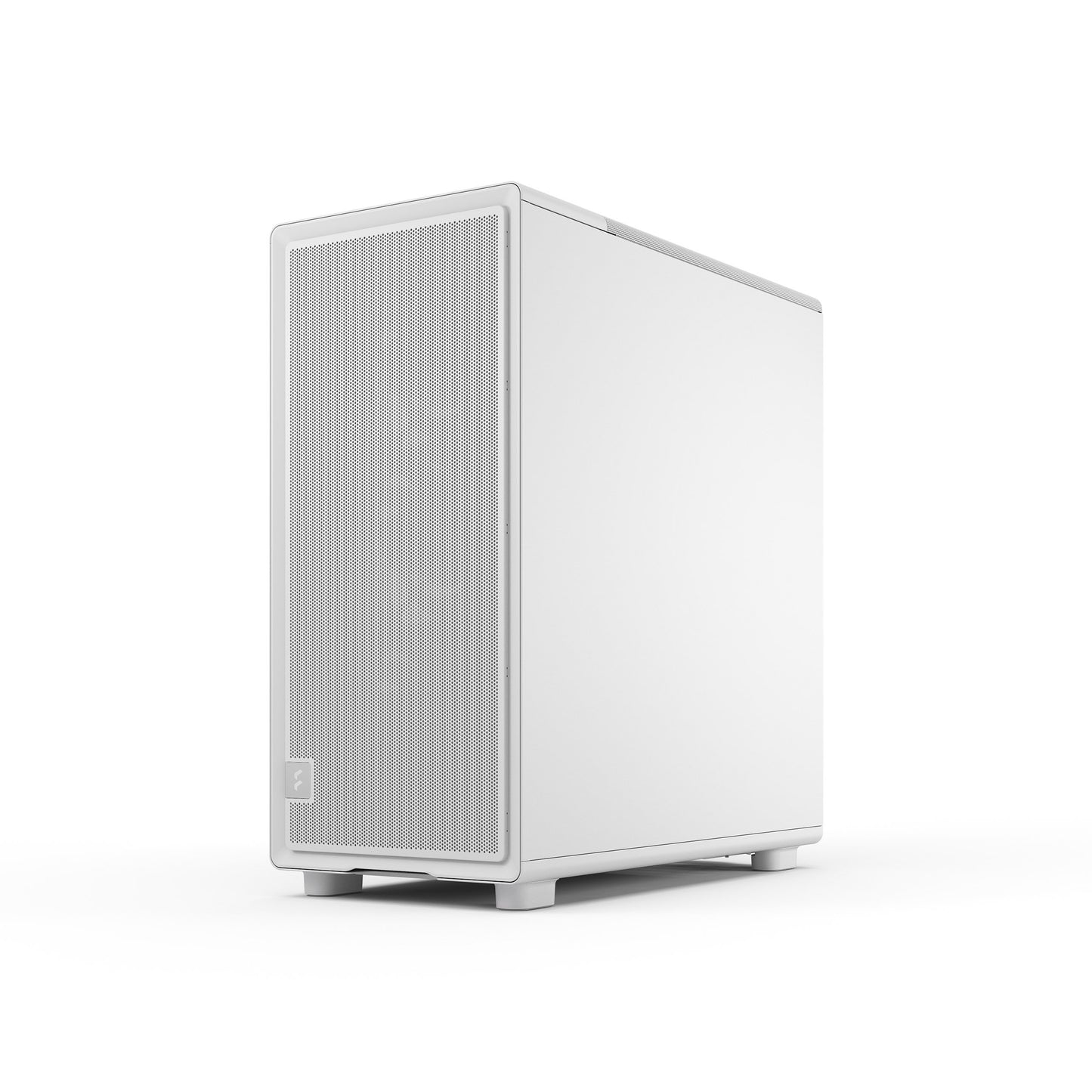

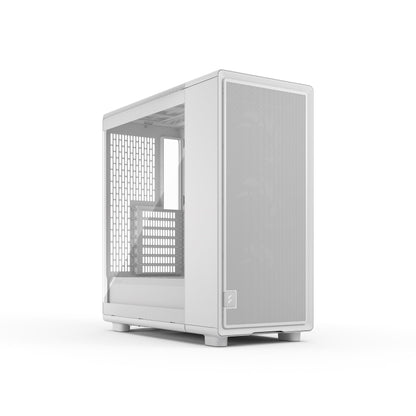

Fractal Design Epoch Mid-Tower Case (TG Clear Tint White)
Fractal Design Epoch Mid-Tower Case (TG Clear Tint White)
Brand : Fractal Design
SKU: SKU: FD-C-EPO1A-03
Low stock: 1 left
Couldn't load pickup availability
Epoch

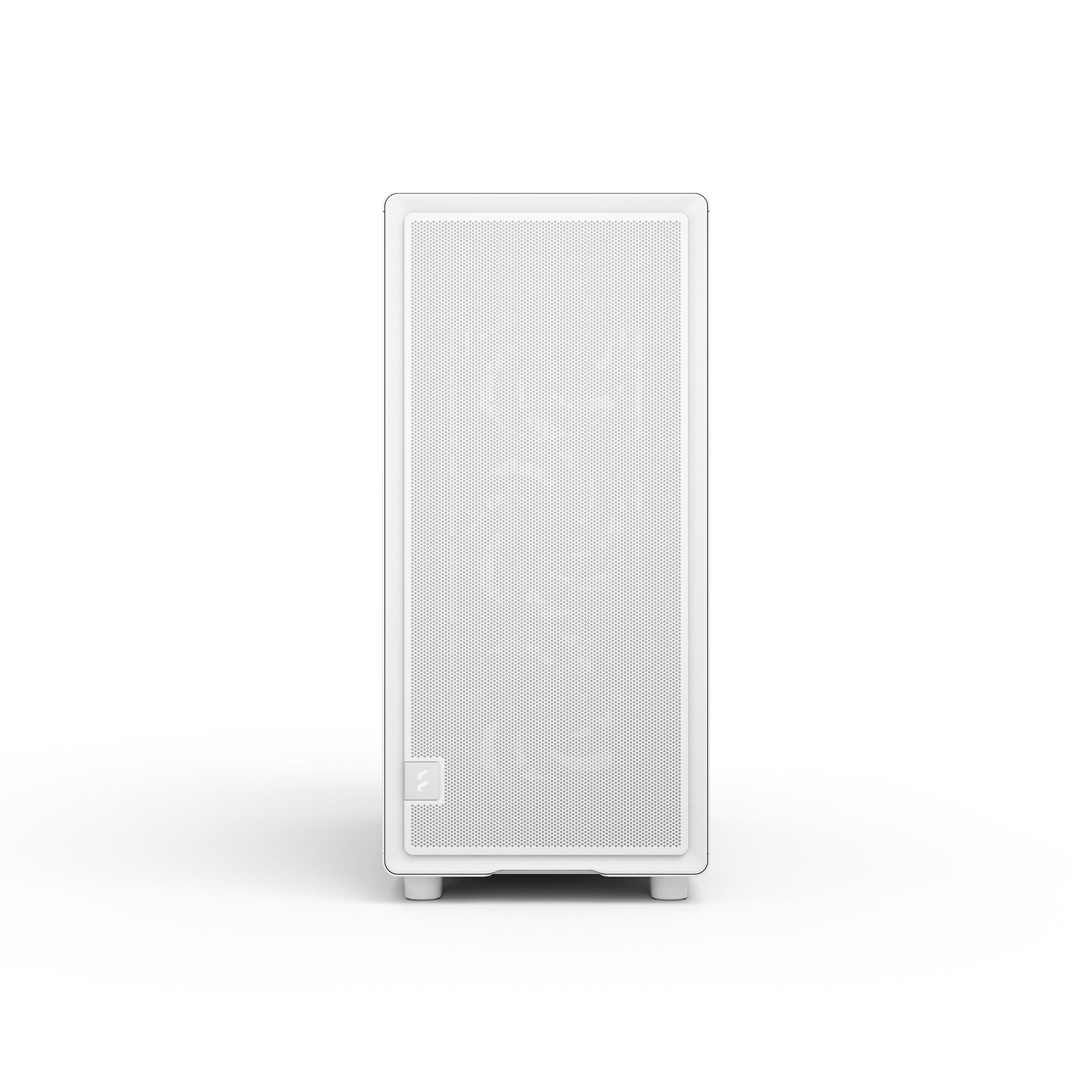

Epoch combines clean, contemporary design with modern airflow engineering. It features a mesh front and three powerful Momentum fans to deliver gaming performance that integrates stylishly into your gaming station.
Elegant airflow
Contemporary design
Integrate your setup seamlessly into your gaming station with clean lines, a tidy interior, and refined details such as a laser-etched aluminum badge.
Powerful fans included
Includes three high-performance Momentum 12 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.
White
Black

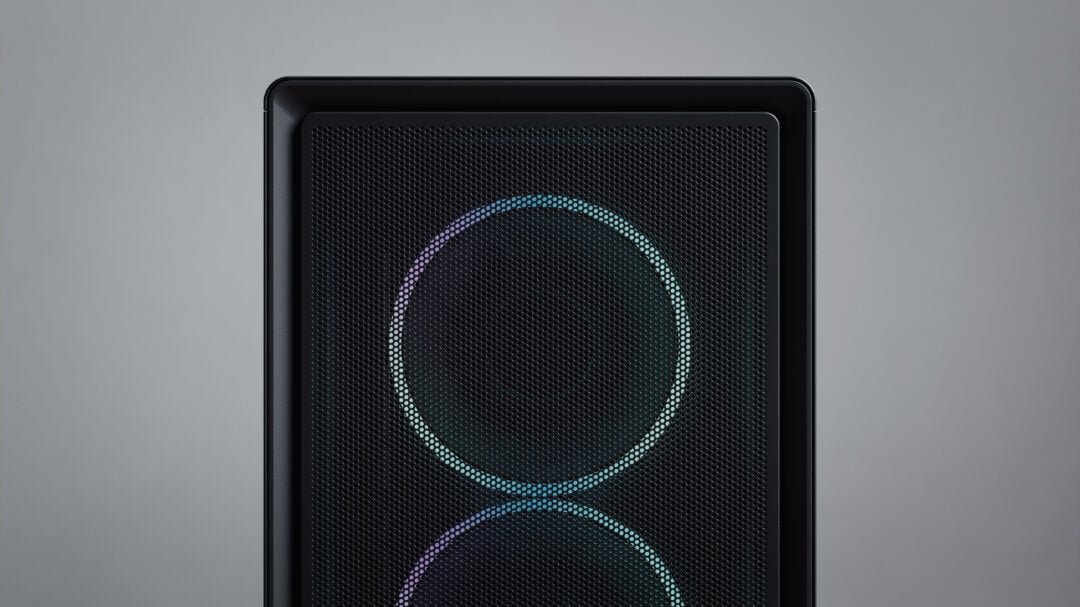

Ventilated airflow
Keep your high-performance components running cool with a clean interior layout and ventilated top and front panels for strong natural airflow.

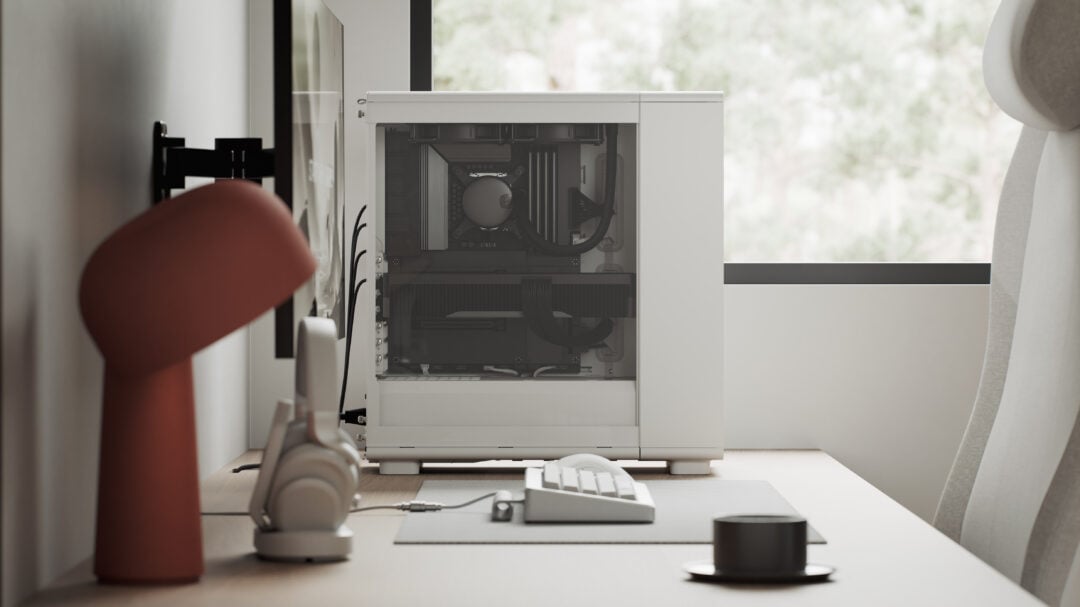

Ready for gaming
Create a powerful gaming system with space for graphics cards up to 372 mm in length with front-mounted fans, or 345 mm with a front radiator.

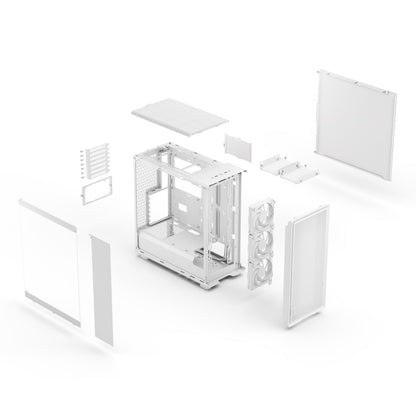

Easily accessible

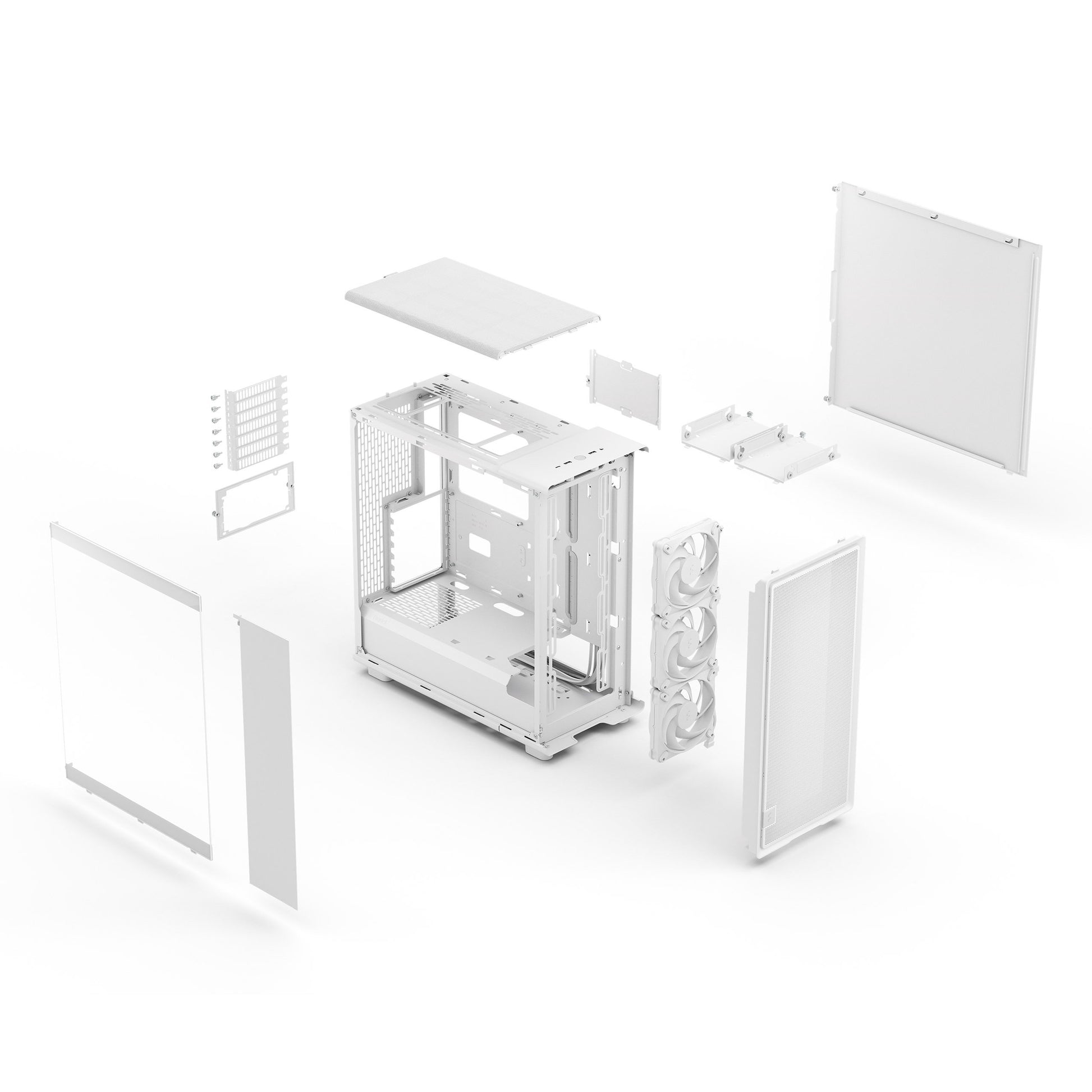

Enjoy a smooth build experience with tool-free access, including a pull-to-remove front panel and a sliding top panel featuring a fabric tab.

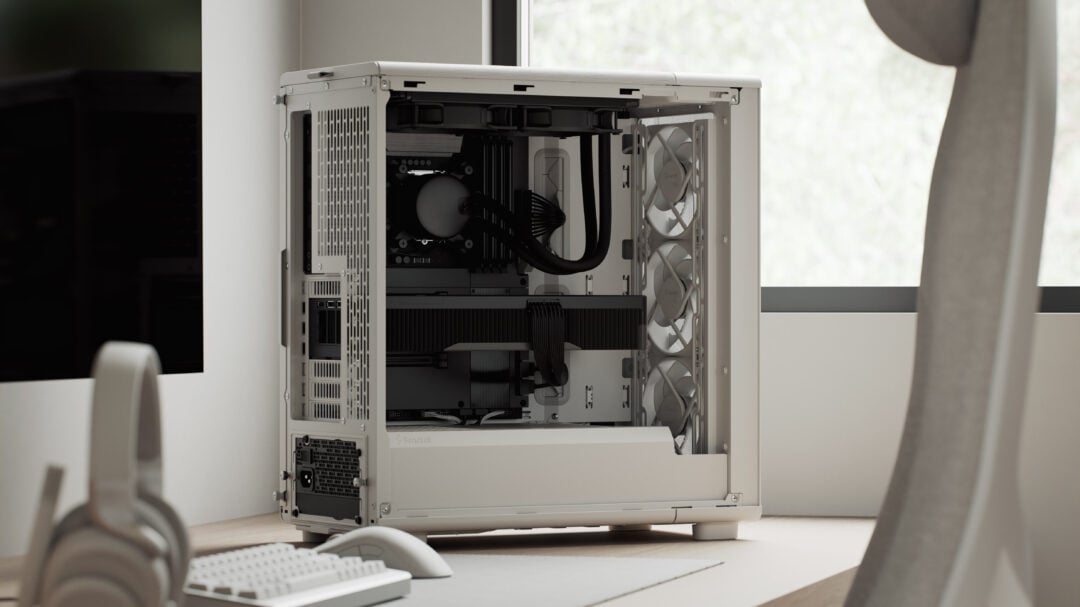

Cooler compatible
Cool your build further with up to a 240 mm top radiator or up to 360 mm front radiator, with space for a CPU air cooler up to 170 mm in height.

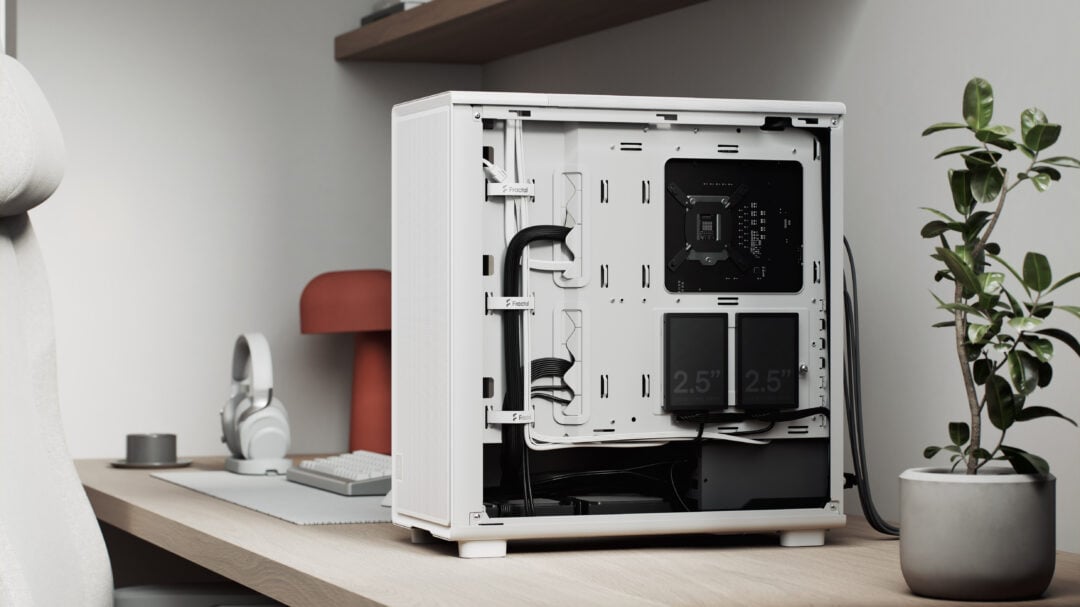

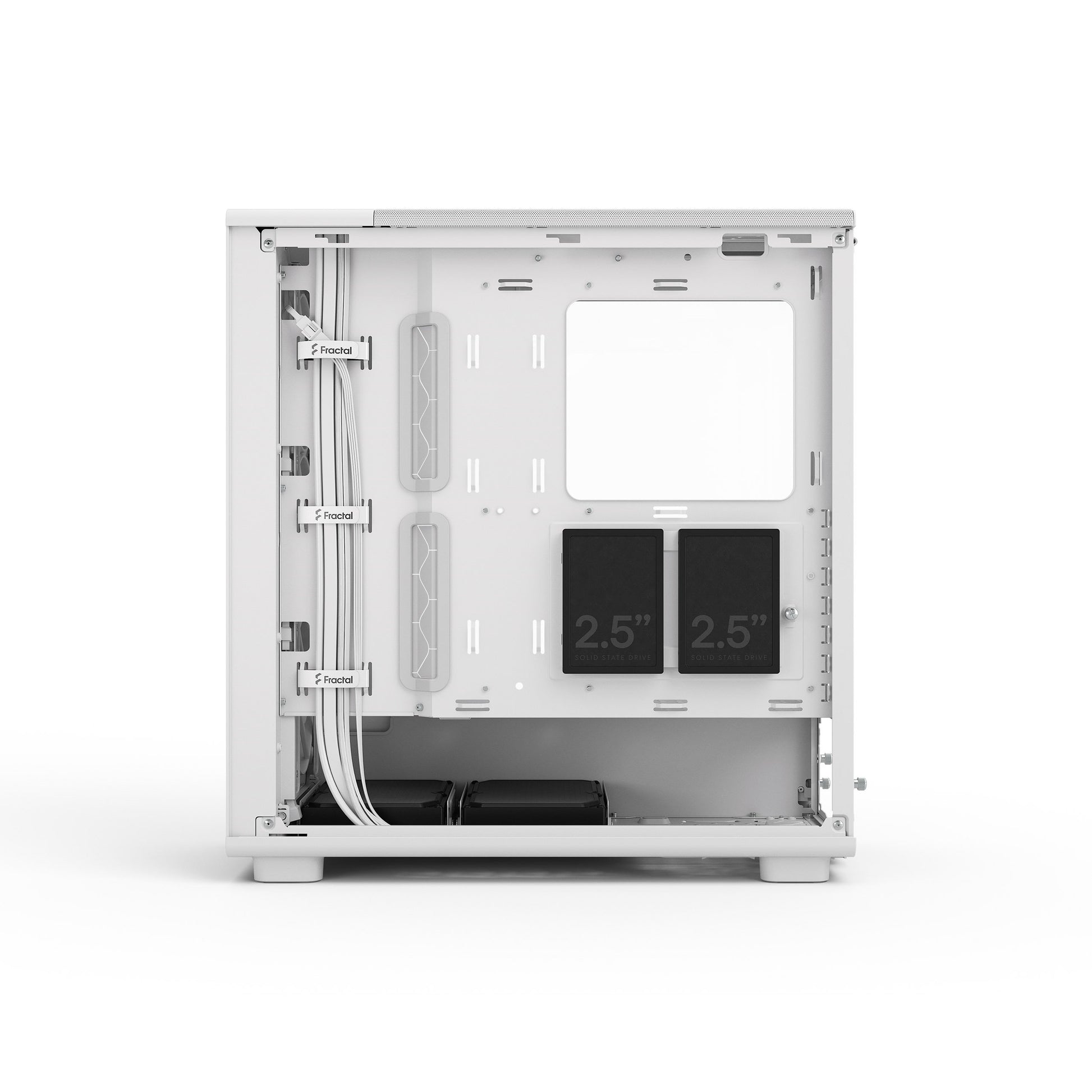

Clean finish

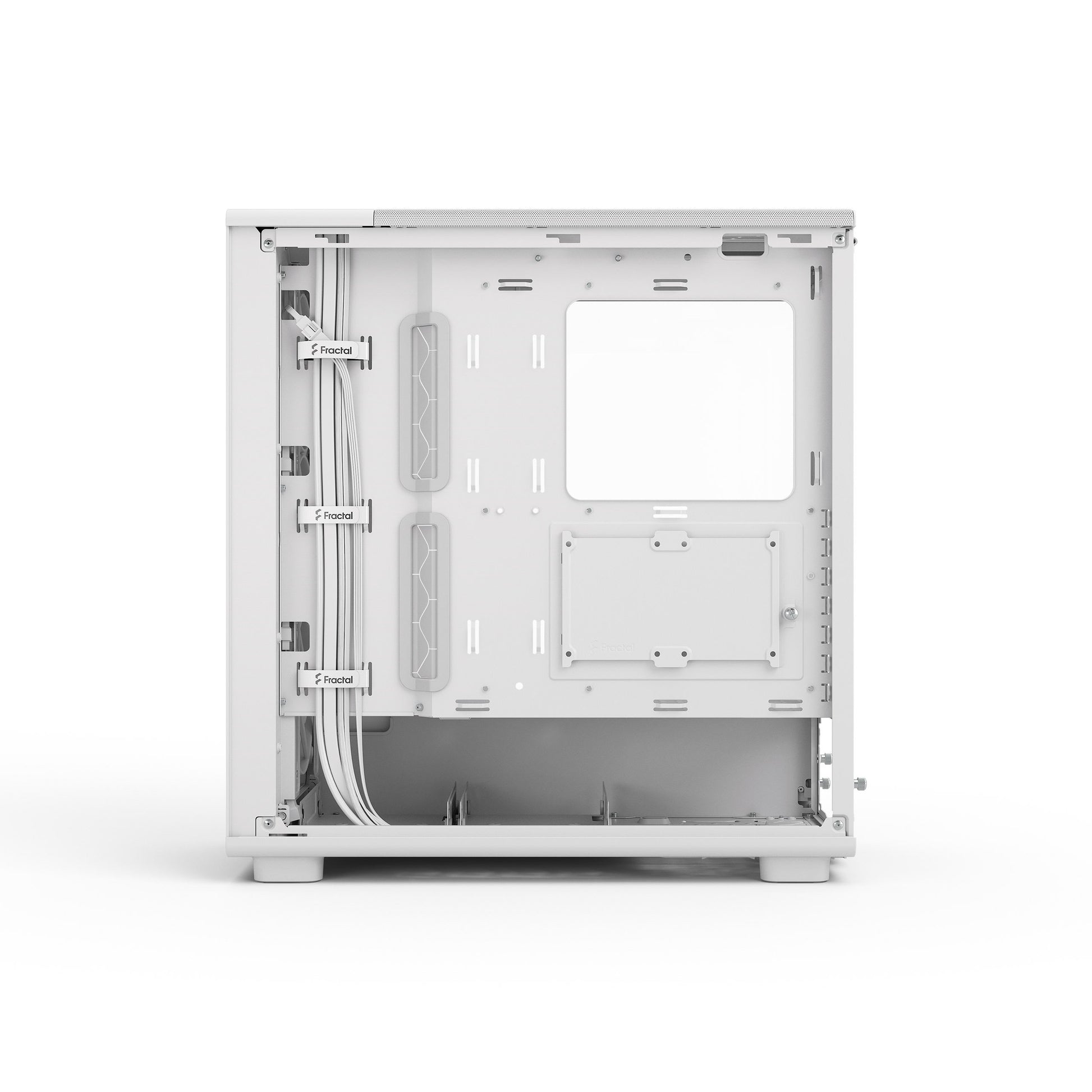

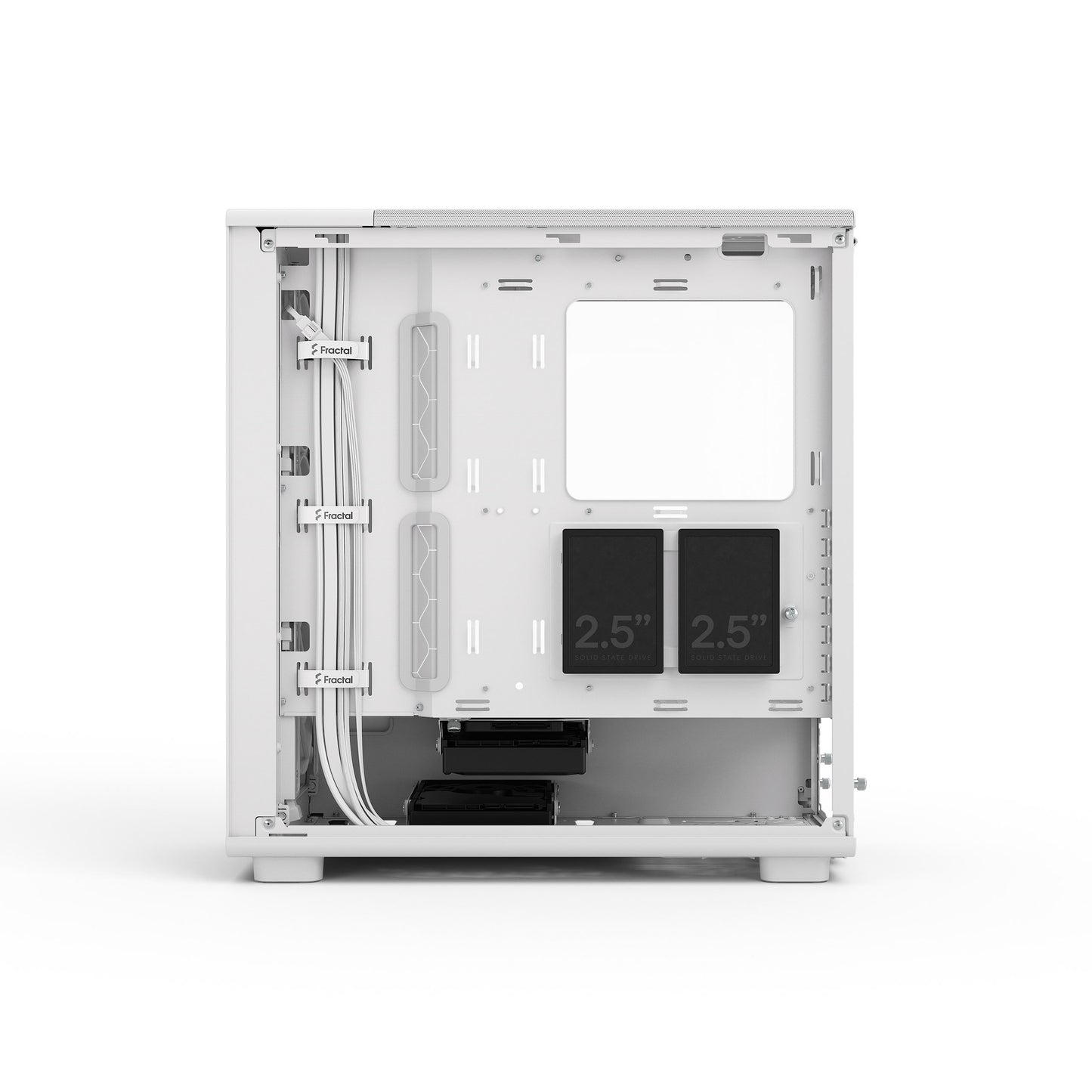

Achieve a neat and tidy look with a clean interior layout, cable routing grommets, and fixed routing straps to help keep your cables organized.
Accessible I/O

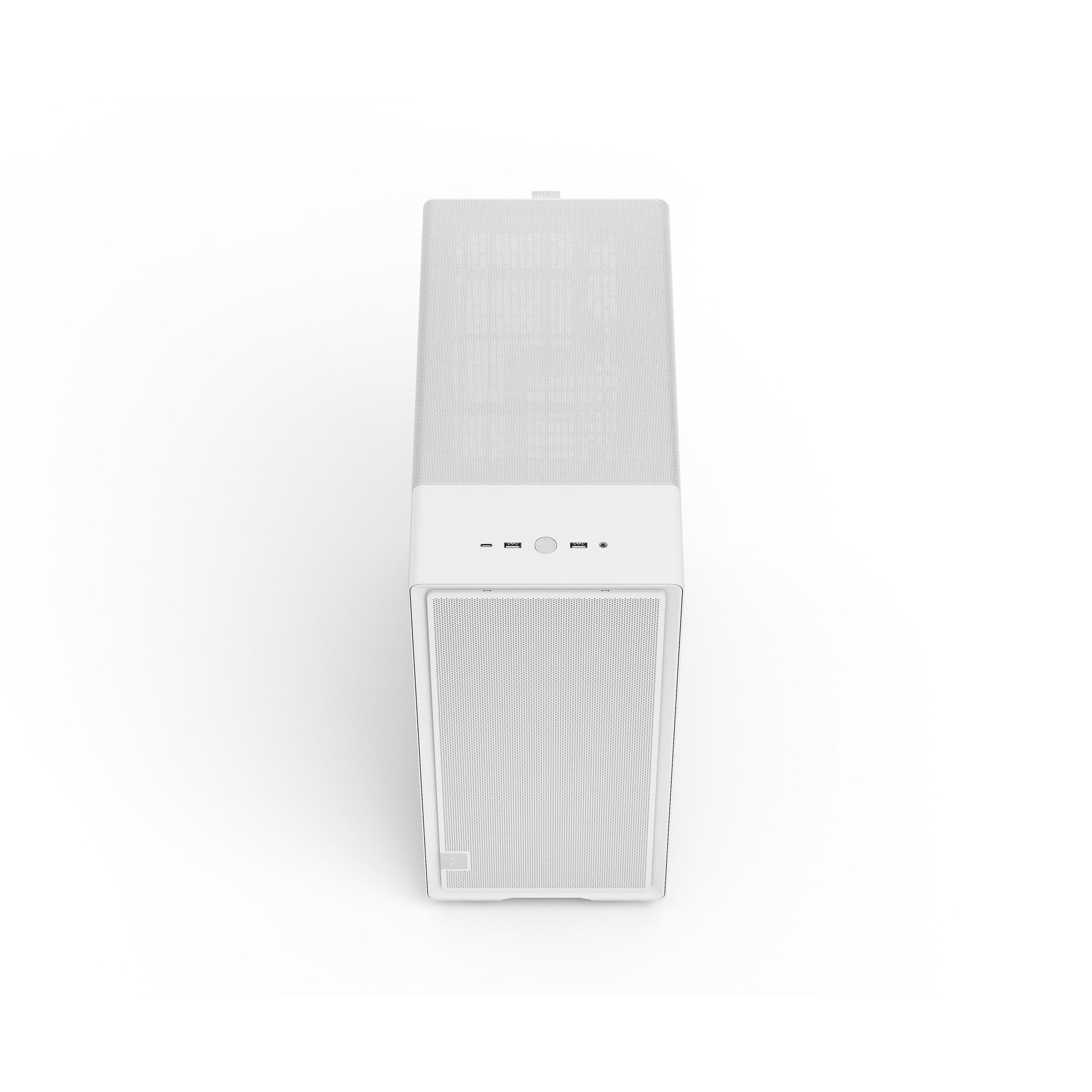

Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports, and a combined audio and microphone jack.
Reviews
Videos
Epoch — Feature reel
Specifications
-
3.5"/2.5" drive mounts2
-
Dedicated 2.5" drive mounts2
-
5.25” drive mounts-
-
Expansion slots7
-
Front interface1x USB Type-C 20 Gbps 2x USB Type-A 5 Gbps 1x Audio/Mic Combo Jack
-
Total fan mounts6 x 120 mm or 4 x 140 mm
-
Front fan3 x 120/2x 140 mm (3 x 120 mm Momentum fans included)
-
Top fan2 x 120/140 mm
-
Rear fan1 x 120 mm
-
Bottom fan-
-
Dust filtersPSU
-
Cable routing space30 mm
-
Cable routing grommetsYes
-
Fixed strapsYes, hook and loop
-
Tool-less accessSide panels, front panel, top panel
-
Captive thumbscrewsHDD brackets, SSD brackets, Side panels, PSU bracket
-

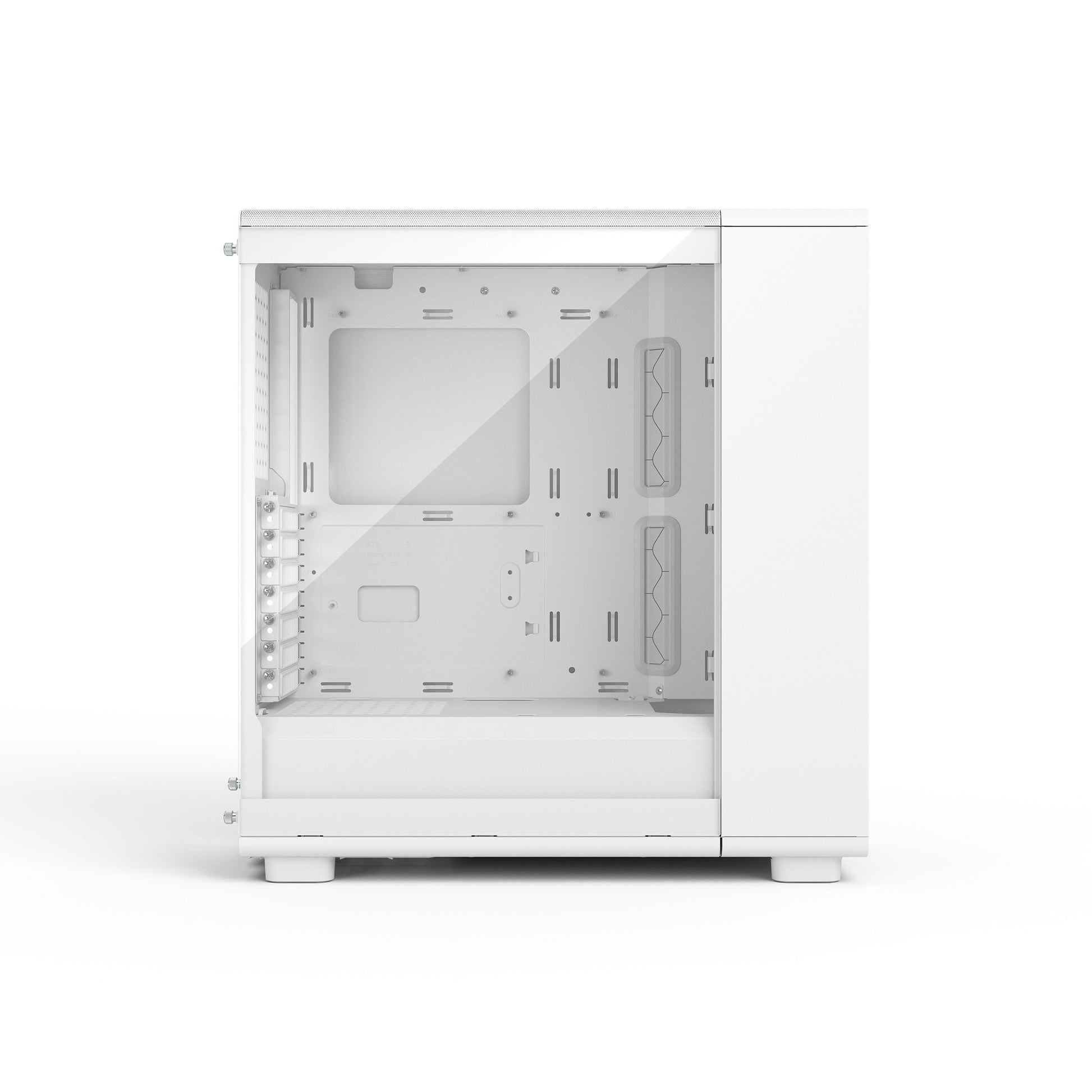

Left side panelSteel (Solid version), Tempered Glass (TG & RGB)
-
Right side panelSteel
Compatibility
-
Power supply typeATX
-
Motherboard compatibilityATX / mATX / Mini-ITX
-
PSU max length1 HDD tray: 255 mm max 2 HDD tray: 155 mm max
-
GPU max lengthUp to 372 mm with front fan mounted or up to 345 mm with front-mounted radiator
-
CPU cooler max height170 mm
-
Front radiatorUp to 280/360 mm
-
Top radiatorUp to 240 mm
-
Rear radiator1x 120 mm
-
Bottom radiator-
Dimensions
-
Case dimensions (LxWxH)447 x 215 x 469 mm
-
Case dimensions w/o feet/protrusions/screws443.3 x 215 x 455.3 mm
-
Package dimensions565 x 326 x 553 mm
-
Net weight7.69 kg (Solid), 7.81 kg (TG), 7.86 kg (RGB)
-
Gross weight9.24 kg (Solid), 9.36 kg (TG), 9.41 kg (RGB)
Other
-
Package contentsComputer case, Accessory box, Product manual
-
Accessory Box content (Solid/TG/RGB)PSU screws — 4 pcs., Motherboard screws — 8 pcs., Motherboard standoff — 1 pc., SSD screws —16 pcs., HDD screws — 8 pcs., HDD rubber — 8 pcs., Ball catcher — 1 pc., Zip ties — 4 pcs.
-
EANBlack Solid: 7340172709633, Black TG Light: 7340172709640, White TG Clear: 7340172709657, Black TG RGB Light: 7340172709664, White TG RGB Clear: 7340172709688
-
UPCBlack Solid: 843276109639, Black TG Light: 843276109646, White TG Clear: 843276109653, Black TG RGB Light: 843276109660, White TG RGB Clear: 843276109684
-
Product CodeBlack Solid: FD-C-EPO1A-01, Black TG Light: FD-C-EPO1A-02, White TG Clear: FD-C-EPO1A-03, Black TG RGB Light: FD-C-EPO1A-04, White TG RGB Clear: FD-C-EPO1A-05
