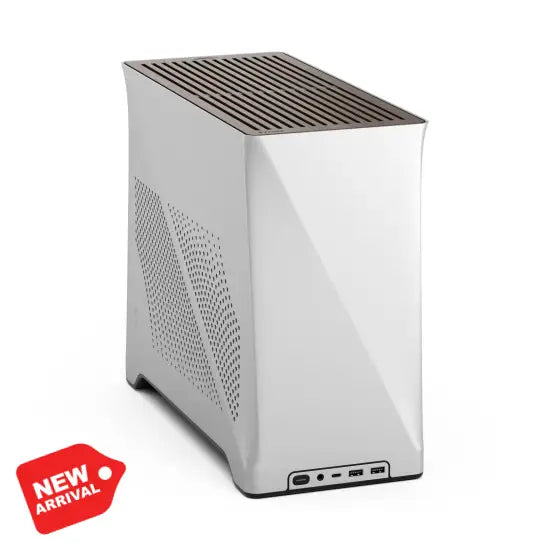

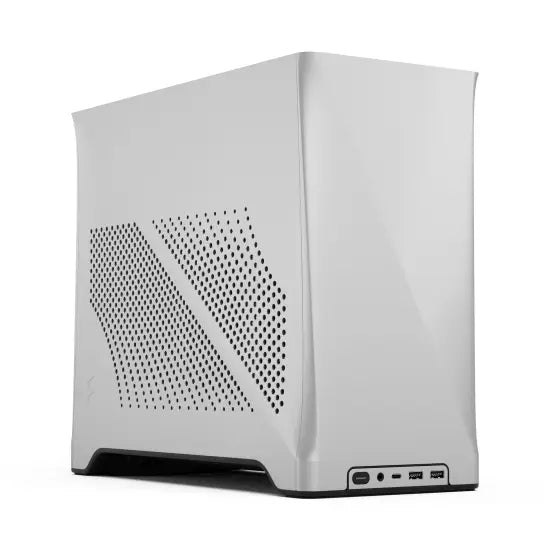

COMPUTER CASE

Era 2

Specifications

• 3.5"/2.5" drive mounts
  0 total, 0 included
• Dedicated 2.5" drive mounts
  4 total, 4 included (2 on motherboard wall)
• 5.25” drive mounts
  0 total, 0 included
• Expansion slots
  3
• Motherboard compatibility
  ITX
• Power supply type
  SFX / SFX-L
• Front interface
  1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, Audio
• Total fan mounts
  4 x 120 or 2 x 120 and 2 x 140 mm (2x120 mm Aspect PWM fans included)
• Top fan
  2 x 120 mm or 2 x 140
• Bottom fan
  2 x 120 mm
• Dust filters
  Bottom
• Top radiator
  Up to 315 x 140 mm with total thickness ≤ 52 mm
  Up to 300 x 140 mm with total thickness ≤ 58 mm
• GPU max length
  326 mm
• GPU max Height
  137 mm
• GPU max thickness
  48-63 mm (depending on motherboard wall position)
• CPU cooler max height
  55-70 mm (depending on motherboard wall position)
• Cable routing grommets
  No
• Fixed velcro straps
  Yes (2 included)
• Captive thumbscrews
  PCI-e Blanks

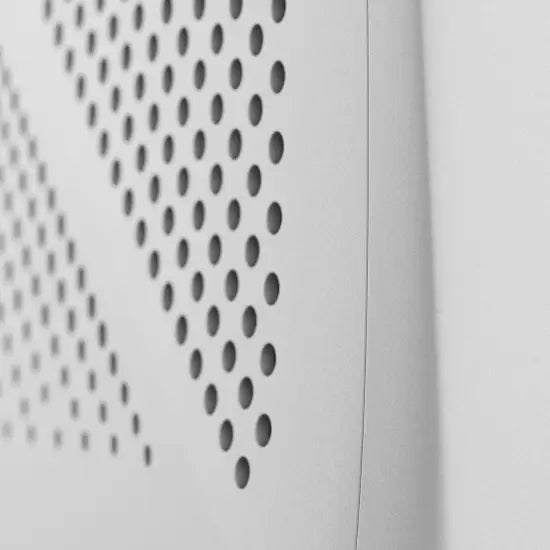

• Panels
  Aluminum
• SFF-Ready Enthusiast GeForce Cards
  Yes

Other

• Case dimensions (LxWxH)
  366 x 165 x 314 mm
• Case dimensions w/o feet/protrusions/screws
  365 x 165 x 314 mm
• Net weight
  4,64 kg
• Package dimensions (LxWxH)
  455 x 250 x 408 mm
• Gross weight
  5.74 kg
• Package contents
  Case, Accessory Box, Designers Letter, Quick Start Note
• Accessory box contents
  SSD Screw x16, PSU Screw x4, Motherboard Screw x8, Zip Tie x4
• Product code
  Era 2 Silver: FD-C-ERA2N-01 Era 2 Charcoal Gray: FD-C-ERA2N-02 Era 2 Midnight Blue: FD-C-ERA2N-03
