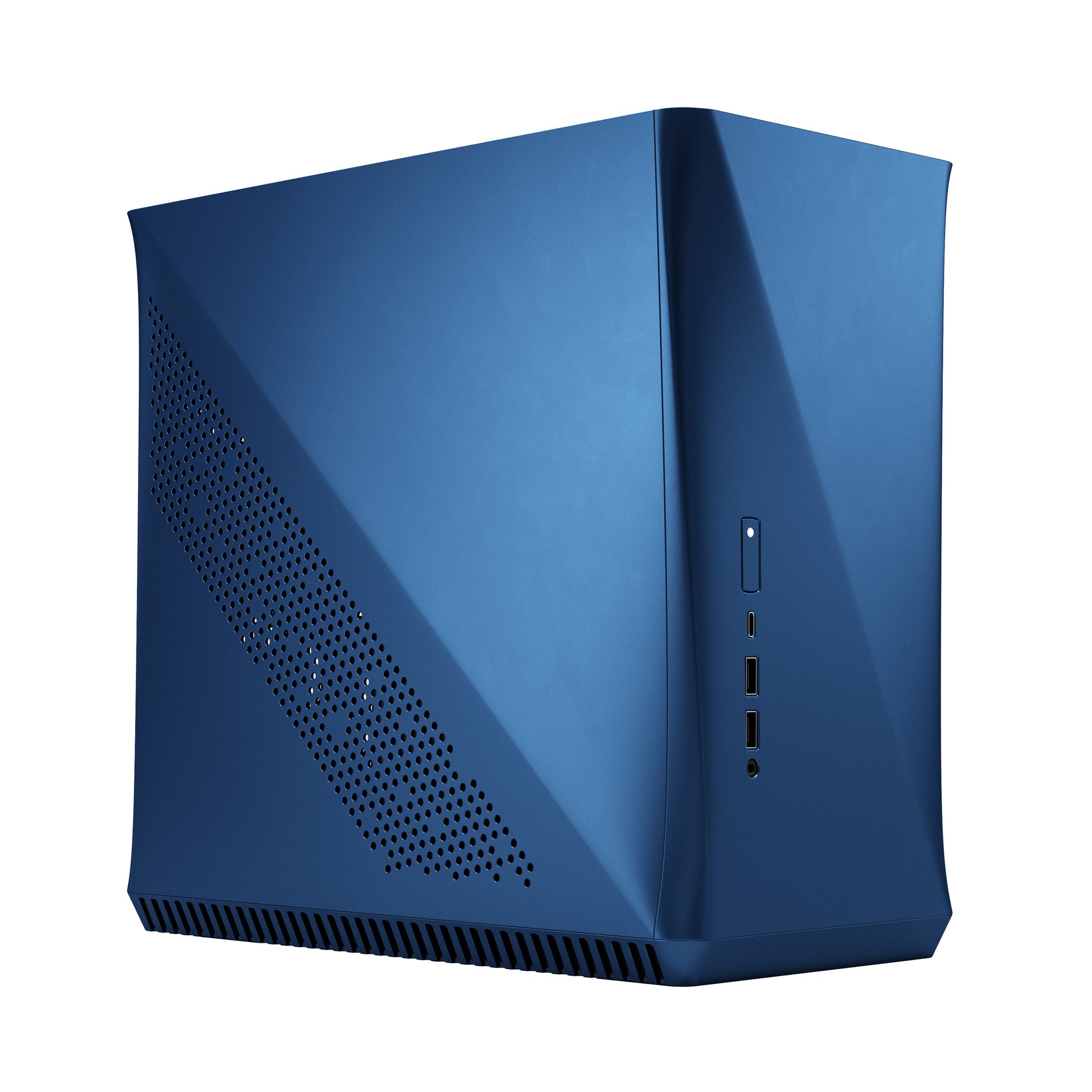

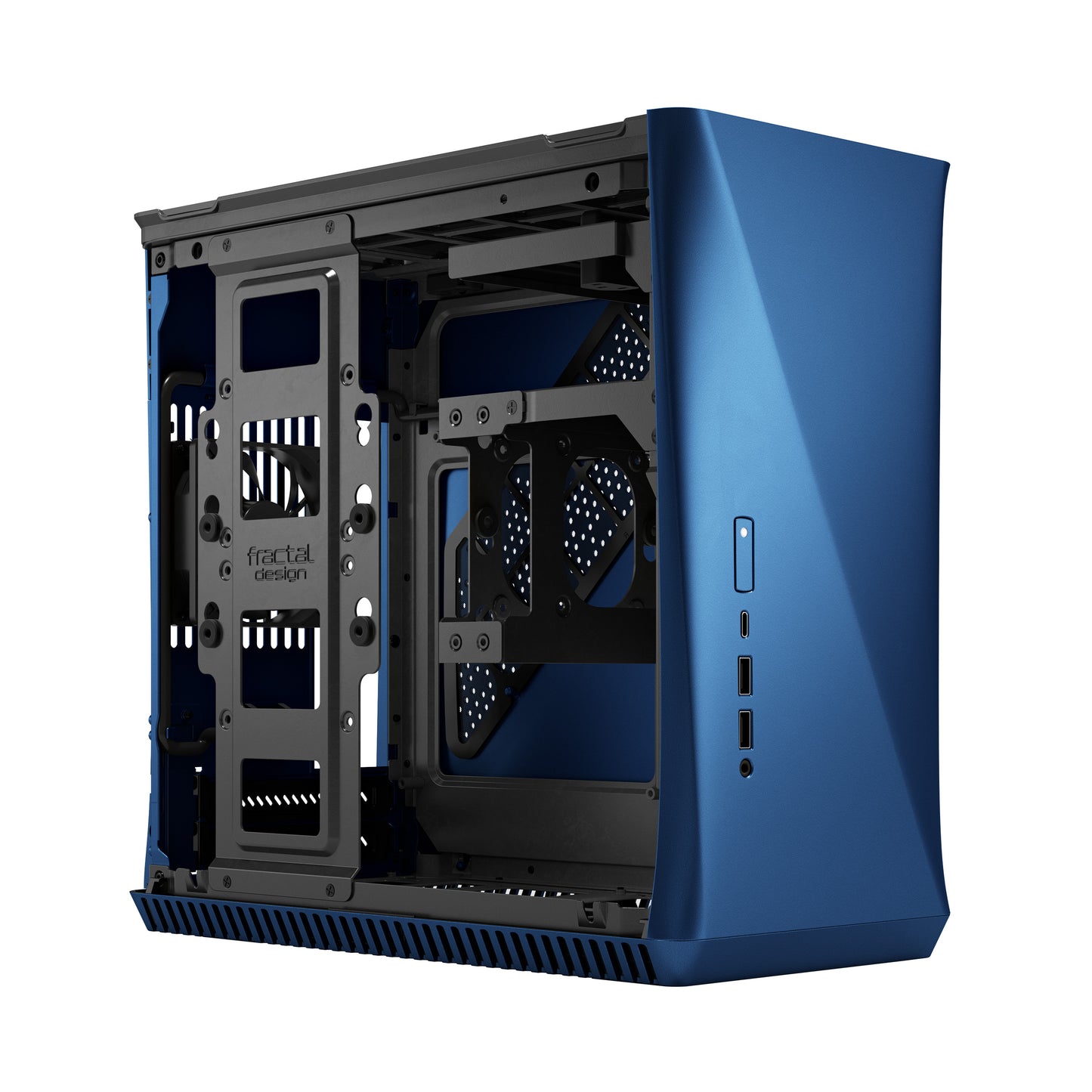

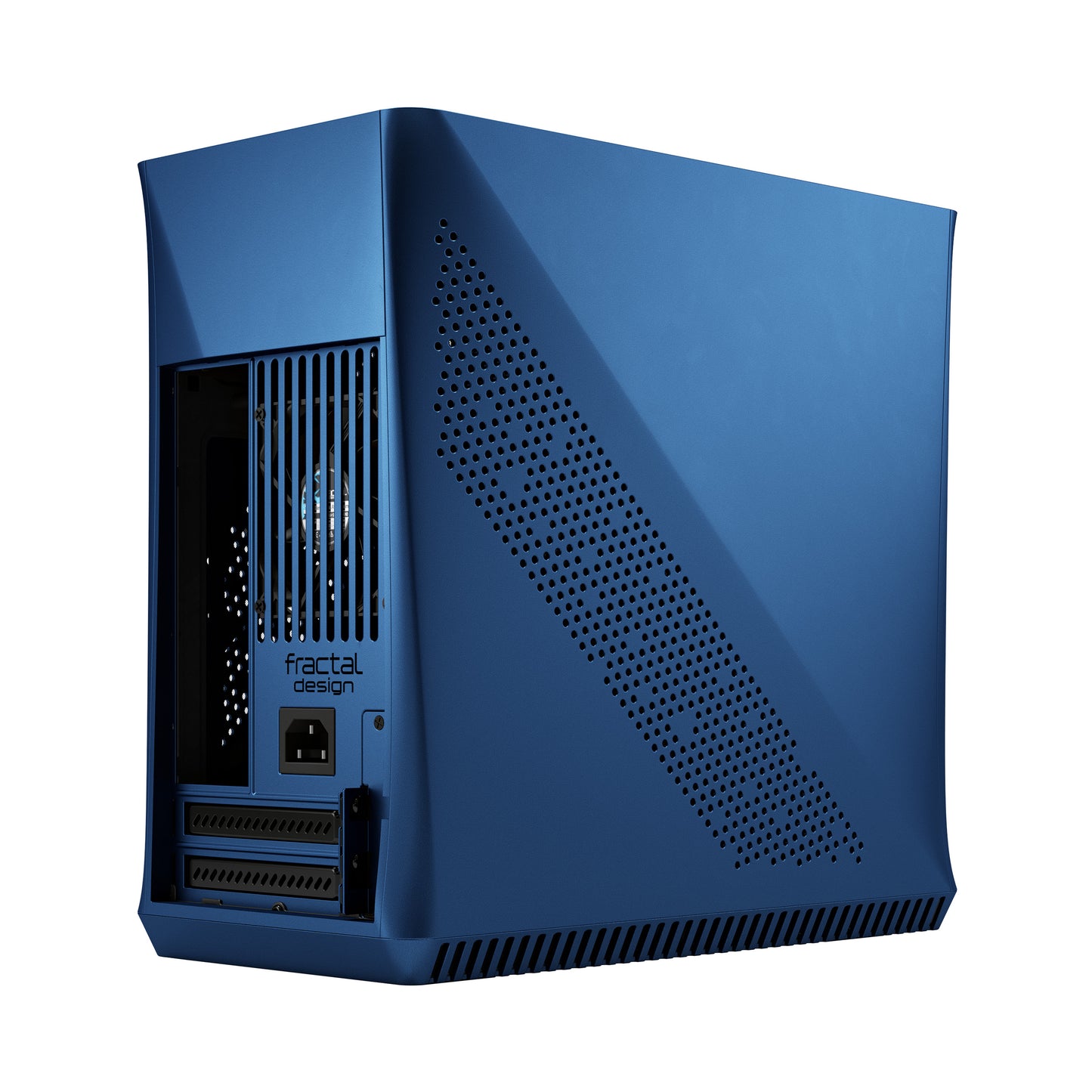

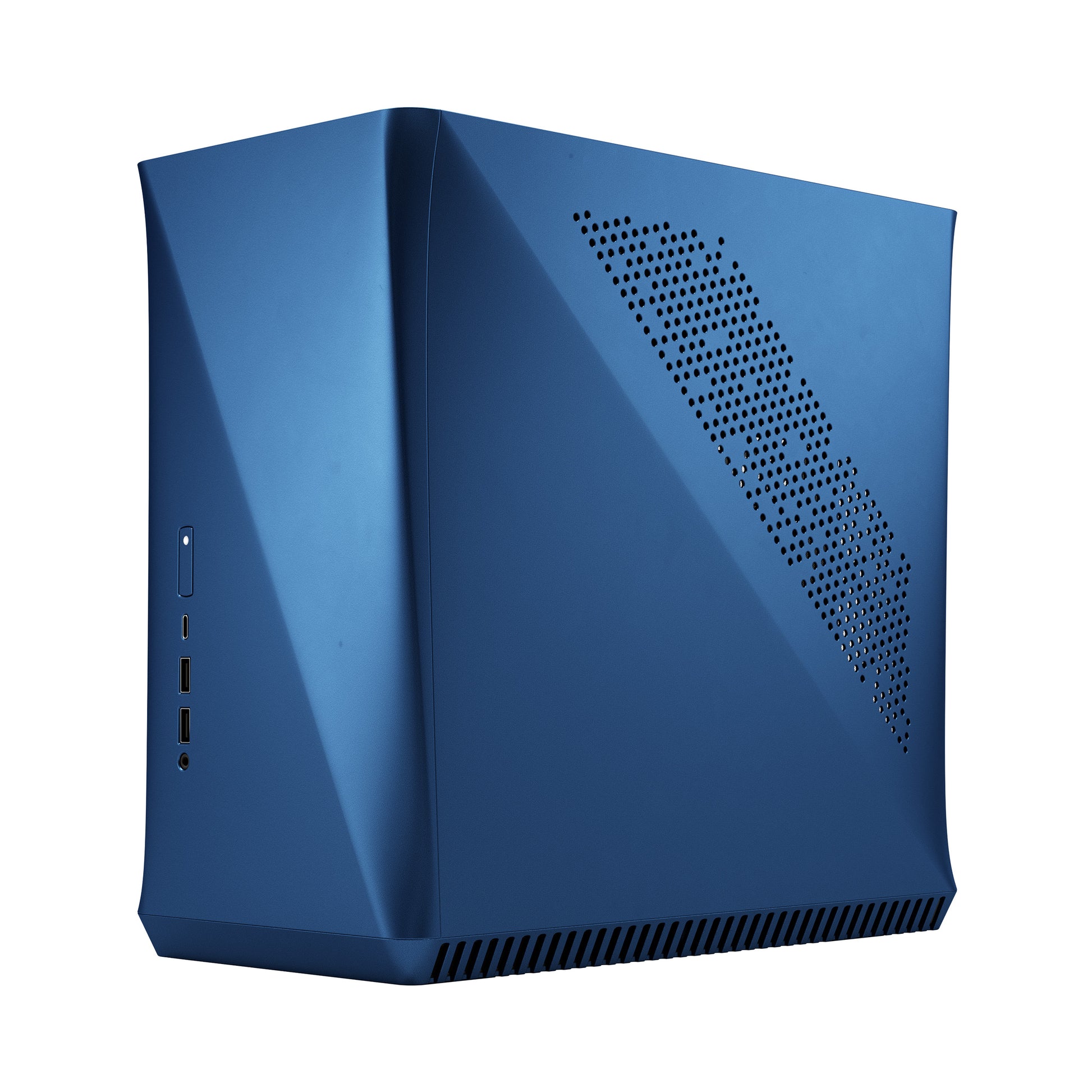

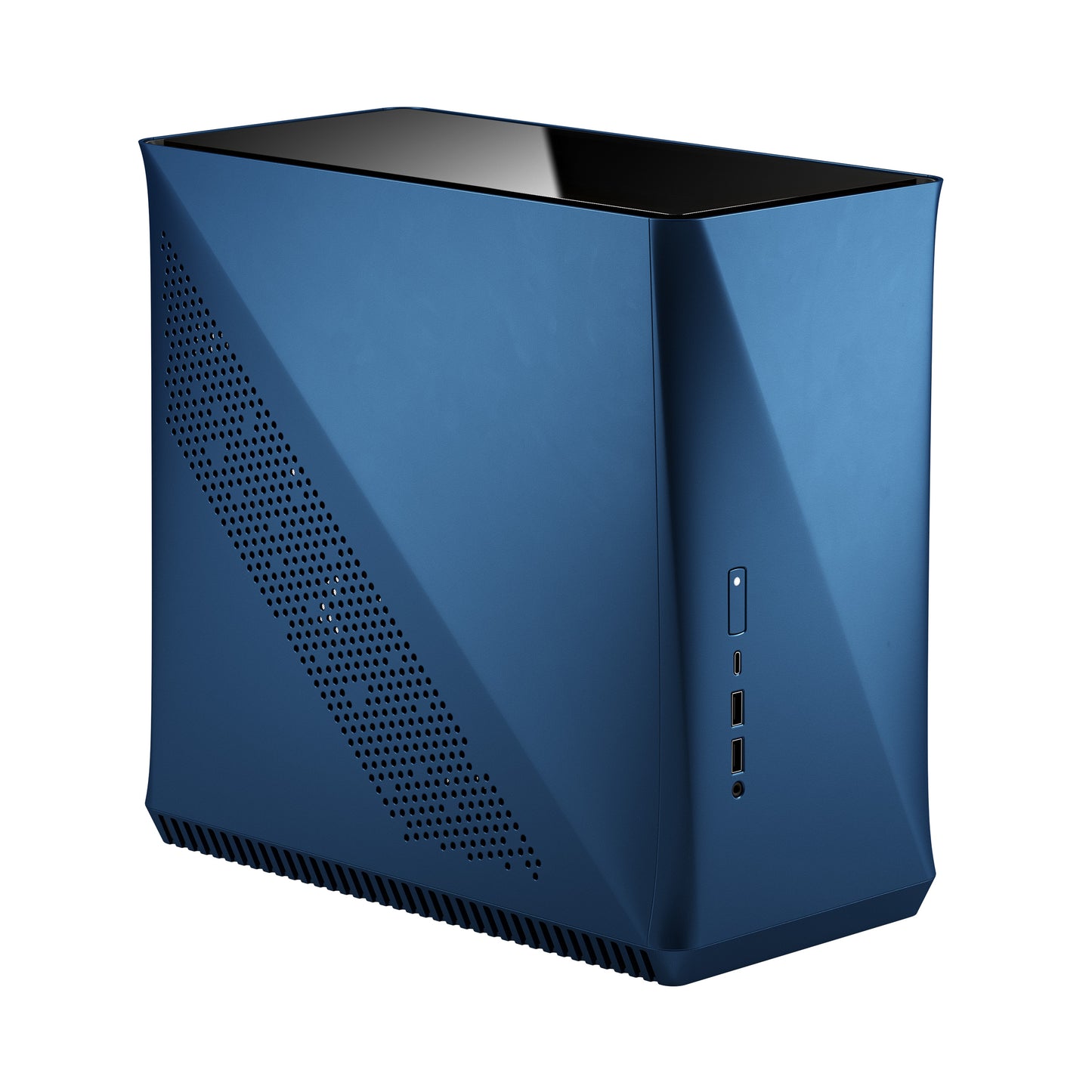

Fractal Design Era ITX - Cobalt -Anodized Aluminum/Steel Mini-ITX Compact Modular Small Form Factor Computer Case with Dark Tint Tempered Glass Top Panel

Fractal Design Era ITX - Cobalt -Anodized Aluminum/Steel Mini-ITX Compact Modular Small Form Factor Computer Case with Dark Tint Tempered Glass Top Panel

Brand : Fractal Design

₱9,545.00
₱9,545.00
₱10,400.00 -8%
Sale! Sold out

Era ITX -  Cobalt

Era is a unique and elegantly understated feat of both design and technical engineering — a compact chassis free from the excessive restrictions traditionally associated with small form factor systems.

  • • Compact, uniquely designed aluminum exterior available in five colors

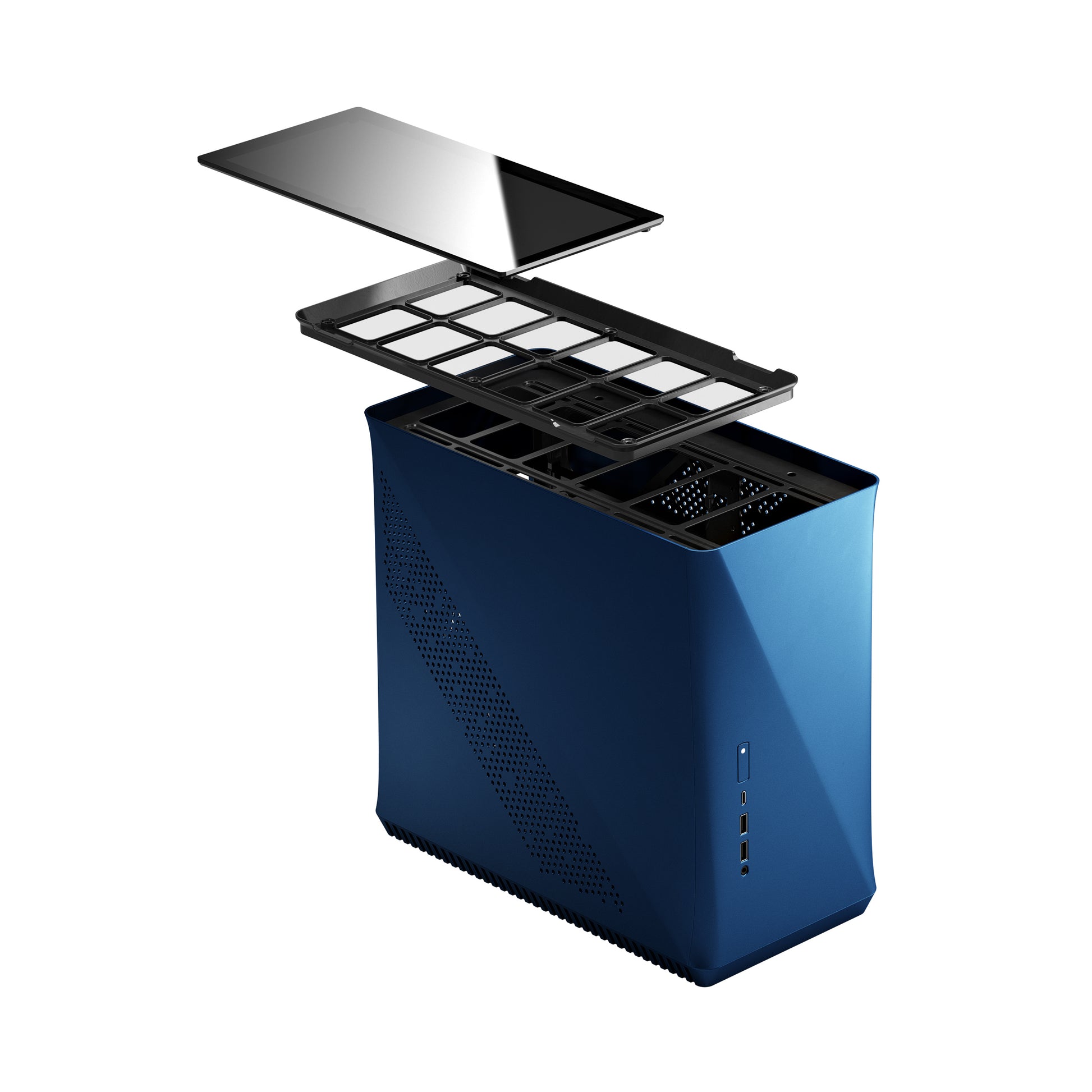

  • • Stylish color-coordinated top panel
  • • Supports dual slot graphics cards up to 295 mm in length

Specifications

  • 3.5” drive support
    SFX PSU: 2 HDDs or 1 HDD + 2 SSDs; ATX PSU: 1 HDD
  • 2.5” drive support
    SFX PSU: 4 SSDs or 2 SSDs + 1 HDD; ATX PSU: 2 SSDs
  • Expansion slots
    2

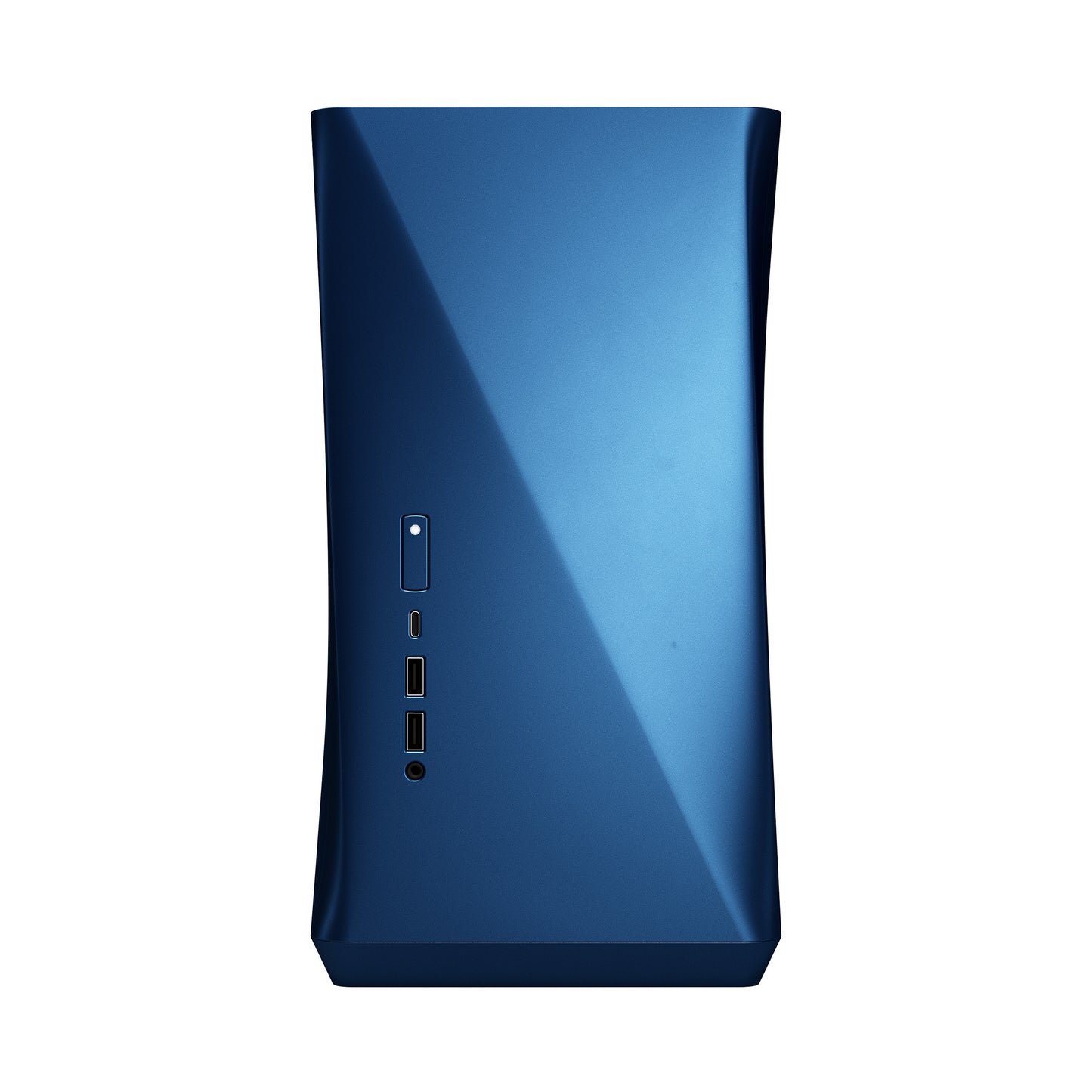

  • Front ports
    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 3.5 mm CTIA combined audio/mic
  • Total fan mounts
    5
  • Top fan
    2x 120 mm
  • Rear fan
    1x 80 mm (1 x SSR3 80 mm included)
  • Bottom fan
    2x 140 mm (without 2-slot GPU)
  • Dust filters
    Bottom intake, Side intakes, Top exhaust
  • Fixed velcro straps
    Yes
  • Tool-less push-to-lock
    Both side panels

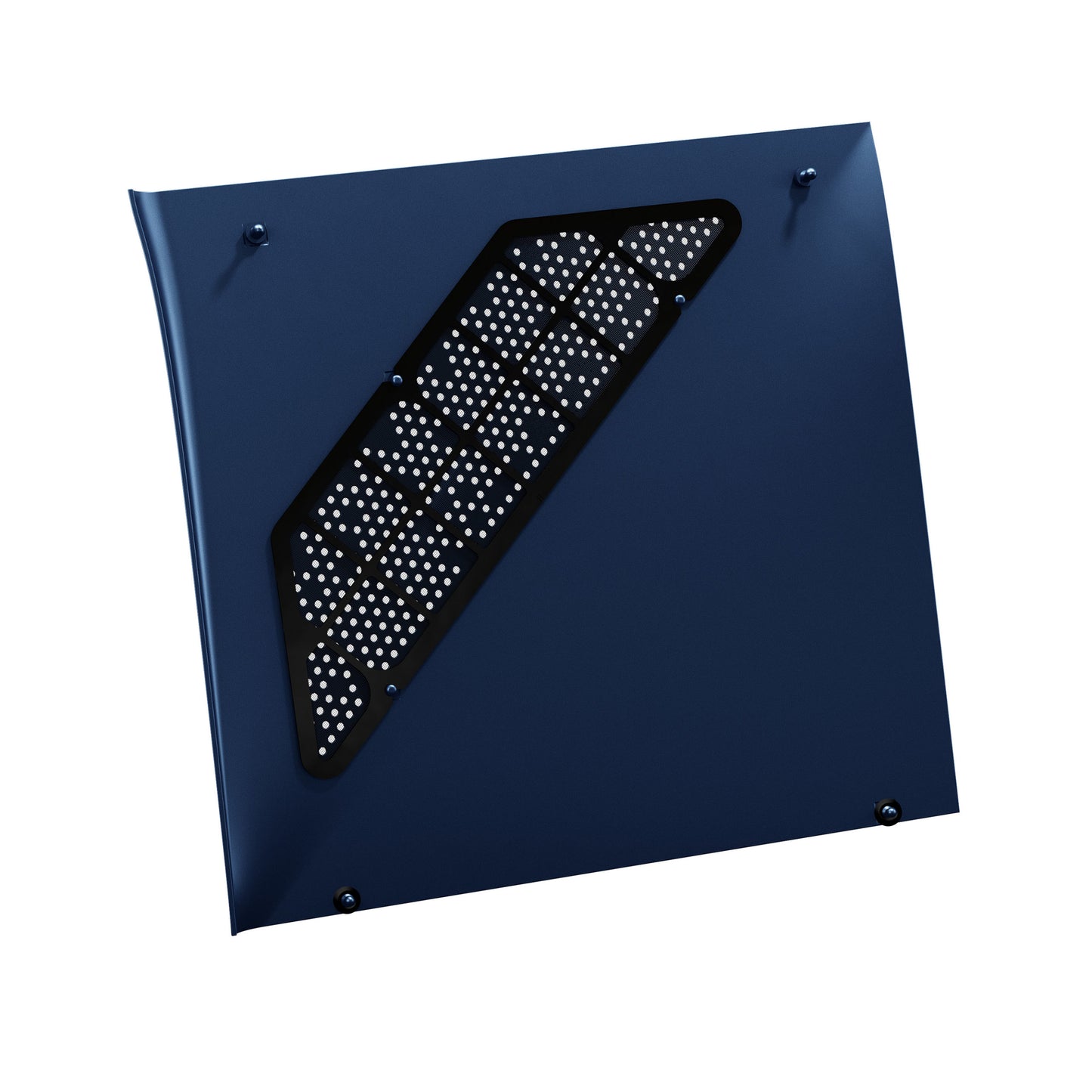

  • Left side panel
    Aluminum
  • Right side panel
    Aluminum

Compatibility

  • Motherboard compatibility
    ITX
  • Power supply type
    ATX, SFX-L, SFX
  • Top radiator
    120/240 mm or 2x 120 mm (max 125 mm width, 67 mm thickness w/ fans, dependent on PSU position/type)
  • PSU max length
    200 mm
  • GPU max length
    295 mm or 210/190 mm (with low-mounted SFX/ATX PSU)
  • CPU cooler max height
    120 mm (70 mm recommended with side-mounted 3.5” HDD)

Dimensions

  • Case dimensions (L x W x H)
    325 x 166 x 310 mm
  • Case dimensions w/o feet/protrusions/screws
    325 x 166 x 307 mm
  • Net weight
    Carbon/Cobalt/Gold versions – 3.970 kg. Titanium Gray version – 4.090 kg. Silver version – 4.167 kg
  • Package dimensions (L x W x H)
    385 x 240 x 420 mm
  • Gross weight
    Carbon/Cobalt/Gold versions – 4.930 kg. Titanium Gray version – 5.050 kg. Silver version – 5.127 kg
  • Volume
    16 liters

Other

  • Package contents
    Era ITX computer case, Top Insert accessory box, Top insert, Black mesh top insert, Screw accessory box, User manual
  • EAN
    Cobalt – 7340172701811. Silver – 7340172701804. Titanium – 7340172701798. Carbon – 7340172701781. Gold - 7340172701828
  • UPC
    Cobalt – 843276101817. Silver – 843276101800. Titanium – 843276101794. Carbon – 843276101787. Gold - 843276101824
  • JAN
    Cobalt – 4537694267366. Silver – 4537694267359. Titanium – 4537694267342. Carbon – 4537694267335. Gold - 4537694267373
  • Product code
    Cobalt – FD-CA-ERA-ITX-BU. Silver – FD-CA-ERA-ITX-SI. Titanium – FD-CA-ERA-ITX-GY. Carbon – FD-CA-ERA-ITX-BK. Gold - FD-CA-ERA-ITX-CHP
  • Warranty
    2 Years
