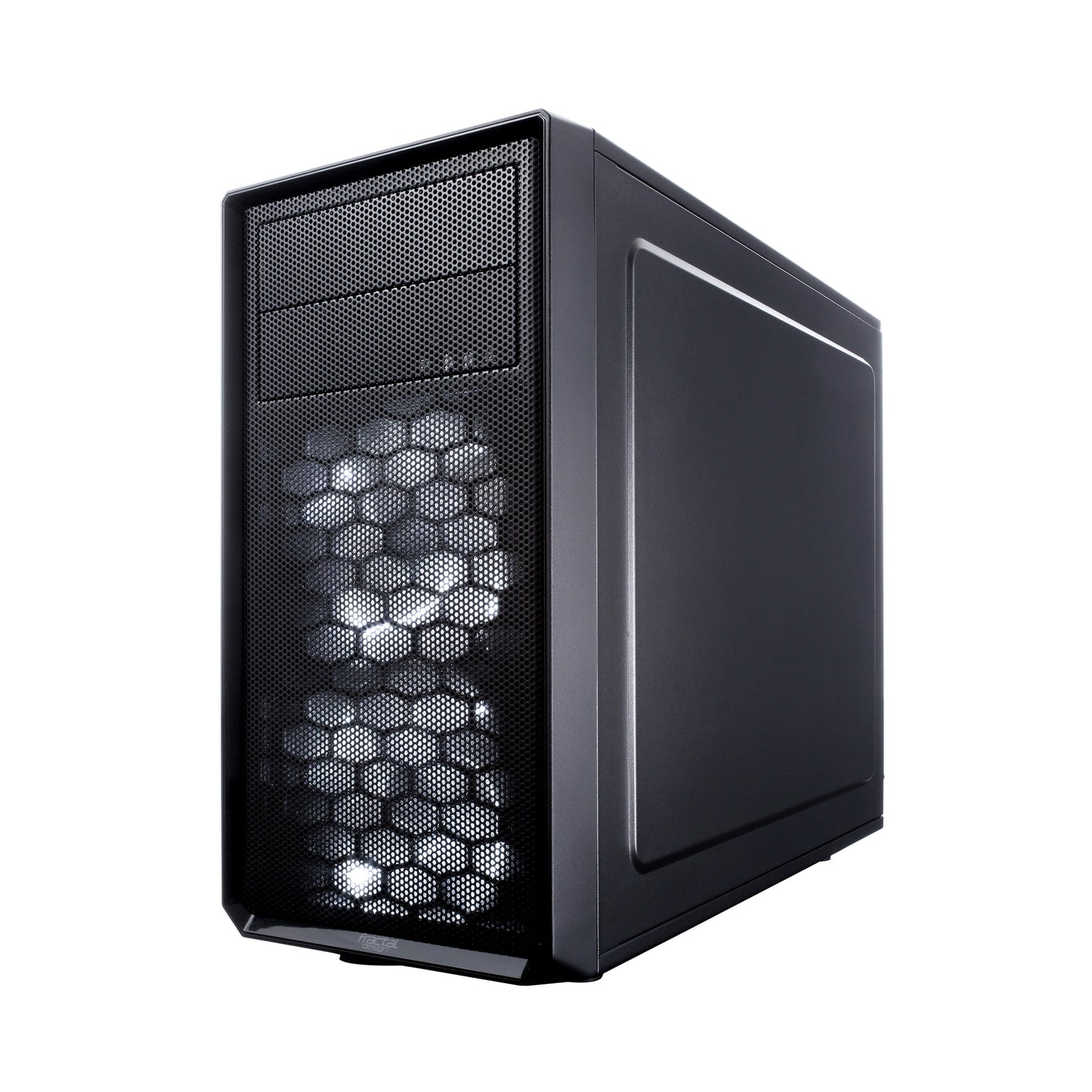

Fractal Design Focus Mini G Black Window (FD-CA-FOCUS-MINI-BK-W)

Fractal Design Focus Mini G Black Window (FD-CA-FOCUS-MINI-BK-W)

Brand : Fractal Design

Regular price ₱4,180.00
Sale price ₱4,180.00
Regular price ₱4,525.00 -8%
Sale! Sold out

Focus G Mini

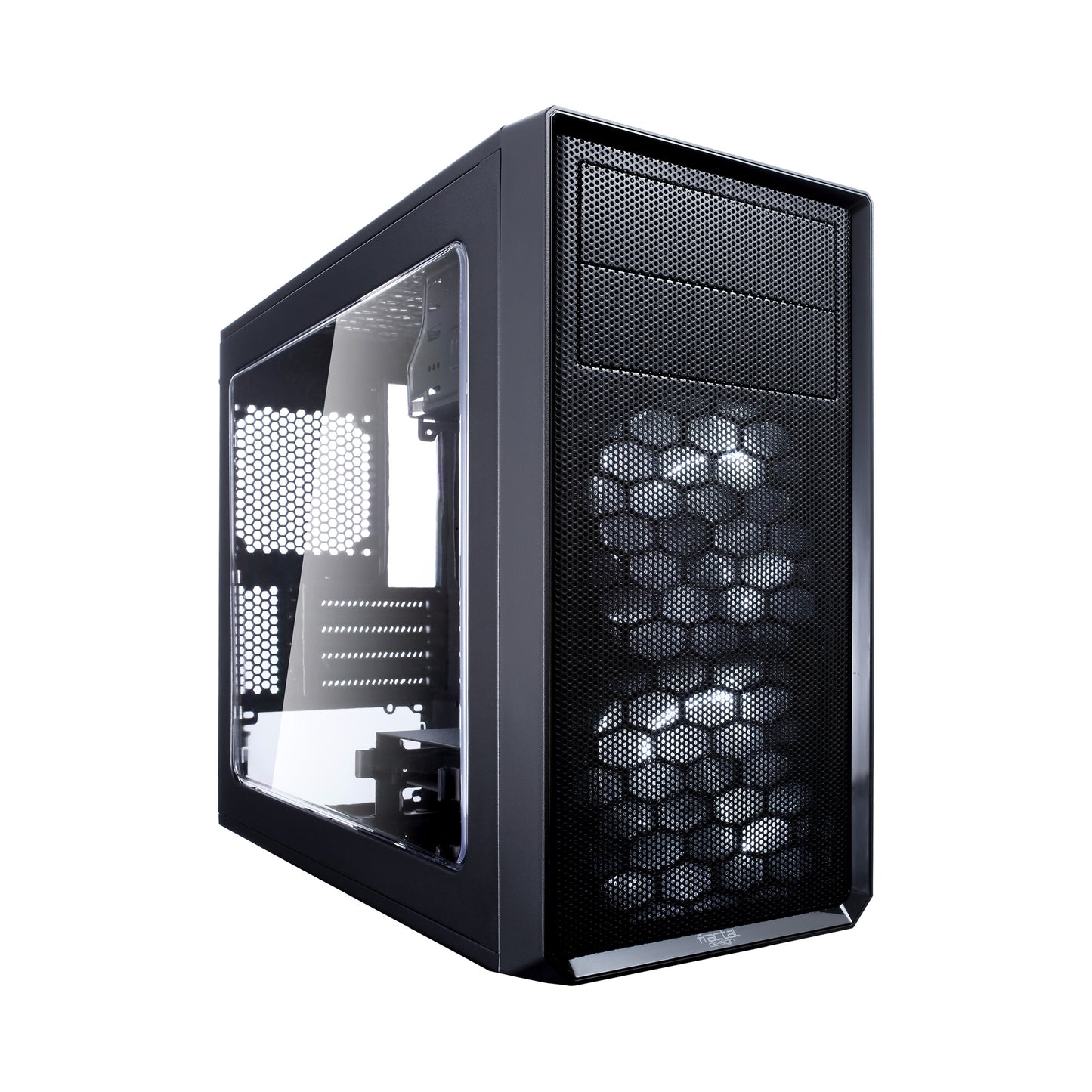

Showcase your system with sophisticated style

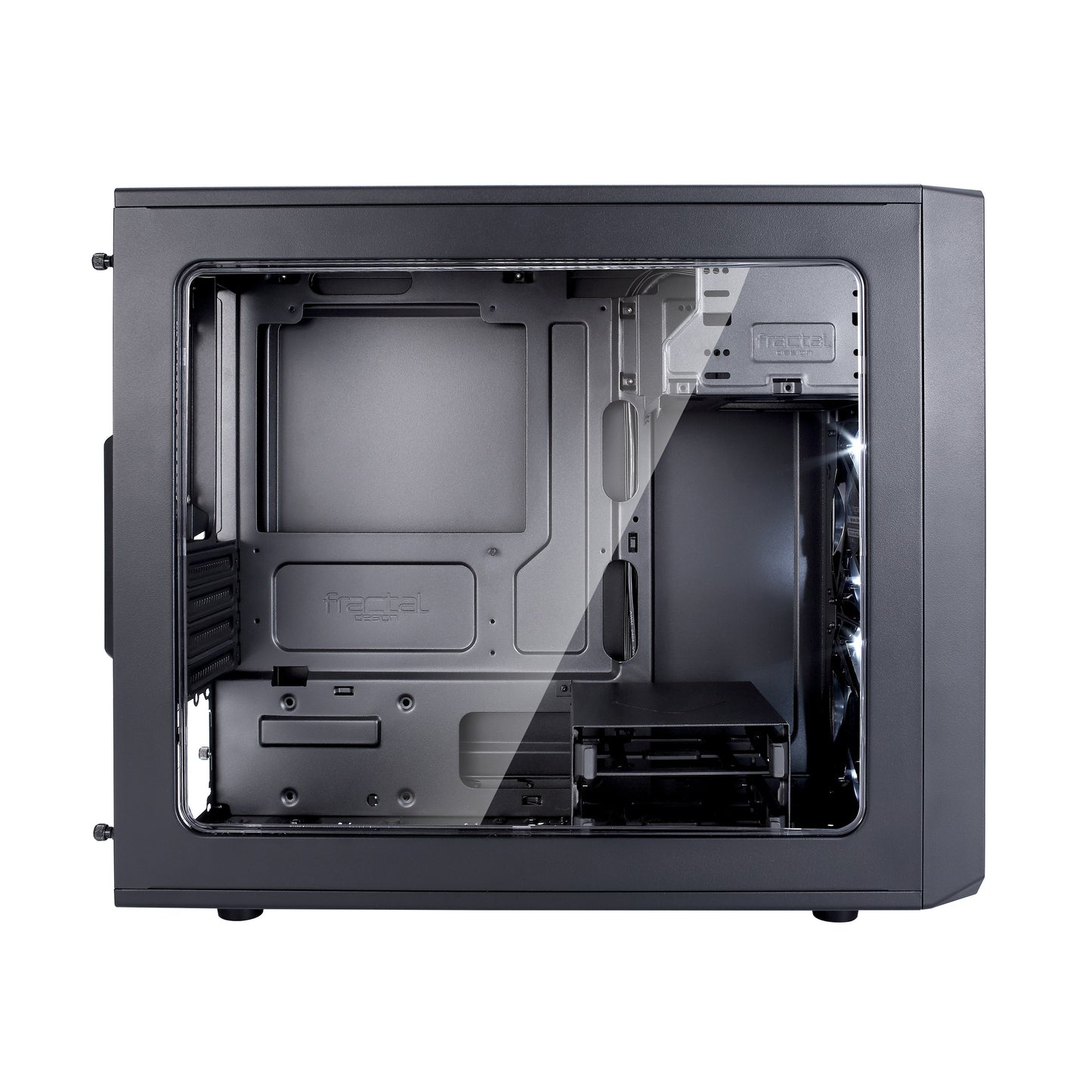

  • Large windowed side panel
  • Two pre-installed Fractal Design Silent Series LL 120 mm White LED fans
  • Six total fan positions for high-airflow capability

Key features

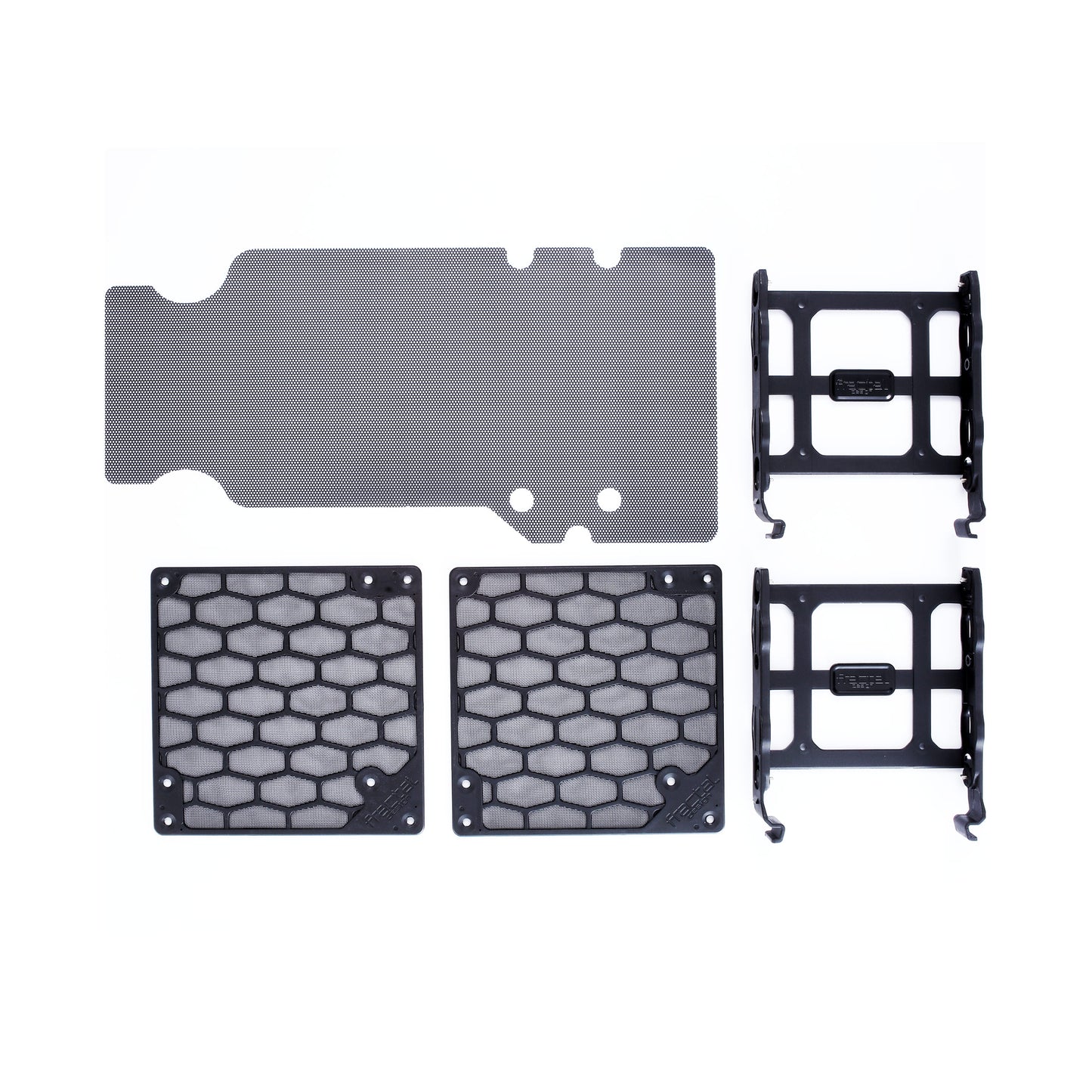

  • Filtered front, top and base air intakes for a dust free interior

  • Support for high-profile CPU coolers and multiple radiator configurations

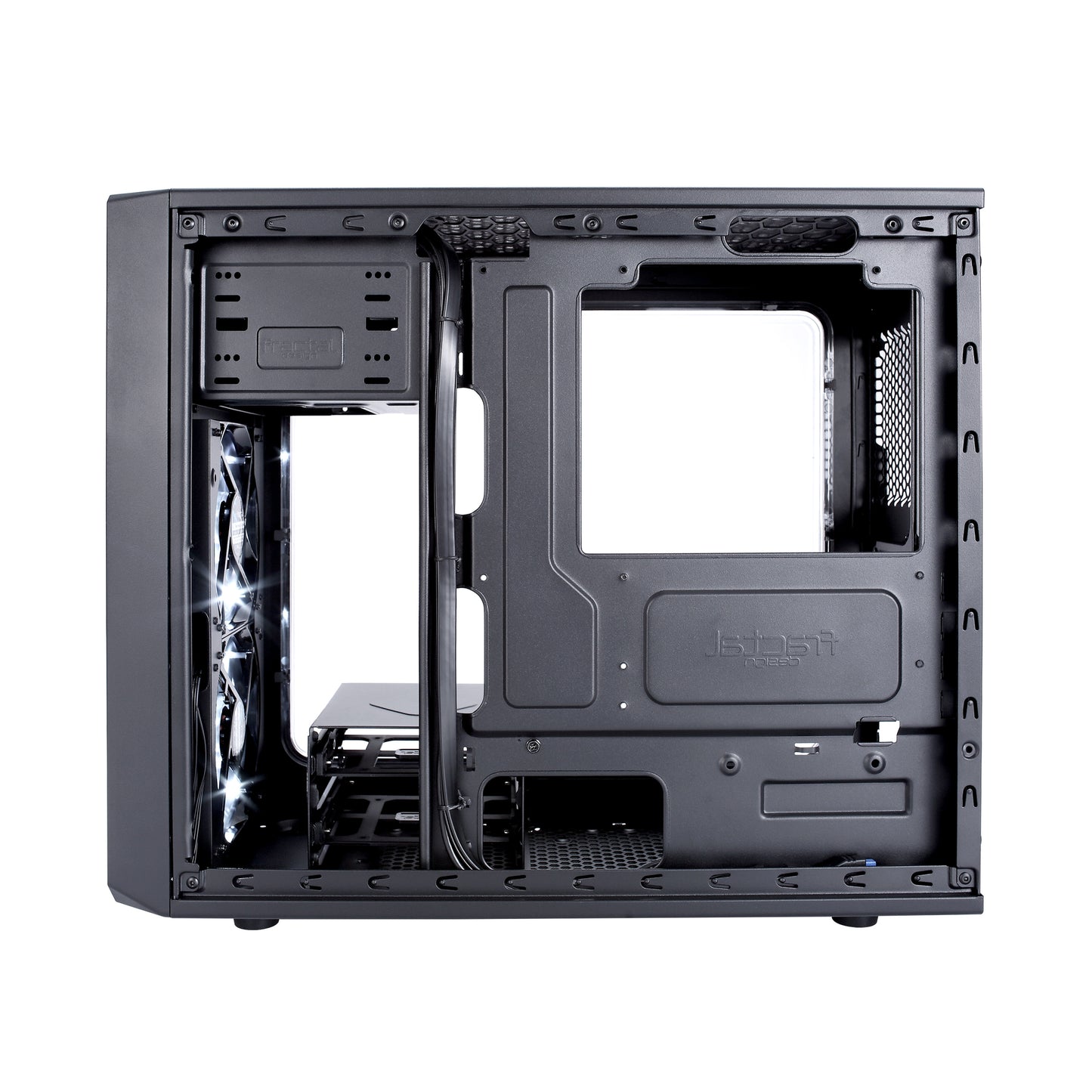

  • 18-25 mm of space for cable routing behind the motherboard plate

  • Support for graphics cards up to 380 mm long without compromising hard drive space

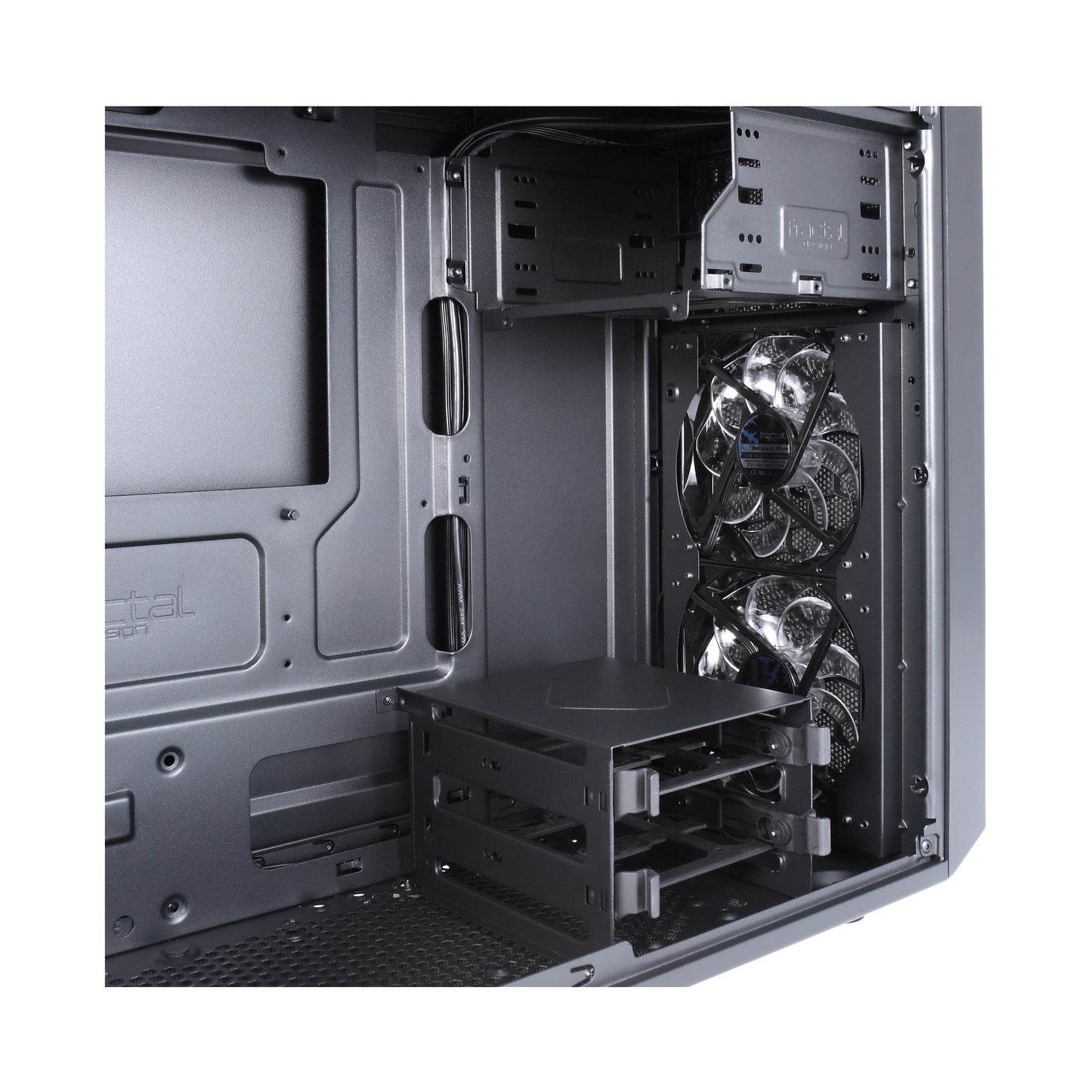

  • Two vibration dampened universal drive bays with support for 6TB+ HDDs and 15 mm SSDs, plus an additional 2.5" mount behind the motherboard tray

  • Front I/O panel includes USB 3.0, USB 2.0 and audio jacks

  • Kensington anti-theft padlock bracket and re-usable ventilated expansion slot covers included

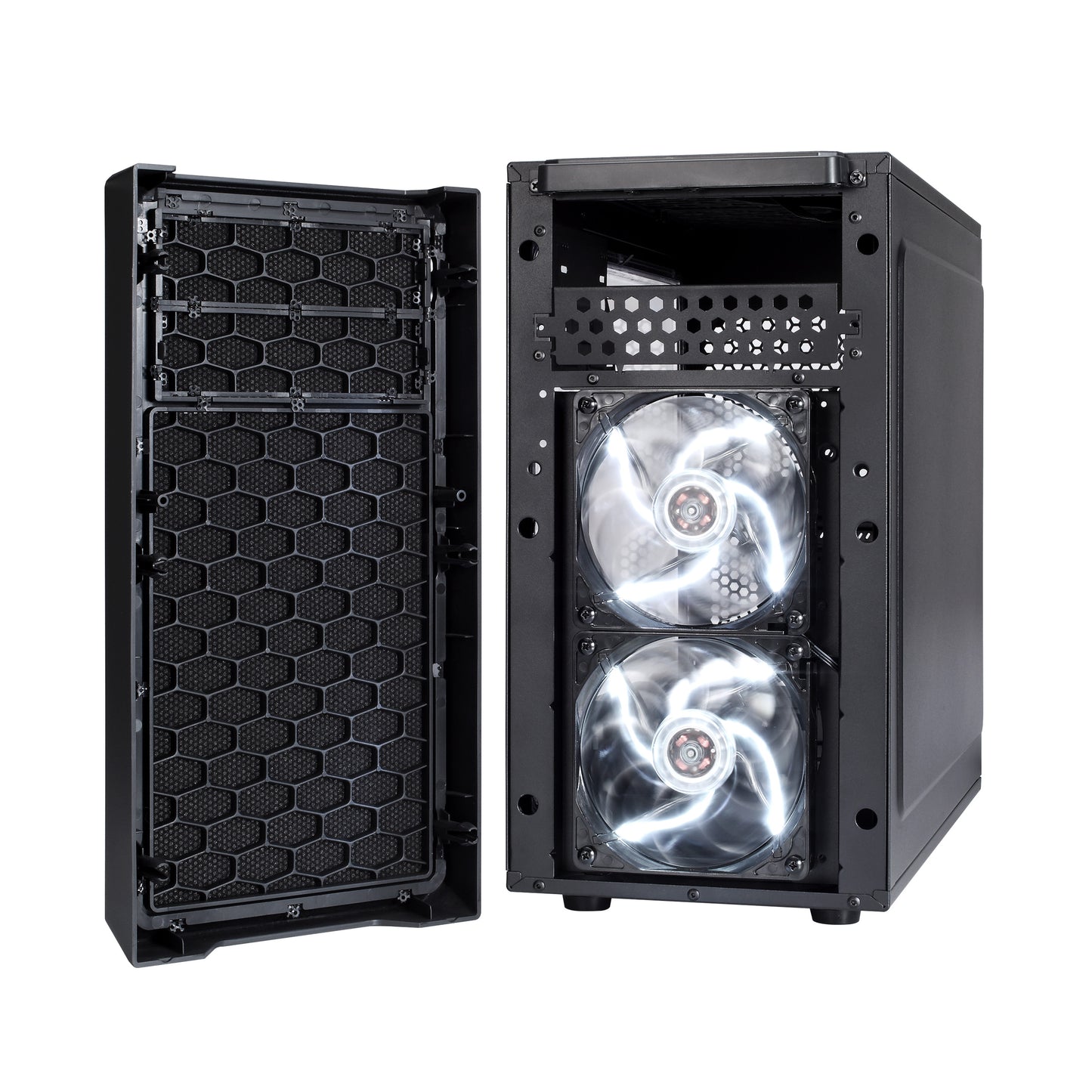

2x Silent Series LL 120 mm
Two preinstalled Fractal Design Silent Series LL 120 mm White LED fans

SSD Mount Positions
Customize your set-up using any of the available SSD positions

USB 3.0 I/O Panel
Front I/O panel includes USB 3.0, USB 2.0 and audio jacks



Specifications

  • 3.5" or 2.5" Drive capacity
    2
  • Dedicated 2.5" drive capacity
    1
  • Dedicated 5.25" drive brackets
    2
  • Expansion slots
    4
  • Front ports
    1x USB 3.0, 1x USB 2.0, Audio in/out, Power button, Reset button
  • Total fan mounts
    6
  • Front fan
    2x 120mm or 1x 140 (2x Silent Series LL 120 mm LED fans included)
  • Top fan
    2x 120/140 mm
  • Rear fan
    1x 120 mm
  • Bottom fan
    1x 120 mm
  • Dust filters
    Top fans, Bottom fan + PSU, Front fans
  • Padlock and Kensington lock support
    Yes
  • Captive thumbscrews
    Both side panels
  • Left side panel
    Clear transparent window
  • Right side panel
    Steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    mATX, ITX
  • Front radiator
    120/240 mm, 140mm (240 mm requires that the bottom 5.25" slot is unused)
  • Top radiator
    240 mm
  • Rear radiator
    120 mm (max width 120 mm)
  • PSU max length
    230 mm
  • GPU max length
    380 mm
  • CPU cooler max height
    165 mm
  • Cable routing space
    18-25 mm

Dimensions

  • Dimension (WxHxD)
    205 x 383 x 464 mm
  • Volume
    32.9 litres
  • Net weight
    4.1 kg

Other

  • Warranty
    2 years
  • Package contents
    Focus G Mini computer case, User manual, Accessory box
  • EAN
    7350041084914
  • UPC
    817301014915
  • Product code
    FD-CA-FOCUS-MINI-BK-W
