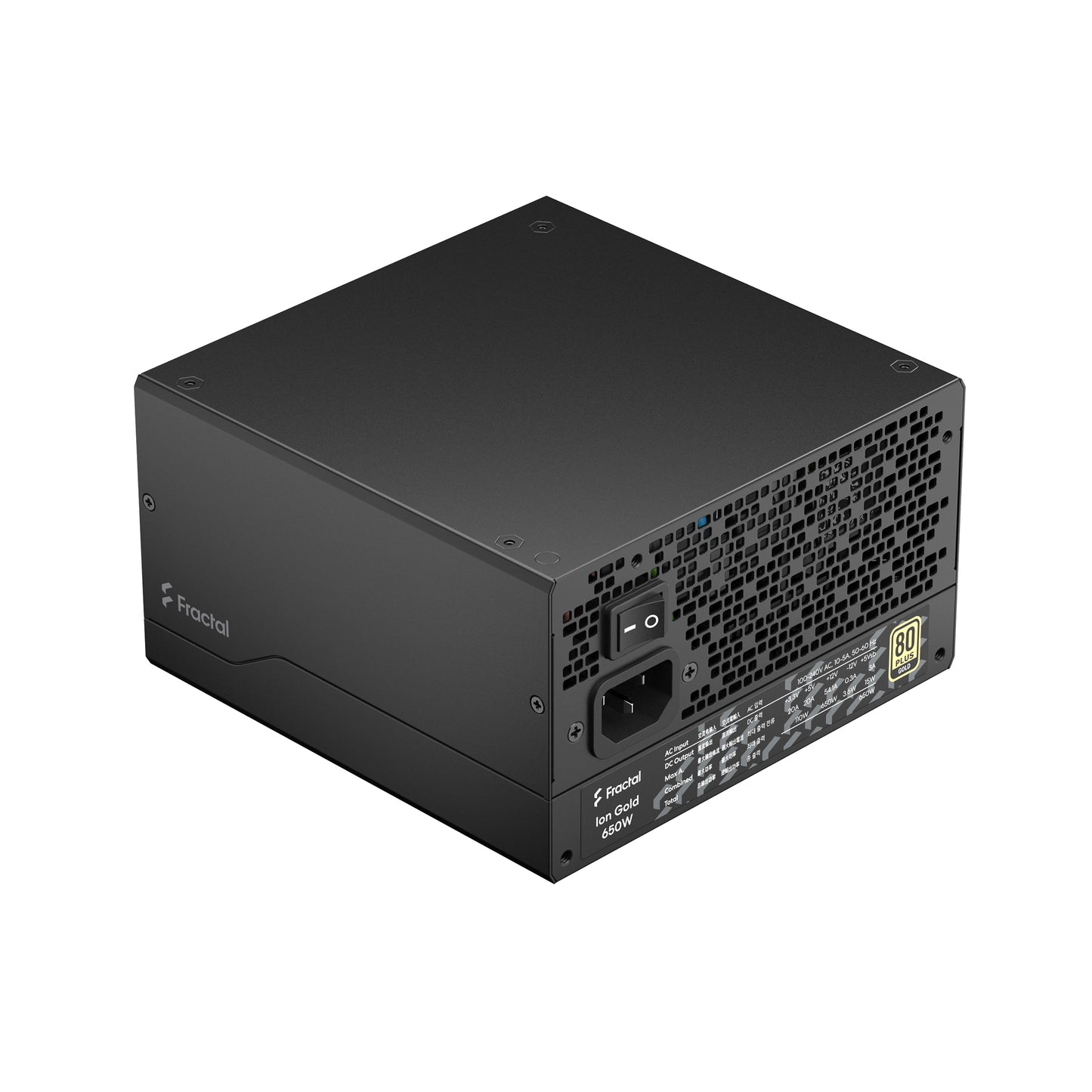

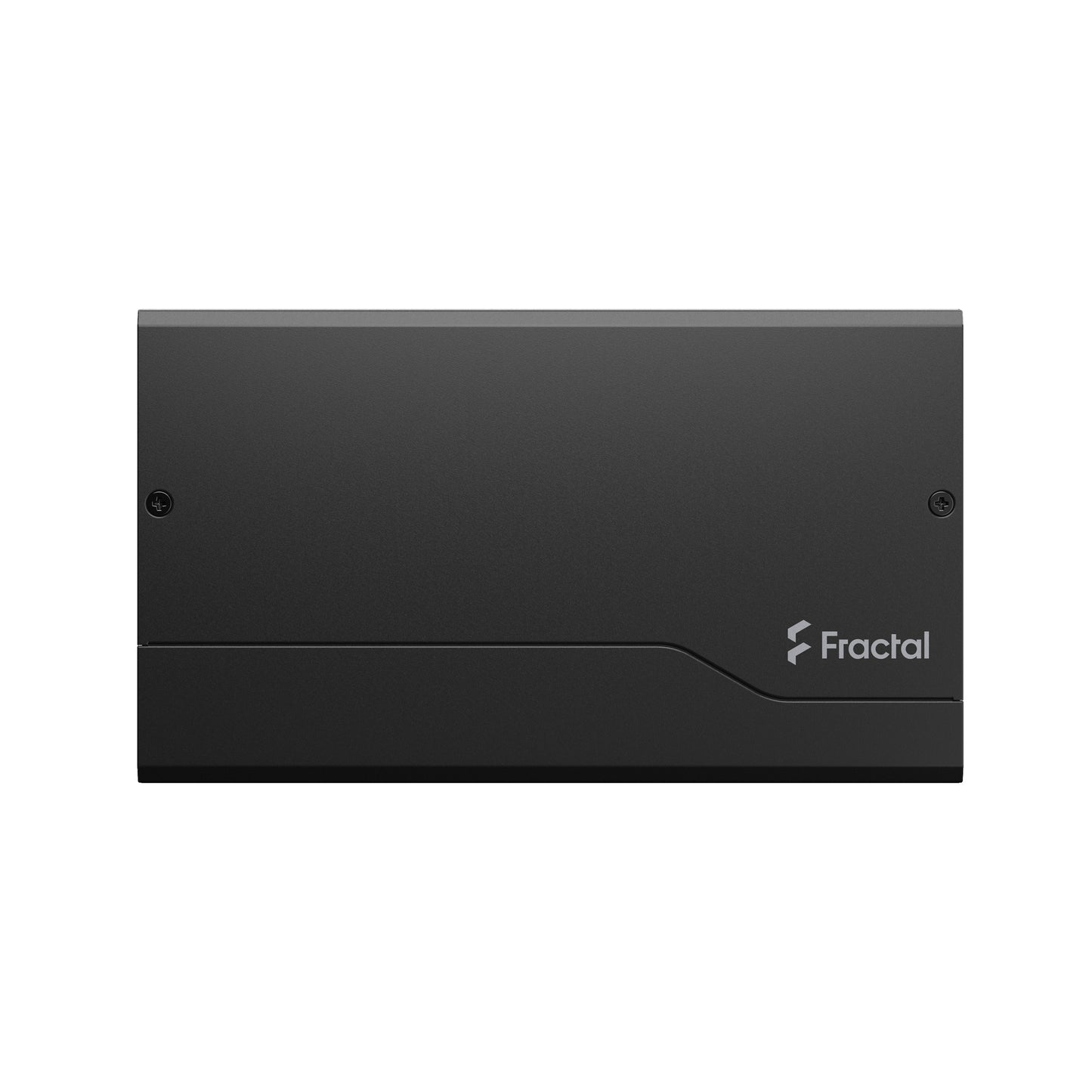

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.
80PLUS® Gold Efficiency rating for reduced noise and energy consumption
Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
Fully modular design for reduced clutter and maximum ease of installation
80 PLUS® Gold certified
High-efficiency performance wastes less energy and reduces heat generation
More precise electrical output and full compatibility with modern components through DC-DC design
Quality components consistently deliver tight voltage regulation with low ripple and noise

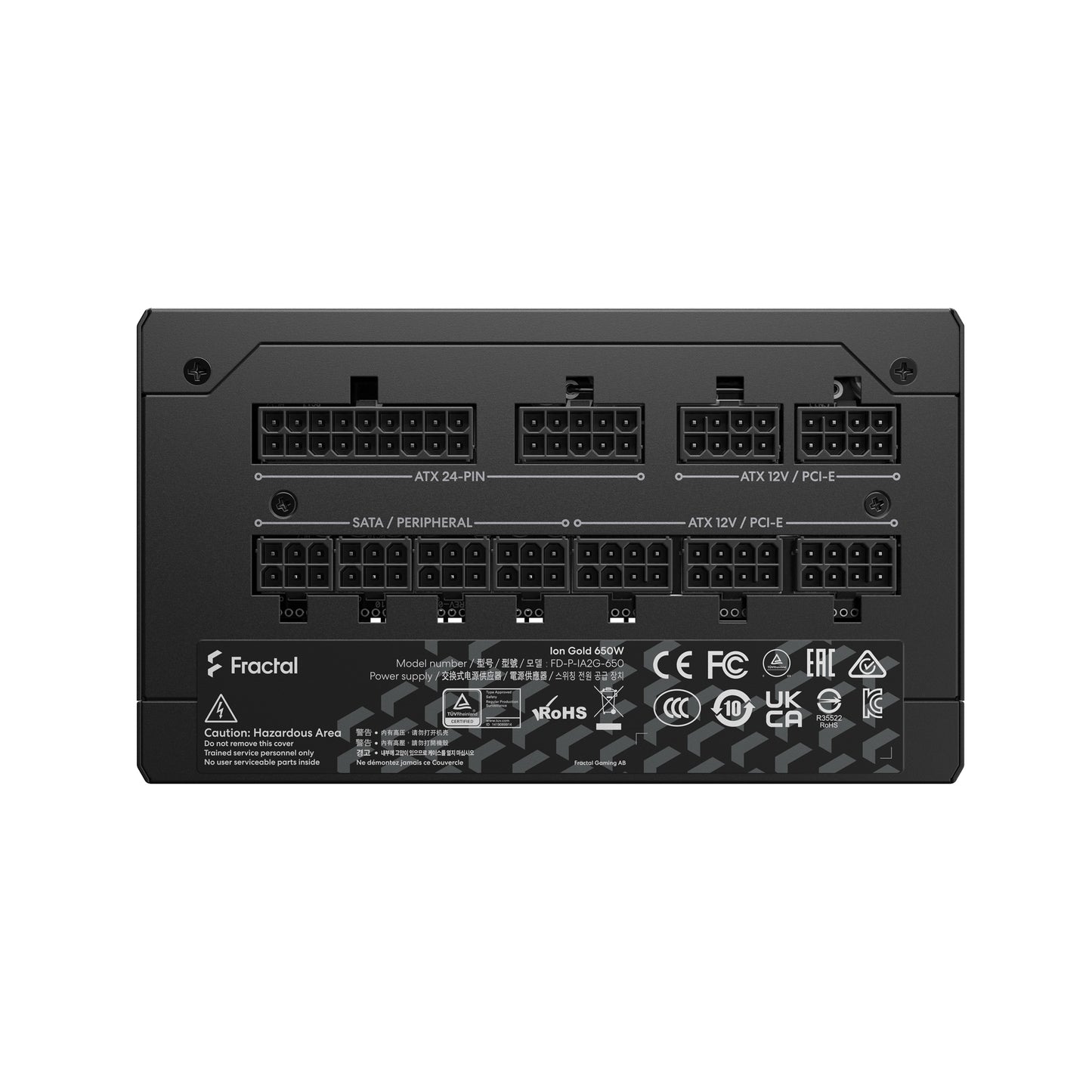

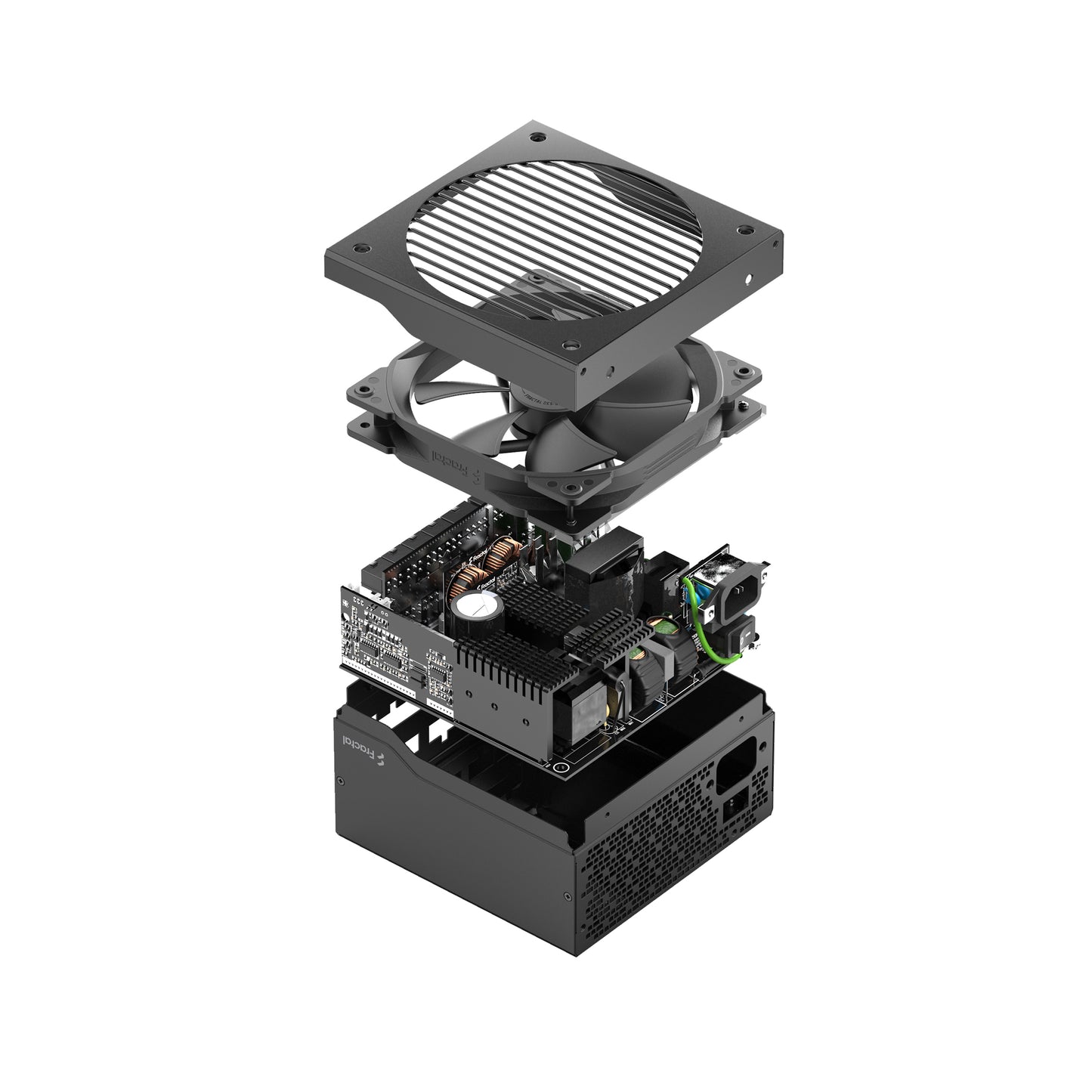

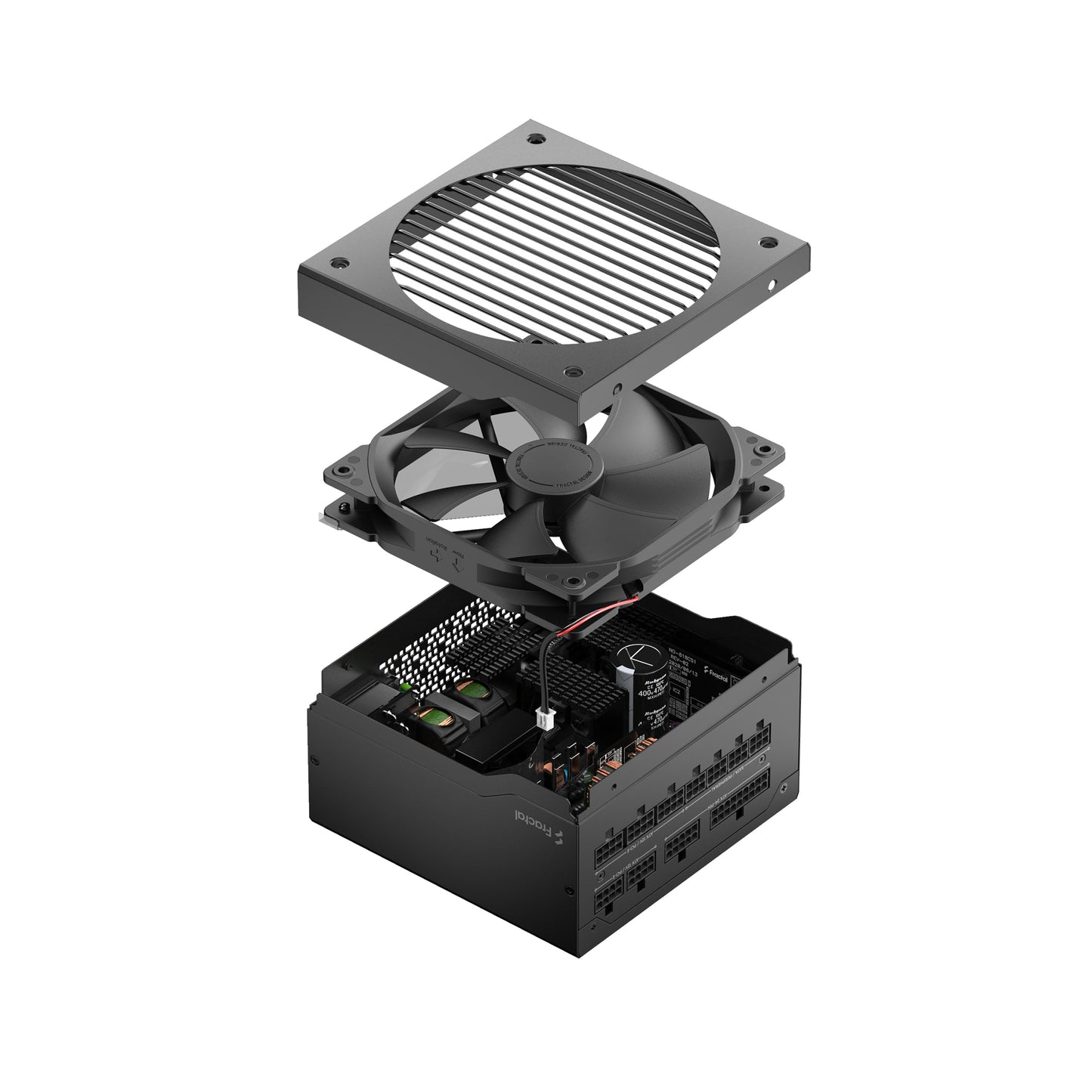

Fully modular design
Reduced clutter results in a clean and simple installation
Compact 150 mm depth allows for installation in compact cases
Provides additional cable management room in larger cases
Specifications
80PLUS® certification
Gold
Modular cables
Fully modular

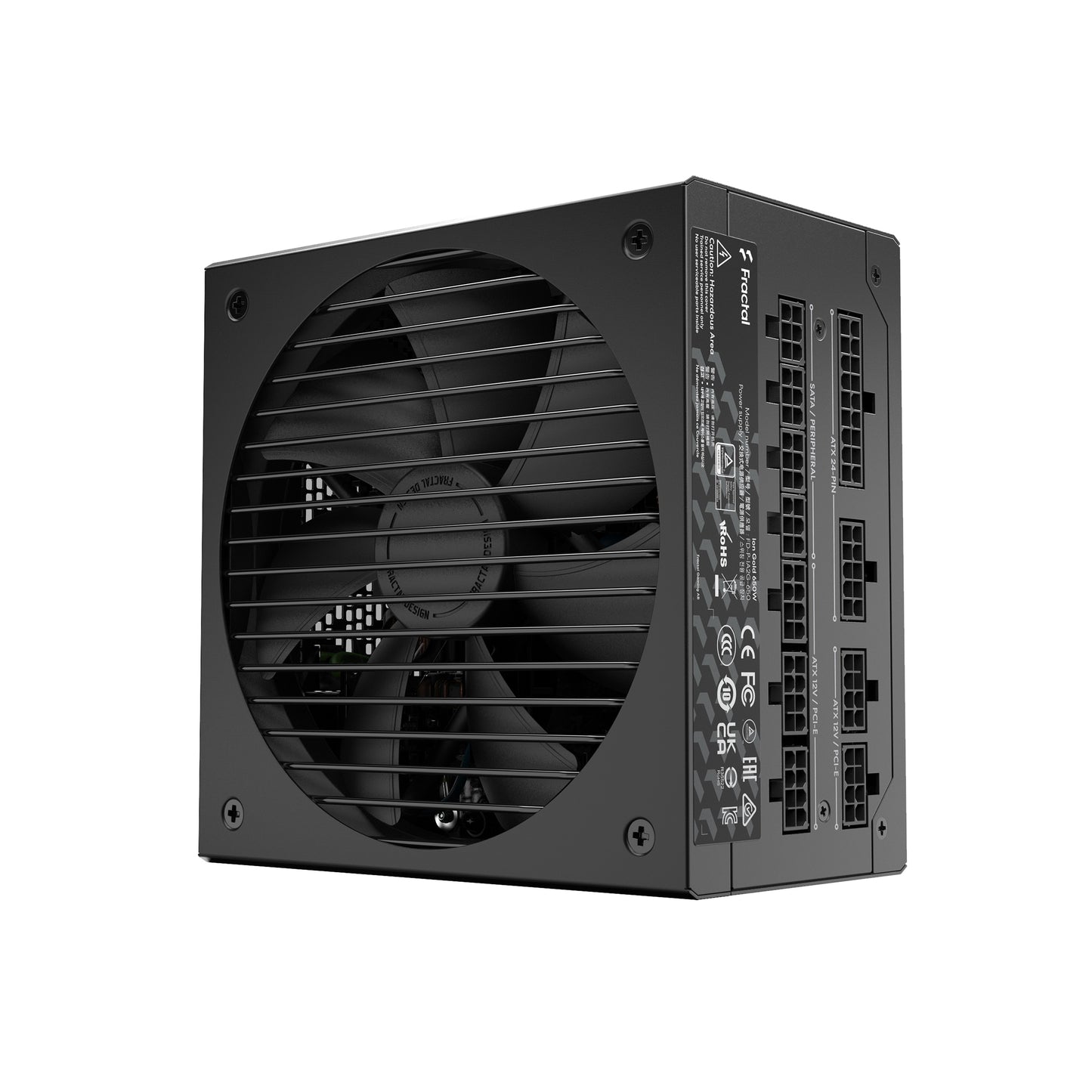

Fan type

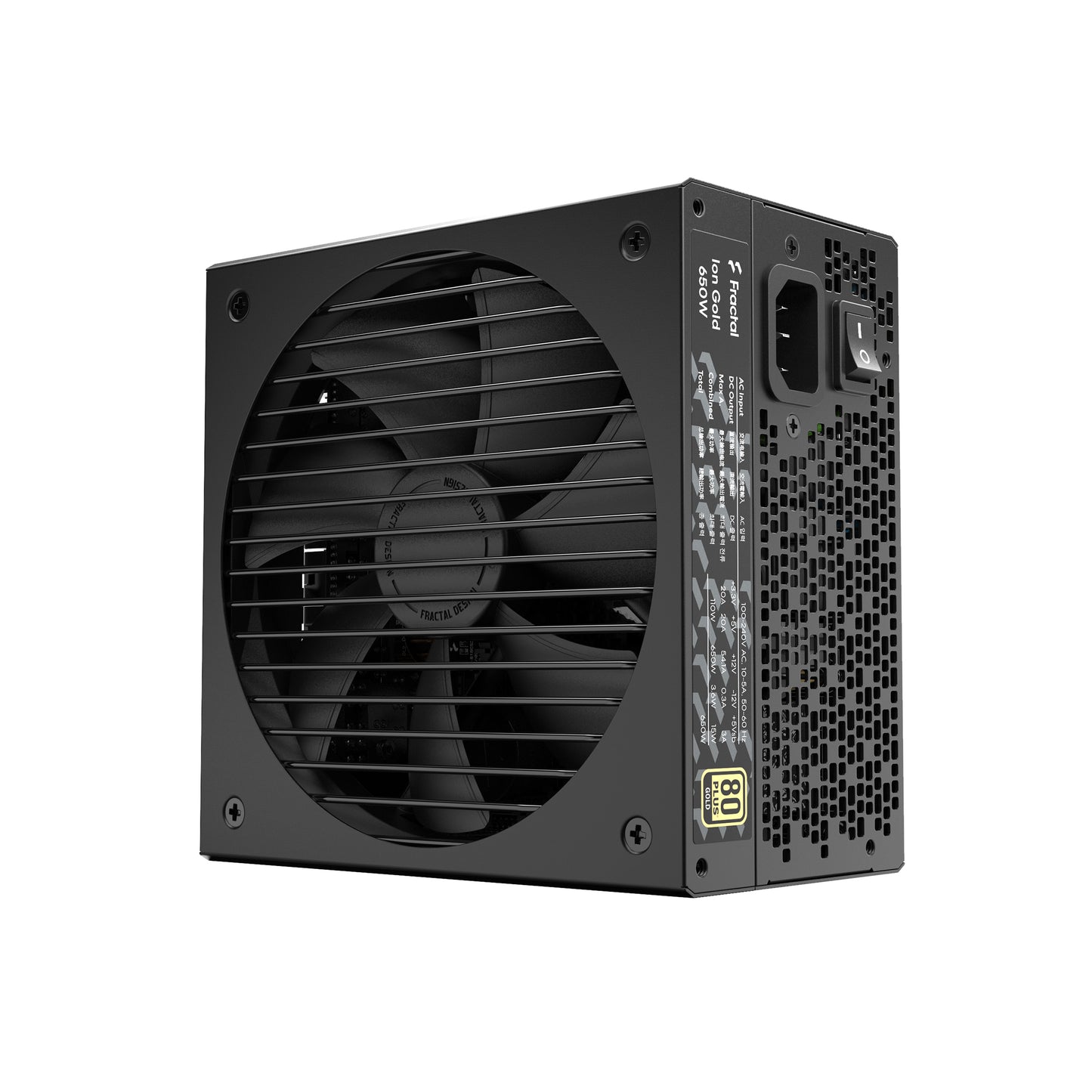

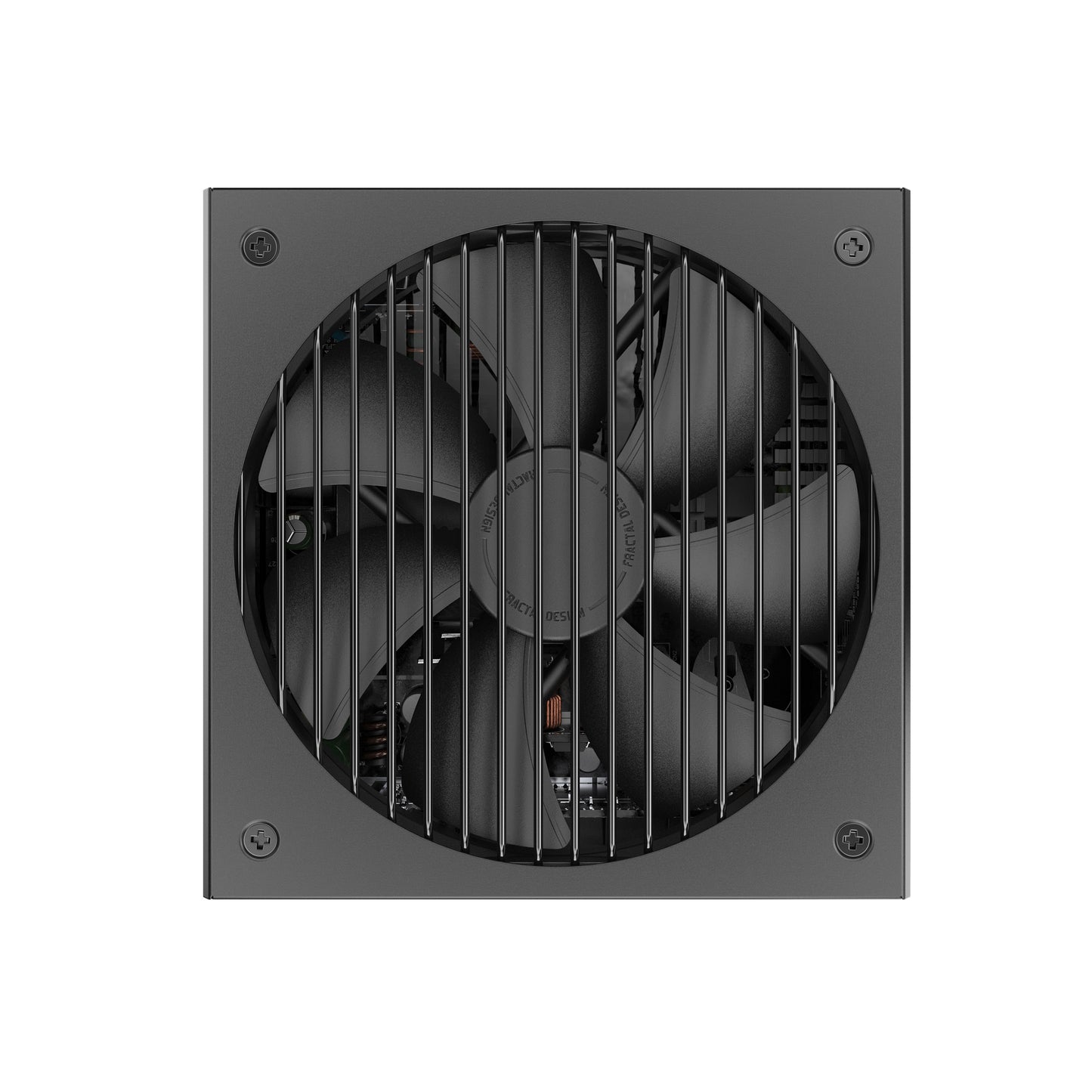

140 mm LLS bearing Fractal Design Dynamic series fan
Maximum operating temperature (full load)
40°C, 50°C at 80% load
Semi-passive operation
No

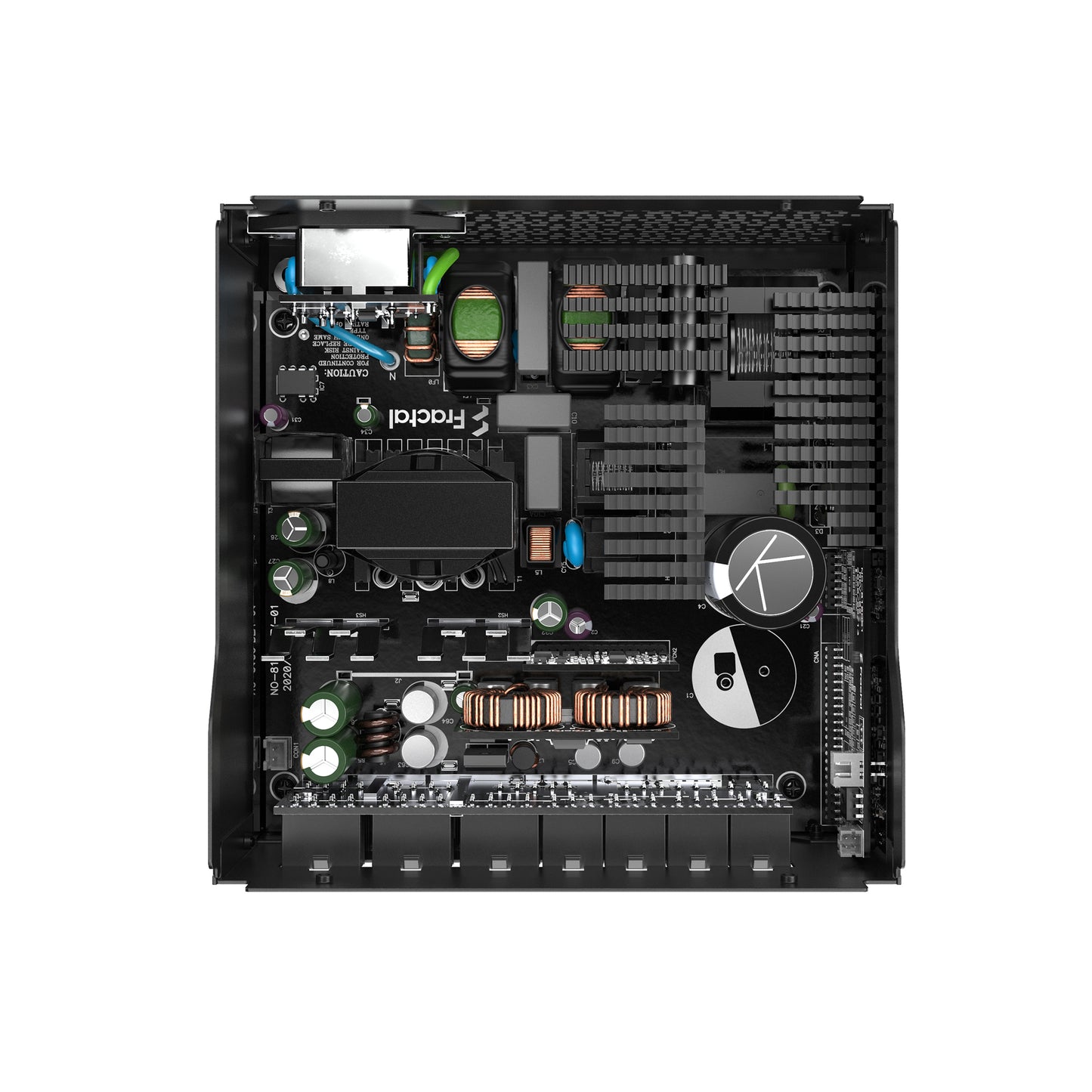

Capacitors
Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors
Life expectancy
100,000 hours
PSU specification compliance
ATX12V 2.52; EPS12V 2.92
PSU color
Black

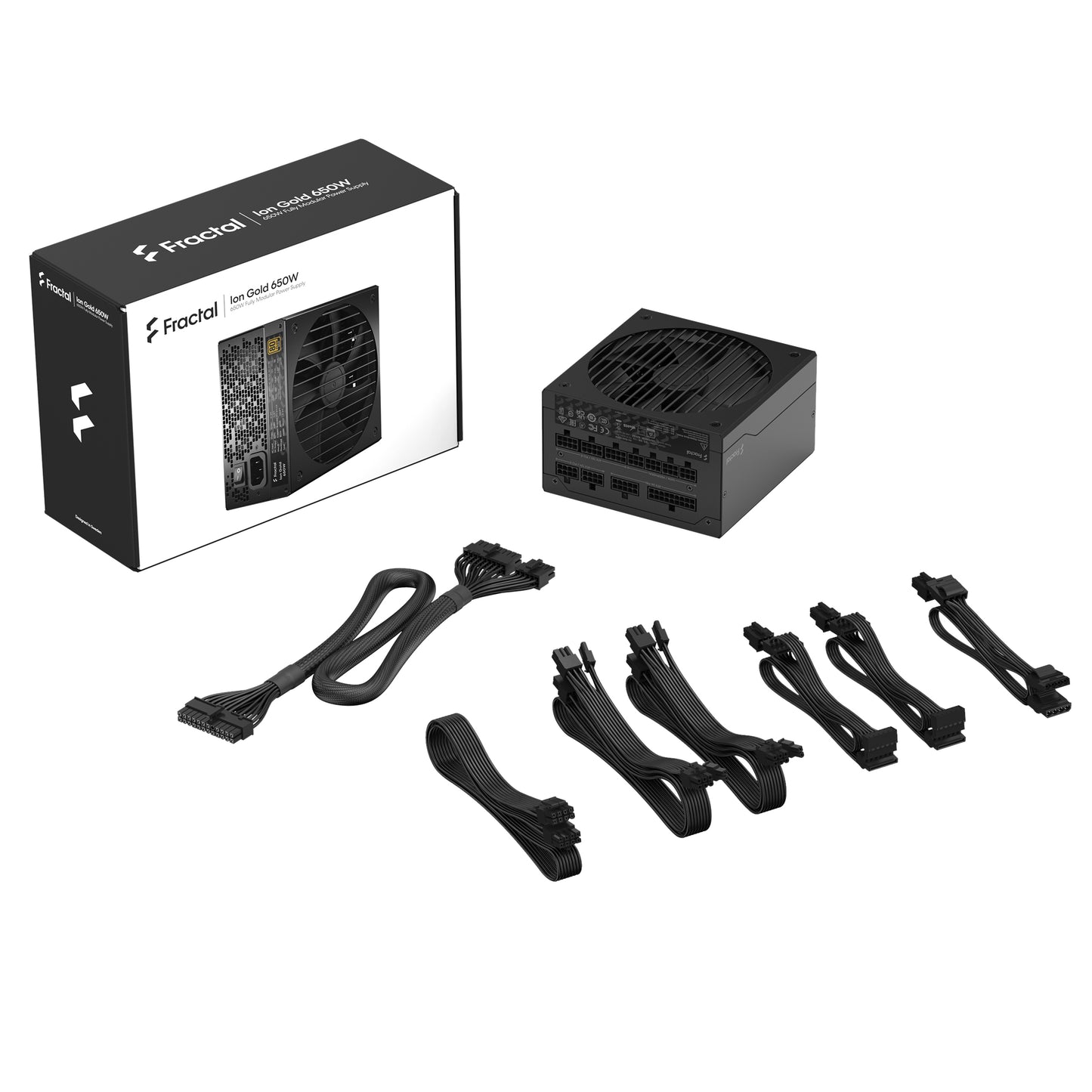

Cable type
Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires

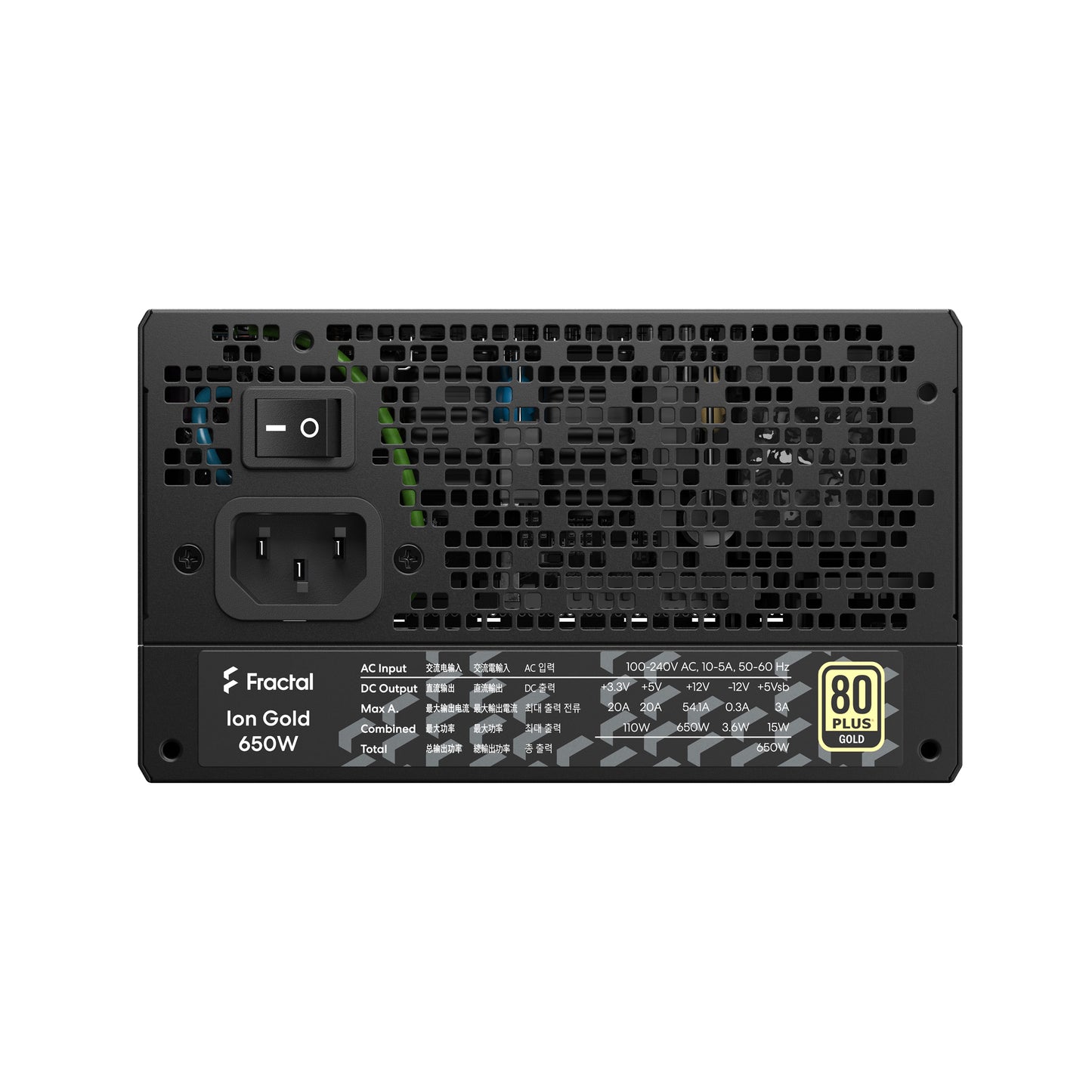

Input voltage
100-240V AC
Input frequency
50-60 Hz
Input current
10A/5A
Protection features
Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection
