Fractal Design ION Gold 750W Fully Modular Power Supply, US Cord (FD-P-IA2G-750-US)
Fractal Design ION Gold 750W Fully Modular Power Supply, US Cord (FD-P-IA2G-750-US)
Brand : Fractal Design
Regular price
Couldn't load pickup availability
Ion Gold 750W
The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.
- 80PLUS® Gold Efficiency rating for reduced noise and energy consumption
- Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
- Fully modular design for reduced clutter and maximum ease of installation
80 PLUS® Gold certified
-
High-efficiency performance wastes less energy and reduces heat generation
-
More precise electrical output and full compatibility with modern components through DC-DC design
-
Quality components consistently deliver tight voltage regulation with low ripple and noise
Fully modular design
-
Reduced clutter results in a clean and simple installation
-
Compact 150 mm depth allows for installation in compact cases
-
Provides additional cable management room in larger cases
Specifications
-
80PLUS® certificationGold
-
Modular cablesFully modular
-

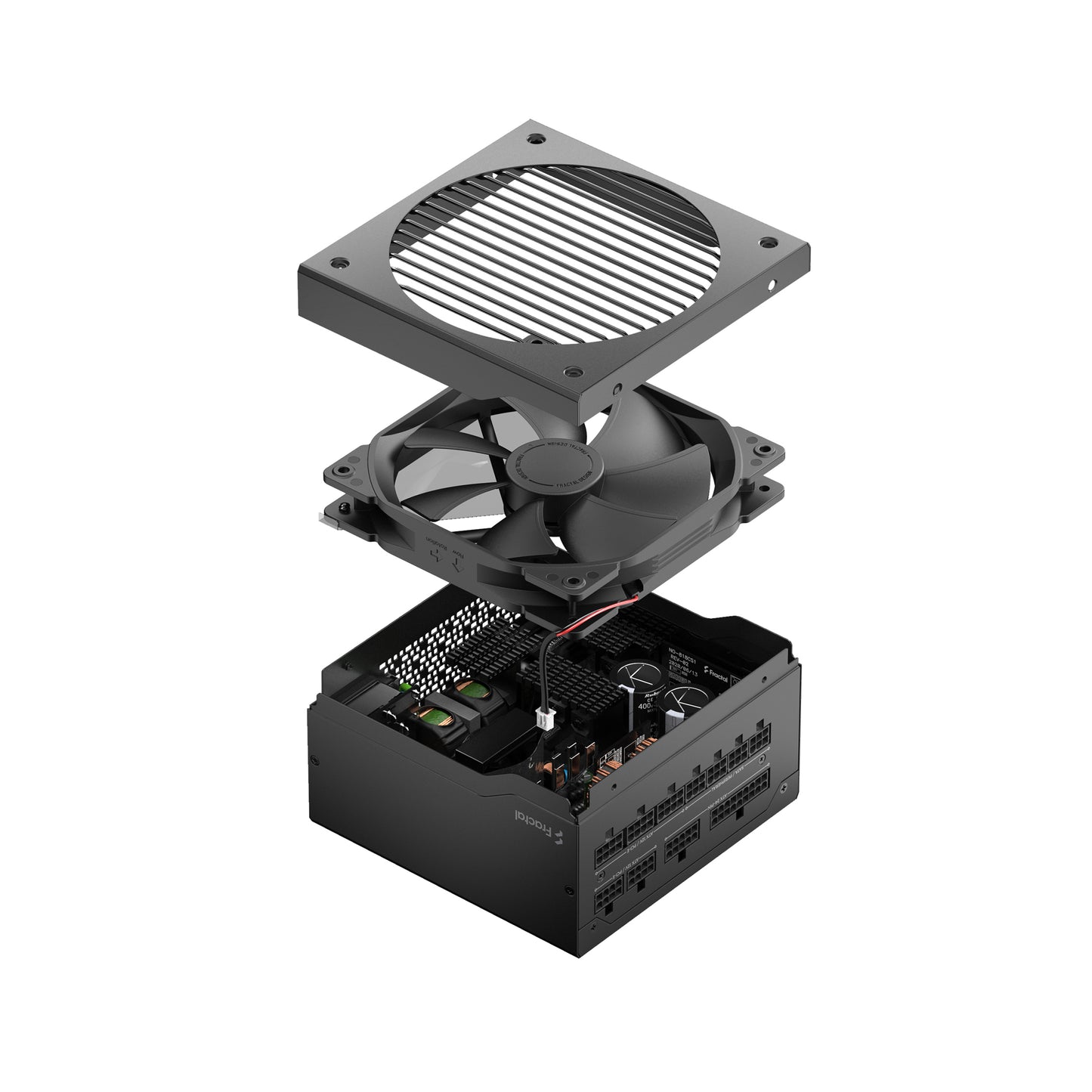

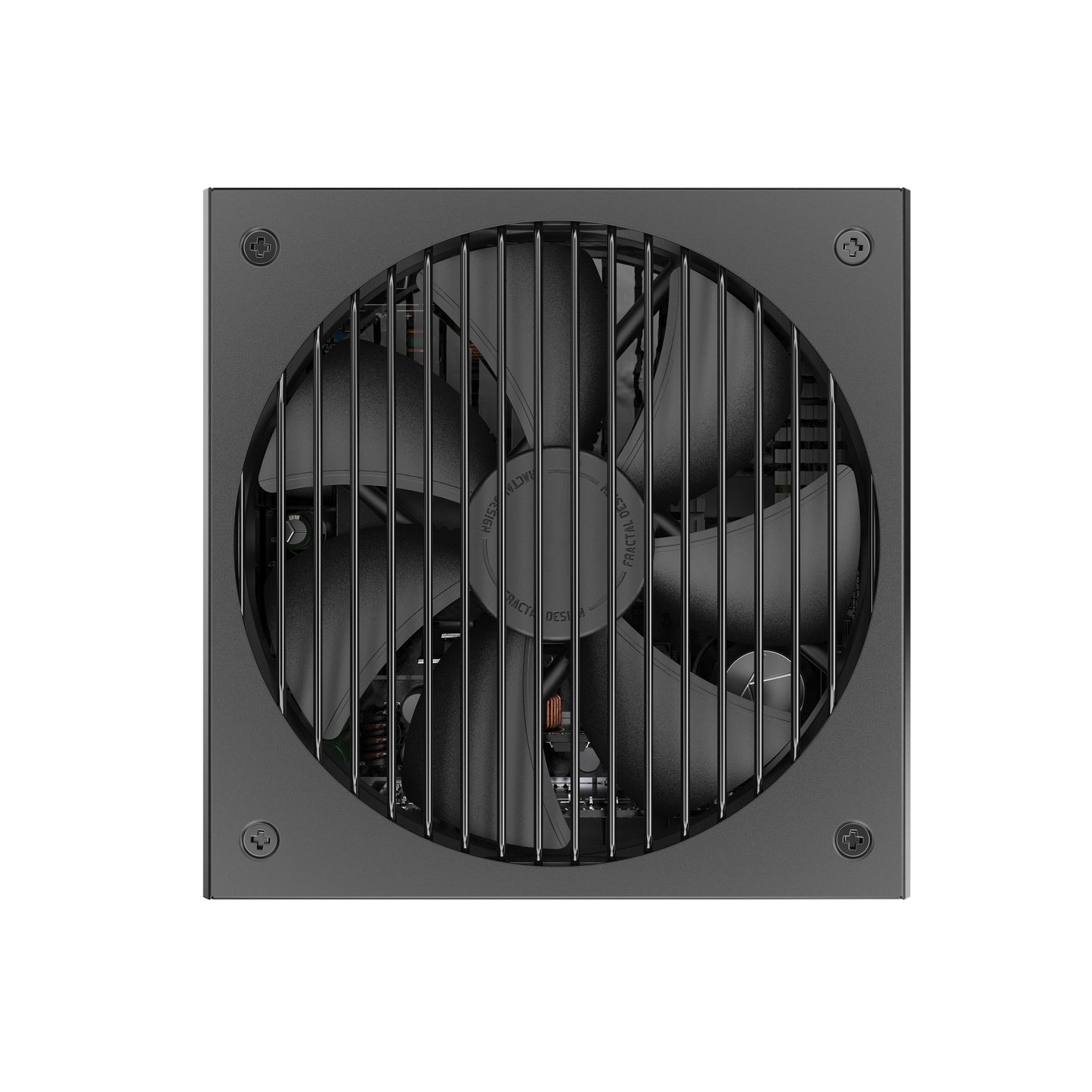

Fan type140 mm LLS bearing Fractal Design Dynamic series fan
-
Maximum operating temperature (full load)40°C, 50°C at 80% load
-
Semi-passive operationNo
-

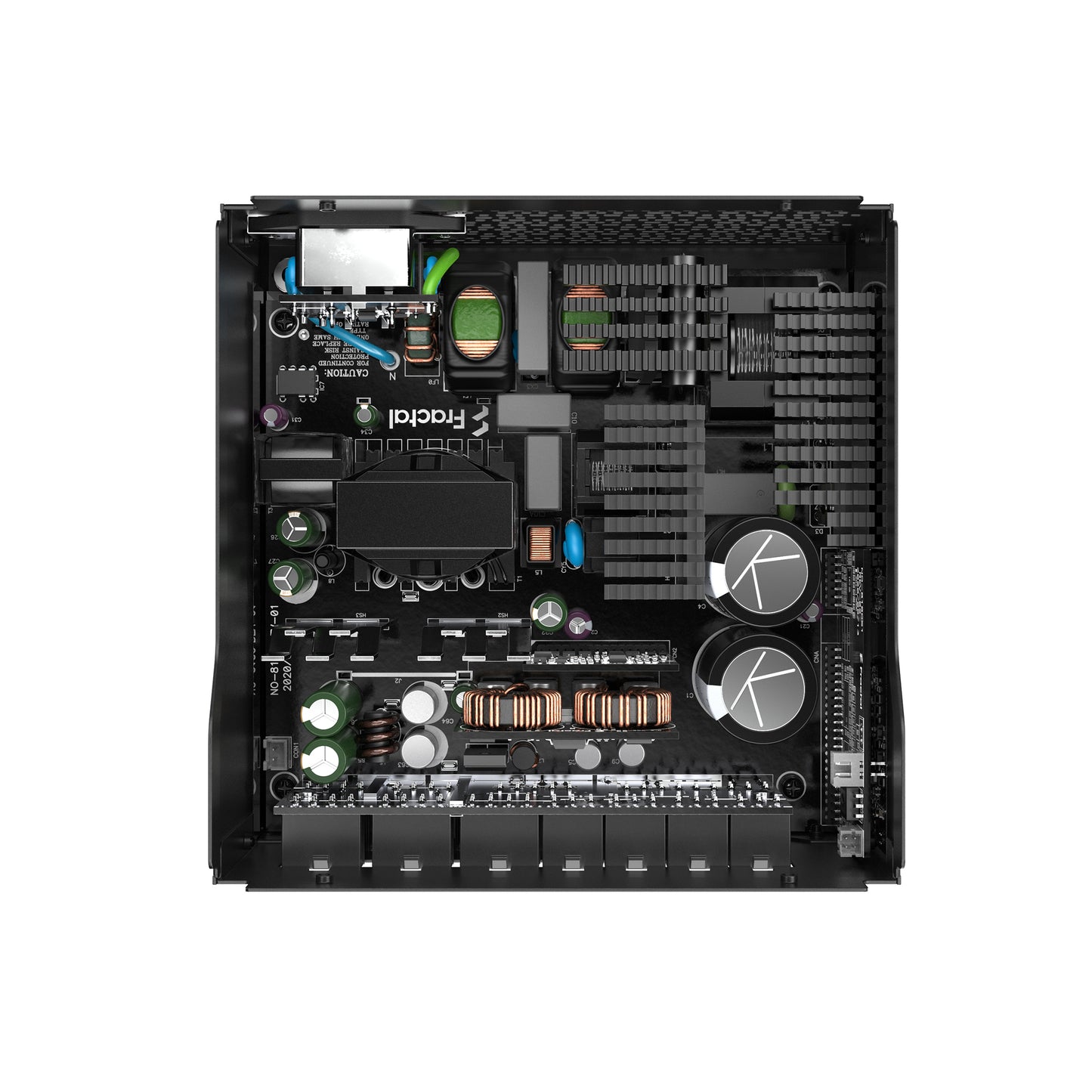

CapacitorsPrimary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors
-
Life expectancy100,000 hours
-
PSU specification complianceATX12V 2.52; EPS12V 2.92
-
PSU colorBlack
-
Cable typeModular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires
-
Input voltage100-240V AC
-
Input frequency50-60 Hz
-
Input current10A/5A
-
Protection featuresOver voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection
-
Standby efficiencyErP 2013 (<0.45W @ 230 VAC, 45mA load on +5Vsb)
-
Sleep state complianceC6/C7 compatible
-
Approvals & certificationsCE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
-
Warranty7 years

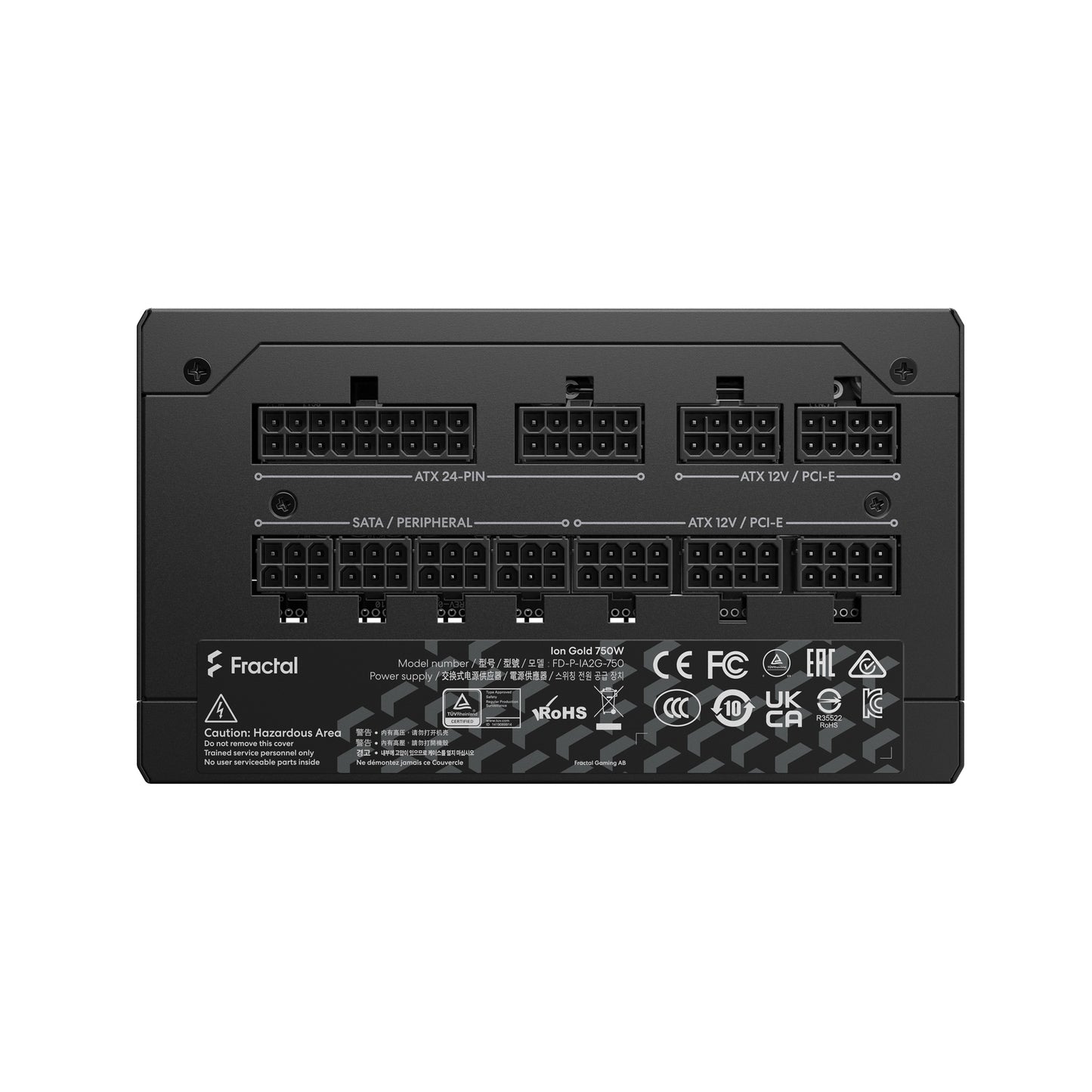

Connectors
-
ATX 24-pin1
-
EPS/ATX12V2
-
PCIe4
-
SATA8
-
Peripheral3
Cable Configuration (length in mm between connectors)
-
ATX 24-pin500
-
ATX 12V 4+4 pin600
-
EPS12V 8-pin600
-
PCIe 6+2 pin550+150
-
SATA500+150+150+150
-
Peripheral500+150+150

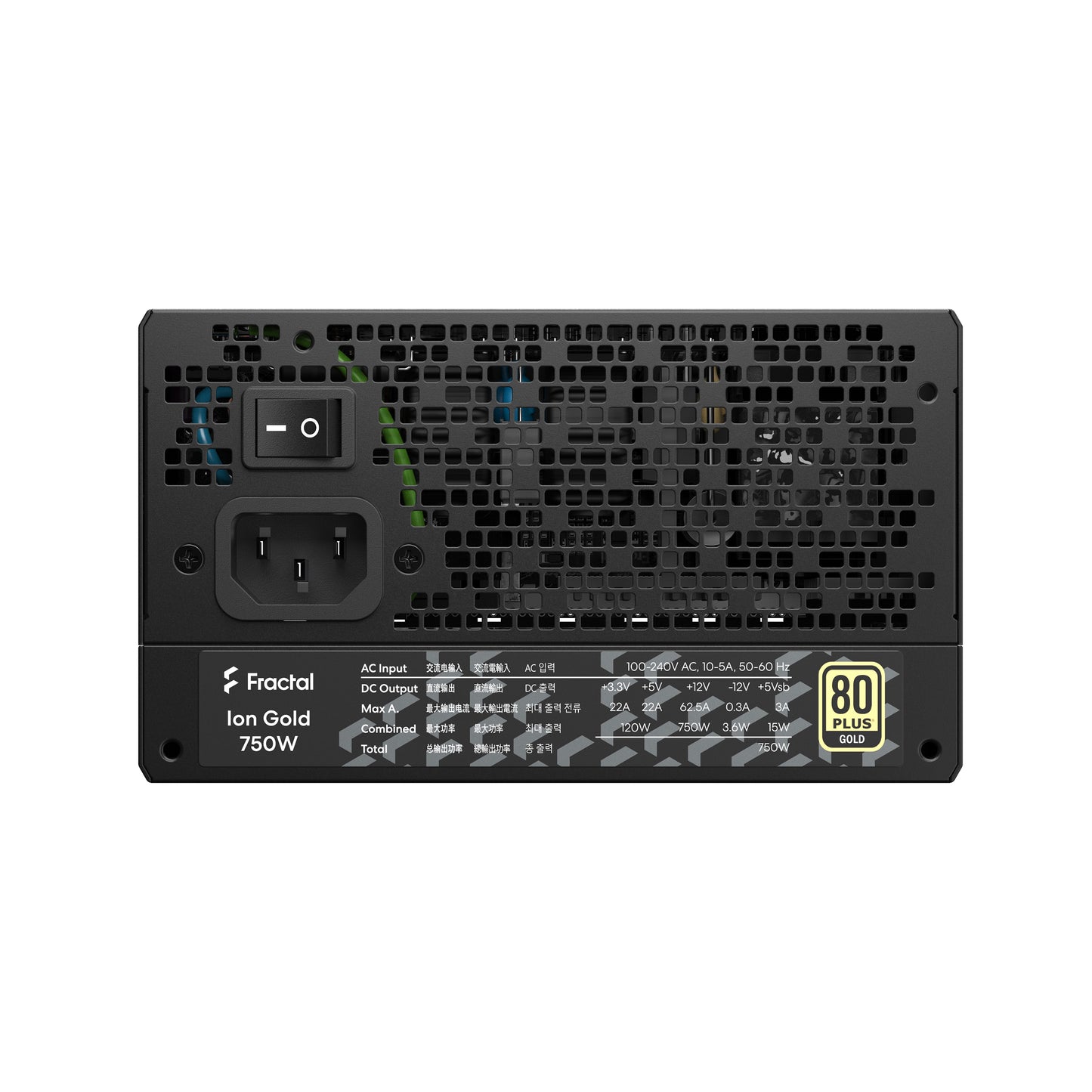

DC Output
-
3.3V22A
-
5V22A
-
3.3V and 5V combined120W
-
12V62.5A
-
-12V0.3A
-
+5Vsb3A
-
Total Power750W
Other
-

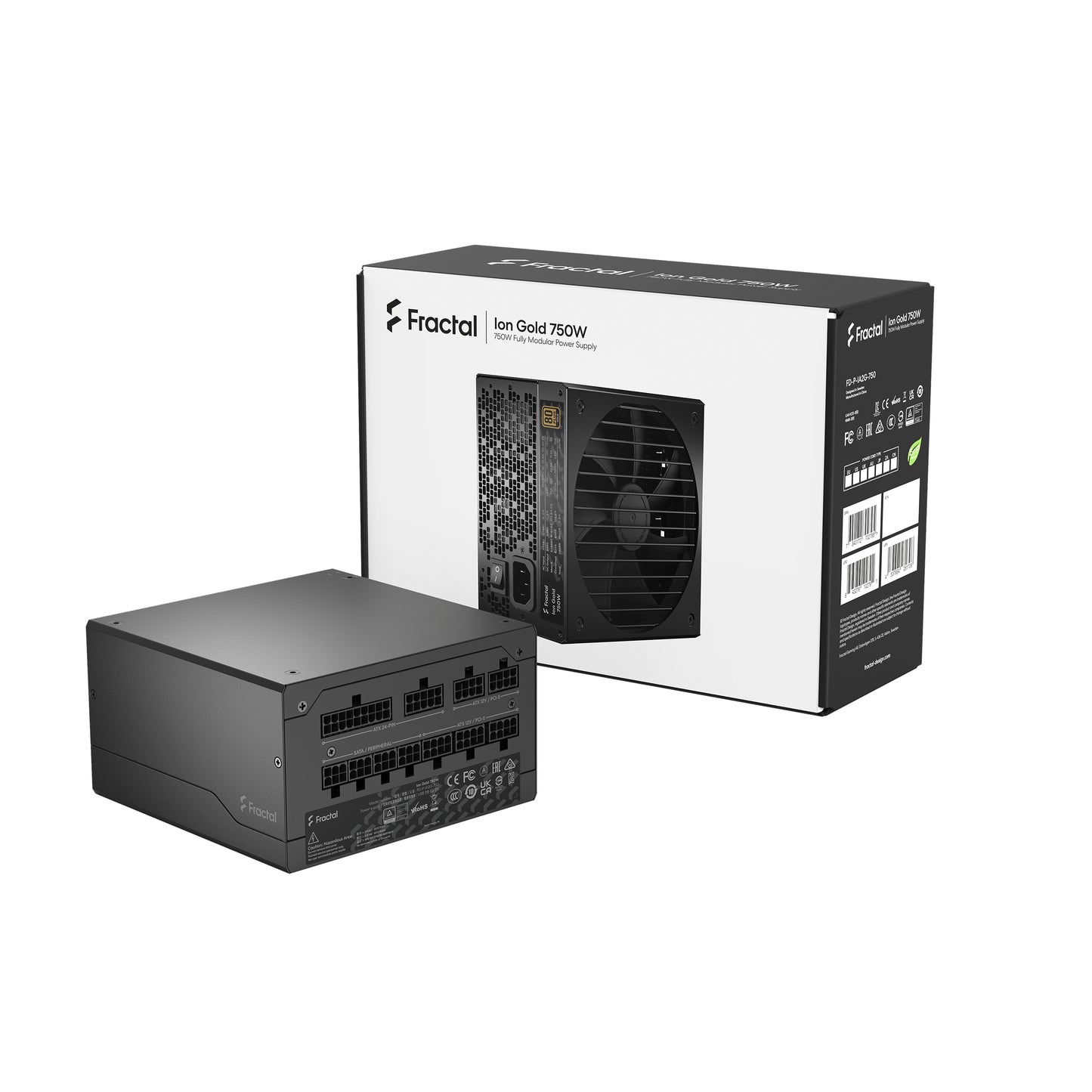

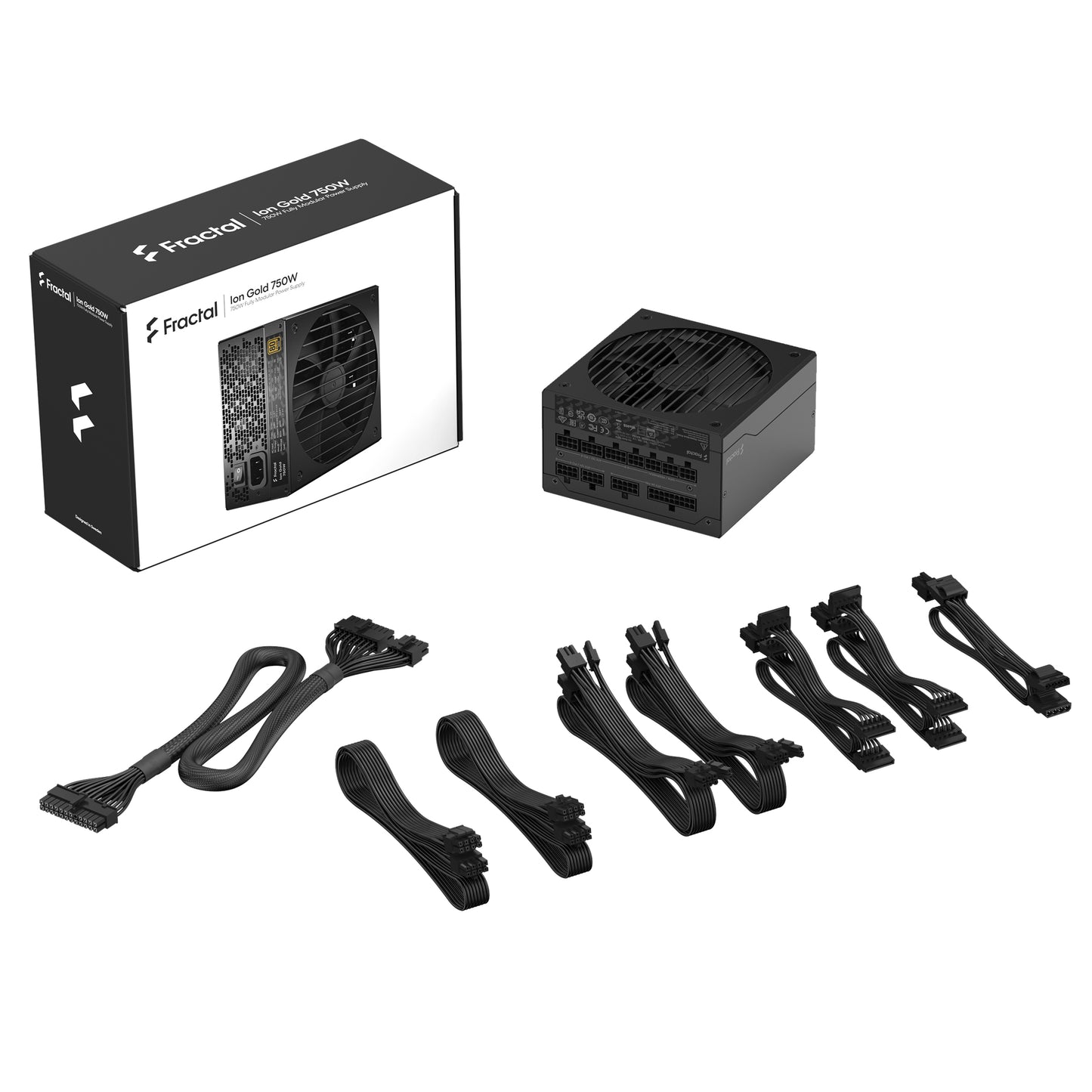

Package contentsIon Gold power supply, Modular cables, Screw pack with velcro cable ties, AC power cord (localized), User manual
-
Unit dimensions (LxWxH)150 x 150 x 86 mm
-
Net weight (unit only)2.31 kg
-
Package dimensions (LxWxH)300 x 210 x 110 mm
-
Package weight2.69 kg
-
EAN7340172702795
-
UPC843276102791
-
JAN4537694281706
-
Product codeFD-P-IA2G-750
