Fractal Design Meshify 2 Compact

Fractal Design Meshify 2 Compact

Brand : Fractal Design

SKU:  FD-C-MES2C-02

₱8,740.00
₱9,465.00 ₱8,740.00
Sale! Sold out
Taxes included.

Low stock: 7 left

Style

Meshify 2 Compact

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

  • Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
  • Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
  • Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases



Removable front filter

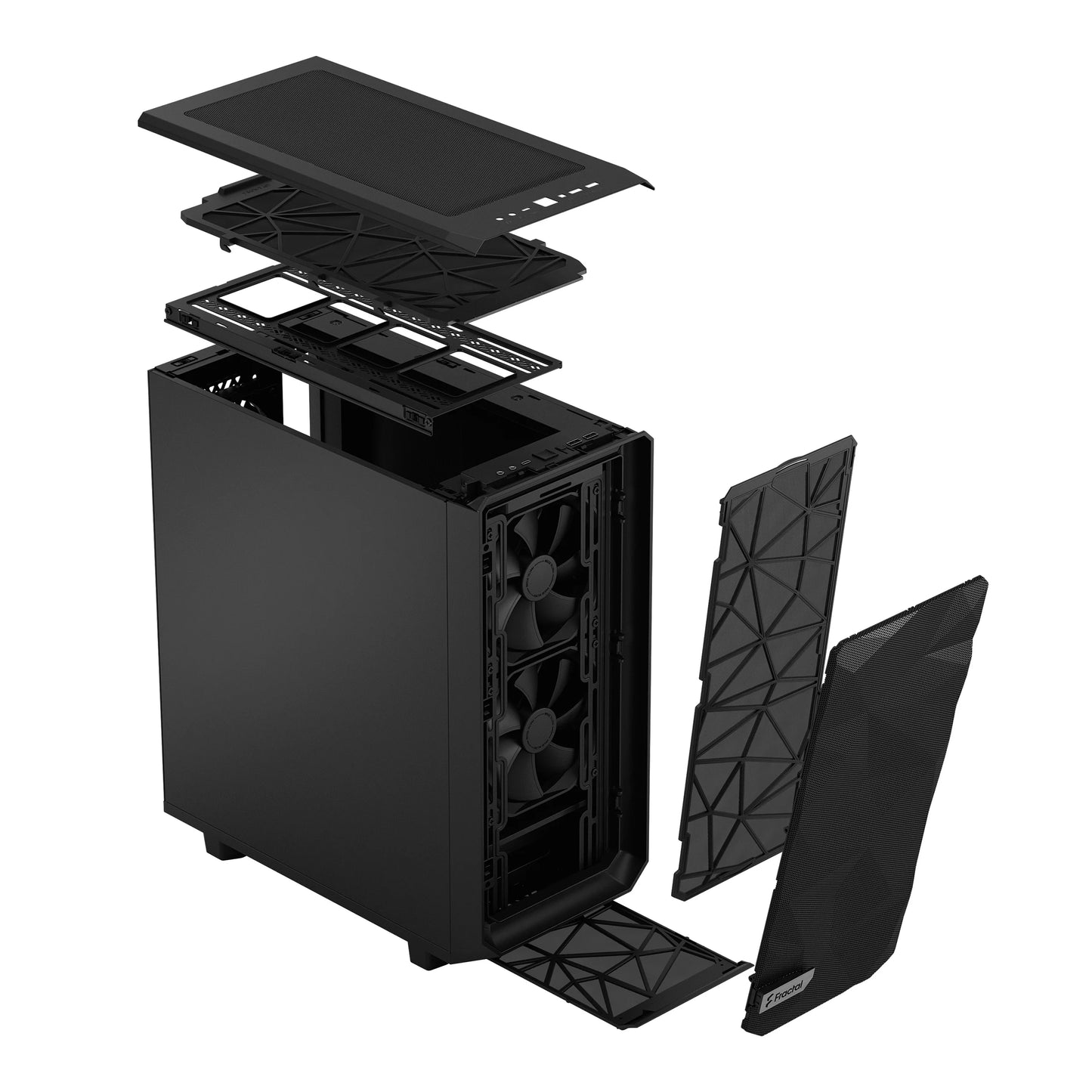

  • New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts

  • Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access

  • New front nylon filter that can be removed for increased airflow

Robust cooling

  • Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm

  • Open interior layout creates a smooth airflow path from intake to exhaust

  • Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)

Fully featured

  • Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism

  • Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)

  • Improved cable routing with three integrated cable alignment clips and six velcro straps

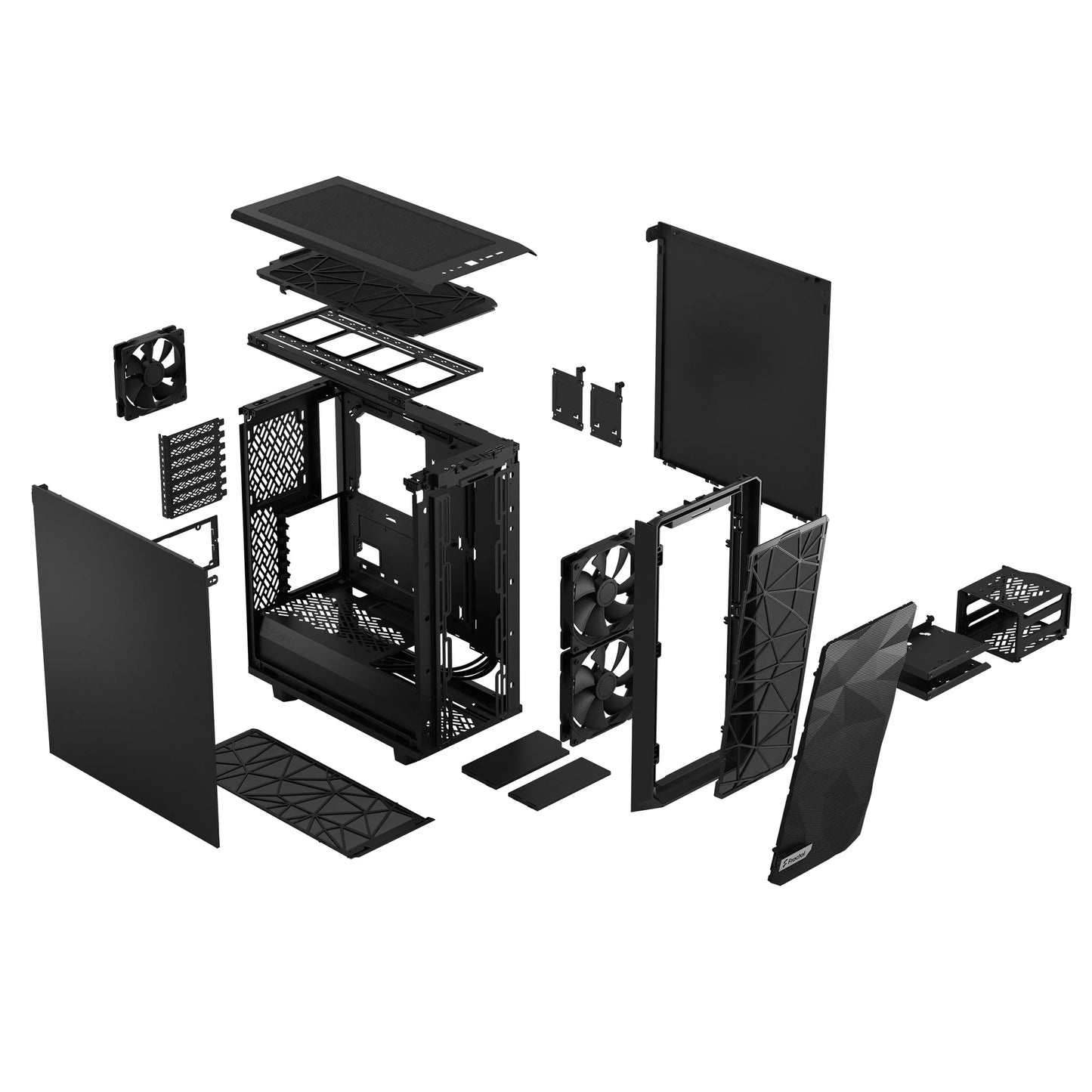

  • The fully removable top panel opens to provide excellent interior access

Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps

Smooth and quiet operation
The sturdy steel drive trays are vibration-damped by cushioning rubber grommets

Full length shroud
A full-length power supply shroud readily conceals the drive cage and excess cabling

Specifications

  • 3.5"/2.5" Universal drive mounts
    2 (included)
  • Dedicated 2.5" drive mounts
    4 (2 included)
  • Expansion slots
    7
  • Front interface
    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
  • Total fan mounts
    7x 120 or 4x 140 mm and 2x 120 mm
  • Front fan
    3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included)
  • Top fan
    2x 120/140 mm
  • Rear fan
    1x 120 mm, (1x Dynamic X2 GP-12 included)
  • Bottom fan
    1x 120 mm (requires removal of HDD cage)
  • Dust filters
    Top, front and bottom
  • Fixed velcro straps
    Yes
  • Cable routing grommets
    Yes
  • Captive thumbscrews
    HDD, SSD and PSU brackets
  • Left side panel
    Steel
  • Right side panel
    Steel

Compatibility

  • Motherboard compatibility
    ATX / mATX / Mini-ITX
  • Power supply type
    ATX
  • PSU max length
    200 mm (165 mm with HDD cage and front fan)
  • GPU max length
    341 mm (360 mm without front fan)
  • CPU cooler max height
    169 mm
  • Front radiator
    Up to 360/280 mm
  • Top radiator
    Up to 240 mm
  • Rear radiator
    120 mm
  • Bottom radiator
    120 mm (requires removal of HDD cage)
  • Cable routing space
    17-28 mm
  • Radiator Support – Additional Details
    Maximum radiator width: 145mm for front mounting. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual.

Dimensions

  • Case dimensions (LxWxH)
    424 x 210 x 475 mm
  • Case dimensions w/o feet/protrusions/screws
    412 x 210 x 455 mm
  • Package dimensions (LxWxH)
    542 x 320 x 554 mm
  • Net weight
    Solid: 7.7 kg TG: 8.1 kg
  • Gross weight
    Solid: 9.3 kg TG: 9.8 kg
  • Volume
    39.4 Liters

Other

  • Warranty
    2 Years
  • Package contents
    Meshify 2 Compact Case, User manual, Accessory box
  • Meshify 2 Compact Black Solid
    SKU: FD-C-MES2C-01, EAN: 7340172702320, UPC: 843276102326, JAN: 4537694276801
  • Meshify 2 Compact Black TG Dark Tint
    SKU: FD-C-MES2C-02, EAN: 7340172702337, UPC: 843276102333, JAN: 4537694276818
  • Meshify 2 Compact Black TG Light Tint
    SKU: FD-C-MES2C-03, EAN: 7340172702344, UPC: 843276102340, JAN: 4537694276825
  • Meshify 2 Compact Gray TG Light Tint
    SKU: FD-C-MES2C-04, EAN: 7340172702351, UPC: 843276102357, JAN: 4537694276832
  • Meshify 2 Compact White TG Clear Tint
    SKU: FD-C-MES2C-05, EAN: 7340172702368, UPC: 843276102364, JAN: 4537694276849
