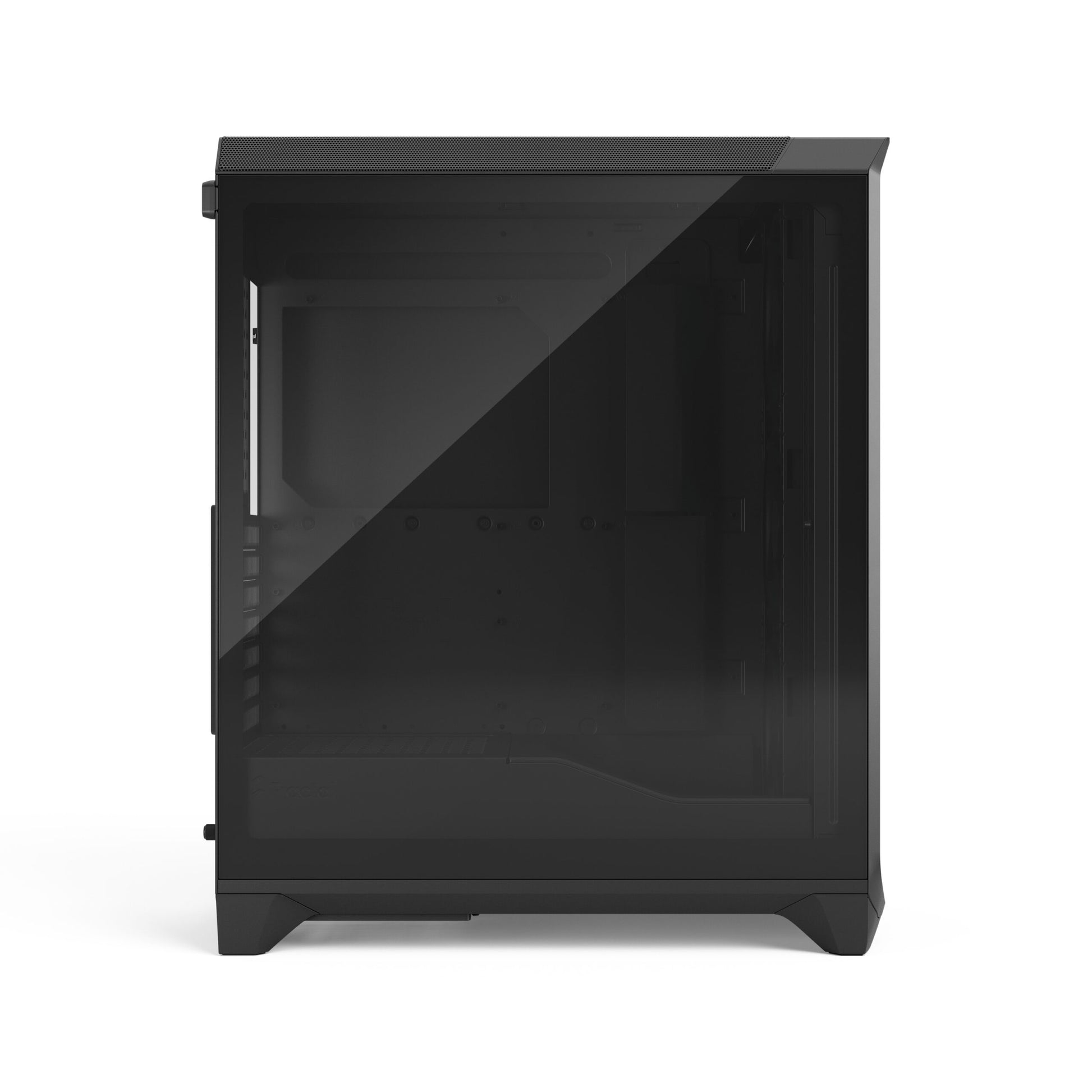

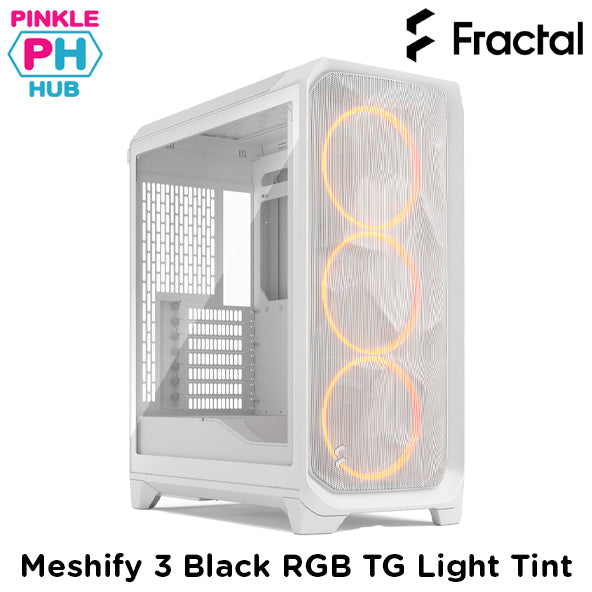

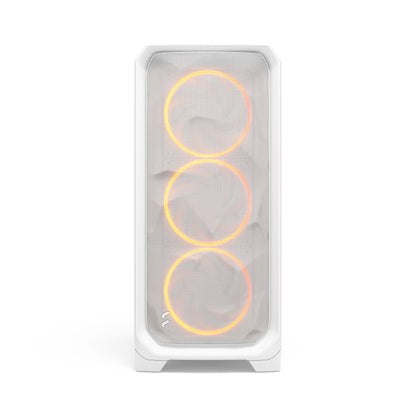

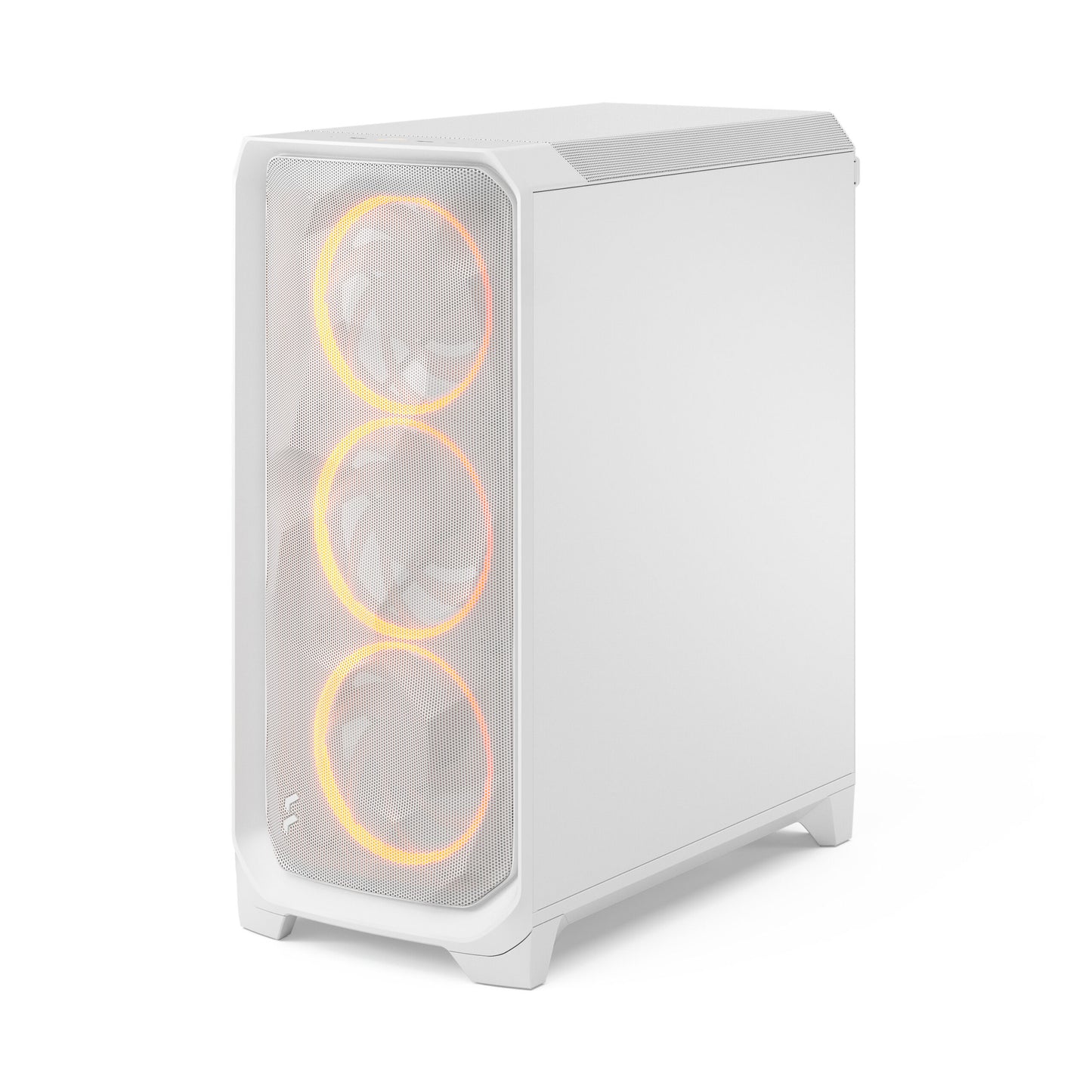

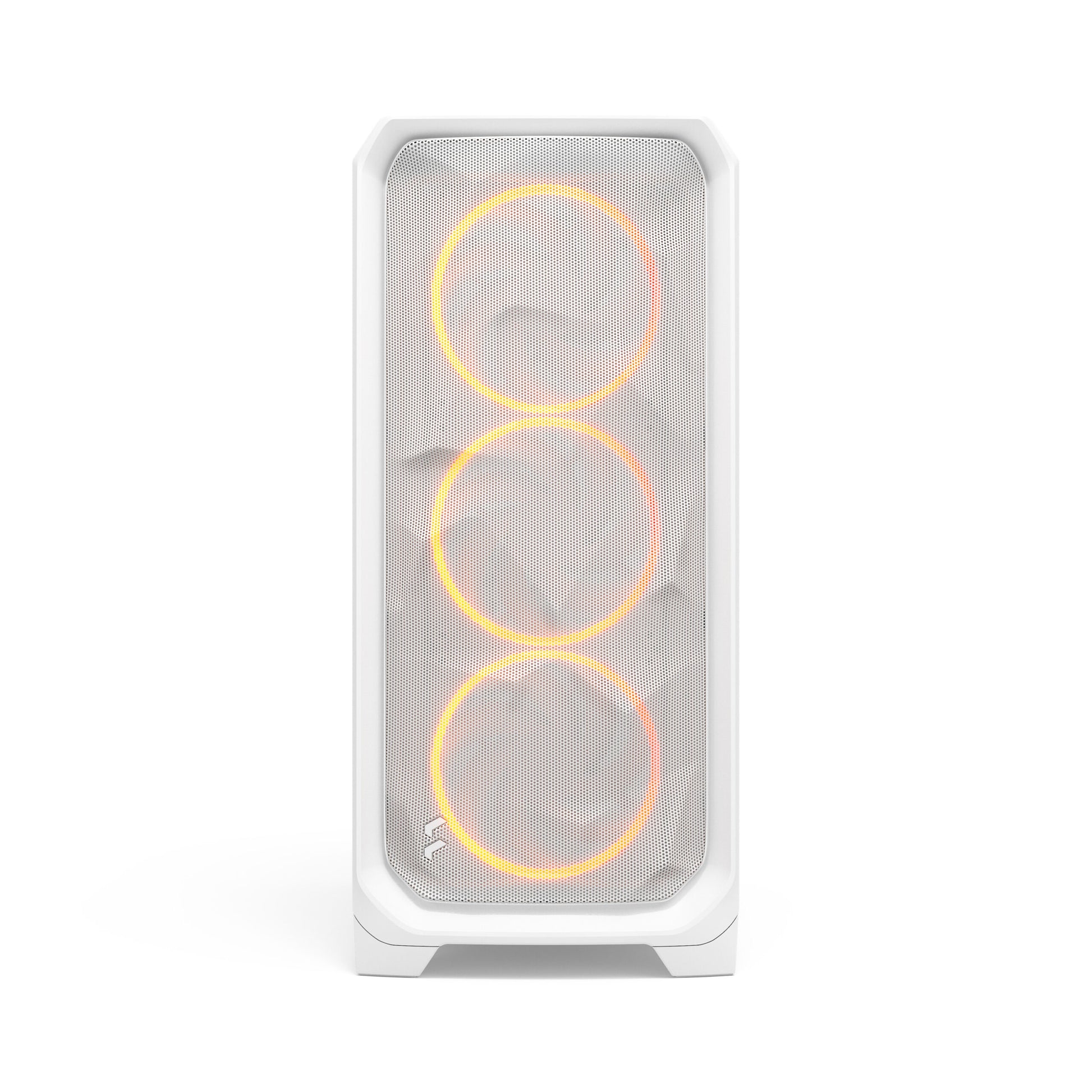

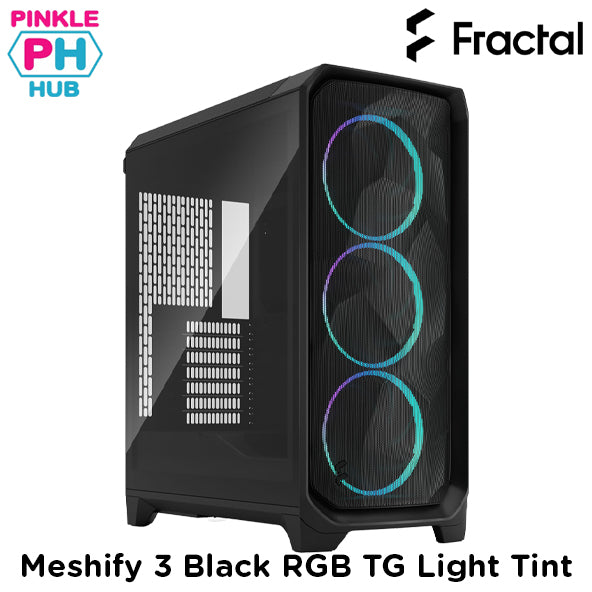

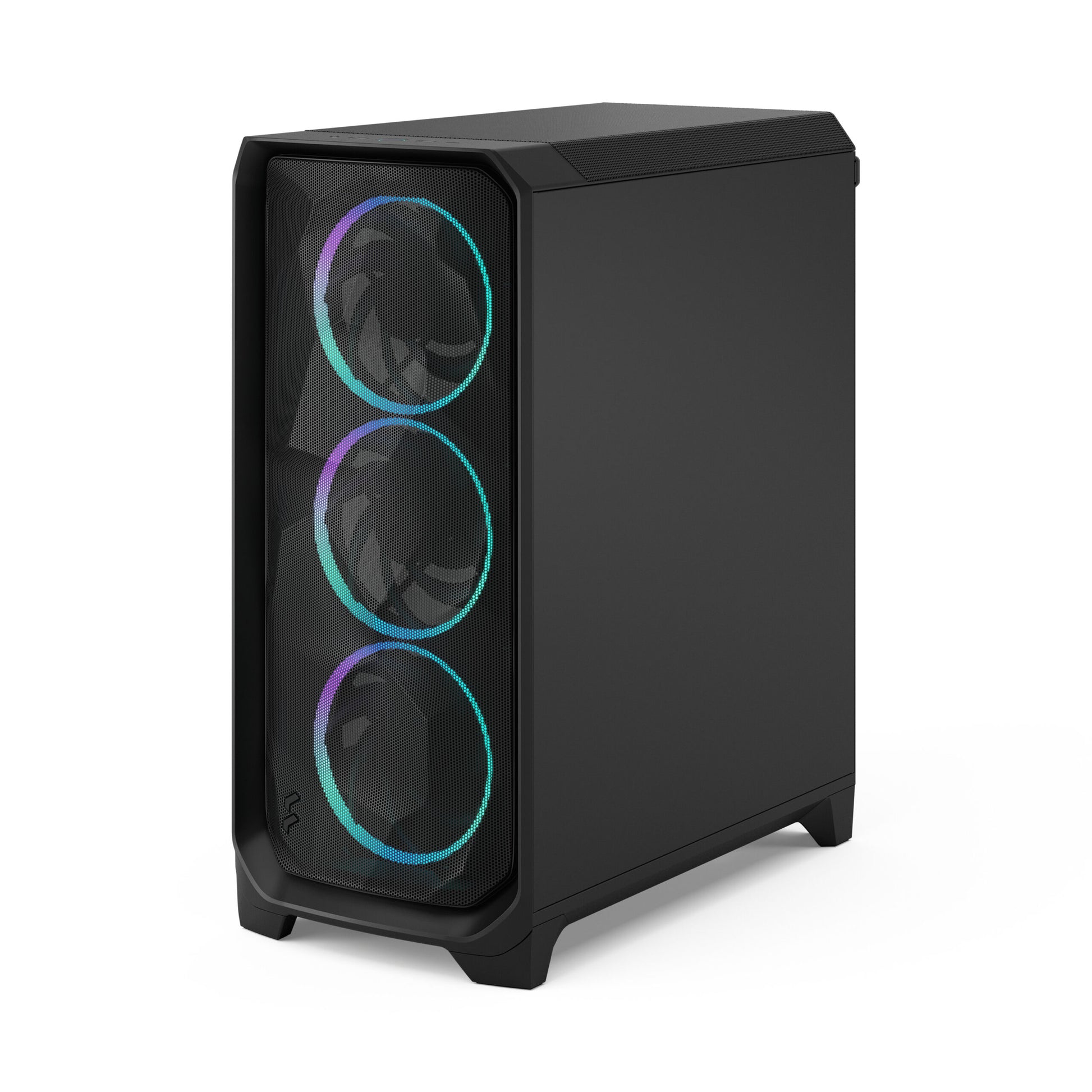

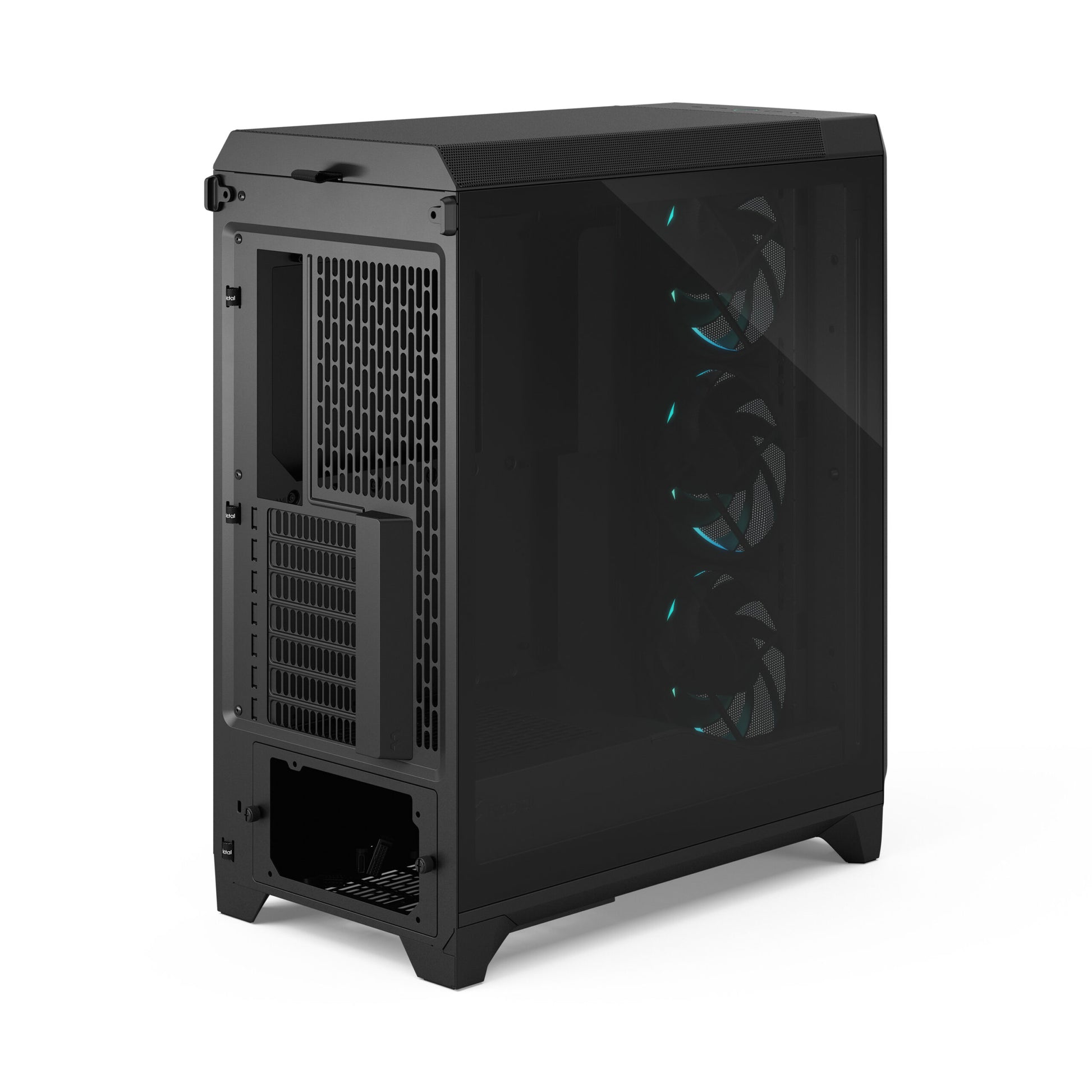

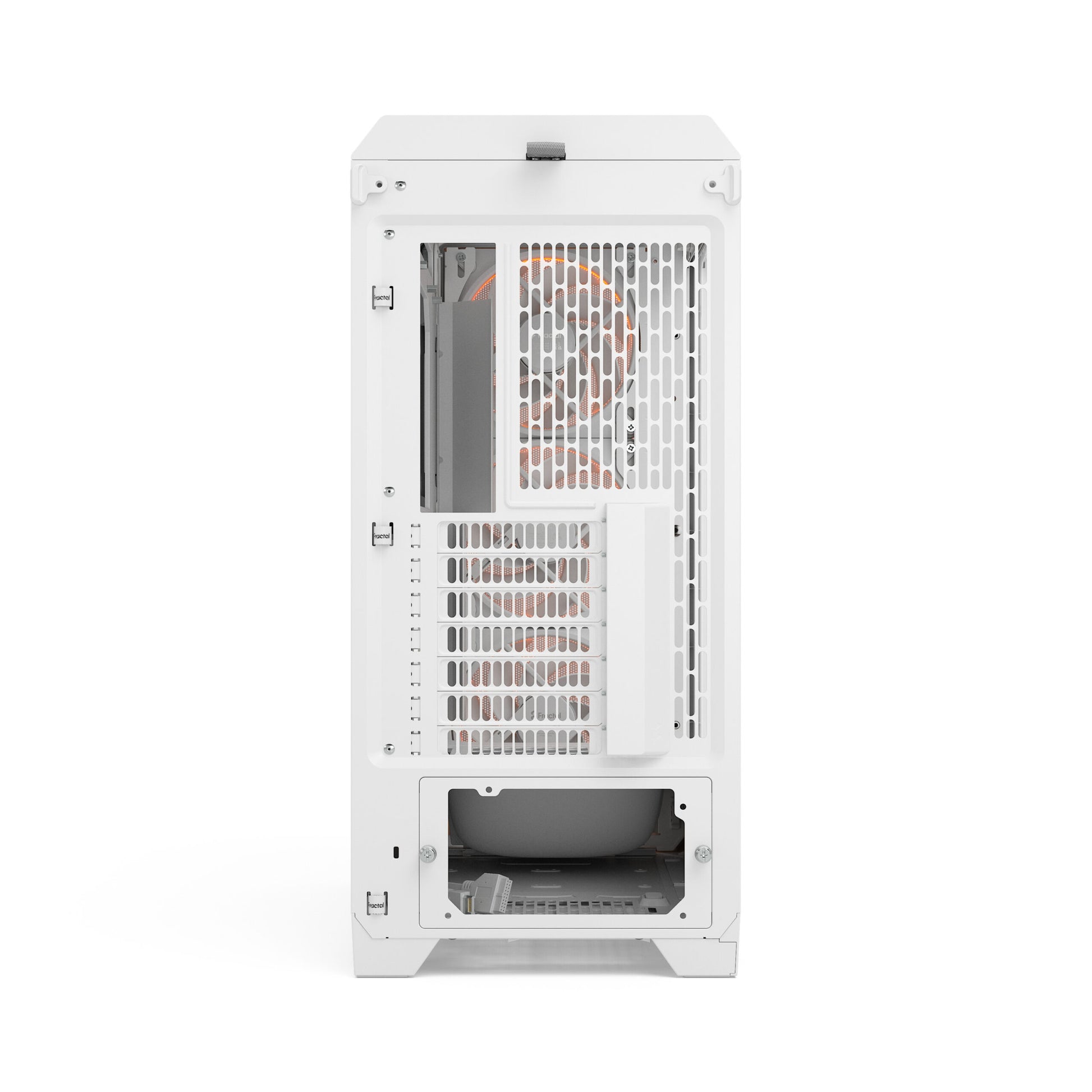

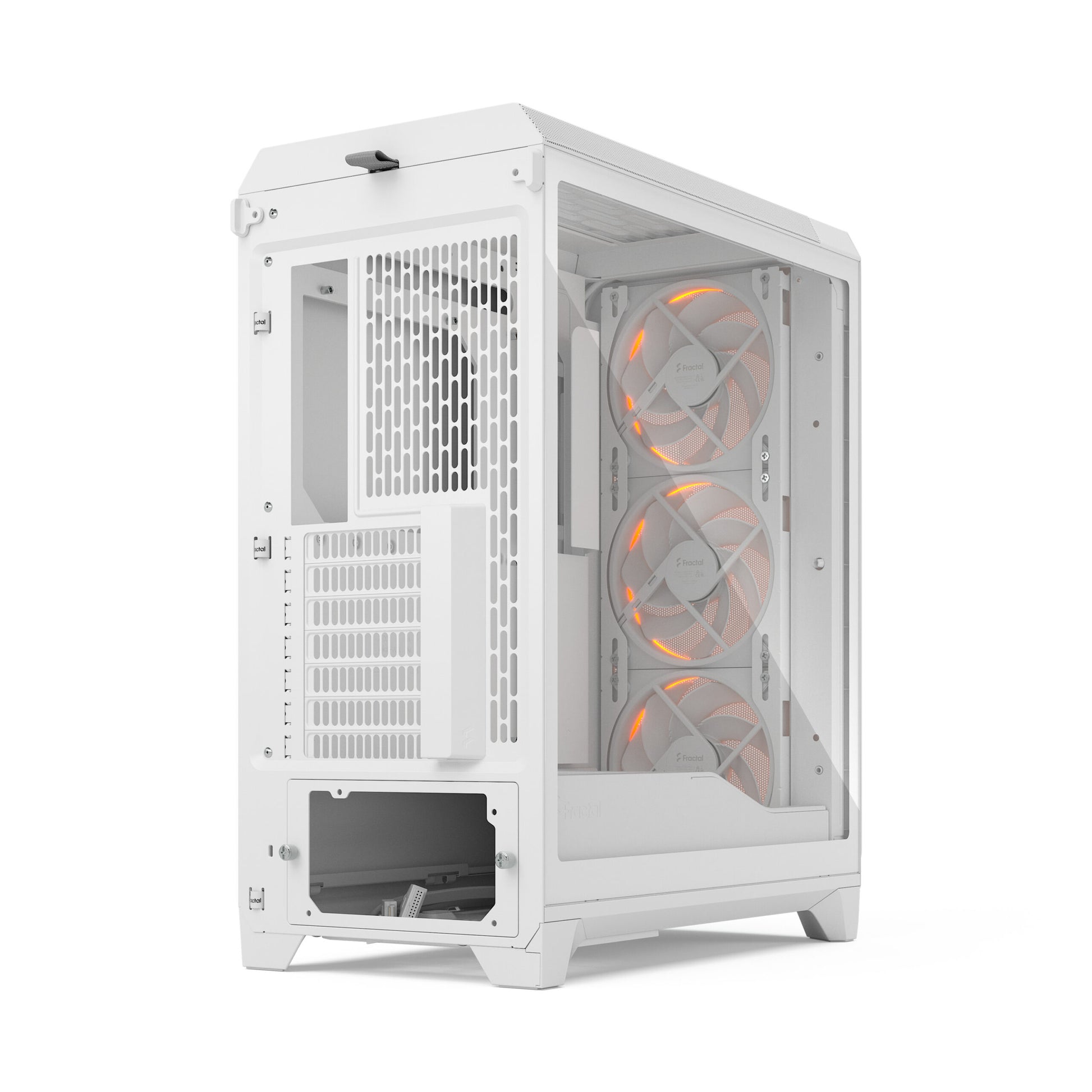

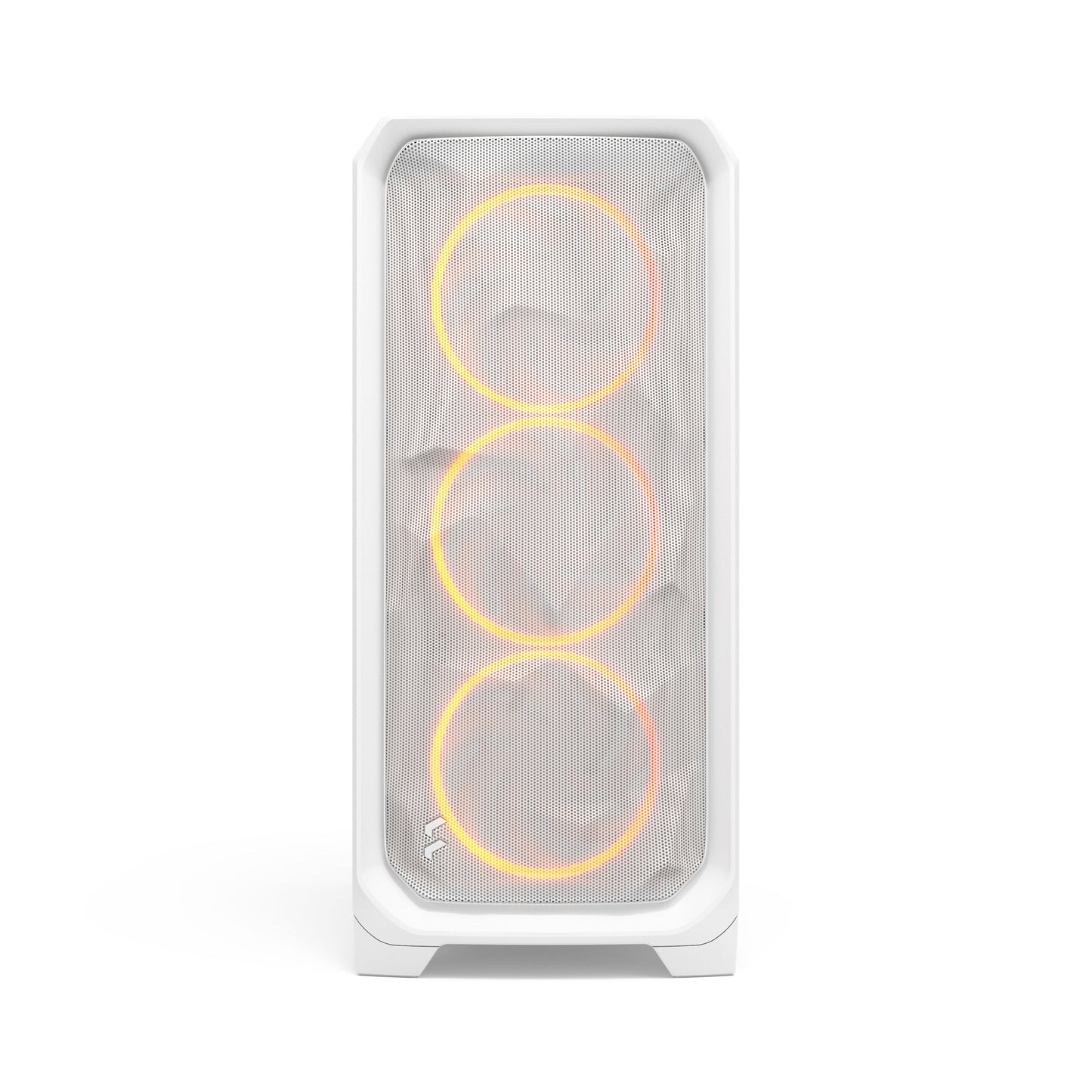

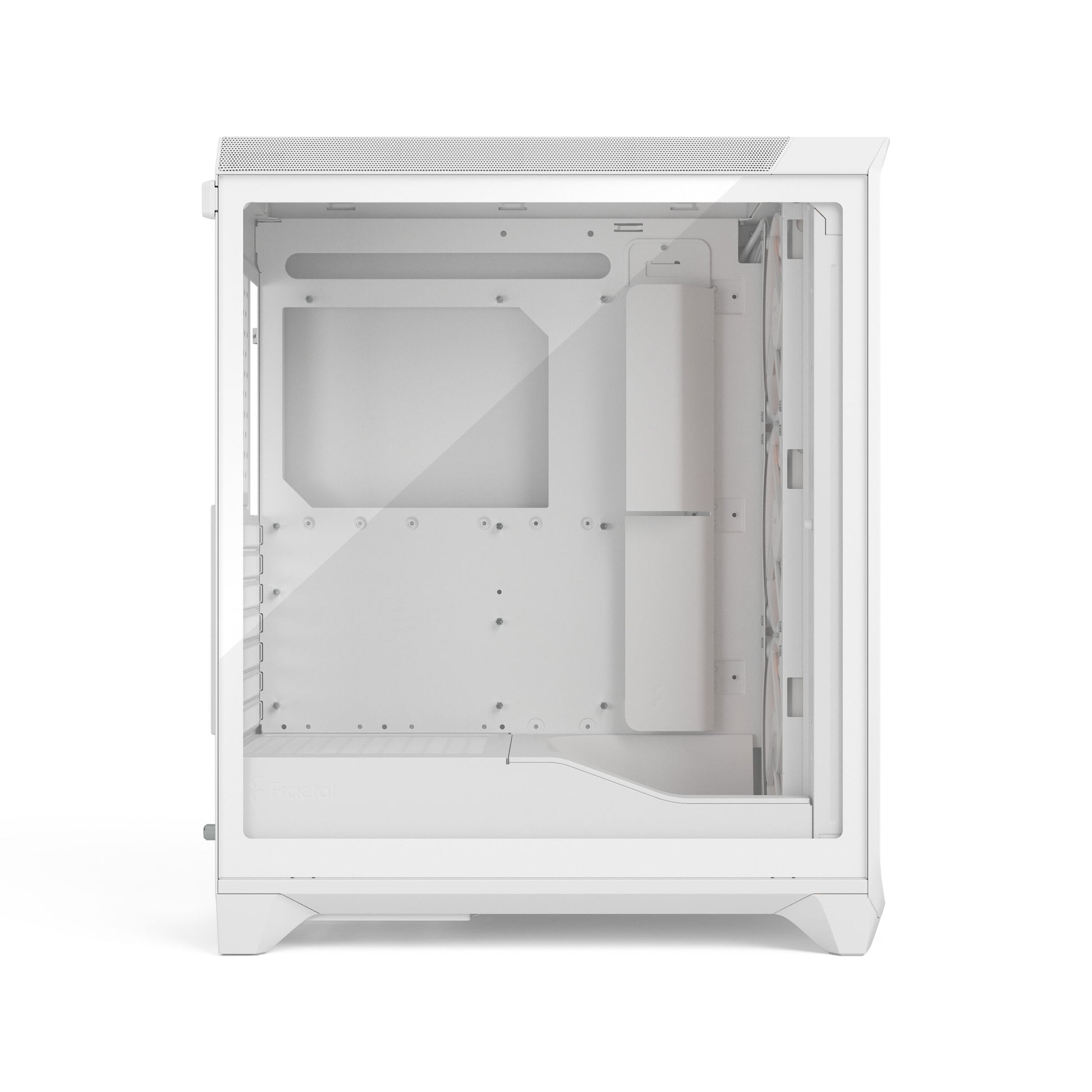

Fractal Design Meshify 3 Black and White RGB TG Light Tint
Fractal Design Meshify 3 Black and White RGB TG Light Tint
Brand : Fractal Design
SKU: SKU: FD-C-MES3A-07
No reviews
Low stock: 2 left
Regular price
₱11,875.00
Regular price
Sale price
₱11,875.00
Unit price
/
per
Couldn't load pickup availability
Meshify 3
Experience advanced cooling and expressive, aerodynamic design. An evolution of our mesh performance series, Meshify 3 offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.
Specifications
-
3.5"/2.5" drive mounts2/4
-
Dedicated 2.5" drive mounts2 (6 total)
-
5.25” drive mounts-
-

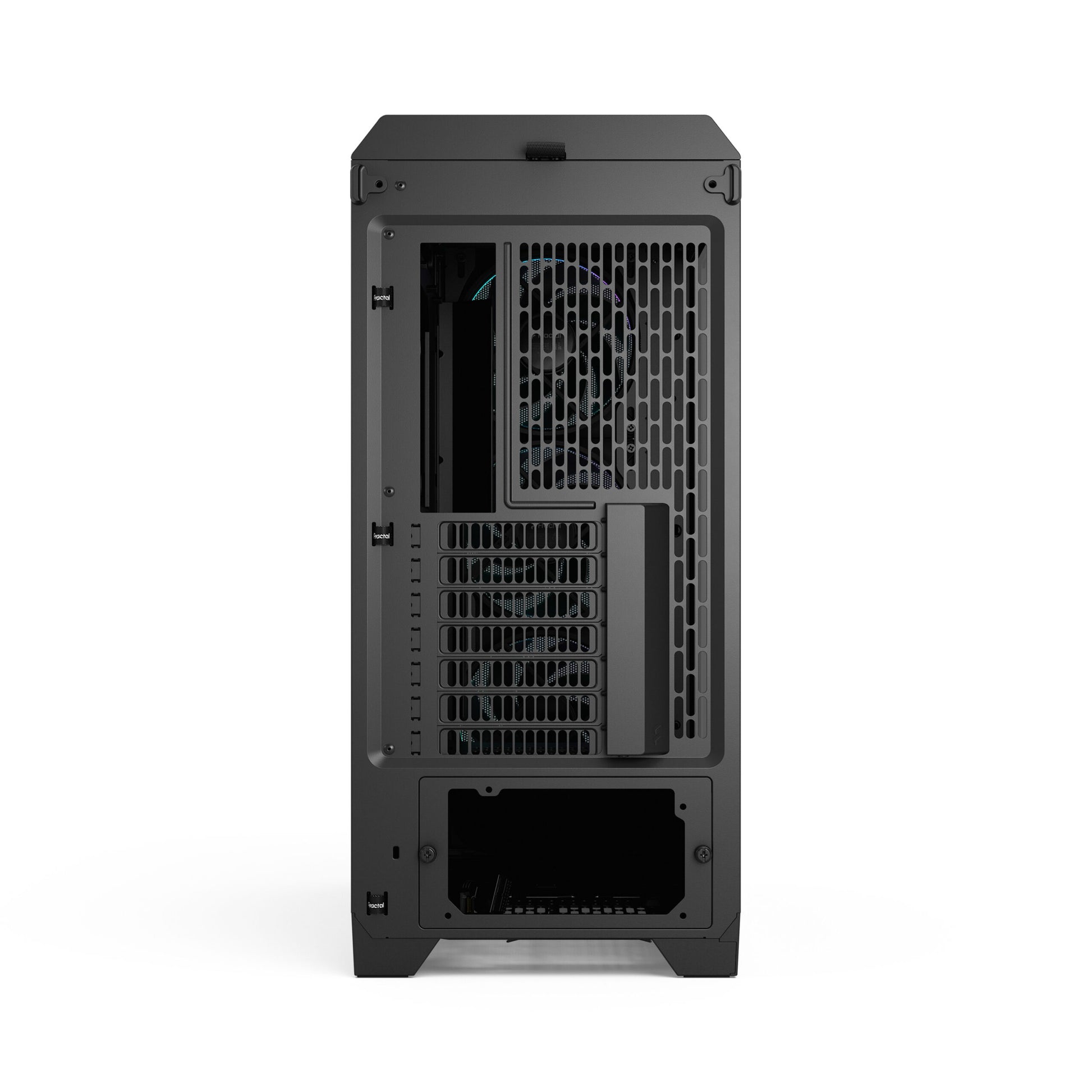

Expansion slots7
-
Adjust Pro HubIncluded in Ambience Pro RGB version
-
Ambient Case LightingAmbience Pro RGB version
-

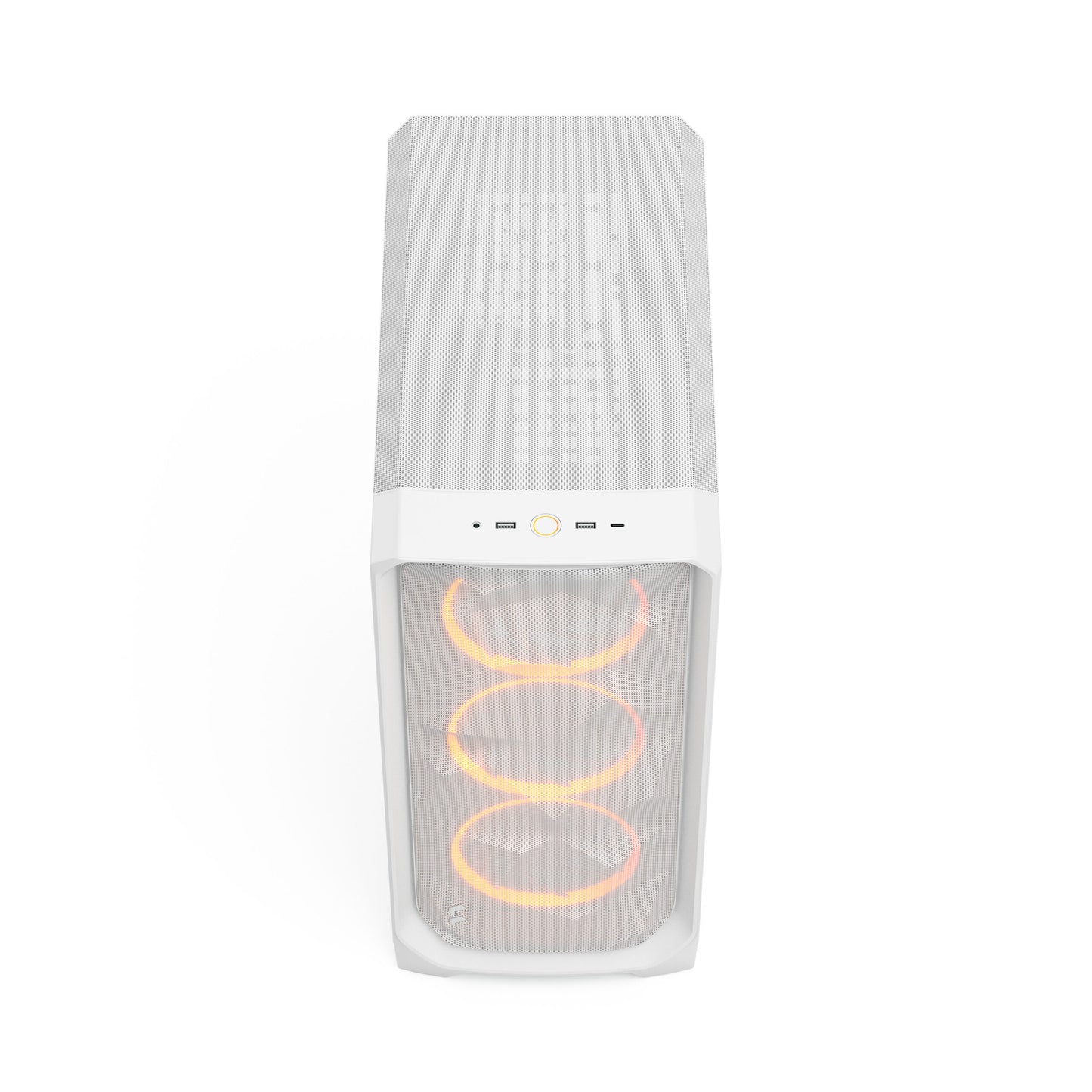

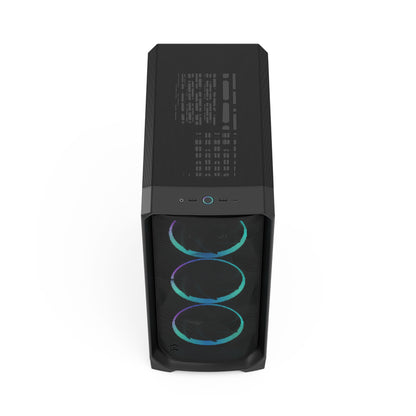

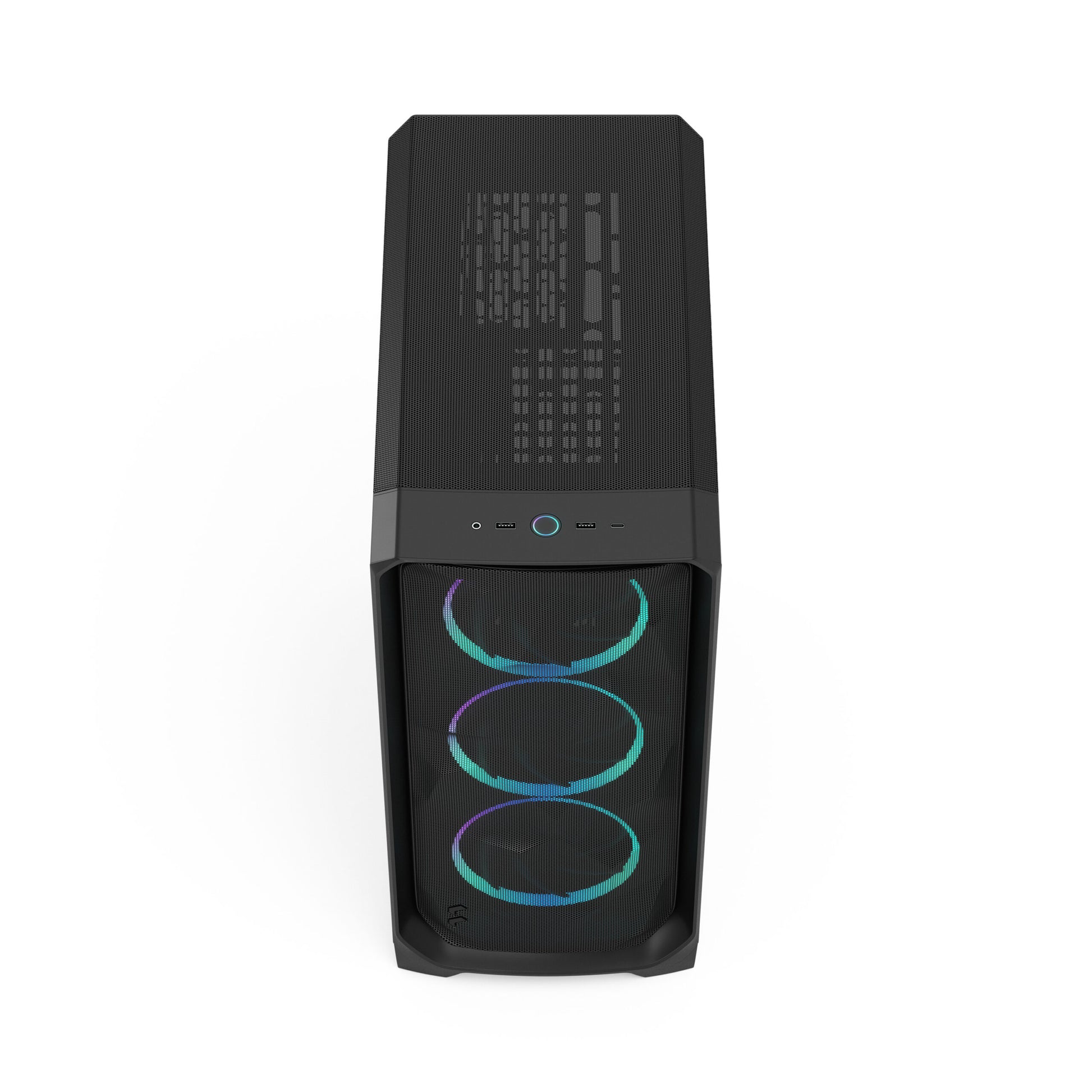

Front interface1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
-
Total fan mounts6x 120 mm or 5x 140 mm + 1x 120 mm
-

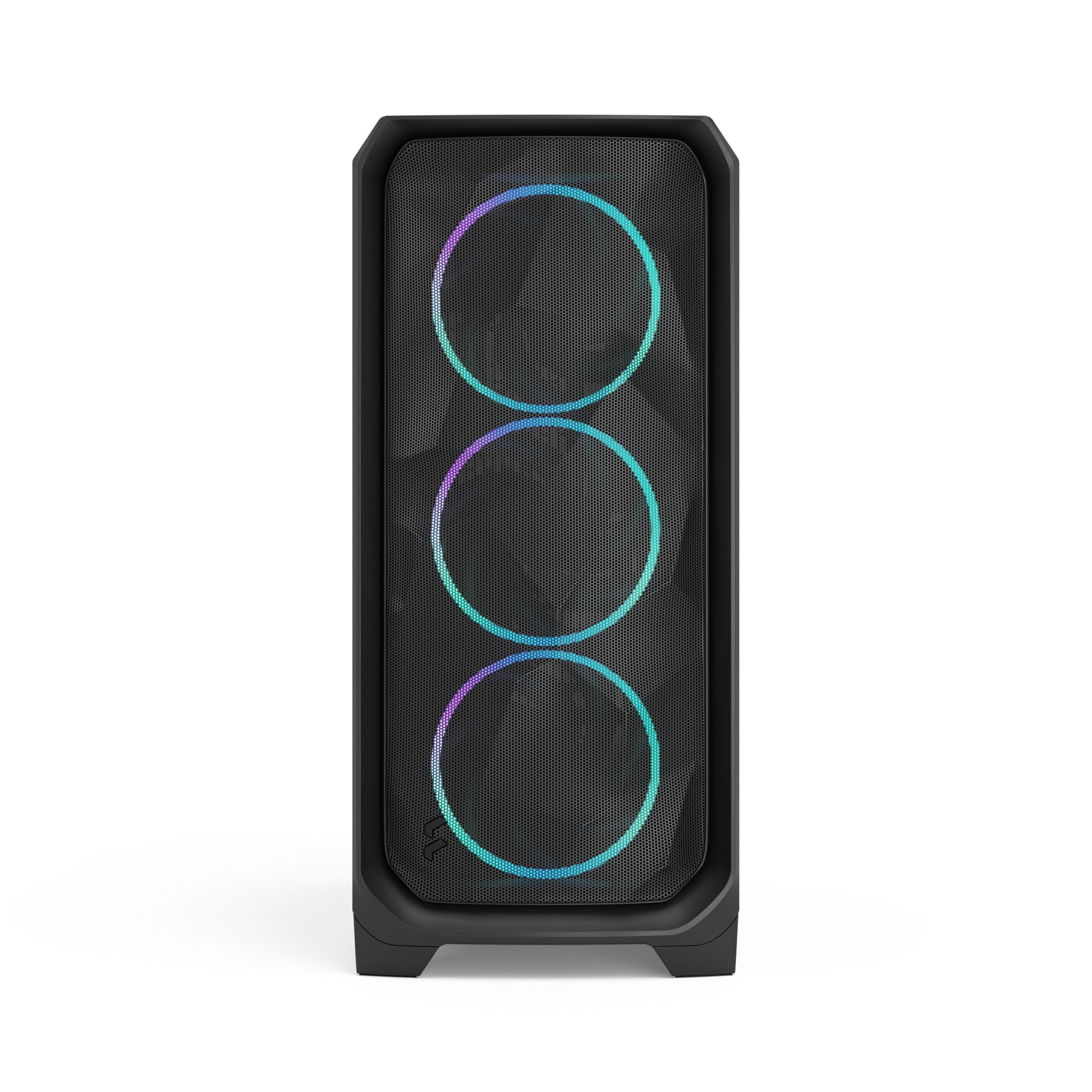

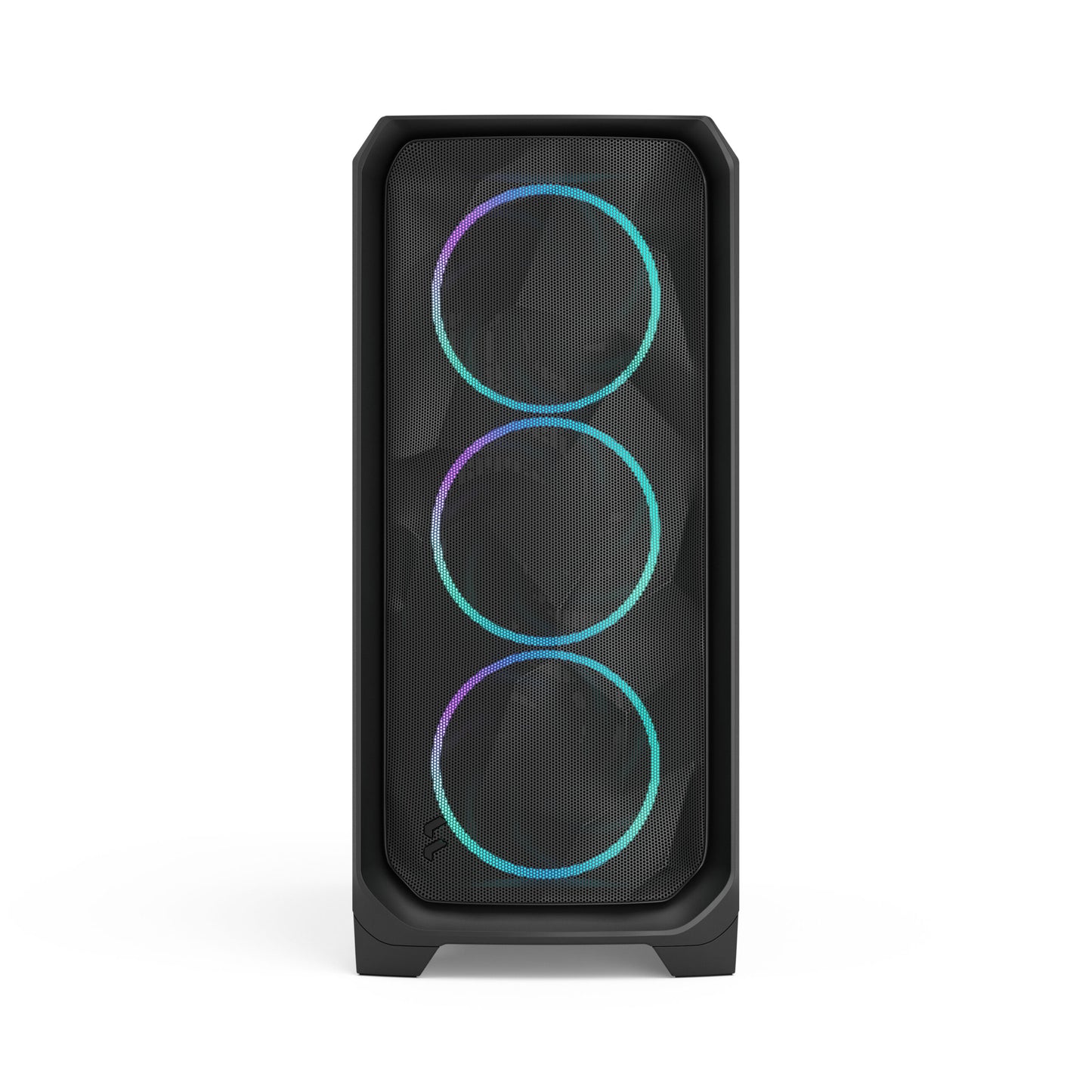

Front fan3x 120 mm, 3x 140 mm (3 x 140 mm Momentum Included)
-
Top fan2x 120 mm, 2x 140 mm
-
Rear fan1x 120 mm
-
Bottom fan-
-
Dust filtersPSU (Bottom)
-

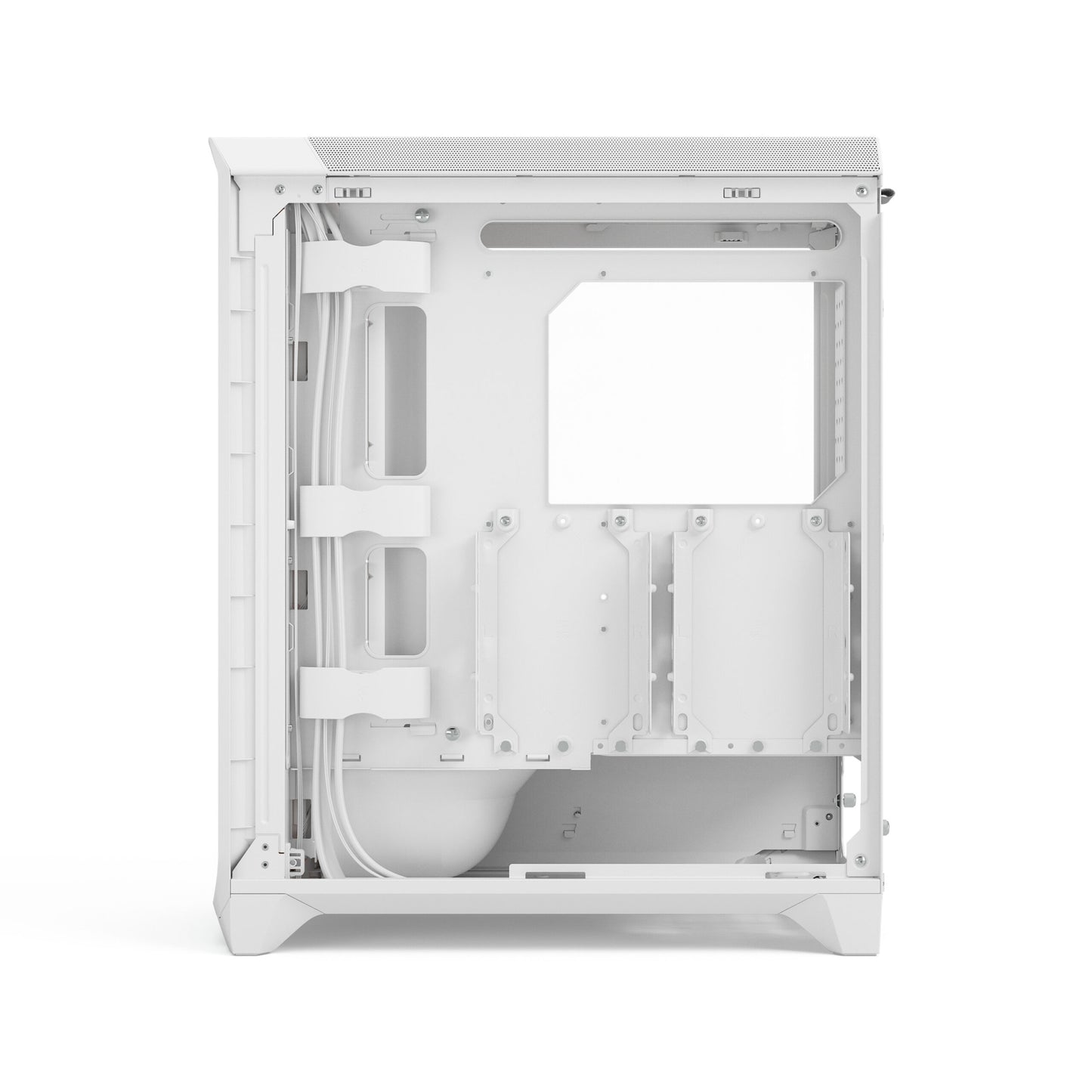

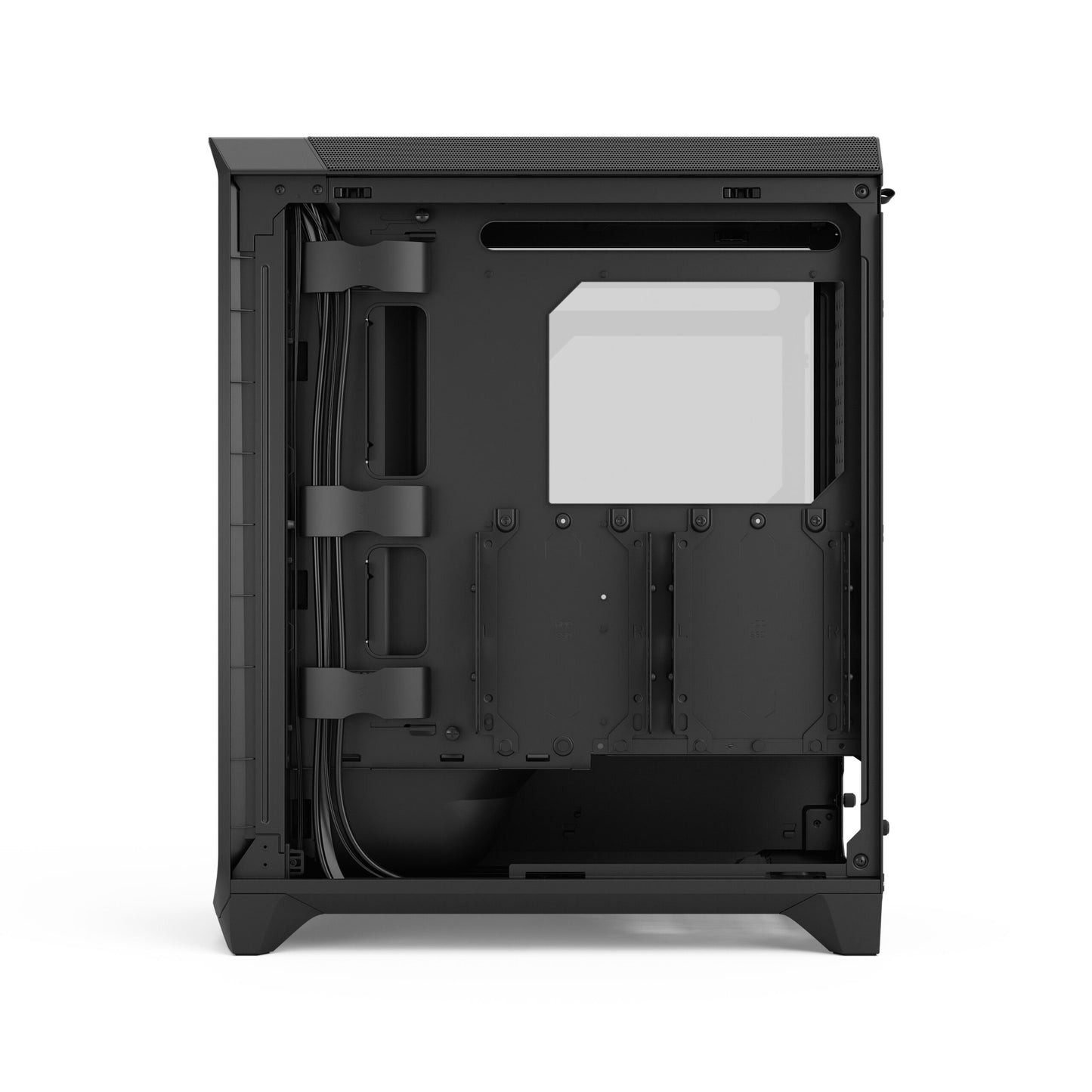

Cable routing space34,5 mm
-
Cable coverYes
-
Cable organizers3 Hook-and-loop straps + 3 Cable Aligners
-

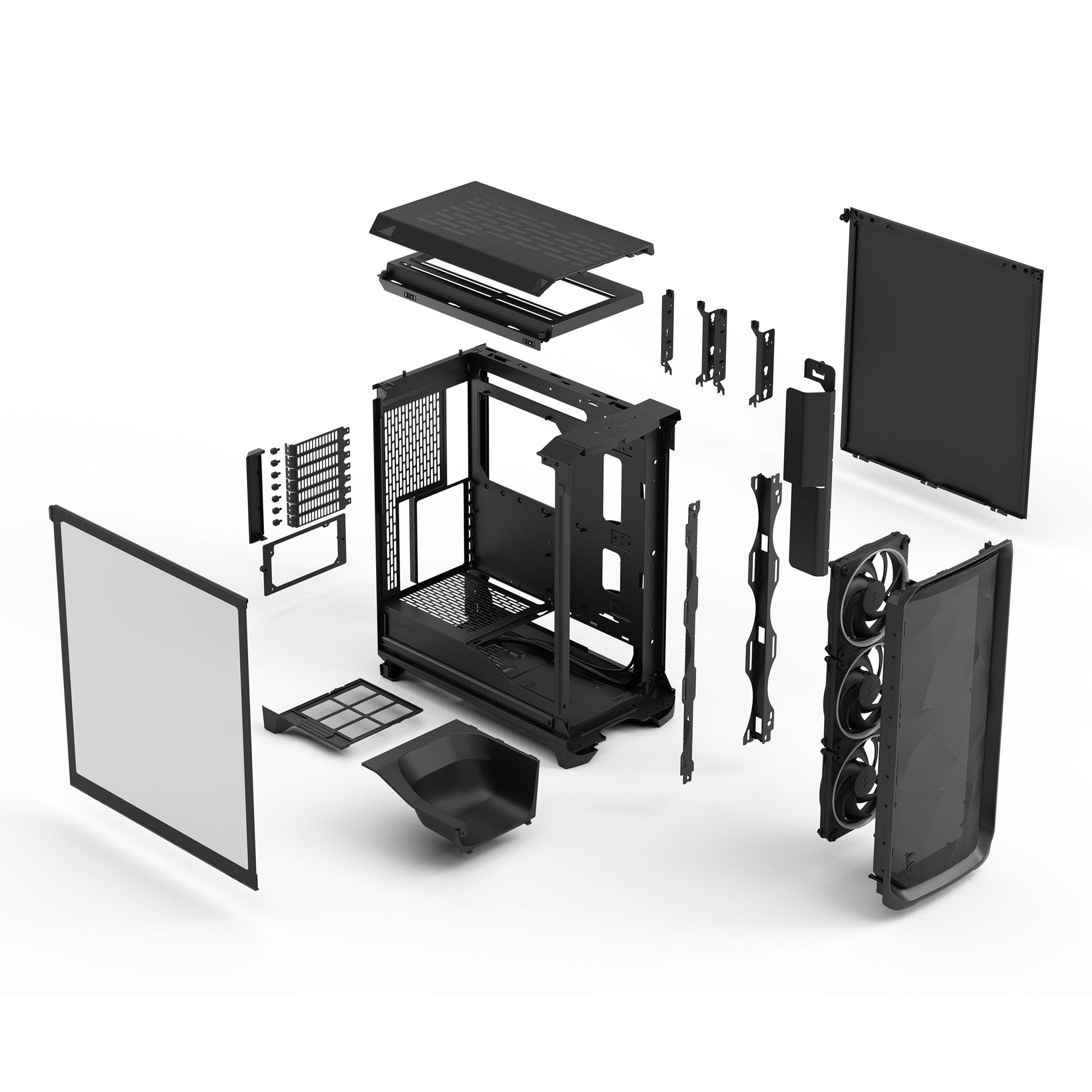

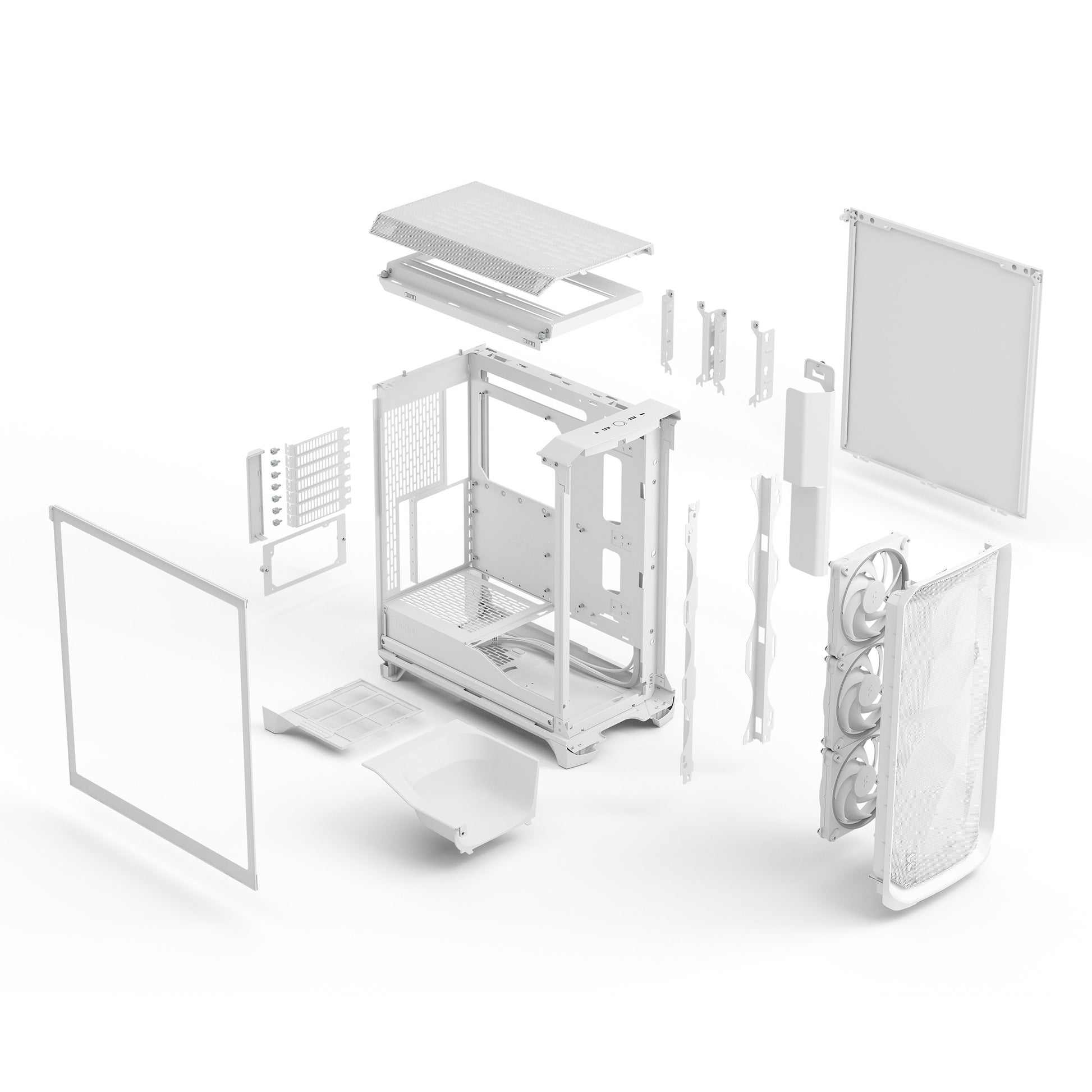

Tool-less push-to-lockBoth Side Panels, Bottom Filter, Front Panel, Top Panel, PSU Bracket
-
Captive thumbscrewsTop Radiator Bracket, PSU Bracket
-
Left side panelIndustrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB)
-

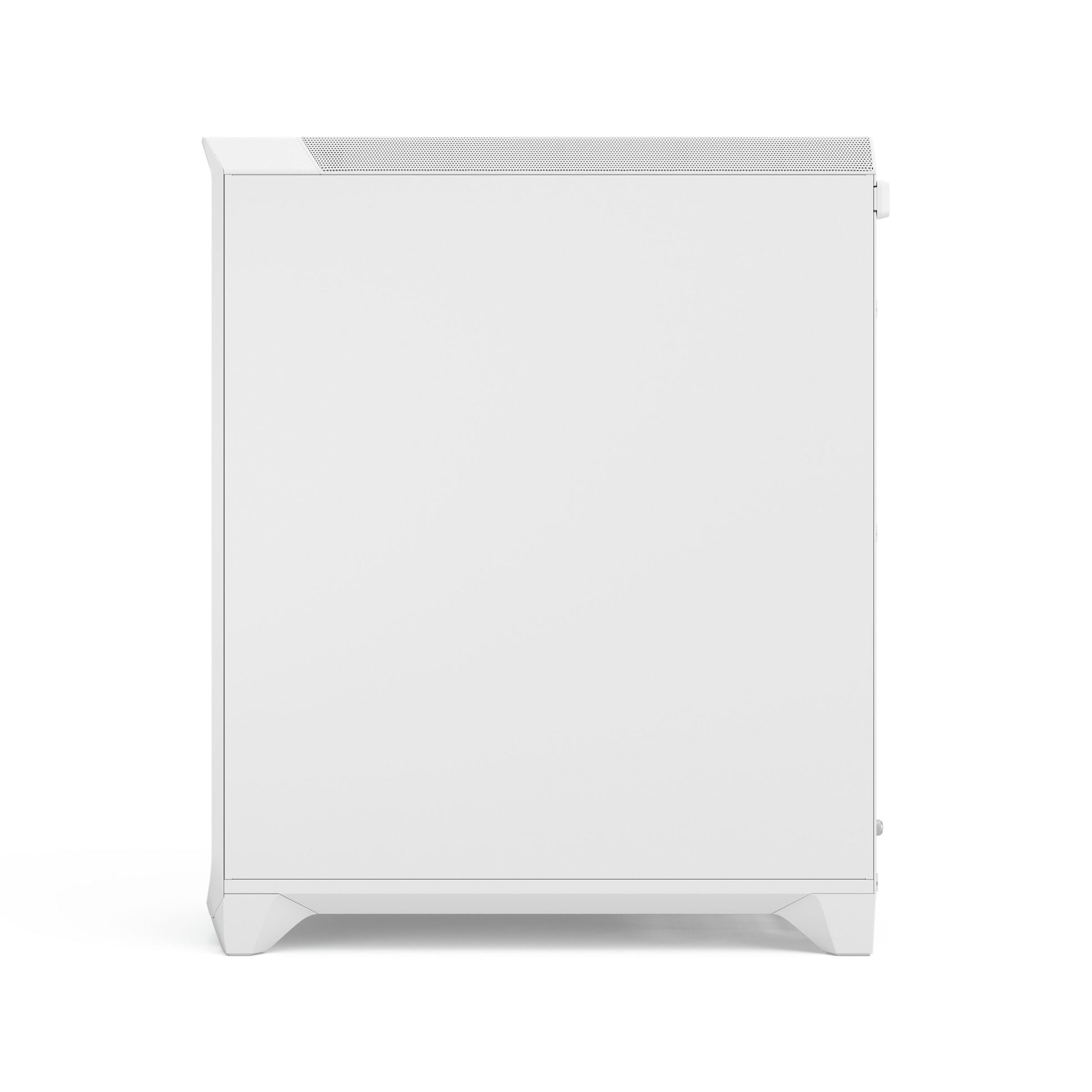

Right side panelIndustrial steel
Compatibility
-
Power supply typeATX
-
Motherboard compatibilityE-ATX (277 mm) / ATX / MATX / m-ITX
-
PSU max length180 mm
-
GPU max length349 mm
-
GPU max height176 mm (7 slot) including cables
-
CPU cooler max height173 mm
-
Front radiator280/360 mm
-
Top radiator240/280 mm
-
Rear radiator120 mm
-
Bottom radiator-
Dimensions
-
Case dimensions (LxWxH)433 x 229 x 507 mm
-
Case dimensions w/o feet/protrusions/screws423 x 229 x 483 mm
-
Package dimensions596 x 345 x 550 mm
-
Net weight8.7 kg (Solid) 8.8 kg (TG and RGB) 9.1 kg (Ambience Pro RGB)
-
Gross weight10.5 kg (Solid) 10.6 kg (TG and RGB) 11.1 kg (Ambience Pro RGB)
Other
-
Package contentsCase, Accessory Box, manual, Manual, Red Note
-
Accessory Box content (Solid/TG/RGB)Motherboard Screw x9, PSU Screw x4, SSD Screw x24, HDD Screw x8, Motherboard Standoff x1, HDD Rubber x8, Zip Tie x4
-
Accessory Box content (Ambience Pro RGB)Motherboard Screw x9, PSU Screw x4, SSD Screw x24, HDD Screw x8, Motherboard Standoff x1, HDD Rubber x8, Zip Tie x4, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable
-
EANBlack Solid: 7340172707165 Black TG Light Tint: 7340172707172 Ambience Pro RGB Black TG Light Tint: 7340172707189 White TG Clear Tint: 7340172707196 Ambience Pro RGB White TG Clear Tint: 7340172707202 Black RGB TG Light Tint: 7340172709503 White RGB TG Clear Tint: 7340172709510
-
UPCBlack Solid: 843276107161 Black TG Light Tint: 843276107178 Ambience Pro RGB Black TG Light Tint: 843276107185 White TG Clear Tint: 843276107192 Ambience Pro RGB White TG Clear Tint: 843276107208 Black RGB TG Light Tint: 843276109509 White RGB TG Clear Tint: 843276109516
-
Product CodeBlack Solid: FD-C-MES3A-01 Black TG Light Tint: FD-C-MES3A-02 Ambience Pro RGB Black TG Light Tint: FD-C-MES3A-03 White TG Clear Tint: FD-C-MES3A-04 Ambience Pro RGB White TG Clear Tint: FD-C-MES3A-05 Black RGB TG Light Tint: FD-C-MES3A-06 White RGB TG Clear Tint: FD-C-MES3A-07
-
Warranty2 Years
Meshify 3 | Meshify 3 XL | |
---|---|---|
Graphics card (max length) | 349 mm | 512 mm |
Graphics card (max height) | 176 mm (incl. cables) | 189 mm (incl. cables) |
PSU max length | 180 mm | 230 mm |
CPU cooler max height | 173 mm | 182 mm |
Cable routing space | 34,5 mm | 37,5 mm |
Top radiator | 240/280 mm | 360/420 mm |
Front radiator | 280/360 mm | 280/360 mm |
Side radiator | - | 360 mm (with brackets) |
Total fan mounts | 6x 120 mm or 5x 140 mm + 1x 120 mm |
10 (140 mm) / 7 (120 mm)
|
