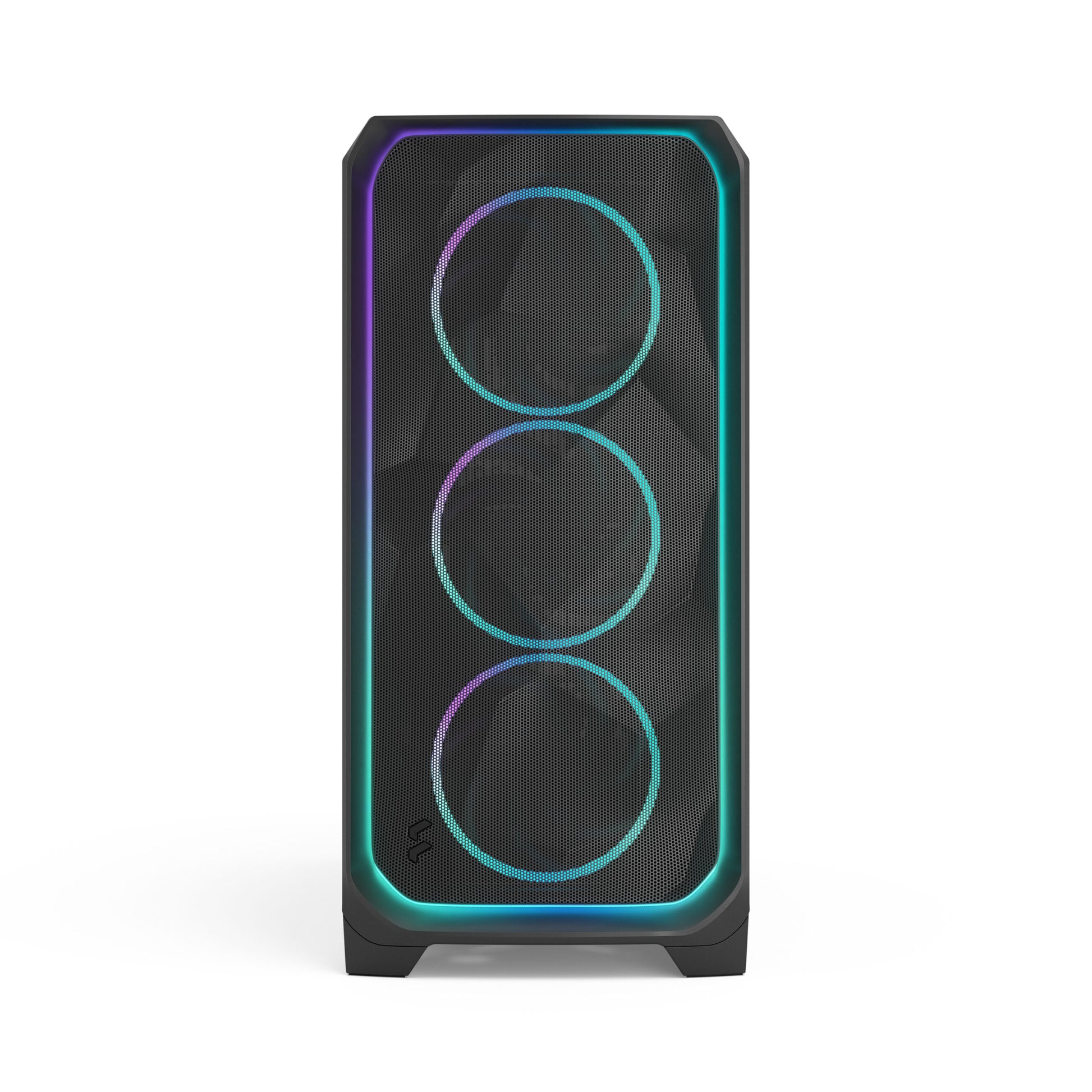

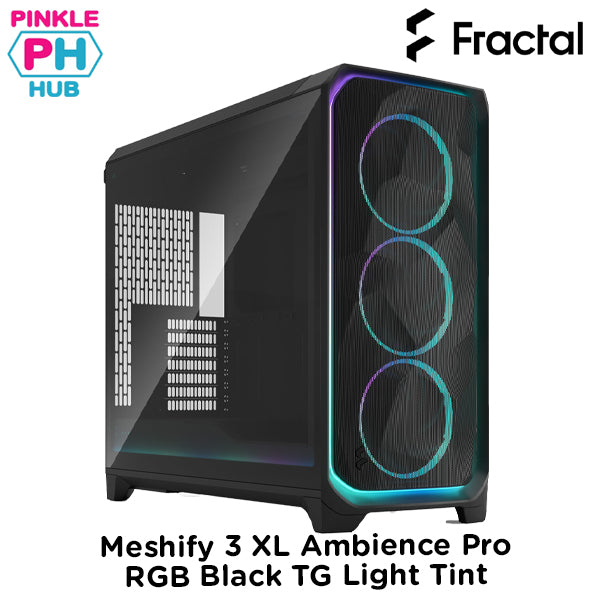

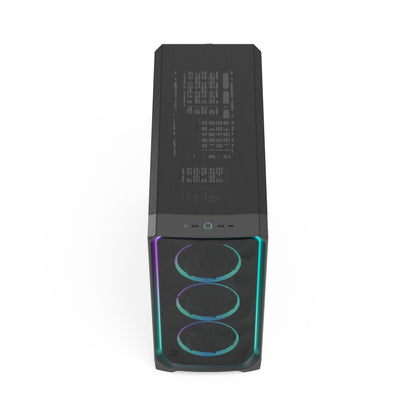

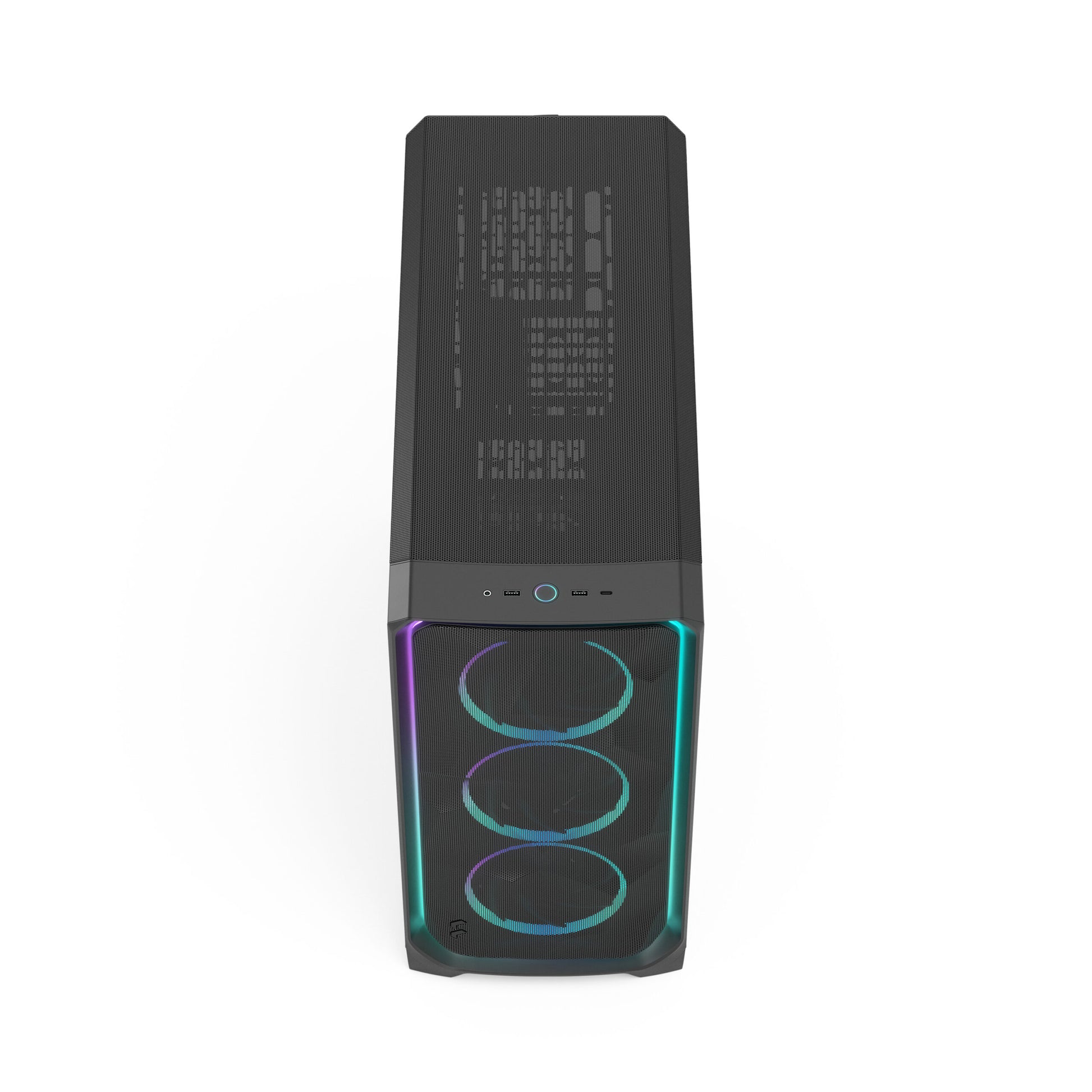

Fractal Design Meshify 3 XL Ambience Pro RGB Black TG Light Tint

Specifications

• 3.5"/2.5" drive mounts
  2/4
• Dedicated 2.5" drive mounts
  1
• 5.25” drive mounts
  -
• Expansion slots
  7
• Adjust Pro Hub
  Included in Ambience Pro RGB version
• Ambience Case Lighting
  Ambience Pro RGB version

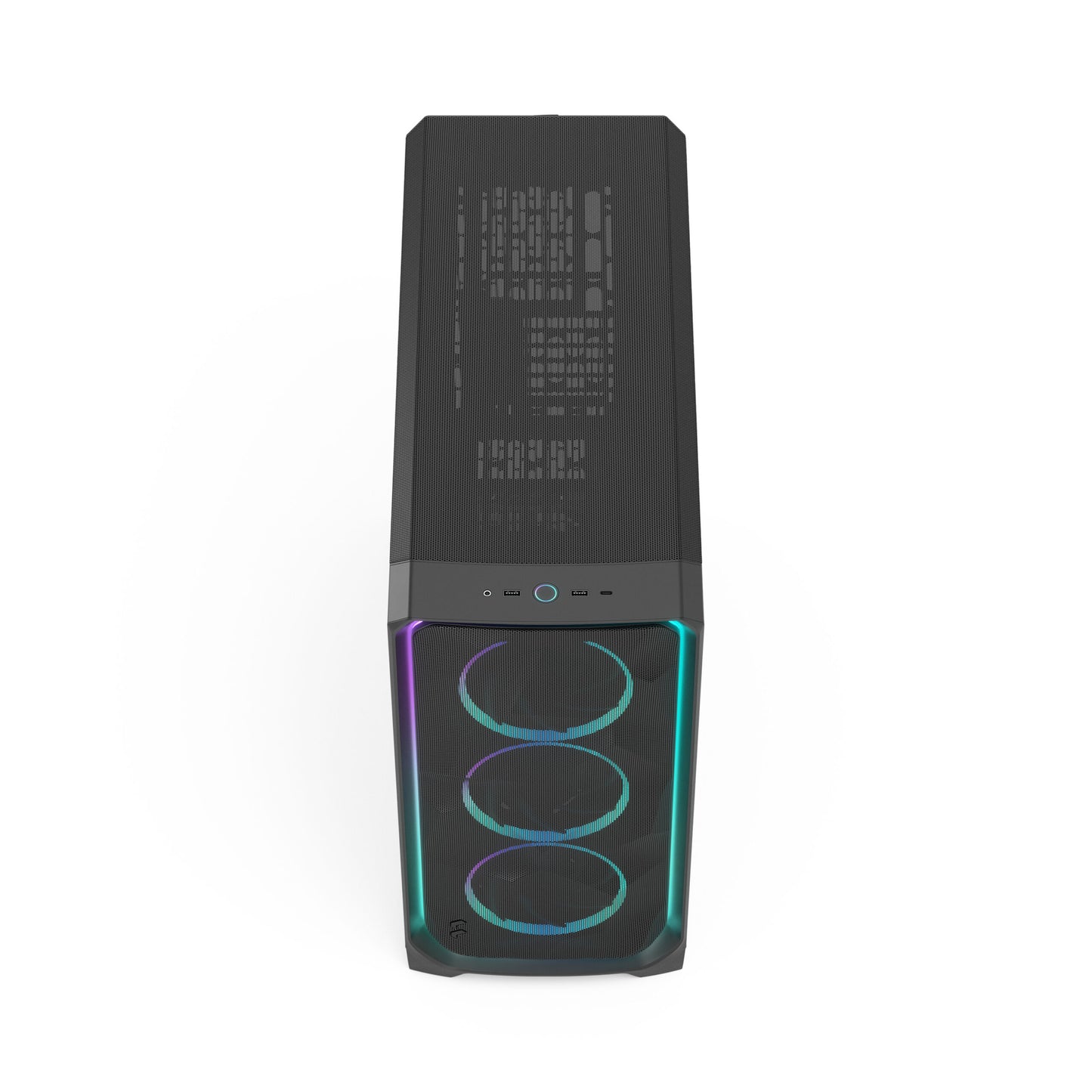

• Front interface
  1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
• Total fan mounts
  10 (140 mm) / 7 (120 mm)

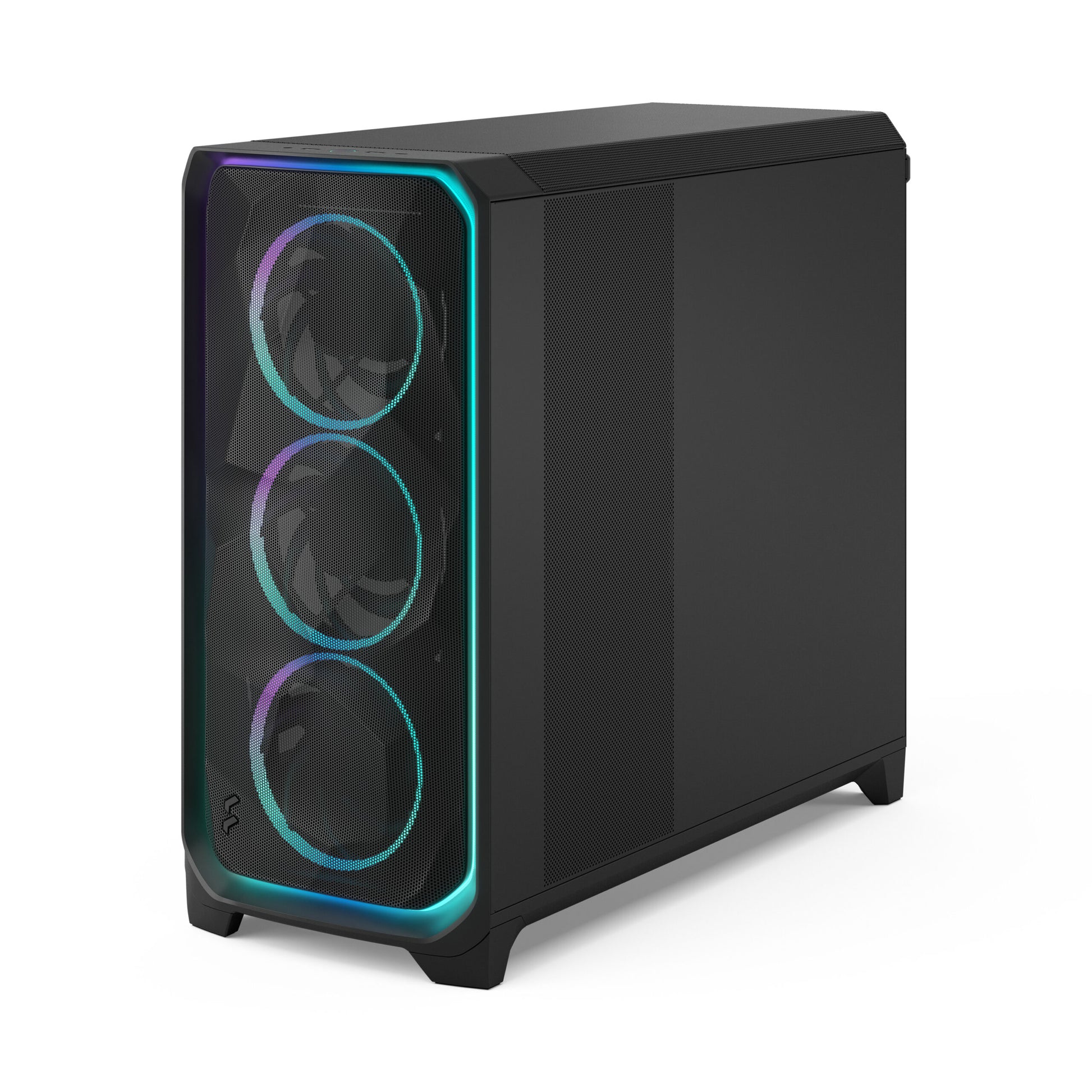

• Front fan
  3x 120/140 mm, 2x 180 mm (3 x 140 mm Momentum Included)
• Top fan
  3x 120/140 mm
• Rear fan
  1x 120/140 mm
• Bottom fan
  -
• Side fan
  3x 140 mm (no 120 support without radiator)
• Dust filters
  PSU (Bottom)
• Cable routing space
  37.5 mm
• Cable cover
  Yes
• Cable organizers
  3 Hook-and-loop straps + 3 Cable Aligners
• Tool-less push-to-lock
  Both Side Panels, Bottom Filter, Front Panel, Top Panel
• Captive thumbscrews
  Top Radiator Bracket, Air Guide, PSU Bracket

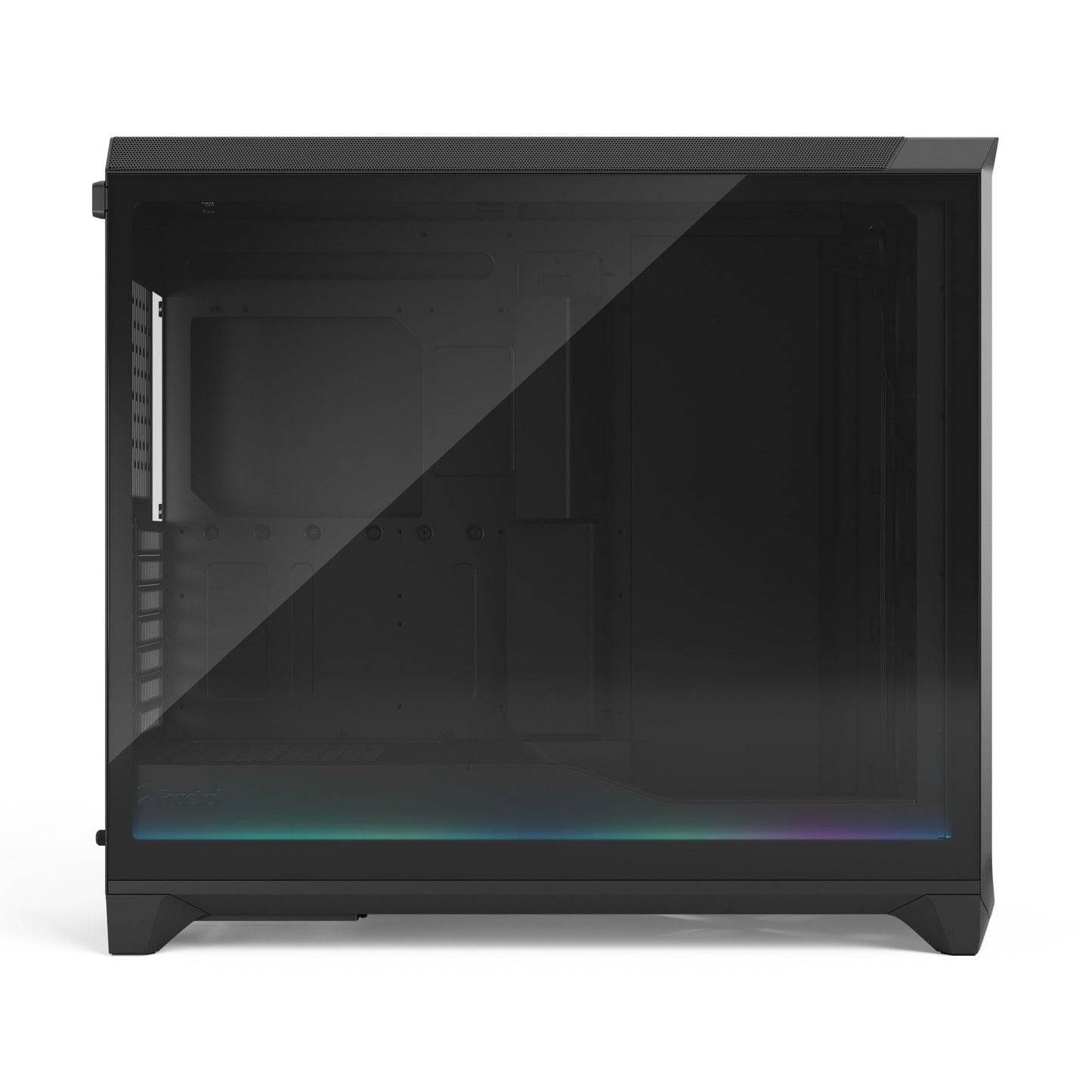

• Left side panel
  Industrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB)
• Right side panel
  Industrial steel

Compatibility

• Power supply type
  ATX
• Motherboard compatibility
  E-ATX (330 mm) / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB
• PSU max length
  230 mm
• GPU max length
  512 mm
• GPU max height
  189 mm (7 slot) including cables
• CPU cooler max height
  182 mm
• Front radiator
  280/360 mm
• Top radiator
  360/420 (up to 475) mm
• Rear radiator
  Up to 120/140 mm
• Side radiator
  360 mm (with brackets)

Dimensions

• Case dimensions (LxWxH)
  575 x 245 x 515 mm
• Case dimensions w/o feet/protrusions/screws
  565 x 245x 515
• Package dimensions
  596 x 350 x 550 mm
• Net weight
  10.5 kg (Solid) 10.9 kg (TG and RGB) 11.4 kg (Ambience Pro RGB)
• Gross weight
  12.4 kg (Solid) 13 kg (TG and RGB) 13.3 kg (Ambience Pro RGB)

Other

• Package contents
  Case, Accessory Box, Manual, Red Note
• Accessory Box content (Solid/TG/RGB)
  PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8
• Accessory Box content (Ambience Pro RGB)
  PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable
• EAN
  Black Solid: 7340172707219 Black TG Light Tint: 7340172707226 Ambience Pro RGB Black TG Light Tint: 7340172707233 Black RGB TG Light Tint: 7340172709527 Ambience Pro RGB White TG Clear Tint: 7340172707240 White RGB TG Clear Tint: 7340172709534
• UPC
  Black Solid: 843276107215 Black TG Light Tint: 843276107222 Ambience Pro RGB Black TG Light Tint: 843276107239 Black RGB TG Light Tint: 843276109523 Ambience Pro RGB White TG Clear Tint: 843276107246 White RGB TG Clear Tint: 843276109530
• Product Code
  Black Solid: FD-C-MES3X-01 Black TG Light Tint: FD-C-MES3X-02 Ambience Pro RGB Black TG Light Tint: FD-C-MES3X-03 Black RGB TG Light Tint: FD-C-MES3X-04 Ambience Pro RGB White TG Clear Tint: FD-C-MES3X-05 White RGB TG Clear Tint: FD-C-MES3X-06
• Warranty
  2 Years
