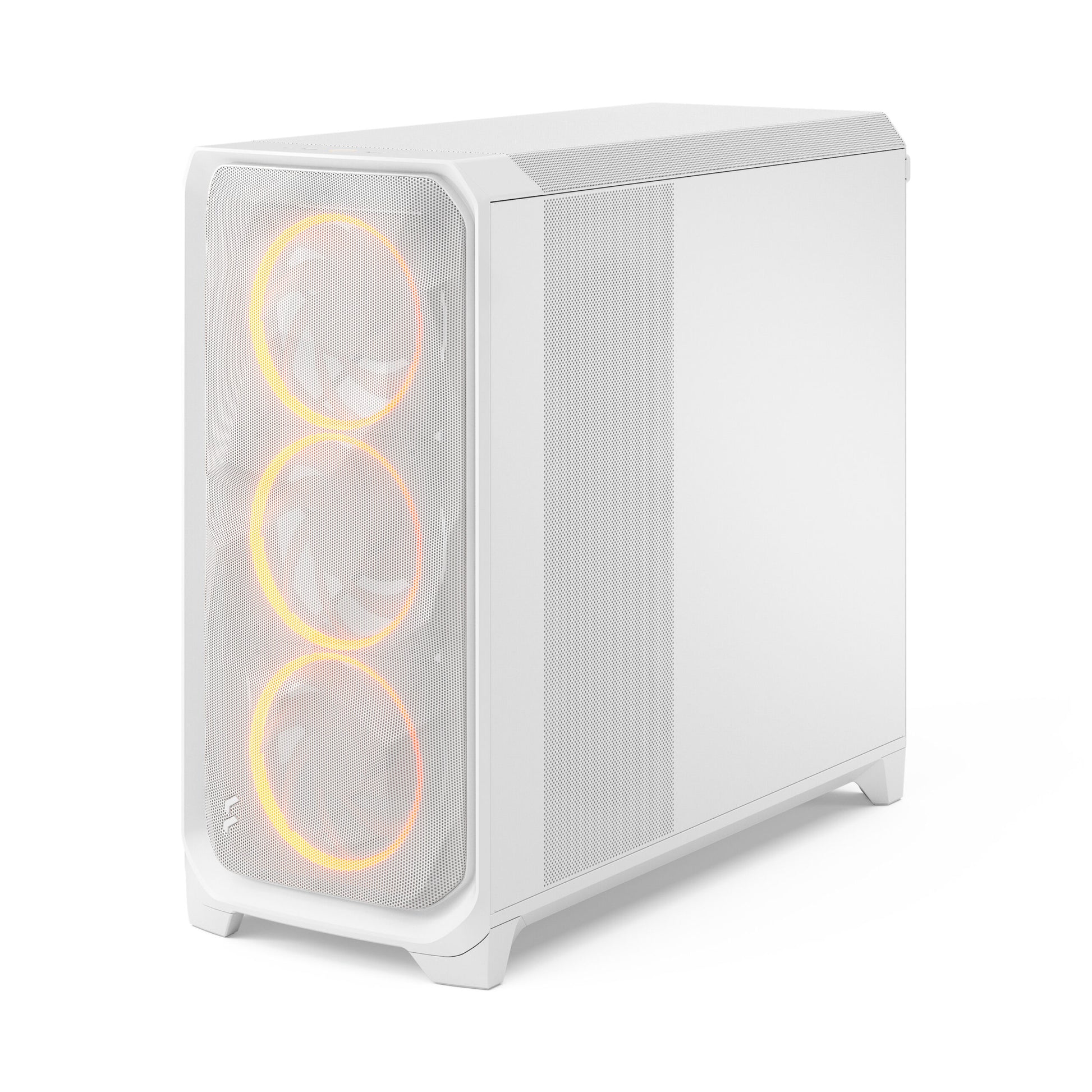

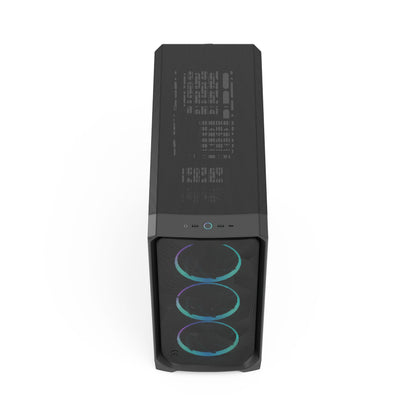

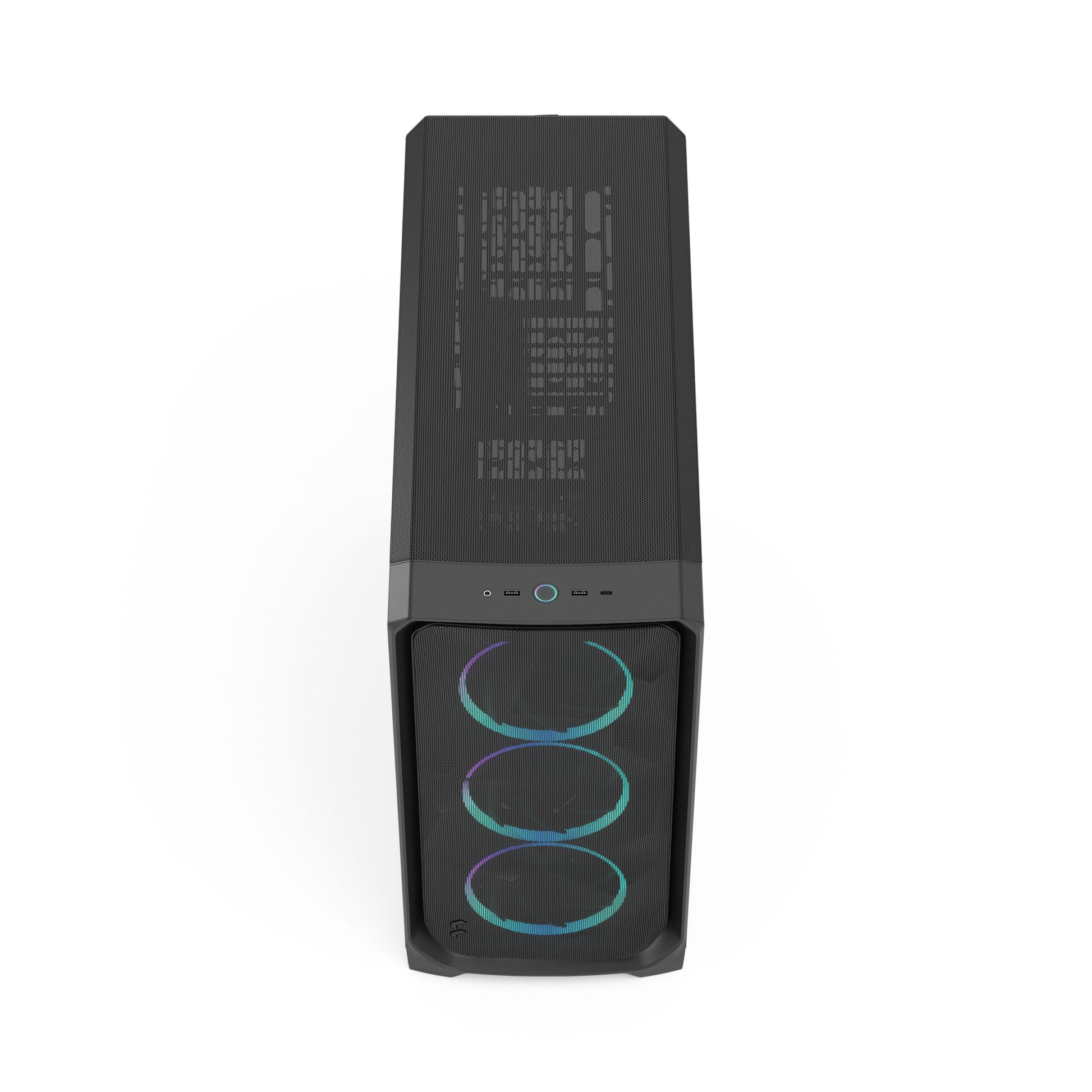

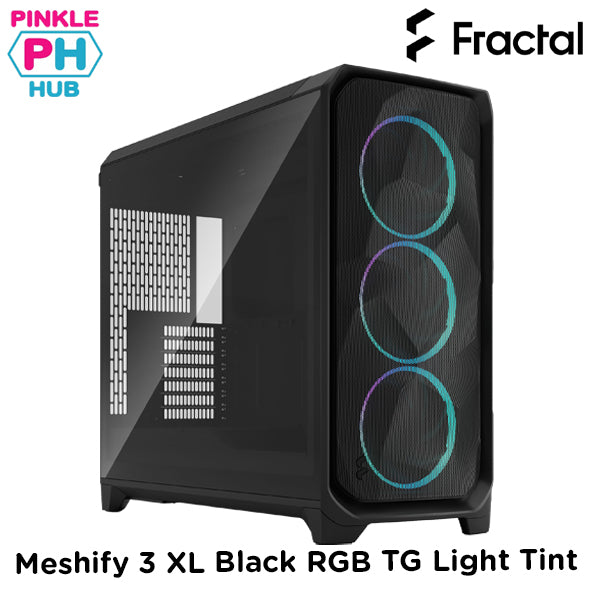

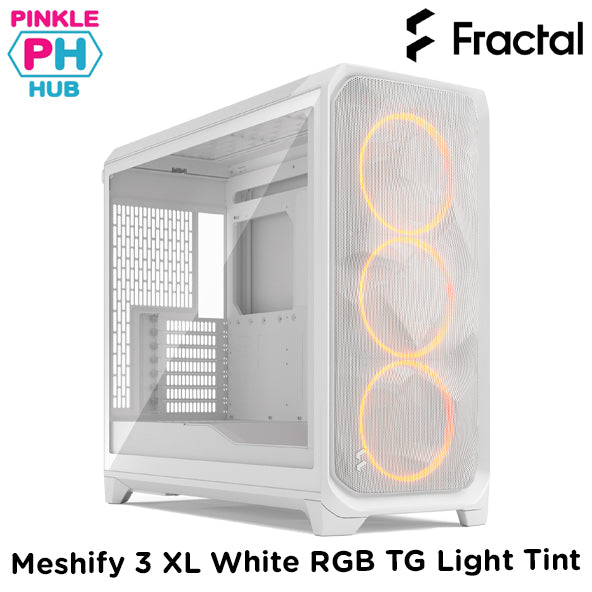

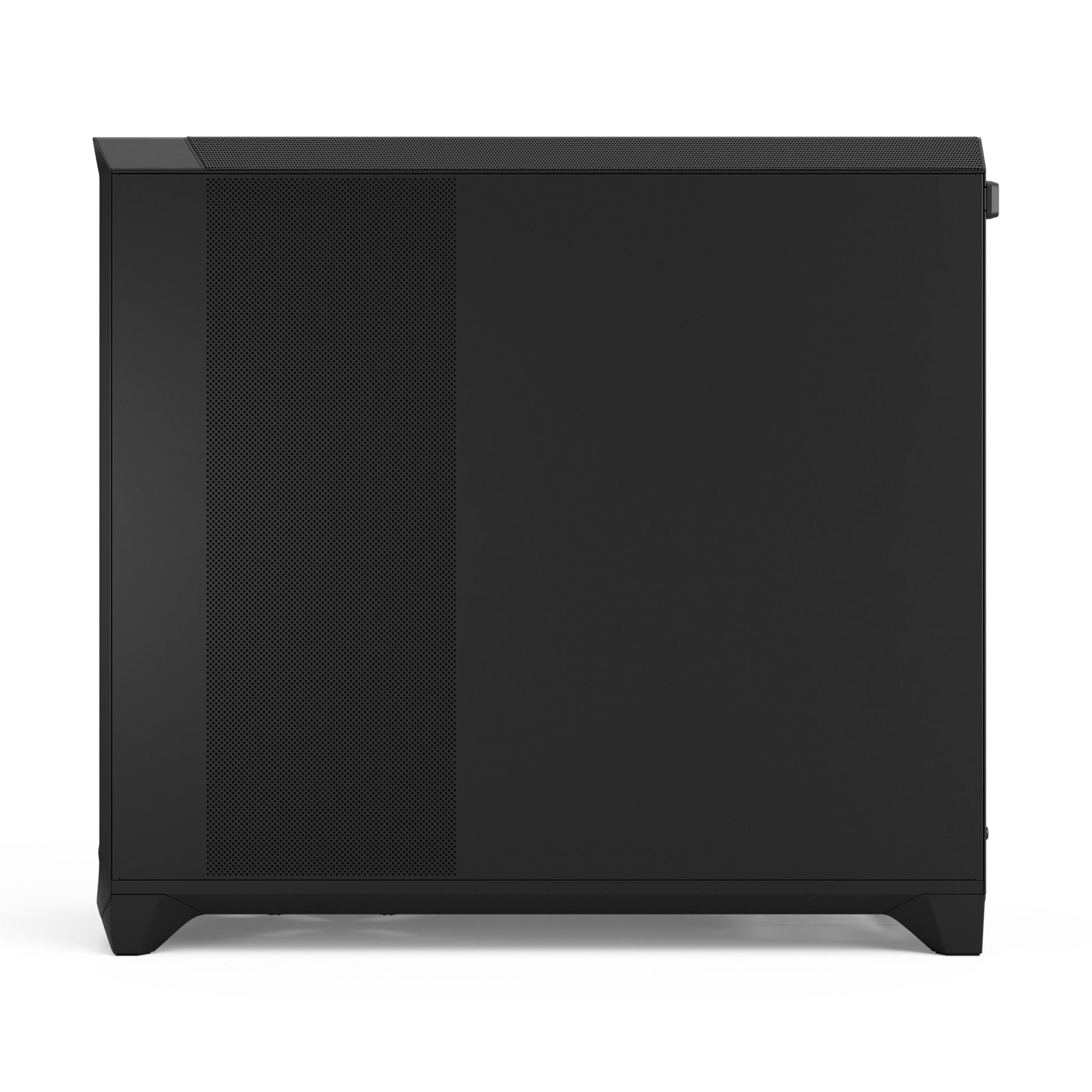

Fractal Design Meshify 3 XL Black/White RGB TG Light Tint

Fractal Design Meshify 3 XL Black/White RGB TG Light Tint

Brand : Fractal Design

SKU: SKU:  FD-C-MES3X-04

Low stock: 1 left

Regular price ₱13,750.00
Regular price Sale price ₱13,750.00
Sale! Sold out

Specifications

  • 3.5"/2.5" drive mounts
    2/4
  • Dedicated 2.5" drive mounts
    1
  • 5.25” drive mounts
    -

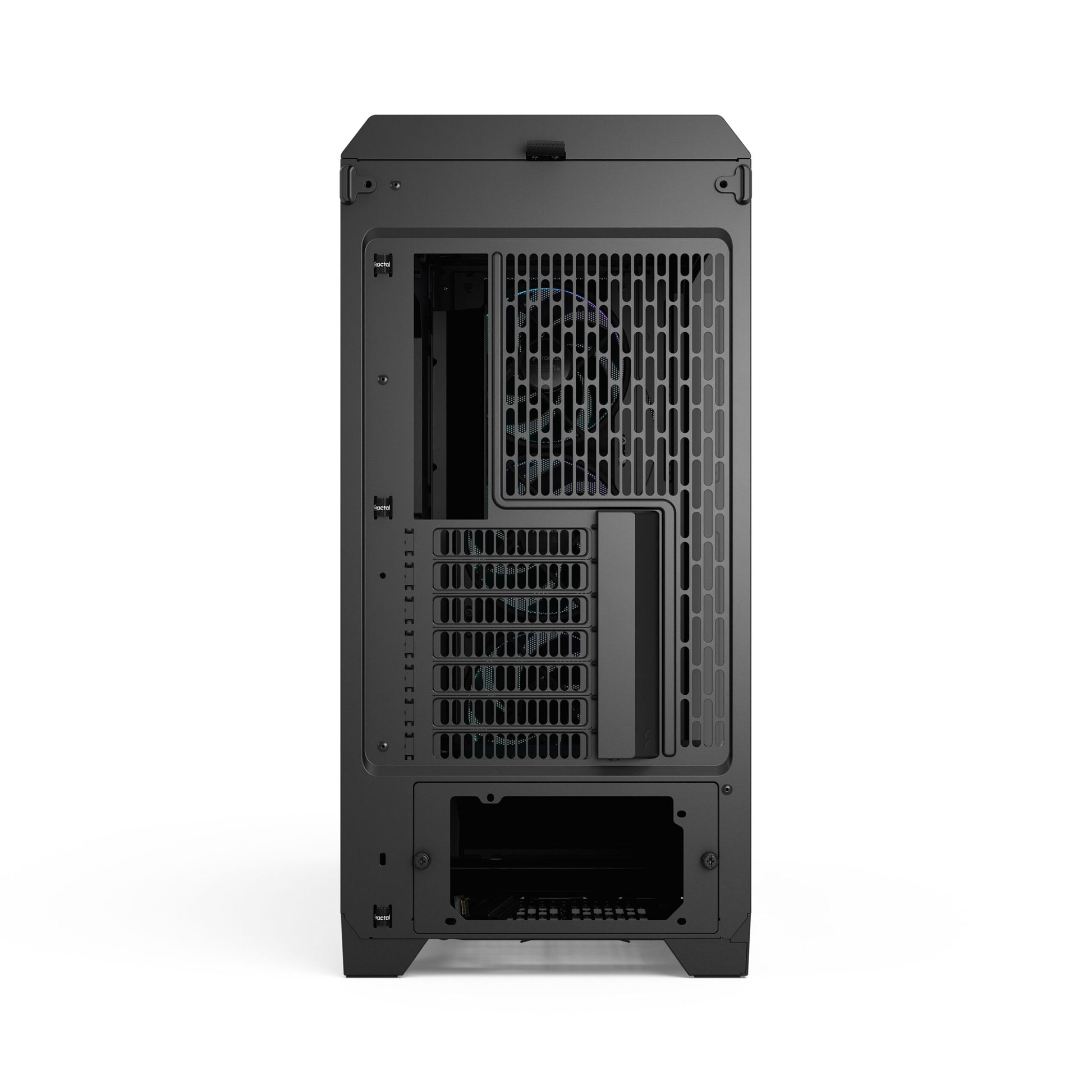

  • Expansion slots
    7
  • Adjust Pro Hub
    Included in Ambience Pro RGB version
  • Ambience Case Lighting
    Ambience Pro RGB version

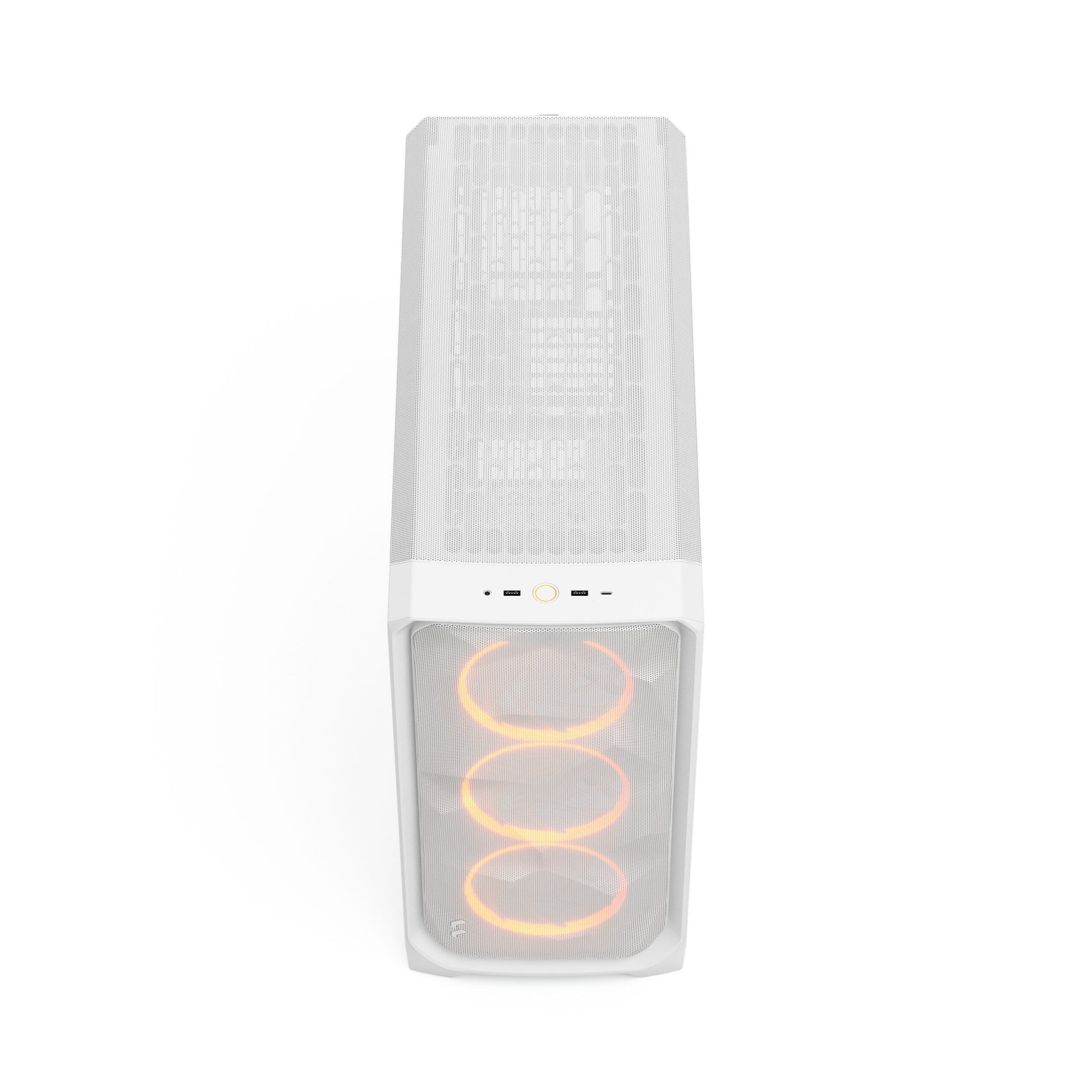

  • Front interface
    1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
  • Total fan mounts
    10 (140 mm) / 7 (120 mm)

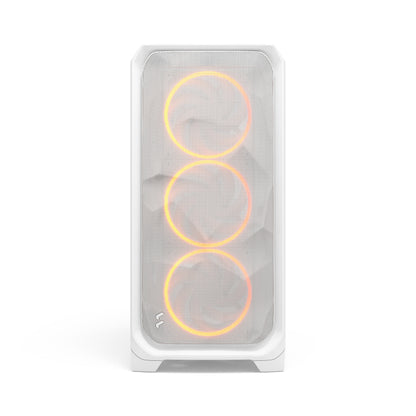

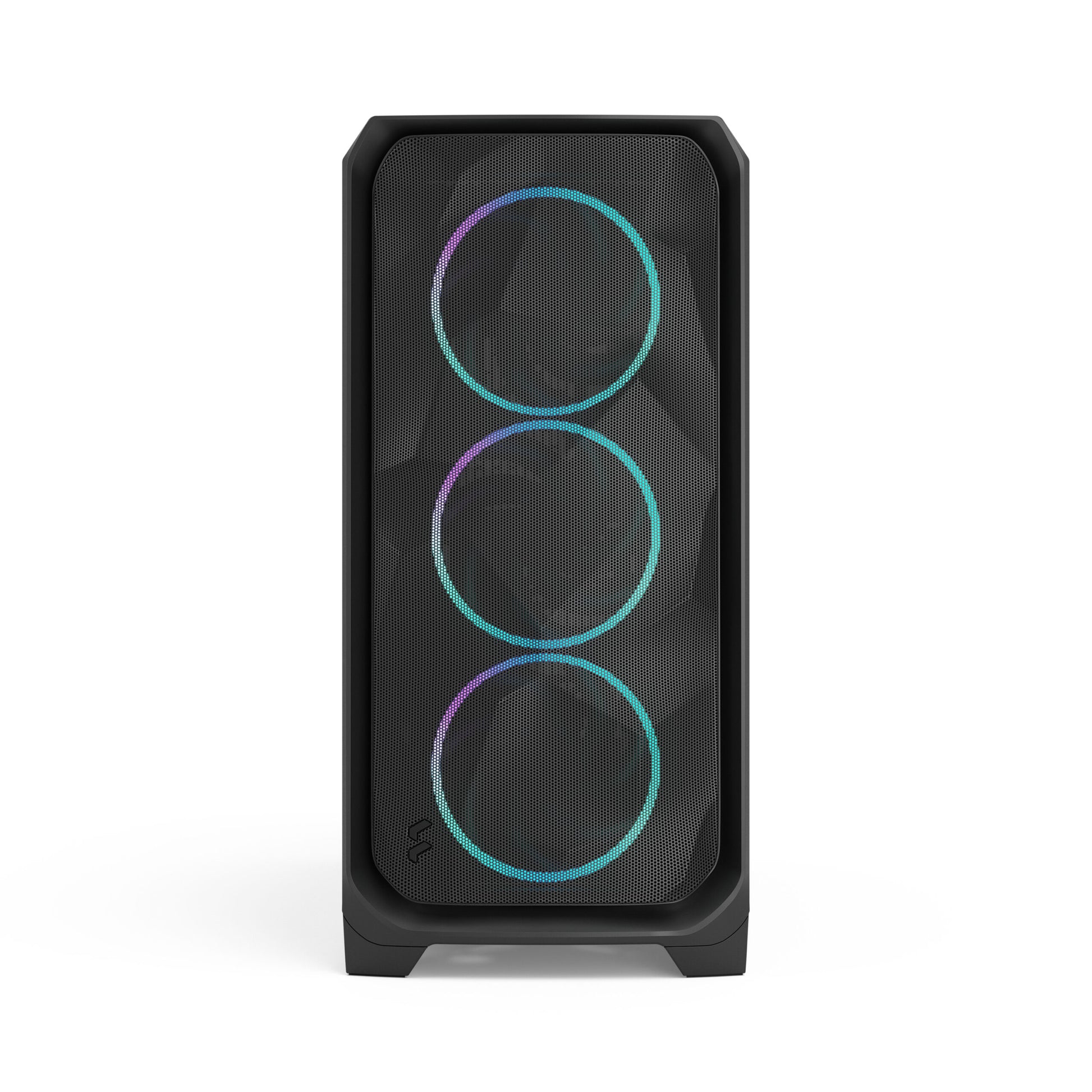

  • Front fan
    3x 120/140 mm, 2x 180 mm (3 x 140 mm Momentum Included)
  • Top fan
    3x 120/140 mm
  • Rear fan
    1x 120/140 mm
  • Bottom fan
    -
  • Side fan
    3x 140 mm (no 120 support without radiator)
  • Dust filters
    PSU (Bottom)
  • Cable routing space
    37.5 mm
  • Cable cover
    Yes
  • Cable organizers
    3 Hook-and-loop straps + 3 Cable Aligners
  • Tool-less push-to-lock
    Both Side Panels, Bottom Filter, Front Panel, Top Panel
  • Captive thumbscrews
    Top Radiator Bracket, Air Guide, PSU Bracket

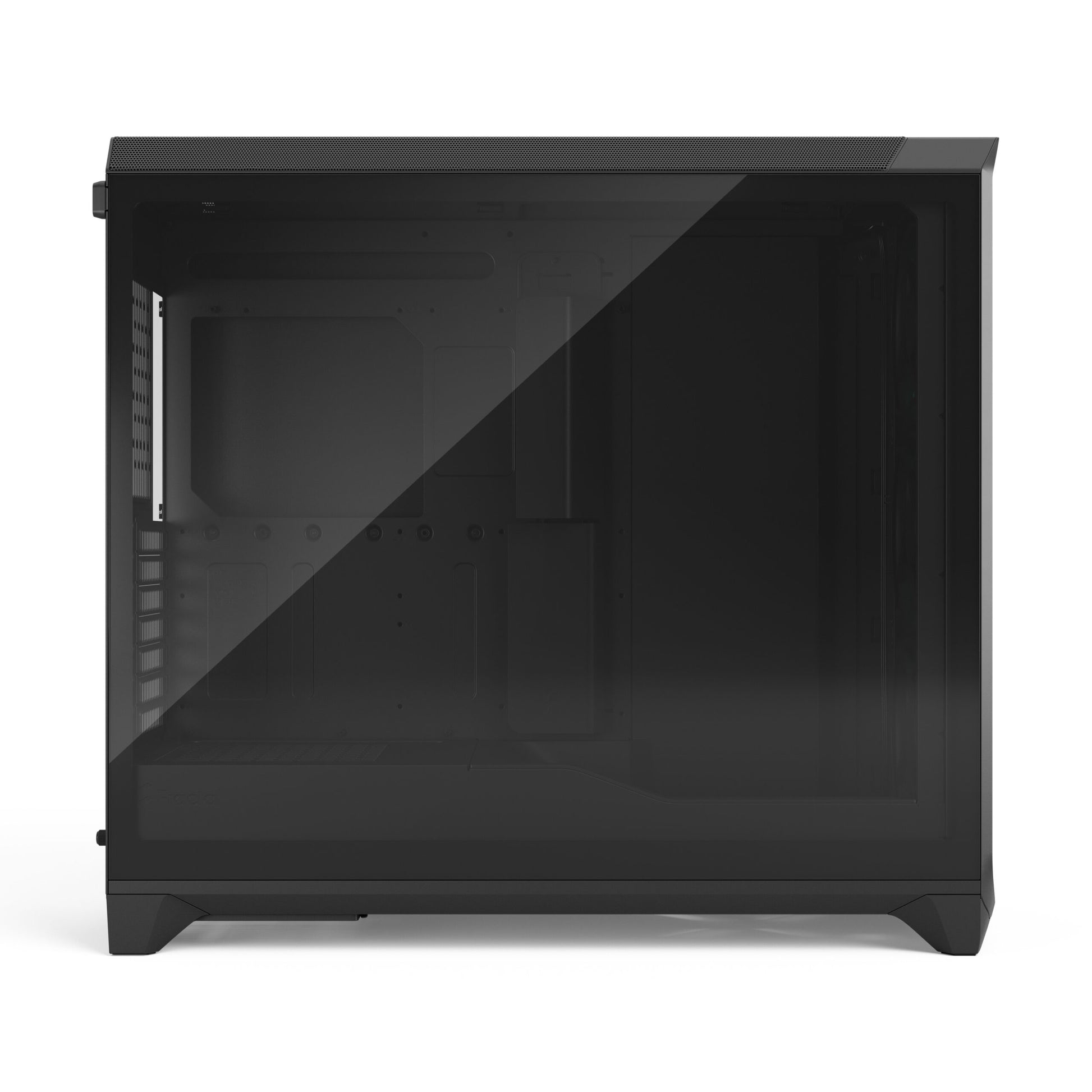

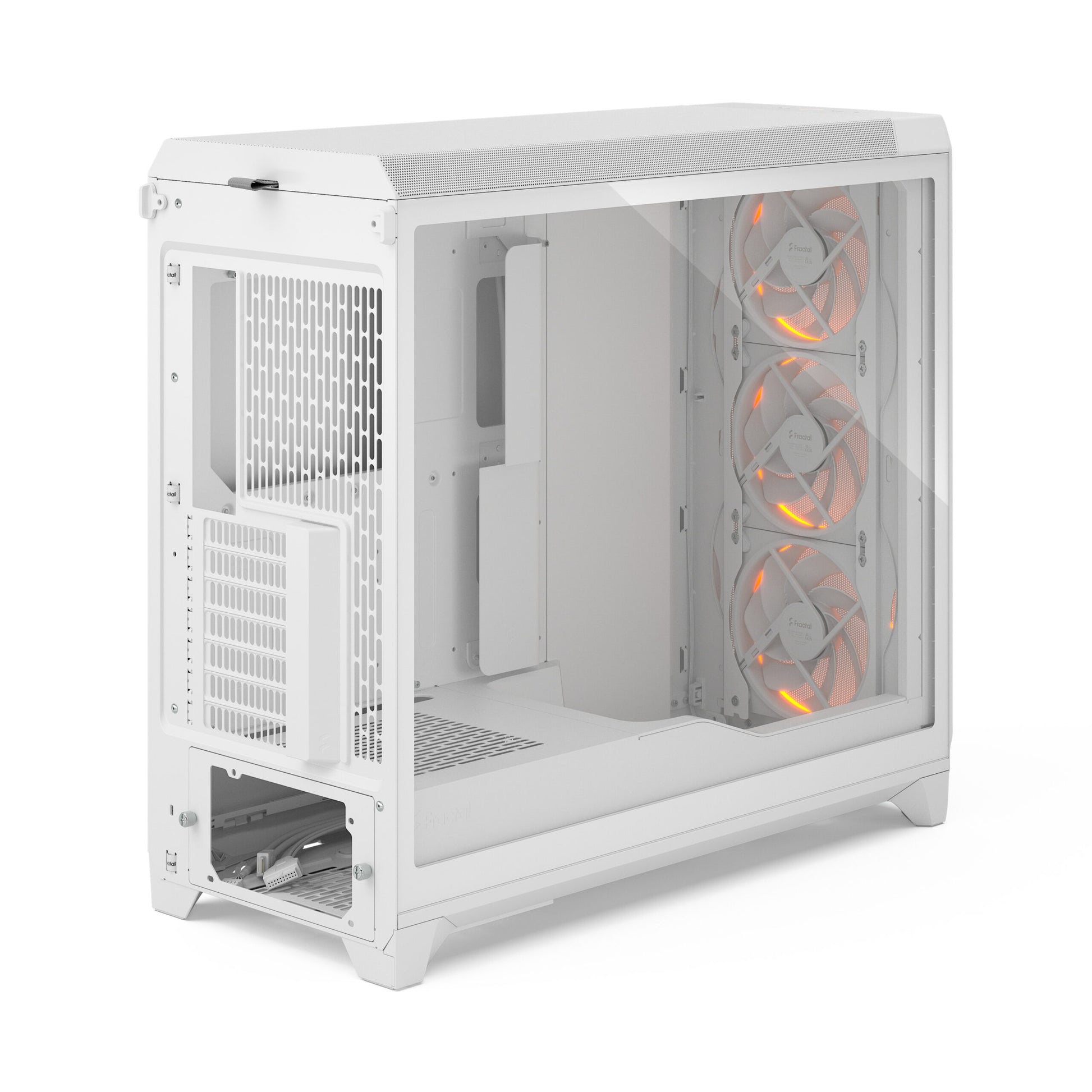

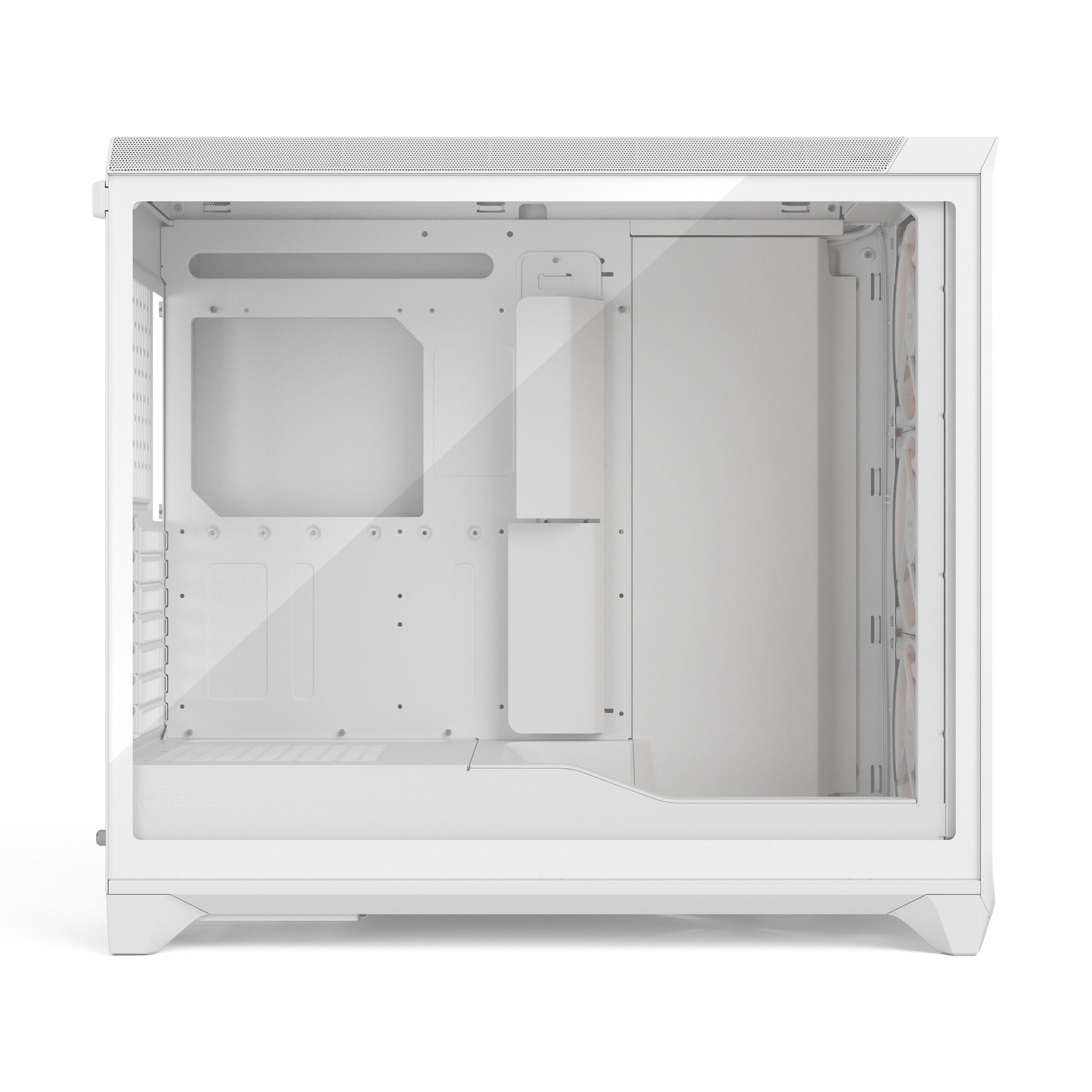

  • Left side panel
    Industrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB)

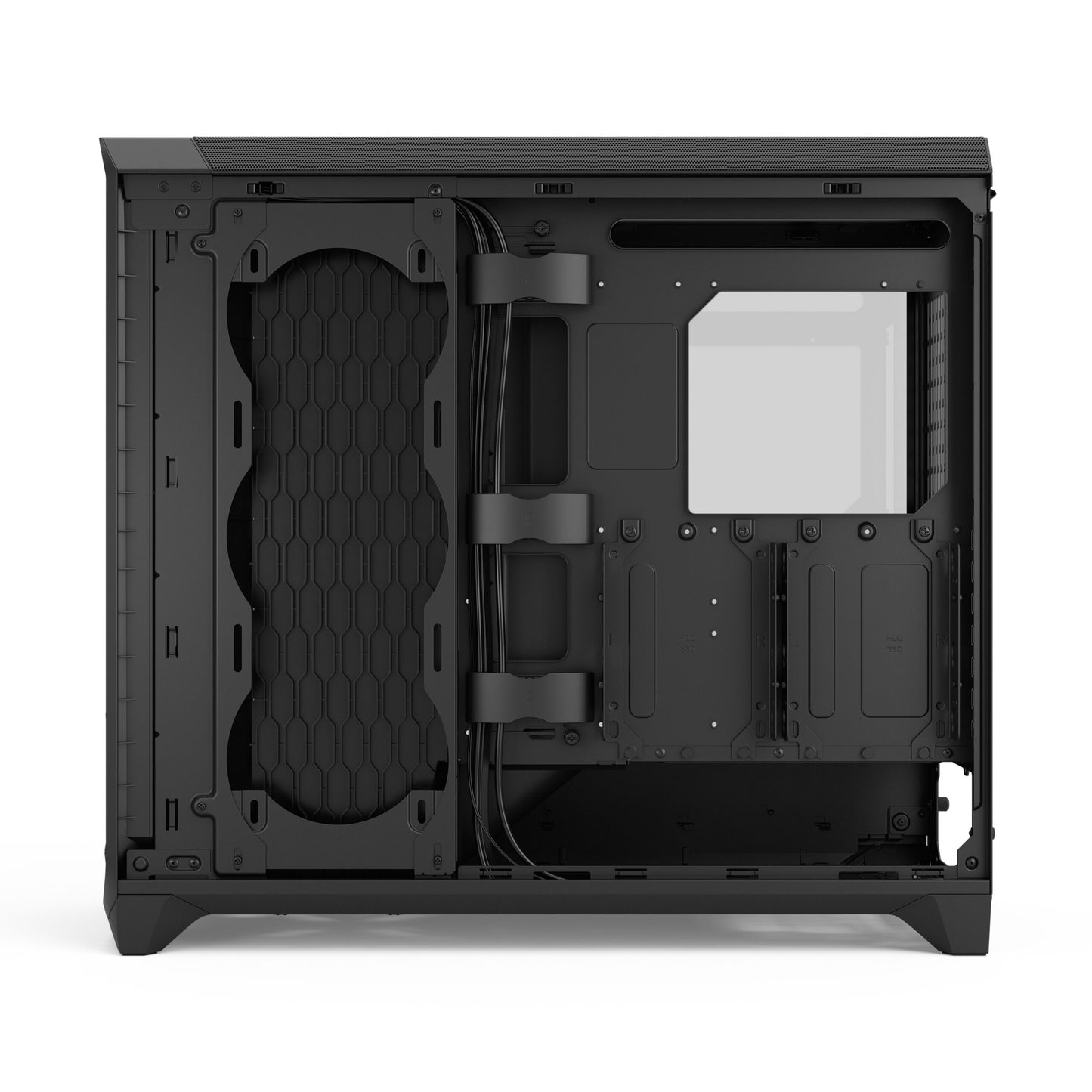

  • Right side panel
    Industrial steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    E-ATX (330 mm) / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB
  • PSU max length
    230 mm
  • GPU max length
    512 mm
  • GPU max height
    189 mm (7 slot) including cables
  • CPU cooler max height
    182 mm
  • Front radiator
    280/360 mm
  • Top radiator
    360/420 (up to 475) mm
  • Rear radiator
    Up to 120/140 mm
  • Side radiator
    360 mm (with brackets)

Dimensions

  • Case dimensions (LxWxH)
    575 x 245 x 515 mm
  • Case dimensions w/o feet/protrusions/screws
    565 x 245x 515
  • Package dimensions
    596 x 350 x 550 mm
  • Net weight
    10.5 kg (Solid) 10.9 kg (TG and RGB) 11.4 kg (Ambience Pro RGB)
  • Gross weight
    12.4 kg (Solid) 13 kg (TG and RGB) 13.3 kg (Ambience Pro RGB)

Other

  • Package contents
    Case, Accessory Box, Manual, Red Note
  • Accessory Box content (Solid/TG/RGB)
    PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8
  • Accessory Box content (Ambience Pro RGB)
    PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable
  • EAN
    Black Solid: 7340172707219 Black TG Light Tint: 7340172707226 Ambience Pro RGB Black TG Light Tint: 7340172707233 Black RGB TG Light Tint: 7340172709527 Ambience Pro RGB White TG Clear Tint: 7340172707240 White RGB TG Clear Tint: 7340172709534
  • UPC
    Black Solid: 843276107215 Black TG Light Tint: 843276107222 Ambience Pro RGB Black TG Light Tint: 843276107239 Black RGB TG Light Tint: 843276109523 Ambience Pro RGB White TG Clear Tint: 843276107246 White RGB TG Clear Tint: 843276109530
  • Product Code
    Black Solid: FD-C-MES3X-01 Black TG Light Tint: FD-C-MES3X-02 Ambience Pro RGB Black TG Light Tint: FD-C-MES3X-03 Black RGB TG Light Tint: FD-C-MES3X-04 Ambience Pro RGB White TG Clear Tint: FD-C-MES3X-05 White RGB TG Clear Tint: FD-C-MES3X-06
  • Warranty
    2 Years
Meshify 3 Meshify 3 XL
Graphics card (max length) 349 mm 512 mm
Graphics card (max height) 176 mm (incl. cables) 189 mm (incl. cables)
PSU max length 180 mm 230 mm
CPU cooler max height 173 mm 182 mm
Cable routing space 34,5 mm 37,5 mm
Top radiator 240/280 mm 360/420 mm
Front radiator 280/360 mm 280/360 mm
Side radiator - 360 mm (with brackets)
Total fan mounts 6x 120 mm or 5x 140 mm + 1x 120 mm 10 (140 mm) / 7 (120 mm)
