Significantly smaller, but just as cool
Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.
The Meshify C Mini – Dark TG has a remarkably compact footprint with the high-end component support of a larger tower, and with six fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match. When performance is top priority and compromise is not an option, Meshify has you covered in style.
Streamlined high-airflow design
-
Angular mesh front panel maximizes air intake
-
Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
-
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
-
Flexible storage options with room for up to five drives
Full interior visiblity
Tinted tempered glass side panel for a clean looking exterior with full interior visibility
Distinctive style
With stealthy black-on-black aesthetic
Easy-to-clean filters
Front, top and base with full PSU coverage and convenient front access
Open to suggestions
-
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
-

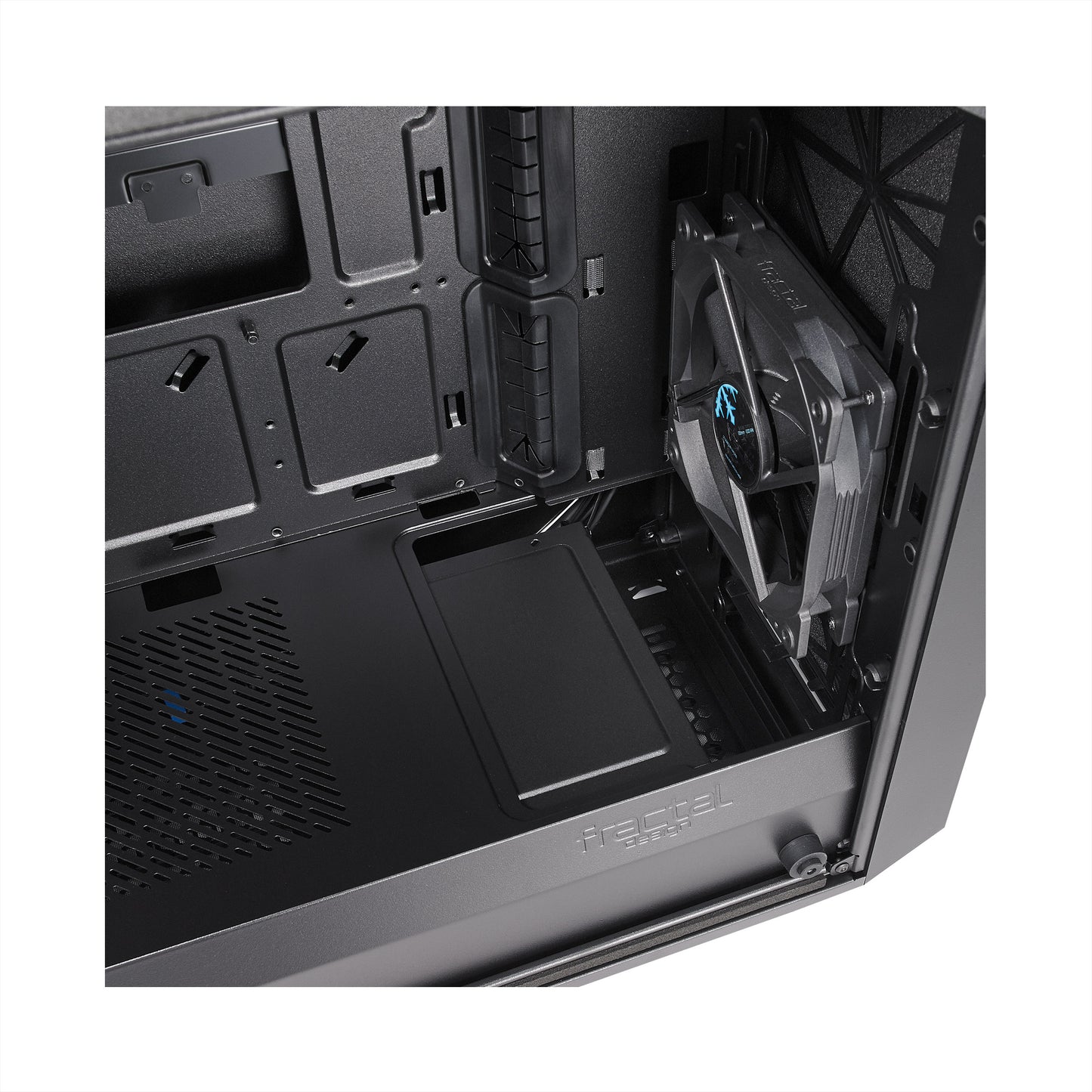

Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
-
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Room for flexibility
-
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
-
Flexible storage options with room for up to five drives
-
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Improved air cooling
-
Whatever your liquid cooling ambitions may be, Meshify C can make it happen with support for radiators up to 280 mm in the front and 240 mm up top
-
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
-
Even the largest enthusiast-class GPUs leave plenty of room for thick dual-fan radiators in the front. The adjustable drive cage can be moved or removed to fit even the longest heavy-duty PSUs\
Specifications
-
3.5" or 2.5" Drive capacity2
-
Dedicated 2.5" drive capacity3
-
Expansion slots5
-
Front ports2x USB 3.0, Audio I/O, Power button, Reset button
-
Total fan mounts7
-
Front fan3x 120 mm or 2x 140 mm (1x Dynamic X2 GP-12 included)
-
Top fan2x 120/140 mm
-
Rear fan1x 120 mm (1x Dynamic X2 GP-12 included)
-
Bottom fan1x 120 mm
-
Dust filtersBottom fan + PSU, Front fans, Top fans
-
Cable routing grommetsYes
-
Fixed velcro strapsYes
-
Captive thumbscrewsBoth side panels, SSD brackets
-
Left side panelTempered glass panel
-
Right side panelSteel
Compatibility
-
Power supply typeATX
-
Motherboard compatibilitymATX, ITX
-
Front radiator120/240 mm, 140/280 mm (max width 144 mm)
-
Top radiator120/240 mm (max component height on motherboard 40 mm)
-
Rear radiator120 mm (max width 125 mm)
-
PSU max length175 mm
-
GPU max length315 mm with front fan mounted
-
CPU cooler max height172 mm
-
Cable routing space15-35 mm
Dimensions
-
Case dimensions (LxWxH)395 x 212 x 399 mm
-
Case dimensions w feet/protrusions/screws409 x 217 x 412 mm
-
Net weight6.28 kg
-
Package dimensions (LxWxH)502 x 295 x 484 mm
-
Package weight7.41 kg
-
Volume33.4 liters
Other
-
Warranty2 Years
-
Package contentsMeshify C Mini – Dark TG computer case, User manual, Accessory box, Top filter
-
EAN7340172700111
-
UPC843276100117
-
Product codeFD-CA-MESH-C-MINI-BKO-TGD
