Node 605

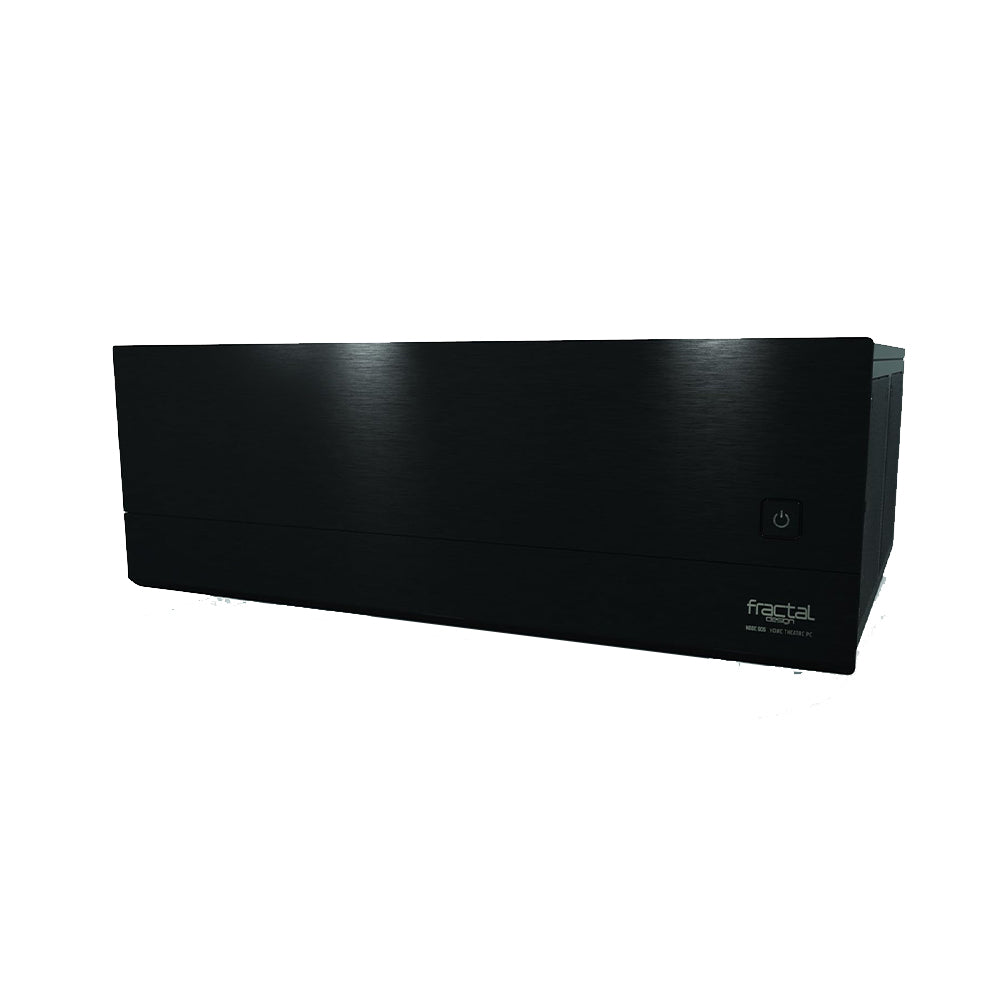

The Node 605 highlights a minimalistic, sleek Scandinavian appeal which is designed to integrate into your home theatre equipment.

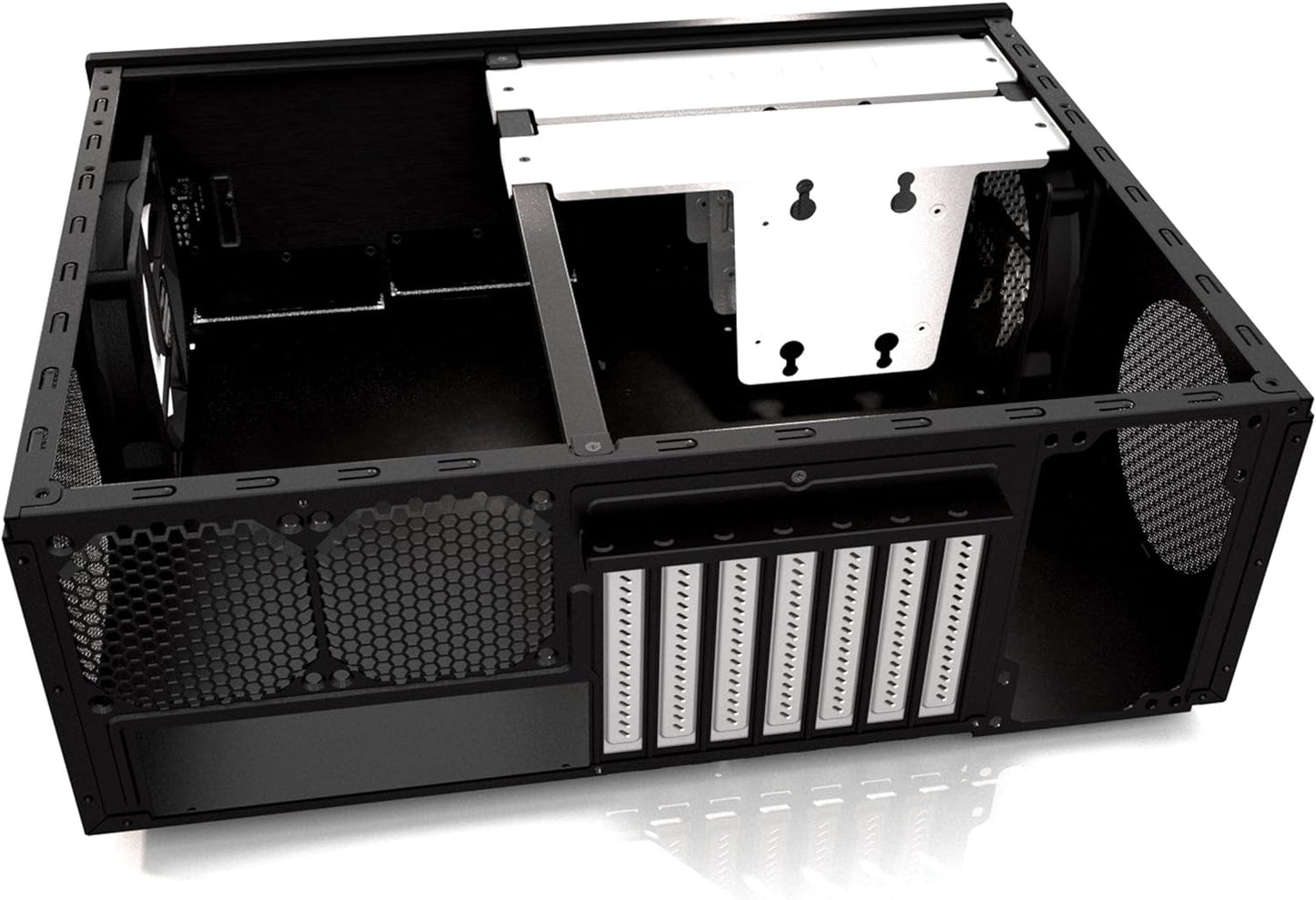

Featuring a stunning exterior appearance accompanied by a modern, black interior with sound and vibration dampening materials, the Fractal Design Node 605 supports a full ATX motherboard as well as a graphics card up to 280mm in length.

Cleverly hidden behind the access panel on the solid 8mm thick aluminum front panel are two USB 3.0 ports, a FireWire port and a multi-format card reader for multiple formats.

Key features

•  Solid aluminum front panel
•  Supports full ATX motherboards
•  Noise-dampening material
•  4 HDD/SSD slots
•  Integrated card reader
•  Two Silent Series R2 hydraulic bearing fans included
•  Supports graphic cards up to 280mm in length (180mm with all hard drives in place)
• USB 3.0 and FireWire front connectors

General Specifications

Motherboard compatibility
• ATX, microATX, Mini ITX, DTX

Front interface
• 2 - USB 3.0
• 1 - FireWire (IEEE 1394)
• 1 - 3.5mm audio in (microphone)
• 1 - 3.5mm audio out (headphone)
• Power button with LED
• HDD LED

HDD / SSD slots
• 4 - supports either 2.5” or 3.5” HDD / SSD

ODD slots
• 1x 12.7mm slim/slimline ODD (only supported with mATX or smaller
motherboards)

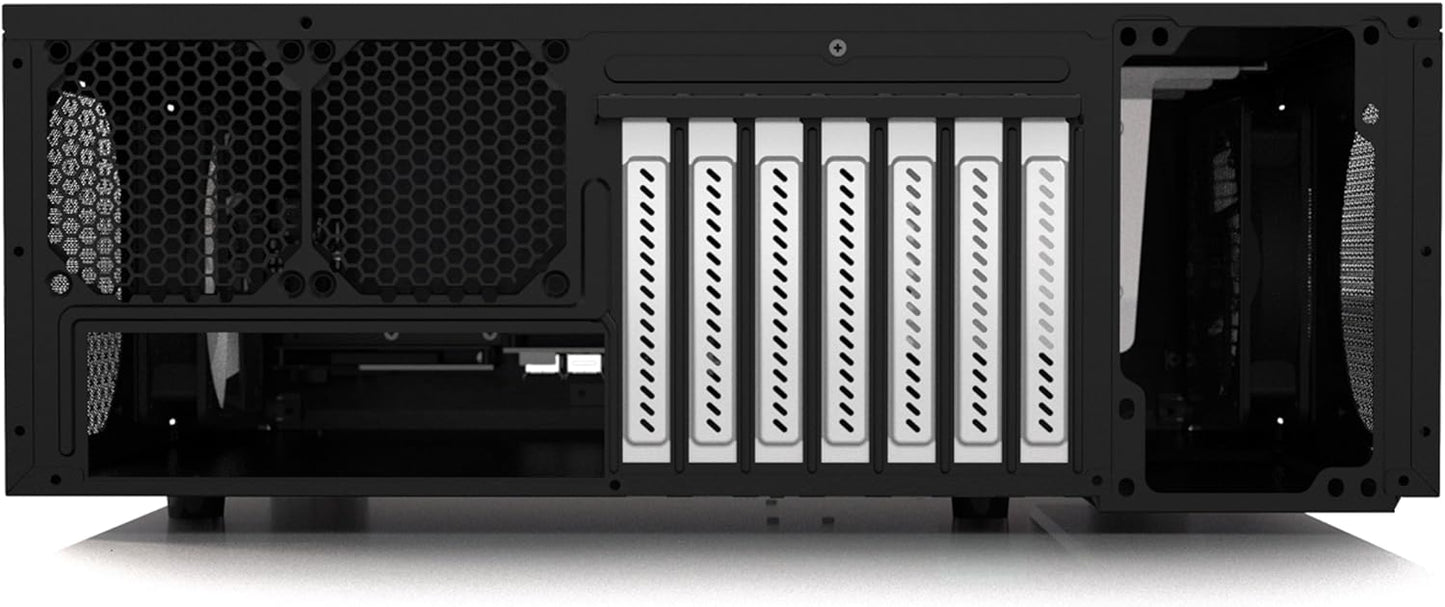

Expansion slots
• 7

PSU compatibility
• 180 mm (including any modular connectors) with both hard drive cages
mounted
• 190 mm (excluding cables and any modular connectors) with one hard
drive cage mounted

Graphics card compatibility

• 180 mm with both hard drive cages mounted
• 255 mm with one hard drive cage mounted
• 290 mm in the top two ATX expansion card slots with two hard drive
cages mounted
• 280 mm in the top four ATX expansion card slots with one hard drive cage
mounted, containing one 3.5” HDD and one 2.5” SSD

Cooling / Ventilation
• 5 (3 - 120mm + 2 - 80mm)
• 2 - 120mm Silent Series R2 hydraulic bearing fans included
• Removable air filters for side fans and PSU
• Integrated 3-channel fan controller

CPU cooler compatibility
• Approx 125 mm with side-mounted fans
• For coolers with top-mounted fans, Fractal Design recommends that you
add at least 30 mm clearance for decent airflow

Net Weight (kg)
• 6,0

Product Dimensions (mm)
• 445 x 164 x 349
• (excluding front panel: 440 x 162 x 341)

Model SKU
• FD-CA-NODE-605-BL

EAN / GTIN-13 code
• 7350041080985

UPC
• 817301010986

Package contents
• Node 605 computer case
• User manual
• Accessory box
